TYAN S5548GM4NED83-4T User manual

http://www.tyan.com
1
S5548
Version 1.0
Copyright
Copyright © 2018 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
Intel®is a trademark of Intel®Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2
Contents
S5548............................................................................................................1
Before you begin…....................................................................................3
Chapter 1: Instruction ................................................................................4
1.1 Congratulations .................................................................................4
1.2 Hardware Specifications....................................................................4
Chapter 2: Board Installation...................................................................12
2.1 Board Image....................................................................................13
2.2 Block Diagram.................................................................................14
2.3 Motherboard Mechanical Drawing...................................................15

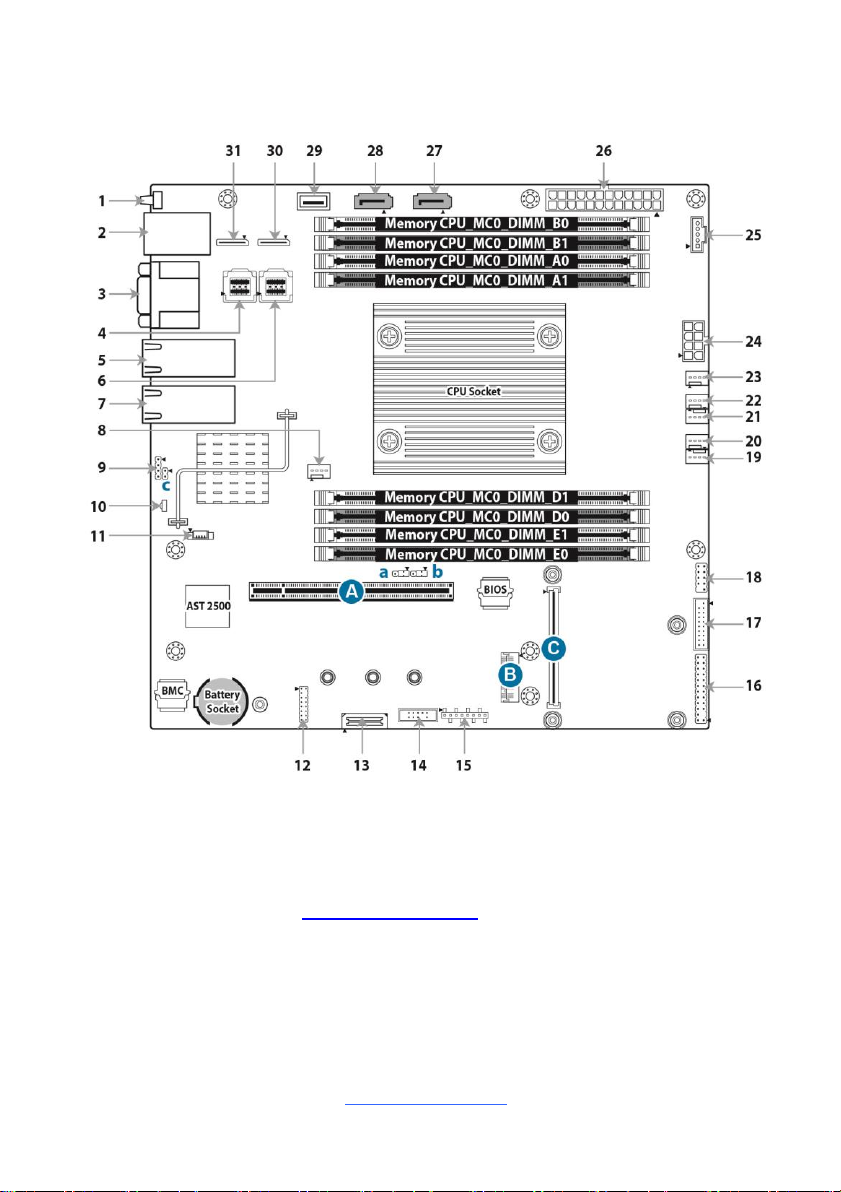

2.4Board Parts, Jumpers and Connectors ...........................................16
2.5Installing the Processor and Heatsink.............................................22
2.6Tips on Installing Motherboard in Chassis ......................................23
2.7Installing the Memory ......................................................................25
2.8Attaching Drive Cables....................................................................29
2.9Installing Add-In Cards....................................................................30
2.10 Connecting External Devices ........................................................31
2.11 Installing the Power Supply...........................................................33
2.12 Finishing Up...................................................................................33
Chapter 3: BIOS Setup .............................................................................34
3.1 About the BIOS................................................................................34
3.2 Main Menu.......................................................................................36
3.3 Advanced Menu...............................................................................37
3.4 Platform Menu.................................................................................69
3.5Socket Configuration.......................................................................80
3.6 Server Management......................................................................110
3.7Security..........................................................................................114
3.8Boot ...............................................................................................119
3.9Save & Exit....................................................................................122
Chapter 4: Diagnostics...........................................................................124
4.1 Flash Utility....................................................................................124
4.2 AMIBIOS Post Code (Aptio)..........................................................125
Appendix I: Fan and Temp Sensors .....................................................132
Glossary...................................................................................................136
Technical Support ..................................................................................142

http://www.tyan.com
3
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1 x S5548 Motherboard
1 x Rear IO shielding
1 x S5548 Quick Installation Guide
2 x SATA Single Cable
IMPORTANT NOTE:
Sales sample may not come with the accessory listed above.
Please contact your sales representative to help order accessory for your
evaluation.

http://www.tyan.com
4
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S5548 motherboard. The S5548 is
designed to support single Intel®Xeon®2nd Generation D-2100 series processors,
and support up to 256GB of ECC RDIMM/ or 512GB of ECC LRDIMM DDR4
memory with the speeds of up to 2133/2400MHz. Leveraging advanced technology
from Intel®, the S5548 is capable of offering scalable 32 and 64-bit computing, high-
bandwidth memory design, and lightning-fast PCI-E bus implementation.
The S5548 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S5548 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can find
all the information on all TYAN®products as well as all the supporting documentation,
FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
S5548GM4NE-D83-4T Specifications
Processor
Q'ty / Socket Type
(1) FCBGA2518
Supported CPU Series
(1) Intel Xeon Processor D-2183IT SoC, 16
Cores
Thermal Design Power
(TDP) Wattage
100W
Notification
CPU soldered on motherboard
Memory
Supported DIMM Qty
(8) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/LRDIMM 2400
Capacity
Up to 256GB RDIMM/ 512GB LRDIMM
*Follow latest Intel DDR4 Memory POR
Memory channel
4 Channels
Memory voltage
1.2V
Expansion Slots
PCI-E
(1) PCI-E Gen3 x16 slot, (1) PCI-E Gen3 x8
storage mezz. slot
LAN
Q'ty / Port
(4) 10GbE ports + (1) PHY dedicated for
IPMI

http://www.tyan.com
5
Controller
Intel X557-AT4
PHY
Realtek RTL8211F
Storage
SATA
Connector
(2) SATA, (2) SFF-8643 for (8)
SATA ports
Controller
N/A
Speed
6.0 Gb/s
RAID
N/A
NVMe
Connector (M.2)
(1) 2280/2260/2242 (by PCI-E &
SATA interface)
Connector
(OCuLink)
(2)SFF-8612 for (2)NVME
Graphic
Connector type
(1) VGA
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
Input /Output
USB
(2) USB3.1 Gen1 ports (at rear)
COM
(1) DB-9 COM Connector
VGA
(1) D-Sub 15-pin VGA port (at rear)
RJ-45
(4) 10GbE ports
Front Panel
(1) 2x12-pin SSI front panel header
SATA
(2) SATA-III connectors + (8) SATA ports by
(2) Mini-SAS (4-in-1) connectors
TPM (Optional)
TPM Support
Please refer to our TPM supported list.
System Monitoring
Chipset
Aspeed AST2500
Fan
Total (5) 4-pin headers
Temperature
Monitors temperature for CPU & memory
Voltage
Monitors voltage for CPU, memory, chipset
& power supply
Others
Watchdog timer support
Server Management
AST2500 iKVM Feature
24-bit high quality video compression,
Supports storage over IP and remote
platform-flash, USB 2.0 virtual hub
AST2500 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC), 10/100/1000 Mb/s MAC
interface
BIOS
Brand / ROM size
AMI, 32MB
Feature
Hardware Monitor, PXE boot support, User
Configurable FAN PWM Duty Cycle,
Console Redirection, ACPI sleeping states
S4,S5, ACPI 6.1, SMBIOS 3.1/PnP/Wake

http://www.tyan.com
6
on LAN
Physical Dimension
Form Factor
Micro ATX
Board Dimension
9.6"x9.6" (243.8x243.8mm)
Regulation
FCC (SDoC)
Class B
CE (DoC)
Class B
Operating
Environment
Operating Temp.
0°C ~ 55°C (32°F~ 131°F)
Non-operating Temp.
- 40°C ~ 70°C (-40°F ~ 158°F)
In/Non-operating
Humidity
90%, non-condensing at 35°C
RoHS
RoHS 6/6 Compliant
Yes
Operating System
OS supported list
Please refer to our AVL support lists.
Package Contains
Motherboard
(1) S5548 motherboard
Manual
(1) Quick Installation Guide
I/O Shield
(1) I/O Shield
Cable
SATA
( (2) SATA signal cables

http://www.tyan.com
7
S5548GM4NE-D43-4T Specifications
Processor
Q'ty / Socket Type
FCBGA2518
Supported CPU Series
(1) Intel Xeon Processor D-2143IT SoC,
8 Cores
Thermal Design Power
(TDP) Wattage
65W
Notification
CPU soldered on motherboard
Memory
Supported DIMM Qty
(8) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/LRDIMM 2133
Capacity
Up to 256GB RDIMM/ 512GB LRDIMM
*Follow latest Intel DDR4 Memory POR
Memory channel
4 Channels
Memory voltage
1.2V
Expansion Slots
PCI-E
(1) PCI-E Gen3 x16 slot, (1) PCI-E
Gen3 x8 storage mezz. slot
LAN
Q'ty / Port
(4) 10GbE ports + (1) PHY dedicated for
IPMI
Controller
Intel X557-AT4
PHY
Realtek RTL8211F
Storage
SATA
Connector
(2) SATA, (2) SFF-8643 for (8)
SATA ports
Controller
N/A
Speed
6.0 Gb/s
RAID
N/A
NVMe
Connector (M.2)
(1) 2280/2260/2242 (by PCI-E
& SATA interface)
Connector
(OCuLink)
(2) SFF-8612 for (2) NVMe
ports
Graphic
Connector type
(1) VGA
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
Input /Output
USB
(2) USB3.1 Gen1 ports (at rear)
COM
(1) DB-9 COM Connector
VGA
(1) D-Sub 15-pin VGA port (at rear)
RJ-45
(4) 10GbE ports
Front Panel
(1) 2x12-pin SSI front panel header
SATA
(2) SATA-III connectors + (8) SATA ports
by (2) Mini-SAS (4-in-1) connectors

http://www.tyan.com
8
TPM (Optional)
TPM Support
Please refer to our TPM supported list.
System Monitoring
Chipset
Aspeed AST2500
Fan
Total (5) 4-pin headers
Temperature
Monitors temperature for CPU &
memory
Voltage
Monitors voltage for CPU, memory,
chipset & power supply
Others
Watchdog timer support
Server Management
AST2500 iKVM
Feature
24-bit high quality video compression,
Supports storage over IP and remote
platform-flash, USB 2.0 virtual hub
AST2500 IPMI Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
10/100/1000 Mb/s MAC interface
BIOS
Brand / ROM size
AMI, 32MB
Feature
Hardware Monitor, PXE boot support,
User Configurable FAN PWM Duty
Cycle, Console Redirection, ACPI
sleeping states S4,S5, ACPI 6.1,
SMBIOS 3.1/PnP/Wake on LAN
Physical Dimension
Form Factor
Micro ATX
Board Dimension
9.6"x9.6" (243.8x243.8mm)
Regulation
FCC (SDoC)
Class B
CE (DoC)
Class B
Operating Environment
Operating Temp.
0°C ~ 55°C (32°F~ 131°F)
Non-operating Temp.
- 40°C ~ 70°C (-40°F ~ 158°F)
In/Non-operating
Humidity
90%, non-condensing at 35°C
RoHS
RoHS 6/6 Compliant
Yes
Operating System
OS supported list
Please refer to our AVL support lists.
Package Contains
Motherboard
(1) S5548 motherboard
Manual
(1) Quick Installation Guide
I/O Shield
(1) I/O Shield
Cable
SATA
(2) SATA signal cables

http://www.tyan.com
9
S5548GM4NE-D23-4T Specifications
Processor
Q'ty / Socket Type
FCBGA2518
Supported CPU Series
(1) Intel Xeon Processor D-2123IT
SoC, 4 Cores
Thermal Design Power
(TDP) Wattage
60W
Notification
CPU soldered on motherboard
Memory
Supported DIMM Qty
(8) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/LRDIMM 2400
Capacity
Up to 256GB RDIMM/ 512GB LRDIMM
*Follow latest Intel DDR4 Memory POR
Memory channel
4 Channels
Memory voltage
1.2V
Expansion Slots
PCI-E
(1) PCI-E Gen3 x16 slot, (1) PCI-E
Gen3 x8 storage mezz. slot
LAN
Q'ty / Port
(4) 10GbE ports + (1) PHY dedicated
for IPMI
Controller
Intel X557-AT4
PHY
Realtek RTL8211F
Storage
SATA
Connector
(2) SATA, (2) SFF-8643 for
(8) SATA ports
Controller
N/A
Speed
6.0 Gb/s
RAID
N/A
NVMe
Connector (M.2)
(1) 2280/2260/2242 (by PCI-
E & SATA interface)
Connector
(OCuLink)
(2) SFF-8612 for (2) NVMe
ports
Graphic
Connector type
(1) VGA
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
Input /Output
USB
(2) USB3.1 Gen1 ports (at rear)
COM
(1) DB-9 COM Connector
VGA
(1) D-Sub 15-pin VGA port (at rear)
RJ-45
(4) 10GbE ports
Front Panel
(1) 2x12-pin SSI front panel header
SATA
(2) SATA-III connectors + (8) SATA
ports by (2) Mini-SAS (4- in-1)
connectors

http://www.tyan.com
10
TPM (Optional)
TPM Support
Please refer to our TPM supported list.
System Monitoring
Chipset
Aspeed AST2500
Fan
Total (5) 4-pin headers
Temperature
Monitors temperature for CPU &
memory
Voltage
Monitors voltage for CPU, memory,
chipset & power supply
Others
Watchdog timer support
Server Management
AST2500 iKVM
Feature
24-bit high quality video compression,
Supports storage over IP and remote
platform-flash, USB 2.0 virtual hub
AST2500 IPMI Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
10/100/1000 Mb/s MAC interface
BIOS
Brand / ROM size
AMI, 32MB
Feature
Hardware Monitor, PXE boot support,
User Configurable FAN PWM Duty
Cycle, Console Redirection, ACPI
sleeping states S4,S5, ACPI 6.1,
SMBIOS 3.1/PnP/Wake on LAN
Physical Dimension
Form Factor
Micro ATX
Board Dimension
9.6"x9.6" (243.8x243.8mm)
Regulation
FCC (SDoC)
Class B
CE (DoC)
Class B
Operating Environment
Operating Temp.
0°C ~ 55°C (32°F~ 131°F)
Non-operating Temp.
- 40°C ~ 70°C (-40°F ~ 158°F)
In/Non-operating
Humidity
90%, non-condensing at 35°C
RoHS
RoHS 6/6 Compliant
Yes
Operating System
OS supported list
Please refer to our AVL support lists.
Package Contains
Motherboard
(1) S5548 motherboard
Manual
(1) Quick Installation Guide
I/O Shield
(1) I/O Shield
Cable
SATA
(2) SATA signal cables

http://www.tyan.com
11
S5548 motherboard Model Variation Table
Model
S5548GM4NE-
D83-4T
S5548GM4NE-
D43-4T
S5548GM4NE-
D23-4T
Processor Name
D-2183IT
D-2143IT
D-2123IT
Number of Cores
16
8
4
Soc TDP
100W
65W
60W
Processor Base Frequency
2.2GHz
2.2GHz
2.2GHz
Maximum Memory
Operating Speed
2400MHz
2133MHz
2400MHz
1.3 - Software Specifications
For OS (operation system) support, please check the TYAN®website for the
latest information.
1.4 - AST2500 User Guide
Remember to visit TYAN®’s Website at http://www.tyan.com for AST2500
user guide.

http://www.tyan.com
12
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
7kgf/cm (6.09 lb/in) on each mounting screw for
motherboard installation.
2. Do not apply power to the board if it has been
damaged.

http://www.tyan.com
13
2.1 Board Image
S5548
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.

http://www.tyan.com
14
2.2 Block Diagram
S5548 Block Diagram

http://www.tyan.com
15
2.3 Motherboard Mechanical Drawing

http://www.tyan.com
16
2.4 Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. The
DIMM slot numbers shown above can be used as a reference when reviewing the
DIMM population guidelines shown later in the manual. For the latest board revision,
please visit our web site at http://www.tyan.com.

http://www.tyan.com
17
Motherboard Components
Connectors & Headers
1. UID Button (SW1)
17. Front USB2.0/USB3.1 (J23)
2. PHY (BMC dedicated )+ USB2.0/USB3.1(J22)
18. Front USB2.0 (J27)
3. VGA Port+ COM Port (J30)
19. 4-Pin Fan Connector (J15,Fan2)
4 Mini-SAS HD Connector (J21)
20. 4-Pin Fan Connector (J16,Fan3)
5. RJ45 LAN Port#1/Port#2 (J39)
21. 4-Pin Fan Connector (J17,Fan4)
6. Mini SAS HD Connector (J20)
22. 4-Pin Fan Connector (J18,Fan5)
7. RJ45 LAN Port#3/Port#4 (J40)
23. 4-Pin Fan Connector (J19,Fan6)
8. 4-Pin FAN Connector (J14)
24. ATX Power Connector 8P (PWR2)
9. BMC Console Header (J25)
25. PSU PMBUS Connector (J42)
10. ID LED (LED1)
26. ATX Power Connector 24P (PWR1)
11. IPMB Connector (J31)
27. SATA 7-Pin Connector (J29)
12. TYAN Module Header (J37)
28. SATA 7-Pin Connector (J28)
13. XDP Connector (J36)
29. USB2.0/USB3.1 Type-A (U40)
14. SGPIO Connector (J34)
30. OCulink Connector (J24) SFF-8612
15. JTAG for CPLD (J33)
31. OCulink Connector (J26) SFF-8612
16. Front Panel Header (Power Button/Reset
Button/HDD Active LED/ Power ON LED) (J11)
Sockets/Chipset
CPU Socket(U7E1)
BMC Socket (U14)
BIOS Socket (U12)
Jumpers
Slots
a. CMOS Clear Jumper (Load BIOS Default Set
Up) (J38)
A. PCIE3.0 Slot x16 (J12)
b ME Recovery Jumper (J43)
B. M.2 (PCIE) Connector (CN1)
C. BMC Flash Security Override Jumper (J10)
C. OCP1.0 Slot x8 (J23784)

http://www.tyan.com
18

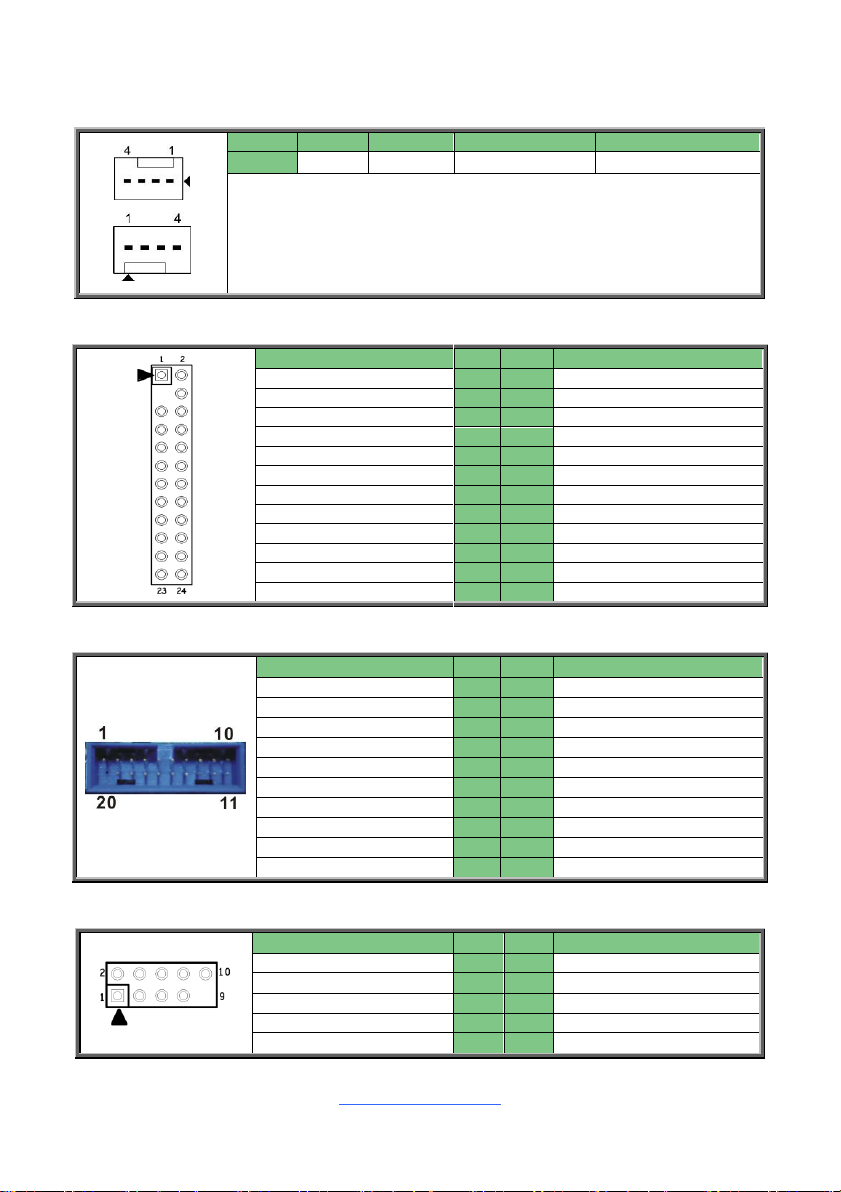

J14 (CPU FAN) / J15 (FAN2) / J16 (FAN3) / J17(FAN4) / J18(FAN5) / J19(FAN6):
4- pin FAN Connector
Pin
1
2
3
4
Signal
GND
VCC12
FAN_TACH1_R
FAN_PWM1_R_OD
Use this header to connect the cooling fan to your motherboard to keep
the system stable and reliable.
Note: A 4-pin fan is required for fan support 4pin Control
J11: Front Panel Header
Signal
Pin
Pin
Signal
FP_PW_LED
1
2
P3V3_AUX
KEY
3
4
FP_ID_LED_PW
FP_PW_LED_GND
5
6
FP_ID_LED_N
HDD_LED_PW
7
8
BMC_SYS_FAULT1_N
HDD_ACT_LED_N
9
10
BMC_SYS_FAULT2_N
FP_PWR_BTN_N
11
12
LAN1_ACT_PW
GND
13
14
LAN1_LED_ACT_N
FP_RST_BTN_N
15
16
FP_SMB_DAT
GND
17
18
FP_SMB_CLK
FP_ID_BTN_N
19
20
FP_CHASSIS_ALERT
GND
21
22
LAN2_ACT_PW
FP_NMI_BTN_N
23
24
LAN2_LED_ACT_N
J23: Front USB3.0 Header
Signal
Pin
Pin
Signal
USB3_INT2_PWR
1
20
Key
USB3_01_INT_RXN
2
19
USB3_INT2_PWR
USB3_01_INT_RXP
3
18
USB3_02_INT_RXN
GND
4
17
USB3_02_INT_RXP
USB3_01_INT_TXN
5
16
GND
USB3_01_INT_TXP
6
15
USB3_02_INT_TXN
GND
7
14
USB3_02_INT_TXP
USB2_01_INT_DN
8
13
GND
USB2_01_INT_DP
9
12
USB2_02_INT_DN
NC_INT_FIO_OC
10
11
USB2_02_INT_DP
J27: USB 2.0 Header
Signal
Pin
Pin
Signal
USB2_IN1_PWR
1
2
USB2_IN1_PWR
USB2_DN1
3
4
USB2_DN2
USB2_DP1
5
6
USB2_DP2
GND
7
8
GND
KEY
9
10
NC

http://www.tyan.com
19
DBG_HD1: TYAN Module Header (Port80 Debug Header)
Signal
Pin
Pin
Signal
P3V3
1
2
LPC_FRAME_N
LPC_LAD0
3
4
KEY
LPC_LAD1
5
6
FM_BDXDE_PLTRST_N_R
LPC_LAD2
7
8
GND
LPC_LAD3
9
10
CLK_33M_TPM
LPC_SERIRQ
11
12
GND
TPM_PRSNT_N
13
14
P3V3_PSU
P3V3
15
16
PU_PCH_GPIO55
J31: IPMB Header
Signal
Pin
Pin
Signal
SMB_IPMB_SDA
1
2
GND
SMB_IPMB_SCL
3
4
P5V_STBY
J34: SGPIO Header
Signal
Pin
Pin
Signal
BMC_TEMP_SENSOR_SCL
1
2
NC
BMC_TEMP_SENSOR_SDA
3
4
SDATAOUT0
GND
5
6
SLOAD
KEY
7
8
SCLOCK
P3V3
9
10
BMC_HDD_FAULT
U40: USB2.0/USB3.1 Type-A Connectors
Signal
Pin
Pin
Signal
+5V
1
2
USB2.0_DATA_N
USB2.0_DATA_P
3
4
GND
USB3.0_RX_N
5
6
USB3.0_RX_P
GND
7
8
USB3.0_TX_N
USB3.0_TX_P
9
J33: JTAG for CPLD For EE update CPLD use
Signal
Pin
Pin
Signal
P3V3_AUX
1
2
JTAG_HOST_TDO
JTAG_HOST_TDI
3
4
JTAG_BMC_NTRST
RST_JTAG_BMC_N
5
6
JTAG_HOST_TMS
GND
7
8
JTAG_HOST_TCK

http://www.tyan.com
20
J42: PSU PMBUS Connector
Pin
1
2
3
4
5
Signal
SCL
SDA
NC
GND
NC
SSATA0(J28)/SSATA1(J29) : 7-pin vertical SATA3.0 Connector(Blue)
7
1
Name
TYPE
S1
GND
S2
SATA TX DP
S3
SATA TX DN
S4
GND
S5
SATA RX DN
S6
SATA RX DP
S7
GND
Connects to the Serial ATA ready drives via the Serial ATA cable.
J25: BMC Console Header
Signal
Pin
Pin
Signal
P3V3
1
2
RXD
TXD
3
4
GND
J38: Clear CMOS Jumper
Normal (Default)
You can reset the CMOS settings by using this jumper. This can be
useful if you have forgotten your system/setup password, or need to
clear the system BIOS setting.
1. Power off system and disconnect power connectors from the
motherboard.
2. Remove the jumper from Pin_2 and Pin_3 (Default setting).
3. Move the jumper cap to close Pin_1 and Pin_2 for several seconds
to Clear CMOS.
4. Put jumper cap back to Pin_2 and Pin_3 (Default setting).
5. Reconnect power connectors to the motherboard and power on
system.
Clear CMOS
J10:Flash security override Jumper
Signal
Pin
Pin
Signal
FLASH_OVRD
1
2
GND
