TYAN TITAN TURBO ATX-2 User manual

Table of Contents
1. Introduction....................................................................... 4
Overview..................................................................... 4
Icons........................................................................... 5
Hardware Specifications/Features................................. 6
Software Specifications.................................................8
Technical Support......................................................... 8
Returning Merchandise for Service................................8
2. Board Installation.............................................................. 10
Unpacking....................................................................10
Installation....................................................................11
3. Onboard Resource Settings.............................................. 12

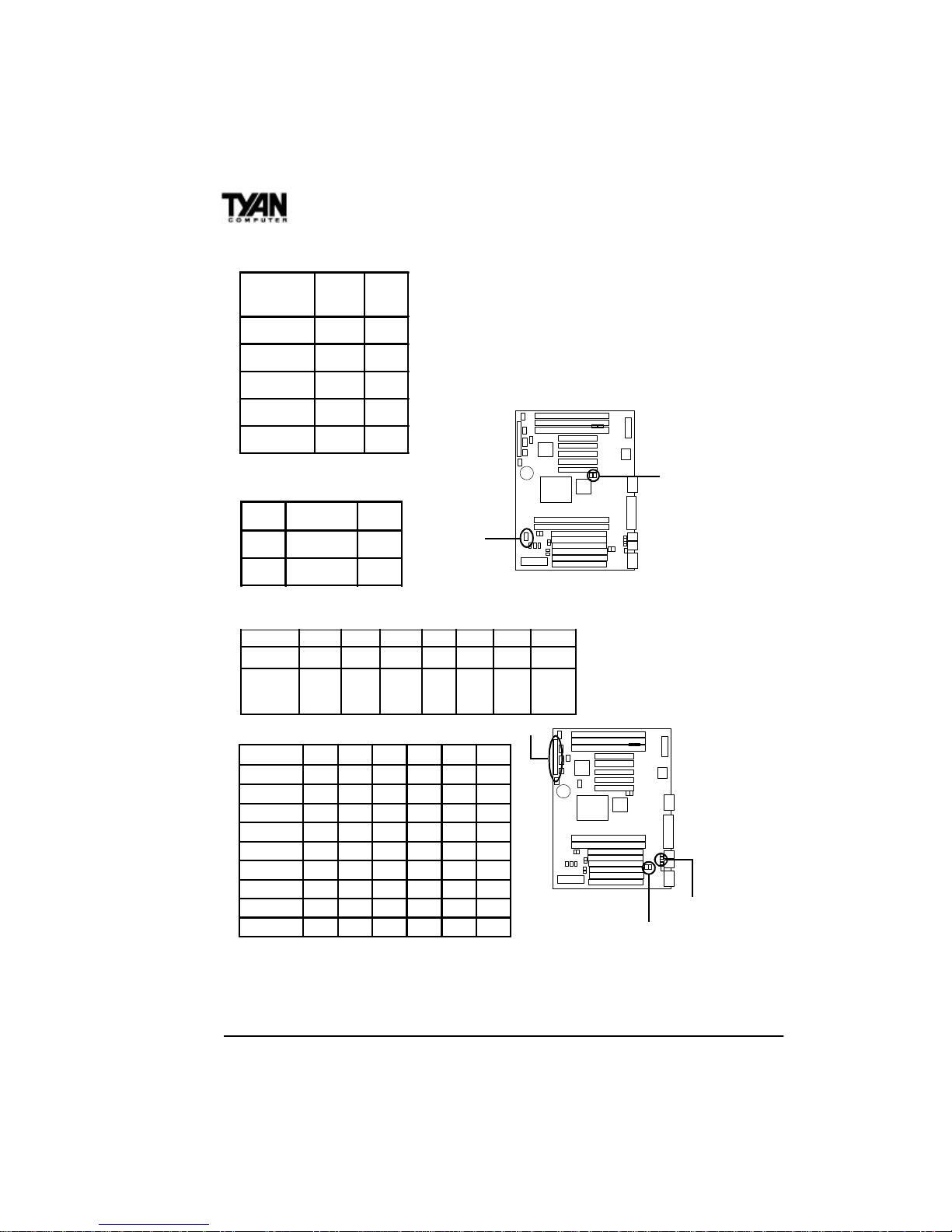

Quick References for Jumpers...................................... 12

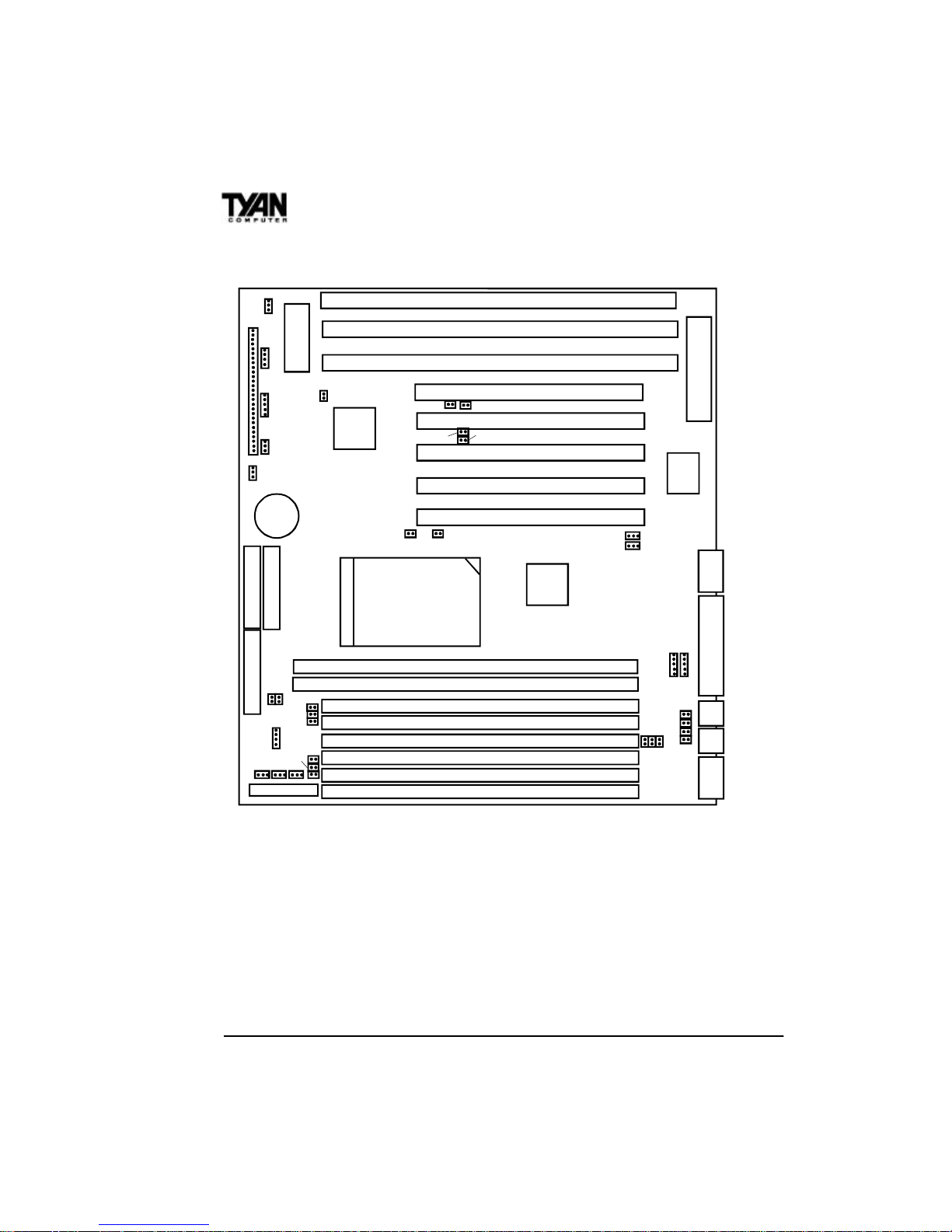

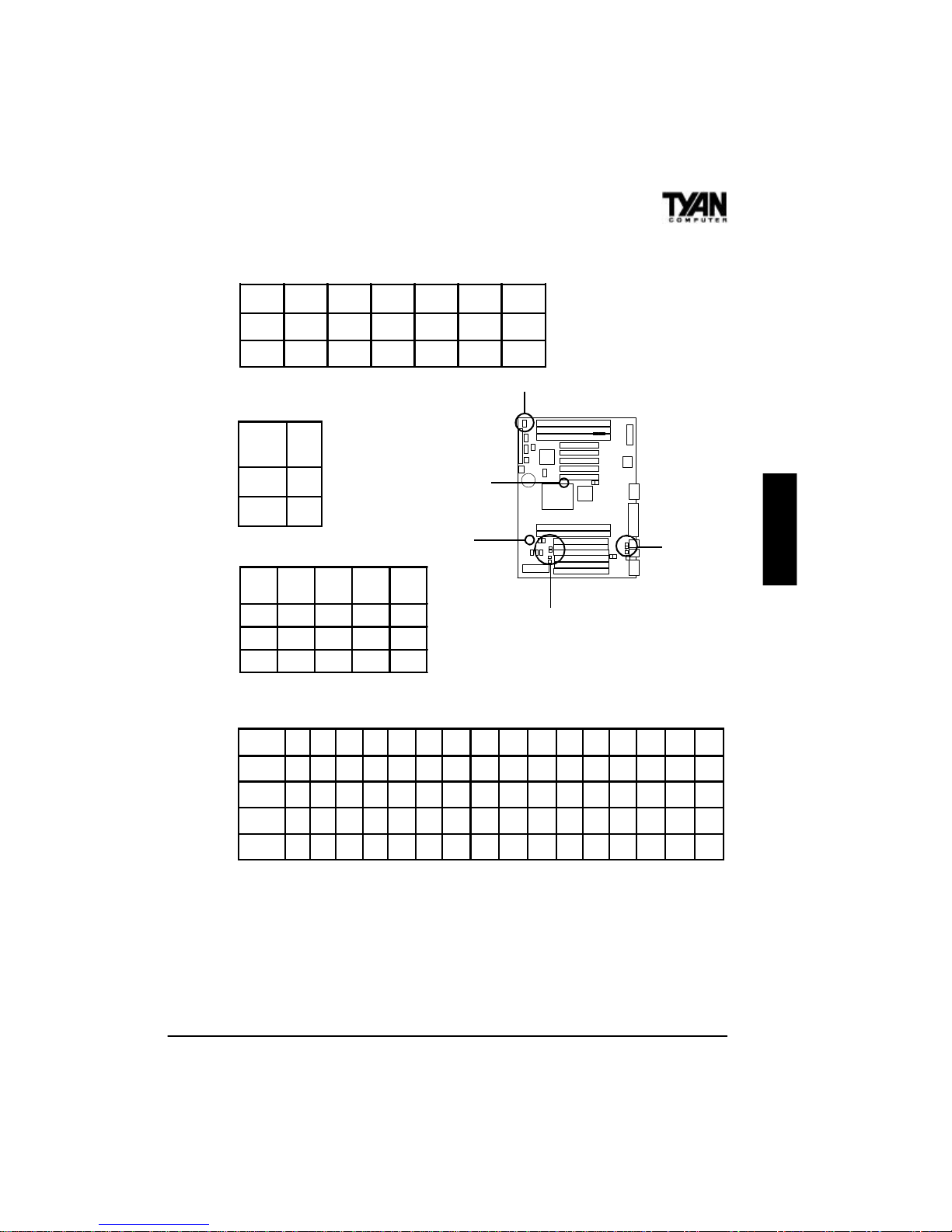

Map of Motherboard Jumpers....................................... 14
CMOS RTC.................................................................18
Soft Power Connector...................................................19
Sleep Button Connector.................................................19
Speaker Connector Installation...................................... 19
Power LED................................................................. 19
Hardware Reset Switch Connector Installation...............19
Flash EEPROM........................................................... 20
Hardware CMOS & Password Reset............................20
DRAM Installation....................................................... 20
CPU Installation........................................................... 22
Cache Memory.............................................................23
Peripheral Device Installation........................................ 23
Connecting the Power Supply........................................ 24
4. BIOS Configuration...........................................................26
Entering Setup..............................................................26
Control Keys................................................................27
Getting Help.................................................................27
The Main Menu........................................................... 27
Standard CMOS Setup Menu........................................ 30
BIOS Features Setup....................................................34
Chipset Features Setup................................................. 38
Power Management Setup............................................ 42
PnP/PCI Configuration................................................. 45

Load BIOS Defaults.....................................................48
Load Setup Defaults..................................................... 49
Integrated Peripherals...................................................50
Supervisor Password and User Password...................... 53
IDE HDD Auto Detection.............................................54
Save & Exit Setup........................................................ 55
Exit Without Saving.......................................................56
5. Flash Writer Utility............................................................ 58
Flash Memory Writer.................................................... 58
The Flash Memory Writer Utility Screen........................ 60
6. System Resources............................................................. 62
Timer and DMA Channel Maps.....................................62
Interrupt Map...............................................................63
POST Messages.......................................................... 63
POST Codes................................................................67

4
Chapter 1
Overview
The S1573S is a quality, high performance mainboard designed for Intel
Pentium microprocessors. This mainboard utilizes the Intel 430TX
chipset and can support CPU speeds of 75MHz through 233MHz. The
S1573S will also support the Cyrix M1/6x86 and M2/6x86MX CPU’s,
the AMD K5/K6 CPU’s, and the Intel multimedia Pentium P55C and
P54CTB (MMX Overdrive) CPU’s.
The S1573S’s PCI Local Bus provides high performance capabilities
that are ideal for a wide range of demanding applications such as CAD,
CAM, CAE, networking, multi-user environments, database manage-
ment, desktop publishing, image processing and 3D animation.
This integrated system board achieves high reliability with numerous
features and yet is small enough to be supported in an ATX form-
factor. Some of the features included are onboard dual channel PCI
PIO, BUS Master IDE and UltraDMA/33, onboard floppy controller,
onboard high speed I/O, and support for pipeline-burst SRAM.
chapter 1
Introduction

5
INTRO
Flexibility and expandability have been designed into the S1573S. With
I/O and drive controller support built onboard, the five PCI and three
ISA slots (one ISA and one PCI as a shared slot) are free for numer-
ous add-on expansion cards.
Remember to take a look at TYAN Computer’s web site located at
http://www.tyan.com. There you can find information on all of TYAN’s
products along with FAQs, distributors list, drivers and CMOS setting
explanations. If you have a tech support question please contact us at
www.tyan.com.
Icons
In order to help you navigate this manual and set up your system, we
have added several icons to our format.
This icon alerts you to particularly important details regard-
ing the setup or maintenance of your system. This icon often
appears next to information that may keep you from damag-
ing your board or system. While we will often point out the most vital
paragraphs in a chapter, you should always read every word in the text.
Failing to do so can lead to exasperation and expense.
Wherever possible, we have included step-by-step instruc-
tions for setting up your system, which are indicated by this
icon. However, it is in your best interest to read an entire
section (and perhaps the entire manual) before you begin to alter the
settings on your motherboard.
While we have alerted you to potential dangers in several
places in this manual with this icon, these warnings should
not be regarded as the whole of your safety regimen.
Never forget that computers are electrical devices, and are capable of
delivering a burn or shock. Prevent damage to yourself and to your
board: always ensure that your system is turned off and unplugged
whenever you are working with it, and that you are equipped with a
static safety device.
!

6
Chapter 1
HardwareSpecifications/Features
Processor Information sZIF Socket #7.
s50-83MHz BUS support (see
disclaimer on page 18).
sPentium/Pentium MMX 75-233MHz.
sAMD K5/K6 75MHz-233MHz.
sCyrix/SGS/IBM 6x86 P120+ to
P200+ (see disclaimer on page 18).
sCyrix 6x86MX support built-in (see
disclaimer on page 18).
Chipset Information sIntel 430TX PCIset.
sFifth generation Pentium chipset.
Voltage and Power sDesign incoporates ATX power
Information supply connector.
s12 V power source for DC fan
onboard.
s3.3V or 5.0V DRAM support.
sSwitching Power Supply onboard.
Main Memory sUp to 256MB on board.
sSix 72-pin SIMM sockets.
sTwo 168-pin DIMM sockets.
sEDO or FPM SIMM support.
sEDO DIMM and SDRAM support.
System Management sWake-on LAN connector.
sOptional LM75 CPU temperature-
sensing chip.
sOptional National LM78 thermal, fan
and heat monitoring chip.
sOptional Intel LANDesk Client
Manager software, and/or Intel
LANDesk Server Manager software
(with LM78 installed).

7
INTRO
Expansion Slots sFive 32-bit PCI Bus Master slots.
sThree 16-bit ISA slots.
sOne shared, seven usable.
Physical Dimensions sATX design.
s8.3 x 12 inches.
BIOS Information sAward Plug and Play flash BIOS.
sDeep Green and Energy Star
compliant.
sACPI, Year 2000, and PC97/98
compliant.
sSoft power-down, multiple boot
options.
sWin98 Ready, DMI 2.0 compliant.
sSupport for easy BIOS upgrades with
flash EEPROM chip.
Disk Drive & System I/O sTwo PCI Bus Mastering EIDE
channels.
sSupports EIDE CD-ROMs.
sPIO Mode 3 & 4 (up to 17MB/sec
DTR).
sUltraDMA33 Bus Mastering Mode
(up to 33MB/sec DTR).
sTwo floppy drives (up to 2.88MB).
sTwo ATX serial ports (16550
UARTs).
sOne ATX ECP/EPP parallel port.
sOne IR (InfraRed) I/O interface
port.
sTwo USB rev 1.2 (universal serial
BUS) ports.
sOne ATX PS/2 mouse port
connector.
sOne ATX PS/2 keyboard connector.

8
Chapter 1
SoftwareSpecifications
Operating System sOperates with MS-DOS, Windows
3.x, Windows for WorkGroups 3.x,
Windows 95, Windows NT, OS/2,
Novell Netware, Solaris, and SCO
Unix.
Information presented in this publication has been carefully checked for
reliability. However, no responsibility is assumed for inaccuracies. The
information contained in this document is subject to change without
notice.
TechnicalSupport
If a problem arises with your system, you should first turn to your
dealer for help. Your system has most likely been configured by them,
and they should have the best idea of what hardware and software
your system contains. Hence, they should be able to be of the most
assistance. Further, if you purchased your system from a dealer near to
you, you can actually bring your system in to them to have it serviced,
instead of attempting to yourself (which can have expensive conse-
quences). If your dealer is unable to assist you:
Try our web page – http:// www.tyan.com,
or user newsgroup – alt.comp.periphs.mainboard.tyan.
ReturningMerchandiseforService
During the warranty period, contact your distributor or system vendor
FIRST for any product problems. This warranty only covers normal
customer use and does not cover damages incurred during shipping or
failure due to the alteration, misuse, abuse, or improper maintenance of
products.

9
For Resellers Only:
A receipt or copy of your invoice marked with the date of purchase is
required before any warranty service can be rendered. You can obtain
service by calling the manufacturer for a Return Merchandise Authori-
zation (RMA) number. The RMA number should be prominently
displayed on the outside of the shipping carton and the package should
be mailed prepaid, or hand-carried to the manufacturer. Shipping and
handling charges will be applied for all orders that must be mailed when
service is complete.
Trademarks
Award BIOS/Flash are trademarks of Award Software International,
Inc.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium are trademarks of Intel Corporation.
Titan Turbo S1573S ATX-2 is a trademark of TYAN Computer
Corporation.
All other trademarks are the property of their respective companies.
INTRO

10
Chapter 2
chapter 2
Board Installation
Unpacking
The mainboard package should contain the following:
•S1573SMainboard
•One IDE 40 pin cable
•One 34 pin floppy cable
•User’s Manual
The mainboard contains sensitive electric components which can be
easily damaged by static electricity, so the mainboard should be left in
its original packaging until it is ready to be installed.
With the power supply plugged in and turned off, touch an unpainted
area of the system chassis immediately before handling the mainboard
or any component. Doing so discharges any static charge your body
may have acquired.
After opening the mainboard carton, extract the system board-holding it
by its edges-and place it on a grounded anti-static surface, component
side up. Inspect the board for damage. Press down on any of the
