Tank™ GT24
B5383
Service Engineer’s Manual

Table of Contents
Chapter 1: Overview
1.1 About the Tank™ GT24 B5383…...………………….……...…….… 1
1.2 Product Models…………………..……………………….………....... 2
1.3 Features……………………………………………………………….. 3
1.4 Unpacking………………………………….……..………................... 5

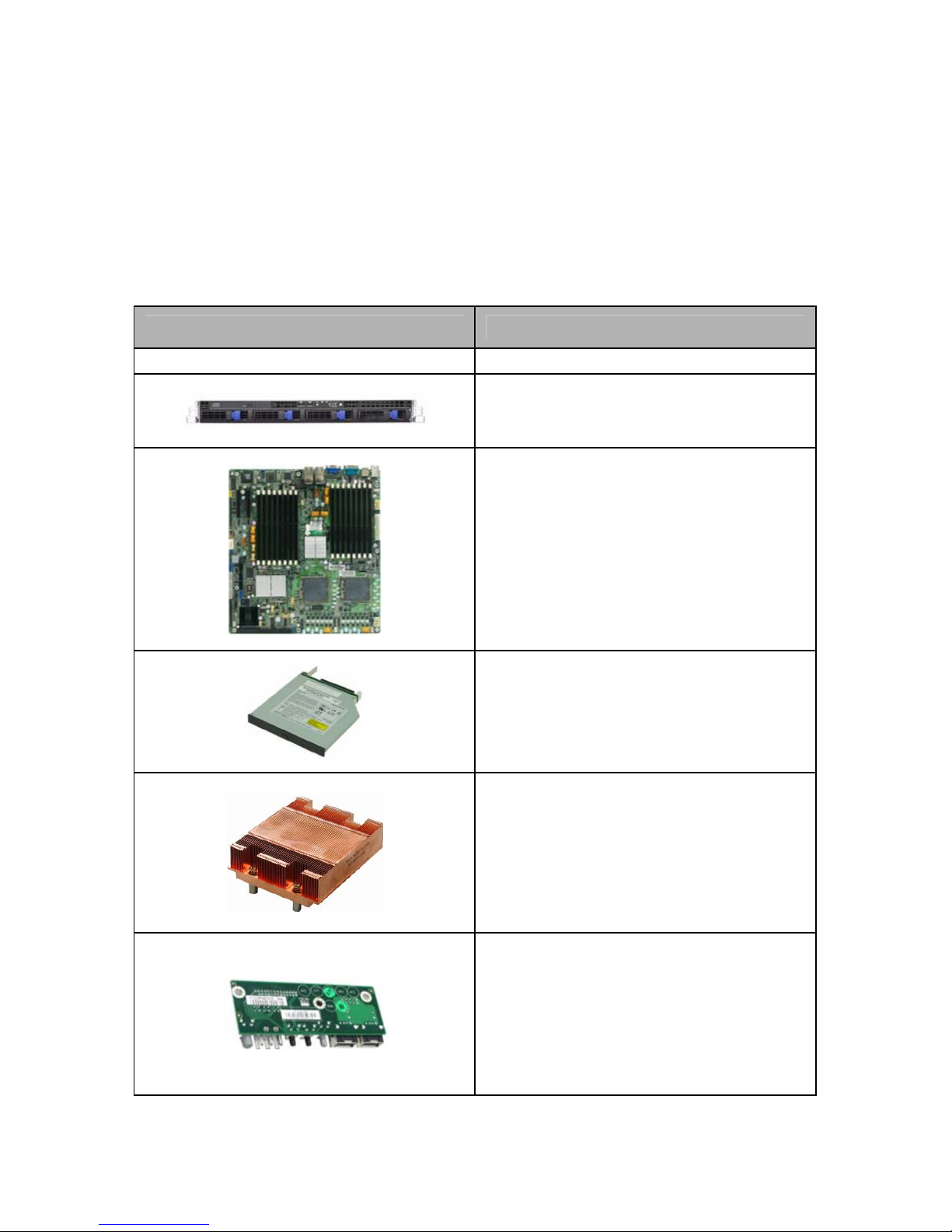

1.4.1 Box Contents……………………...……………………………. 5
1.4.2 Accessories……………………………………………………... 7
1.5 About the Product……….………………………..……....................... 9
1.5.1 System Front View…………………………..…………………. 9
1.5.2 System Rear View………………………………….................... 9

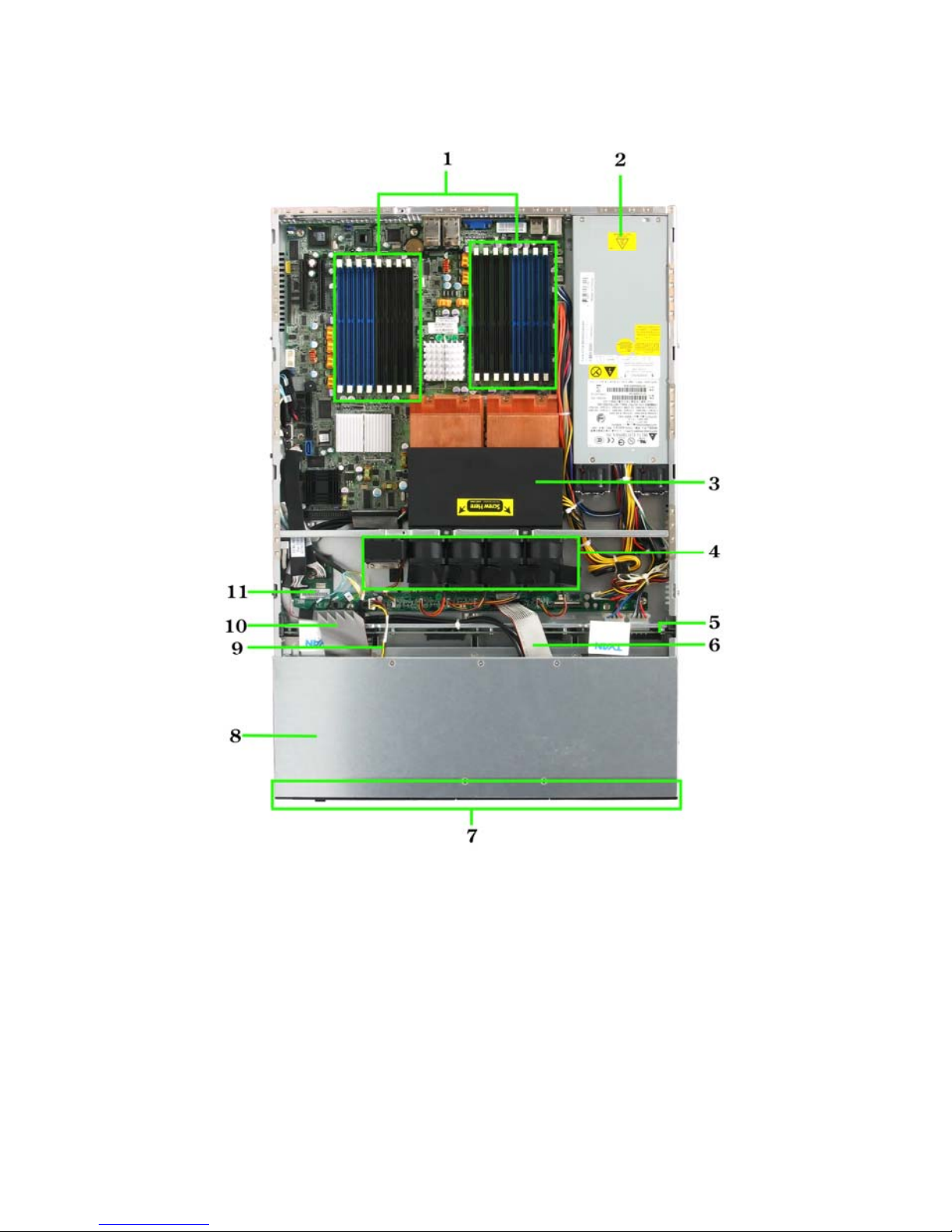

1.5.3 Internal View…………………………………………………… 12
1.5.4 Motherboard Layout…………………………............................. 13
1.5.5 Jumpers & Connectors……………………………………......... 14
1.5.6 System Block Diagram……......................................................... 15
Chapter 2: Setting Up
2.0.1 Before You Begin………..…………………………................... 16
2.0.2 Work Area…………………………………………………….... 16
2.0.3 Tools …………….……………………....................................... 16
2.0.4 Precautions …………………………………………………...... 17
2.1 Rack Mounting………………….......................................................... 18
2.1.1 Installing the Server in a Rack………………............................. 18
2.2 Installing Motherboard Components...………………..………............ 23
2.2.1 Removing the Chassis Cover…………………………………... 23
2.2.2 Installing the CPU and Heatsink……………………………….. 24
2.2.3 Installing the Memory……………..…………………………… 27
2.3 Installing the Hard Drive……….….…………………………………. 30
2.4 Installing the Optional Floppy Drive ………………...……................. 32
Chapter 3: Replacing Pre-Installed Components
3.1 Introduction…………………………………………………………… 34
3.1.1 Work Area…………………………………………………….... 34
3.1.2 Tools…………………………………………….………............ 34
3.1.3 Precautions……………………………………………………... 35
3.2 Disassembly Flowchart…………………………..…………………… 36
3.3 Removing the Cover……………………………..…….……………... 37
3.4 Replacing Motherboard Components……………..………………….. 38
3.4.1 Disconnecting All Motherboard Cables…………………........... 38

3.4.2 Removing the Motherboard…………………………………….. 40
3.5 Replacing the Slim DVD-ROM……..…………………....................... 41
3.6 Replacing the LED Control Board..…………………………………... 43
3.6.1 M1003 LED Control Board Features…………………………... 45
3.6.2 M1003 LED Control Board Connector Pin Definition………… 46
3.7 Replacing the M1012 Adapter Board…………………………............ 47
3.7.1 M1012 Adapter Board Features for B5383…………………...... 48
3.7.2 M1012 Adapter Board Connector Pin Definition……………… 49
3.8 Replacing the SAS/SATA (M1208) Backplane…………………........ 53
3.8.1 SAS/SATA Backplane (M1208) Features……………………... 55
3.9 Replacing the Power Supply……..…………........................................ 57
3.9.1 Replacing the 650W Power Supply…………………………….. 57
3.9.2 Replacing the 600W Power Supply…………………………….. 59
Appendix I: BIOS Differences
Appendix II: Cable Connection Table
Appendix III: Installing SMDC Card
Appendix IV: Installing M1000

PREFACE
Copyright
This publication, including all photographs, illustrations, and software, is
protected under international copyright laws, with all rights reserved.
Neither this manual, nor any material contained herein, may be
reproduced without written consent of manufacturer.
Copyright 2007
Version 1.00
Disclaimer
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to
printing. TYAN assumes no liability whatsoever, and disclaims any
express or implied warranty, relating to sale and/or use of TYAN
products including liability or warranties relating to fitness for a particular
purpose or merchantability. TYAN retains the right to make changes to
product descriptions and/or specifications at any time, without notice. In
no event will TYAN be held liable for any direct or indirect, incidental or
consequential damage, loss of use, loss of data or other malady
resulting from errors or inaccuracies of information contained in this
document.
Trademark Recognition
All registered and unregistered trademarks and company names
contained in this manual are property of their respective owners
including, but not limited to the following.
TYAN and Tank™GT24 B5383 are trademarks of TYAN Computer
Corporation.
Interl, Xeon, and combinations thereof are trademarks of Intel
Corporation.
Phoenix, PhoenixBIOS, and combinations thereof are trademarks of
Phoenix Technologies.
Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
i

Federal Communication Commission (FCC)
Notice for the USA Compliance Information
Statement (Declaration of Conformity
Procedure) DoC FCC Part 15: This device
complies with part 15 of the FCC Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference;
2) This device must accept any interference received including
interference that may cause undesired operation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the receiver.
– Plug the equipment into an outlet on a circuit different from that of
the receiver.
Consult the dealer on an experienced radio/television technician for
help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference
as specified in the Canadian Department of Communications Radio
Interference Regulations. (Cet appareil est conforme aux norms de
Classe B d’interference radio tel que specifie par le Ministere
Canadien des Communications dans les reglements d’ineteference
radio.)
Notice for Europe (CE Mark)
This product is in conformity with the Council
Directive 89/336/EEC, 92/31/EEC (EMC).
CAUTION: Lithium battery included with this board. Do not puncture,
mutilate, or dispose of battery in fire. Danger of explosion if battery is
incorrectly replaced. Replace only with the same or equivalent type
recommended by manufacturer. Dispose of used battery according
to manufacturer instructions and in accordance with your local
regulations.
ii

About this Manual
This manual provides you with instructions on installing your
Tank™GT24-B5383. This Manual is intended for experienced
users and integrators with hardware knowledge of personal
computers.
This manual consists of the following parts:
Chapter1: Provides an introduction to the GT24 B5383
barebones, packing list, describes the
external components, gives a table of key
components, and provides block diagrams of
the system.
Chapter2: Covers procedures on installing the CPU,
memory modules, hard drives and Slim FDD
(optional).
Chapter3: Covers removal and replacement
procedures for pre-installed components.
Appendix I: Describes the differences between
mainboard BIOS and system BIOS.
Appendix II: Listing the cable connection tables for
reference of system setup.
Appendix III: Covers procedures on installing the SMDC
Card.
Appendix IV: Covers procedures on installing M1000.
iii

SAFETY INFORMATION
Before installing and using the Tank™GT24-B5383, take note of the
following precautions:
–
Read all instructions carefully.
–
Do not place the unit on an unstable surface, cart, or stand.
–
Do not block the slots and opening on the unit, which are
provided for ventilation.
–
Only use the power source indicated on the marking label.
If you are not sure, contact the power company.
–
The unit uses a three-wire ground cable, which is equipped
with a third pin to ground the unit and prevent electric
shock. Do not defeat the purpose of this pin. If you outlet
does not support this kind of plug, contact your electrician
to replace your obsolete outlet.
–
Do not place anything on the power cord. Place the power
cord where it will not be in the way of foot traffic.
–Follow all warnings and cautions in this manual and on the
unit case.
–Do not push objects in the ventilation slots as they may
touch high voltage components and result in shock and
damage to the components.
–When replacing parts, ensure that you use parts specified
by the manufacturer.
–When service or repairs have been done, perform routine
safety checks to verify that the system is operating
correctly.
–Avoid using the system near water, in direct sunlight, or
near a heating device.
–Cover the unit when not in use.
iv

Chapter 1: Overview

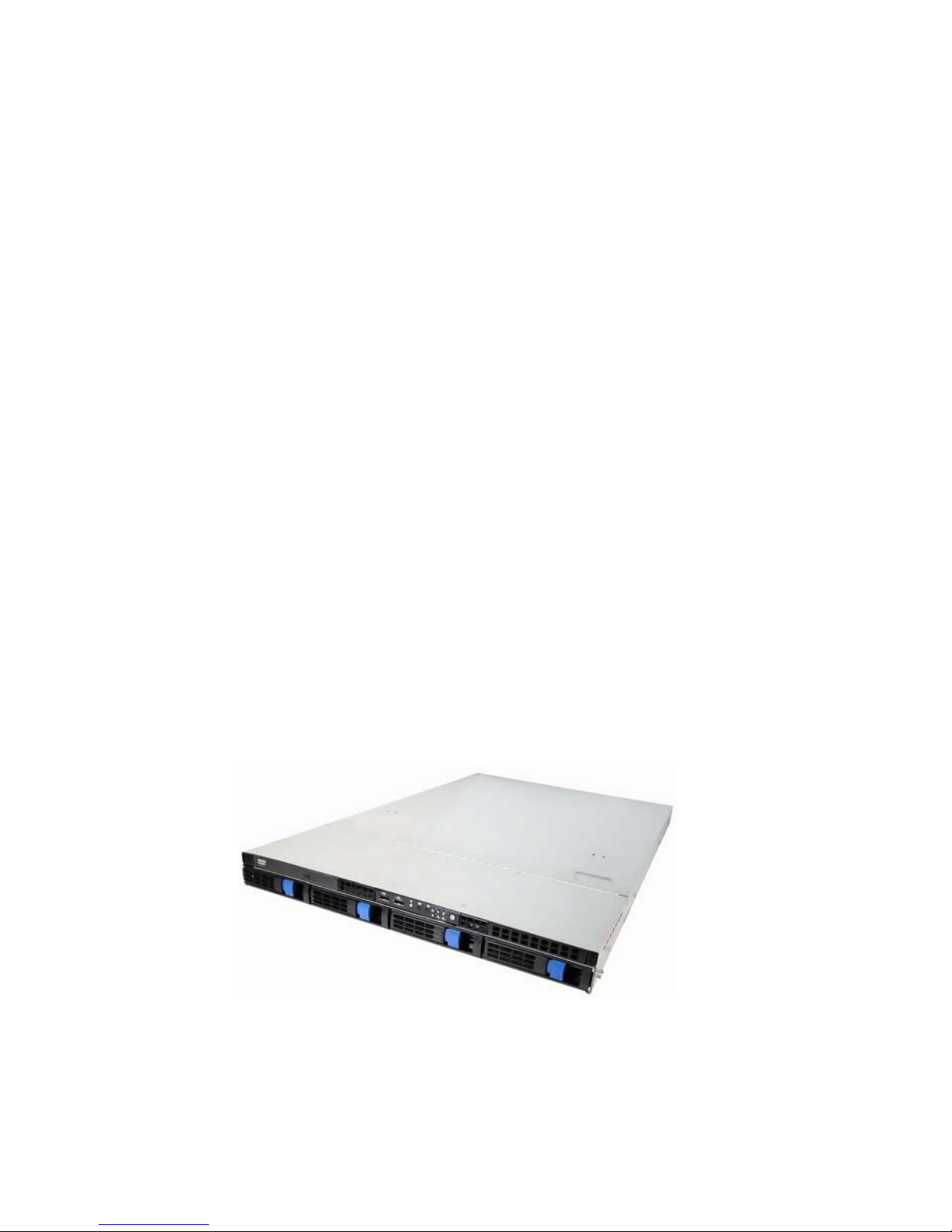

1.1 About the Tank™ GT24 B5383
Congratulations on your purchase of the TYAN Tank™GT24
B5383, a highly-optimized rack-mountable barebone system.
The Tank™GT24 B5383 is designed to support dual Intel®
Dempsey/Woodcrest/Clovertown processors, providing a rich
feature set and incredible performance. Leveraging advanced
technology from Intel, the Tank™ GT24 B5383 server system
is capable of offering scalable 32 and 64-bit computing,
supporting up to 64GB DDR2-533/667 FBDIMM. The Tank™
GT24 B5383 not only empowers your company in today’s
demanding IT environment but also offers a smooth path for
future application usage.
TYAN is also proud to deliver the Tank™ GT24 B5383 in
SATAII/SAS flavor while supporting up to four (4) hot-swap
hard drives, one (1) slim DVD-ROM, and one (1) optional slim
floppy disk drive. The Tank™ GT24 B5383 uses TYAN’s
latest tooling-made chassis featuring a robust structure,
tool-less and modularized design, and a solid mechanical
enclosure. All of this provides the Tank™ GT24 B5383 the
power and flexibility to meet the needs of nearly any server
application.
Chapter 1: Product Overview
1

1.2 Product Models
Model HDD Bay HDD
Supported Backplane Motherboard
B5383G24W4H Removable,
4 HDDs SAS 4-port SAS/SATAII S5383WG4NR
2
Chapter 1: Product Overview

1.3 Features
Enclosure
•Industry 19” rack-mountable 1U
chassis
– (1) slim DVD-ROM bay
– (4) 3.5” HDD bay
•Dimension:
D25.4 x W 17.2 x H1.72 inch
(645 x 436 x 43.6mm)
Processors
•Dual LGA771 Socket
•Supports up to two Intel®
“Dempsey/Woodcrest/Clovertown”
processors
•1333/1066/667 MT/s FSB
•VRD11.0
Chipset
•Intel® ‘Blackford’ MCH + 6321ESB
chipset
•Supports for 1333/1066/667 MT/s
FSB
•Winbond 83627HF super I/O chip
Memory
•(16) 240-pin DDRII FBDIMM on
board
•Maximum of 64GB DDRII-533/667
Back I/O Ports
•(1) PS/2 Mouse & (1) Keyboard
port
•(1) 9-pin UART Serial port
•(1) 15-pin VGA port
•(2) USB2.0 ports
•(4) RJ45 10/100/1000 Base-T port
with activity LED
Front Panel Features
•I/O
– (2) USB2.0 ports
•LED indicators
– Power LED
– (2) LAN LEDs (for 2 port LAN
from Intel Gilgal (82563EB))
– HDD Active LEDs (only for HDD
connected to SATA connector)
– ID LED
– Warning LED
•Switches
–Power
–Reset
–ID
–NMI
Integrated Storage Controller
•Onboard LSI 1068E SAS Controller
Storage
•Support (4) hot-swappable SAS
HDD with RAID 0,1 and 1E support;
•Pre-installed (1) slim type
DVD-ROM
Networking
•One Intel® ‘Gilgal’ (82563EB) PHY.
¾Direct link to ESB2
¾Two Gigabit LAN ports
•One Intel® ‘Gilgal’ (82571EB) PHY.
¾Link to MCH
¾Two Gigabit LAN ports
Video
•ATI ES1000
•PCI Interface
•32MB DDR memory
Motherboard
•TYAN Tempest i5000PT S5383
•SSI/Extended ATX (13” x 12”)
•EPS12V/SSI (24 + 8 + 4pin) power
connectors
BIOS
•Phoenix® 8Mbit LPC Flash ROM
•Supports APM 1.2, ACPI 1.0b
•Serial Console Redirect
•PXE via Ethernet, USB device boot
Chapter 1: Product Overview
3

•PnP, DMI2.0 WfM2.0 power
management
•User-configurable H/W monitoring
•Auto-configuration of hard disk
types
•Multiple boot options
•48-bit LBA support
Sever Management
•Automatic fan speed control
•Support Tyan Server
Management (TSM)
•Optional TYAN SMDC kit, IPMI
2.0 compliant
System Cooling
•(4) 40*40*56mm 14500rpm
system fans
•(1) 40*40*28mm 14000rpm
system fan
•(2) passive CPU heatsinks
Power Supply
•PS 12V, 1U, 650W/600W with PFC
•100V~240V AC input
Regulatory
•FCC Class B (Declaration of
Conformity)
•CE (Declaration of Conformity)
Environment Temperature
•Operating temperature: 5°C ~ 35°C
•Non-operating temperature:
-40°C ~ 70°C
4
Chapter 1: Product Overview

1.4 Unpacking
This section describes the Tank™GT24 B5383 package contents
and accessories. Open the box carefully and ensure that all
components are present and undamaged. The product should arrive
packaged as illustrated below.
1.4.1 Box Contents
Component Description
Industry standard 1U chassis, (4)
hot-swap HDD bays
Tyan S5383 system board
(pre-installed)
1 x slim DVD-ROM drive
(pre-installed)
2 x Heatsink
M1003：
LED and USB control board
(pre-installed)
Chapter 1: Product Overview
5

Component Description
Air Duct
(4) System fans (40mm x 40mm x
56mm)
(1) System fans (40mm x 40mm x
28mm)
M1012 Adapter Board
M1208 SAS/SATA Backplane
EPS 1U 650W with PFC
EPS 1U 600W with PFC
6
Chapter 1: Product Overview

1.4.2 Accessories
If any items are missing or appear damaged, contract your retailer or
browse to TYAN’s website for service：
http://www.tyan.com
The Web site also provides information on other TYAN products,
plus FAQs, compatibility lists, BIOS settings, and more.
1 x Tyan Barebone Drive CD Barebone Manual &
Motherboard Manual
SMDC Kit HDD Screws
Mounting Ears & Screws Power Cables
Left to right: Europe, US
SMDC Cable
Chapter 1: Product Overview
7

Rail Kit
Mounting Bracket x 4 Screw Kit
Sliding Rail x 2 Sliding Brackets Front L-Bracket x 2
Rear L-Bracket x 2
FDD Kit
FDD Backplane Cable FDD Cable
FDD Rails & Screws
8
Chapter 1: Product Overview

1.5 About the Product
The following views show you the product.
1.5.1 System Front View
The following views show you the product.
1.5.2 System Rear View
Power Supply Socket
PS/2 Mouse/Keyboard Ports
LAN2 Port LAN3 Port
LAN4 Port
LAN1 Port
USB Ports
Serial Port
VGA Port
DVD-ROM Drive
Hard Drive Bay x 4
USB Ports
Power Switch
ID LED
2 x LAN LEDs
ID Switch
NMI Switch
Reset Switch
Power LED
HDD Activity LED
Warning LED
Chapter 1: Product Overview
9

LED Definition
Front Panel
LED Color State Description
Power Green
——
ON
OFF
Power ON
Power OFF
HDD Activity Amber
——
Blinking
OFF
HDD access activity
No disk activity
LAN1/LAN2 Linkage
Green
Green
——
ON
Blinking
OFF
LAN Linked
LAN Accessing
No LAN link
Warning
Red
Red
Red
——
ON
ON
ON
OFF
Fan failure
Over Temperature
Voltage failure
Normal
Hot Swappable HDD
Tray Power LED
Green
——
ON
OFF
HDD connected
HDD disconnected
Hot Swappable SATA
HDD Access LED
Amber
——
Blinking
OFF
HDD access activity
No disk activity
Hot Swappable SAS
HDD Access LED
Amber
Amber
Random Blinking
On
HDD access activity
No disk activity (HDD ready)
ID LED Blue
——
ON
OFF
System identified
System not identified
LAN 1 Port →Onboard LAN 1
LAN 2 Port →Onboard LAN 2
10
Chapter 1: Product Overview

Rear I/O LED
LED Color State Description
RJ45 NIC1 Linkage
(Left Side)
Green
Green
——
ON
Blinking
OFF
LAN Linked
LAN Accessing
No LAN link
RJ45 NIC1 Mode
(Right Side)
Amber
Amber
Amber
——
Blinking 3
Blinking 2
Blinking 1
OFF
Gigabit mode
100M mode
10M mode
No LAN link
RJ45 NIC2 Linkage
(Left Side)
Green
——
ON
OFF
LAN Linked
LAN Accessing
No LAN link
RJ45 NIC2 Mode
(Right Side)
Amber
Amber
Amber
——
Blinking 3
Blinking 2
Blinking 1
OFF
Gigabit mode
100M mode
10M mode
No LAN link
ID LED Blue
——
ON
OFF
System identified
System not identified
Chapter 1: Product Overview
11

1.5.3 Internal View
1. Memory Slots 7. Four SATA/SAS HDD Bays
2. Power Supply 8. Slim DVD-ROM
3. CPU Air Duct 9. DVD Power Cable
4. System Fans 10. DVD-ROM Cable
5. SAS/SATA Backplane (M1208) 11. M1012 Adapter Card
6. LED Control Board Cable
12
Chapter 1: Product Overview
