TYAN Transport GX18 B3095 User manual

Transport GX18
B3095
Service Engineer’s Manual

i
PREFACE
Copyright
This publication, including all photographs, illustrations, and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor any
material contained herein, may be reproduced without written consent of the manufac-
turer.
Copyright 2007
Version 1.0
Disclaimer
Information contained in this document is furnished by TYAN Computer Corporation
and has been reviewed for accuracy and reliability prior to printing. TYAN assumes
no liability whatsoever, and disclaims any express or implied warranty, relating to sale
and/or use of TYAN products including liability or warranties relating to fitness for a par-
ticular purpose or merchantability. TYAN retains the right to make changes to product
descriptions and/or specifications at any time, without notice. In no event will TYAN be
held liable for any
direct or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this document.
Trademark Recognition
All registered and unregistered trademarks and company names contained in this man-
ual are property of their respective owners including, but not limited to the following.
TYAN and Transport GX18 B3095 are trademarks of TYAN Computer Corporation.
Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.
AMD, Opteron, Athlon, and combinations thereof are trademarks of AMD Corporation.
Phoenix, AwardBIOS, PhoenixBIOS, and combinations thereof are trademarks of
Phoenix Technologies.
Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.

ii
Federal Communications Commission (FCC)
Notice for the USA Compliance Information Statement (Declaration of
Conformity Procedure) DoC FCC Part 15: This device complies with
part 15 of the FCC Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that
may cause undesired operation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and the receiver.
— Plug the equipment into an outlet on a circuit different from that of the
receiver.
Consult the dealer on an experienced radio/television technician for help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference as speci-
fied in the Canadian Department of Communications Radio Interference Regula-
tions. (Cet appareil est conforme aux norms de Classe B d’interference radio tel
que specifie par le Ministere Canadien des Communications dans les reglements
d’ineteference radio.)
Notice for Europe (CE Mark) This product is in conformity with the
Council Directive 89/336/EEC, 92/31/EEC (EMC).
CAUTION: Lithium battery included with this board. Do not puncture, mutilate, or
dispose of battery in fire. Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by manufacturer.
Dispose of used battery according to manufacturer instructions and in accordance
with your local regulations.

iii
About this Manual
This manual provides you with instructions on installing your Transport GX18
B3095. This manual is intended for experienced users and integrators with hard-
ware knowledge of personal computers.
This manual consists of the following parts:
— Chapter 1: Descrives features of the Transport GX18 B3095 bare-
bone, and provides an overview of the system and packing
list.
— Chapter 2: Covers procedures on installing the mainboard components
and rack mounting.
— Appendix: Compares the differences between mainboard BIOS and
system BIOS. The technical support section also provides
helpful information of system maintenance and service.
For information on the mainboard, please refer to the attached mainboard user’s
manual. You can find the detailed description about jumper and BIOS settings from
the motherboard manual.

iv
SAFETY INFORMATION
Before installing and using the Trophy NR18 B3095, take note of the following
precautions:
— Read all instructions carefully.
— Do not place the unit on an unstable surface, cart, or stand.
— Do not block the slots and opening on the unit, which are provided for
ventilation.
— Only use the power source indicated on the marking label. If you are not sure,
contact the Power Company.
— The unit uses a three-wire ground cable, which is equipped with a third pin to
ground the unit and prevent electric shock. Do not defeat the purpose of this
pin. If your outlet does not support this kind of plug, contact your electrician to
replace your obsolete outlet.
— Do not place anything on the power cord. Place the power cord where it will
not be in the way of foot traffic.
— Follow all warnings and cautions in this manual and on the unit case.
— Do not push objects in the ventilation slots as they may touch high voltage
components and result in shock and damage to the components.
— When replacing parts, ensure that you use parts specified by the
manufacturer.
— When service or repairs have been done, perform routine safety checks to
verify that the system is operating correctly.
— Avoid using the system near water, in direct sunlight, or near a heating device.
— Cover the unit when not in use.

v
Table of Contents
Chapter 1: Overview
1.1 About the Trophy NR18 B3095 1-1
1.2 Features 1-2
1.3 Accessories 1-5
1.4 Product View 1-6
Chapter 2: System Setup
2.1 Installing Motherboard Components 2-3
2.1.1 Removing the Chassis Cover 2-3
2.1.2 Installing CPU and Heatsink 2-4
2.1.3 Installing Memory 2-6
2.1.4 Installing the HDD 2-7
2.1.5 Installing PCI Card (optional) 2-10
2.2 Rack Mounting 2-12
Appendix: BIOS Differences A-1
Technical Support A-2

vi

1-1
Chapter 1: Overview

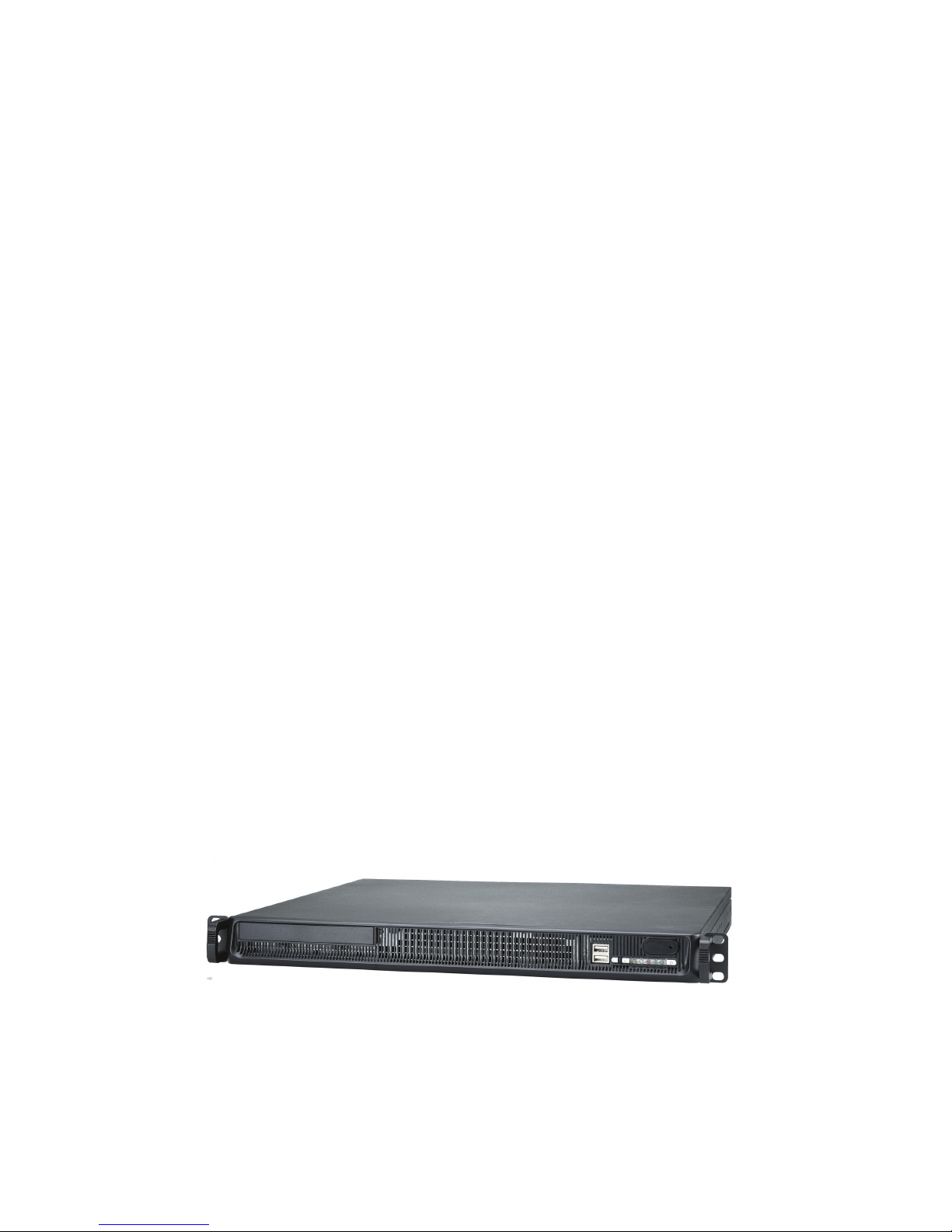

1.1 About the Transport GX18 B3095
Congratulations on your purchase of the TYAN Transport GX18 (B3095),
a highly-optimized rack-mountable barebone system. The Transport GX18
(B3095) is designed to support single Intel® Yonah/Merom 2.33GHz pro-
cessor with 667/533MHz FSB, providing a rich feature set and incredible
performance. Leveraging advanced technology from Intel, the Transport
GX18 server system is capable of offering scalable 32 and 64-bit comput-
ing, high-bandwidth memory design, and a lightning-fast PCI bus imple-
mentation. The Transport GX18 not only empowers your company in to-
day’s demanding IT environment but also offers a smooth path for future
application usage.
The Transport GX18 uses TYAN’s latest tooling-made chassis featuring a
robust structure, tool-less and modularized design, and a solid mechanical
enclosure. All of this provides the Transport GX18 the power and flexibility
to meet the needs of nearly any server application.

1-2
1.2 Features
Enclosure
— Industry 1U rack-mount chassis
— Dimension: W 17.13” x D 15.47” x H 1.73”
(W 435mm x D 393mm x H 43.5mm)
— HDD Tray: 3.5” SATA HDD x 2
Processor
— Intel 479-pin socket x 1, support single Intel Yonah/Merom 2.33GHz
CPU or higher
— Supports FSB 667/533MHz
Chipset
— Intel 945GM Memory Controller Hub
— Intel ICH7M-DH I/O Controller Hub
— Intel 82551QM FE LAN Controller
— Intel 82573V PCI-E Gigabit LAN Controllers
Memory
— 240-pin DDR2 socket x 2, supports 128MB, 256MB, 512MB, 1GB memory
— Dual channel memory bus
— Supports unbuffered DDR2 667/533/400 memory
Graphics
— Integrated Graphics support
Expansion Slot
— PCI 32bit slot x 1, support external output PCI card with 1-to-1 Riser Card
(optional)
Storage
— Supports 50-pin Compact Flash Type II x 1
— Supports 3.5” SATA HDD x 2

1-3
Front Panel I/O Ports
— Serial port with D-Sub 9 pin connector x 1
— D-Sub 15 pin VGA Port x 1
— Two USB 2.0 ports with a dual-stacked USB connector + RJ-45 x 1
— RJ-45 GbE LAN connector includes Transformer & LED x 2 (Dual Stacked)
— Dual PS2 ports for Keyboard & Mouse
— DVI-D connector x 1
— S-Video connector x 1
System Management
— System Fan speed control and tachometer monitoring
— Monitoring voltages for CPU, Memory & Power Supply
— Monitoring temperature for CPU & environment
BIOS
— AWARD BIOS® with 8Mbit Flash ROM
— Power-on mode control for AC power loss recovery
— WOL and PXE supported (by Intel 82551QM only)
System Cooling
— Passive Al CPU Heatsink x 1
— 4020 (8000rpm) System Fan x 2 + CPU Fan Duct x 1
Power Supply
— 250W Single Power Supply with PFC
— 100V ~ 264V AC input
EMC & Safety
EMC:
— FCC, CE Class B, C-Tick, VCCI compliant
Acoustic
— Full-Loading: under 40dB (measure point: 100cm away from IO)

1-4
Environmental Temperature
— Operating temperature: 5oC ~ 35oC
— Non-operating temperature: -40oC ~ 70oC
Accessories
— 1-to-1 PCI Riser Card x 1 (optional)
— Al CPU Heatsink x 1
— Power Cord x 1
— Extended Mounting Plate
— SATA Cable x 2
LED Daughter Board Definitions
Function Remark
LED Power on indication x 1 Blue
HDD activity indication x 1 Yellow
Alarm indication x 1 Red
Button Power on x 1
Reset x 1
IO USB 2.0 x 2 Dual Stack
LED Definition
LED Color State Description
Front Panel
Power Blue
OFF
ON
OFF
Power ON
Power OFF
Alarm Red
OFF
ON
OFF
Fault Detect
Normal Status
HDD Activity Yellow
OFF
Blinking
OFF
HDD Access Activity
No Disk Activity

1-5
1.3 Accessories
Open the package carefully and check if all accessories are present. If any
of the items is missing or damaged, contact your local dealer for replace-
ment.
extended plates and screws
heatsink
ears and screws
MB & HDD screws
power cord
driver CD
B3095 Manual
(Barebone)
B3095 Quick Guide
SATA cables
S3095 Manual
(Mainboard)

1-6
1.4 Product View
This section shows the product from different angles.

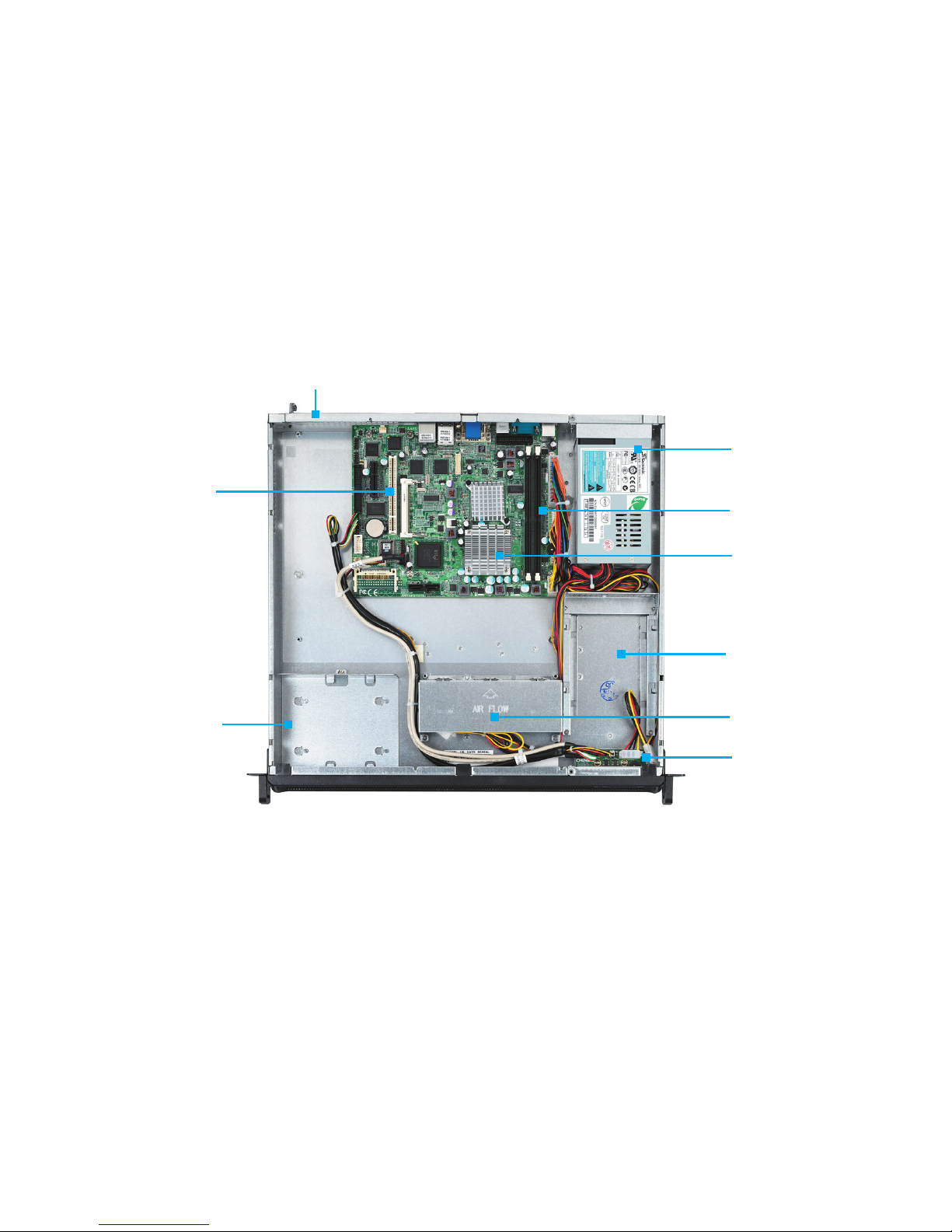

Chassis Internal View
1. Power Supply 2. Memory Slots
3. CPU Socket 4. 3.5” SATA HDD Bay (#1)
5. System Fans 6. Front Panel LED Board
7. 3.5” SATA HDD Bay (#2) 8. PCI Slots
9. PCI Riser Card Holder










1-7
System Front View
System Rear View
1. USB Ports 2. COM Port
3. VGA Port 4. LAN Jack + USB Ports
5. PCI Slot 6. GbE LAN Jacks
7. DVI-D 8. S-Video
9. PS/2 Keyboard + Mouse
USB x 2 Power Button






1-8
note

2-1
Chapter 2: System Setup
Before You Begin
This chapter explains how to install the CPU, CPU heatsink, memory mod-
ules, and hard drives. Instructions on inserting a PCI card are also given.
Take note of the precautions mentioned in this section when installing your
system.
Work Area
Make sure you have a stable, clean working environment. Dust and dirt
can get into components and cause malfunctions. Use containers to keep
small components separated. Putting all small components in separate
containers prevents them from becoming lost. Adequate lighting and
proper tools can prevent you from accidentally damaging the internal com-
ponents.
Tools
The following procedures require only a few tools, including the following:
— A cross head (Phillips) screwdriver
— A grounding strap or an anti-static pad
Most of the electrical and mechanical connections can be disconnected
using your fingers. It is recommended that you do not use needle-nosed
pliers to remove connectors as these can damage the soft metal or plastic
parts of the connectors.

2-2
Precautions
Components and electronic circuit boards can be damaged by discharges
of static electricity. Working on a system that is connected to a power
supply can be extremely dangerous. Follow the guidelines below to avoid
damage to the Trophy NR18 or injury to yourself.
• Ground yourself properly before removing the top cover of the system.
Unplug the power from the power supply and then touch a safely grounded
object to release static charge (i.e. power supply case). If available, wear
a grounded wrist strap. Alternatively, discharge any static electricity by
touching the bare metal chassis of the unit case, or the bare metal body of
any other grounded appliance.
• Avoid touching motherboard components, IC chips, connectors,
memory modules, and leads.
• The motherboard is pre-installed in the system. When removing the
motherboard, always place it on a grounded anti-static surface until you
are ready to reinstall it.
• Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Do not flex or
stress circuit boards.
• Leave all components inside the static-proof packaging that they ship
with until they are ready for installation.
• After replacing optional devices, make sure all screws, springs, or
other small parts are in place and are not left loose inside the case. Metal-
lic parts or metal flakes can cause electrical shorts.
Notes:
• All connectors are keyed to only attach one way.
• Always use the correct screw size as indicated in the procedures.

2-3
2.1 Installing Motherboard Components
This section describes how to install components on to the motherboard,
including CPU, memory modules and PCI card.
Follow these instructions to install the motherboard components.
2.1.1 Removing the Chassis Cover
Step 1:
Unscrew the chassis cover.
Step 2:
Pull the chassis cover forwards and then lift it up to remove it from the chassis.



2-4
Step 2:
Screw to secure the CPU.
2.1.2 Installing CPU and Heatsink
Step 1:
Locate the CPU socket and place the CPU on top of it.
