TypeS AC530171 User manual

ITM. / ART. 1433895
WP ITM. AC530171
User Manual
BC

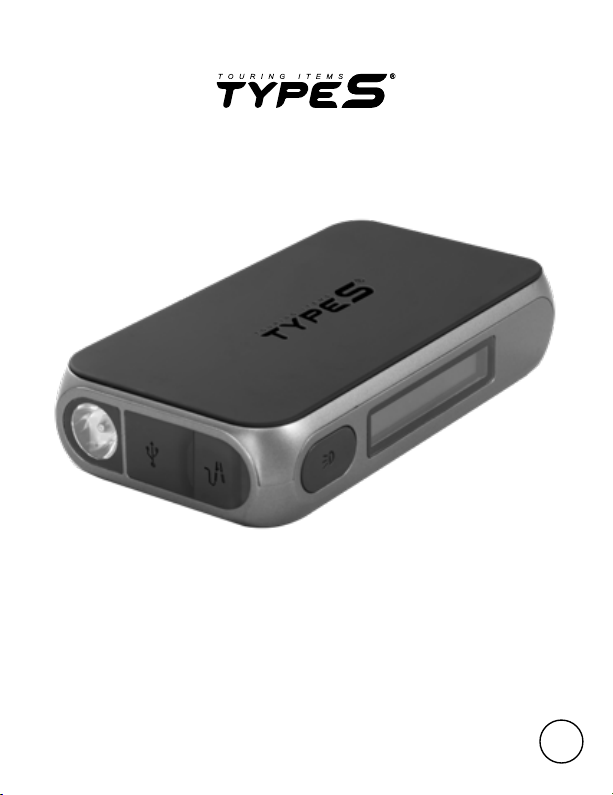

12V JUMP STARTER
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

2
5.9 × 3.3 × 1.2 in (151 × 86 × 32 mm)
0.94 lb (426 g)
Lithium-Ion
Up to 8000mAh (3.7V)
29.6 Wh
5V 2A
5V 2.4A
9V 2A / 5V 2.6A
200A - 350A
-20ºC ~ 34ºC (-4ºF ~ 93ºF)
-20ºC ~ 40ºC (-4ºF ~ 104ºF) Avg. Temp.
0ºC ~ 34ºC (32ºF ~ 93ºF)
4-5 hours
IP64 Splash-Resistant (with Ports Covered)
Product Dimensions:
Product Weight:
Internal Battery:
Capacity:
Watt Hours:
Input (Micro USB / USB-C):
USB-A Output:
USB-C Output:
Jump Start Current:
Operating Temperature:
Storage Temperature:
Charging Temperature:
Charging Time:
Housing Protection:
TECHNICAL SPECIFICATIONS:

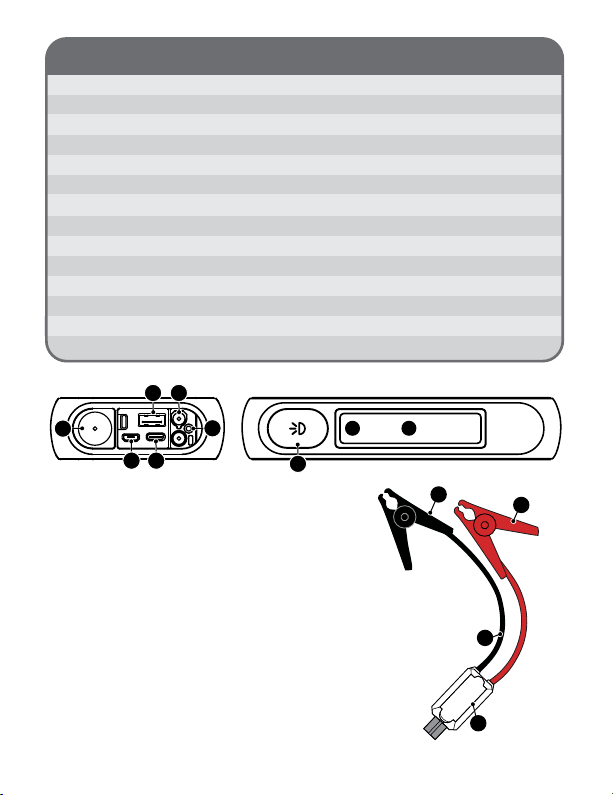

FEATURE OVERVIEW :
1. USB-A Output
2. LED Flashlight, Strobe & Hazard Modes
3. Micro USB Charge Input
4. USB-C Output / Input
5. Jumper Cables Port
6. Safe & Smart Polarity & Overcharge Protection
7. Mode Button: Power, LED & Language Selection
8. LCD Display
9. Battery Level
10. Jumper Cables
11. Negative Clamp (Black)
12. Positive Clamp (Red)
13. Polarity Circuit Protection Box w/ LED Indicators
9 8
11
7
1
26
3 4
5
12
10
13

3
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS
• Always wear safety glasses when jump starting a battery (to protect your
eyes), and gloves when handling a battery (to protect your hands).
• When jump starting a vehicle please ensure that the gray plug is securely
tted into the jump starter socket on the jump starter.
• Ensure the battery clamps are connected correctly, and the connectors are
free from rust and dirt.
• Do not allow this product to become wet. Exposure to excessive moisture
will damage the unit.
• Do not immerse the product in water.
• Do not operate the product in explosive atmospheres, such as in the
presence of ammable liquid, gas or dust.
• Do not modify or disassemble this product.
• Do not store in locations where the temperature may exceed 104ºF (40ºC).
• Charge only using the charger provided.
• Under extreme heat conditions, battery leakage may occur. Avoid contact
with your skin. In case of skin or eye contact, rinse immediately with clean
water and seek medical attention.
• If battery leakage occurs, take it to your local battery recycling center for
disposal. Do not attempt to use.
• This car jump starter is for use with 12V vehicles only. Using on non-12V
vehicles may cause serious damage to the vehicle, jump starter, or injury
to the user. Refer to the owner’s manual for the vehicle if you are uncertain
what voltage the vehicle runs on.
BATTERY DISPOSAL
The battery is self-contained and not consumer replaceable. The battery must
be disposed of properly when it no longer holds a charge. Proper charging
practices will increase the life of the product. For information on battery
recycling, call toll-free 800-822-8837.
WARNING:

4
WARNING CONT.:
For information regarding air travel safety with batteries please check the U.S.
Department of Transportation prior to travel at:
http://phmsa.dot.gov/safetravel/batteries
or contact your airline if traveling from a country outside the U.S.
Note: The Car Jump Starter contains the equivalent of 2.4g of lithium and
gives 29.6 watt hours of power.
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using this product, basic precautions should always be
followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when the
product is used near children. Children should not operate this device
unless under strict supervision by a person responsible for their safety.
c) Do not put ngers or hands into the product.
d) Do not use any
attachment that is not sold by jump starter manufacturer
which may result in a risk of re, electric shock, or injury to persons.
e) To reduce risk of damage to the electric plug and cord, pull the plug
rather than the cord when disconnecting the jump starter.
f) Do not use a battery pack or appliance that is damaged or modied.
Damaged or modied batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
g) Do not operate the jump starter with a damaged cord or plug, or a
damaged output cable.
h) Do not disassemble the jump starter; take it to a qualied service person
when service or repair is required. Incorrect reassembly may result in a
risk of re or electric shock.
i) To reduce the risk of electric shock, unplug the jump starter from the
outlet before attempting any instructed servicing.
j) WARNING - RISK OF EXPLOSIVE GASES.

5
1)
WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF THE UTMOST IMPORTANCE
THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE
JUMP STARTER.
2) To reduce risk of battery explosion, follow these instructions and
those published by battery manufacturer and manufacturer of any
equipment you intend to use in vicinity of the battery. Review
cautionary marking on these products and on engine.
k) The device shall be stored indoors and protected from the elements;
l) The unit shall not be charged outdoors;
m) When in use, steps should be taken to reduce the exposure to rain, sleet,
snow, and the like.
n) PERSONAL PRECAUTIONS
1) Consider having someone close enough by to come to your aid
when you work near a lead-acid battery.
2) Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
3) Wear complete eye protection and clothing protection. Avoid
touching eyes while working with battery.
4) If battery acid contacts skin or clothing, wash immediately with
soap and water. If acid enters eye, immediately ood eye with
running cold water for at least 10 minutes and get medical
attention immediately.
5) NEVER smoke or allow a spark or ame within the vicinity of
battery or engine.
6) Be extra cautious to reduce risk of dropping a metal tool onto
battery. It might spark or short-circuit battery or other electrical
part that may cause explosion.
7) Remove personal metal items such as rings, bracelets, necklaces,
and watches when working with a lead-acid battery. A lead-acid
battery can produce a short-circuit current high enough to weld a
ring or the like to metal, causing a severe burn.
WARNING CONT.:

6
WARNING CONT.:
o) When charging the internal battery, work in a well ventilated area and do
not restrict ventilation in any way.
p) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
q) Do not expose a jump starter to re or excessive temperature. Exposure
to re or temperature above 130°C (266°F) may cause explosion.
r) Have servicing performed by a qualied repair person using only
identical replacement parts. This will ensure that the safety of the
product is maintained.
s) Attach output cables to a battery and chassis as indicated below. Never
allow the output clamps to touch one another.
t) Dropping, hitting, or other excessive amounts
of force to the Jump Starter may damage the
unit (external and internal), which may result
in loss of operation, electrical re, or cause
other serious damage.
u) Do not overcharge the internal battery or short
circuit output connector.
v) This product is suitable for use in home, oce,
household workshop or garage. Do not operate in rough environment
such as repair facility.
WARNING: This Jump Starter is only intended to jump start 12V cars, trucks,
boats, or motorcycles with an internal combustion engine and single
lead-acid battery systems. Do not use this device to jump start batteries
outside of these four types of vehicles; doing so may cause a re or other
serious injuries. Refer to the user manual for additional safety information.
SAVE THESE INSTRUCTIONS

7
PACKAGE CONTENTS:
Jump Starter
Power Bank 12V USB Charger &
Micro USB
Charging Cable
Storage Case Safe & Smart
Jumper Cables
Press the Mode Button to check the
capacity of the Jump Starter.
CHECKING THE POWER LEVEL
NOTE: Fully charge the Jump Starter upon receipt. Check battery status periodically and recharge every
2-3 months and after every use to maintain the efciency and to prolong the life of the internal battery.
CHARGING THE JUMP STARTER:
At home:
1. Plug included Micro USB Charging Cable into a USB-A port on a computer or
2A USB wall adapter (not included).
2. Connect the Micro USB Charging Cable into the Micro USB Charge Input Port
on the Jump Starter.
3. Disconnect the Jump Starter when it is fully charged. Store the Jump Starter in
a safe place when not in use.
In Car:
1. Plug included Micro USB Charging Cable into included 12V USB Charger then
connect to 12V socket in vehicle.
2. Connect the Micro USB Charging Cable into the Micro USB Charge Input Port
on the Jump Starter.
3. Disconnect the Jump Starter when it is fully charged. Store the Jump Starter in
a safe place when not in use.
NOTE: In order to reduce the
risk of re or electric shock, an
adapter shall be chosen that is
suitable for the application and
is certied as a Class 2 or LPS
power supply or power adapter.
When charging, the battery indicator will glow.
Jump Starter is fully charged when the battery
indicator is solid and reads 100%.

8

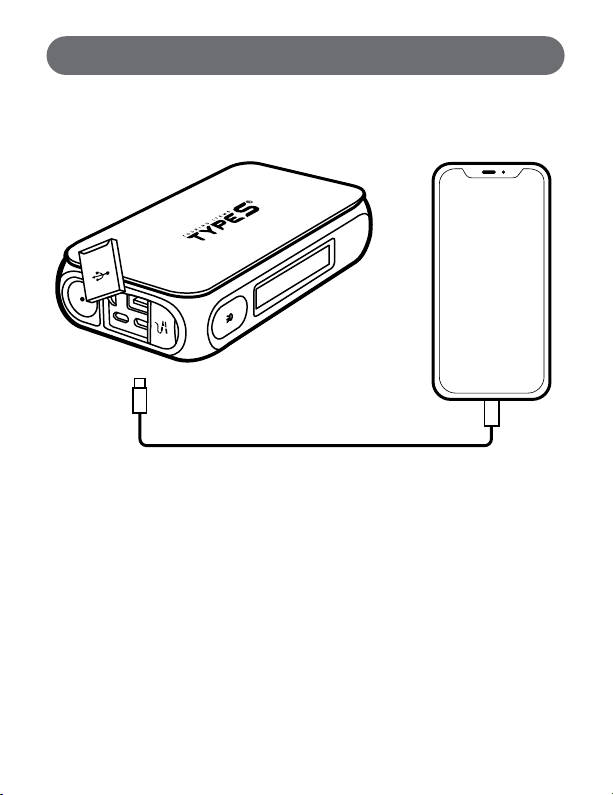

We recommend using the original charging cable that came with
your mobile device, or an approved cable certied by the mobile
device manufacturer. Two mobile devices can be charged at the
same time by utilizing both the USB-A and USB-C Output ports.
To begin charging, press the Mode Button once. While charging,
press the Mode Button to check the battery capacity.
CHARGING YOUR MOBILE DEVICES:

9

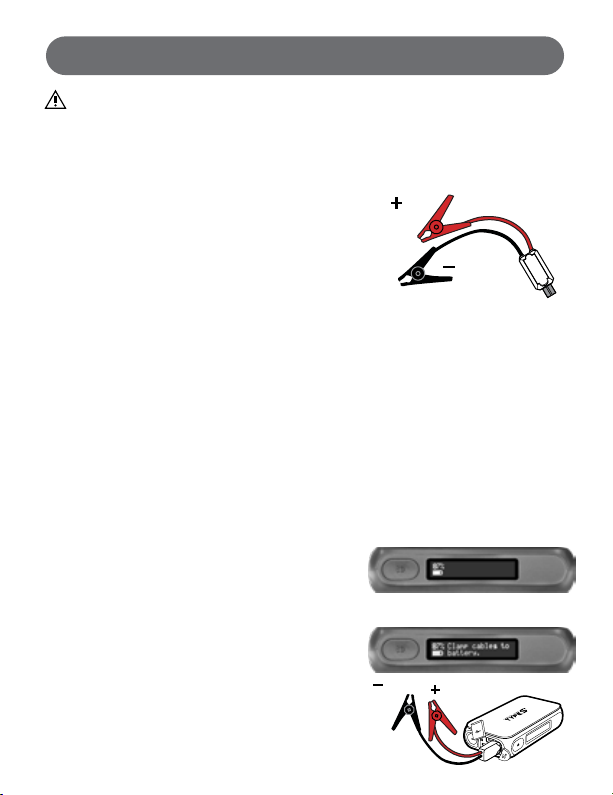

1. Press the Mode Button to power on the
Jump Starter; ensure the power level is
50% or higher.
2. Insert the GRAY end of the Jumper Cables
into the Jumper Cables Port. The LCD
Display will read: Clamp cables to battery.
JUMP STARTING:
BEFORE YOU JUMP START!
Before you attempt to jump start your vehicle, ensure your vehicle is
in Park. Unplug all USB charging cables. Ensure manual transmission
vehicles are in Neutral with the Emergency Brake engaged.
The Cable Clamps are color-coded, RED for
POSITIVE (+) and BLACK for NEGATIVE
(-). DO NOT mix up the cables or allow the
metal ends to touch together because this may
damage the battery, charging system and/or
electronics on a vehicle.
Locate the vehicle battery and follow the steps below. We recommend
jump starting when the Jump Starter battery level is > 50%.
INTELLI-STEP SMART DISPLAY:
The Jump Starter is programmed to display step-by-step instructions to
Jump Start your vehicle. When the Jump Starter is powered on, plug the
Jumper Cables into the Jumper Cables Port and follow the progressive
prompts on the LCD Display. The detailed steps are provided in the next
section for reference.
JUMP STARTING:
Red
Red
Black
Black

10
JUMP STARTING CONT.:
3. Connect the RED clamp to the POSITIVE
(+) post on the car battery. The
POSITIVE battery post will be slightly
larger than the NEGATIVE post, and will
be marked with a PLUS (+) sign. There
may also be a RED plastic protective
cover over the positive battery post.
4. Connect the BLACK clamp to the NEGATIVE (-) post on the car battery.
The NEGATIVE will be marked with a MINUS (-) sign. There may be a
BLACK plastic protective cover over the negative battery post.
NOTE: Do not connect the RED clamp (+) and the BLACK clamp (-) at
the same time. Connect the RED clamp rst, then the BLACK clamp.
CAUTION: DO NOT lean directly over the battery while making jumper
connections.
5. Check the LED status on the Polarity Circuit Protection Box. Proceed to
the next step unless the LED is ashing RED and BEEPING. Reference
Polarity Protection Circuit Status chart in the next section.
6. Once the clamps are properly
connected to the vehicle battery,
the LCD Display will read:
Ready, Start vehicle ignition.
You have 90 seconds to start your vehicle before the Jump Starter
shuts off in order to prevent the vehicle battery from reverse charging
the unit.
NOTE: If vehicle does not crank, or cranks very slowly, wiggle the
cable clamps on the vehicle battery to ensure they are making good
contact. Wait 60 seconds before trying to jump start your vehicle again.
Each new jump start attempt requires disconnection of both
clamps from the vehicle battery and reconnection.
Red
Black
