TypeS AC56789 User manual

JUMP STARTER
& PORTABLE POWER BANK
ITM. / ART. # 263084
WP ITM. AC56789
AC56789UK-60
User Manual

2
• Always wear safety glasses when jump starting a battery (to protect
your eyes), and gloves when handling a battery (to protect your hands).
• When jump starting a vehicle please ensure that the blue plug is
securely tted into the jump start socket on the jump starter.
• Ensure the battery clamps are connected correctly, and the connectors
are free from rust and dirt.
• Do not allow this product to become wet. Exposure to excessive moisture
will damage the unit.
• Do not immerse the product in water.
• Do not operate the product in explosive atmospheres, such as in the
presence of ammable liquid, gas or dust.
• Do not modify or disassemble this product.
• Do not store in locations where the temperature may exceed 104ºF (40ºC).
• Charge only using the charger provided.
• Under extreme heat conditions, battery leakage may occur. Avoid contact
with your skin. In case of skin or eye contact, rinse immediately with
clean water and seek medical attention.
• If battery leakage occurs, take it to your local battery recycling center for
disposal. Do not attempt to use.
• Do not place the jump starter on the oor, or at a height less than 18
inches (457mm) above the oor, during use in a repair facility.
• This car jump starter is for use with 12V vehicles only. Using on non-12V
vehicles may cause serious damage to the vehicle, jump starter, or injury
to the user. Refer to the owner’s manual for the vehicle if you are
uncertain what voltage the vehicle runs on.
BATTERY DISPOSAL
The battery is self-contained and not consumer replaceable. The battery
must be disposed of properly when it no longer holds a charge. Proper
charging practices will increase the life of the product. Please refer to local
laws on battery recycling.
For information regarding air travel safety with batteries please check with
your airline before travel.
Note: The Car Jump Starter contains the equivalent of 2.9g of lithium and
gives 37.2 watt hours of power.
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
WARNING:

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using this product, basic precautions should always be
followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when the
product is used near children. Children should not operate this device
unless under strict supervision by a person responsible for their safety.
c) Do not put ngers or hands into the product.
d) Do not use any
attachment that is not sold by jump starter manufacturer
which may result in a risk of re, electric shock, or injury to persons.
e) To reduce risk of damage to the electric plug and cord, pull the plug
rather than the cord when disconnecting the jump starter.
f) Do not use a battery pack or appliance that is damaged or modied.
Damaged or modied batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
g) Do not operate the jump starter with a damaged cord or plug, or a
damaged output cable.
h) Do not disassemble the jump starter; take it to a qualied service
person when service or repair is required. Incorrect reassembly may
result in a risk of re or electric shock.
i) To reduce the risk of electric shock, unplug the jump starter from the
outlet before attempting any instructed servicing.
j) WARNING - RISK OF EXPLOSIVE GASES.
1)
WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF THE UTMOST
IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME
YOU USE THE JUMP STARTER.
2) To reduce risk of battery explosion, follow these instructions
and those published by battery manufacturer and manufacturer
of any equipment you intend to use in vicinity of the battery.
Review cautionary marking on these products and on engine.
k) The device shall be stored indoors and protected from the elements;
l) The unit shall not be charged outdoors;
m) When in use, steps should be taken to reduce the exposure to rain, sleet,
snow, and the like.
WARNING CONT.:

4
WARNING CONT.:
n) PERSONAL PRECAUTIONS
1) Consider having someone close enough by to come to your aid
when you work near a lead-acid battery.
2) Have plenty of fresh water and soap nearby in case battery
acid contacts skin, clothing, or eyes.
3) Wear complete eye protection and clothing protection. Avoid
touching eyes while working with battery.
4) If battery acid contacts skin or clothing, wash immediately with
soap and water. If acid enters eye, immediately ood eye with
running cold water for at least 10 minutes and get medical
attention immediately.
5)
NEVER smoke or allow a spark or ame within the vicinity of battery or engine.
6) Be extra cautious to reduce risk of dropping a metal tool onto
battery. It might spark or short-circuit battery or other electrical
part that may cause explosion.
7) Remove personal metal items such as rings, bracelets, necklaces,
and watches when working with a lead-acid battery. A lead-acid
battery can produce a short-circuit current high enough to weld a
ring or the like to metal, causing a severe burn.
o) When charging the internal battery, work in a well ventilated area and do
not restrict ventilation in any way.
p) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
q) Do not expose a jump starter to re or excessive temperature. Exposure
to re or temperature above 130°C (266°F) may cause explosion.
r) Have servicing performed by a qualied repair person using only
identical replacement parts. This will ensure that the safety of the product
is maintained.
s) Attach output cables to a battery and chassis as
indicated below. Never allow the output clamps
to touch one another.
t) Dropping, hitting, or other excessive amounts of
force to the Jump Starter may damage the unit
(external and internal), which may result in loss of
operation, electrical re, or cause other serious
damage.
SAVE THESE INSTRUCTIONS

5

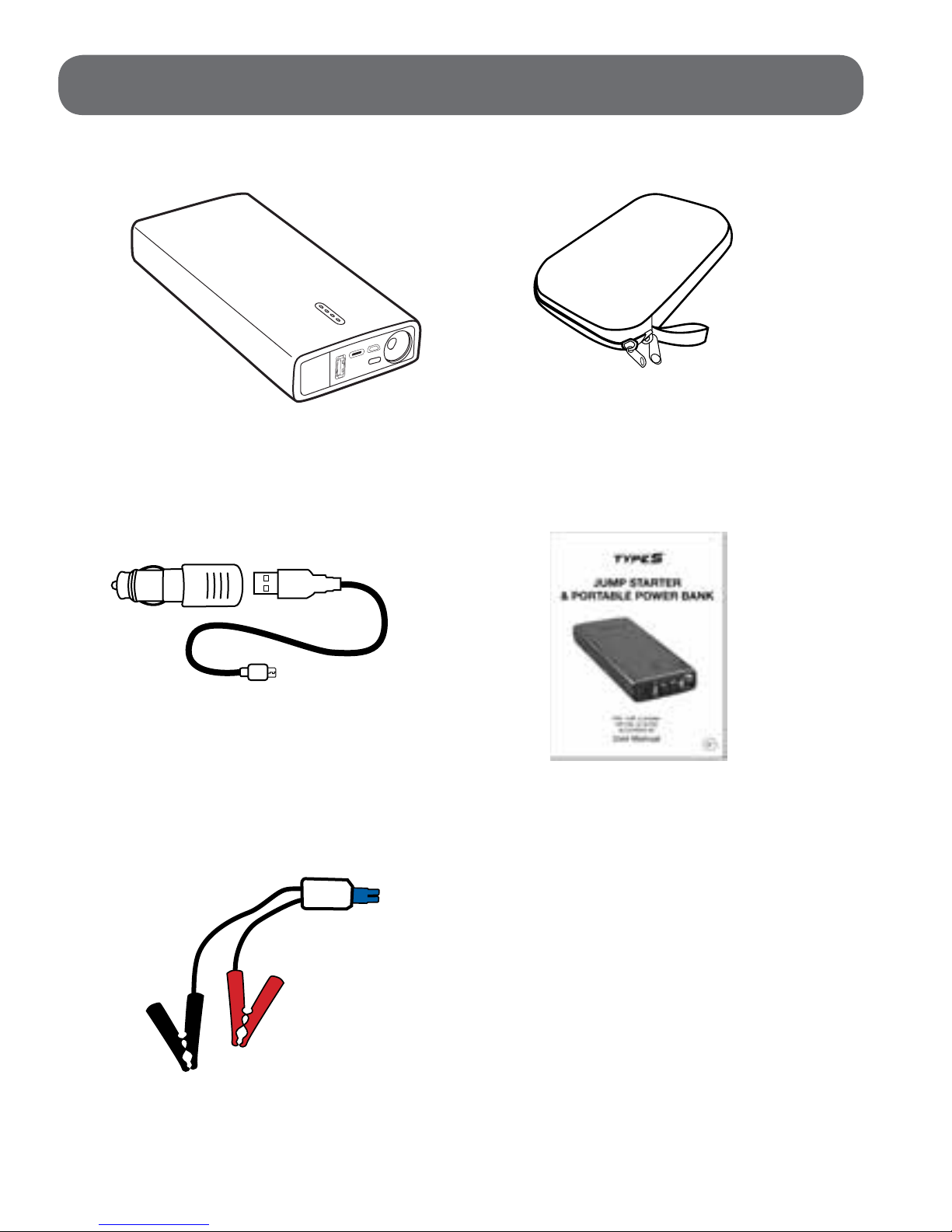

PACKAGE CONTENTS:
Power Bank
USB Cable and Car Adaptor User Manual
Storage Case
Jumper Cable with
Smart & Safe Protection

6
Power / Flashlight Button
Press Once - Power On /Power indicator
Press & Hold 3 Seconds - Turn on ashlight
Press Again - Strobe light
Press Again - Hazard light
Power Level
Indicator Lights
Jump Start Socket
USB DC 5V Output
LED Flashlight/
Strobe Light/Hazard Light
USB Type-C DC 9V / 5V Output
DC 5V 2A Input
Polarity Protection
Circuit
Product Dimensions: 168 x 77 x 27 mm ( 6.61 x 3.03 x 1.06 in )
Product Weight: 0.97 lbs (440 g)
Internal Battery: Lithium-Ion
Capacity: Up to 10000 mAh (3.7V)
Watt Hours: 37.2 Wh
Input Voltage: DC 5V 2A
USB-A Output Voltage: DC 5V 2.4A
USB-C Output Voltage: DC 9V 2A / DC 5V 2.6A
Jump Start Current: 200A - 400A
Operating Temperature: -4ºF ~ 93ºF (-20ºC ~ 34ºC)
Storage Temperature: -4ºF ~ 104ºF (-20ºC ~ 40ºC) Avg. Temp.
Charging Temperature: 32ºF ~ 104ºF (0ºC ~ 40ºC)
Charging Time: 5-6 hours
TECHNICAL SPECIFICATIONS:

7
Press the power button to check the capacity of the Jump Starter.
When charging, the indicator lights will ash one by one. The
number of solid lights indicates the battery capacity. When all
indicator lights are solid the
Jump Starter is fully charged.
Indicator Lights: 1 Flashing 1 Solid 2 Solid 3 Solid 4 Solid
Battery Capacity: Below 5% 5-25% 26-50% 51-76%
76% - Full
POWER LEVEL INDICATOR LIGHTS:

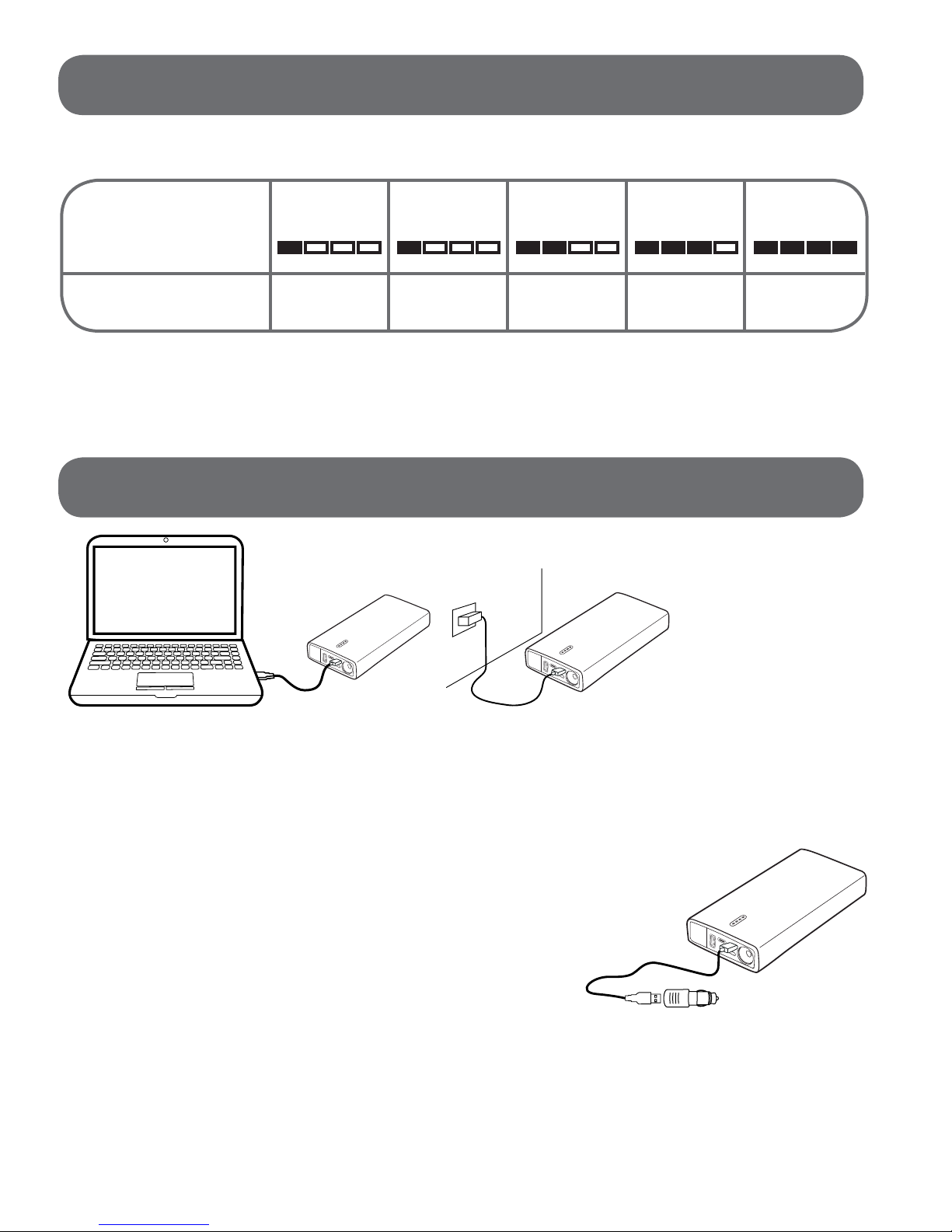

CHARGING THE JUMP STARTER:
At home:
1. Plug the USB cable into the computer or any USB
2A wall adaptor (not included).
2. Connect the micro USB cable onto the Jump Starter .
In Car:
1. Plug the USB car adaptor (included) into an
available 12V socket.
2. Connect the micro USB cable onto
the
Jump Starter .
NOTE: In order to reduce
the risk of re or electric
shock, an adapter should
be chosen that is suitable
for the application and
is certied as a Class 2
or LPS power supply or
power adapter.
NOTE: Please fully charge the Jump Starter when you rst
receive the unit. It is recommended to recharge the Jump Starter
every 2-3 months and after every use to maintain the efciency
and prolong the service life of the internal battery.

8

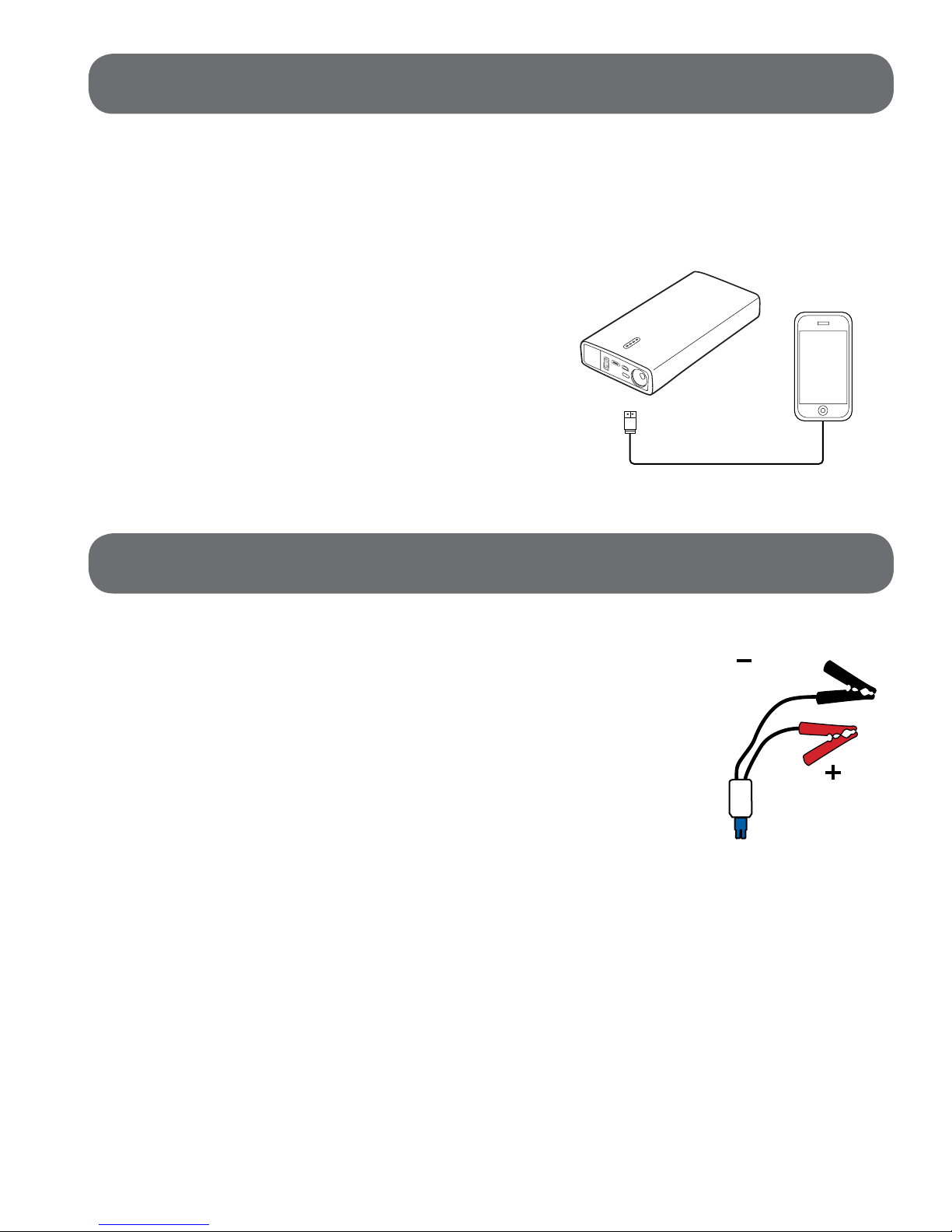

Use the original manufacturer’s USB cable that came with your
device and plug into one of the USB output ports. You can
charge two devices at the same time. One of the ports is a
Type-C socket, which has a maximum output of 2A at 9V and
2.6A at 5V. The other has a maximum
output of 2.4A. Press the power button
once to begin charging your device.
The power level indicator will show the
battery level and will turn off after 30
seconds.
To check the power capacity again,
simply press the power button once.
CHARGING YOUR USB DEVICES:
To jump start the vehicle battery, put the vehicle
in park (neutral if the vehicle has a manual
transmission) and engage the emergency brake.
Locate the battery for the vehicle and follow the
steps listed below.
Jumper cables are colour coded, RED for
POSITIVE (+) and BLACK for NEGATIVE (-).
DO NOT mix up the cables or allow the metal
ends to touch together because this may damage the battery,
charging system and/or electronics of a vehicle.
JUMP STARTING:
Black
Red

9
1. Press the power button on the Jump Starter once and check
that the power level indicator is 3 solid lights (51%) or higher.
2. Take the BLUE end of the jumper cable and plug it into the
power bank jump start socket which is located underneath the
black cover.

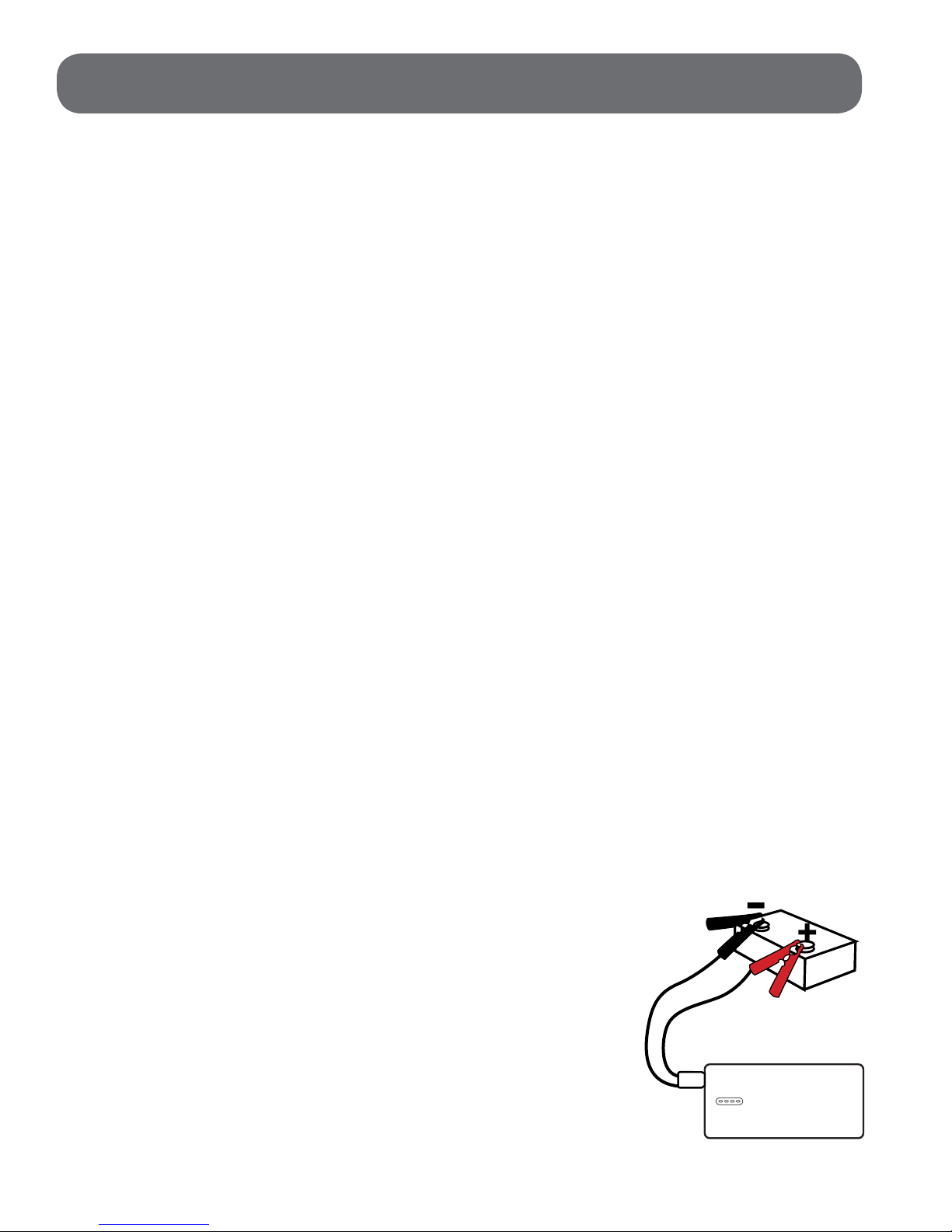

3. Connect the RED clamp to the POSITIVE (+) post on
the car battery. The POSITIVE battery post will be slightly
larger than the NEGATIVE post, and will be marked with a
PLUS (+) sign. There may also be a RED plastic protective
cover over the positive battery post.
JUMP STARTING CONT.:
Black
Red
Black
Red

10
JUMP STARTING CONT.:
4. Connect the BLACK clamp to the NEGATIVE (-) post
on the car battery. The NEGATIVE will be marked with
a MINUS (-) sign. There may also be a BLACK plastic
protective cover over the negative battery post.
NOTE: Do not connect the RED clamp (+) and the BLACK
clamp (-) at the same time. Connect the RED clamp rst, then
the BLACK clamp.
CAUTION: DO NOT lean directly over the battery
while making jumper connections.
5. Check the LED status on the indicator
light box located on the jumper cable.
Proceed to the next step unless the light
is ashing RED and BEEPING.
Please reference the LED status chart on page 12 if needed.
6. You now have 30 seconds to start your vehicle before the
jump starter times out to prevent the vehicle battery from
reverse charging the unit. If it does not crank or cranks very
slowly, wiggle the jumper connections to make sure they are
making good contact. Wait 60 seconds before trying to
start your car again. Each new jump start attempt requires
disconnection of both clamps from the car battery and
reconnection. The engine should start if there are no other
problems (such as a bad starter or ignition circuit problem).
Do not attempt to jump start the vehicle more than 3 times
with the Jump Starter. If the vehicle fails to start after 3
attempts, it is likely due to alternative reasons and should be
checked by a vehicle mechanic.
Indicator
Box
