TypeS AC532671 User manual

User Manual
BC
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
JUMP STARTER & WIRELESS POWER BANK
WITH BUILT-IN USB-C CABLE
WP ITM. AC532671

2
6.14 x 3.5 x 1.34 in (156 x 89 x 34 mm)
0.97lbs (441g)
Lithium-Ion
29.6 Wh
5V 2A
5V 3A / 9V 2A
5V 3A / 9V 2A
5V 3A / 9V 2A (Port), 5V 3A / 9V 2A (Built-in Cable)
400A
-20ºC ~ 34ºC (-4ºF ~ 93ºF)
-20ºC ~ 40ºC (-4ºF ~ 104ºF) Avg. Temp.
0ºC ~ 34ºC (32ºF ~ 93ºF)
4-5 hours (5V 2A input)
2-2.5 hours (18W USB-C input) 18W charger not included
IP64 Splash-Resistant (with Ports Covered)
Product Dimensions:
Product Weight:
Internal Battery:
Battery Capacity:
Input (Micro USB):
Input (USB-C):
USB-A Output:
USB-C Output:
Jump Start Current:
Operating Temperature:
Storage Temperature:
Charging Temperature:
Charging Time:
Housing Protection:
TECHNICAL SPECIFICATIONS:
FEATURE OVERVIEW :
1. Smart Protection Circuit
2. Jumper Cables Port
3. LED Flashlight, Strobe &
Hazard Modes
4. Hazard Light
5. USB-A Output
6. Micro USB Input
7. USB-C Output / Input
8. LCD Display
9. Mode Button: Power, LED, Hazard
Light & Language Selection
10. Wireless Charging Pad
11. Positive Clamp (Red)
12. Negative Clamp (Black)
13. Polarity Circuit Protection Box
with Built-in LED Indicators
4 4
10
11
12 13
5
6 7 8 9
2
31

3
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS
• Always wear safety glasses when jump starting a battery (to protect your
eyes), and gloves when handling a battery (to protect your hands).
• When jump starting a vehicle please ensure that the gray plug is securely
tted into the jump starter socket on the jump starter.
• Ensure the battery clamps are connected correctly, and the connectors are
free from rust and dirt.
• Do not allow this product to become wet. Exposure to excessive moisture
will damage the unit.
• Do not immerse the product in water.
• Do not operate the product in explosive atmospheres, such as in the
presence of ammable liquid, gas or dust.
• Do not modify or disassemble this product.
• Do not store in locations where the temperature may exceed 104ºF (40ºC).
• Charge only using the charger provided.
• Under extreme heat conditions, battery leakage may occur. Avoid contact
with your skin. In case of skin or eye contact, rinse immediately with clean
water and seek medical attention.
• If battery leakage occurs, take it to your local battery recycling center for
disposal. Do not attempt to use.
• This car jump starter is for use with 12V vehicles only. Using on non-12V
vehicles may cause serious damage to the vehicle, jump starter, or injury
to the user. Refer to the owner’s manual for the vehicle if you are uncertain
what voltage the vehicle runs on.
BATTERY DISPOSAL
The battery is self-contained and not consumer replaceable. The battery must
be disposed of properly when it no longer holds a charge. Proper charging
practices will increase the life of the product. For information on battery
recycling, call toll-free 800-822-8837.
For information regarding air travel safety with batteries please check the U.S.
Department of Transportation prior to travel at:
http://phmsa.dot.gov/safetravel/batteries
or contact your airline if traveling from a country outside the U.S.
Note: The Car Jump Starter gives 29.6 watt hours of power.
WARNING:

4
WARNING CONT.:
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using this product, basic precautions should always be
followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when the product
is used near children. Children should not operate this device unless under
strict supervision by a person responsible for their safety.
c) Do not put ngers or hands into the product.
d) Do not use any
attachment that is not sold by jump starter manufacturer which
may result in a risk of re, electric shock, or injury to persons.
e) To reduce risk of damage to the electric plug and cord, pull the plug rather
than the cord when disconnecting the jump starter.
f) Do not use a battery pack or appliance that is damaged or modied.
Damaged or modied batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
g) Do not operate the jump starter with a damaged cord or plug, or a
damaged output cable.
h) Do not disassemble the jump starter; take it to a qualied service person
when service or repair is required. Incorrect reassembly may result in a risk
of re or electric shock.
i) To reduce the risk of electric shock, unplug the jump starter from the outlet
before attempting any instructed servicing.
j) WARNING - RISK OF EXPLOSIVE GASES.
1) WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF THE UTMOST IMPORTANCE
THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE
JUMP STARTER.
2) To reduce risk of battery explosion, follow these instructions and
those published by battery manufacturer and manufacturer of any
equipment you intend to use in vicinity of the battery. Review
cautionary marking on these products and on engine.
k) The device shall be stored indoors and protected from the elements;
l) The unit shall not be charged outdoors;
m) When in use, steps should be taken to reduce the exposure to rain, sleet,
snow, and the like.
n) PERSONAL PRECAUTIONS
1) Consider having someone close enough by to come to your aid
when you work near a lead-acid battery.
2) Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.

5
3) Wear complete eye protection and clothing protection. Avoid
touching eyes while working with battery.
4) If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters eye, immediately ood eye with running cold
water for at least 10 minutes and get medical attention immediately.
5) NEVER smoke or allow a spark or ame within the vicinity of battery
or engine.
6) Be extra cautious to reduce risk of dropping a metal tool onto battery.
It might spark or short-circuit battery or other electrical part that may
cause explosion.
7) Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with a lead-acid battery. A lead-acid battery can
produce a short-circuit current high enough to weld a ring or the like to
metal, causing a severe burn.
o) When charging the internal battery, work in a well ventilated area and do
not restrict ventilation in any way.
p) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
q) Do not expose a jump starter to re or excessive temperature. Exposure to
re or temperature above 130°C (266°F) may cause explosion.
r) Have servicing performed by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the product is
maintained.
s) Attach output cables to a battery and chassis as indicated
below. Never allow the output clamps to touch one another.
t) Dropping, hitting, or other excessive amounts of force
to the Jump Starter may damage the unit (external and
internal), which may result in loss of operation, electrical
re, or cause other serious damage.
u) Do not overcharge the internal battery or short circuit
output connector.
v) This product is suitable for use in home, oce, household workshop or
garage. Do not operate in rough environment such as repair facility.
WARNING: This Jump Starter is only intended to jump start 12V cars, trucks,
boats, or motorcycles with an internal combustion engine and single lead-acid
battery systems. Do not use this device to jump start batteries outside of these
four types of vehicles; doing so may cause a re or other serious injuries. Refer to
the user manual for additional safety information.
WARNING CONT.:
SAVE THESE INSTRUCTIONS

6
PACKAGE CONTENTS:
CHECKING THE POWER LEVEL
CHARGING YOUR MOBILE DEVICES:
Jump Starter
Power Bank
12V USB Charger &
Micro USB
Charging Cable
Storage Case Safe & Smart
Jumper Cables
Press to check the battery status of
the Jump Starter.
When charging, the battery indicator will glow.
Jump Starter is fully charged when the battery
indicator is solid and reads 100%.
We recommend using the
original charging cable
that came with your mobile
device, or an approved cable
certied by the mobile device
manufacturer. Three mobile
devices can be charged at the
same time by utilizing USB-A,
USB-C Output ports & built-in USB-C cable. To begin charging, press once.
While charging, press to check the battery capacity.
Press the power button once to enable wireless charging
function. Place the device on top of WIRELESS CHARGING
ICON to start. LCD screen is ON for 60 seconds while wireless
charging is in progress. The power level will vary during charging.
You may need to adjust the orientation to have the best charging.
NOTE: The wireless charging feature only works on devices that allow Qi (inductive) wireless
charging. Only use the wireless charging pad with Qi-certied devices.
WIRELESSLY CHARGING YOUR MOBILE DEVICES:

7
NOTE: Fully charge the Jump Starter upon receipt. Check battery status periodically and recharge every
2-3 months and after every use to maintain the efciency and to prolong the life of the internal battery.
CHARGING THE JUMP STARTER:
At home:
Micro USB Cable
1. Plug included Micro USB Charging Cable into a USB-A
port on a 2A USB wall adapter (not included).
2. Connect the Micro USB Charging Cable into the Micro USB
Charge Input Port on the Jump Starter.
3. Disconnect the Jump Starter when it is fully charged. Store
the Jump Starter in a safe place when not in use.
Built-in USB-C Cable
1. Plug built-in USB-C cable into a USB-C port on a 18W(or above) wall adapter
(not included)
2. Disconnect the Jump Starter when it is fully charged. Store the Jump Starter in a
safe place when not in use.
3. Disconnect the Jump Starter when it is fully charged. Store the Jump Starter in a safe
place when not in use.
NOTE : In order to reduce the risk of re or electric shock, an adapter shall be chosen that is suitable for
the application and is certied as a Class 2 or LPS power supply or power adapter.
In Car:
1. Plug bundled Micro USB Charging Cable into bundled 12V
USB Charger then connect it to 12V socket in vehicle.
2. Connect the Micro USB Charging Cable into the Micro USB
Charge Input Port on the Jump Starter.
3. Disconnect the Jump Starter when it is fully charged. Store the
Jump Starter in a safe place when not in use.
Other Charging Method
USB-A to USB-C Cable /USB-C to USB-C Cable
(cables not included)
1. Plug one end of USB-C Charging Cable into a USB-A
or USB-C port on a 18W (or above) wall adapter (not
included).
2. Connect the other end of USB-C Charging Cable into the
USB-C Charging Input Port on the Jump Starter.
3. Disconnect the Jump Starter when it is fully charged. Store
the Jump Starter in a safe place when not in use.

8
1. Press the to power on the Jump Starter;
ensure the power level is 50% or higher.
JUMP STARTING:
BEFORE YOU JUMP START!
Before you attempt to jump start your vehicle, ensure your vehicle is
in Park. Unplug all USB charging cables. Ensure manual transmission
vehicles are in Neutral with the Emergency Brake engaged.
The Cable Clamps are color-coded, RED for
POSITIVE (+) and BLACK for NEGATIVE
(-). DO NOT mix up the cables or allow the
metal ends to touch together because this may
damage the battery, charging system and/or
electronics on a vehicle.
Locate the vehicle battery and follow the steps below. We recommend
jump starting when the Jump Starter battery level is > 50%.
INTELLI-STEP SMART DISPLAY:
The Jump Starter is programmed to display step-by-step instructions to
Jump Start your vehicle. When the Jump Starter is powered on, plug the
Jumper Cables into the Jumper Cables Port and follow the progressive
prompts on the LCD Display. The detailed steps are provided in the next
section for reference.
JUMP STARTING:
Red
Black
2. Insert the GRAY end of the Jumper Cables into
the Jumper Cables Port. The LCD Display will
read: Clamp cables to battery.

9
JUMP STARTING CONT.:
3. Connect the RED clamp to the POSITIVE (+)
post on the car battery. The POSITIVE battery
post will be slightly larger than the NEGATIVE
post, and will be marked with a PLUS (+) sign.
There may also be a RED plastic protective
cover over the positive battery post.
4. Connect the BLACK clamp to the NEGATIVE
(-) post on the car battery. The NEGATIVE
will be marked with a MINUS (-) sign. There
may be a BLACK plastic protective cover
over the negative battery post.
NOTE: Do not connect the RED clamp (+)
and the BLACK clamp (-) at the same time.
Connect the RED clamp rst, then the BLACK clamp.
CAUTION: DO NOT lean directly over the battery while making jumper
connections.
5. Check the LED status on the Polarity Circuit Protection Box. Proceed to
the next step unless the LED is ashing RED and BEEPING. Reference
Polarity Protection Circuit Status chart in the next section.
6. Once the clamps are properly connected to the vehicle battery, the LCD
Display will read: Ready, Start vehicle ignition.
You have 90 seconds to start your vehicle
before the Jump Starter shuts off in order
to prevent the vehicle battery from reverse
charging the unit.
NOTE: If vehicle does not crank, or cranks very slowly, wiggle the
cable clamps on the vehicle battery to ensure they are making good
contact. Wait 60 seconds before trying to jump start your vehicle again.
Each new jump start attempt requires disconnection of both
clamps from the vehicle battery and reconnection.

10
The engine should start if there are no other problems (such as a bad
starter or ignition circuit problem). Do not attempt to jump start the
vehicle more than 3 times with the Jump Starter. If the vehicle fails to
start after 3 attempts, it is likely due to alternative reasons that should
be checked by an auto mechanic.
7. When the engine starts, the LED
on the Polarity Circuit Protection
Box will blink RED and beep.

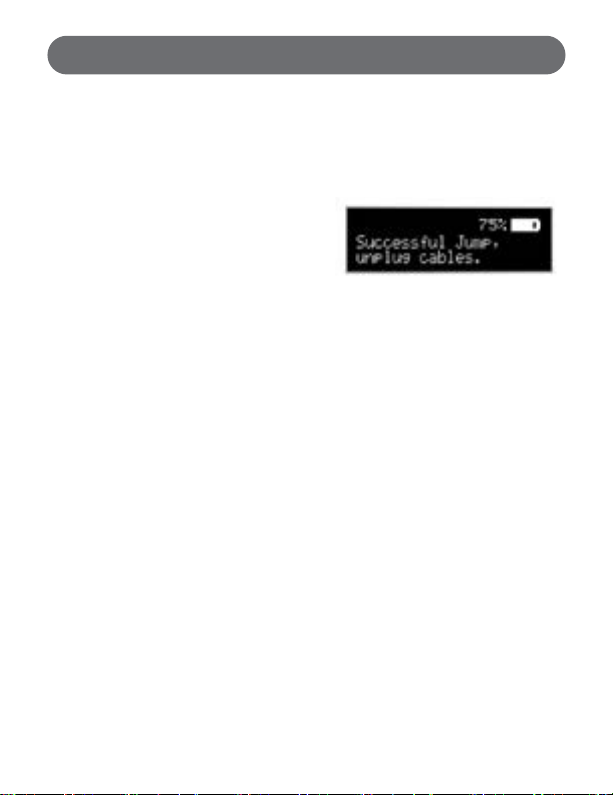

The LCD Display will also read:
Successful jump, unplug cables.
8. Disconnect the cables from your vehicle within 30 seconds. First
remove the RED/POSITIVE (+) clamp and then the BLACK/
NEGATIVE (-) clamp.
9. Do not allow the metal ends of the jumper cable clamps to touch each
other, or the RED clamp to touch anything metal on the car. Now
unplug the
GRAY end of the jumper cables from the Jump Starter.
This will reset the jumper cables. In 30-seconds the Jump Starter will
power off automatically.
10. Keep the engine running for 20 to 30 minutes, or drive the car to
recharge the battery.
NOTE: If the engine dies shortly after it has been jump started, or
as soon as the jumper cables are disconnected, it probably means
the vehicle charging system is not working (bad alternator, voltage
regulator, wiring problem, or loose/ dirty battery cables). Please seek
professional help from an auto mechanic to nd the root cause of the
problem. The Jump Starter may not work correctly for vehicles that
require remote battery jumper locations (e.g.: battery located in trunk
or other location). Please consult the owner’s manual for your vehicle.
JUMP STARTING CONT.:
