TYROLIT Hydrostress WCE30 User manual

Index 000
OPERATING INSTRUCTIONS
WCE30
Translation of the originalinstructions
11002237 en / 29.03.2020

2
TYROLIT Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäkon
Switzerland
Tel. [phone]
Fax [phone]
www.tyrolit.com
Congratulations!
You have decided to purchase a tried-and-tested TYROLIT Hydrostress unit, a highly
sophisticated and reliable state-of-the-art device. Only genuine TYROLIT Hydrostress
spare parts can guarantee quality and interchangeability. If maintenance work is neglected
or carried out improperly, we will be unable to honour our warranty obligations. All repairs
must be carried out by trained personnel only.
Our after-sales service is available to help make sure your TYROLIT Hydrostress units
remain in perfect working order .
We hope that working with your TYROLIT unit will be a satisfying and fault-free experience.
TYROLIT Hydrostress
Copyright © TYROLIT Hydrostress

Table of conTenTs 3
Table of contents
1. Safety 4
1.1. Symbols in these instructions 4
1.2. Generally safety instructions 5
2. Description 6
2.1. Wire saw system 6
2.2. Intended use 6
2.3. Wire saw 6
3. Assembly 7
3.1. Diamond wire storage unit 7
3.2. Restoring 8
3.3. Mounting the diamond wire guard 9
3.4. Connecting the water and power supplies 10
4. Operation 12
4.1. Positioning and securing the wire saw 12
4.2. Correct cutting direction 13
4.3. Overview of operating elements 14
4.4. Overview display elements 15
4.5. Starting the wire saw 16
4.6. Diamond wire drive 17
4.7. Feed 18
4.8. Transport 19
5. Servicing and maintenance 20
5.1. Check bandages for wear 21
5.2. Troubleshooting 21
6. Technical data 22
6.1. Dimensions 22
6.2. Weights 22
6.3. Water connection 22
6.4. Electric controls 23
6.5. Pneumatics 23
6.6. Diamond wire lengths 23
6.7. Noise level data to ISO 3744 23
7. EC Declaration of Conformity 24

4safeTy
Safety
These instructions are just one part of the documentation supplied together with the wire
saw.
These instructions and the “Safety Manual for Wire Saws” form a complete set of docu-
mentation.
These instructions and the “Safety Manual for Wire Saws” are a part of the equipment.
They describe how to use the equipment safely and properly in all phases of operation.
• Read the instructions carefully before use, particularly the safety instructions.
• Keep the instructions for the entire service life of the equipment.
• Ensure that the instructions are available to the operator and the service engineers at all
times.
• Pass the instructions on to all subsequent owners or users of the equipment.
• Update instructions with all supplements received from the manufacturer.
Symbols in these instructions
DANGER
Warns of danger, where failure to comply could lead to death or serious injuries.
WARNING
Warns of danger, where failure to comply could lead to injuries or damage to property.
WARNING
Warns of dangerous electrical voltage.
Before working in an area identied in this way, the installation or device must be isolated
from the power (voltage) and secured to prevent it being powered up again.
INFORMATION
Information for optimum use of equipment. Any failure to observe this information may
mean that the performance information shown in the technical data cannot be guaranteed.
RECYCLING
Take waste for recycling.
DISPOSAL
Observe national and regional rules and guidelines regarding disposal.
1
1.1

safeTy 5
INFORMATION
Do not allow unauthorized personnel to operate wire saw systems. Information about
authorized personnel is available in the “Safety Manual for Wire Saws”.
Generally safety instructions
DANGER
Any failure to comply with the safety instructions in the “Safety Manual / System
Handbook” may result in serious injury or death.
▶Please ensure that the “Safety Manual / System Description for Wire Saws” has been
read and understood in full.
DANGER
Risk of cut injury from diamond wire!
▶Always wear protective gloves when working on the wire saw, particularly when working
on the diamond wire.
▶Only operate the wire saw with a guard.
DANGER
Risk of serious injury or material damage as a result of uncontrolled movements of
the wire saw!
▶Never connect or disconnect hoses or cables while the wire saw is running.

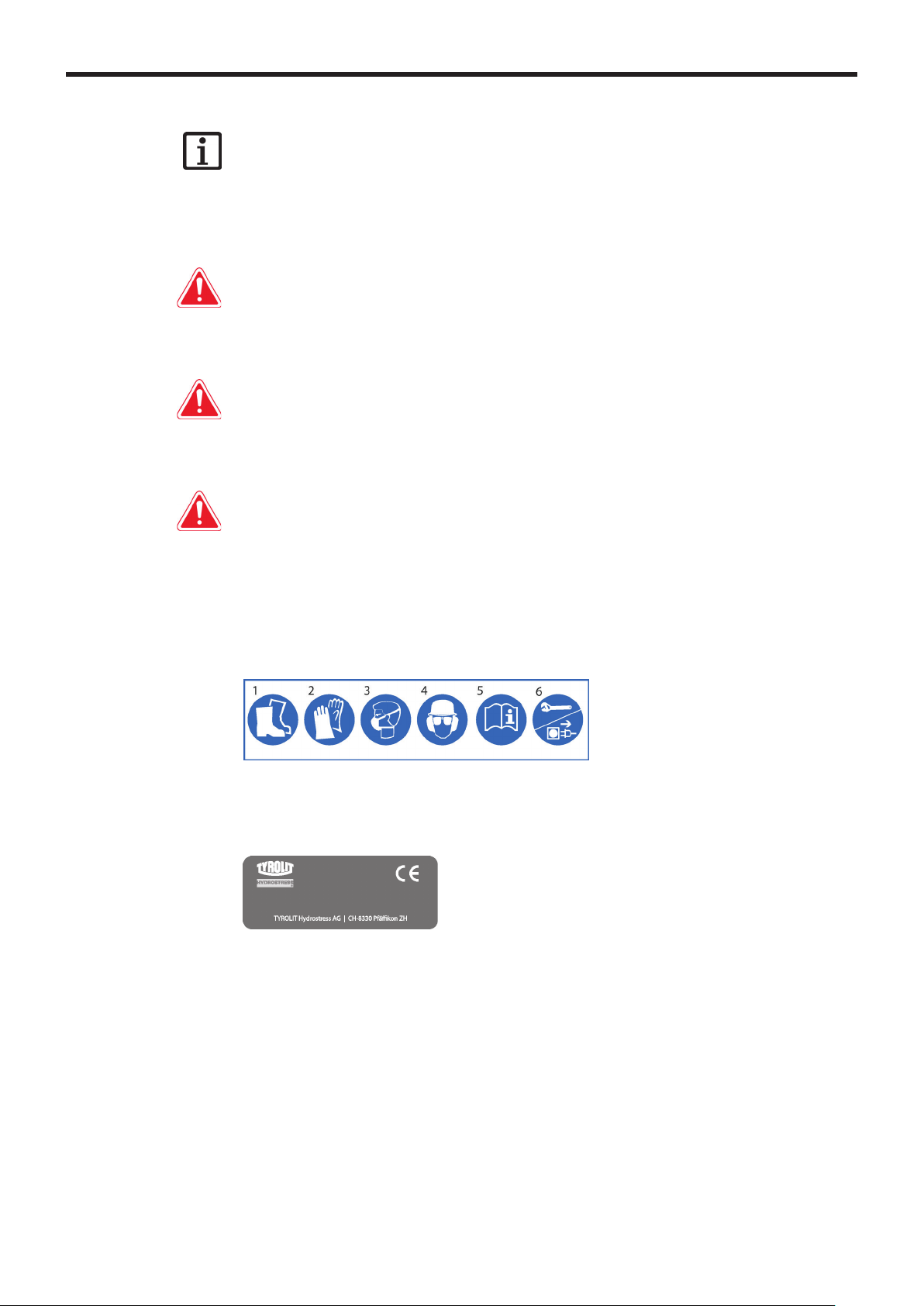

Signs on the machine
Safety sign
1Wear safety shoes 3Wear a breathing mask 5Read the instructions
2Wear gloves 4Wear a helmet, goggles
and hearing protection 6Before working on the unit Unplug mains connector
Name plate
Personal Protective Equipment
It is mandatory for anyone working with or on core drilling systems to wear personal
protective equipment.
1.2
1.2.1
1.2.2

6DescripTion
Description
Wire saw system
The functions of the wire saw systems are described in the “Safety Manual / System
Description for Wire Saws”.
Intended use
Transportable wire saw for use on construction sites, for cutting (reinforced) concrete,
stone and masonry. Designed for industrial applications only.
Not suitable for use in potentially explosive atmospheres.
Wire saw
1Diamond wire guard 10 Drive roll I
2Base frame 11 Feed cylinder I
3Wire exit roller (slack side) 12 Feed cylinder II
4Wire feed roller (tensioned side) 13 Transport handle
5Support rod 14 Electric controls with frequency inverter
6Diamond wire 15 Control unit
7Wire store carriage 16 Compressor (accessory)
8Diamond wire guard «Drive roll» 17 Water lances (accessory)
9Drive roll II
2
2.1
2.2
2.3
1
2
3
45
6
7
8
109
16
17
11 12
15
START STOP
PSI
+
-
13
14

assembly 7
Assembly

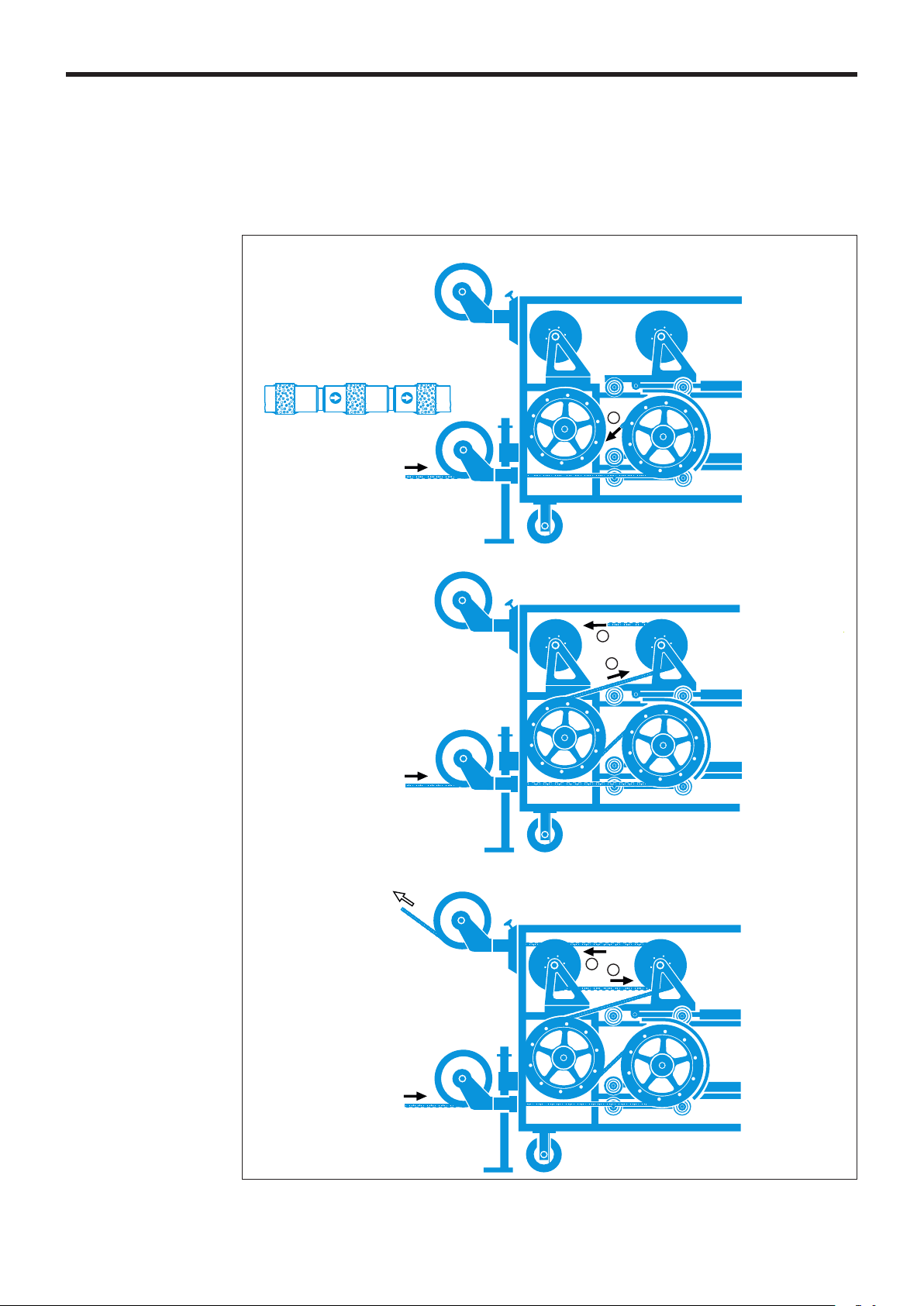

Diamond wire storage unit
3
3.1
1
A
2
3
B
4
5
C

8DescripTion
Restoring
INFORMATION
Ensure when tting a new wire store that the wire from the last storage roller to the exit rol-
ler is properly aligned.
3.2

DescripTion 9

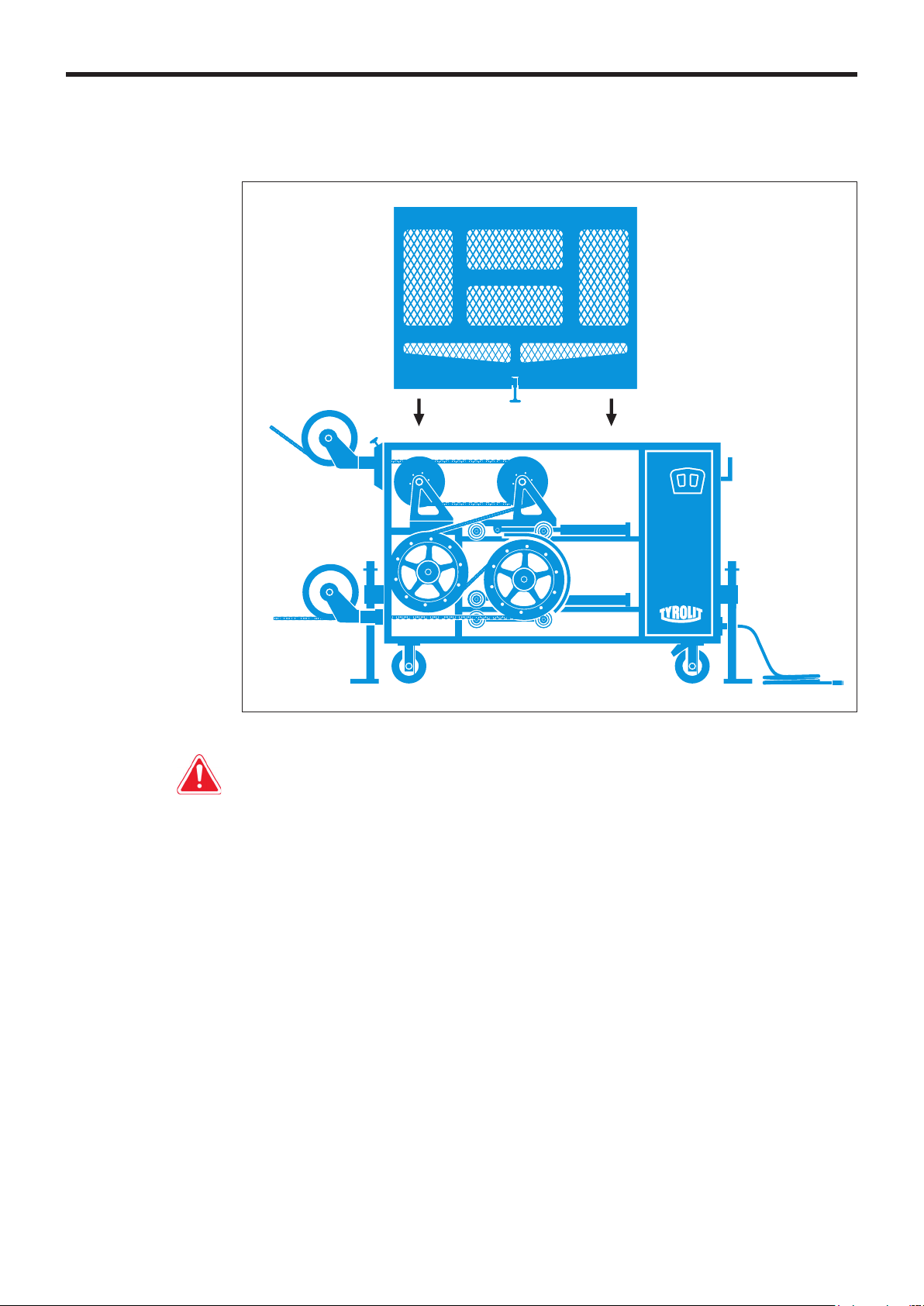

Mounting the diamond wire guard
DANGER
Risk of death or serious injury due to a whipping action of the wire or diamond
elements ying o the wire.
▶Always work with the diamond wire guard tted.
▶Always maintain the dened safety distances and working areas.
3.3

10 DescripTion

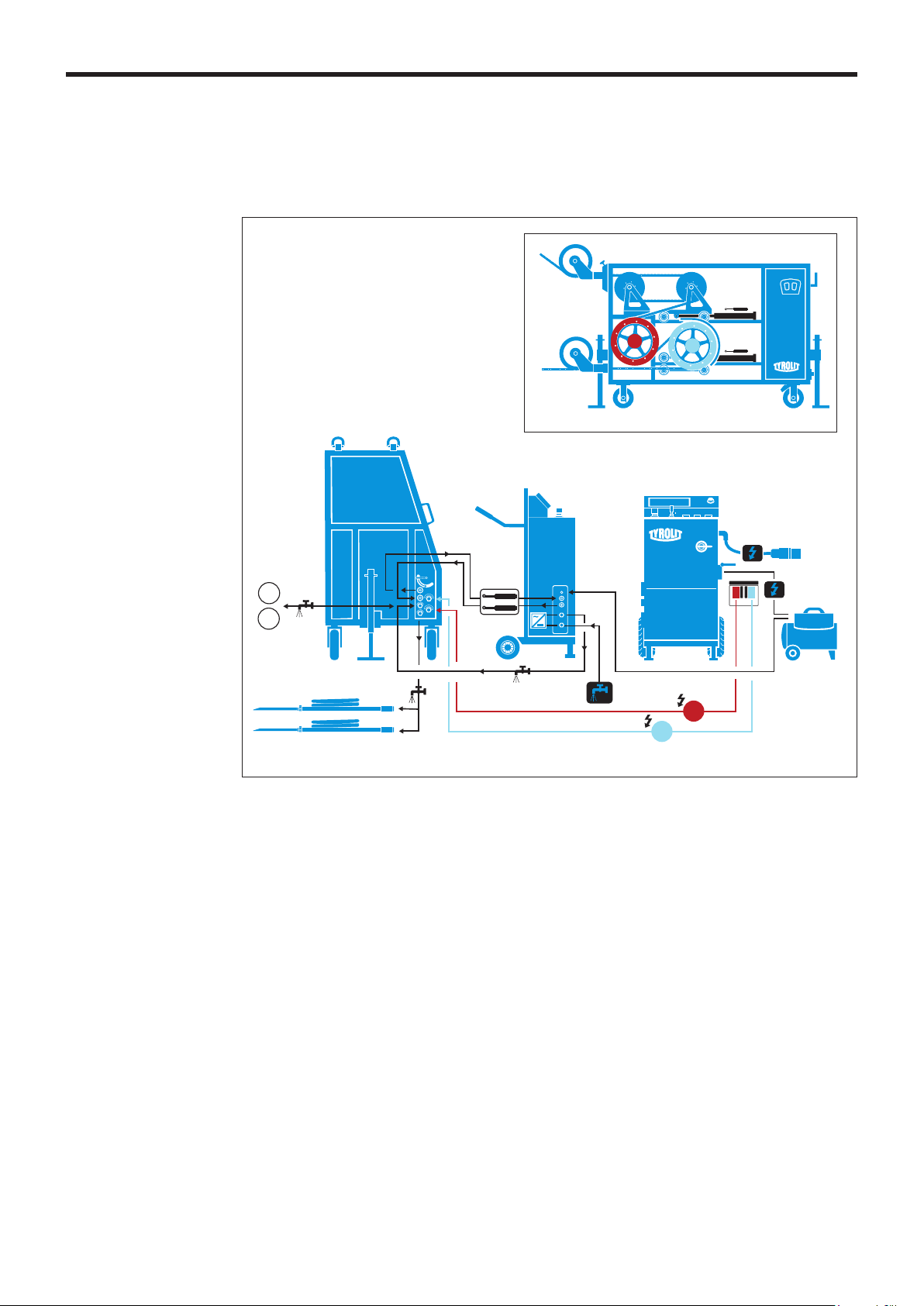

Connecting the water and power supplies
Connecting the power supply
3.4
3.4.1
M1
M2
MOTORTWO
MOTORONE
M2
M1
AIR
AIR
AIR
M2
M1

DescripTion 11
Water supply
The cooling water of the saw system ows from the frequency inverter of the unit to the
water distributor at the wire saw. The water is fed to cool the motors of the drive rollers on
the one hand, and as spray water to the diverter rollers and to supply the water lances on
the other.
Water connection
Pressure Min. 1.5 bar to max. 6 bar
Quantity Min. 4l/min
Temperature Max. 2-25 °C
M2
M1

12 operaTion
Operation
Positioning and securing the wire saw
DANGER
Due to wire saw rolling away.
Switch on the wire saw only when it is level and upright. If it is on an inclined surface,
secure the wire saw to prevent it rolling away.
The wire saw must be rmly secured to the oor by means of dowels and anchor bolts.
Auxiliary item support
To ensure the wire saw is secured in position, it is possible to extend a support mounted
on the side of the unit and fastened appropriately.
4
4.1
A B
D
C

operaTion 13
Correct cutting direction
Tensioned side and slack side
The saw cut should be made with the tensioned side (Z) of the diamond wire, because this
provides the best conditions for cutting.
4.2
Z
S

14 operaTion
Overview of operating elements
1Rotary valve compressed air (wire tension) 5O push-button (red)
2Lever valve compressed air 6Potentiometer wire speed
3Start push-button (green) 7Main switch
4EMERGENCY STOP
4.3
A
B
PSI
+
-
4 bar
3 bar
2 bar
1 bar
6
7
12
START STOP
PSI
+
-
3
5
4
1 2 3 4 5
6

operaTion 15
Overview display elements
1Compressed air gauge 8Motor temperature Motor II
2LCD display motor current Motor I 9Motor fault lamp Motor II
3LCD display motor current Motor II 10 Max. cylinder stroke lamp
4LCD display wire speed 11 Not assigned
5Hour counter 12 Lamp green (start push-button)
6Motor temperature Motor I 113 Lamp red (o push-button)
7Motor fault lamp Motor I
4.4
1
START STOP
PSI
+
-
4 bar
3 bar
2 bar
1 bar
23
7
6
BW 40
h
0 0 0 0 0 0 0
5
9
10
4
8
11
12 13

16 operaTion
Starting the wire saw
Proceed as follows:
9Diamond wire is mounted
9The control unit is connected to the mains and the water supply.
9The wire saw is connected to the control unit.
9The compressor is connected to the control unit.
9The EMERGENCY OFF control unit is deactivated.
9The pneumatic valve is in position B.
9The pressure regulator is set to 1bar.
▶Press the start push-button (lamp lights up green).
▶Now start the cutting process by slowly turning the potentiometer clockwise
(position 1-2).
▶Check the direction the saw wire is running while at a low wire speed. When the wire is
turning in the correct direction, the wire will be drawn over the lower swivel roller.
▶Once the wire is tensioned, it is possible to increase the wire speed to 20-22 m/s.
▶Increase the working pressure via the pneumatic valve until the display on the main mo-
tor indicates 25-35 A.
INFORMATION
The machine will cut automatically when the load and wire speed have been set to an
optimum. The wire is taken up in the wire store until the stroke is completed and the
machine is turned o automatically via the safety switch. This safety function prevents
the wire tension dropping, the wire dropping out of the rollers and the machine becoming
jammed due to a lack of attention.
4.5
A
B
PSI
+
-
4 bar
3 bar
2 bar
1 bar
5
7
12
START STOP
PSI
+
-
3
6
4

operaTion 17

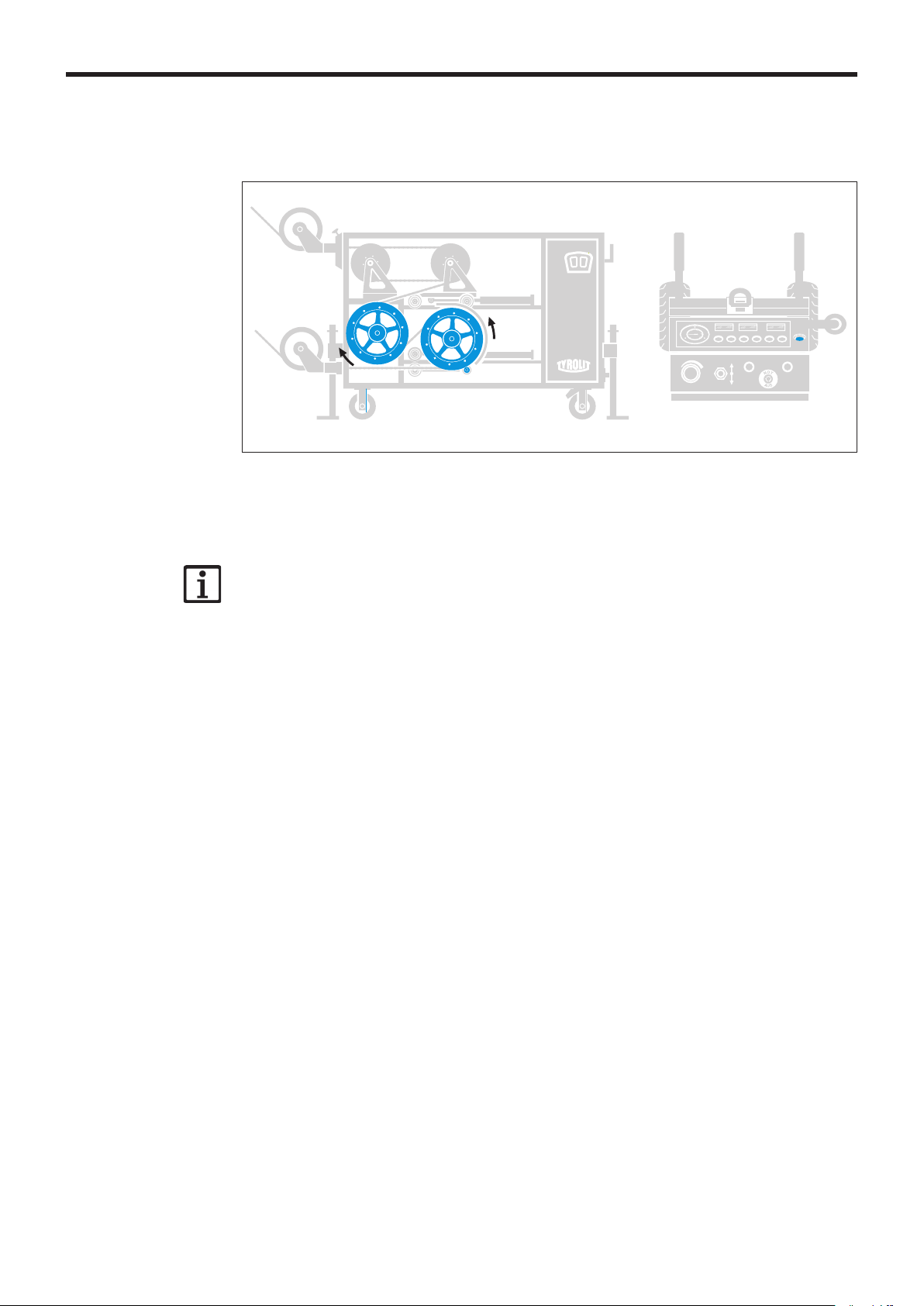

Diamond wire drive
Cutting speed
INFORMATION
The cutting speed must be selected according to the nature of the material.
The recommended speeds in m/sec.
Granite, aged concrete with or without reinforcement 20-25 m/s
Abrasive materials, fresh concrete, asphalt, sandstone, etc. 25-30 m/s
Maximum permitted cutting speed for TYROLIT tool 35 m/s
4.6
START STOP
PSI
+
-

18 operaTion
Feed
Feed control
INFORMATION
The feed cylinder pressure (wire tension) is regulated by the “rotary switch compressed
air”.
4.7
BA
A
B
PSI
+
-
4 bar
3 bar
2 bar
1 bar
START STOP
PSI
+
-

operaTion 19

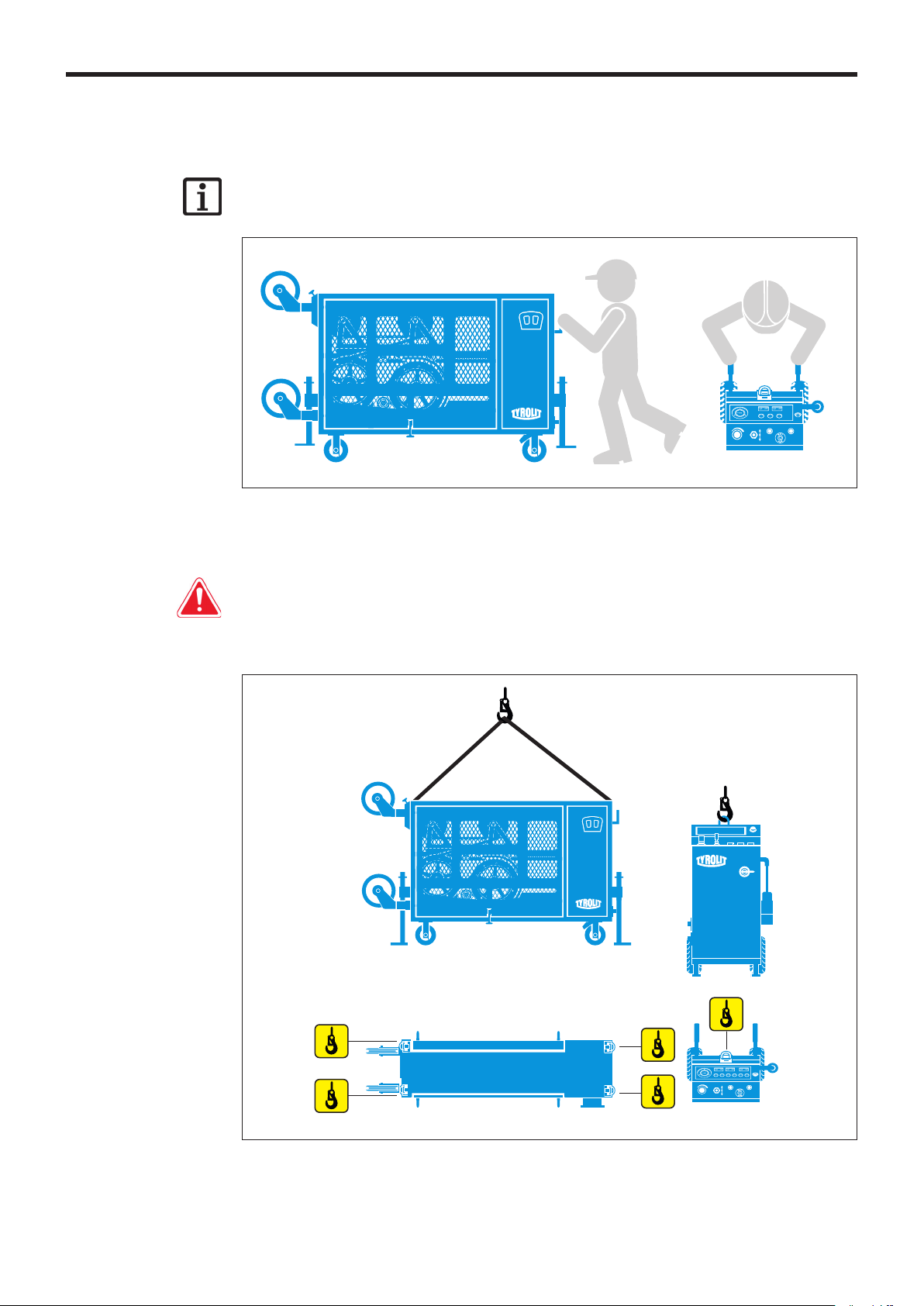

Transport
The wire saw and electric control unit are tted with wheels, so they can be moved by just
one person.
Crane transport
Danger
Risk of accidents if incorrectly transported by crane.
You must use the eyebolts provided to transport the feed unit.
Use a conventional construction crane or mobile crane to transport the unit by crane.
4.8
START STOP
PSI
+
-
START STOP
PSI
+
-

20 servicing anD mainTenance
Servicing and maintenance5
Maintenance and servicing table
Before starting up On nishing work Weekly Annually If faults occur If damage occurs
Wire saw • Tighten loose screws and nuts X X X
Guide rail • Clean guide bearing surface X X X
Drive and guide rol-
lers
• Check rollers for wear X X X X
• Check bandages for wear X X X X
• Check bearings X X X
• Clean X X X
Feed cylinder • Check for cleanliness / damage X X X X
Drive motor • Check for cleanliness / damage X X X X
Connectors, cables,
couplings
• Check for cleanliness / damage X X X X
Water economy • Check the water pipes/hoses are
clean and for leaks X X X
• Blowing out water X
Diamond wire • Clean with water X
• Check for wear X X X X
Service • To be performed by TYROLIT
Hydrostress AG or an authorized
workshop
After 100/300/500/700 hours
