Tzora APT-1K User manual

APT-1K
USER’S MANUAL
Original instructions

APT-1 –User’s Manual (EU) Rev. 2024-01 en 2

APT-1 –User’s Manual (EU) Rev. 2024-01 en 3
Table of contents:
Page
Section A –Pre-sales Information
5
1.
Introduction
5
2.
Technical Data
6
3.
User Information
7
4.
System Components and Details
9
5.
Accessories
13
Section B –User Information
14
6.
Preparing the APT-1K Hi-Lo
14
7.
Installation for use –Arms exercise
15
8.
Installation for use - Legs exercise
17
9.
Operation instructions
19
10.
Transportation and Storage
23
11.
EMI –Electromagnetic Interference
24
Section C –Service Information
30
12.
General Maintenance, Inspections and Storage
30
13.
Disposing and Recycling
31
14.
Trouble Shooting
32
15.
Appendix –Exercise Parameter Values
33
NOTE: Design details may change without notice

APT-1 –User’s Manual (EU) Rev. 2024-01 en 4

APT-1 –User’s Manual (EU) Rev. 2024-01 en 5
SECTION A –PRE-SALES INFORMATION
1. INTRODUCTION
The APT-1K is an electric exercise machine used for the improvement of
physical abilities. The APT-1K provides the user with a variety of exercise
options and modes of operation that meet a broad range of physical needs.
A wide range of accessories are available that offer many exercise options
and make the APT-1K suitable for the maintenance of fitness and physical
well being.
The APT-1K can be operated in either the ACTIVE mode at varying de-
grees of resistance or in the PASSIVE mode at adjustable speed and torque
levels. In the PASSIVE mode it is also possible to combine PASSIVE with
ACTIVE training by using physical effort in conjunction with the electrical
operation of the motor. The APT-1K functions forwards or backwards and
is suitable for arm or leg exercises (upper or lower limbs).
The APT-1K’s light weight makes it portable, easy to store and convenient
to use.
Use of the APT-1K is recommended for the maintenance of muscle
strength, flexibility, muscle tone, endurance and general fitness for users of
all ages.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 6
2. TECHNICAL DATA
APT-1K
Weight
10.2 kg (22 lbs)
Length
60 cm (23.6 in) overall
Width
47 cm (18.5 in)
Height
32 cm (12.6 in) folded
Working voltage
24 VDC
Revolutions per minute
20 - 60 RPM
Current Rating
4.16 A Max
Accuracy of measurement display
±10%
Liquid ingress protection level
IPX1
Type B equipment
External Power Supply
Weight
0.8 kg (1.8 lbs)
Length
19 cm (7.5 in)
Width
9 cm (3.5 in)
Height
4.6 cm (1.8 in)
Input:
100-240 V 47-63 Hz 1.25 A
Output:
24 VDC 100 W Max 4.16 A
Class I equipment
Continuous operation
Equipment not suitable for use in the presence of flammable anaesthetic
mixture with air or with oxygen or nitrous oxide.
WARNING: To avoid the risk of electric shock, this equipment must only
be connected to a supply mains with protective earth.
The APT-1K Active Passive Trainer and its accessories have been de-
signed and manufactured in accordance with the specification of the follow-
ing:
DIRECTIVE: Medical devices 93/42 EEC (Annex V)

APT-1 –User’s Manual (EU) Rev. 2024-01 en 7
3. USER INFORMATION
3.1. Intended Use
The Active Passive Trainers are electric exercise machines used for
the improvement of physical abilities. The trainers provide the user with
a variety of exercise options and modes of operation that meet a broad
range of physical needs:
•Fitness: the maintenance of muscle strength, flexibility, muscle
tone, endurance and general fitness for users of all ages;
•Rehabilitation: spinal cord injury, geriatrics, CVA, cardiac and pul-
monary, paediatric, haemodialysis (training during treatment), gen-
eral
3.2. Indications
The Active Passive Trainers are intended to be operated by persons of
most physiques and ages. In case the user has limited strength in the
arm or cognitive impairment, it is required to have an attendant present
during exercise.
The Active Passive Trainers provide the user with a variety of exercise
options and modes of operation that meet a broad range of physical
needs. Use of the Active Passive Trainer is recommended for the
maintenance of muscle strength, flexibility, muscle tone, endurance
and general fitness for users of all ages.
3.3. Contraindications
People with limited cognitive abilities and children should not use the
Active Passive Trainer unsupervised.
In case of any disease or physical complaints, a healthcare provider
should be consulted before participating in any exercise program.
Immediately stop exercising when feeling dizzy, pains, nauseous or any
other physical discomfort. In case of recurring discomforts, consult with
a health care provider.
Risk analysis and long term experience in the field of movement ther-
apy show that patients with the following indications are required to
consult their doctor and therapist before starting the training:
-Fresh joint injuries
-joint replacements/prosthetics
-fresh ligament reconstruction

APT-1 –User’s Manual (EU) Rev. 2024-01 en 8
-fresh knee- and hip prosthetics
-knee and joint arthritis
-joint stiffness
-extreme muscle shortening
-extreme limb deformation
-increased danger of hip and shoulder luxation (e.g. sub luxation in
shoulder)
-acute thrombosis
-decubitus
-very strong osteoporosis
3.4. Safety
These safety considerations and tips will help you to operate the APT-
1K safely and prevent personal injury and damage to your wheelchair.
1. Read this manual and all labels before operating. If you do not fully
understand any part of this manual, please contact your authorized
dealer or service agent.
2. The APT-1K should not be used in the vicinity of sensitive medical
equipment.
3. Electromagnetic interference (“EMI”) can cause APT-1K to behave
erratically, which could be dangerous to the user. For your safety
and protection, it is imperative that you read the information on EMI
before operating the APT-1K, see chapter 11.
4. EMC Warning: Radio wave sources such as radio and T.V. sta-
tions, transmitters and cellular telephones can affect the perfor-
mance of powered wheelchairs and mobility devices.
5. Do not operate the APT-1K when under the influence of alcohol,
medications or drugs that may impair your safety.
6. Only the authorized dealer or service agent may perform specified
set-up procedures and controller settings; programming of the set-
tings outside the limits as specified by the manufacturer may have
adverse effects on the performance.
7. Do not use the APT-1K if it behaves abnormally or erratically, con-
trary to the usual performance as described in this user manual.
8. CAUTION: Surface temperatures can increase when exposed to
external sources of heat (e.g. sunlight).

APT-1 –User’s Manual (EU) Rev. 2024-01 en 9
4. SYSTEM COMPONENTS AND DETAILS
4.1 APT-1K unit (Figure 1)
APT-1K Hi-Lo (Figure 1A)
APT-1K Double (Figure 1B)
1. Operator panel
2. Angle release knob
3. Angle securing knob
4. Crank-arm
5. Power input socket
6. Height release knob (Hi-Lo only)
7. Height securing know (Hi-Lo only)

APT-1 –User’s Manual (EU) Rev. 2024-01 en 10

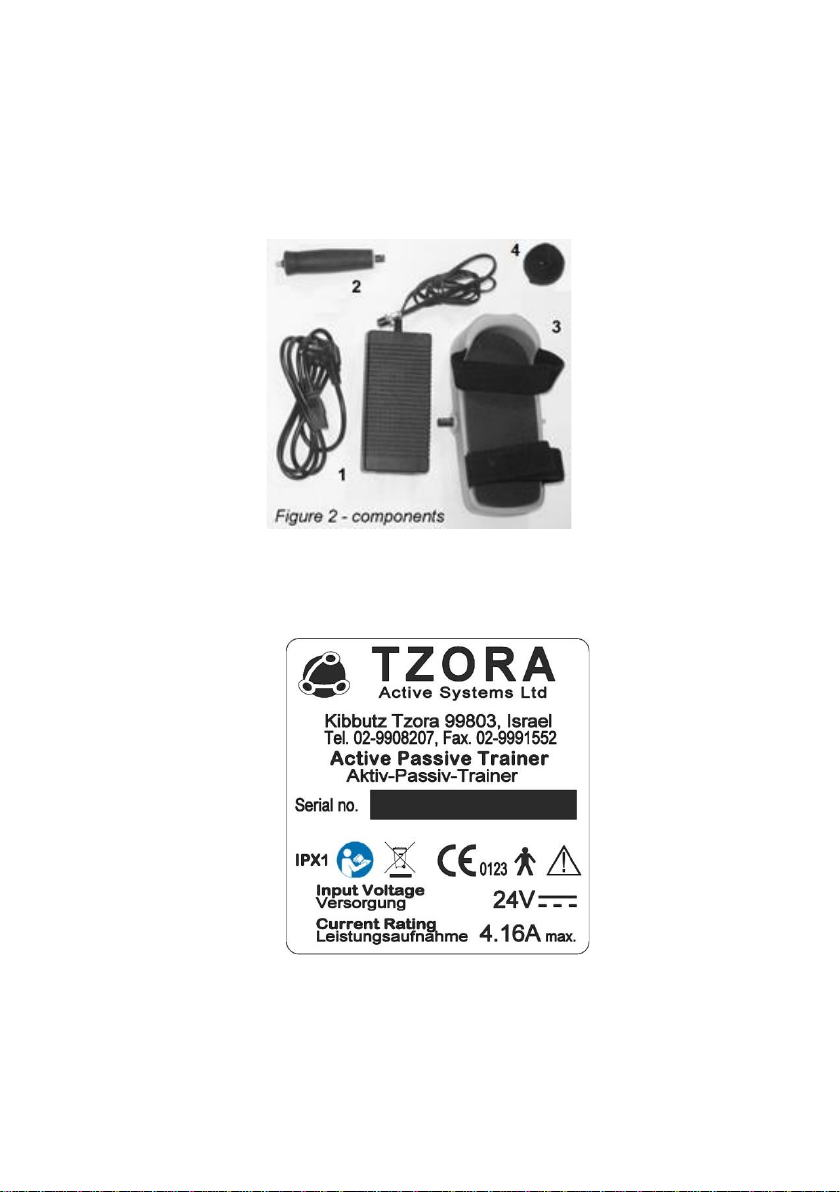

4.2 Primary components (Figure 2):
1. Power supply unit
2. Straight hand-grips
3. Footrests
4. Securing straps
4.3 The Type Plate
The Type Plate can be found on the underside of the APT-1K
body next to the power input socket.
Figure 2A

APT-1 –User’s Manual (EU) Rev. 2024-01 en 11
This label contains the serial number of the APT-1K
The serial number consists of 11 digits and one letter:
Example: Serial no. 32001103001X
3100
11
03
001
X
1
2
3
4
5
1. Model: APT-1K
2. Year of manufacturing (last two digits of the year)
3. Month of manufacturing
4. Sequential number of batch
5. Letter identifying the manufacturing location
IPX1
Liquid ingress protection level
Read this user manual and all labels before operat-
ing.
When this equipment is no longer operational it
must be sent to a separate collection facility for re-
covery and recycling.
CE approved Notified Body No. 0123.
Type B equipment.
Read the warnings in this manual before operating.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 12
4.4. The APT-1K - Operator Panel
1
Operation mode Button - for selecting
mode of operation.
2
Green indicator is lit when ACTIVE
mode is selected by mode button.
3
Green indicator is lit when PASSIVE
mode is selected by mode button.
4
Exercise level selection push switches
1 - Lowest level
5 - Highest level
5
Indicates actual load level (%)
6
Button for forward operation in the PAS-
SIVE mode. The green indicator is lit to
indicate forward operation.
7
Button for backward operation in the
PASSIVE mode. The green indicator is
lit to indicate backward operation.
8
Button activating Auto-Reverse function
in the PASSIVE mode. In the ACTIVE
mode this button activates the constant
force function. The green indicator is lit
when activated.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 13
5. ACCESSORIES
The following items are designed for use in combination with the APT-1K.
CAUTION: The use of accessories other than these can be unsafe.
5.1. Hand grips and Footrests
#

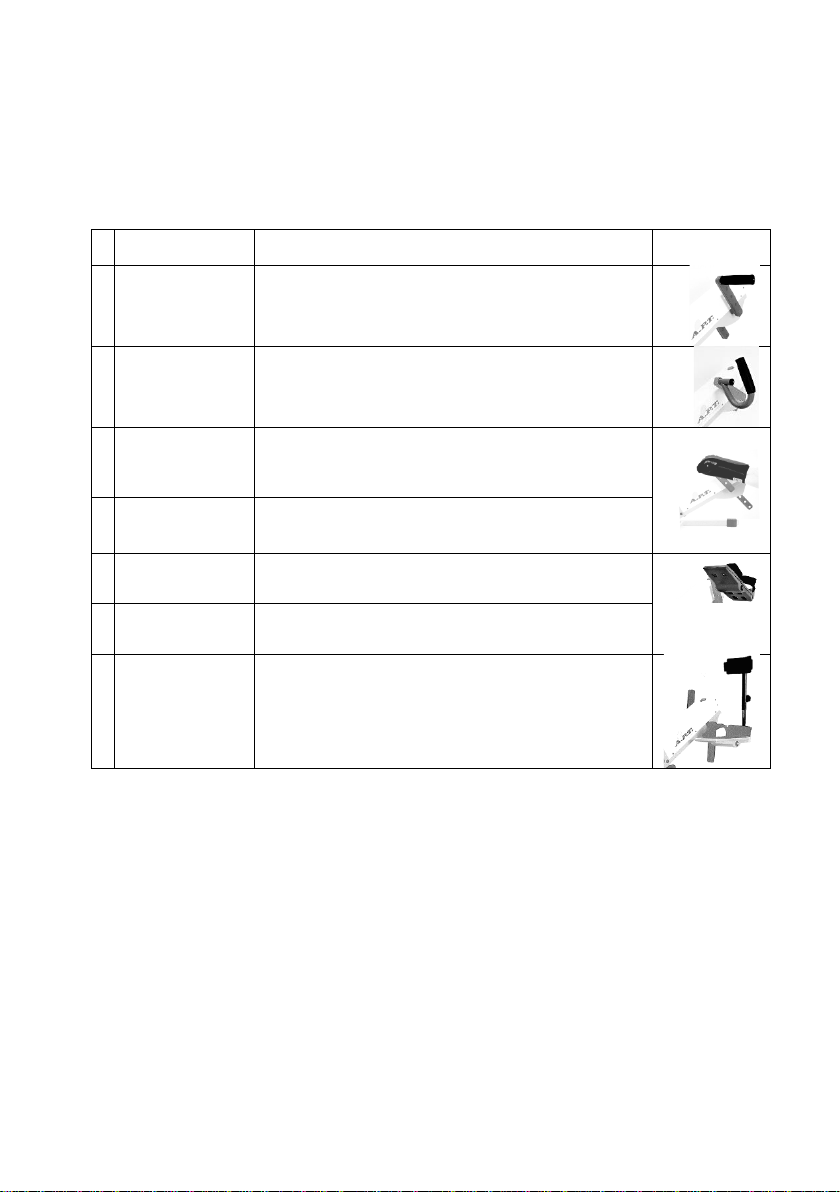

ACCESSORY
USAGE DESCRIPTION
FIGURE
a)
Straight
Handgrips
Used for most of the upper limb exercising.
b)
Angled
Handgrips
Ergonomically designed, mainly for
strength exercising in the Active mode.
c)
Hemi-glove
Used for securely supporting the wrist and
hand on the handgrips for users who have
little or no muscle strength.
d)
Pediatric
Hemi-glove
Hemi-glove specially designed to be used
by children.
e)
Standard
Footrests
Used for most of the lower limb exercising.
f)
Pediatric
Footrest
Footrest specially designed to be used by
children.
g)
High support
for footrests
May be attached to footrests for supporting
the lower limbs of users that have little or
no muscle strength.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 14
SECTION B –USER INFORMATION
6. PREPARING THE APT-1K HI-LO
6.1. Moving your APT-1K Hi-Lo/Double
The APT-1K Hi-Lo/Double can easily be moved by lifting the end of
the frame and pushing the unit using its wheels, see Figure 4.
6.2. Positioning the APT-1K Hi-Lo
Position the APT-1K Hi-Lo/Double close to an electrical socket outlet.
The adjustable feet on the underside keep the APT-1K Hi-Lo/Double
level and prevent it from sliding.
NOTE: Ensure that the APT-1K Hi-Lo/Double is level in order to pre-
vent damage to the trainer or its components.
If readjustment of one of the feet is needed, open the contra nut (4A/1),
turn the foot (4A/2) to the desired height and secure the foot with the
contra nut (4A/1).

APT-1 –User’s Manual (EU) Rev. 2024-01 en 15
7. INSTALLATION FOR USE –ARMS EXERCISE

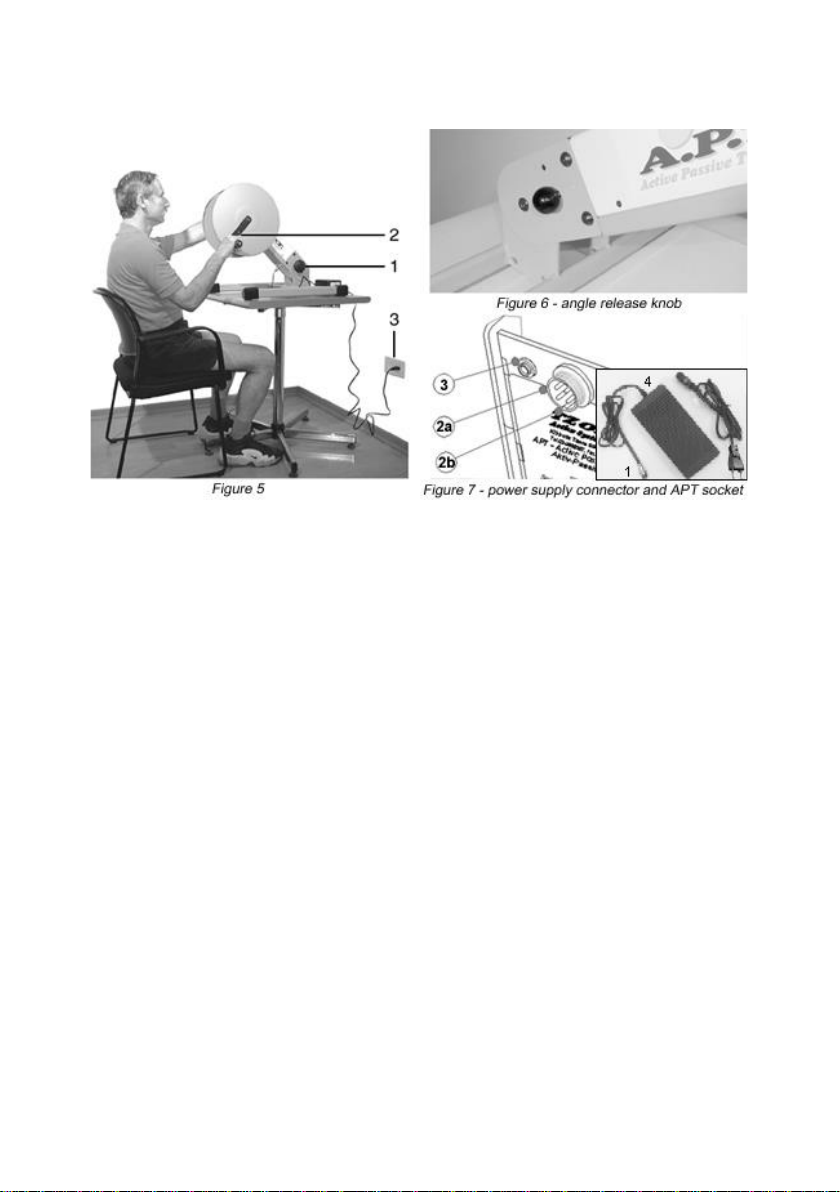

Step 1: Position the APT-1K on a level table top close to an electrical
socket outlet (Figure 5).
For the APT-1K Hi-Lo: loosen the height securing knob (Figure
1A-7, pull the grey ring of the height release knob (Figure 1A-6)
and adjust the unit to the required height. Release the grey ring
and tighten the height securing knob (Figure 1A-7).
Step 2: Loosen the angle-securing knob (Figure 5-1) and adjust the APT-
1K to the required angle. To increase the angle, lift the body of the
APT-1K, allow it to “click” into one of the operating positions and
retighten the securing knob. To decrease the angle, pull the angle
release knob (Figure 6), lower the body of the APT-1K, allow it to
“click” into another operating position and tighten the securing
knob.
CAUTION: Make sure that the minimum distance between
crank arm and the table surface is approximately 5 cm. / 2”
(Figure 5-2).
Step 3: Connect the output connector (Figure 7-1) of the power supply
(Figure 7-4) to the APT-1K power input socket (Figure 7-2) while
ensuring correct position of connector groove opposite the guide
key of socket (Figure 7-3).
NOTE: The APT-1K must be used only with an original APT-1K
Power Supply unit.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 16
Step 4: Insert handgrip (Figure 9-1) in one of the four mounting holes (Fig-
ure 9-2) in each of the APT-1K crank arms. Installation or removal
requires only a straight push or pull while simultaneously pressing
on the release pin (Figure 9-3) at the end of the handle.
NOTE: The choice of mounting hole provides variable resistance
levels and ranges of motion. See operation instructions.
Step 5: Plug the power supply mains power plug into the electrical socket
outlet (Figure 5-3). The APT-1K will enter a stand by position. To
start operating, press the button. The green ACTIVE mode
indicator will light up. You may start exercising in the ACTIVE
mode. For operation instructions, see 5.1 & 5.2.
NOTE: If the APT-1K moves across the table during arm exer-
cises, anti-slip pads may require cleaning.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 17
8. INSTALLATION FOR USE –LEG EXERCISE
Step 1: Position the APT-1K on the floor close to an electrical socket outlet
(Figure 10).
For the APT-1K Hi-Lo: loosen the height securing knob (Figure
1A-7, pull the grey ring of the height release knob (Figure 1A-6)
and adjust the unit to the required height.
Step 2: Loosen the angle-securing knob (Figure 10-1) and adjust the APT-
1K to the required angle. To increase the angle, lift the body of the
APT-1K, allow it to “click” into one of the operating positions and
retighten the securing knob. To decrease the angle, pull the angle
release knob (Figure 11), lower the body of the APT-1K, allow it to
“click” into another operating position and tighten the securing
knob.
CAUTION: Make sure that the minimum distance between
crank arm and the floor surface is approximately 5 cm. / 2”
(Figure 10-2)
Step 3: Place a chair at the desired distance from the APT-1K. If neces-
sary, attach the Securing straps (Figure 10-6) between the APT-
1K base rings (Figure 10-5) and the chair legs to prevent any
change in distance between the APT-1K and the chair during leg
exercises.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 18
Step 4: Connect the power output connector (Figure 12-1) of the power
supply (Figure 12-4) to the APT-1K power input socket (Figure 12-
2) while ensuring correct position of connector groove opposite the
guide key of socket (Figure 12-3).
NOTE: The APT-1K must be used only with an original APT-1K
Power Supply unit.
Step 5: Insert Footrest (Figure 13-1) in one of the four mounting holes (Fig-
ure 13-2) in each of the APT-1K crank arms. Installation or removal
requires only a straight push or pull while simultaneously pressing
on the release pin (Figure 13-3) as shown. Secure feet in place
with straps fastened diagonally as shown in Figure 10.
NOTE: The choice of mounting hole provides variable resistance
levels and ranges of motion. See operation instructions.
Step 6: Plug the power supply mains power plug into the electrical socket
outlet (Figure 10-3). The APT-1K will enter a stand by position. To
start operating, press the button. The green ACTIVE mode
indicator will light up. You may start exercising in the ACTIVE
mode. For operation instructions, see 5.1 & 5.2.
NOTE: If the APT-1K moves across the floor during leg exercises,
make sure anti-slip pads (Figure 10-4) are clean. If possible –use
the APT-1K on a carpet or rubber mat.

APT-1 –User’s Manual (EU) Rev. 2024-01 en 19
9. OPERATION INSTRUCTIONS
NOTE: Install APT-1K for arms or legs exercise as described in the previ-
ous chAPT-1Kers.
9.1. Active mode - ISOKINETIC operation
Step 1: Insert the handgrips or footrests in one of the four mounting
holes according to the radius and range of motion required.
NOTE: As the effective crank arm length is reduced in the ACTIVE
mode, the amount of effort required increases while the range of motion
decreases, and vice versa.
Step 2: To activate the active mode from the stand by position (after
the electrical power is supplied to the APT-1K): press the
button. The green ACTIVE mode indicator (Figure 3-2)
will light up.
Step 3: Set the desired load level by pressing one of the five load se-
lection push switches (Figure 3-4).
Step 4: Rotate the APT-1K handgrips or footrests forward or back-
ward. Actual exercising force is displayed as a percentage (%)
on the Bar Indicator (Figure 3-5).
NOTE: In this mode, an increase in the rotation speed (RPM) will lead
to an increase in the exercising force (Table 1, Appendix 1).

APT-1 –User’s Manual (EU) Rev. 2024-01 en 20
9.2. PASSIVE mode
Step 1: Insert the handgrips or footrests in one of the four mounting
holes according to the radius and range of motion required.
NOTE: As the effective crank arm length is reduced in the PASSIVE
mode, the range of movement is reduced and the degree of resistance
that the motor can overcome is increased.
Step 2: To activate the passive mode from the stand by position (after
the electrical power is supplied to the APT-1K): Press the
button two times, until the green PASSIVE mode indica-
tor (Figure 3-3) will light up. From the ACTIVE mode –press
once only.
Step 3: Set the desired rotation force and speed by pressing one of
the five exercise level selection push switches (Figure 3-4). 1
= lowest force, 20 rpm / 5 = highest force, 60 rpm
Step 4: Hold onto the handgrips (for arm exercise) or secure both feet
to the footrests (for legs exercise). Make sure that APT-1K is
placed at a comfortable distance for exercise by turning the
crank arms one complete revolution.
Press the button for forward rotation.
Press the button for backward rotation.
NOTE: There will be a short delay before the APT-1K begins to turn in
the chosen direction.
Step 5: The operation force of the crank arms should rotate the arms
or legs of with no effort on the part of the user. This rotation
force varies according to exercise level and crank arm mount-
ing hole location selected (Table 3, Appendix 1).
Step 6: To stop the rotation of the crank-arms and exit the PASSIVE
mode, press the button. The indicators will turn off and
the APT-1K will return to the stand-by position.
