Technogym Selection Low Row User manual

1
S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
Low Row
User manual
All equipment

2
Low Row
Contents
Identification of the manufacturer and equipment ............................ 3
Description of the equipment............................................................ 4
Technical data ................................................................................... 5
Fitting the number holder .................................................................. 6
Safety devices and warnings ............................................................ 7
Place of installation ........................................................................... 9
Lifting and moving the equipment................................................... 10
Adjusting the equipment ................................................................. 13
Routine maintenance ...................................................................... 14
Replacing the padded parts............................................................ 15
Replacing the cable......................................................................... 16
Adjusting cable tension ................................................................... 18
Removing the front weight stack panel........................................... 19
Technical Service............................................................................. 20
Storage............................................................................................ 21
Disposal........................................................................................... 22
Using the equipment ....................................................................... 23
User manual ...................................................................................... 1
Contents............................................................................................ 2

3
Low Row
D
E
A
B C F
Identification of the manufacturer and equipment
The equipment and manufacturer identification plate, placed on the frame on the side opposite the padded rest, gives the following
details:
AManufacturer's name and address
BCE Mark
CSerial number
DMaximum user weight
EEquipment classification
FConsultation of user manual required

4
Low Row
I
L
B
H
A
C
E
B
G
D
F
Description of the equipment

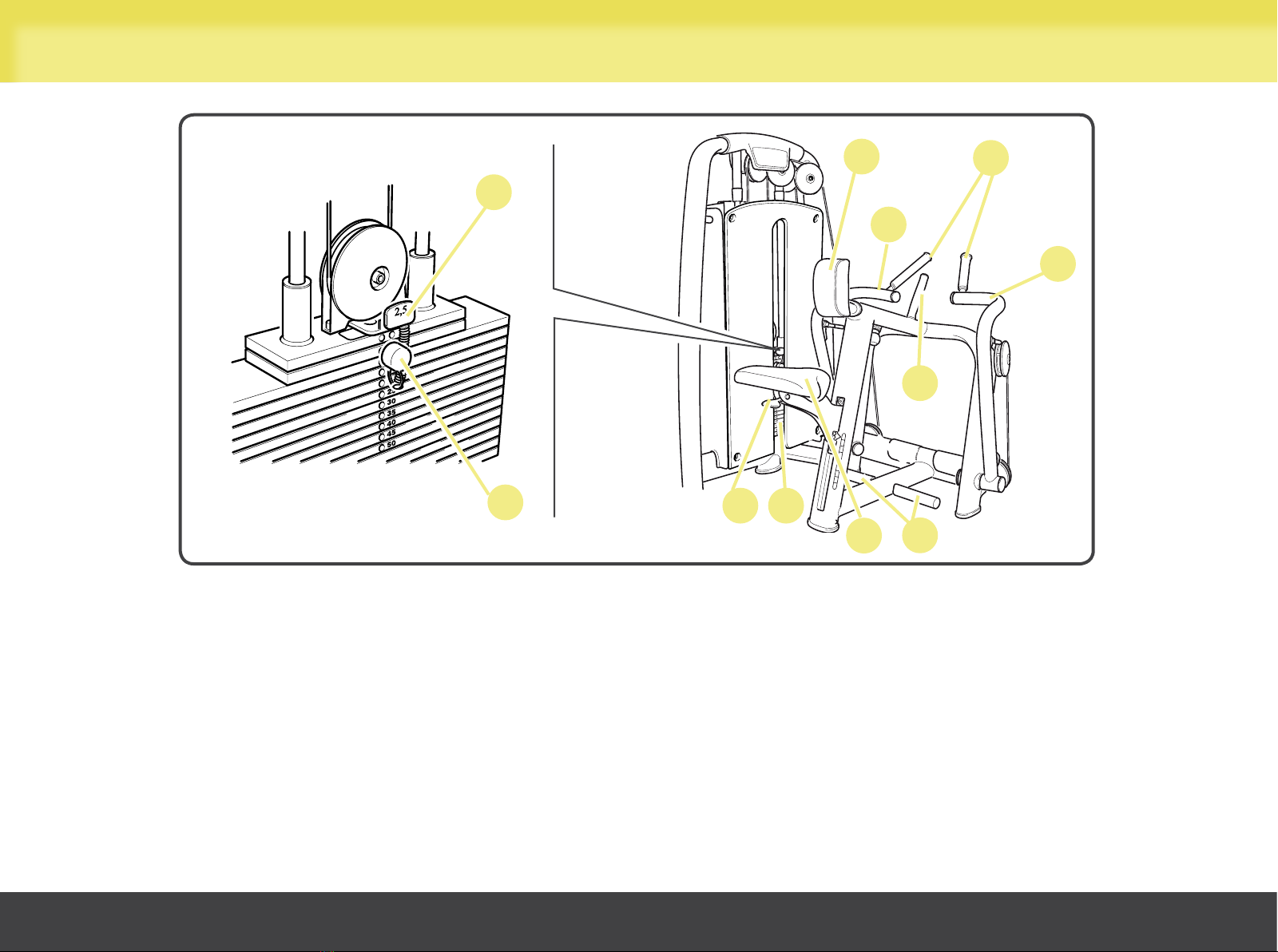

A Seat: where the user sits to perform the exercise. Its position can be adjusted using lever (G).
B Levers: operated by the user by means of handgrips (H).
C Weight stack: the levers (B), operated by the user, move the weights along two guides by means of a cable. Pin (I) is used to
select the load and adjust the level of intensity of the exercise. Cursor (L) is used to vary the selected workload by 2.5 kg.
D Footrest: where users place their feet during the exercise.
E Chest pad: users rest their chests against it when exercising.
F Fixed handgrip: it can be grasped with the resting arm when exercising one arm at a time.

5
Low Row

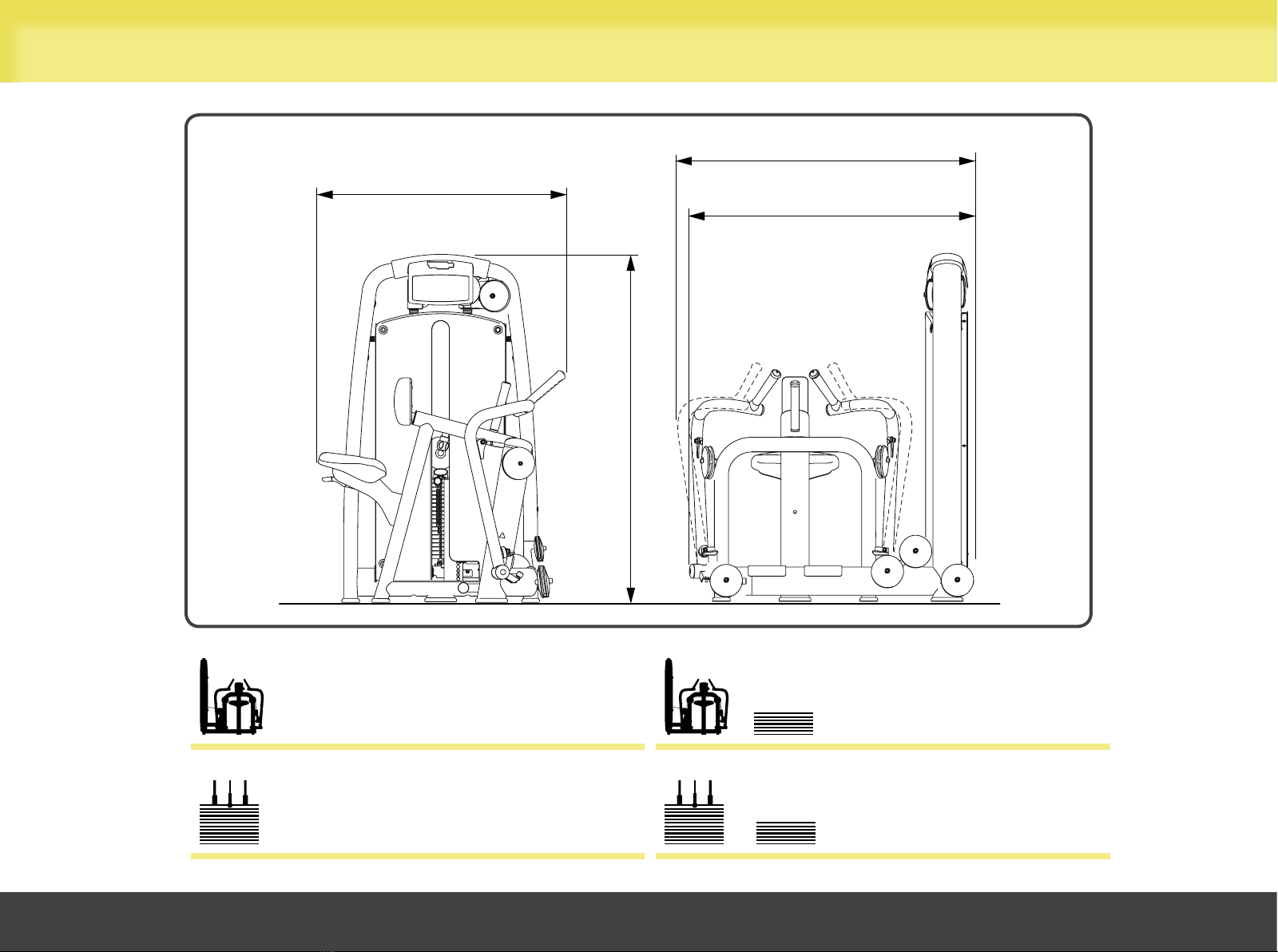

1485 mm
(59")
1226 mm
(48")
1489 mm
(59")
1055 mm
(42")
236 kg (520 lb) + 278 kg (612 lb)
95 kg (190 lb) + 130 kg (260 lb)
Technical data

6
Low Row
B
A
Fitting the number holder
The number holder must be installed immediately underneath the top: standing
facing the equipment, attach the number holder on the left, on the cover of guide
rail (A).
Find the place where the two screws (B) are to be inserted.
Attach the number holder using the two screws; the pressure used to tighten the
screws is enough to open the holes provided in the cover.
The number holder is optional.

7
Low Row
Safety devices and warnings
The maximum user weight is 180 kg.
The equipment has no sharp corners.
All parts which come into contact with the user's body are suitably protected with rubber coverings or padding.
The outside of the weight stack is covered by a protective panel.

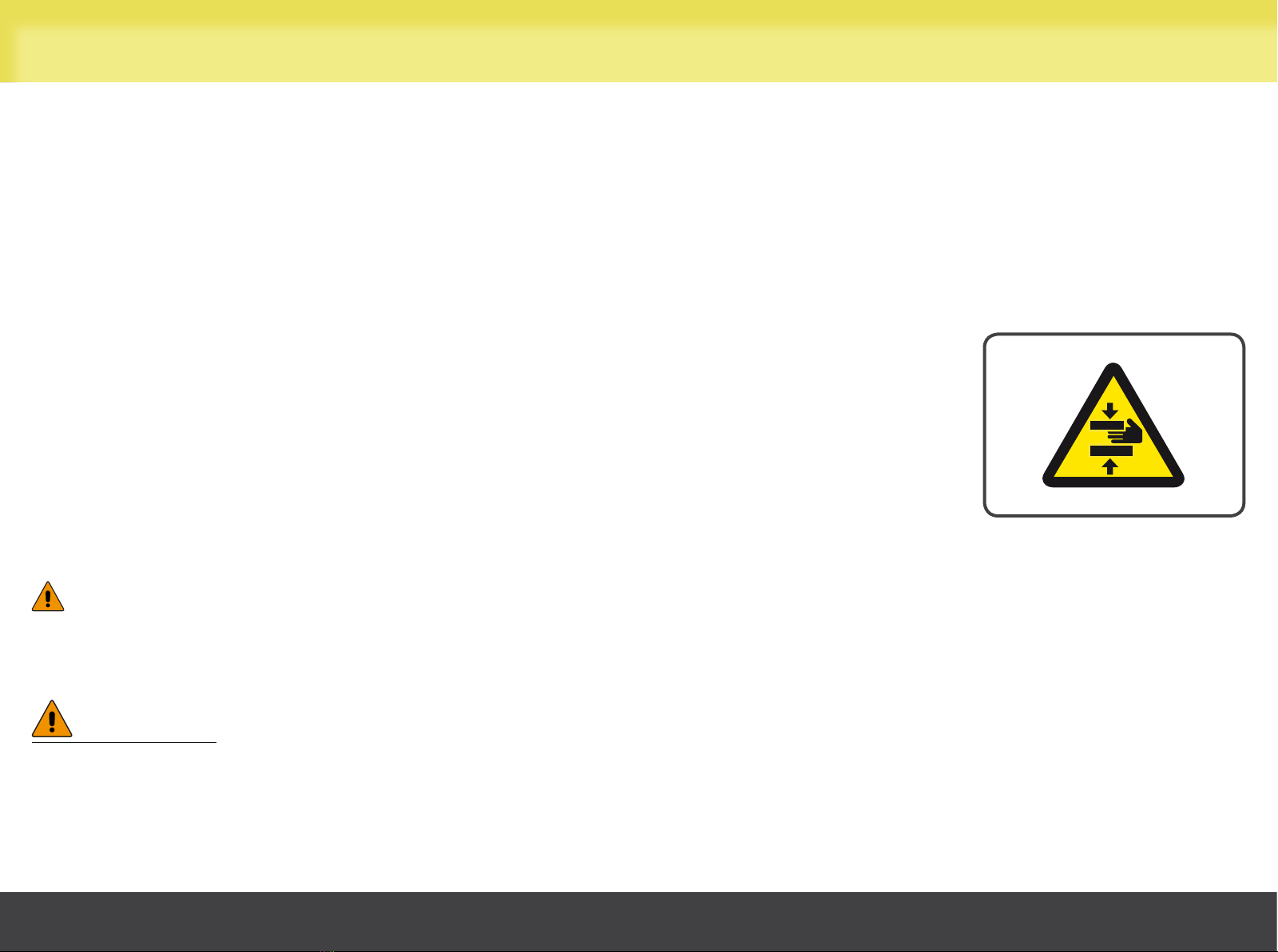

Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF
CRUSHING”.
This symbol accompanies safety warnings and is used to draw attention to potential risks of personal injury. Pay attention
to all safety warnings accompanied by this symbol to avoid possible injury.
WARNING
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.

8
Low Row

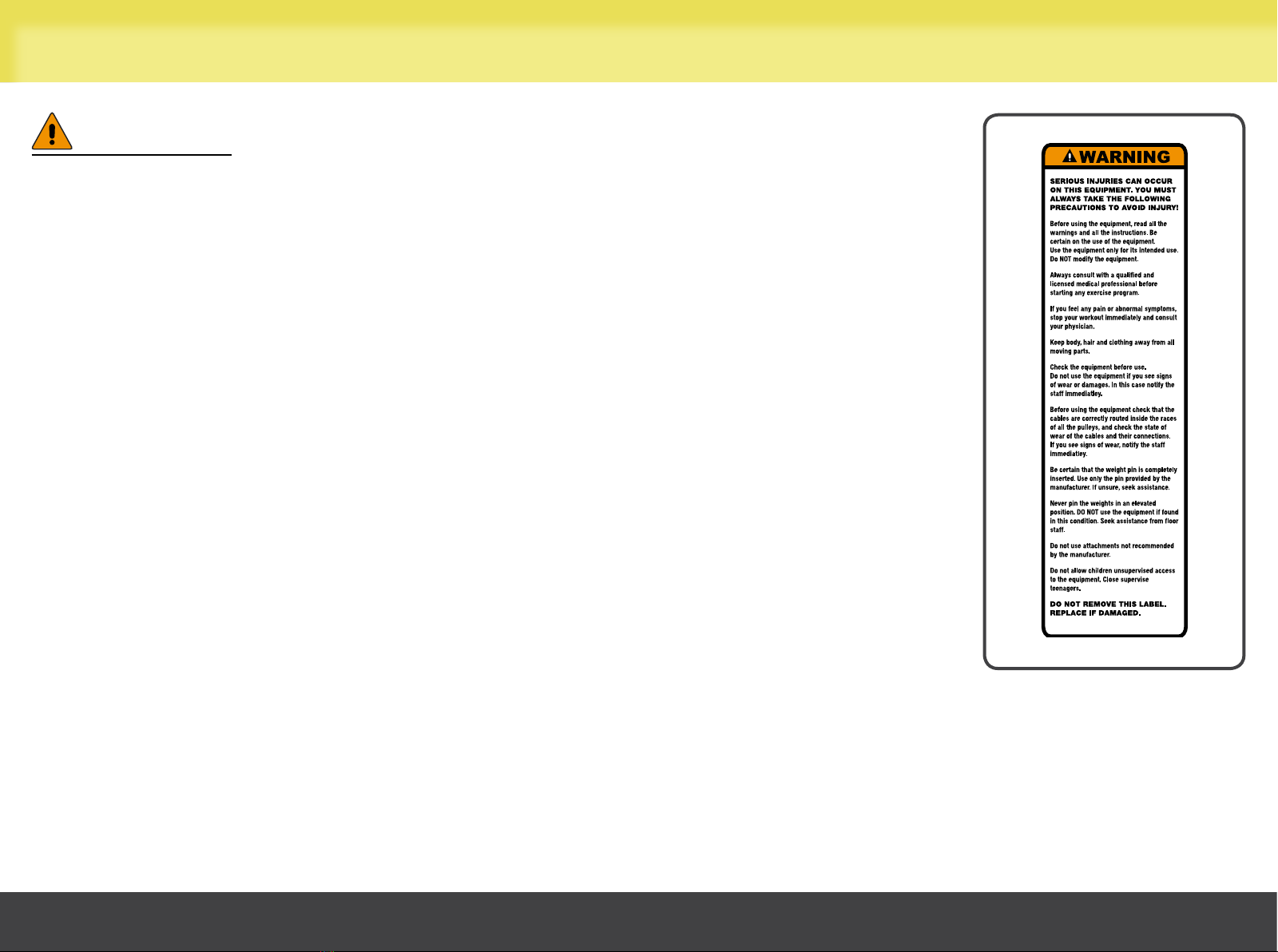

Safety devices and warnings
WARNINGS
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.

9
Low Row
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.

10
Low Row
01083016
A
Lifting and moving the equipment
Use the castors (optional) to move the equipment.
WARNING
Move the equipment very carefully, because it may become unstable
and tip over.
The wheels for moving the equipment snap on underneath the feet of the
equipment, after it has been raised, and are held in place by the special straps.

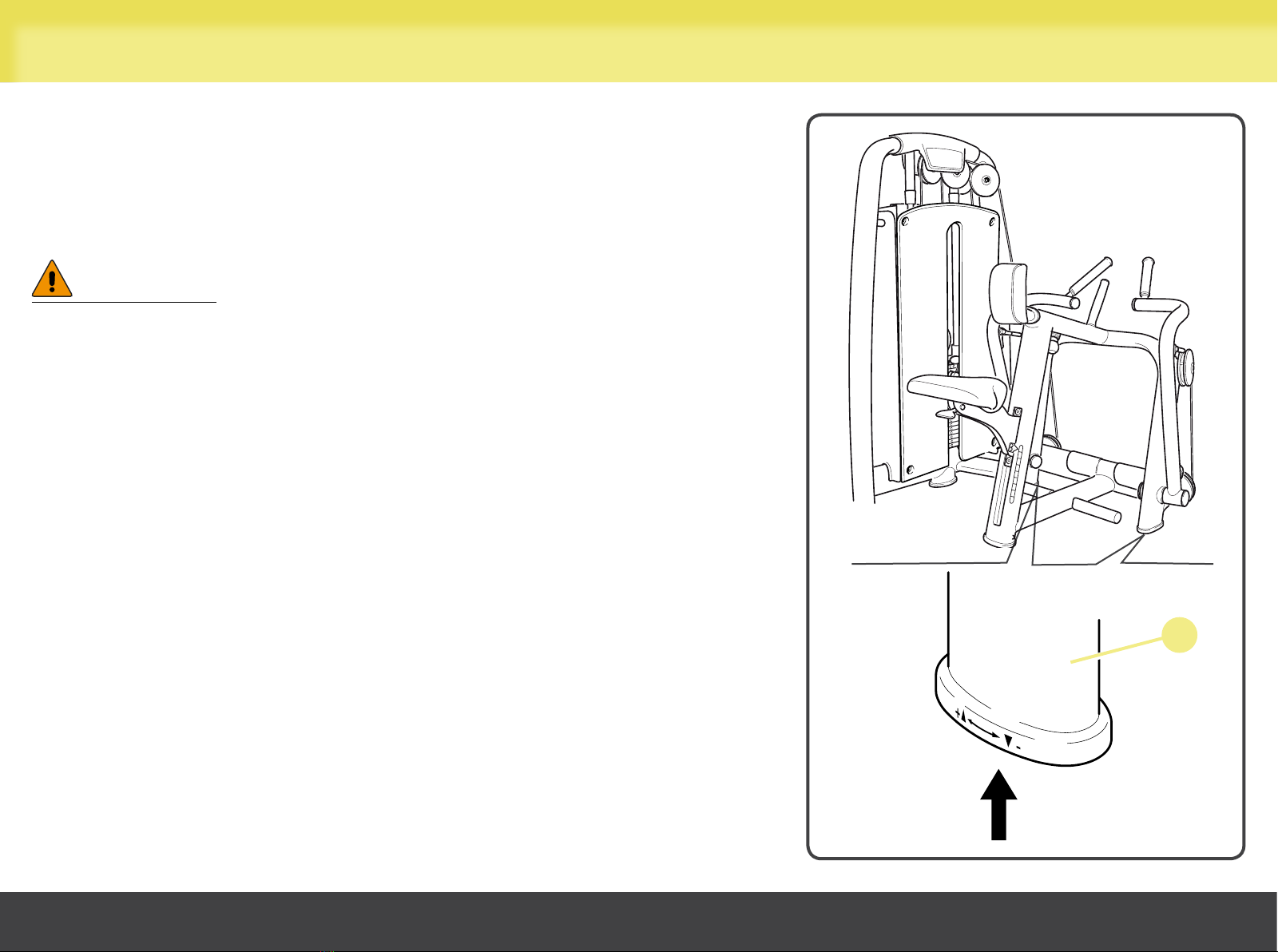

Raise the equipment using a pallet truck or fork-lift truck from the weight stack
side; and for greater safety place a wedge under the frame to keep the equipment
raised.
Insert the two fixed wheels first on one side and then on the other side of the
weight stack: fit wheel stems (A) into the holes provided under the equipment
feet, then push hard until they snap in..
WARNINGS
We recommend placing padded material between the frame and the
wedge and between the frame and the machinery used to lift it.
The fixed wheels must always be placed underneath the weight stack.
