PAGE 1 OF 2 0214 IH-4616
πH-4616, H-4617
DROP OVER CABLE
PROTECTOR
1-800-295-5510
uline.com

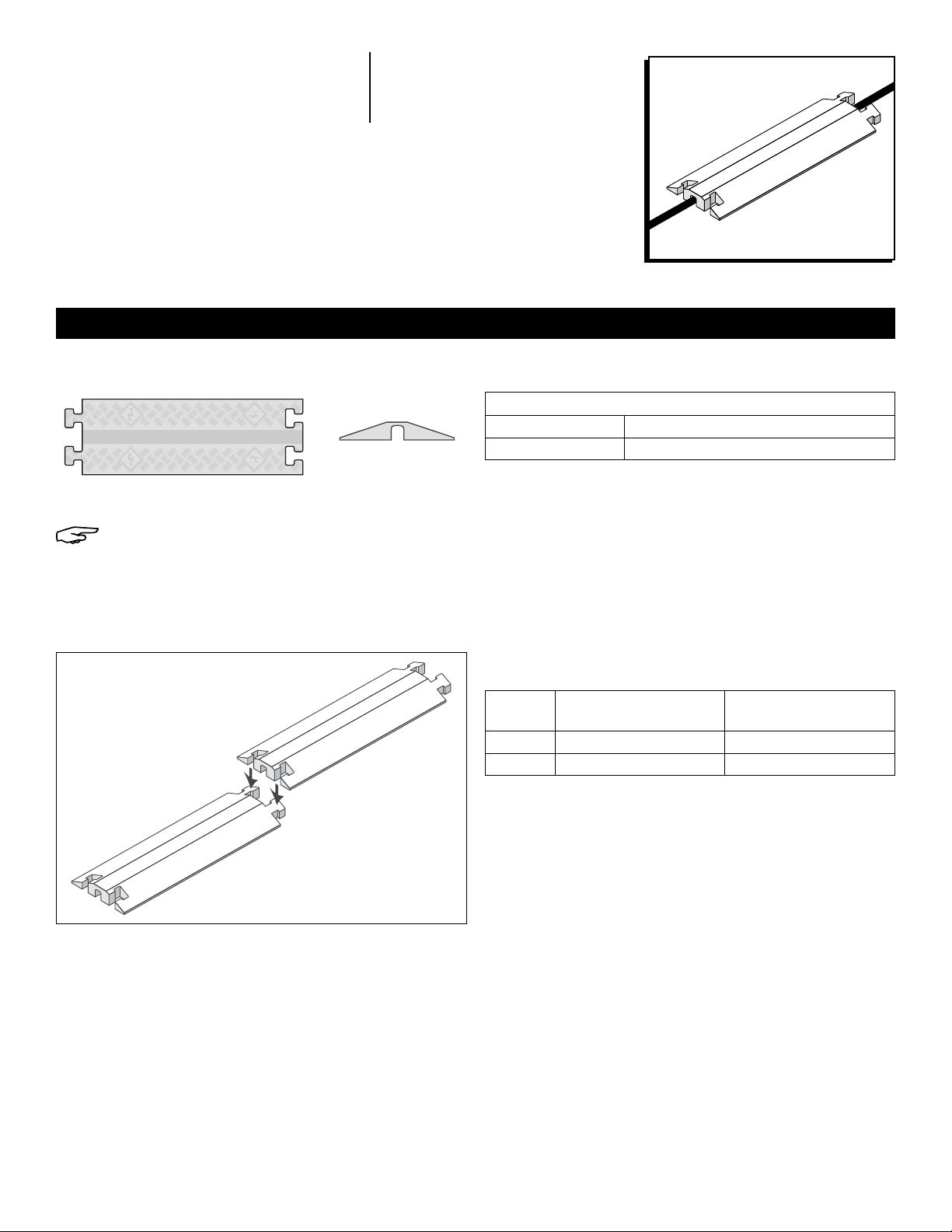

COMPONENTS
NOTE: Drop over protectors do not prevent
abrasion to cable from below.
ASSEMBLY
Interlock with T-connectors to extend protection length.
(See Figure 1)
•Inspect areas for safety hazards.
•Assemble sections by aligning female connectors
over male connectors and press with foot to secure.
•Install cable as required. Place the protector over the
top of exposed cable/hose.
•Test installation for intended use.
•Periodically inspect installation.
CHANNEL CAPACITY
CHANNEL CAPACITY - MAX. DIAMETER INCHES
H-4616 1.25" width x 1.25" height
H-4617 2.25" width x 2.25" height
LOAD CAPACITY
The Drop Over Cable Protector has different load
supporting capabilities depending on type of vehicle
and temperature. Suitability must be verified by testing
under actual conditions.
Load-supporting capacity varies by type of loading
conditions and environmental conditions. The load
capacity decreases in warm environments. Test before use
and inspect periodically.
MODEL
NO.
LOAD CAPACITY PER TIRE
MAX LOAD 70°F (21°C)
LOAD CAPACITY PER AXLE
MAX LOAD 70°F (21°C)
H-4616 11,7 0 0 l bs . 23,400 lbs.
H-4617 8,500 lbs. 17,000 lbs.
OPERATING TEMPERATURE
-40° to 120°F (-40° to 48°C)
CHEMICAL RESISTANCE
Tested for compatibility with common motor oils, gasoline
and diesel fuel. Limited resistance to brake fluids and
other chemicals.
MATERIAL
UV-stabilized polyurethane elastomer.
INSTRUCTIONS
Figure 1
36" Lineal Drop Over Protector
Side View

PAGE 2 OF 2 0214 IH-4616
CAUTION: Misuse can cause electrical shock
and injury.
•DO NOT use as work surface. NO CUTTING, NO
DRILLING, NO HAMMERING.
•Use with momentary loads only. DO NOT place
ladders, scaffolds or any type of structure on the
protector.
•Avoid concentrated loads.
•Use only on a stable surface. Inclined surfaces,
slippery surfaces and broken ground can cause
injury.
•This protector can be a trip hazard to pedestrian
traffic if they are unaware of its presence.
•Keep the Drop Over Cable Protector clean and bright.
•Keep various services, communications, fluids and
power separated. Limit a protector to one service
type.
•Polyurethane is attacked by some chemicals. Always
test a small amount for chemical compatibility before
using and follow maintenance procedure.
•Vehicular traffic must pass over the protector slowly
and with caution.
MAINTENANCE
•Store in a clean dry area.
•Inspect protector for damage and replace it if
damaged.
•Remove any foreign materials, solids and liquids.
•Keep clean by using a detergent and water solution.
INSTRUCTIONS CONTINUED
