U-Line RIPACK H-4694 User manual

PAGE 1 OF 2 0515 IH-4694
πH-4694, H-4695
RIPACK HEAT GUN
EXTENSION
1-800-295-5510
uline.com
ATTACH EXTENSION
1. In order to use a Ripack Heat Gun Extension, you
must first switch to the stronger, red-tipped igniter
provided to you. To do so, press down on the black
switch to release the trigger (See Figure 1).
2. Pull the trigger forward to expose black igniter
(See Figure 2).
3. Remove black igniter from chamber and replace
with red-tipped igniter. Make sure the red tip is
facing out (See Figure 3).
4. Close the trigger.
5. Now that the igniter has been changed, you can
add the extension on the end of the gun. Start by
removing the chrome combustion nozzle with a twist
and pull motion.
6. Attach extension at the end of the gun with a twist
and push motion.
7. Remove plastic protective cap from the end of the
extension and replace with the chrome combustion
nozzle. Your gun is ready for use.

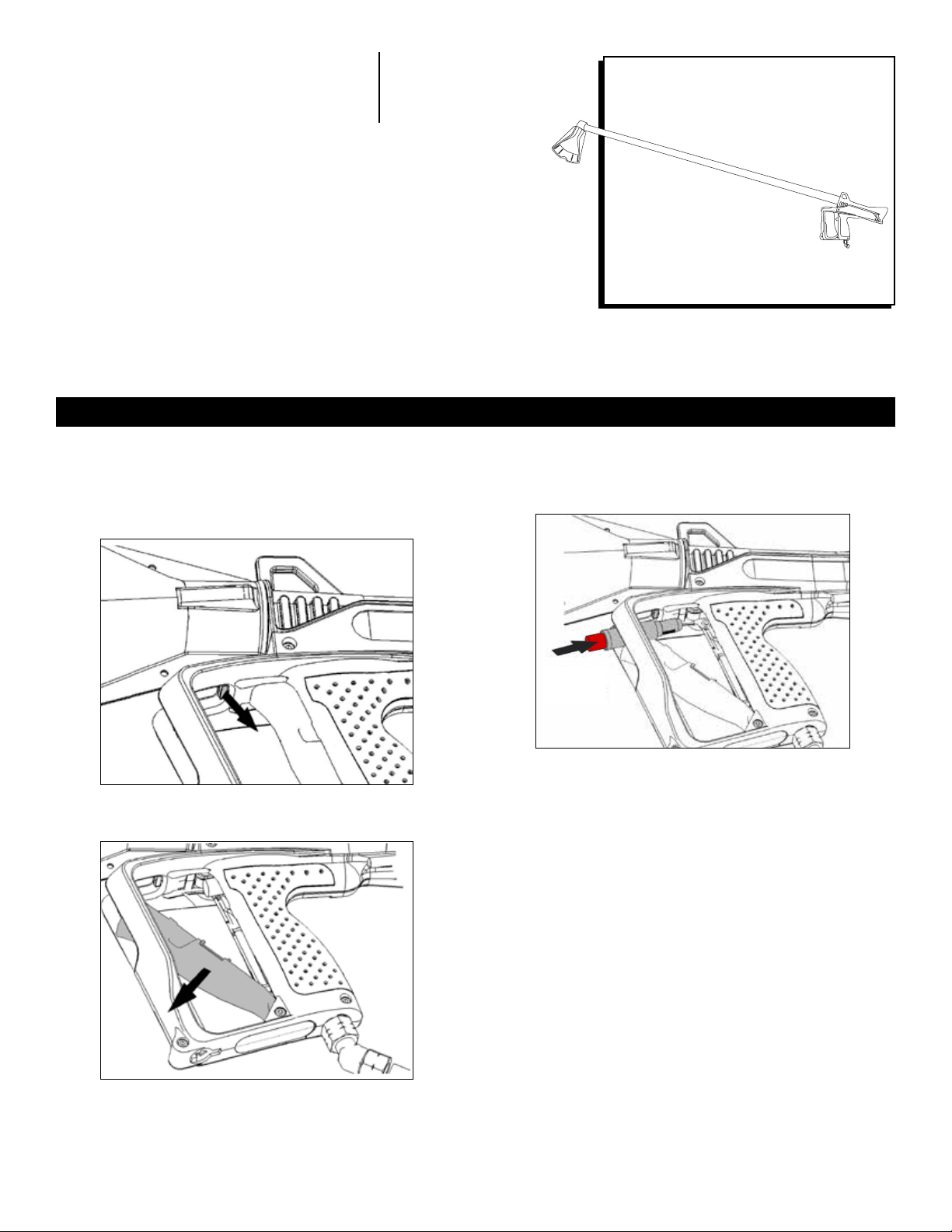

Figure 1
Figure 2
Figure 3

PAGE 2 OF 2 0515 IH-4694
1. Depress trigger half way to allow chamber to fill
with gas. When using the H-4694 4' Ripack Heat
Gun Extension, hold for two seconds. When using
the H-4695 7' Ripack Heat Gun Extension, hold for
five seconds (See Figure 4).
2. After allowed time, fully press down on the trigger to
ignite heat gun. (See Figure 5)
OPERATION
πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
1-800-295-5510
uline.com
Figure 4 Figure 5
