CO1175 —
Ice Maker/Refrigerator
Installation Guide

www.U-LineService.com 211/2006
CO1175 — Ice Maker/Refrigerator
Contents
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Door Swing/Clearances Information . . . . . . . . . . . . . . 5
Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
Side-By-Side Installation Instructions . . . . . . . . . . . . . . 7
Custom 1/4'' Thick Door Panel Insert . . . . . . . . . . . . . . 8
Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 9
Water Supply Connection . . . . . . . . . . . . . . . . . . . . . . . 9
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 10
Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation of the CO75A . . . . . . . . . . . . . . . . . . . . . . . 11
Grille Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Glass Shelf Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation Troubleshooting . . . . . . . . . . . . . . . . . . . . . 12
Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 13
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
IMPORTANT
PLEASE READ all instructions completely before
attempting to install or operate the unit.
• This unit requires connection to the water supply.
Improper hook-up can result in substantial property
damage! If you are unsure of your ability to safely
connect the water supply to the unit, consult a licensed
plumber for assistance.
• This unit requires connection to a grounded (three-
prong), polarized receptacle that has been placed by a
qualified electrician in accordance with applicable
electrical codes.
Safety Alert Definitions
Safety items throughout this guide are labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury,
or death.
CAUTION
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
1 Follow Safety Precautions

11/2006 3www.U-LineService.com
CO1175 — Ice Maker/Refrigerator
General Precautions
Use this appliance for its intended purpose only and
follow these general precautions along with those listed
throughout this guide:
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Keep the unit unplugged throughout installation
except during testing.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
• Always keep your working area dry.
CAUTION
• Use care when moving and handling the unit. Use
gloves to prevent personal injury from sharp edges.
• Do not lift the unit by the door or door handle.
• Do not install the unit behind closed doors or in any
way that would obstruct airflow to the front grille,
which may cause the unit to malfunction.
You have received a carton containing your CO1175 Ice
Maker/Refrigerator with a package inside containing a
User Manual, a Product Registration Card and water
connection parts. Complete and mail the Product
Registration Card or register online at
www.U-LineService.com. Once your unit is installed, keep
the User Manual and this Installation Guide in a safe place
for future reference.
CO1175 units are available in Black or Stainless. Black
units have a vinyl-clad cabinet with matching door.
Stainless models have a stainless steel door, and a black
cabinet. All Black CO1175 unit doors have a slightly
contoured handle across the top and are reversible. These
doors have recessed front panels that will accept a custom
1/4 inch thick door panel. Stainless unit doors are covered
with a protective coating and have beed ordered left-or
right-hand hinged. The Stainless doors are not reversable
and do not accept custom panels. All CO1175 units have
tempered glass shelves.
Please carefully follow the directions that apply to your
unit and your intended design.
Tools/Materials Required
• Screwdrivers — slotted and Phillips head
• 1/4-inch OD copper tubing and shutoff valve for water
supply line
• 1/4-inch thick door panel material and cutting tools
Inspection
Unwrap and inspect the unit on a flat, level surface
capable of supporting its entire weight.
2 Inspect and Plan

www.U-LineService.com 411/2006
CO1175 — Ice Maker/Refrigerator
Exterior Cleaning
(As Required)
Black Models:
• Black surfaces may be cleaned with a mild detergent
and warm water solution. Do not use solvent-based or
abrasive cleaners. Use a soft sponge and rinse with
clean water. Wipe with a soft, clean towel to prevent
water spotting.
Stainless Models:
• Stainless door panels and handles can discolor when
exposed to chlorine gas, pool chemicals, salt water or
cleaners with bleach.
• Keep your Stainless unit looking new by cleaning with
a good quality all-in-one stainless steel cleaner/polish
on a monthly basis. For best results use Claire Stainless
Steel Polish and Cleaner, which can be purchased from
U-Line Corporation. (The part number is 173348.)
Comparable products are acceptable. Frequent
cleaning will remove surface contamination that could
lead to rust. Some installations may require cleaning
on a weekly basis.
• Do not clean with steel wool pads.
• Do not use cleaners that are not specifically
intended for stainless steel on stainless surfaces
(this includes glass, tile and counter cleaners).
• If any surface discolors or rusting appears, clean it
quickly with Bon-Ami or Barkeepers Friend Cleanser
and a non-abrasive cloth. Always clean in the direction
of the grain. Always finish this process with Claire
Stainless Steel Polish and Cleaner or comparable
product to prevent further problems.
• Use of abrasive pads such as Scotchbrite will
cause the graining in the stainless to become
blurred.
• Rust that is allowed to linger can penetrate into the
surface of the stainless steel and complete removal of
the rust may not be possible.
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides or rear.
However, the front grille must NOT be obstructed and
clearance is required for water and electrical connections
in the rear.
Note: Unit can NOT be installed behind a closed cabinet
door.

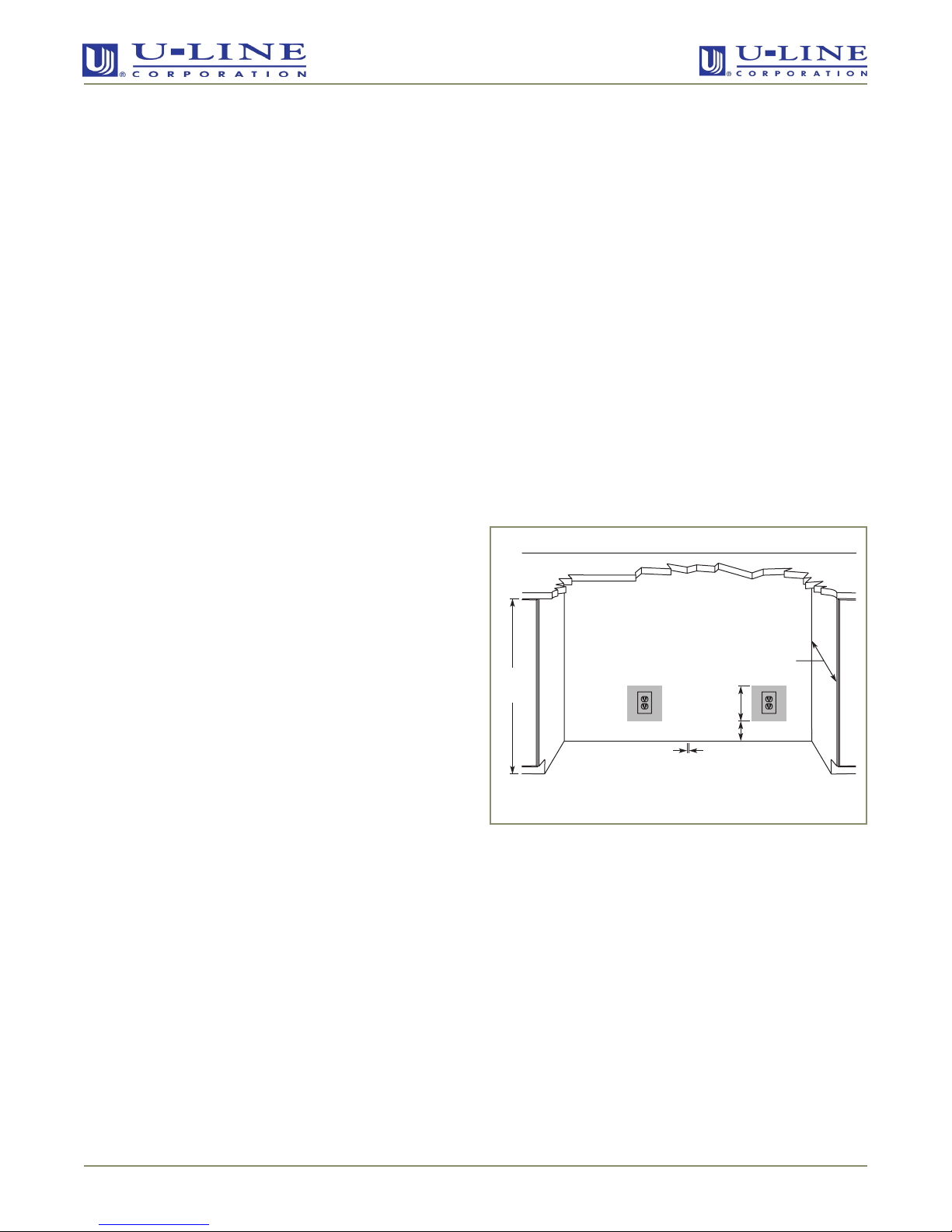

Cut-Out Dimensions
Follow the cut-out drawing in Figure 1. The 24-3/16"
width allows 1/4" for ease in installation and removal of
the unit. 24" is the counter depth in most installations.
The unit is 24" deep including the door and not the
handle on Stainless models and 24" deep including the
handle on Black models (see Figure 2).
3 Prepare Site
8"
24"
Minimum
24-3/16"
See Electrical
Specifications
for Power Supply
34-1/4"
to
35-1/8"
Figure 1

11/2006 5www.U-LineService.com
CO1175 — Ice Maker/Refrigerator
Product Dimensions
Please note that the unit has adjustable feet that can add
one additional inch to height during leveling or to match
adjacent cabinets (see Figure 21 on Page 11).
Door Swing/Clearances Information
Black units have a zero clearance for the door to open
90° (see Figure 3). U-Line recommends a minimum door
clearance of 1/4" for black units. Stainless Steel units
require a minimum of 2” door clearance to accommodate
the handle if the unit is installed next to a wall or similar
type of structure.
All left-hand hinged units require a minimum of 1/4" door
clearance if installed flush with cabinet or wall and 8"
clearance for Black & Stainless Steel units if installed
adjacent to cabinet or wall for easy removal of ice bin. See
Figure 3.
BLACK CO1175
24"
Including
Handle
34-1/8"
23- 15/16"
25- 3/4"
Including
Handle
34-1/8"
23- 15/16"
ULIN_0827_A
STAINLESS CO1175
Figure 2
Figure 3
1/4" Min.
Wall
90
Door Swing
20-7/8"
25-1/2"
Black
Wall
2" Min.
90
Door Swing
20-7/8"
25-1/4"
Stainless
Wall
or Cabinet
Wall
or Cabinet 1/4” Min. 8”
Min.
Door
Swing
125°
Door Swing
Left Hand Hinge
All Units Adjacent to
Wall or Cabinet
Left Hand Hinge
All Units Flush With
Wall or Cabinet
Wall
or Cabinet
Wall
or Cabinet

www.U-LineService.com 611/2006
CO1175 — Ice Maker/Refrigerator

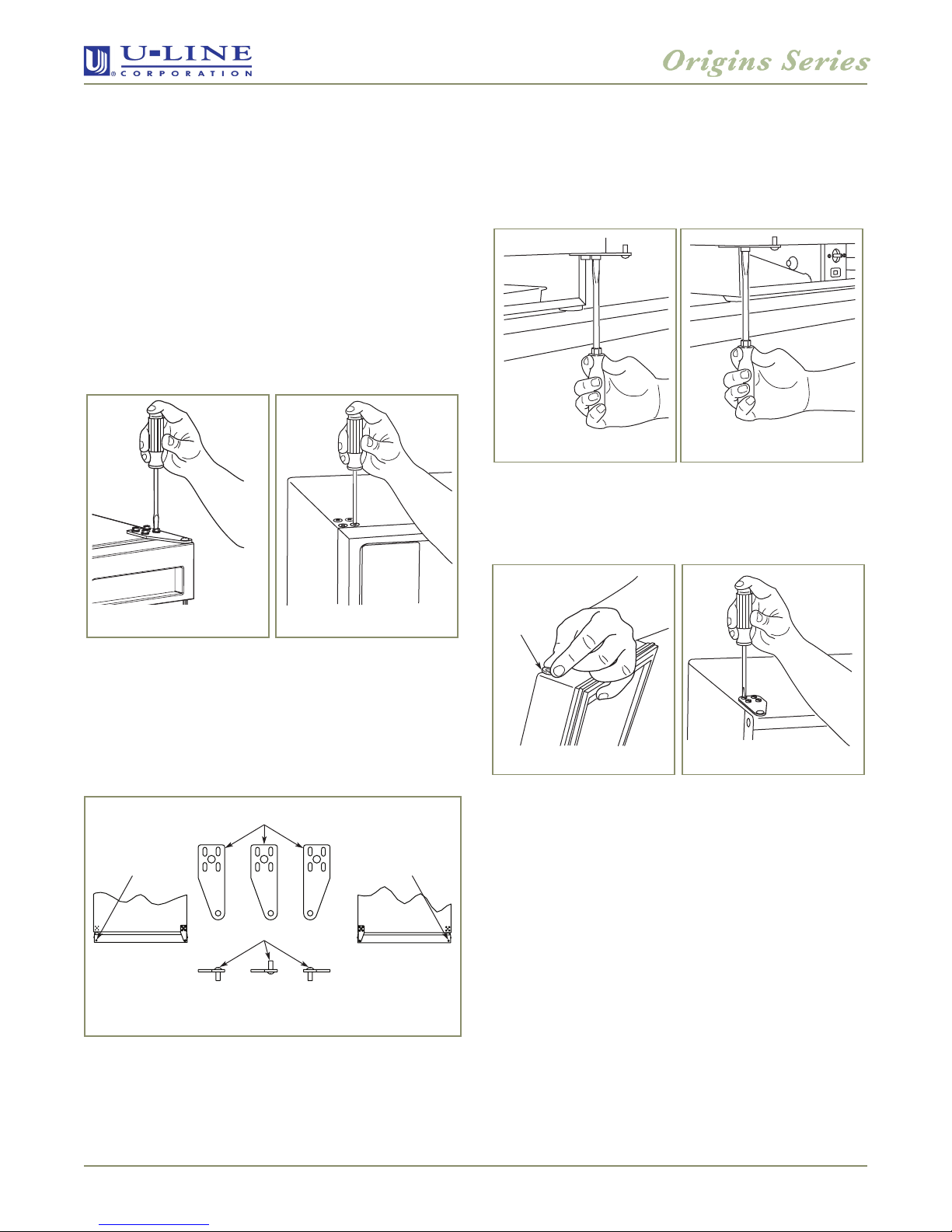

Reversing the Door
(CO1175 Black Units Only)
All units may be left-or right-hand opening (All Stainless
Steel units cannot be field-reversed).
Black Units
Note: The grille should not yet be installed. If it has been
installed, remove it for door reversing. See Page 11.
To reverse the door on Black models:
1. Remove top hinge from cabinet (four screws). See
Figure 4. Hold door to keep it from falling.
2. Lift the door off the bottom hinge.
3. Remove four plastic plugs in hinge holes, top of cabinet,
opposite side. See
Figure 5 . Be careful not to scratch
cabinet.
4. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge. See
Figure 6 . Do not
install hinge on cabinet at this time.
5. Remove bottom hinge from cabinet (four screws) and
screws on opposite side of cabinet. See
Figure 7 .
6. Remove pivot screw from bottom hinge, invert screw
and reinstall pivot screw in hinge. See
Figure 6 .
7. Install bottom hinge on cabinet, opposite side, aligning
flat edge of hinge with outer edge of unit. Partially
tighten screws. See
Figure 8 .
8. Relocate plastic spacer/bushing on bottom of door to
the opposite side. See
Figure 9. Clean out bushing hole
in door bottom if necessary.
9. Place door on lower hinge pin. Align flat edge of top
hinge with outer edge of unit and fasten upper hinge
to unit (four screws). Partially tighten screws. See
Figure 10 .
10. Adjust door to assure proper seal. Tighten upper and
lower hinge screws securely.
11. Replace four plastic plugs removed in Step 4 into holes
on top of unit. Replace screws in holes in bottom of unit
on opposite side.
Other Site Requirements
Power Supply
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A circuit (normal household current). See
Electrical Specifications on Page 10.
Figure 4 Figure 5
Plastic
Plug Hole
Plastic
Plug Hole
Hinge
Screw
Right Side
Door Swing
Right Side
Hinge
Invert
Screw
Invert
Hinge
Left Side
Door Swing
Figure 6
Figure 7 Figure 8
Bushing
Figure 9 Figure 10

11/2006 7www.U-LineService.com
CO1175 — Ice Maker/Refrigerator
Water Supply
The unit requires a 1/4-inch OD water supply line and a
shutoff valve. For more information see Page 9.
Environmental Requirements
The surrounding air temperature must be at least 50°F
(10°C) but must not exceed 110°F (40°C). Units may be
installed outdoors in a covered area. The unit must not be
located near heat-generating equipment or in direct
sunlight.
Side-By-Side Installation
Instructions
For a complete refreshment center, install two of the
following 1175 series units side by side: CO1175, 1175R
Refrigerator or 1175WC Wine Captain®. Note that each
Side-By-Side Installation will be different.
• Cut-out width for a side-by-side installation is the total
of the widths listed under Cut-Out Dimensions in each
unit’s Installation Guide.
For example:
Placing a CO1175 next to another 1175 series unit
would require a cut-out width of:
24-3/16" + 24-3/16" = 48-3/8"
•
No trim kit is required. However, 1/4-inch space needs to
be maintained
between the units to ensure
unobstructed door swing.
• Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
Electrical Specifications.
7"
4"
34-1/4"
to
35-1/8"
1/4" Space
Between
Appliances
24"
Figure 11
Typical Side-By-Side Cut-Out

www.U-LineService.com 811/2006
CO1175 — Ice Maker/Refrigerator
Units will accept a Custom 1/4" Thick Insert to harmonize
with or accent the surrounding decor.
If this treatment is not included in this installation, go on
to 5 Adjust Door.
Custom 1/4'' Thick Door Panel Insert
Door Panel Preparation
A custom door panel can be inserted into the doorframe.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is 1/4"-thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the door’s 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure (see Page 5).
Cut the panel insert to the following dimensions.
Custom 1/4" Dimensions for Black units:
Width: 22-15/16"
Height: 26-15/16"
The door panel must not weigh more than 20 lbs.
Door Panel Installation
Install the insert as follows:
CAUTION
Use care when handling the insert. Insert edges may be
sharp.

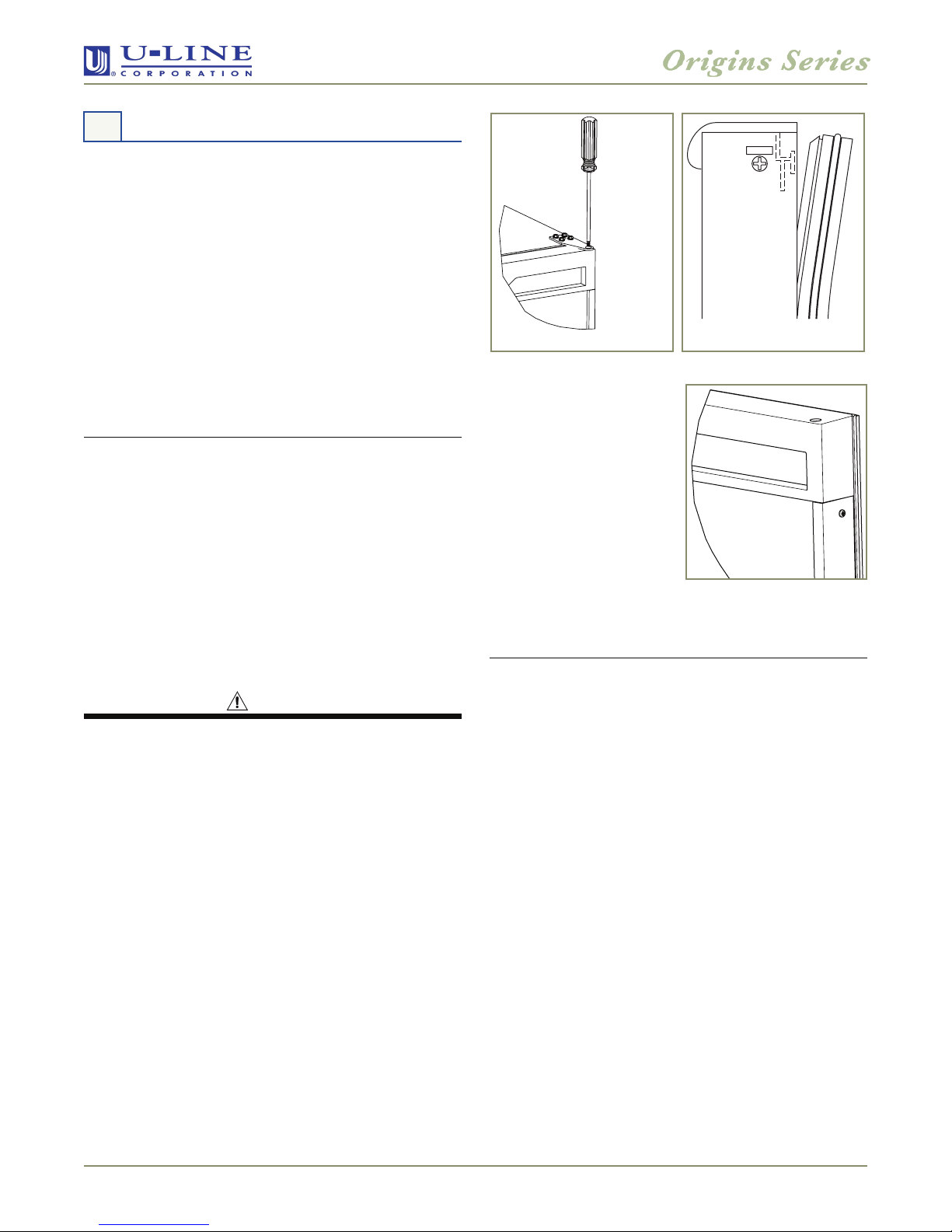

1.
Remove top hinge screw pin with a Phillips head
screwdriver. Remove door by tilting forward and lifting
off bottom hinge pin.
2. Pull door gasket out of
groove (top edge of door
only). Start in the middle
and pull outward, moving
toward the edge (see
Figure 13 ). This may take
some force.
3. Remove two outside
screws holding door
handle. Slightly separate
door handle from door
(see Figure 14 ).
4. Pull handle up and off.
IMPORTANT
Use care not to bend light switch bracket (where
installed), located on door bottom when installing door
insert. Do not set door on bottom edge when pushing
insert into place.
5. Slide custom door panel insert into 1/4-inch channel in
door front.
6. Holding door gasket out of the way, replace handle on
door, making sure it is seated properly on insert and
that screw holes line up.
7. Install two small screws removed in
Step 3 .
8. Starting at the corners and working inward, push door
gasket into place on door.
9. Place door on bottom hinge pin and install upper hinge
screw.
10. Go on to
5 Adjust Door .
4 Prepare and Install Door Panel
Figure 12 Figure 13
Figure 14

11/2006 9www.U-LineService.com
CO1175 — Ice Maker/Refrigerator
Checking Door Alignment
The unit’s door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during door panel installation.
IMPORTANT
Properly aligned, the door's gasket should be firmly in
contact with the cabinet all the way around the door (no
gaps).
1. Carefully examine the door's gasket to assure that it is
firmly in contact with the cabinet.
Note: When inspecting door alignment, make sure the
light switch bracket makes contact with the light switch
plunger. Also make sure the door gasket is not pinched on
the hinge side of the door.
2. If the door is properly aligned, go on to 6 Prepare
Plumbing
. If it is not, use the following procedure.

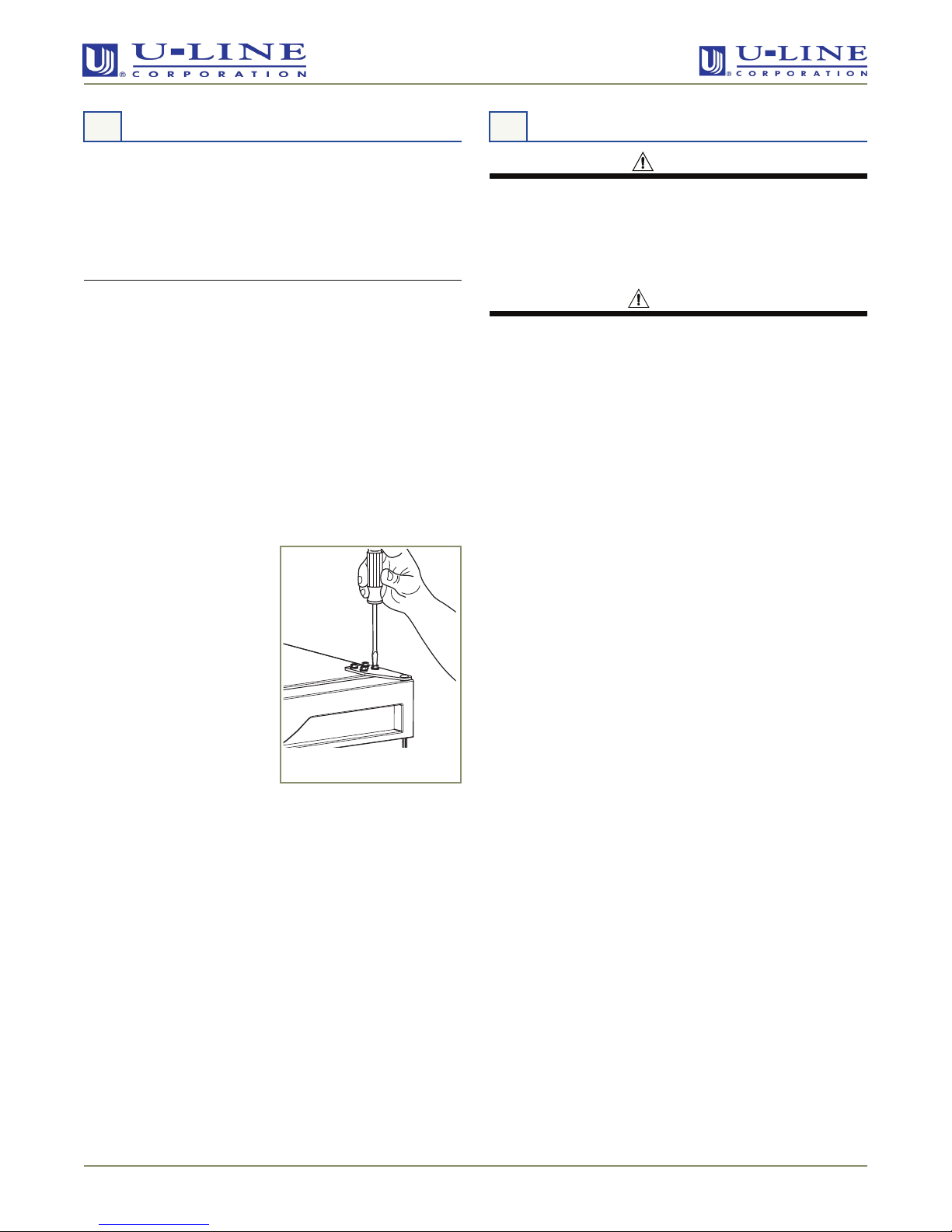

Adjusting Door Alignment
1. Loosen (do not remove)
top and bottom hinge
screws. See Figure 15.
2. Align door squarely with
cabinet. Make sure gasket
is firmly in contact with
cabinet all the way around
the door (no gaps).
3. Tighten bottom hinge
screws.
4. Tighten top hinge screws.
Go on to
6 Prepare
Plumbing
.
CAUTION
Plumbing installation must observe all state and local
codes. All water connections MUST BE made by a licensed/
qualified plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
WARNING
To prevent accidental electrocution, make certain
that the floor surfaces surrounding the unit are
dry whenever power is removed from, or applied
to, the unit.
Water Supply Connection
When connecting the water supply, follow these
guidelines:
• Review the local plumbing codes before you install the
unit.
• Connect to the cold water supply.
• The water pressure should be between 20 and 120 psi.
• Install a shutoff valve in the 1/4 inch OD water supply
line.
• Connect sufficient tubing to the unit so that tubing
may be looped, allowing the unit to be removed for
cleaning and servicing (see Figure 18). However, make
certain that the tubing is not pinched or damaged
during installation.
• U-Line recommends the use of copper tubing for
installation.
To connect to water supply:
1. Install the 1/4 inch OD copper water line from the
main water source.
5 Adjust Door
Figure 15
6 Prepare Plumbing

www.U-LineService.com 10 11/2006
CO1175 — Ice Maker/Refrigerator
2. Locate the compression fitting and ferrule packed with
the unit. Slide the compression fitting and ferrule over
the 1/4-inch OD water supply line. Do not use thread
sealing compound or tape. Using two wrenches,
tighten the compression fitting on the supply line (see
Figure 16).
3. Carefully bend the water supply line into position and
connect the line to the solenoid valve (see
Figure 17 ).
Avoid kinking the water supply line.
IMPORTANT
Normal operation creates some vibration. A water supply
line contacting cabinet wall may cause excessive noise
during operation or damage to the line.
4. For recessed installations, allow extra water supply line
length to provide slack for easy removal from the
recessed area (see
Figure 18 ). This will also safeguard
against kinking the line.
5. Go on to
7 Prepare Power Supply .
Electrical Specifications
CAUTION
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded (three-
prong), polarized receptacle that has been placed by a
qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or circuit
breaker is recommended. GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
a GFCI could be prone to nuisance tripping. However, be
sure to consult your local codes.
See Figure 19 for recommended receptacle location.
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
Go on to 8 Level the Unit.
Figure 17Figure 16
Water
Connection
Figure 18
7 Prepare Power Supply
4"
7"
24"
Figure 19

11/2006 11 www.U-LineService.com
CO1175 — Ice Maker/Refrigerator

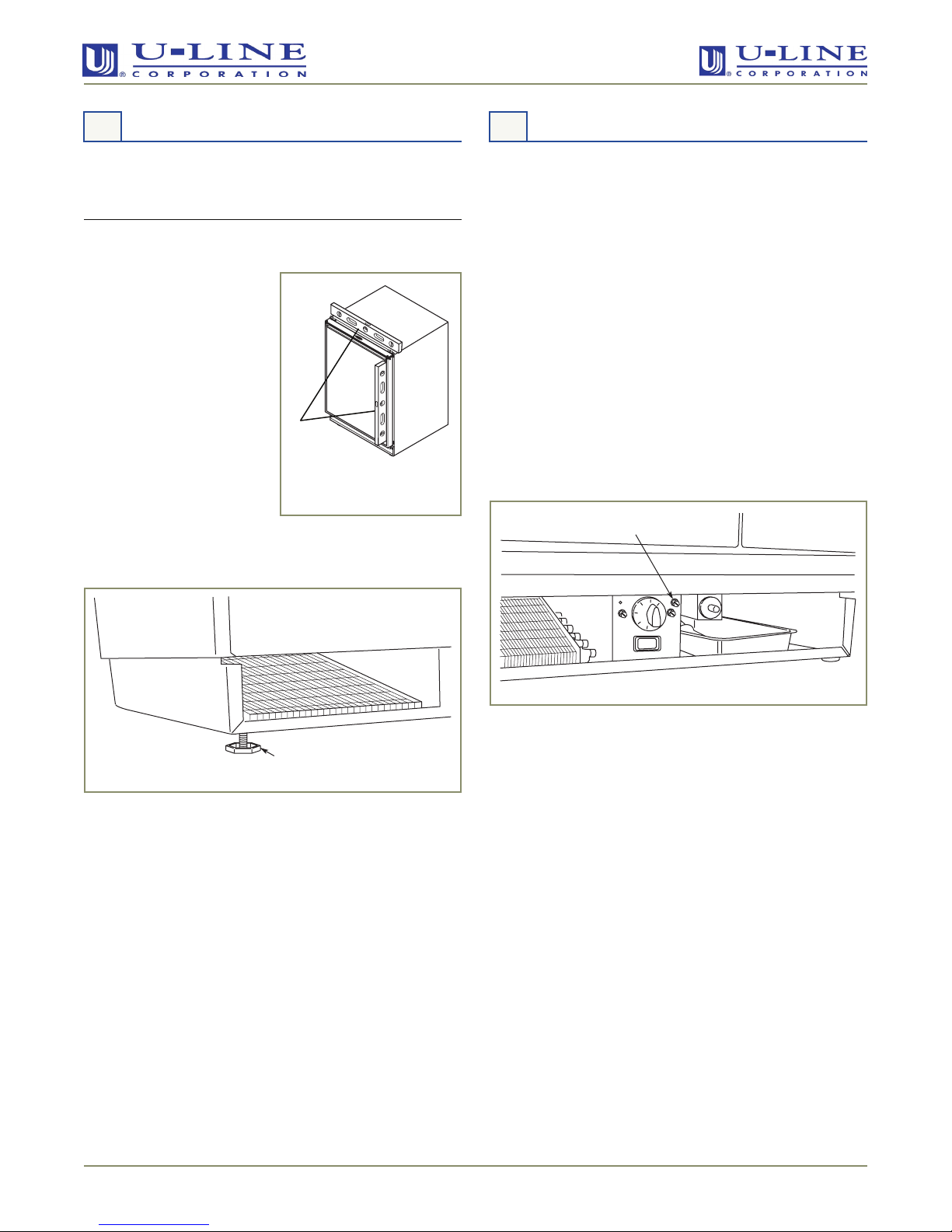

Leveling Information
IMPORTANT
It is extremely important that the unit is level. If it is not
level, the ice mold will not fill evenly.
1. Use a level to check the
levelness of the unit from
front to back and from
side to side. Level should
be placed along top edge
and side edge as shown
(see Figure 20).
2. If the unit is not level, adjust the feet on the corners of
the unit as necessary (see
Figure 21 ).
3. Check the levelness after each adjustment and repeat
the previous steps until the unit is level. Go on to
9 Install the Unit .
Installation Tip
If the room floor is higher than the floor in the cut-out
opening, adjust the rear feet to achieve a total unit rear
height of 1/8 " less than the opening’s rear height. Shorten
the unit height in the front by adjusting the front feet.
This allows the unit to be gently tipped into the opening.
Readjust the front feet to level the unit after it is correctly
positioned in the opening.
Installation of the CO75A
1. Open the water supply valve in the main water source.
2. Plug in the power cord.
3. Gently push the unit into position. Be careful not to
kink the water supply line or entangle the electrical
cord.
4. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" below the
countertop.
Grille Installation
1. Locate and remove the grille screw from the cabinet,
using a standard blade screwdriver (or a 1/4"
nutdriver). See Figure 22 .
.
2. Remove the control knob by pulling it away from the
cabinet.
3. Identify the grille screw hole on the grille itself. It is
located toward the top of the middle recessed section
of the grille.
4. Place the two hook-hinges (located on the rear bottom
side of the grille) onto the front lip of the unit base.
Swing the grille up into position, aligning the grille
screw hole on the grille to the grille screw hole on the
cabinet. See
Figure 23 .
8 Level the Unit
Figure 20
ULIN_0818_A
1
Turn Foot to Adjust
Figure 21
9 Install the Unit
Grille Screw
Figure 22

www.U-LineService.com 12 11/2006
CO1175 — Ice Maker/Refrigerator
.
5. Insert the screw. Do not over-tighten.
6. Reinstall control knob.
Glass Shelf Installation
1. Carefully remove the glass shelves from the packaging.
2. Slide the shelves onto lower sets of ribs, making sure
the decorative graphics are on the underside of the
shelves. While edge strips go toward the rear and silver
edge strips go toward the front. See
Figure 24 .
Installation Troubleshooting
Problem
Q:
Water is leaking under the unit.
Solution
A:
A water leak under the unit is most likely caused by a bad
connection in the water supply line. Make sure the water
line’s brass fitting is screwed tight to its valve and
threaded correctly. Make sure that plumbers tape was
NOT used; if it was remove all traces before reinstalling.
Initial Start-Up
The unit is shipped with the control preset to a mid-point
setting between 4 and 5. Assure that setting was not
altered in shipment. No other adjustments should be
necessary at this time. For information about Adjusting
the Temperature Control, see the User Manual.
As soon as the ice maker
mold reaches the proper
temperature, the ice maker
mechanism will fill the mold
with water.
Note: The first cubes may be
small because of air in the
water line. After two hours,
cubes will be standard size.
The ice maker will continue
to produce until the bin is
full. You may interrupt
production by raising the bin
arm into an upright and locked position (see Figure 25).
While the bin arm is locked, the unit will maintain
temperature for ice storage.
IMPORTANT
It is possible that dirt or scale will dislodge in the water
line. Always throw away all ice cubes made during the
first twenty-four (24) hours of operation.
CAUTION
The ice bucket MUST be fully inserted to avoid freezing
products in the refrigerator section. The ice bin door must
be fully closed.
Hook-Hinge
Hook-Hinge
Unit Base
Front Lip
Grille
Figure 23
Figure 24
10 Start-Up for the First Time
Figure 25

©2006 U-Line Corporation
Publication No. 30178E
11/2006
U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in
undercounter icemakers, Combo®icemaker/refrigerators, Wine Captain®wine storage units,
refrigerators, refrigerated drawers and refrigerator/freezers.
For more than four decades, U-Line has distinguished itself as the leader in built-in
undercounter ice making, refrigeration and wine storage appliances.
Start-Up Troubleshooting
Problem
Q:
Unit does not appear to turn on when plugged in.
Solution
A:
Make sure outlet has power (circuit breaker has not
tripped). Be sure that control is not turned to the off
position. Make sure the on/off switch is turned on.
Problem
Q:
Water does not appear to be flowing into unit.
Solution
A:
Check that the water is connected and turned on and the
line is not obstructed. Water coming into the unit may
take an hour or more.
Problem
Q:
The cubes produced during the first two to three hours of
operation have been discarded. New cubes still appear
cloudy.
Solution
A:
This is normal and is caused by air being trapped in the
cube during fast freezing.
Problem
Q:
The light doesn’t come on when the door is opened.
Solution
A:
Check to make sure the light bulb is working.
IMPORTANT
See the User Manual’s Troubleshooting Guide for more
solutions.
Who to Call
Service Information
If the need for service arises, contact the dealer from
whom the unit was purchased. State the Model Number
and Serial Number and explain the problem. The Model
and Serial Number plate is located inside unit at upper
right hand corner.
If you need to locate a service company, you can go online
at www.U-LineService.com and search for a service
company by zip code.
