U-Line UONP115SS01B Installation manual

USER GUIDE & SERVICE MANUAL
Model: UONP115-SS01B

USER GUIDE & SERVICE MANUAL
Table of Contents
Click on any section below to jump directly there
Intro
Safety
Safety and Warning
Disposal And Recycling
Installation
Environmental Requirements
Electrical
Cutout & Product Dimensions
Side by Side Installation
Water Hookup
Drain
Anti-Tip Bracket
General Installation
Grille Installation
Door Swing
Door Adjust
Maintenance
Cleaning
Cleaning Condenser
Extended Non-Use
Operating Instructions
First Use
Control Operation
Ice
Airflow and Product Loading
Service
Troubleshooting
Wire Diagram
Product Liability
Parts
R600a Specifications
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Control Operation - Service
Thermistor
Warranty

USER GUIDE
Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and
exibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete product
collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice Makers,
Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.
U-Line has captivated those with an appreciation for the ner things with exceptional functionality, style, inspired innovations,
and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,
quality, and selection. U-Line is headquartered in Milwaukee, Wisconsin, and has shipped product to ve continents for over two
decades and is proud to have the opportunity to ship to you.
U-LINE — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE
®
PRODUCT INFORMATION
IMPORTANT - Before connecting your new Nugget Ice Machine, be sure to carefully follow all manufacturer
recomendations throughout this guide regarding water quality. Please see WATER HOOKUP section for
more information.
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and
Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: [e-mail]
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday – Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: [e-mail]
Parts Email: [e-mail]
Designed, engineered and assembled in WI, USA
3

USER GUIDE
Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4

USER GUIDE

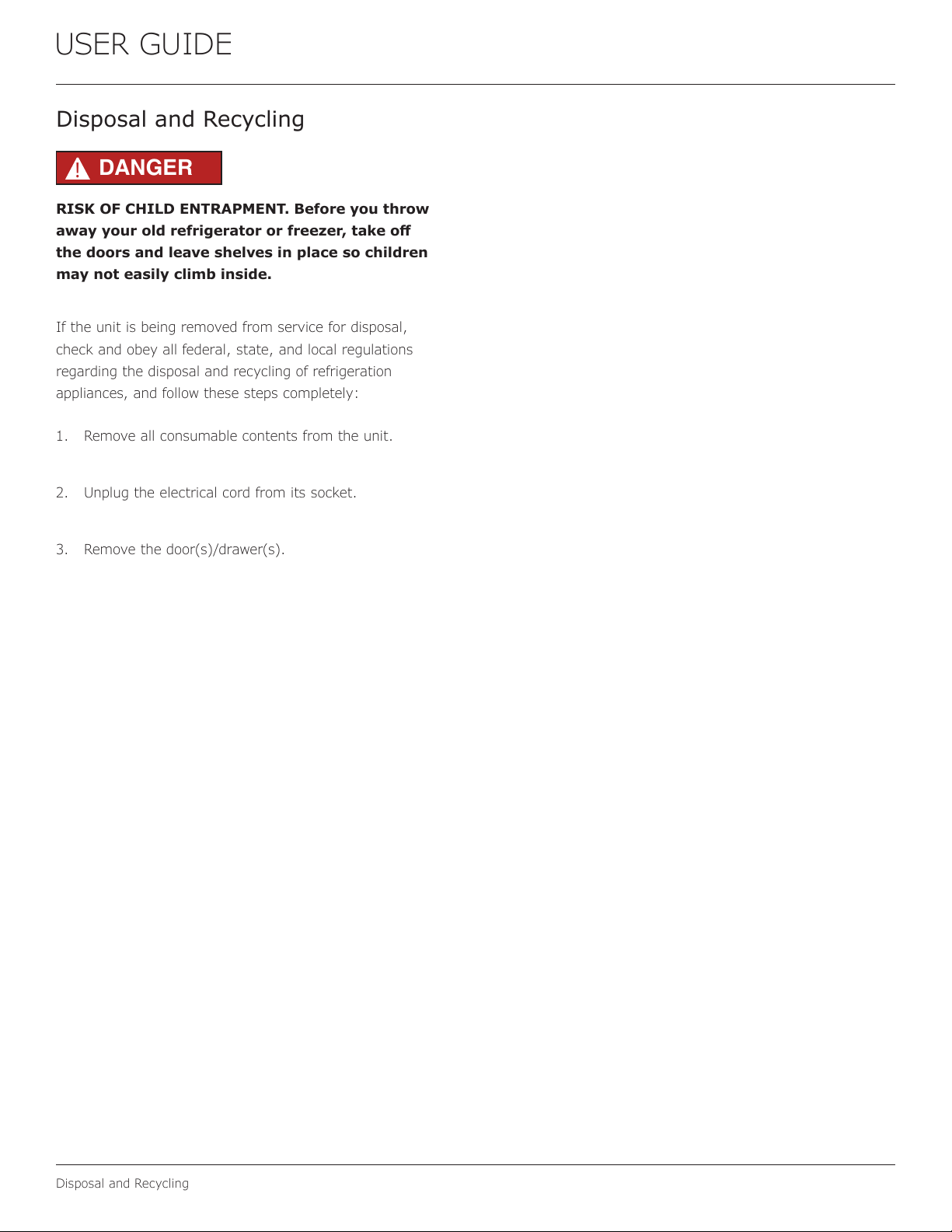

Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5

USER GUIDE
Environmental Requirements
Environmental Requirements
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6

USER GUIDE
Electrical
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7

USER GUIDE
Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed
cabinet door.
If you would like to align the face of the unit
with other adjacent cabinet doors, you may need
to alter the wall just behind the drain connection
on the unit to accommodate the drain.
CUTOUT DIMENSIONS
*15” cutout width sufficient if door protrudes beyond
adjacent cabinetry
PRODUCT DIMENSIONS
REAR
1 ΍ȟȭ" (38 mm)
7"
(178 mm)
15 ΍ȟȯ"
(387 mm)
34 ΍ȟȯ"
(870 mm)
to
35 ΍ȟȯ"
(889 mm)
Preferred location
for electrical outlet
is in an adjacent
cabinet.
24"
(610 mm)
ΑȟΞ"
(16 mm)
14 ⁄”
(379 mm)
3 ⁄”
(91 mm)
28”
(711 mm) 34 ⁄” to 35 ⁄”
(867 mm to
892 mm)
TOP
FRONT
SIDE
10 ⁄”
(260 mm)
23 ⁄”
(587 mm)
25”
(635 mm)
4
3⁄8
“ (111 mm)
15 ½”
(394 mm)
1 ⁄”
(48 mm)
21 ⁄”
(537 mm)
2”
(51 mm)
4”
(102 mm)
Water Line
Drain
7 ½ ”
(191 mm)
3 ⁄ ”
(80 mm)
4”
(102 mm)
7 ½ ”
(191 mm)
Power Cord
6 ft (183 cm)
8

USER GUIDE
Side-by-Side Installation
Side-by-Side Installation
Two units may be installed side-by-side.
Cutout width for a side-by-side installation is the cutout
dimension of a single unit times two.
No trim kit is required. However, 1/4" (6 mm) of space
needs to be maintained between the units to ensure
unobstructed door swing.
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Side-by-Side Installation with Bracket
1. Slide both units out so screws on top of units are easily
accessible.
2. Remove screws as shown below.
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push units into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" (3 mm) below
the countertop.
9

USER GUIDE
Water Hookup
Water Hookup
TO PREVENT DAMAGE TO Y0UR ICE MACHINE
AND/OR VOID YOUR WARRANTY, FOLLOW ALL
WATER SUPPLY GUIDELINES AS LISTED BELOW.
PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
compression tting. U-Line recommends using accessory
water hook up kit – part # 80-54674-00. The kit includes
a 10’ (3 m) braided exible water supply line and a brass
hose tting.
Plumbing installation must observe all state
and local codes. All water and drain connections
MUST BE made by a licensed/qualied plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply
When connecting the water supply, please note the
following:
• Water Mineral Content must meet the following:
◦TDS: less than 200 ppm (mg/l)
◦Hardness: Less than 200 mg/l (12 gpg)
• Water supply MUST NOT be from a water
softener.
• A TDS meter is included with your unit
• Water Treatment Options
◦TDS level of 200 ppm or higher and/or a
hardness of 12-19 gpg can be treated by U-Line’s in-line
water filter accessories available at u-line.com or your
local dealer:
 ULALINEFILTER — Standard
 ULALINEFILTERL — Large
 ULALINEFILTERHEAD — 3/8” NPT, initial
setup requires head & filter
• Use bypass level 6
Measure Water TDS
Every Nugget Ice Machine comes with a TDS meter similar
to the one below. The TDS meter measures the Total
Dissolved Solids level that exists in the water supply; this
is measured in ppm (parts per million).
The TDS meter does not test the toxicity of
the water and is not to be used to determine
potability. A TDS METER CANNOT DETECT THE
TOXINS THAT MAKE WATER UNSAFE TO DRINK.
1. Turn on sink faucet and let run for 30 seconds.
2. Fill a clean glass (2 inches of water is sucient).
3. Remove cap from meter.
4. Turn on meter and immerse meter into the water.
5. Leave meter immersed for 30 seconds.
6. Remove meter and check the readout for the TDS
level in ppm - to save the reading, press the hold
button.
7. Turn o meter, dry o, and replace cap.
CAUTION
!
CAUTION
!
TDS
ON
OFF
HOLD
PPM
ON
OFF
HOLD
TDS
WARNING
!
ON
OFF
HOLD
TDS
PPM
10

USER GUIDE
Water Hookup
Based upon the TDS measurement, see the below table
to determine the correct lter required to protect the
ice machine.
Water Quality 1-3 Users 4+ Users
200 TDS and/or
12 gpg hardness
or less
Required for
extended warranty
Standard Filter
Change 1x per year
Required for
extended warranty
Large Filter
Change 1x per year
201-400 TDS
and/or 12-19 gpg
hardness
Required
Large Filter
Change 1x per year
Required
Large Filter
Change 2x per year
400+ TDS, and/
or 20+ gpg
hardness
Contact your local water quality professional prior
to installation
• The water pressure should be between 20 and 120 psi
(138 and 827 kPa).
• The water line MUST have a shut-o valve in the
supply line.
• The water line should be looped into 2 coils. This
will allow the unit to be removed for cleaning and
servicing. Make certain that the tubing is not pinched
or damaged during installation.
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
3
4
Use caution when handling back panel. The edges
could be sharp.
HOOKUP WATER
1. Turn o water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the back panel.
3. Thread water line through back panel hole (with
bushing).
4. Locate water valve inlet and connect to valve.
5. Turn on water supply and check for leaks.
6. Reinstall back panel.
CAUTION
!
CAUTION
!
11

USER GUIDE
Drain
If your U-Line unit did not come with a factory
installed drain pump you must use a gravity
style drain connection. For assistance in
determining if your unit has a pump please
contact U-Line. The oor drain must be large
enough to accommodate drainage from all
attached drains. Follow these guidelines when
installing drain lines to prevent water from
owing back into the ice maker storage bin and/
or potentially owing onto the oor, which may
result in personal injury or property damage
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Gravity drain connections
must be routed downward from the rest of the
unit at the rate of 1/4” per foot (1 cm per 50 cm).
Drain can NOT be located directly below the
unit. Unit has a solid base that will not allow the
unit to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and ttings are free from
leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
Model numbers including “CL” or “NB” do not include a
factory installed drain pump.
Model numbers including “CP” or “NP” include a factory
installed drain pump.
A gravity drain may be used if:
Drain line has at least a 1” drop per 48” (approximately
2 cm drop per 100 cm) of run.
Drain line does not create traps and is vented per local
code.
1. Cut the pre-installed drain tube to length.
2. Connect to your local plumbing per the local code.
3. If necessary, insulate drain line to prevent
condensation.
DRAIN CONNECTION
GRAVITY DRAIN
NOTICE
Drain
CAUTION
!
CAUTION
!
CAUTION
!
Normal
Proper Drain
With Trap
Poor Drainage, Water Will Back Up
With Trap and Vent
Proper Drain
12

USER GUIDE
Drain
The maximum lift for the drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
If your drain line will run up to a stand pipe, disposal
or spigot assembly, or does not otherwise meet the
requirements for a gravity drain, you may have ordered a
factory installed drain pump.
If you need to install a drain pump into your unit, see
DRAIN PUMP section in the User Manual.
To order a drain pump, order part number
80-54147-00 online at u-line.com.
See below for typical installations requiring a drain pump.
FACTORY INSTALLED DRAIN PUMP
NOTICE
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
Drain Pump
13

USER GUIDE
Anti-Tip Bracket
Anti-Tip Bracket
1. Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of the
hinge assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back
and side to side. Make any necessary adjustments.
The unit’s top surface should be approximately 1⁄8”
(3 mm) below the countertop.
6. Secure bracket into adjoining surface.
14

USER GUIDE
General Installation
General Installation
LEVELING INFORMATION
1. Use a level to
conrm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
INSTALLATION TIP
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of 1⁄8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not
to entangle the cord or water and drain lines, if
applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1⁄8” (3 mm) below
the countertop.
4. Install the anti-tip bracket.
5. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
1
Turn to Adjust
15

USER GUIDE
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
WARNING
!
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
WARNING
!
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Loosen the two screws (1).
3. Remove grille (2) from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (1).
2. Reconnect power to the unit.
1
2
16

USER GUIDE
Door Swing
Door Swing
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel models require 2-1/8" (54 mm) door
clearance to accommodate the handle if installed next to a
wall.
Wall
90°
Door Swing
2-1/8" Min.
(54 mm)
17

USER GUIDE
Door Adjustments
Door Adjustments
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry o hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws
using a Torx T-25 screwdriver on the top and a 1/4”
socket on the bottom.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Remove arrow clips:
1. With a puddy knife or other at tool, gently pry each
arrow clip from hinge mounting holes.
2. Set aside arrow clips to be reused on the opposite
side.
Remove top hinge and door:
1. Remove hinge cover from top of unit
2. Hold door to keep it from falling.
3. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws.
Hinge Cover
18

USER GUIDE
Door Adjustments
4. Remove door by tilting forward and lifting door o
bottom hinge. Retain shoulder washers; they will be
reused.
5. Insert arrow clips into holes
Remove bottom hinge:
1. Remove bottom hinge from
cabinet using a T-25 TORX
screw driver to remove three
screws.
2. Remove corresponding screws
on opposite side of cabinet.
On some models there
may be a nut behind one
or both screws on either side.
Install bottom hinge:
Install three screws. Replace nuts if
used.
PREPARE DOOR FOR RE-INSTALLATION
Rotate gasket
1. With a at tool, such as a putty knife, gently pry up
beneath the gasket and spacer until it is completely
free from the door surface.
2. Remove the rest of the
gasket, by grabbing hold
and gently pulling gasket
from gasket channel.
3. Remove the 3 pieces of
gasket channel filler and
set aside to be used on the
opposite end.
4. Remove 2 screws holding
plunger bracket. Reinstall
plunger bracket in the gasket
channel on opposite corner
of door. Fasten bracket using
same 2 screws in the pre-
drilled holes.
5. Install 3 pieces of gasket
channel filler into the gasket
channel, pressing in firmly.
6. Install gasket into
channel, beginning at one
corner and pressing in
firmly.
7. Press down on middle horizontal portion of gasket until
it adheres to the door surface.
Install top hinge and door:
1. Remove pivot screw from hinge, ip hinge over, and
install the pivot screw in the same hole from the
opposite surface.
2. Lift the door onto the bottom
hinge.
3. Align edge of the hinge with
the outer edge of the unit.
4. Tighten three screws and
replace hinge cover.
5. Replace hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT)
Top Hinge
Right Side
Top Hinge
Left Side
Pivot
Screw
Gasket Channel
Filler
Gasket With Spacer
Beneath
Plunger
Bracket
Gasket Channel
Press down firmly
Note: It may be
necessary to apply a
strip of two-sided tape
for a firm adhesion.
19

USER GUIDE
First Use
u-line.com
First Use
Initial startup requires no adjustments. See CONTROL
OPERATION section for more details.
NOTICE
Discard the ice produced during the first two or
three hours of operation to avoid possible dirt or
scale that may dislodge from the water line.
When plugged in, the unit will begin operating under the
factory default settings. If the unit was turned off during
installation, simply press and the unit will immediately
switch on. To turn the unit off, press and release.
20
