ubabub Arc M23688 User manual

Glider Recliner with
Product Code: M23688
Arc
revised 28OCT22
Electronic Control and USB
INSTRUCTIONS

2
Arc
Glider Recliner with
Electronic Control
and USB
3
4
Congratulations and
thank you for purchasing
an Ubabub product.
As for our entire line of
clearly modern nursery
furniture, during the
design and production of
this product we have
selected materials that
are either recyclable or
derived from sustainable
practices.
Contents
Contents
Maintenance & Cleaning
PERSONS REQUIRED ASSEMBLY TIME
15
5Warning
8Warranty & Registration
Assembly Instructions 10
17Power Cord Safety &
Control Panel
19Tension Adjustment
21Disassemble

3
Contents
(A) Seat Back x 1
(B) Base x 1
(C) Cushion x 1

4
MAINTENANCE AND CLEANING:
To preserve the hand-crafted quality of your furni-
ture, we recommend using a cotton cloth and a
non-toxic cleaner. Periodic polishing or oiling on
wood stains will help to maintain the rich wood
tones. For our upholstered products, we recom-
mend using water to clean suede products and
light foam cleaners for all other fabrics.
If your child is teething, some furniture’s finish may
be affected. Be assured that our low-VOC lacquers,
finishes and glues comply with applicable regula-
tions and standards. Touch up kits and replace-
ment parts are available for purchase upon
request by contacting Ubabub.
IMPORTANT NOTE:
Improper assembly can result in damage to your
furniture or cause harm to your child. Proper as-
sembly is critical to ensure a safe and comfortable
end result. Please read all instructions before as-
sembly and keep instructions for future use.

5
WARNING
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic
precautions should always be followed, including
the following:
Read all instructions before using (this furnishing) .
DANGER – To reduce the risk of electric shock:
Always unplug this furnishing from the electrical
outlet before cleaning or servicing.
WARNING – To reduce the risk of burns, fire,
electric shock, or injury to persons:
1. Unplug from outlet before putting on or taking
off parts.
2. Close supervision is necessary when this
furnishing is used by, or near children, invalids, or
disabled persons.
3. Use this furnishing only for its intended use as
described in these instructions. Do not use
attachments not recommended by the
manufacturer.

6
4. Never operate this furnishing if it has a damaged
cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water.
Return the furnishing to a service center for
examination and repair.
5. Keep the cord away from heated surfaces.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products
are being used or where oxygen is being
administered.
9. To disconnect, turn all controls to the off position,
then remove plug from outlet.
10. Risk of Injury – Keep children away from
extended foot support (or other similar parts).
11. Household use only.
12. The appliance is only to be used with the power
supply unit provided with the appliance.
WARNING：Risk of Electric Shock, Fire, and Injury.
Review the assembly instructions to confirm that
the appropriate critical components and
accessories are being used with the furnishing.

7
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
• Read all instructions before assembling this
product.
• Keep instructions for future use.
• Do not throw away packaging material until
assembly is complete.
• Properly discard all packaging materials after
assembly is complete.
• This product has many moving parts, serious
injury can occur if not used properly. Keep hands,
fingers and body parts away from the mechanism.
To reduce the risk of head entrapment and other
injuries, keep children and pets away from open-
ings and moving parts in and around furniture.
• Proper assembly of this item requires 2 people.
• Check this product for damaged hardware,
loose joints, missing parts or sharp edges before
and after assembly and frequently during use.
DO NOT use this product if any parts are missing,
damaged or broken. Contact Ubabub for replace-
ment parts and instructional literature if needed.
DO NOT substitute parts.
• Maximum weight capacity: 300 pounds.
SAVE THESE INSTRUCTIONS

8
ONE YEAR LIMITED WARRANTY:
We will replace any missing parts at the time of
purchase or any defective item within a one year
period from the date of original purchase. An
extended warranty period of three years is valid
only on the electronic controls and electronic
mechanisms of this product. Please keep your
receipt so that we may process your warranty
request. This warranty only covers new units with
original packaging and ownership, and is not
transferable. It does not cover any used, second-
hand or demo models.
This warranty does not cover any damaged or
defective parts that result from installation and
assembly, normal wear and tear, abuse, negli-
gence, improper use or alteration to the finish,
design, and hardware of the product. The specific
legal rights of this warranty may vary from state
to state. Some states do not allow any exclusion
or limitation of incidental damages. Some states
do not allow limitation on how long an implied
warranty lasts.

9
Registering your product is even easier than
before. You can register your product on our
website at: www.themdbfamily.com/registrations
for USA purchases.
IF YOU WOULD LIKE TO ORDER REPLACEMENT OR
MISSING PARTS. PLEASE VISIT US AT:
OR YOU CAN CONTACT US BY MAIL:
WWW.DESIGNKIDS.COM.AU
AUSTRALIA
WWW.THEMDBFAMILY.COM/SUPPORT
USA
MILLION DOLLAR BABY CO.
8700 REX RD.
PICO RIVERA, CA 90660
UBABUB INTERNATIONAL
PO BOX 4129
RINGWOOD VIC 3134

10
(back)
A
(back)
(Base Cover)
Assembly Instructions
Step 1
B

11
x2
B
B
(back)
(back)
A
!
Step 1 (in details)

12
B
(back)

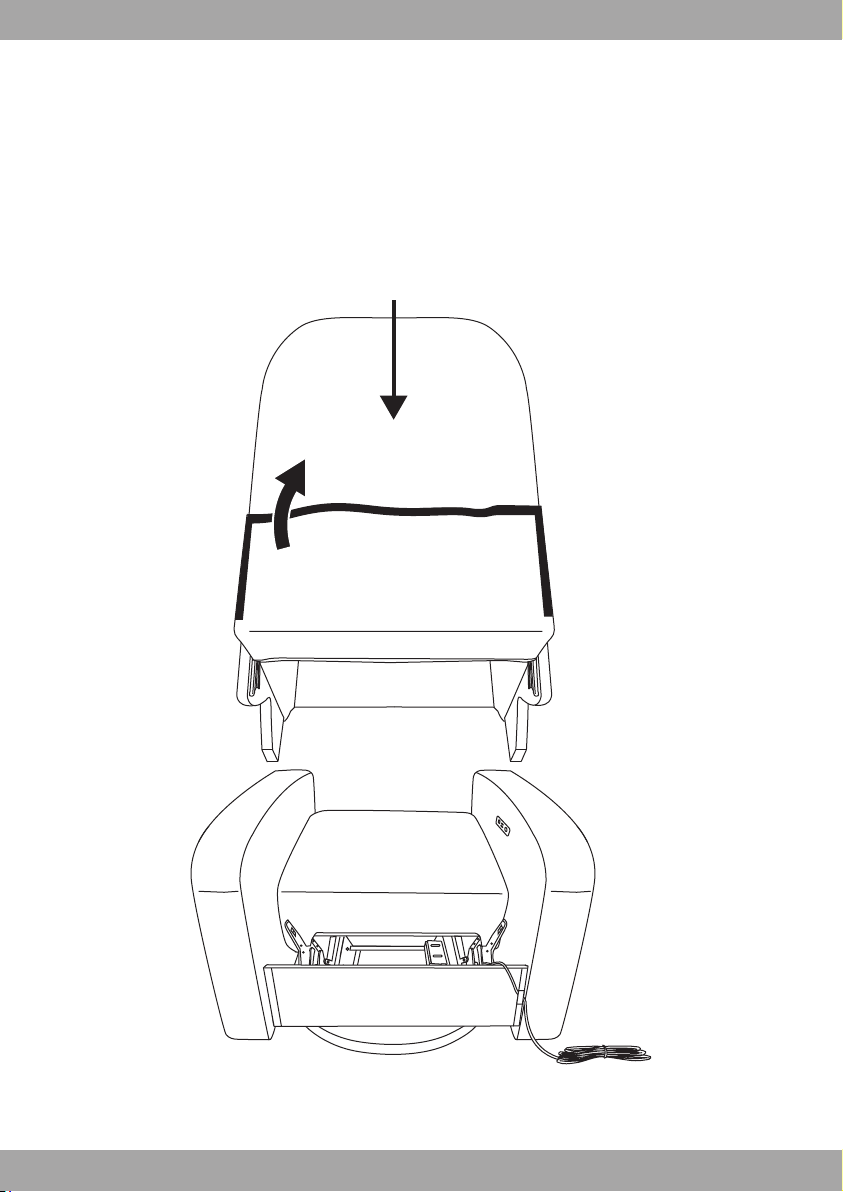

A
!
B
(back)
A
!
Make sure the locking mechanism
on each metal glide is aligned in the
center.
1.
2.
Firmly push each side into place
one at a time. You should hear a
click when the chair back locks into
place on each side.
Click !

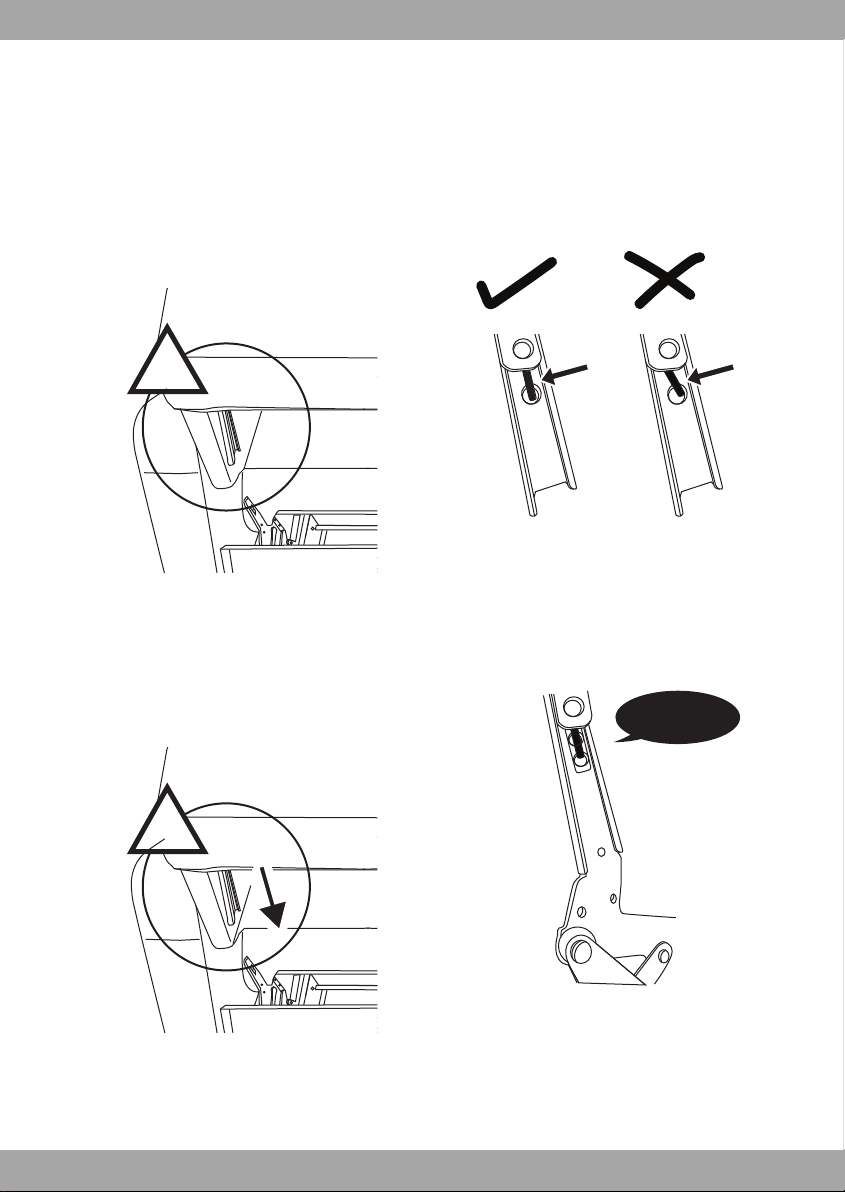

Tips on the Locking Mechanism

13
A
B
B
!
Step 2

14
MAKE SURE POWER CABLE IS
NOT UNDER THE WOODEN BASE.
THIS IS A FIRE HAZARD.
WARNING

15
Step 3
B
C

16
Finished assembly
* If chair is not functioning after following these steps,
please check the cord underneath the chair is fully
plugged in to the chair motor.
!
Step 4

17
ARC GLIDER RECLINER WITH
ELECTRONIC CONTROL AND USB
POWER CORD SAFETY
WARNING:
UNPLUG AND REMOVE POWER CORD FROM THE WALL AND THE
POWER SOCKET AT THE REAR OF THE POWERED RECLINER WHEN NOT
IN USE AND STORE THE CORD OUT OF REACH OF CHILDREN.
DANGER:
To reduce the risk of electric shock:
Always unplug the powered recliner from the electrical outlet
before cleaning.
Control Panel
CAUTION :
Risk of electric shock.
Dry location use only.
This Class B digital apparatus complies with Canadian ICES-003.
This Device Complies with part 15 of the FCC rules.
WARNING :
Operation is subject to the following conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
• Please note that changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.

18
• NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures: --Reorient or relocate
the receiving antenna. --Increase the separation
between the equipment and receiver. -- Connect
the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV
technician for help.

19

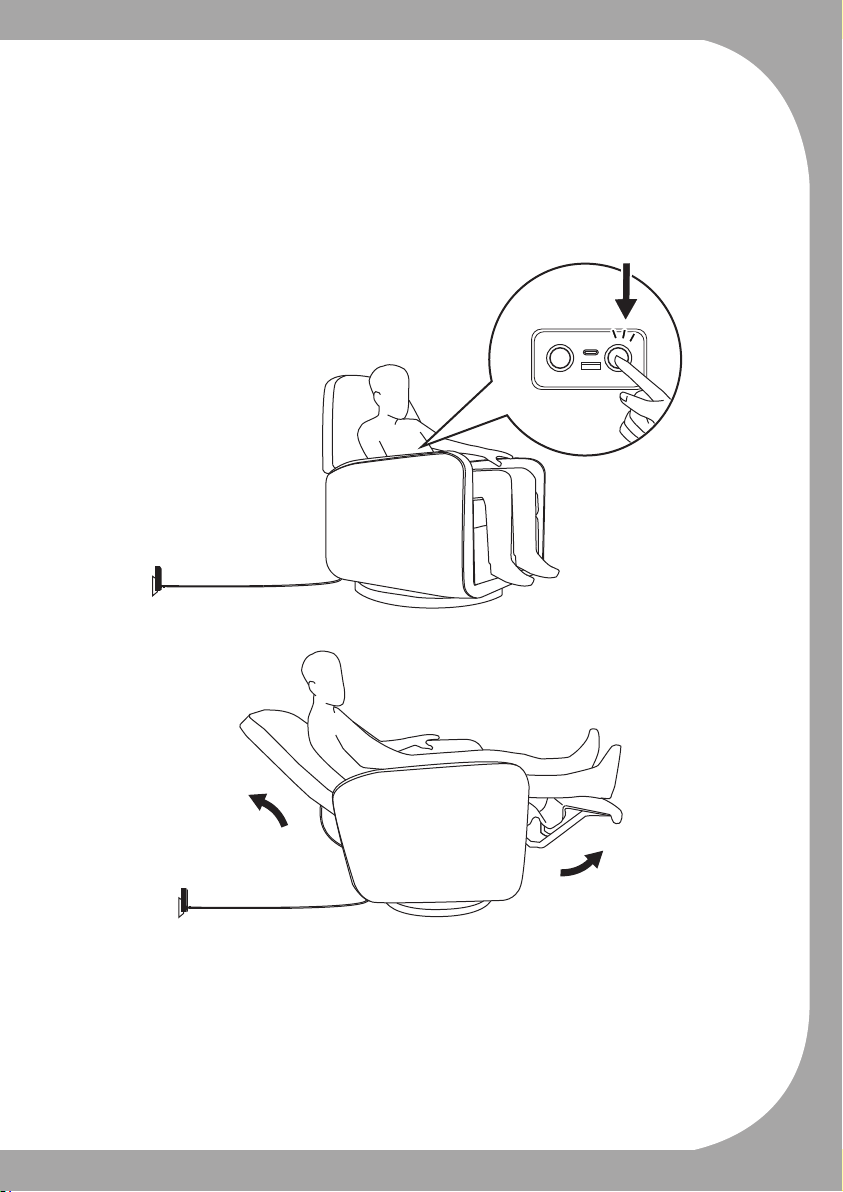

The chair can be made to recline by simply pressing
the button located at the inside right of the armrest.
ARC GLIDER RECLINER WITH
ELECTRONIC CONTROL AND USB
Tension Adjustment
From Chair to Recliner

20
Tension Adjustment
From Recliner to Chair
The chair is returned to the upright position by pressing
the button located at the inside right of the armrest.
CAUTION :
Do not allow children to play on this mechanized furniture or operate
the mechanism. Leg rest folds down on closing so that a child could
possibly be injured. Always leave in an upright and closed position.
Keep hands and feet clear of mechanism. Only the occupant should
operate it.
