Uberhaus MDK-30AEN3-BA4 User manual

Model/modèle :
Customer Service / Service à la clientèle: 1-866-206-0888
Our Customer service staff is available to help you. For any problem with your purchase, or to receive further
information about this product, please call our toll-free number.
SAVE THIS MANUAL
Keep this manual and the original sales invoice in a safe, dry place for future reference.
Notre personnel du service à la clientèle est disponible pour vous aider. En cas de problème avec votre achat, ou pour
obtenir plus d’informations à propos de ce produit, veuillez composer notre numéro sans frais.
CONSERVEZ CE GUIDE
Conservez ce manuel avec la facture d’origine dans un endroit sûr et sec pour référence future.
87795024
MDK-30AEN3-BA4
87795025
MDK-40AEN3-BA5
87795026
MDK-50AEN1-BA6
87795027
MDK-6 AEN1-BA80
DEHUMIDIFIER
Operator's manual, page 1
DÉSHUMIDIFICATEUR
Guide de l'utilisateur, page 13
3
s

1

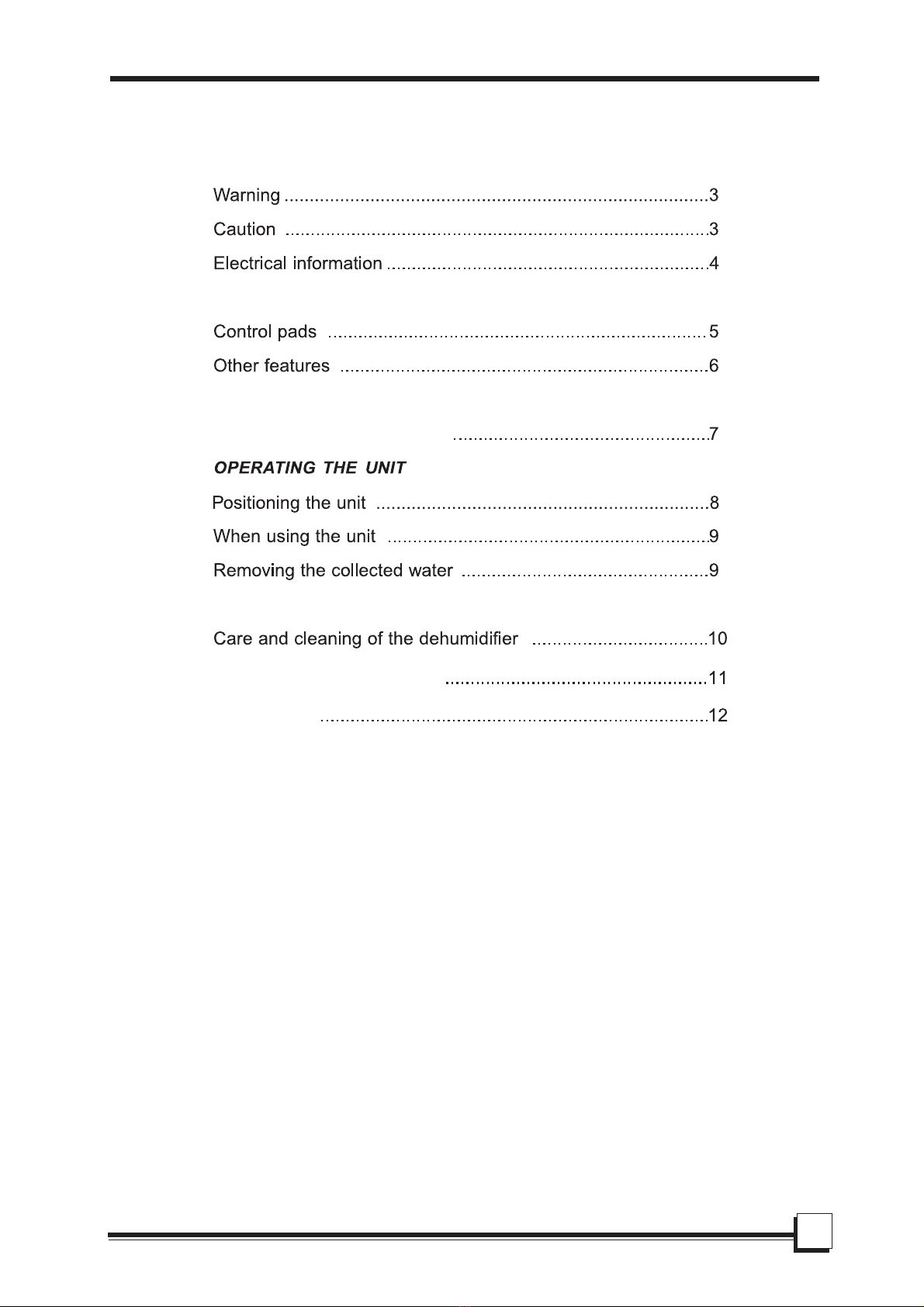

TABLE OF CONTENTS
SAFETY PRECAUTIONS
CONTROL PADS ON THE DEHUMIDIFIER
IDENTIFICATION OF PARTS
CAREANDMAINTENANCE
TROUBLESHOOTING TIPS
WARANTYR

Do not exceed the rating
of the power outlet or
connection device.
Do not modify power cord
length or share the outlet
with other appliances
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Otherwise, it may cause electric
shock or fire due to heat
generation.
excess
It may cause electric shock or
fire due to heat generation.
It may cause fire and electric
shock.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause electric shock or fire.
Plastic parts may melt and cause
a fire.
It may cause electrical shock or
injury.
It may cause an explosion or fire.
Do not operate or stop the
unit by switching on or off
the power.
Do not insert or pull out
plug with wet hands.
You should never try to take
apart or repair the unit by
yourself.
Do not drink or use the
water drained from the unit.
Do not damage or use an
unspecified power cord.
Do not place the unit near
a heat source.
Before cleaning, turn off
the power and unplug the
unit.
Do not use the machine near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
CAUTION
Do not use the unit in small
spaces.
Lack of ventilation can cause
overheating and fire.
Do not put in places where
water may splash onto the
unit.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock or fire.
Place the unit on a
level, sturdy section
of the floor.
If the unit falls over, it may
cause water to spill and
damage belongings, or
cause electrical shock or
fire.
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
Always do this.
Never do this.
CAUTION This symbol indicates the possibility of injury or damage to property.
WARNING
WARNING
It may cause electric shock.
Do not take the water buc-
ket out during operation.
SAFETY PREC AUTIONS
2

Do not cover the intake or
exhaust openings with
cloths or towels.
A lack of air flow can lead
to overheating and fire.
Never insert your finger or
other foreign objects into grills
or openings. Take special care
to warn children of these
dangers.
Do not use in areas
where chemicals are
handled.
This will cause the unit
deterioration due to
chemicals and solvents
dissolved in the air.
Care should be taken when
using the unit in a room with
the following persons:
Infants, children, elderly people,
and people not senstive to
humidity.
You may be injured if you
fall or if the unit falls over.
Water may spill inside the
unit, causing insulation
failure and electrical
shock or fire.
It may cause failure of
appliance or accident.
There is danger of fire or
electric shock.
on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
CAUTION
Do not climb up on
or sit on the unit.
If water enters the unit, turn
the unit off and disconnect the
power , contact a qualified
service technician.
Do not place flower
vases or other water
on top of
the unit.
e unit and contains electrical and other
specific to this unit.
Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding is important.
The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is
not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician
install the proper receptacle.
However, if it is necessary to use an
extension cord, use an approved Dehumidifier extension cord only (available at most local hardware
stores).
To avoid the possibility of personal injury, always disconnect the power supply to the unit, before installing
and/or servicing.
Do not use extension cords or an adapter plug with this unit.
Electrical lnformation
It may cause electric shock
or failure of appliance.
SAFETY PRECAUTIONS
3
Make sure the receptacle is accessible after the unit installation.
Do not place heavy objects
containers
technical data

When you push the button to change
operatio n modes, the unit will make
a beep s ound to in dicate that it is
changin g mo des.
model . Som e models can be controlled by remote controller. So me models have no r emote
control function. S ee the following Fig.1. Please refer to the REMOTE CONTROL LER
INSTRUCTIONS
Fig.1
Fan Pad
or Normal fan speed. Set the fan control to High for
maximum moisture removal. When the humidity has
been reduced and quiet operation is preferred, set
the fan control to Normal.
The check filter feature is a reminder to clean the
light
(Clean filter light) will illuminate after 250 hours of
operation. To reset after cleaning the filter, press
Humidity Set Control Pads
TIMER Set Control Pads
Use the Up/Down pads to set the Auto
start and Auto stop time from 0.0 to 24.
The hu mi dity leve l can be set wi thin a range of
35%RH (Relativ e Humidity) to 8 5%RH (Relative
Hum idi ty) in 5 % i ncreme nts.
For drier ai r, press the pad and set to a lower
percent value (%).
For damper air, press the pad and set a highe r
percent value (%).
Press to initiate the Auto start and Auto stop feature,
in conjuction with the and keypads.
Low fan
in dicator light
Pow er on
indic ator li ght
Hig h fan
indicator light
Bucket full
in dicator light
Continuous
operati on on
indicator light Timer on/off
indicator light
Control pads
Press to activate the continuous dehumidifying
operation.
Power Pad
Press to turn the dehumidifier on and off.
Display
8
CONTROL PADS ON THE DEHUMIDIFIER
Clean filter
indicator light
Control pads
Filter Pad
4
Timer Pad
NOTE: The control panel of the unit you purchased may be s lightly different according to its
for the rem ote operation, if a remote control is included with your appliance.
Down/Up Pads
/
air filter for more efficient operation. The filter
the filter pad and the light will go off.
Controls the fan speed. Press to select either High

Other features
Glows when the bucket is ready to be
emptied, or when the bucket is removed
or not replaced in the proper position.
8
Display
Shows the set % humidity level from 35% to 85% or auto start/stop time (0~24) while setting,
±5% accuracy) room % humidity level in a range of 30%
Error Codes and Protection Codes
AS- Humidity sensor error--Unplug the unit and plug it back in. If error repeats, call for service.
ES-Temperature sensor error--Unplug the unit and plug it back in.If error repeats,call for service.
P1- Unit is defrosting-- Allow the unit time to automatically defrost. The error will clear after the
P2- Bucket is full or bucket is not in correct position-- Empty the bucket and replace it in the right
position.
E1- Unit malfunction-- Unplug the unit and plug it back in. If error repeats, call for service.
CONTROL PADS ON THE DEHUMIDIFIER
5
Bucket Full Light
Auto Shut Off
Auto Defrost
Wait 3 minutes before resuming operation
Check filter feature
Auto-Restart (on some models)
If the unit stops unexpectedly due to the power
cut, it will restart automatically with its previous settings
when the power resumes.
The system starts to count the time once the fan
motor operates. The check filter feature can be
only activated when the accumulated operation
time achieves 250 hours or more. The Reset light
(Clean filter indicator light) flashes at one time per
second, after finishing clean the air filter, press the
Filter pad and the Reset light (Clean filter indicator light)
goes off.
operation in the first 3 minutes. This feature protects
the unit. Operation will automatically start after
3 minutes.
When frost builds up on the evaporator coils, the
compressor will cycle off and the fan will continue
to run until the frost disappears.
The dehumidifier shuts off after 30 seconds when
the bucket is full, or when the bucket is removed
or not replaced in the proper position. When the
setting humidity is reached, the unit will be shut
off automatically. For some models, the fan motor
will continue operating
then shows the actual (
unit self -defrosts.
When the unit is on, first press the Timer
button, the Timer Off indicator light
illuminates. It indicates the Auto Stop
program is initiated. Press Timer button again-the
Time On indicator light illuminates.It
indicates the Auto Start is initiated.
When the unit is off, first press the Timer
button, the TIMER ON indicator light
illuminates. It indicates the Auto Start
program is initiated. Press the button again-the
Time Off indicator light illuminates.It
indicates the Auto Stop is initiated.
Press or hold the UP or DOWN pad to
change the Auto time in 0.5 hour incre-
ments, up to 10 hours, then in 1 hour
increments up to 24 hours. The control
will count down the time remaining until
start.
The selected time will register in 5 seconds
and the system will automatically revert
back to display the previous humidity
setting.
When the Auto start & Auto stop times are
set, within the same program sequence,
TIMER ON/OFF indicator lights illuminate
identifying both ON and OFF times are
now programmed.
Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel
the Auto Start/Stop function.
When LED display window displays P2 code,
the
cancelled.
Auto Start/Stop function will also be
Setting the Timer
After the unit has stopped, it cannot restart its
RH (Relative Humidity) to 90% RH (Relative Humidity).

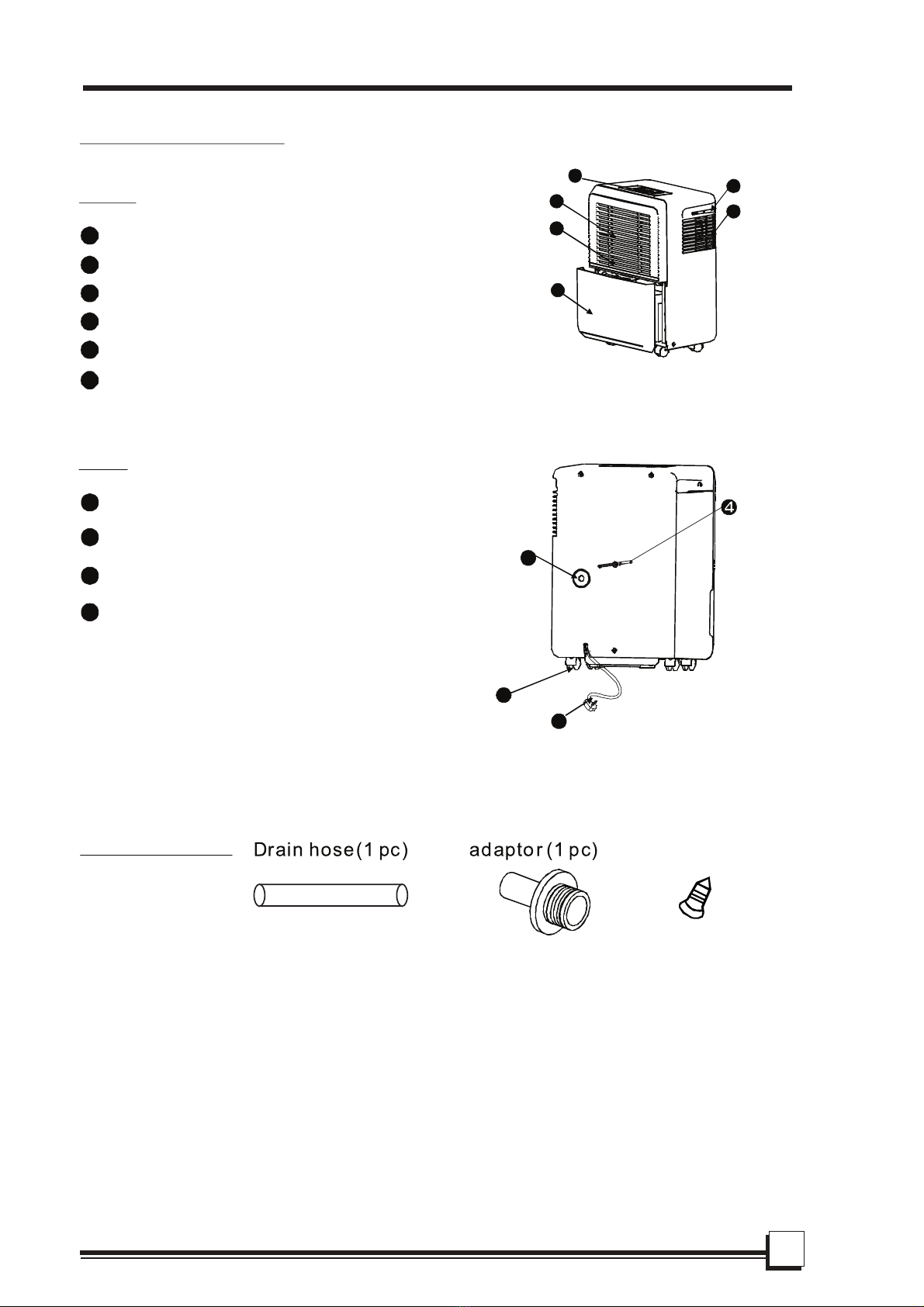

Power Cord andplug
Drain hose outlet
Band (Used only when
storing the unit.)
Rear
Air outlet grille
Casters
Fig.2
Fig.3
Air filter (behind the grille)
Control panel
Air intake grille
Water bucket
1
2
3
4
5
1
2
3
4
All p ictures in the manual are for
explanation purposes only. The actual
shape of the unit you purchased may be
slightly different, but its operations and
functions are the same.
5
1
23
4
6
6Handle (both sides)
1
2
3
Identification of parts
Front
Accessories:
6
IDENTIFICATIONOF PARTS
NOTE:
screw(2pcs)

When using the unit
When first using the dehumidifier, operate the unit
continuously 24 hours.
This unit is designed to operate with a working
environment between 5 C/41 F and 35 C/95 F.
If the unit has been switched off and needs to be
switched on again quickly, allow approximately
three minutes for the correct operation to resume.
Do not connect the dehumidifier to a multiple socket
appliances.
Select a suitable location, making sure you have easy
access to an electrical outlet.
Plug the unit into a electrical socket-outlet with earth
connection.
Make sure the water bucket is correctly fitted otherwise
the unit will not operate properly.
When water in the bucket reaches a certain
level, please be careful to move the machine to avoid it
falling down.
O O O O
NOTE:
Casters can move freely.
Do not force casters to move over carpet,
nor move the unit with water in the bucket.
(The unit may tip over and spill water.)
Air outlet grille
Air intake
grille
or more
or more or more
or
more

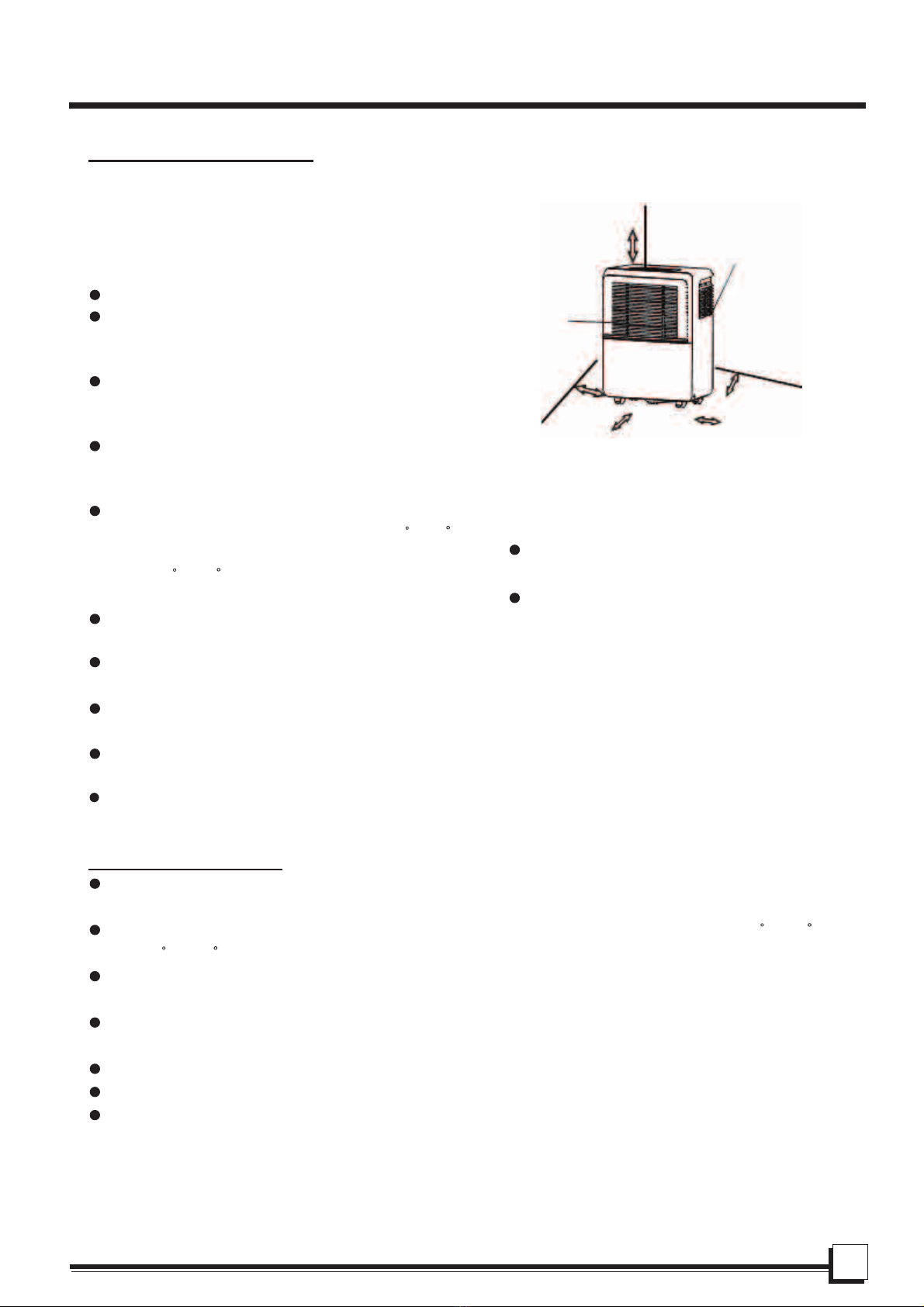

Positioning the unit
Do not use outdoors.
This dehumidifer is intended for indoor residential
A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed
storage area, such as a closet, unless there is adequate circulation of air in and out of the area.
applications only. This dehumidifier should not be used
for commercial or industrial applications.
enough to support the unit with a full bucket of water.
level floor strong
for good air circulation.
Place the unit in an area where the temperature will not
fall below 5 C(41 F). The coils can become covered with
frost at temperatures below 5 C(41 F), which may reduce
performance.
Place the unit away from the clothes dryer, heater or radiator.
Use the unit to prevent moisture damage anywhere books
or valuables are stored.
Use the dehumidifier in a basement to help prevent
moisture damage.
The dehumidifier must be operated in an enclosed
area to be most effective.
Close all doors, windows and other outside openings
to the room.
Fig.4a
7
OPERATING THE UNIT
outlet, that also being used for other electrical
Allow at least " (20 cm) of air space on all sides of the unit8
15" (40 cm)
" (20 cm) 8
or more
" (20 cm) 8
" (20 cm)
8" (20 cm)
8
Casters (At four points on the bottom of unit)

Removing the collected water 1. Pull out the bucket a little.
2. Hold both sides of the bucket
with even strength, and pull it
out from the unit.
3. Pour the water out.
There are two ways to remove collected water.
1. Use the bucket
When the unit is off,if the bucket is full, the unit will
beep 8 times and the Full indicator light will flash, the
digital display shows P2.
When the unit is on, if the bucket is full, the compressor
turns off and the fan turns off after 30 seconds for drying
the water of the condenser, then the unit will beep 8
times and the Full indicator light will flash, the digital
display shows P2.
Slowly pull out the bucket. Grip the left and right
handles securely, and carefully pull out straight so
water does not spill. Do not put the bucket on the floor
because the bottom of the bucket is uneven. Otherwise
the bucket will fall and cause the water to spill.
Throw away the water and replace the bucket. The
bucket must be in place and securely seated for the
dehumidifier to operate.
The machine will re-start when the bucket is restored
in its correct position.
NOTES:
When you remove the bucket, do not touch any parts
inside of the unit. Doing so may damage the product.
Be sure to push the bucket gently all the way into the
unit. Banging the bucket against anything or failing to
push it in securely may cause the unit not to operate.
When you remove the bucket, if there is some water in
the unit it must be dried.
Fig.5
Fig.6

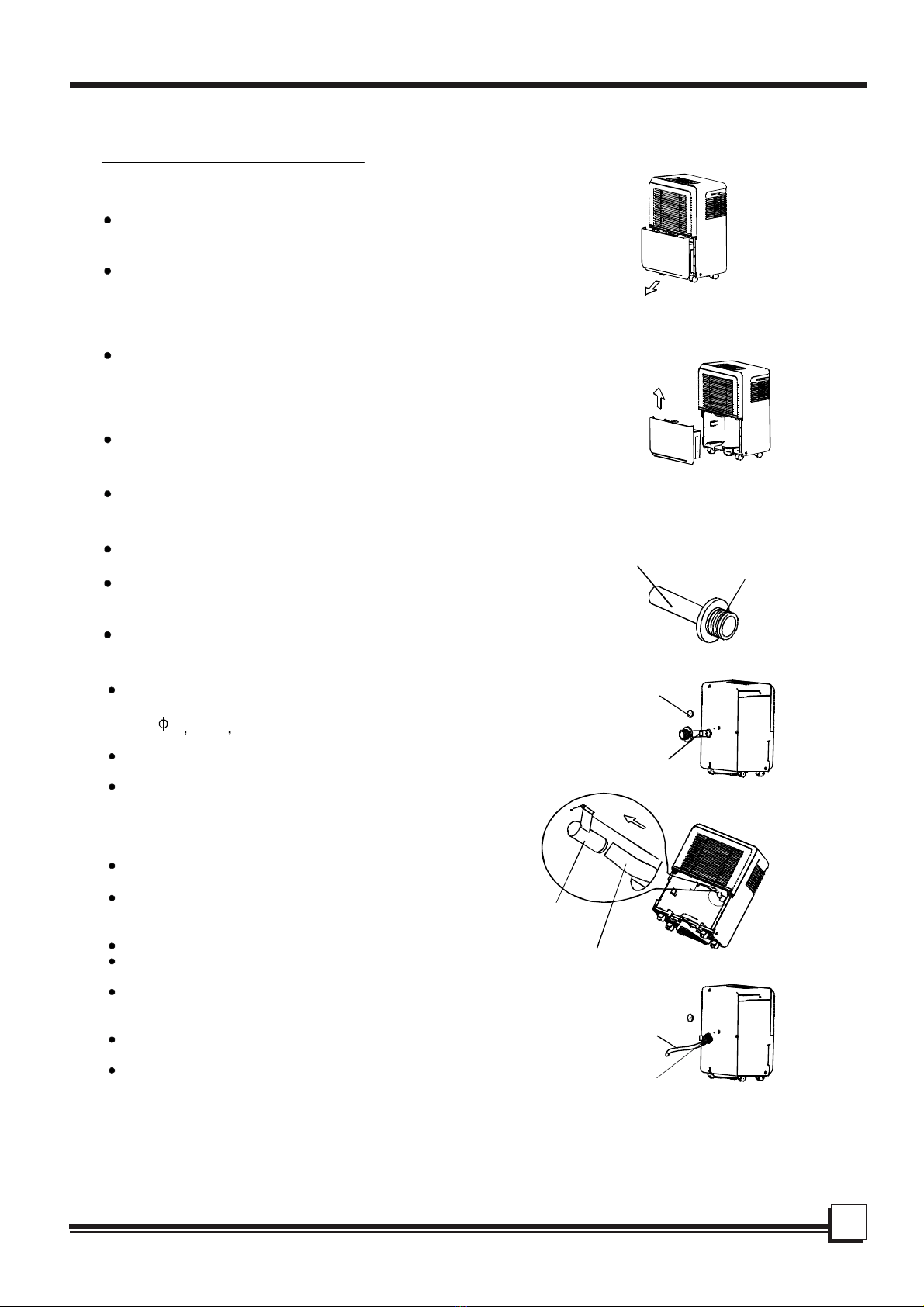

2. Continuous draining
Water can be automatically emptied into a floor
drain by attaching the unit with a water hose
Fig.8
Plastic cover
Drain hose Adaptor
Fig.7
Drain hose
subassembly
Fig.9
Connector
Drain hose
Fig.10
Water hose
Female threaede
end
OPERATING THE UNIT
9
5/16,not included) with a female threaded
end (I.D. ,not included).
Make sure the hose is secure so there are no leaks.
Direct the hose toward the drain,making sure that
there are no kinks that will stop the warter flowing.
Place the end of the hose into the drain and make sure
the end of the hose is level or down to let the water flow
smoothly.
Place the bucket back in the unit and make sure
that it is located correctly.
Select the desired humidity setting and fan speed
on the unit for continuous draining to start.
Install the drain hose onto the adaptor A (See Fig.7,
placed in the bucket).
Remove the plastic cover from the back drain outlet of
the unit and set aside and remove bucket,then insert
the drain hose through the drain outlet of the unit and
securely press it into the connector on the front of the
unit.(See.Fig.9)
Tighten the adaptor A and the unit by using two screws
(placed in the bucket).
Install the female threaded end of the water hose into
the adaptor A.(See.Fig.10),then lead the water hose
to the floor drain or a suitable drainage
NOTE: When the continuous drain feature
is not being used,remove the drain hose
from the outlet.
(I.D.
26mm
opening.
Make sure the is not pointing upwards.

3. Clean the air filter
Remove the filter every two weeks based on normal
operating conditions.
To remove the filter, remove bucket and pull filter downwards.
Wash the filter with clean water then dry.
Re-install the filter, and replace bucket.
DO NOT operate the dehumidifier without a filter
because dirt and lint will clog it and reduce
performance.
CAUTION:
Fig. 11
After turning off the unit, wait one day before emptying
the bucket.
Clean the main unit, water bucket and air filter.
Cover the unit with a plastic bag.
Store the unit upright in a dry, well-ventilated place.
Wrap the cord and bundle it with the band(Fig.12) .
4. When not using the unit for long time periods
Care and cleaning of the dehumidifier
Turn the dehumidifier off and remove the plug
from the wall outlet before cleaning.
1. Clean the grille and case
Use water and a mild detergent. Do not use bleach
or abrasives.
Do not splash water directly onto the main unit. Doing
so may cause an electrical shock, cause the insulation
to deteriorate, or cause the unit to rust.
The air intake and outlet grilles get soiled easily, so use
a vacuum attachment or brush to clean.
2. Clean the bucket
Every few weeks, clean the bucket to prevent growth of mold,
mildew and bacteria. Partially fill the bucket with clean water
and add a little mild detergent. Swish it around in the bucket,
empty and rinse.
Do not use a dishwasher to clean the bucket.
After
cleaning, the bucket must be in place and securely
seated for the dehumidifier to operate.
NOTE:
Fig. 12
CARE AND MAINTENANCE
10
