UBI Z Series User manual
INSTALLATION GUIDE FOR
UBI SENSOR FRAME
Ubi Interactive Inc.
www.ubi-interactive.com
Ubi Interactive Inc.
Contents
INTRODUCTION .................................................................................................................................................................2
WHAT IS IN THE PACKAGE .............................................................................................................................................2
HOW TO SET UP HARDWARE .........................................................................................................................................2
INTERACTION .....................................................................................................................................................................6

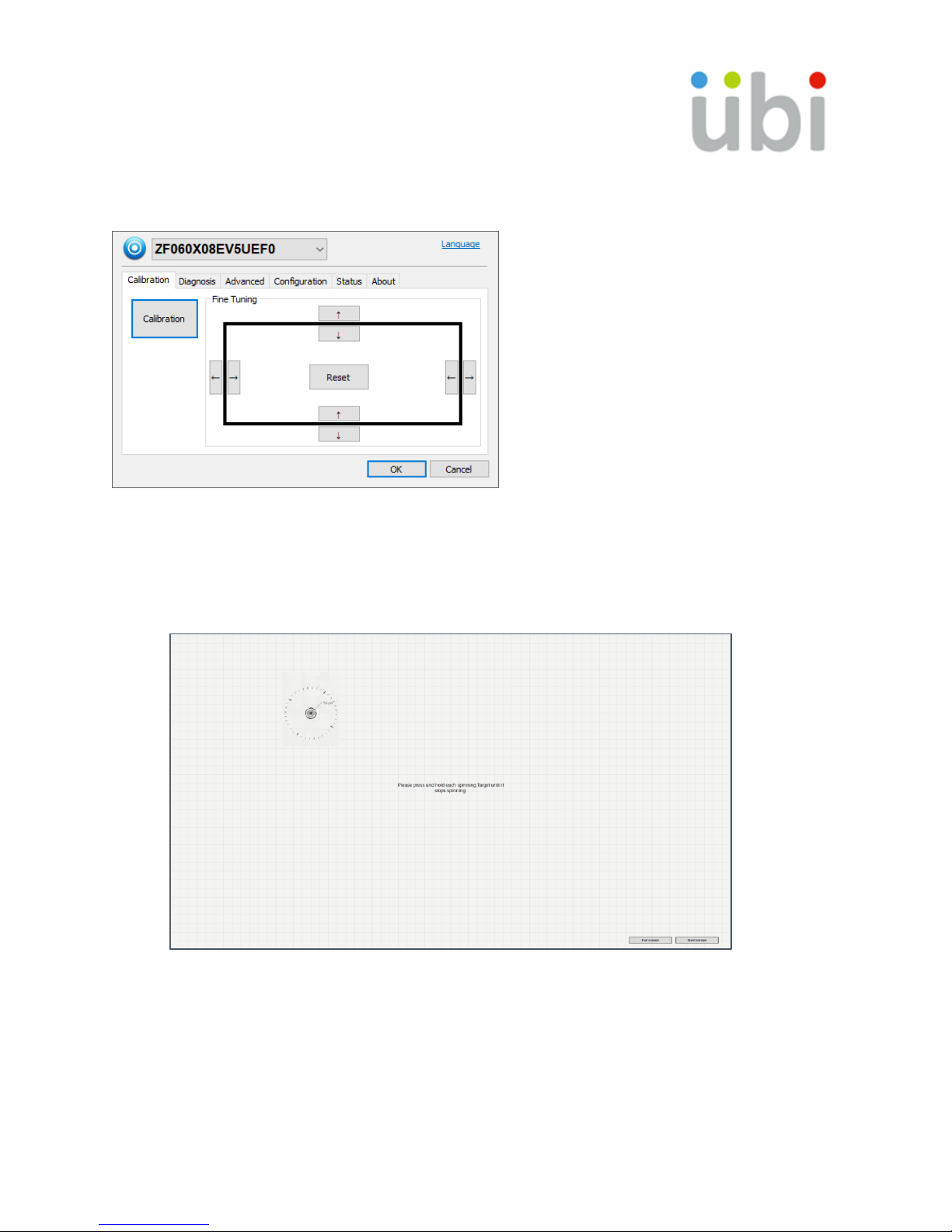

SETTING UP UBI APPS .....................................................................................................................................................7
Ubi Interactive Inc.
INTRODUCTION
Ubi Sensor Frame is a frame that can be added to display panels of any size or technology
to make them interactive. The sensor frame is packaged with sensors that can detect very

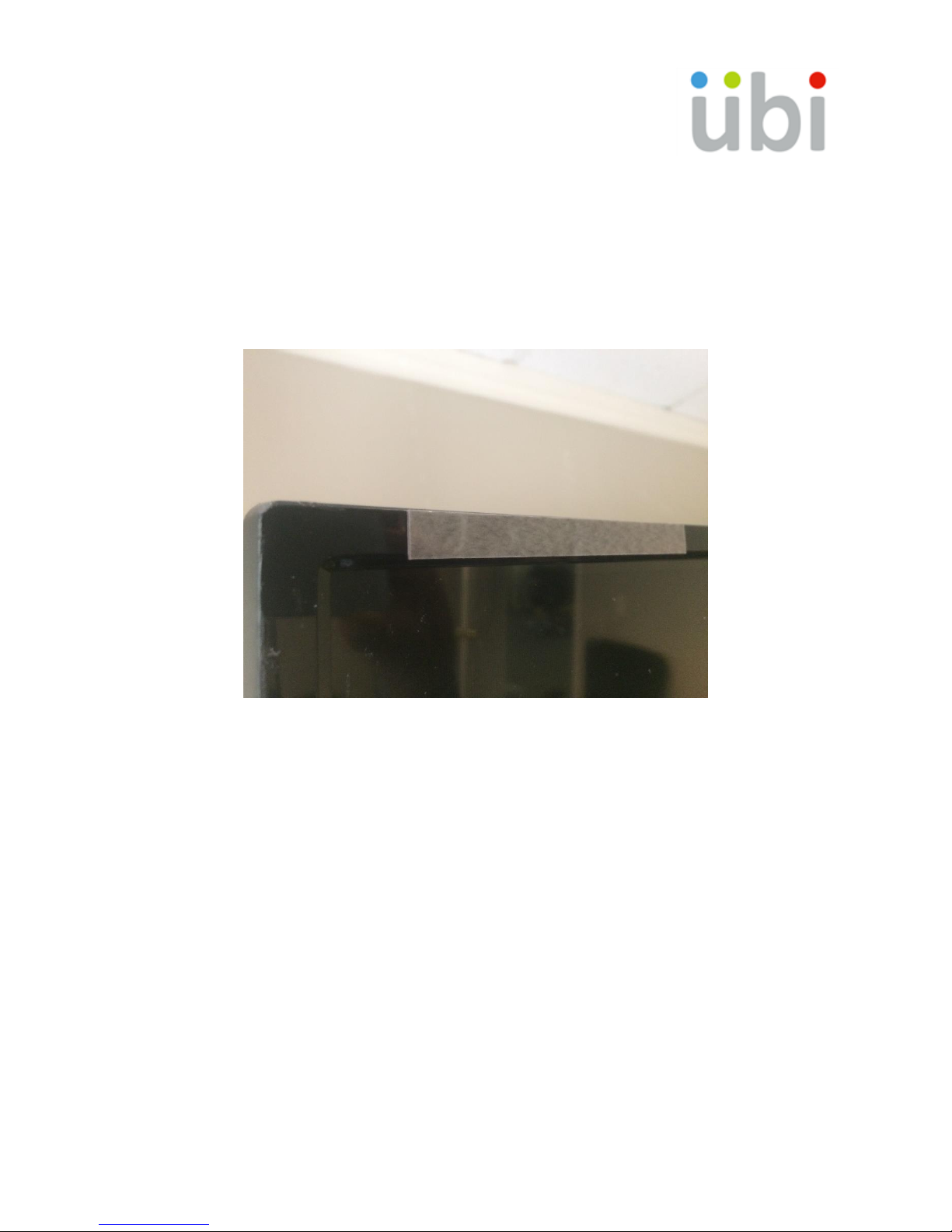

accurately the position of your finger. It is a true plug and play solution. Snap it onto your
display panel and with no special set up or driver, your display magically turns a touch
screen.
Ubi sensor frame also comes with an array of software tools and apps.
This document provides you all the instructions to set up and use Ubi Sensor Frame.
WHAT IS IN THE PACKAGE
Each package contains the following items
HOW TO SET UP HARDWARE
•When you unpack the package, the full set of IR touch frames will look like this: For
frames larger than 90” there will be two extra pieces for each of the longer side.
There is also an additional power supply included for the larger frames. Each frame
is labeled to indicate which corners go with which one. In some of the sized, the
matching corners are coded with color.
Edges of the sensor frame
4
USB cable
1
3M Adhesive
24 strips
Screws
8
Instruction Manual
1
USB extension
Optional
Stylus
Optional
Ubi Interactive Inc.

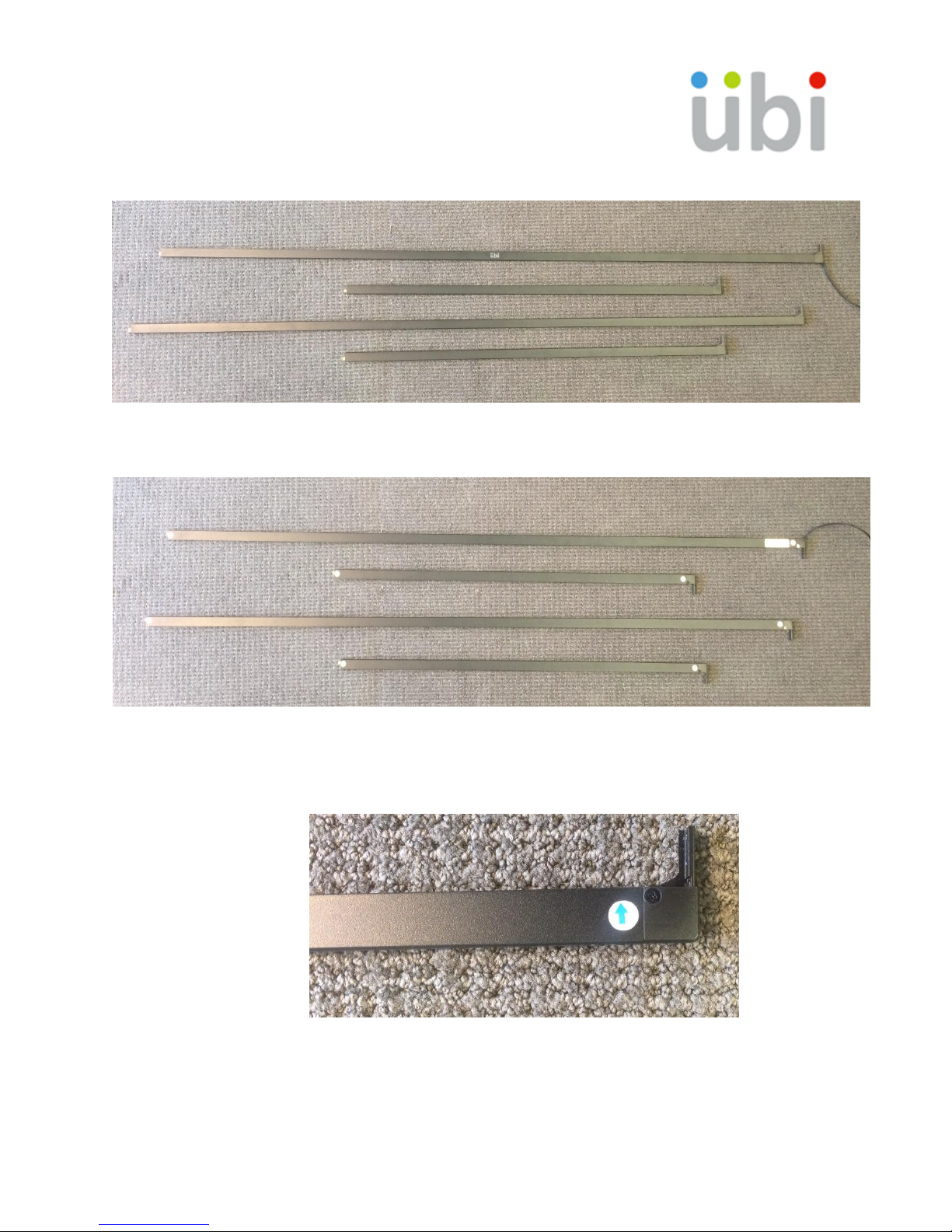

Figure 1 : Front view of each side of the sensor frame
Figure 2 : Back view of each side of the sensor frame
Each corner of the edge has a specific color code to indicate which corners
match.
•Place the four sides of the frame in the correct position. Make sure corners with
the same color go next to each other. The longer edge with Ubi logo in the front
Figure 3: The color marker in the corner indicating matching pairs
Ubi Interactive Inc.
and USB cable on a side, go at the bottom.

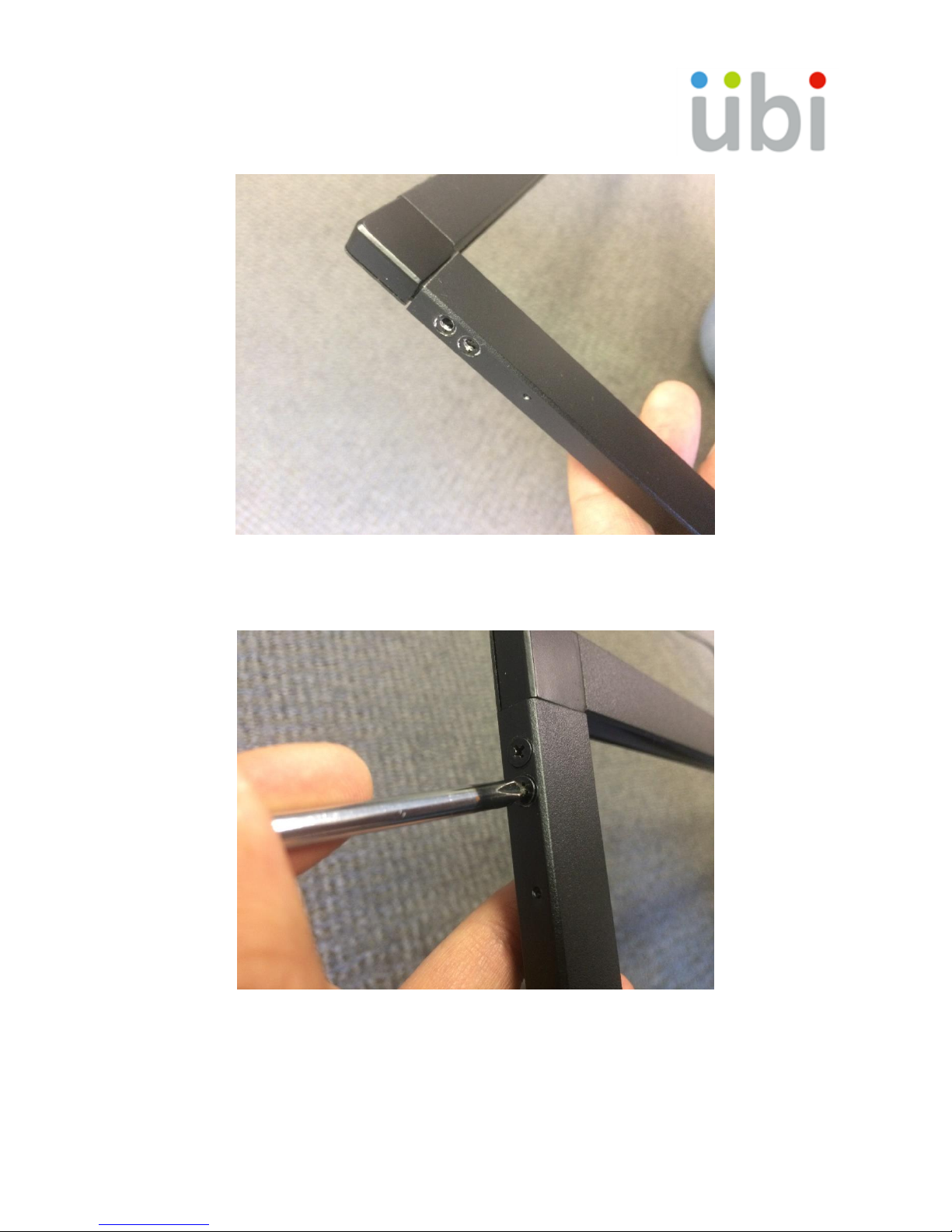

•Connect the matching corners as shown below. The corners should snap together
without having to insert much pressure.

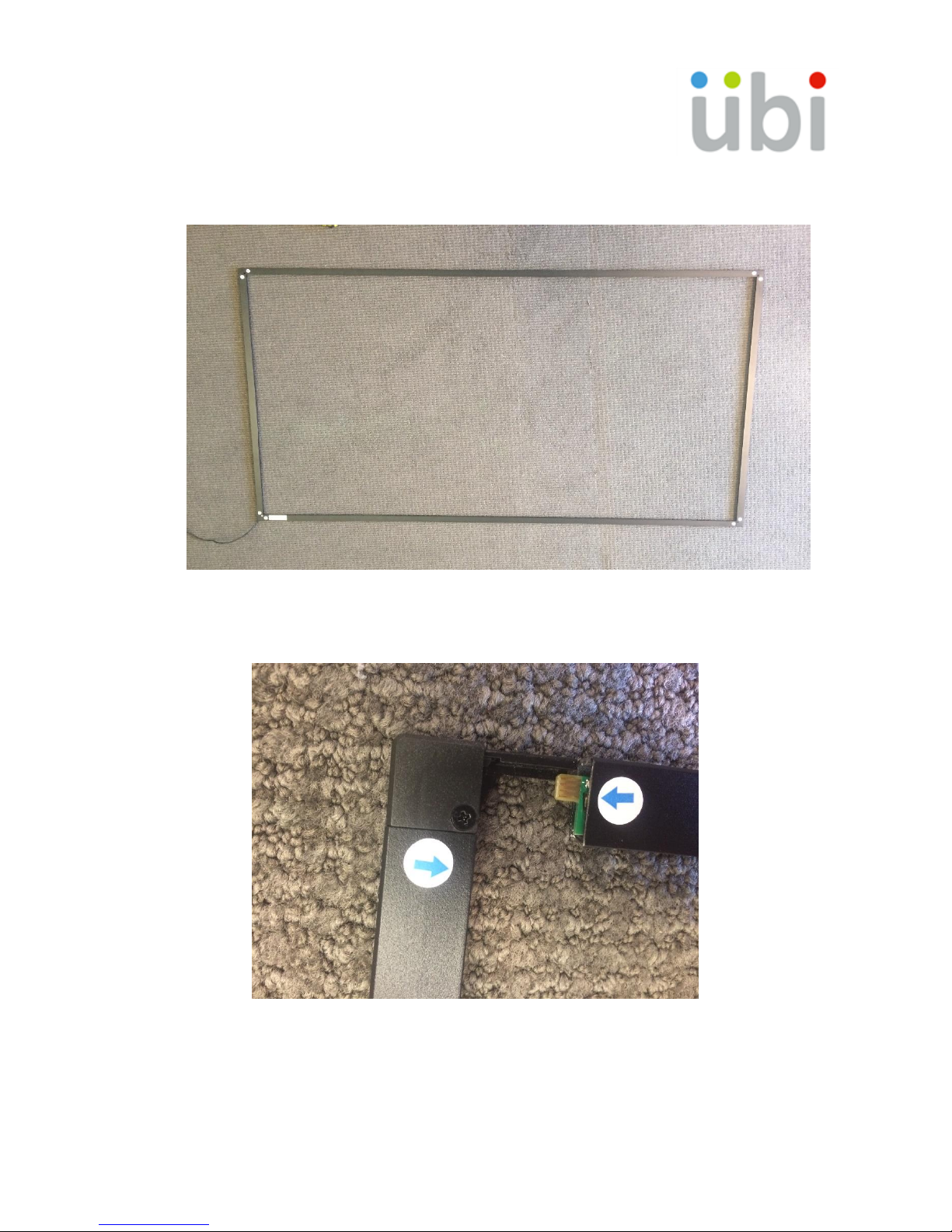

Figure 5: Snap together the matching corners
•This is how it should look once the connection is successful
Figure 4: The edges aligned together
