Ubiquiti AirMax AMY-9M16 User manual

900 MHz 2x2 MIMO
Yagi Antenna
Model: AMY-9M16

1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks airMAX™900 MHz
2x2 MIMO Yagi Antennas, model: AMY-9M16. This Quick Start
Guide is designed to walk you through the installation of each
antenna.

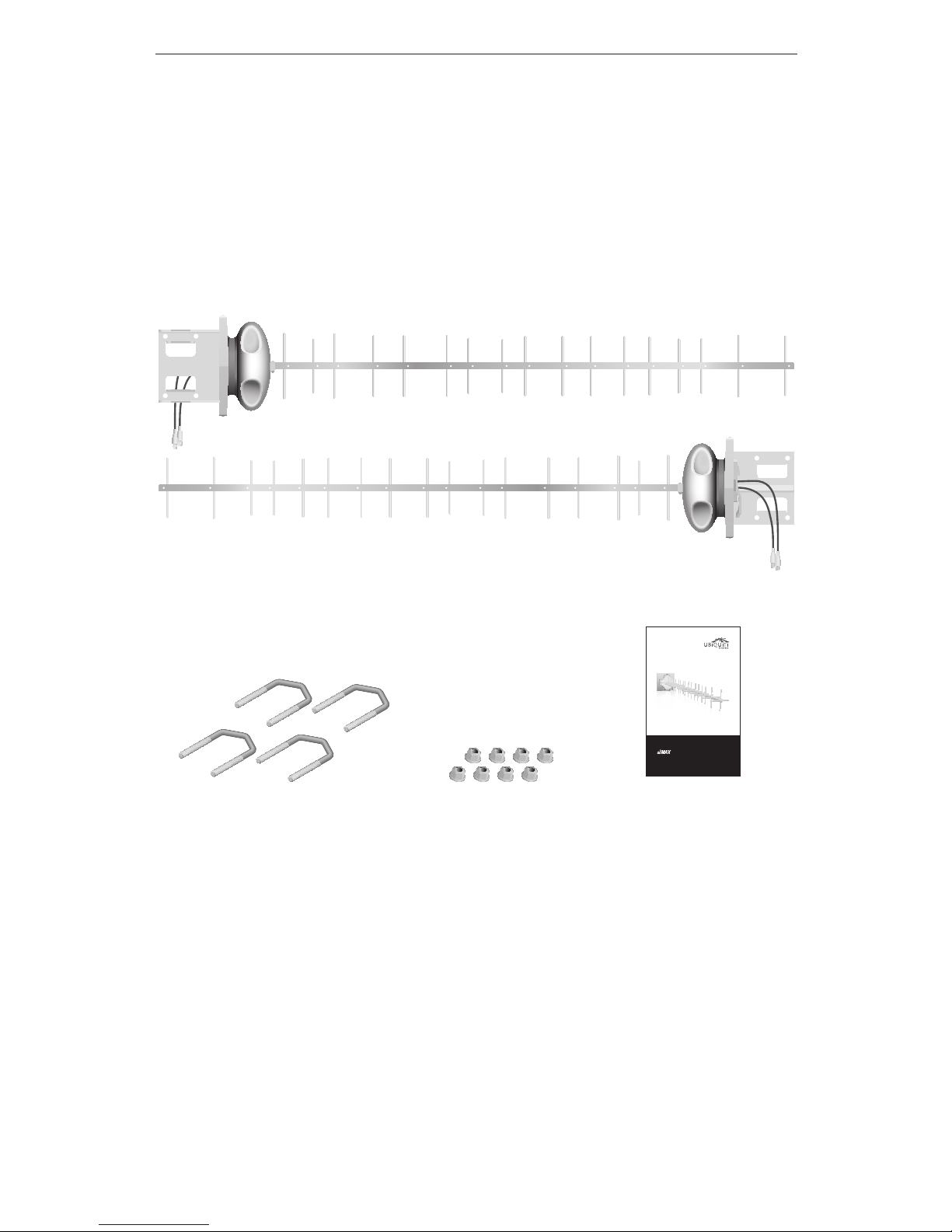

Package Contents
Antennas (Qty. 2)
Carrier Class
900 MHz 2x2 MIMO
Yagi Antenna
Model: AMY-9M16
M8 U Bolts
(Qty. 4)
M8 Serrated
Flange Nuts (Qty. 8)
Quick Start Guide
* Products may be different from pictures and are subject to change without notice.
Installation Requirements
• Rocket™M900 (sold separately)
• 13 mm wrench
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks™. For more details, visit www.ubnt.com/toughcable

2
airMAX™AMY-9M16 Quick Start Guide
Hardware Overview
Partially Assembled Back View
RocketM900
H RF Cable
V RF Cable
Main Mounting
Bracket

3
Hardware Installation
Hardware Installation
1. Attach the RocketM900 to the antenna.
a. Align the mounting tabs on the back of the RocketM900
with the Rocket Mounting Bracket.
b. Slide the RocketM900 down to lock it into place.

4
airMAX™AMY-9M16 Quick Start Guide

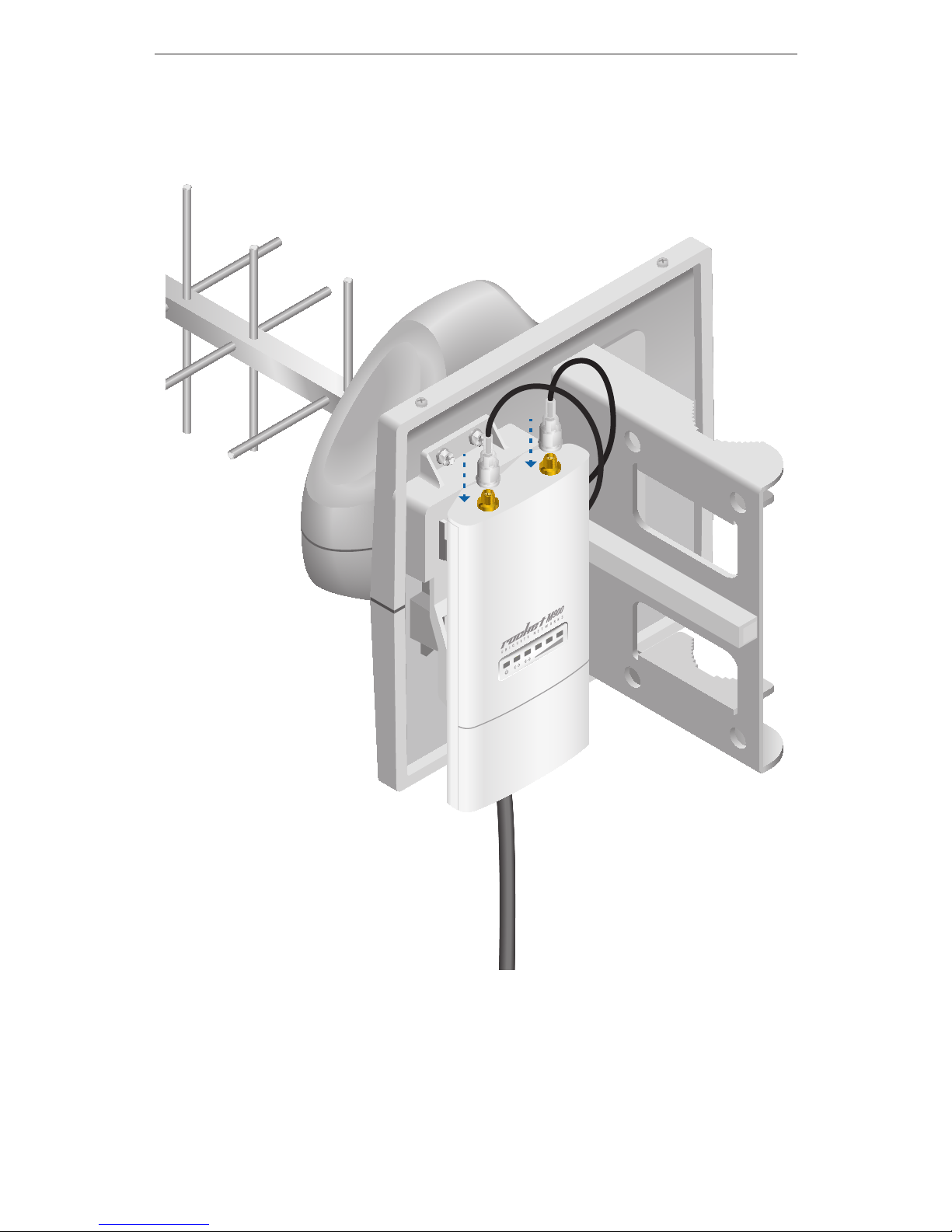

2. Attach the V RF Cable to the connector labeled Chain 1 on the
RocketM900. Attach the H RF Cable to the connector labeled
Chain 0 on the RocketM900.

5
Hardware Installation

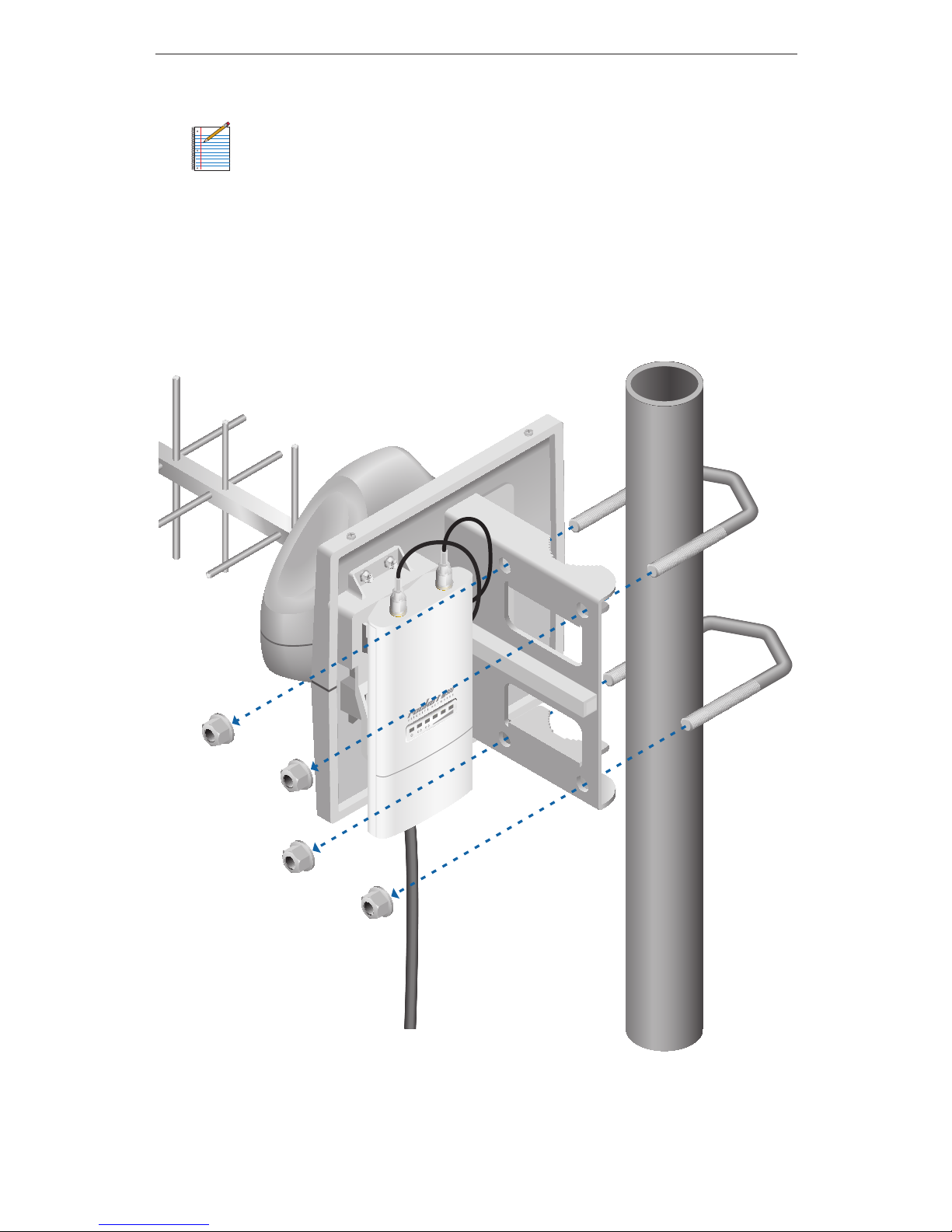

3. Attach the antenna to the pole.
Note: The mounting assembly can accommodate a
Ø 1.25" - 2.25" pole.
a. Insert the two M8 U Bolts into the Main Mounting Bracket of
the antenna.
b. Secure each M8 U Bolt with two M8 Serrated Flange Nuts.
c. Tighten all nuts to approximately 14 N-m (10 lb-ft) or less to
avoid deforming the pole.

6
airMAX™AMY-9M16 Quick Start Guide
Specifications
AMY-9M16
Dimensions 1365 x 215 x 218 mm
Weight 2.5 kg (Mount Included)
Frequency 902 - 928 MHz
Gain 16 dBi, Both Polarizations
HPOL Beamwidth 29 to 34°
VPOL Beamwidth 29 to 34°
Front-to-Back Ratio 20 dB
Max. VSWR < 1.5:1 Over Band
Wind Survivability 120 mph
Wind Loading 35 lbf @ 100 mph
Polarization Dual Linear
Cross-Pol Isolation 20 dB
ETSISpecication EN 302 326 DN2
Mounting Pole-Mount Kit Included

7
Safety Notices
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be
submerged by water.
WARNING: Avoid using this product during an electrical storm.
There may be a remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and
warrants that the Products furnished hereunder shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS sole and exclusive obligation under the foregoing
warranty shall be to repair or replace, at its option, any defective Product
that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
The foregoing warranty is exclusive and in lieu of all other warranties,
express or implied, including the implied warranties of merchantability and
fitness for a particular purpose and any warranties arising from a course
of dealing, usage or trade practice with respect to the products. Repair or
replacement in the manner provided herein shall be the sole and exclusive
remedy of Buyer for breach of warranty and shall constitute fulfillment
of all liabilities of UBIQUITI NETWORKS with respect to the quality and
performance of the Products. UBIQUITI NETWORKS reserves the right
to inspect all defective Products (which must be returned by Buyer to
UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS.
Products returned without an RMA number will not be processed and will
be returned to Buyer freight collect. UBIQUITI NETWORKS shall have no
obligation to make repairs or replacement necessitated by catastrophe,
fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or
any other parties. The warranty period of any repaired or replaced Product
shall not extend beyond its original term.

8
airMAX™AMY-9M16 Quick Start Guide
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or unusual
physical, electrical or electromagnetic stress, or some other type of
accident.
(II) No modification, alteration or addition has been made to the Product
by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S
authorized representatives or otherwise approved by UBIQUITI
NETWORKS.
(III) The Product has been properly installed and used at all times in
accordance, and in all material respects, with the applicable Product
documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of
the products is error-free or that operation will be uninterrupted. In no
event shall UBIQUITI NETWORKS be responsible for damages or claims
of any nature or description relating to system performance, including
coverage, buyer’s selection of products for buyer’s application and/or
failure of products to meet government or regulatory requirements.
Returns
In the unlikely event a defect occurs, please work through the dealer or
distributor from which this product was purchased.
Compliance
RF Exposure Warning
The antenna and transmitter must be installed to provide a separation
distance from all persons and must not be located or operating in
conjunction with any other antenna or transmitter. For the specific
separation distance, refer to the Quick Start Guide for your RocketM900
device (transmitter).
L'antenne et l'émetteur doit être installé pour fournir une distance de
séparation de toute les personnes et ne doit pas être situé ou opérant en
conjonction avec une autre antenne ou un autre émetteur. Pour la distance
spécifique de séparation, se référer au Guide de démarrage rapide pour
votre appareil RocketM900 (l'émetteur).
