Ubiquiti AM-V2G-Ti User manual

Advanced RF Isolation
Variable Beamwidth Antenna
Model: AM-V2G-Ti

1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks airMAX™Titanium
Sector, model AM-V2G-Ti. This Quick Start Guide is designed to
walk you through the installation of the antenna.
Package Contents
Advanced RF Isolation
Variable Beamwidth Antenna
Model: AM-V2G-Ti
Antenna Protective Shroud Quick Start Guide U Brackets
(Qty. 2)
Pole Brackets
(Qty. 2)
Pole Clamps
(Qty. 2)
M8x135 Carriage Bolts
(Qty. 4)
M8x20 Serrated
Flange Bolts
(Qty. 4)
M8 Serrated
Flange Nuts
(Qty. 8)
RF Cables
(Qty. 2)
* Products may be different from pictures and are subject to change without notice.

2
airMAX™AM-V2G-Ti Quick Start Guide
Installation Requirements
• Rocket™M2 Titanium or RocketM2 (sold separately)
• 12 mm and 13 mm wrenches
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks™. For more details, visit www.ubnt.com/toughcable

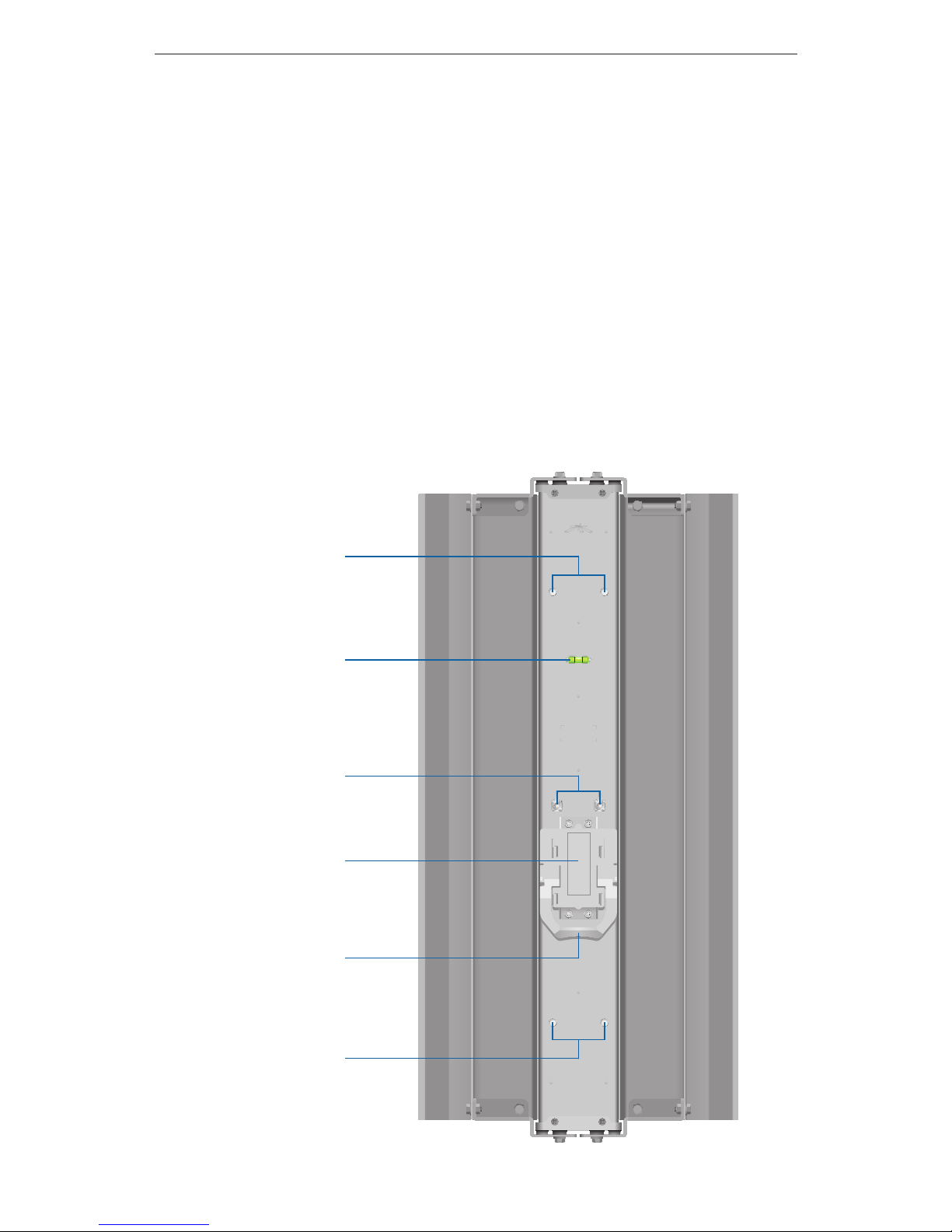

Hardware Overview
Back
Bubble Level
RF Connectors
Rocket Mounting
Bracket
Rocket/Shroud
Lock Release
Lever
Mounting Lugs
Mounting Lugs

3
Hardware Installation
Hardware Installation
1. Set the desired beamwidth by adjusting the Beamwidth
Deflectors. Loosen the four hex head screws enough to move
the Beamwidth Deflectors, but do not remove the screws.
2. Carefully move the Beamwidth Deflectors to the desired angle,
as indicated by the screw slots.
120˚Beamwidth
90˚Beamwidth
60˚Beamwidth
Important: Both deflectors must be set to the same
angle.
3. Tighten the four hex head screws.

4
airMAX™AM-V2G-Ti Quick Start Guide
4. Attach the RF Cables to the connectors labeled Chain 0 and
Chain 1 on the RocketM.
5. Attach the RocketM to the Rocket Mounting Bracket.
a. Align the mounting tabs on the back of the RocketM with
the four mounting slots on the bracket.
b. Slide the RocketM down until it locks into place.

5
Hardware Installation
6. Connect the other ends of the RF Cables to the RF Connectors
on the antenna.
7. Slide the Protective Shroud down over the RocketM until it locks
onto the Rocket Mounting Bracket.
Note: If you have trouble locking the shroud into place,
try adjusting the placement of the RF Cables.

6
airMAX™AM-V2G-Ti Quick Start Guide

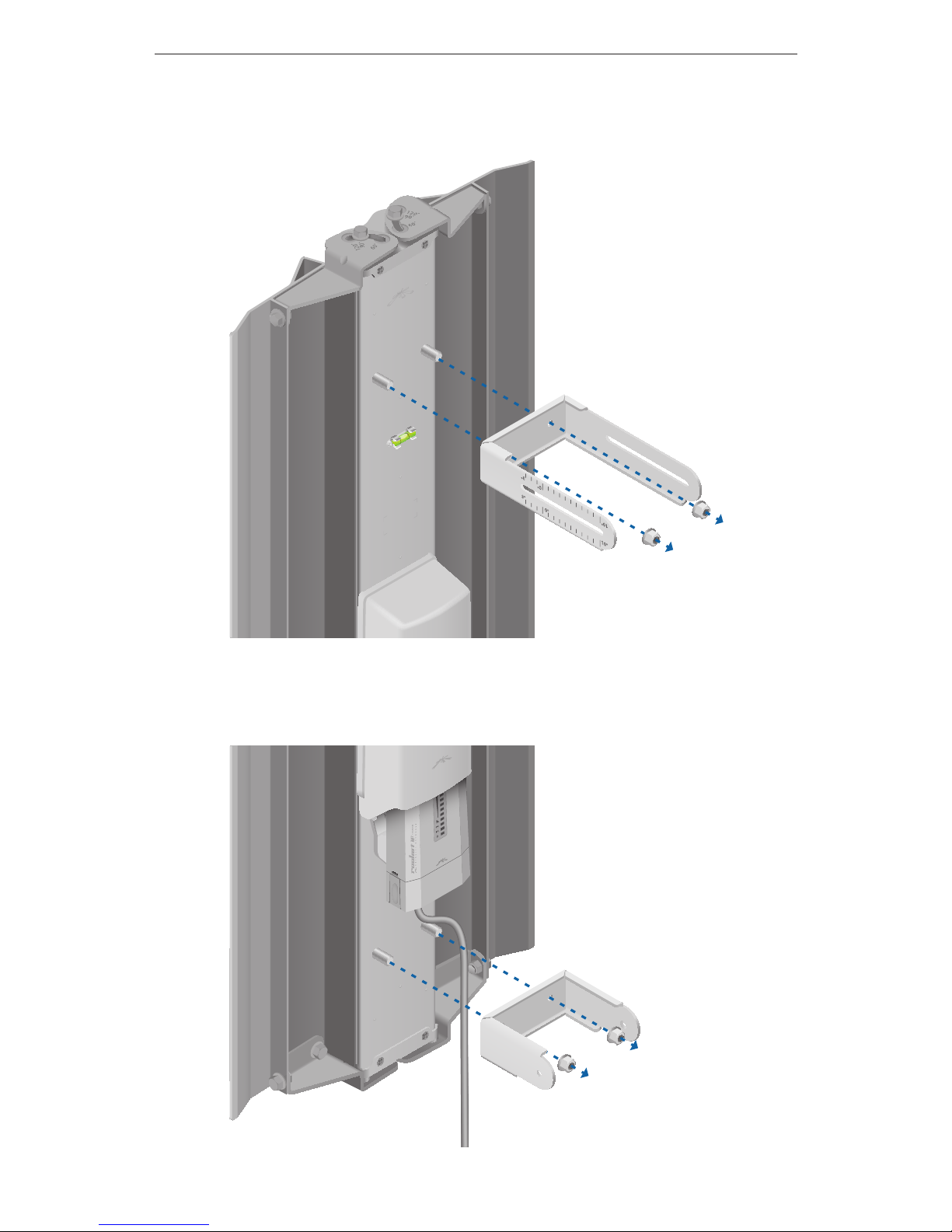

8. Secure the slotted U Bracket to the upper Mounting Lugs of the
antenna using two M8 Serrated Flange Nuts.
9. Secure the other U Bracket to the lower Mounting Lugs of the
antenna using two M8 Serrated Flange Nuts.

7
Hardware Installation
10. Insert two M8x135 Carriage Bolts into each Pole Bracket.
11. Attach each Pole Bracket to each U Bracket using two M8x20
Serrated Flange Bolts. Hand-tighten only.

8
airMAX™AM-V2G-Ti Quick Start Guide
12. To mount the antenna to the pole, slide a Pole Clamp over each
pair of M8x135 Carriage Bolts. Secure each Pole Clamp with two
M8 Serrated FlangeNuts.
Note: The mounting assembly can accommodate a
Ø 1.5" - 3.0" pole.

9
Hardware Installation
13. Theantennahasanelectricaldowntiltof4˚.Tofurtheradjust
the elevation angle, loosen the four M8x20 Serrated Flange Bolts
on the U Brackets and the two M8 Serrated Flange Nuts on the
upper Pole Clamp. Slide the antenna to the desired tilt. (The
brackets may slide along the pole, depending on the angle of
the elevation tilt.) Tighten all bolts and nuts to approximately
14N-m(10lb-ft)orlesstoavoiddeformingthepole.
M8x20 Serrated
Flange Bolt
M8x20 Serrated
Flange Bolt
M8 Serrated
Flange Nut

10
airMAX™AM-V2G-Ti Quick Start Guide
Specifications
AM-V2G-Ti
Dimensions 773 x 372 x 120 mm
Weight 6.40 kg (with Brackets)
Frequency Range 2.3-2.6 GHz
Beamwidth Angles 60˚/90˚/120˚
Gain
(Beamwidth Dependent)
17dBi@60˚
16dBi@90˚
15dBi@120˚
Electrical Downtilt 4˚
Wind Survivability 125 mph
Wind Loading 92 lbf @ 100 mph
Polarization Dual Linear
Cross-Pol Isolation 25 dB Typ.
F/BRatio 30 dB Typ.
Max. VSWR 1.5:1
RF Connectors 2 SMA Connectors (Weatherproof)
Compatible Radios RocketM2 Titanium
RocketM2
Mounting Pole Mount (Kit Included)
ETSISpecication EN 302 326 DN2
Certications CE, FCC, IC

11
Safety Notices
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Onlyuseattachments/accessoriesspecifiedbythemanufacturer.
WARNING: Do not use this product in location that can be
submerged by water.
WARNING: Avoid using this product during an electrical storm.
There may be a remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and
warrants that the Products furnished hereunder shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS sole and exclusive obligation under the foregoing
warranty shall be to repair or replace, at its option, any defective Product
that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
The foregoing warranty is exclusive and in lieu of all other warranties,
express or implied, including the implied warranties of merchantability and
fitness for a particular purpose and any warranties arising from a course
of dealing, usage or trade practice with respect to the products. Repair or
replacement in the manner provided herein shall be the sole and exclusive
remedy of Buyer for breach of warranty and shall constitute fulfillment
of all liabilities of UBIQUITI NETWORKS with respect to the quality and
performance of the Products. UBIQUITI NETWORKS reserves the right
to inspect all defective Products (which must be returned by Buyer to
UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS.
Products returned without an RMA number will not be processed and will
be returned to Buyer freight collect. UBIQUITI NETWORKS shall have no
obligation to make repairs or replacement necessitated by catastrophe,
fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or
any other parties. The warranty period of any repaired or replaced Product
shall not extend beyond its original term.

12
airMAX™AM-V2G-Ti Quick Start Guide
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or unusual
physical, electrical or electromagnetic stress, or some other type of
accident.
(II) No modification, alteration or addition has been made to the Product
by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S
authorized representatives or otherwise approved by UBIQUITI
NETWORKS.
(III) The Product has been properly installed and used at all times in
accordance, and in all material respects, with the applicable Product
documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of
the products is error-free or that operation will be uninterrupted. In no
event shall UBIQUITI NETWORKS be responsible for damages or claims
of any nature or description relating to system performance, including
coverage,buyer’sselectionofproductsforbuyer’sapplicationand/or
failure of products to meet government or regulatory requirements.
Returns
In the unlikely event a defect occurs, please work through the dealer or
distributor from which this product was purchased.
Compliance
RF Exposure Warning
The antenna and transmitter must be installed to provide a separation
distance from all persons and must not be located or operating in
conjunction with any other antenna or transmitter. For the specific
separation distance, refer to the Quick Start Guide for your RocketM device
(transmitter).
L'antenne et l'émetteur doit être installé pour fournir une distance de
séparation de toute les personnes et ne doit pas être situé ou opérant en
conjonction avec une autre antenne ou un autre émetteur. Pour la distance
spécifique de séparation, se référer au Guide de démarrage rapide pour
votre appareil RocketM (l'émetteur).

13
Compliance
RoHS/WEEEComplianceStatement
English
EuropeanDirective2002/96/ECrequiresthattheequipmentbearing
thissymbolontheproductand/oritspackagingmustnotbedisposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
DieEuropäischeRichtlinie2002/96/ECverlangt,dasstechnische
Ausrüstung,diedirektamGerätund/oderanderVerpackungmitdiesem
Symbol versehen ist , nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt
in Ihrer Verantwortung, dieses Gerät und andere elektrische und
elektronische Geräte über die dafür zuständigen und von der Regierung
oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle
negative Folgen für Umwelt und die menschliche Gesundheit zu
vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
LaDirectiva2002/96/CEdelaUEexigequelosequiposquelleveneste
símboloenelpropioaparatoy/oensuembalajenodebeneliminarse
junto con otros residuos urbanos no seleccionados. El símbolo indica
que el producto en cuestión debe separarse de los residuos domésticos
convencionales con vistas a su eliminación. Es responsabilidad suya
desechar este y cualesquiera otros aparatos eléctricos y electrónicos a
través de los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos aparatos
estará contribuyendo a evitar posibles consecuencias negativas para el
medio ambiente y la salud de las personas. Si desea obtener información
más detallada sobre la eliminación segura de su aparato usado, consulte a
las autoridades locales, al servicio de recogida y eliminación de residuos de
su zona o pregunte en la tienda donde adquirió el producto.

14
airMAX™AM-V2G-Ti Quick Start Guide
Français
Ladirectiveeuropéenne2002/96/CEexigequel’équipementsurlequel
estapposécesymbolesurleproduitet/ousonemballagenesoitpasjeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
Ladirettivaeuropea2002/96/ECrichiedecheleapparecchiature
contrassegnateconquestosimbolosulprodottoe/osull’imballaggionon
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.

15
Declaration of Conformity
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p
íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk
[Danish]
Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende
udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI
NETWORKS device, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI
NETWORKS device, voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI
NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi
[Finnish]
UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS
device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI
NETWORKS device, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet”. (BMWi)
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI
NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1995/5/ΕΚ.
Magyar
[Hungarian]
Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska
[Icelandic]
Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS
device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í
tilskipun 1999/5/EC.
Italiano
[Italian]
Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI
NETWORKS device, è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

16
airMAX™AM-V2G-Ti Quick Start Guide
Latviski
[Latvian]
Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device,
atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist
tajiem noteikumiem.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI
NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk
[Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI
NETWORKS device, er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Slovensky
[Slovak]
UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS
device, sp a základné po iadavky a v etky príslu né ustanovenia
Smernice 1999/5/ES.
Svenska
[Swedish]
Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI
NETWORKS device, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que el
UBIQUITI NETWORKS device, cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii
UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne
istotne postanowienia Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS device,
está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
JL101212

Ubiquiti Networks Support
Email: suppor[email protected]om
Phone (9 a.m. - 5 p.m. PST): 408-942-1153
Online Resources
Wiki Page: wiki.ubnt.com
Support Forum: forum.ubnt.com
Downloads: downloads.ubnt.com
www.ubnt.com
© 2012 Ubiquiti Networks, Inc. All rights reserved.
