Ubiquiti UBB User manual

UBB (Qty. 2) Ball Joint Mount (Qty. 2) Lock Ring (Qty. 2)
Metal Strap (Qty. 2) Gigabit PoE (48V, 0.32A) with
Mounting Bracket (Qty. 2) Power Cord (Qty. 2)
Package Contents
System Requirements
One of the following:
UniFi Cloud Key (1.0.5 or newer) or UniFi Dream Machine (1.0.1 or newer)
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
UniFi Controller software v5.12.x (or newer), available at:
ui.com/download/unifi
UniFi Network App (iOS or Android™) or Web Browser (Google Chrome preferred)
Installation Requirements
Pole-mounting: 8 mm socket wrench or screwdriver
Wall-mounting: wall fastener (not included)
The device needs to have clear line of sight to the sky for proper GPS operation.
Shielded Category 5 (or above) cabling with drain wire should be used for all wired
Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
UBB Quick Start Guide

Ubiquiti. For more details, visit ui.com/toughcable
Surge protection should be used for all outdoor installations. We recommend that
you use two Ethernet Surge Protectors, model ETH-SP-G2, one near the device and
the other at the entry point to the building. The ETH-SP-G2 will absorb power surges
and safely discharge them into the ground.
Hardware Overview
UBB Quick Start Guide

System LED
Reset Button
Ethernet Port
Flashing White Initializing.
White Factory defaults, waiting for integration.
Alternating White/Blue Device is busy; do not touch or unplug it. This usually indicates that a process such as a firmware upgrade is
taking place.
Blue Successfully integrated into a network and working
properly.
Flashing
This is used to locate a device.
When you click Locate in the UniFi Network
Controller software, the LED will flash blue. The
software will also display the location of the device
on the map.
Resets to factory defaults. The device should be running after bootup is complete.
Press and hold the Reset button for about 10 seconds until the LED starts flashing
and then becomes solidly lit. After a few seconds, the LED will turn off, and the
device will automatically reboot.
Note: The UBB radios are pre-paired. If a link is lost due to configuration
changes, you can reset both UBB radios to re-establish the link.
Local UBB radio (source LAN) This Gigabit Ethernet port is used to connect the
power and should be connected to the LAN and DHCP server.
UBB Quick Start Guide

Remote UBB radio (bridged LAN) This Gigabit Ethernet port is used to connect the
power and should be connected to the LAN. It will receive its IP address from the
DHCP server via the wireless link to the local UBB radio.
UBB Quick Start Guide

UBB Quick Start Guide

Hardware Installation
For each UBB radio, go to the appropriate mounting instructions: Pole Mounting or
“Wall Mounting” .
Pole-Mounting
1.
2.
3.
4.
UBB Quick Start Guide

Wall Mounting
The device must be mounted directly to a wood stud or other structurally stable
surface to avoid damage to the mounting hole when you adjust the aim.
Optional Accessory
To enhance stability, you can use the NanoBeam® Wall Mount Kit, model NBE-WMK
(sold separately).
Note: Center screw included. Two optional screws (not included) provide
additional stability.
Installation Instructions
1.
UBB Quick Start Guide

2.
3. 
UBB Quick Start Guide

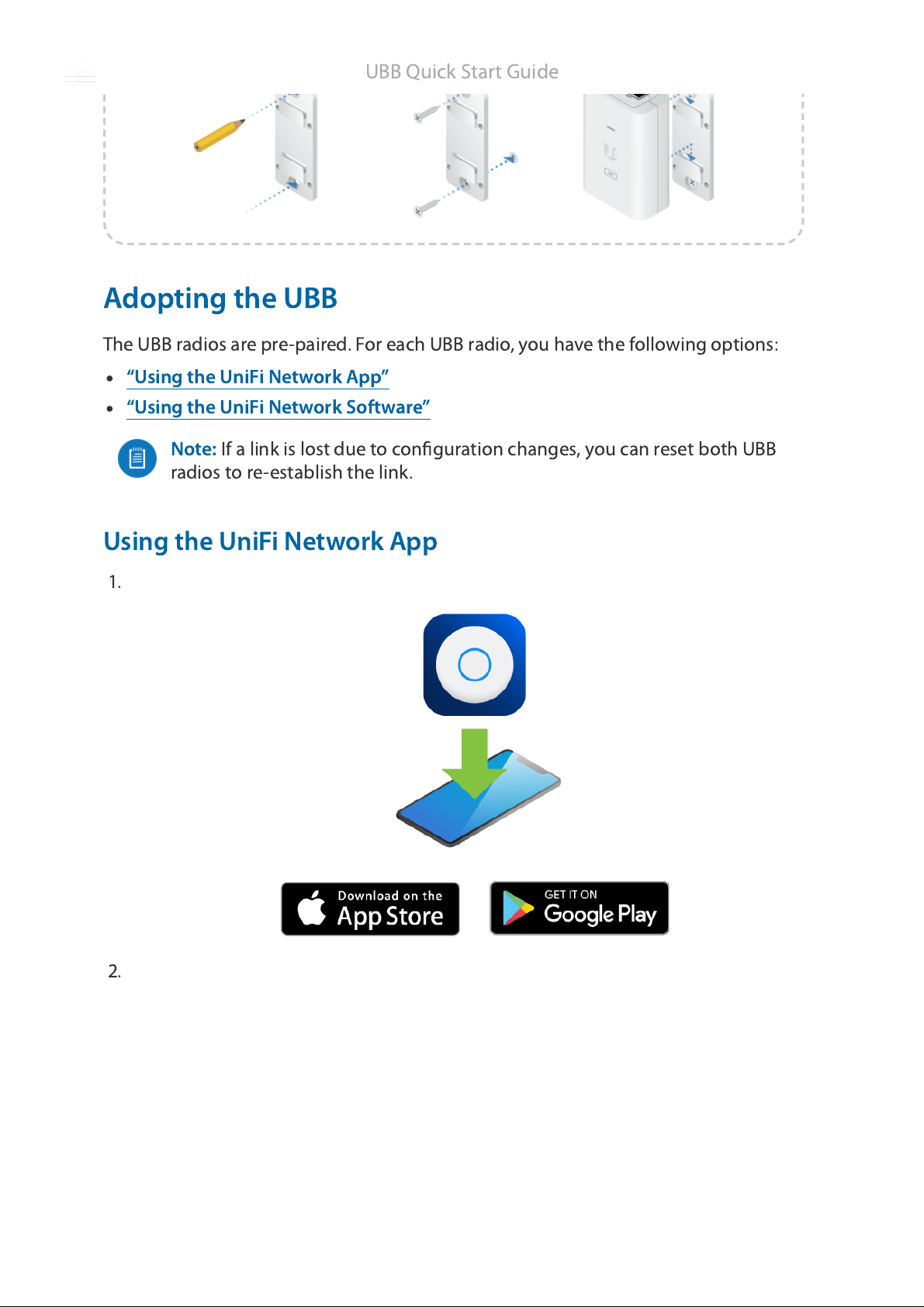

Fastener (not included)
OR
NanoBeam Wall Mount Kit

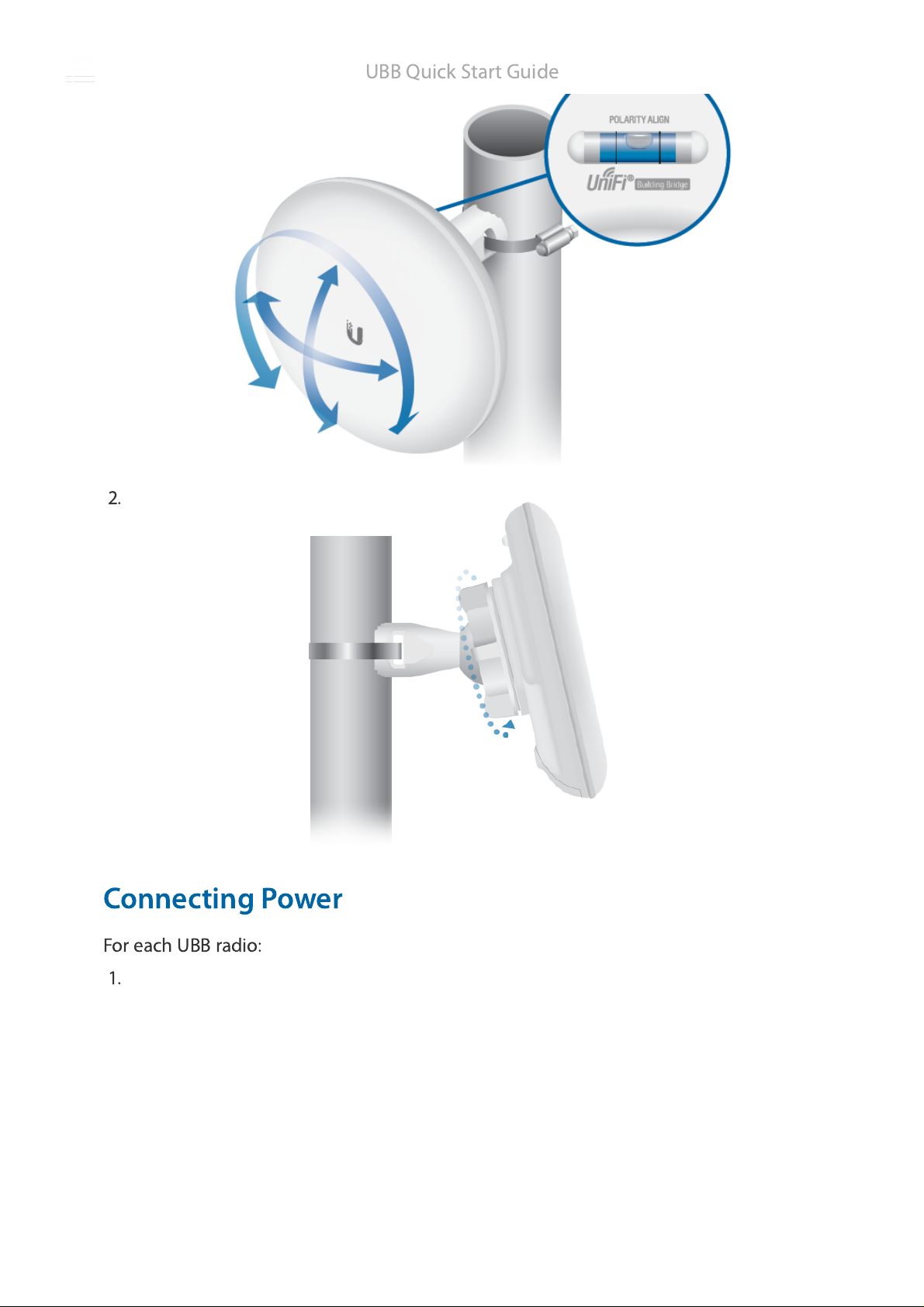

Aiming
Visually aim the UBB radios at each other:
1.
UBB Quick Start Guide

2.

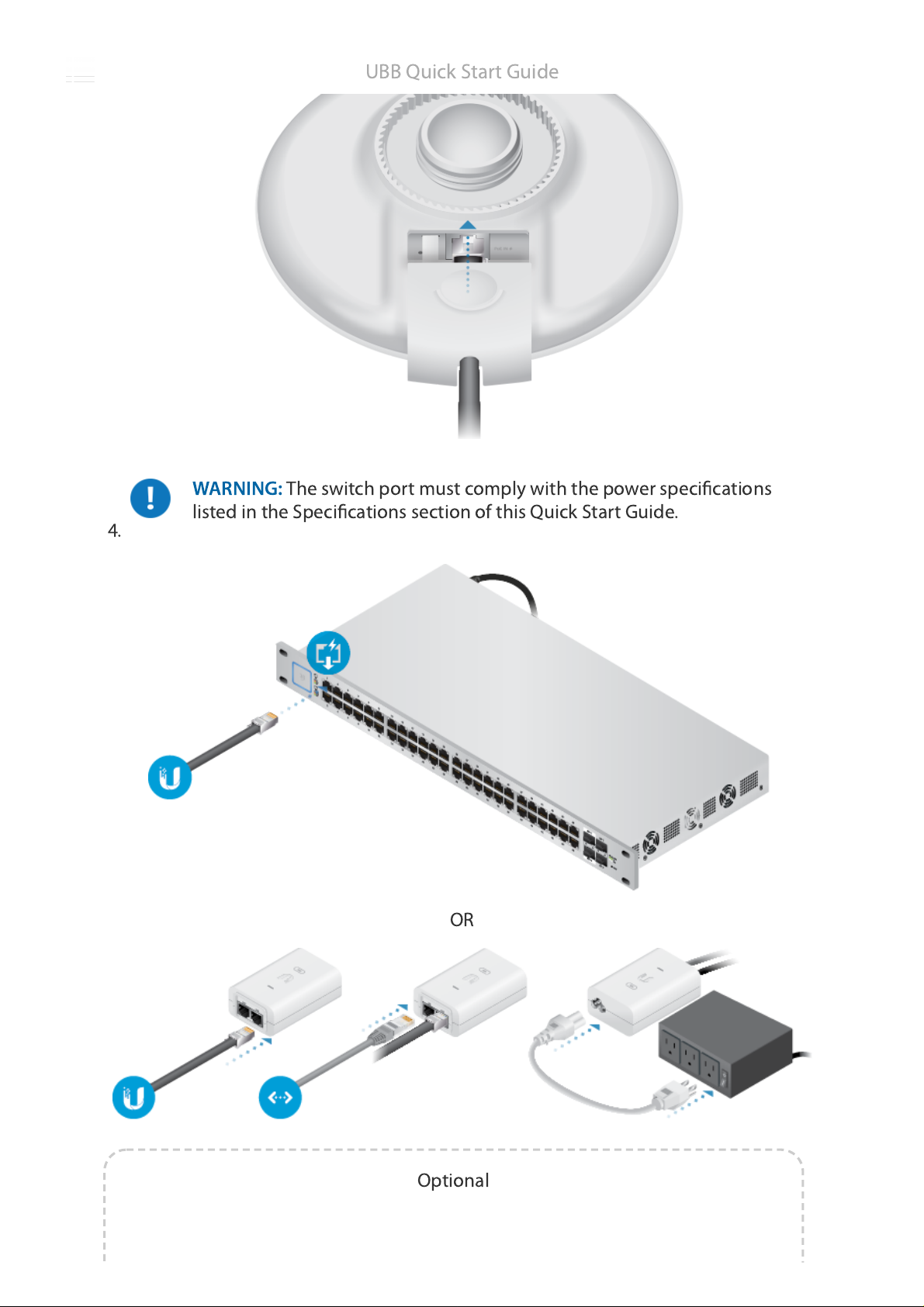

Connecting Power
For each UBB radio:
1.
UBB Quick Start Guide
