UE UESCOPE VL400 Series User manual

User's Manual
VL400 Series
Video Laryngoscope

Please read this manual thoroughly and follow the procedures. Keep this
manual properly for future reference. Information in this manual may change
at any time without prior notice. Please visit www.uescope.com for the most
updated User’s Manual and contact information.
Copyright © 2016 Zhejiang UE Medical Corp. All rights reserved. No reproduc-
tion in any form of this manual, in whole or in part, may be made without the
written authorization from Zhejiang UE Medical Corp.
UESCOPE is a registered trademark of UE Medical Devices, Inc.
Rev 1.1 (November 2016)
Distributed by:
UE Medical Devices, Inc.
831 Beacon Street, Suite 136
Newton, MA 02459, USA
www.uescope.com
Manufacturer:
Zhejiang UE Medical Corp.
8 Youyi Road, Baita EDZ
Xianju, Zhejiang 317300, China
EC Representative:
Lotus Global Co., Ltd.
1 Four Seasons Terrace
West Drayton, Middlesex
London, UB7 9GG, UK

Table of Contents
1 Introduction .................................................. 1
1.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Components and Specications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 OperatingInstructions ......................................... 6
2.1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Intubation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Factors that Influence Successful Intubation . . . . . . . . . . . . . . . 9
3 CleaningandMaintenance ................................... 12
3.1 General Guideline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Cleaning Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3 Cleaning Video Baton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Cleaning Video Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Cleaning Video Stylet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Troubleshooting ............................................. 15
5 Warranty ................................................... 16

1
1 Introduction
1.1 Description
The UESCOPE®VL400 video laryngoscope system (the device) is a handheld
medical device that uses video camera to allow the operator to indirectly visu-
alize the glottis and larynx on the monitor. The device is an ideal tool for exam-
ination of the interior of the larynx and for placement of an tracheal tube. It is
also very helpful for teaching and clinical training of tracheal intubation in both
regular and difcult airway.

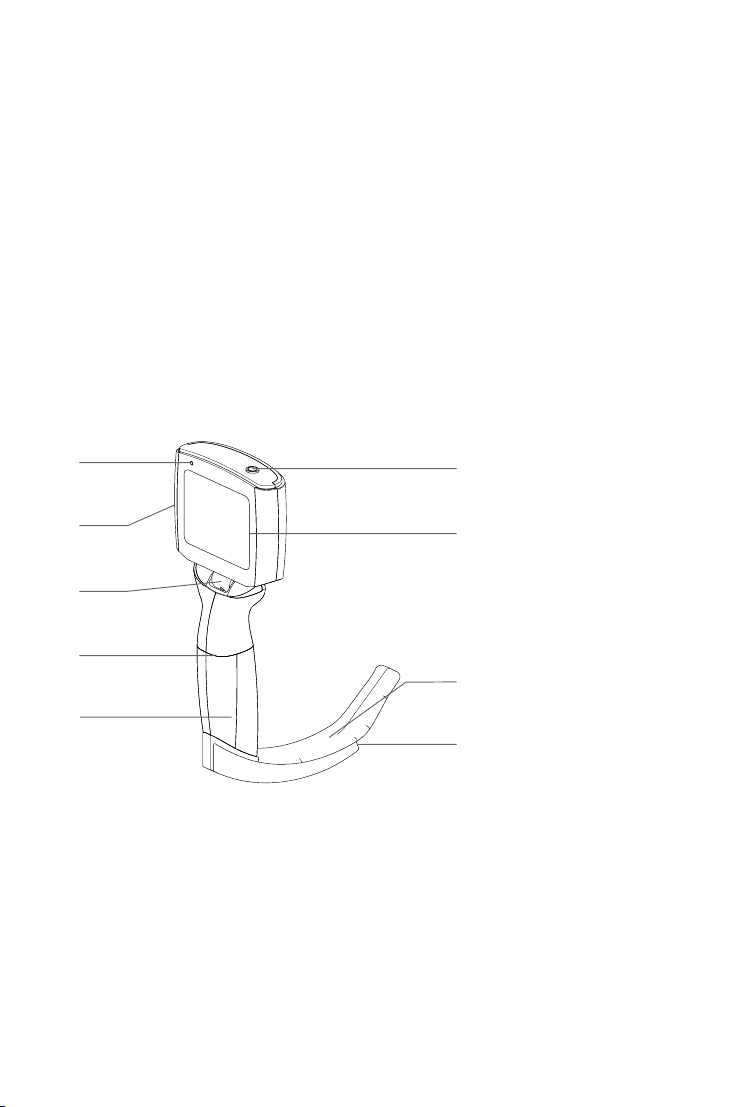

1
2
3
4
5
6
7
8
9
1. Power Indicator
2. USB Port
3. Two-Way Axis
4. Twist-N-Lock™
5. Handle
6. Power Switch
7. LCD Screen
8. Blade
9. Camera
1.2 Components and Specications
The UESCOPE®VL400 video laryngoscope system consists of one LCD moni-
tor mounted directly on top of another reusable component such as video
baton, video blade, and video stylet.

2
Monitor
Display 2.5" LCD
Tilt and Rotation 65° forward, 65° backward, 90° left, 180° right
Recording (optional) 100,000 photos (JPEG), 4.5 hour video (AVI)
Video Output Yes
Power Consumption <2 W
Weight 120 g
Battery Lithium-Ion rechargeable, 1000 mAh
Working Time ≥90 min
Charging Time ≤3 hour
Charge Cycles >300 charge/discharge cycles
There are two models available: standard monitor, and monitor with on-board
recording capability. The optional recording function can take photos and
videos, and store them in its internal memory. Saved image les can then be
transferred to a computer through established USB connection.
Standard Monitor Monitor with
Recording Integration
Monitor can be tilted 130 degree and turned 270 degree, allowing visualization
from every direction. However, operators should note that monitor is not able to
spin 360 degree. Spinning may twist the internal electrical wiring and damage
the monitor.

3
Video Blade
Camera CMOS
Angle of View 60°
Light Source High intensity LED
Illuminance ≥150 LUX
Sizes Miller 0, Mac 1, Mac 2, Mac 3, Mac 4
Weight 60–100 g
Video blade’s design is based on conventional laryngoscope blade shape, with
a slight angulation at the end. Video blades are available in various sizes for
pediatric and adult patient usage. Video blades are reusable. They need to be
reprocessed between uses.
Video Blade Video Baton
(with disposable cover)
Video Stylet
Video Baton & Disposable Cover
Camera CMOS
Angle of View 60°
Light Source High intensity LED
Illuminance ≥150 LUX
Sizes Mac 2, Mac 3, Mac 4
Weight 60–100 g

4
Video baton needs to be loaded with single-use plastic cover (blade) that
protect them. There are different sizes of video batons, corresponding to differ-
ent sizes of single-use covers. Each disposable plastic cover has anti-fogging
technology, and has been sterilized using Ethylene Oxide (EO) and packaged in
individual peel pouch for single use only.
After loaded with disposable cover, video baton has the exactly same shape as
the corresponding video blade.
Video Stylet
Camera CMOS
Angle of View 80°
Light Source High intensity LED
Illuminance ≥200 LUX
Stylet Length 360 mm
Stylet OD 5.2 mm
Tracheal Tube Size 5.5–9.0 mm
Weight 80 g
Video stylet is a lighted stylet with digital camera at the tip. The camera located
at the tip will provide much wider view compared to conventional ber optic
stylet. Video Stylet is either rigid or malleable. Its adjustable tube stop can
accommodate different sizes of tracheal tube. Like video blades, video stylet
is reusable and need to be reprocessed between uses.
Charger & Cable
Charger Input 110–240 VAC, 50/60 Hz
Charger Output 5 V 1000 mA
Charging Cable USB, Composite video output, micro-USB
The device shall only be charged using the provided charger. The device shall
not be used during the charging.

5
Environmental and Operating Conditions
Operating Temperature -5–50 °C (23–122 °F)
Storage/Transit Temp. -40–55 °C (-40–131 °F)
Humidity 10–90%
The device is designed for medical applications. Always respect the conditions
specied for storage and operating environments.
The device must be prevented from adverse external effects such as strong
electromagnetic radiation, excessive force, or high temperature. The device
shall not be used in places where there are re hazards. The device shall not
be used in the presence of flammable anesthetic mixture.
1.3 Warnings and Cautions
Caution: U.S. Federal law restricts this device to sale by or on the order
of a physician.
Do not disassemble the device without manufacturer’s authorization.
To do so will impair patient safety and void the warranty.

6
2 Operating Instructions
2.1 Getting Started
Please note that the devices are supplied non-sterile. Refer to Chapter 3 to clean
the device and accessories before using on patient for the rst time. Dispos-
able laryngoscope blades are supplied sterile and ready for single use only.
Twist-N-Lock™
The device’s Twist-N-Lock™ Connector is designed for quick and easy swapping
of video components such as video blades, video batons, and video stylets. It
helps to secure these components in place and prevent accidental disconnec-
tion during use.
Hold steady the lower portion of the monitor, not the screen itself. Insert the
handle in such a direction that the handle looks like a Letter J with the blade
tip pointing towards left. Turn the handle counter-clockwise to tighten and lock
the connection. Conversely, hold steady the lower portion of the monitor, turn
the handle clockwise to unlock and separate the handle from the monitor.

7
Charge the Battery
The device is powered by an internal rechargeable Lithium-ion battery. It is
highly recommended to fully charge the battery before rst use, using the
provided charger and cable.
During charging, a flashing green power indicator indicates that charging is
in progress, while a steady green power indicator indicates that charging has
completed. It may take up to 3 hours to fully charge the battery when no charge
remains.
During the long-term standby, the battery shall be checked and
recharged if necessary once every 2–3 months.
Load Disposable Blade
Open the peel pouch and slide the disposable blade over the VL400 Video
Baton. The blade is securely loaded when it is rmly latched to the anchor
point with a click sound.
Power Up
Press and briefly hold the power switch for 2–4 seconds to turn on the device.
A bright LED light should appear from the front end of the video component,
where the camera locates. The company logo should appear on the screen for
a few seconds. Then the scene taken by a high denition camera will be shown.
Observe the monitor screen to verify that a clear image is being displayed.
A steady green power indicator means the device is in normal working
state. A red power indicator means the battery is running low and
needs to be recharged immediately.
