UE TX200 User manual
IMTX200-03
www.ueonline.com
GENERAL
BEFORE INSTALLING, CHECK THE SENSOR MODEL SELECTED FOR
COMPATIBILITY TO THE PROCESS MEDIA IN CONTACT WITH THE
SENSOR AND WETTED PARTS.
MISUSE OF THIS PRODUCT MAY CAUSE EXPLOSION AND PERSONAL
INJURY. THESE INSTRUCTIONS MUST BE THOROUGHLY READ AND
UNDERSTOOD BEFORE UNIT IS INSTALLED.
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION
1, GROUPS A, B, C AND D; CLASS II, DIVISION 1, GROUPS E, F AND G;
CLASS III; OR NON-HAZARDOUS LOCATIONS ONLY. -
ENCLOSURE TYPE 4X.
THIS EQUIPMENT IS ATEX CERTIFIED FOR EQUIPMENT CATEGORY 2.
SUITABLE FOR APPROPRIATE USE IN GAS ZONE 1 AND DUST ZONE
21 APPLICATIONS.
The TX200™ pressure transmitter is available as either a field adjustable
turndown (see Part II – Adjustments). Both models utilize a piezo-resistive
or bonded foil sensor technology to continuously monitor pressure in a sys-
tem. Changes in system pressure change the resistance in the sensor trans-
lating to either a 4-20 mA or voltage (VDC) output to a digital meter, gage,
PLC (programmable logic controller) or other device.
Please refer to product bulletin for product specifications. Product bulletin
may be found at www.ueonline.com
PROOF PRESSURE* LIMITS STATED IN THE LITERATURE
AND ON TRANSMITTER
HOUSING MUST NEVER BE EXCEEDED, EVEN BY SURGES IN THE SYS-
TEM. OCCASIONAL OPERATION OF UNIT UP TO MAXIMUM PRESSURE IS
ACCEPTABLE (E.G., START-UP, TESTING). CONTINUOUS OPERATION SHOULD NOT
EXCEED THE DESIGNATED OVER RANGE PRESSURE.
*Proof Pressure
The maximum pressure to which a pressure sensor may be occasionally
subjected, which causes no permanent damage (e.g., start-up, testing). The
units may require re-adjustment.
THESE PRODUCTS DO NOT HAVE ANY FIELD REPLACEABLE PARTS.
ANY SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 1.
TX200™
Pressure Transmitter
THE EPOXY RESIN SHALL NOT BE SUBJECTED TO A TEMPERATURE
Part I - Installation
Tools Needed
Adjustable Wrench
MOUNTING
ALWAYS LOCATE UNITS WHERE SHOCK, VIBRATION AND AMBIENT
TEMPERATURE FLUCTUATIONS ARE MINIMAL. DO NOT MOUNT IN
cUL
IF SEVERE PRESSURE SURGES ARE EXPECTED, CONSIDER THE USE OF A
PRESSURE SNUBBER.
UNIT MAY BE MOUNTED IN ANY POSITION. ALWAYS HOLD A WRENCH
ON THE SENSOR FLATS (PRESSURE PORT) WHEN MOUNTING UNIT.
Panel Mounting via 1/2” NPTM or M20 Electrical Connection
in
holding a wrench on the hex.
WIRING
DISCONNECT ALL SUPPLY CIRCUITS BEFORE WIRING UNIT.
ELECTRICAL RATINGS STATED IN LITERATURE AND ON THE
TRANSMITTER MUST NOT BE EXCEEDED. FOR AMBIENT TEMPERA-
TURES BELOW -10°C AND ABOVE +60°C, USE FIELD WIRING SUITABLE FOR
BOTH MINIMUM AND MAXIMUM AMBIENT TEMPERATURE.
EXTERNAL GROUNDING SCREW (OPTION M460) IS REQUIRED FOR
NON-METALLIC CONDUIT SYSTEMS. (ATEX REQUIREMENT ONLY– SEE
FIGURE 2).
IN ORDER TO MEET EUROPEAN EMC REQUIREMENTS, THE TX200™
WIRING MUST BE INSTALLED IN A GROUNDED METAL CONDUIT OR
WITH OTHER SUITABLE SHIELDING.
THE TX200™ TRANSMITTER ACCEPTS 10-36 VDC FOR 4-20 MA
OUTPUT UNITS AND 10-30 VDC FOR VOLTAGE (VDC) OUTPUT UNITS.
THE SUPPLY VOLTAGE SHALL NOT EXCEED 36 VDC FOR 4-20 MA
OUTPUT UNITS AND 30 VDC FOR VOLTAGE (VDC) OUTPUT UNITS. THE
INSULATION.
UNITED ELECTRIC
CONTROLS
Installation and Maintenance
Instructions
Please read all instructional literature carefully and thoroughly before starting. Refer to the final page for the listing of Recommended
Practices, Liabilities and Warranties.
IMTX200-03
IMTX200-03
www.ueonline.com
EARTH GROUND MUST ALWAYS BE CONNECTED TO THE GREEN WIRE
TO PROVIDE SHIELDING AND ELECTRICAL SAFETY.
WIRE IN ACCORDANCE WITH LOCAL AND NATIONAL ELECTRICAL
CODES. BY THE INSTALLATION, THE WIRES SHALL BE PROTECTED
AGAINST MECHANICAL DAMAGE. E.G. BY USE OF A CONDUIT.
THE WIRING TO THE PRESSURE TRANSMITTER MUST ONLY BE
CONNECTED IN THE SAFE AREA OR BY AN APPROVED TERMINAL
4-20 mA Output Voltage (VDC) Output
The transmitter may be wired in either a sourcing (see figure 1A) or sinking
(see figure 1B) circuit.
Part II - Adjustments
SPANNING THE TX200A™ TRANSMITTER USING THE
SHUNT CAL. FEATURE
calibration feature (see figure 3). No pressure source is required for this process.
Example: A 1,000 psi range TX200A can be adjusted for any range between 0 to 200 psi
and 0 to 1,000 psi.
Use the formula below to calculate lcal or Vcal. This number represents the output
current or voltage that the user will set with the shunt cal. on in order to achieve
the desired range.
4-20 mA models formula: Ical = (Cal# x 16mA/Pcal) + 4mA
Voltage out (VDC) models formula: Vcal = (Cal# x VFSO/Pcal) + Vzero
Ical is the output current that the user will set, with the shunt cal on to achieve
the desired full scale pressure range (Pcal)
Vcal is the output voltage that the user will set, with the shunt cal on to achieve
the desired full scale pressure range (Pcal)
Cal# is the amount of pressure simulated by turning the shunt cal on. The
Cal# is engraved on the TX200A housing and written on the Certificate of
Calibration.
Pcal is the full scale pressure range the user is adjusting to.
Vzero is the output of the voltage (VDC) out model with no pressure applied.
VFSO is the full scale output, in volts, of a voltage (VDC) out model.
Example: For a TX200A with a 1-5 Volt output: Vzero = 1 volt and VFSO = 4 volts
Procedure:
1. Determine the desired pressure range
2. Calculate Ical for 4-20mA models or Vcal for voltage (VDC) models using
the formulae above.
3. Power the TX200 with a suitable power supply.
a. 4-20mA models can be powered with a 24VDC power supply
represents the current in the loop. 100mV = 1mA.
b. Voltage (VDC) out models can be connected directly to a 24V
power supply. The output voltage is measured between the Blue
(+) and Black (–) wires.
Please refer to figure 3 for steps 4-7.
4. Adjust the Zero as necessary.
6. Adjust the Span and Fine Span controls until the output reaches the Ical
or Vcal number calculated in step 2.
Example:
- this is the Pcal. The Cal#
formula above, IcalIcal
completed, the transmitter in this example would be spanned so that the 4 mA output signal = 0
Figure 1C
Figure 3
Figure 1A Figure 1B
4-20 mA Output
Voltage Output
Figure 2
1300 ohms max at 36 VDC
2000 ohms min
LOAD IMPEDANCE
IMTX200-03
www.ueonline.com

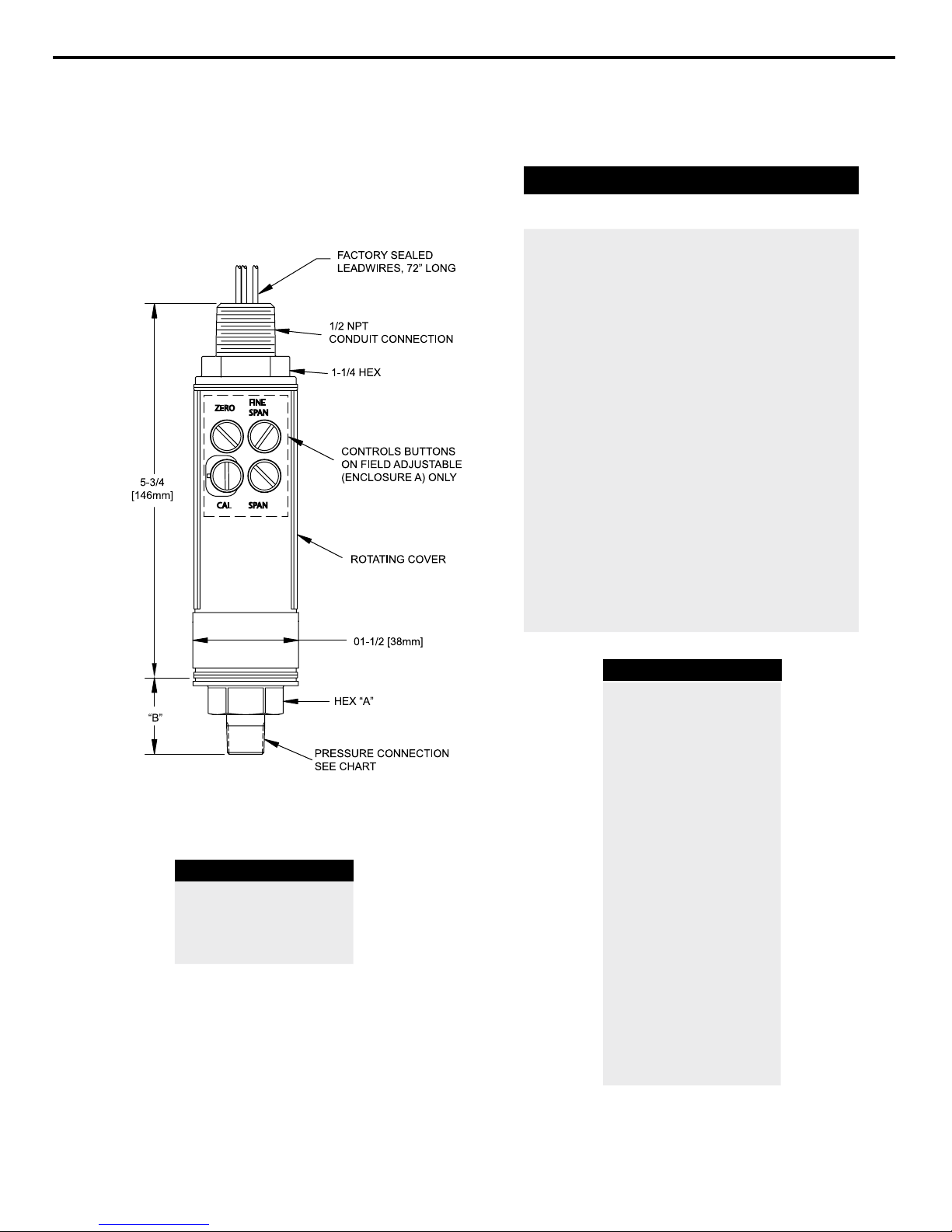

Dimensions
Dimensional drawings for all models may be found at www.ueonline.com
Pressure Connection Chart
Code Description Hex
“A”in
Length
“B”in [mm]
1 1/4” NPT (female) 15/16 0.54 [13.7]
2 1/2” NPT (female) 1-3/8 1.01 [25.7]
3 1/2” NPT (male) 15/16 1.26 [32.0]
4 HF4 Autoclave (female) 15/16 0.54 [13.7]
5 FH6 Autoclave (female) 1-3/8 0.90 [22.9]
6 LF4 Autoclave (female) 15/16 0.54 [13.7]
7 LF6 Autoclave (female) 15/16 0.65 [16.5]
8 1/4” NPT (male) 15/16 0.97 [24.6]
9 7/16-20 SAE (female) 15/16 0.54 [13.7]
A G-1/4 (female) 15/16 0.54 [13.7]
B G-1/2 (female) 1-3/8 1.01 [25.7]
C 7/16-20 SAE (male) 15/16 0.77 [19.6]
D HM4 Autoclave (male) 15/16 1.10 [27.9]
E HM6 Autoclave (male) 15/16 1.29 [32.8]
F LM4 Autoclave (male) 15/16 1.18 [30.0]
G LM6 Autoclave (male) 15/16 1.32 [33.5]
H G-1/4 (male) 15/16 1.03 [26.2]
J G-1/2 (male) 1-3/8 1.78 [45.2]
Wire Color Coding
Red + VDC
Black - VDC
Green Earth Ground
Blue Voltage (VDC) Output
OR M20 (METRIC)
03 = 0 to 15 psis
04 = 0 to 30 psis
05 = 0 to 50 psis
06 = 0 to 100 psis
07 = 0 to 250 psis
08 = 0 to 500 psis
09 = 0 to 1000 psis
17 = 0 to 1500 psis
18 = 0 to 2000 psis
10 = 0 to 2500 psis
19 = 0 to 3000 psis
11 = 0 to 5000 psis
20 = 0 to 6000 psis
12 = 0 to 7500 psis
13 = 0 to 10,000 psis
14 = 0 to 15,000 psis
15 = 0 to 20,000 psis
16 = 0 to 25,000 psis
Pressure Ranges
IMTX200-03
www.ueonline.com
UNITED ELECTRIC
CONTROLS
Option M423 & M513 Junction Boxes
M423
Not UL or cUL approved.
M513
Does not meet ATEX or Enclosure Type
4X requirements.
