UFO Sirius SIRCW Specification sheet

PLEASE READ THIS USER GUIDE BEFORE INSTALLING, OPERATING
OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT
PRODUCT USER GUIDE
Sirius Illuminator Range
E357731
Rev: C2

INTRODUCTION
SIRIUS RANGE USER GUIDE
2
UFOSIRCW UFOSIRCW-C UFOCIRCW-T UFOSIRCW-Cs UFOSIRCW-Ts
UFOSIRSW UFOSIRSW-C UFOSIRSW-T UFOSIRSW-Cs UFOSIRSW-Ts
UFOSIRNW UFOSIRNW-C UFOSIRNW-T UFOSIRNW-Cs UFOSIRNW-Ts
UFOSIRWW UFOSIRWW-C UFOSIRWW-T UFOSIRWW-Cs UFOSIRWW-Ts
UFOSIRGW UFOSIRGW-C UFOSIRGW-T UFOSIRGW-Cs UFOSIRGW-Ts
UFOSIRGW27 UFOSIRGW27-C UFOSIRGW27-T UFOSIRGW27-Cs UFOSIRGW27-Ts
Thank you for purchasing this UFO illuminator/luminaire.
To ensure that the illuminator is set up optimally and gives a long service life, please read this
user guide before installing, operating or performing any maintenance on the unit.
Please keep this User Guide for future reference. This User Guide is laid out in three sections
Installation -details on how to connect your luminaire
Operation - details how to programme and set up your luminaire
Maintenance - maintenance log, troubleshooting guide, technical specification
MODELS COVERED BY THIS USER GUIDE
IMPORTANT
This product must be installed in accordance with the applicable installation code, by a person
familiar with the construction and operation of the product, and the hazards involved.
These illuminators are not mains dimmable.
The LED array in this illuminator is not replaceable. When it reaches end of life the whole unit
must be replaced.
Type Y Attachment: If the external flexible cable or cord of this luminaire or associated
PSU/driver is damaged, it shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person to avoid a hazard.
Location: Do not locate this illuminator closer than 200mm from any flammable surface.
Clearance / Ventilation: It is imperative that a gap of 200mm is le around the unit. This is to
allow air to circulate and prevent overheating. The location must have free ventilation and must
not have an ambient temperature higher than that specified for the luminaire.
Mounting: This luminaire comes with an integral mounting plate for securing the unit to a
vertical or horizontal surface. Refer to the instruction sheet supplied with the plate.
Warning: Never look directly at the luminaire through the fiber port of the illuminator.
Warning: The luminaire should be positioned so that prolonged staring into the
luminaire at a distance closer than 2.7 metres is not expected.

INTRODUCTION
3
UFO LIGHTING
1. Manual dimming - local and remote
2. No sensor, manual decorative wheel control (wheel speeds 0.5rpm,
1.2rpm, 2.4rpm, 4rpm, 7.5rpm and stop), stop on random color
3. Sensor, manual decorative wheel control (wheel speeds 1.6rpm,
2.6rpm, 3.75rpm, 5.5rpm and stop), stop on 1 color
4. DMX dimming
5. No sensor - DMX decorative wheel control, adjustable speed
from stop up to 7.5rpm + LED and fan on/o
6. Sensor - DMX decorative wheel control, snap colors and
adjustable speed from stop up to 7.5rpm + LED and fan on/o
7. No sensor - 0-10v decorative wheel control, adjustable
speed from stop up to 7.5rpm - channel 1 (receiving)
8. Sensor - 0-10v decorative wheel control, snap colors and
adjustable speed from stop up to 7.5rpm - channel 1 (receiving)
9. 0-10V dimming – channel 2 (receiving) - two versions, standard and emergency light
The Sirius is a 90W white light LED illuminator with optional decorative wheel capability.
The Sirius LED illuminator driver PCB has all the control functionality fitted as standard.
The following control functionality and configurations are available.
MODEL TYPES
The Sirius LED illuminator incorporates a range of LED arrays focussed through a series of static
lenses to provide optimum display and illumination within the following optical range.
Model Descripon CRI Color Temperature Lumen Output
SIRCW Cool white 75 5500°K 5700
SIRSW Studio white 88 5300°K 4650
SIRNW Neutral white 82 4000°K 5300
SIRWW Warm white 83 3000°K 4650
SIRGW Gallery white 98 3000°K 3450
SIRGW Gallery white 98 2700°K 3450

MODEL TYPES [CONT]
INTRODUCTION
SIRIUS RANGE USER GUIDE
4
Model Descripon
UFOSIRCW White light LED 5500K manual, DMX or 010V dimming
UFOSIRSW White light LED 5300K manual, DMX or 010V dimming
UFOSIRNW White light LED 4000K manual, DMX or 010V dimming
UFOSIRWW White light LED 3000K manual, DMX or 010V dimming
UFOSIRGW White light LED 3000K manual, DMX or 010V dimming
UFOSIRGW27 White light LED 2700K manual, DMX or 010V dimming
UFOSIRCWCWhite light LED 5500K manual, DMX or 010V dimming and wheel control, 6
segment color wheel
UFOSIRSWCWhite light LED 5300K manual, DMX or 010V dimming and wheel control, 6
segment color wheel
UFOSIRNWCWhite light LED 4000K manual, DMX or 010V dimming and wheel control, 6
segment color wheel
UFOSIRWWCWhite light LED 3000K manual, DMX or 010V dimming and wheel control, 6
segment color wheel
UFOSIRGWCWhite light LED 3000K manual, DMX or 010V dimming and wheel control, 6
segment color wheel
UFOSIRGW27CWhite light LED 2700K manual, DMX or 010V dimming and wheel control, 6 segment color
wheel
UFOSIRCWCs White light LED 5500K manual, DMX or 010V dimming and wheel control, 6
segment color wheel with sensor
UFOSIRSWCs White light LED 5300K manual, DMX or 010V dimming and wheel control, 6
segment color wheel with sensor
UFOSIRNWCs White light LED 4000K manual, DMX or 010V dimming and wheel control, 6
segment color wheel with sensor
UFOSIRWWCs White light LED 3000K manual, DMX or 010V dimming and wheel control, 6
segment color wheel with sensor
UFOSIRGWCs White light LED 3000K manual, DMX or 010V dimming and wheel control, 6
segment color wheel with sensor
UFOSIRGW27Cs White light LED 2700K manual, DMX or 010V dimming and wheel control, 6
segment color wheel with sensor
UFOSIRCWTWhite light LED 5500K manual, DMX or 010V dimming and wheel control, twinkle wheel
UFOSIRSWTWhite light LED 5300K manual, DMX or 010V dimming and wheel control, twinkle wheel
UFOSIRNWTWhite light LED 4000K manual, DMX or 010V dimming and wheel control, twinkle wheel
UFOSIRWWTWhite light LED 3000K manual, DMX or 010V dimming and wheel control, twinkle wheel
UFOSIRGWTWhite light LED 3000K manual, DMX or 010V dimming and wheel control, twinkle wheel
UFOSIRGW27TWhite light LED 2700K manual, DMX or 010V dimming and wheel control, twinkle wheel
UFOSIRCWTs White light LED 5500K manual, DMX or 010V dimming and wheel control, twinkle wheel
with sensor
UFOSIRSWTs White light LED 5300K manual, DMX or 010V dimming and wheel control, twinkle wheel
with sensor
UFOSIRNWTs White light LED 4000K manual, DMX or 010V dimming and wheel control, twinkle wheel
with sensor
UFOSIRWWTs White light LED 3000K manual, DMX or 010V dimming and wheel control, twinkle wheel
with sensor
UFOSIRGWTs White light LED 3000K manual, DMX or 010V dimming and wheel control, twinkle wheel
with sensor
UFOSIRGW27Ts White light LED 2700K manual, DMX or 010V dimming and wheel control, twinkle wheel
with sensor

INSTALLATION
5
UFO LIGHTING
CONNECTIONS AND CONTROLS OVERVIEW
0-10V MOTOR
CONTROL
0-10V
DIMMING DMX
24V DC
INPUT
MANUAL
DIMMING
MANUAL
MOTOR CONTROL
DMX ADDRESS AND CONTROL
MODE DIP SWITCHES
MOUNTING FEET
The illuminator is supplied with non-slip rubber feet pre-fitted the base of the unit. Also
in the box there are 2 x user fixable mounting brackets which allow for the illuminator to
be securely mounted to a wall or other surface if necessary.
To fit these feet, remove the 4 rubber feet from the base of the unit and retain the screws.
The wall mounting brackets are supplied as a pair - one le and one right hand. Position
the brackets over the holes that have been le empty by the rubber feet and fix in place
with the removed screws.
The illuminator can now be fixed to the mounting surface.

INSTALLATION
SIRIUS RANGE USER GUIDE
6
CONNECTION - FOR LOCAL MANUAL OPERATION
There are 2 connections required – the fiber port and the mains supply cable. The fiber port
should be connected first. Connect and secure the fiber optic connector into the collar and
secure using the M5 locking screw.
Connect the PSU to the DC input jack socket on the illuminator, and connect the IEC plug to the
PSU. Plug the mains plug into the electrical supply socket. Switch on power. The LED Indicator
on the PSU will illuminate and the illuminator is ready for use. If no light is produced consult the
TROUBLESHOOTING section of this user guide.
CONNECTION - FOR LOCAL MANUAL OPERATION
There are 3 connections required – the fiber
port, the remote dimmer cable and the mains
supply cable. The fiber port should be
connected first. Connect and secure the fiber
optic connector into the collar and secure using
the M5 locking screw. Connect the RJ45
connector on the end of the remote dimmer
cable as detailed below into the right hand
RJ45 socket (0-10V dimming) on the side of the
illuminator.
Connect the PSU to the DC input jack socket on
the illuminator, and connect the IEC plug to the
PSU. Plug the mains plug into the electrical
supply socket. Switch on power. The LED
Indicator on the PSU will illuminate and the illu-
minator is ready for use. If no light is
produced consult the TROUBLESHOOTING
section of this user guide.

INSTALLATION
7
UFO LIGHTING
CONNECTION - FOR DMX OPERATION
There are 3 connections required – the fiber port, the mains supply cable and the DMX cables.
The fiber port should be connected first. Connect and secure the fiber optic connector into the
aluminium collar and secure using the M5 locking screw.
Connect the PSU to the DC input jack socket on the illuminator, and connect the IEC plug to the
PSU. Plug the mains plug into the electrical supply socket. Switch on power. The LED Indicator on
the PSU will illuminate and the illuminator is ready for use. If no light is produced consult the
TROUBLESHOOTING section of this user guide.

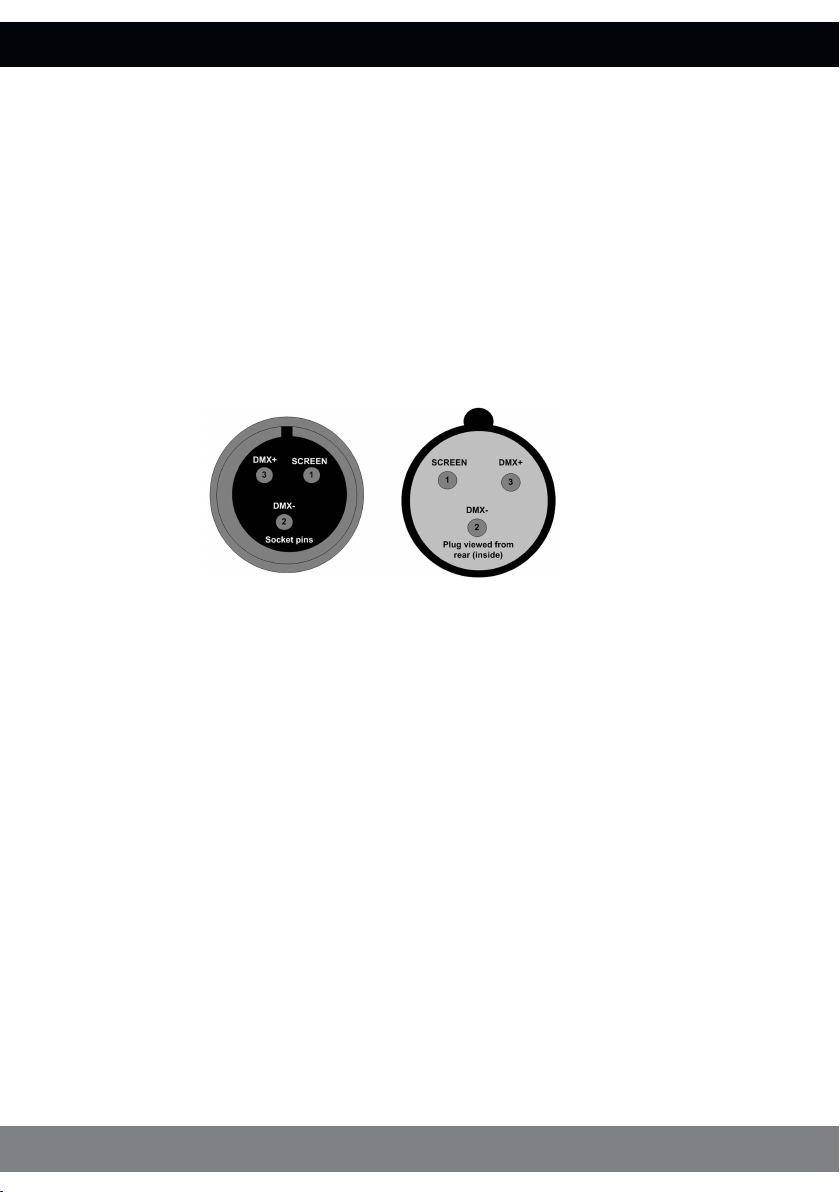

Connect to the 3 pin XLR sockets on the side panel as detailed below using an approved DMX cable.
Only approved DMX cables should be used.
Always “daisy chain” a DMX universe. Never use a T joint in a DMX universe unless using an
approved interface.
It is always recommended that the last illuminator output in the DMX universe or cable run be
terminated with a 120 ohm resistor across DMX+ and DMX-.

OPERATION
SIRIUS RANGE USER GUIDE
8
CONNECTION - FOR 0-10VOPERATION
There are 3 connections required – the fiber port, the mains supply cable and the 0-10V cable.
The fiber port should be connected first. Connect and secure the fiber optic connector into the
aluminium collar and secure using the M5 locking screw.
Connect the PSU to the DC input jack socket on the illuminator, and connect the IEC plug to the
PSU. Plug the mains plug into the electrical supply socket. Switch on power. The LED Indicator
on the PSU will illuminate and the illuminator is ready for use. If no light is produced consult the
TROUBLESHOOTING section of this user guide.
Connect the 0-10V RJ45 as detailed below using CAT5 cable.
Note: for emergency light functionality, the mains supply for the illuminator must be
maintained so that failure of the mains supply to the 0-10V controller will result in the illumina-
0-10V RJ45 Connections:
-VE RJ45 Brown/White (Pin 7)
+VE RJ45 Blue/White (Pin 5)
POWER SUPPLY REQUIREMENTS
The LED illuminator is powered from a 24V DC PSU/Constant Voltage SELV LED driver.
The driver caters for UK/European/other mains supplies using the relevant power cord supplied.

OPERATION
9
UFO LIGHTING
MANUAL OPERATION
LOCAL WHITE LIGHT DIMMING
All Sirius models in the range can be manually controlled as detailed in the following sections.
Note: For all manual operation modes, dip switch 10 must be set to on.
During normal manual white light operation, the illuminator can be dimmed from 0 to 100%
using the manual dimming control on the side panel.
EMERGENCY WHITE LIGHT DIMMING
During normal manual white light operation the emergency light configured illuminator can be
dimmed from maximum light at 0%, to no light at 10% then again up to maximum light at 100%
using the manual dimming control on the side panel.
DECORATIVE COLOR OR TWINKLE WHEEL CONTROL - WITHOUT SENSOR
During normal manual decorative operation the illuminator can be dimmed from 0 to 100%
using the manual dimming control and the motor can be controlled from stop to 5 speeds
(see table below) using the push button manual motor control on the side panel.
Note: When manually selecting stop (switch position 6) the decorative wheel will stop instantly
on a random color (color wheel) or a random section of the twinkle wheel
Switch Posion 1 2 3 4 5 6
Speed (RPM) 0.5 1.2 2.4 4 7.5 Stop
REMOTE WHITE LIGHT DIMMING
During remote manual white light operation, the illuminator can be dimmed from 0 to 100%
using the remote dimming control.
Note: For remote manual dimming operation, dip switch 10 on the illuminator must be set to
on and the local manual dimming control on the side of the illuminator must be turned to mini-
mum (fully counter clockwise)

OPERATION
SIRIUS RANGE USER GUIDE
10
MANUAL OPERATION
DECORATIVE TWINKLE WHEEL CONTROL - WITH SENSOR
During normal manual decorative operation the illuminator can be dimmed from 0 to 100%
using the manual dimming control and the motor can be controlled with stop + 4 speeds
ranging from very slow to fast using the push button manual motor control on the side panel.
Note: For this configuration the twinkle wheel is supplied with a cut out segment. The wheel in
motion will give an uninterrupted twinkle by rotating backwards and forwards either side of the
segment. When stop is selected the wheel will come to rest at the segment giving unobstructed
white light output.
Switch Posion 1 2 3 4 5
Speed (RPM) 1.6 2.6 3.75 5.5 Stop
DECORATIVE COLOR WHEEL CONTROL - WITH SENSOR
During normal manual decorative operation the illuminator can be dimmed from 0 to 100%
using the manual dimming control and the motor can be controlled from stop to 4 speeds (see
table below) using the push button manual motor control on the side panel.
Note: When manually selecting stop (switch position 5) the decorative wheel will automatically
return to color 1 (normally white)
Switch Posion 12345
Speed (RPM) 1.6 2.6 3.75 5.5 Stop
DMX OPERATION
Each Sirius occupies 3 DMX channels
• Channel 1 dimming
• Channel 2 decorative wheel control
• Channel 3 LED and fan ON/OFF control
Decorative wheel DMX functions are dierent depending on decorative model. More details on
individual DMX channels and values are provided in the following DMX tables
Note: For ALL DMX operations, DIP switch 10 on the illuminator must be set to o, the correct
DMX address must be set (switches 1-9) and the XLR plug(s) must be plugged into the XLR
sockets on the side panel.

OPERATION
11
UFO LIGHTING
DMX OPERATION
SETTING THE DMX ADDRESS
Because the Sirius occupies 3 DMX channels, when setting addresses on multiple illuminators
the addresses must be selected to give 3 channel separation. For example, if the first address is
009, the next address must be at least 012, the next address must be at least 015 and so on. Any
illuminators with the same address will operate identically under DMX control.
The DMX address is set manually using the DIP switch on the side panel of the Sirius. Each DIP
switch number (1 to 9) represents a binary number which when added together make up the
DMX address as shown in the table below.
Switch
Number 1 2 3 4 5 6 7 8 9 10
Funcon
DMX Address DMX Address DMX Address
DMX Address DMX Address DMX Address DMX Address
DMX Address
DMX Address
Funcon select
On manual or
010V
OffDMX
Value 1 2 4 8 16 32 64 128 256
Addresses are addive for example, switches 2,5,7 on = address 082
WHITE LIGHT DIMMING
The illuminator can be dimmed on DMX channel 1 and controlled on DMX channel 3 as detailed
in Table A. DMX Channel 2 is redundant.
Alternatively use the online calculator from link below:
http://www.sabretechnology.co.uk/calc.asp

OPERATION
SIRIUS RANGE USER GUIDE
12
DMX OPERATION
The Illuminator can be controlled as detailed in Table A
SIRIUS DMX CHANNELS - TABLE A
Each Sirius occupies 3 DMX channels as detailed below.
Channel Funcon Value Descripon
1 Dimming 0255 From offat 0 to bright at 255
2 Decorave wheel 0 Wheel at stop
2 Decorave wheel 1255 Varying rotaon speeds from
very slow to 7.5rpm max.
3 LED and fan 0250 LED and fan on
3 LED and fan 251255 LED and fan off
DECORATIVE COLOR OR TWINKLE WHEEL CONTROL - WITH SENSOR
For this configuration of a decorative wheel with sensor:
• The Twinkle wheel has a cut-out segment. The wheel in motion will give an uninterrupted
twinkle by rotating backwards and forwards either side of the cut-out segment. When stopped
the wheel will return to the cut-out segment and display unobstructed white light
• The color wheel when stopped will return to color wheel segment 1 (normally white)
The Illuminator can be controlled as detailed in Table B for Color Wheel with sensor and Table C
for Twinkle Wheel with sensor
DECORATIVE COLOR OR TWINKLE WHEEL CONTROL - NO SENSOR
For this configuration of a decorative wheel without sensor:
• The Twinkle wheel is solid with no cut out segment. The wheel in motion will give a continu-
ous twinkle eect. When stopped the wheel will remain in front of the LED array giving an ob-
structed white light output
• The color wheel when stopped will display the color where it stopped
The illuminator decorative wheel can be controlled on DMX channel 2 as shown in table A.

OPERATION
13
UFO LIGHTING
DMX OPERATION
SIRIUS DMX CHANNELS - TABLE B
Each Sirius occupies 3 DMX channels as detailed below.
Channel Funcon Value Descripon
1 Dimming 0255 From offat 0 to bright at 255
2 Decorave wheel 010 White snap to color (color 1)
2 Decorave wheel 11 Yellow snap to color (color 2)
2 Decorave wheel 21 Green snap to color (color 3)
2 Decorave wheel 31 Orange snap to color (color 4)
2 Decorave wheel 41 Magenta snap to color (color 5)
2 Decorave wheel 5170 Blue snap to color (color 6)
2 Decorave wheel 71 Magenta snap to color (color 5)
2 Decorave wheel 81 Orange snap to color (color 4)
2 Decorave wheel 91 Green snap to color (color 3)
2 Decorave wheel 101 Yellow snap to color (color 2)
2 Decorave wheel 111 White snap to color (color 1)
2 Decorave wheel 128188
2 Decorave wheel 189255 Fast to slow rotaon ctr clockwise
3 LED and fan 0250 LED and fan on
3 LED and fan 251255 LED and fan off

OPERATION
SIRIUS RANGE USER GUIDE
14
SIRIUS DMX CHANNELS - TABLE C
Each Sirius occupies 3 DMX channels as detailed below:
Channel Funcon Value Descripon
1 Dimming 0255 From offat 0 to bright at 255
2 Twinkle wheel 0 Wheel at stop at cut out
segment giving full white light
2 Twinkle wheel 1255
Varying backwards and forward
rotaon from very slow to
7.5rpm at maximum
3 LED and fan 0250 LED and fan on
3 LED and fan 251255 LED and fan off
DMX OPERATION

OPERATION
15
UFO LIGHTING
0-10VOPERATION
STANDARD WHITE LIGHT DIMMING
Once the Sirius illuminator has been set up and connected as detailed above the illuminator can
be dimmed from 0 (0 Volts DC) to 100% (10V DC) with a receiving 0-10V signal.
EMERGENCY WHITE LIGHT DIMMING
Once the Sirius illuminator has been set up and connected as detailed above the illuminator
can be dimmed with a receiving 0-10V signal as detailed in the table below:
Funcon Value (DC) Descripon
Maximum Light 0V Maximum light output default control
emergency mains Failure
Minimum Light 1V Minimum light output normal
dimming control
0Maximum Light 10V Maximum light output normal
dimming control
Note: In this configuration when the mains supply to the 0-10V controller fails, the illuminator
will illuminate fully as an emergency light.
For ALL 0-10V operation control DIP switch 10 on the Sirius illuminator side panel must be set to
ON and in addition:
• For 0-10V dimming the Manual Dimming Control on the Sirius illuminator side panel must be
set to minimum (fully counter clockwise) and the RJ45 plug must be plugged into the right hand
(0-10V dimming) RJ45 socket on the side panel.
• For 0-10V decorative wheel control the Manual Motor Control on the Sirius illuminator side
panel must be set to STOP and the RJ45 plug must be plugged into the le hand (0-10V motor.

SIRIUS RANGE USER GUIDE
16
OPERATION
DECORATIVE COLOR OR TWINKLE WHEEL CONTROL - WITH SENSOR
Once the Sirius illuminator has been set up and connected as detailed above the illuminator
decorative wheel can be controlled with a receiving 0-10V signal as detailed in the following
table:
0-10VOPERATION
Funcon Value (DC) Descripon
Color Wheel 0V White (color 1)
Color Wheel 0.3V Yellow (color 2)
Color Wheel 0.8V Green (color 3)
Color Wheel 1.2V Orange (color 4)
Color Wheel 1.6V Magenta (color 5)
Color Wheel 2.0V Blue (color 6)
Color Wheel 2.8V Magenta (color 5)
Color Wheel 3.2V Orange (color 4)
Color Wheel 3.6V Green (color 3)
Color Wheel 4.0V Yellow (color 2)
Color Wheel 4.4V White (color 1)
Color Wheel 5V 7.3V Slow to fast clockwise
Color Wheel 7.4V 10V Fast to slow counter clockwise
DECORATIVE COLOR OR TWINKLE WHEEL CONTROL - NO SENSOR
Once the Sirius illuminator has been set up and connected as detailed above the illuminator
decorative wheel can be controlled with a receiving 0-10V signal from stop at 0V to 7.5rpm at
10V
Note: For this configuration the twinkle wheel is solid without a cut out segment.

17
UFO LIGHTING
OPERATION
0-10VOPERATION
DECORATIVE TWINKLE WHEEL CONTROL - WITH SENSOR
Once the Sirius illuminator has been set up and connected as detailed above the illuminator
decorative wheel can be controlled with a receiving 0-10V signal to give stop (0V DC) to varying
speeds (0.5 to 10V DC) ranging from very slow to fast.
Note: For this configuration of a twinkle wheel with sensor, the wheel is supplied with a cut out
segment. The wheel in motion will give an uninterrupted twinkle by rotating backwards and for-
wards either side of the segment. When 0V is selected the wheel will come to rest at the
segment giving unobstructed white light output.
MAINTENANCE LOG
Date Maintenance Undertaken
Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance
was undertaken and when. This MUST be dated for warranty purposes.
MAINTENANCE

TROUBLESHOOTING
SIRIUS RANGE USER GUIDE
18
Problem Probable Cause(s) Remedy
Unit is dead no
light output and
PSU power
indicator
is out
Mains supply offCheck supply and reinstate
Loose mains plug Check plugs
Plug blown fuse (UK) Check fuse & replace if necessary
PSU failed Replace PSU
Unit is dead no
light output but
PSU power
indicator is lit
[1]
Dimming control at minimum Adjust brightness on dimmer control
DIP switch no. 10 not switched ON Switch DIP switch no. 10 ON
LED array or drive failure Replace illuminator
Decorave wheel is
not turning [2]
Motor control at minimum Adjust motor control
DIP switch no. 10 not switched ON Switch DIP switch no. 10 ON
Driver circuit or motor failure Replace illuminator
Unit is not
responding to
DMX control [3]
DIP switch no. 10 is switched ON Switch DIP switch no. 10 OFF
DMX address not correctly set Set correct DMX address
No DMX signal from controller Check DMX controller sengs
Wiring fault on DMX cables Check cables and repair/replace
Driver circuit failure Replace illuminator
Not responding [4]
DIP switch no. 10 not switched ON Switch DIP switch no. 10 ON
No 010V signal at illuminator due
to cable or controller fault
Check input to illuminator using a DMM set to
correct range & recfy cable/controller fault
Wheel rotates
between 0v &
0.25v [4]
Manual motor control (page 5)
not set to stop Set manual motor control to stop
Responding on
wrong channels [4]
RJ45 connector in wrong socket
on illuminator Plug into correct socket
Not responding [5] Manual dimming control not set to
minimum
Turn manual dimmer control fully counter clock
wise
Not responding [6] If none of above, driver circuit
failure Replace illuminator
Poor light output
on fiber
Illuminator dimmed manually or
by 010V or DMX control Check and increase dimmer sengs
LED driver / array failure Replace illuminator
[1] - white light manual dimming version / [2] - decorative manual motor version / [3] - DMX only
[4] - decorative or dimming 0-10V control / [5] - dimming 0-10V control / [6] - 0-10V control

TECHNICAL SPECIFICATION
19
UFO LIGHTING
Descripon Details
Port connector size 30mm diameter
Fiber type Glass / PMMA
Mains Supply Voltage 100240V AC, 5060Hz
PSU Output 24V DC, 76W minimum
LED Power 90W
Led Type White light
Mains Running Current 460mA max.
Cool white LED array 5500K, 75CRI, 5700lm
Studio white LED array 5300K, 88CRI, 4650lm
Neutral white LED array 4000K, 82CRI, 5300lm
Warm white LED array 3000K, 83CRI, 4650lm
Gallery white LED array 3000K, 98CRI, 3450lm
Gallery White 27 LED array 2700K, 98CRI, 3450lm
DMX User addressable 6 channels (0255)
LED Life 50,000 hours typical
DMX User addressable (0255) dimming, effects wheel
control and on/off
Control Funconality Manual / DMX/ 010V
Operang Environment Indoor / dry
Min Ambient Temperature 10°C
Max Ambient Temperature +45°C
Material Aluminium
Finish Grey powdercoat
Dimensions (L x W x H) / Weight White light 278mm x 152mm x 127mm / 2.22kg
Decorave 278mm x 152mm x 127mm / 2.41kg



DESIGN SPECIFY BUILD INSTALL
United Kingdom •United States •Germany •Europe •UAE
UFO Licht GmbH
Friendsfactory AG \Gutenbergstraße 1
85737 Munchen \Deutschland
[phone]
www.ufo-licht.de
Universal Fiber Optics USA LLC
1749 Northgate Blvd
Sarasota \FL34234 \USA
941-343-8115
www.fiberopticlighting.com
Universal Fiber Optics Ltd
Home Place \Coldstream
TD12 4DT \UK
[phone]
www.ufo.lighting
