Ulti Mate GHARGER PRO-8 User manual

GHARGER PRO-8

What's New In Charger Pro-8 ...........................................................................................................01
FOREWORD...................................................................................................................................02
Specfications.................................................................................................................................03
Special features........................................................................................................................03~04
Cyclic Charging/Discharging.............................................................................................................05
Lithium polymer balance charge program connection diagram..................................................................06
Warning and safety noets............................................................................................................07~10
Program flow chart....................................................................................................................11~14

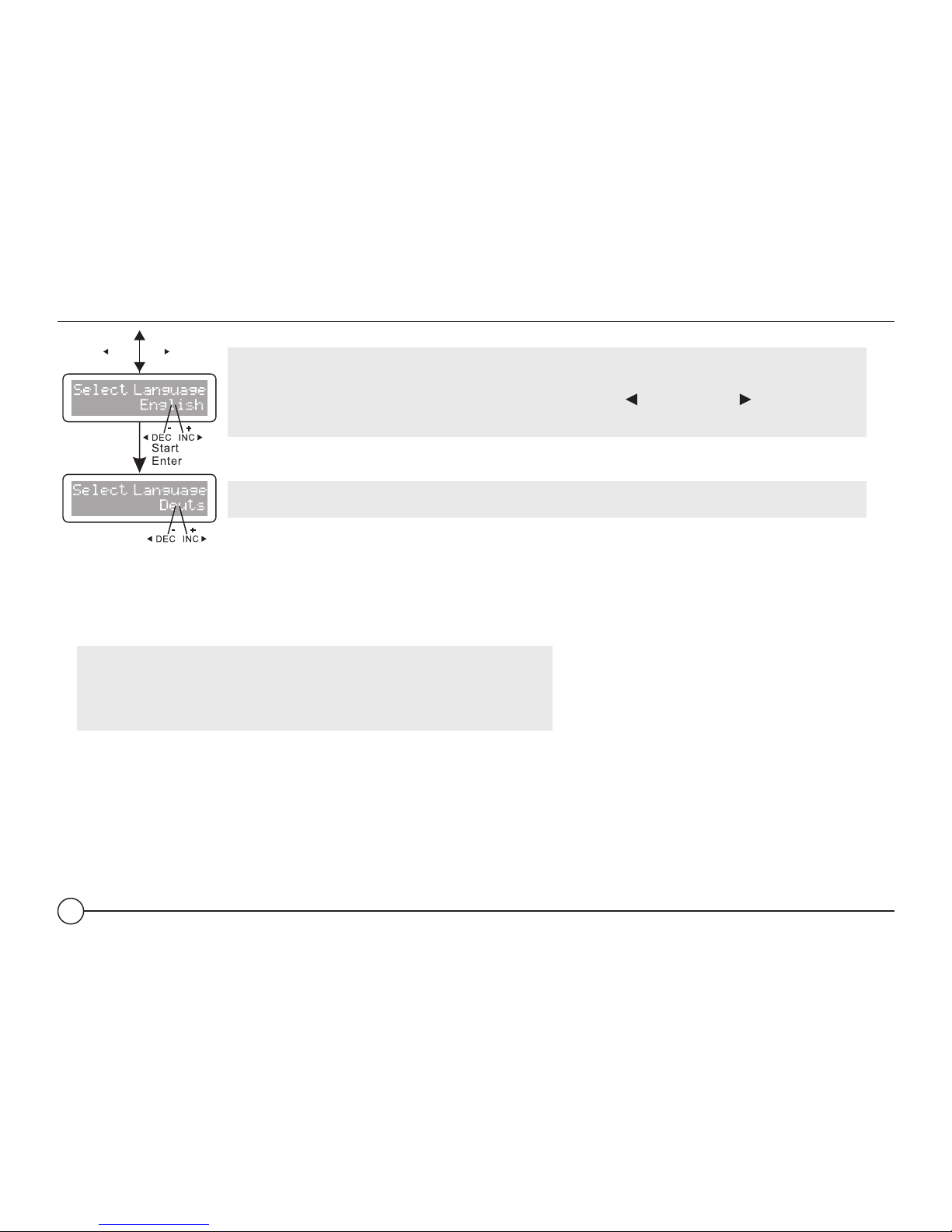

Select Languages............................................................................................................................14
Safe timer calculation.......................................................................................................................14
Lithium(LiIo/liPo/LiFe).....................................................................................................................14
Charging of lithium battery................................................................................................................15
Charging lithium battery in the balance mode.........................................................................................15
Individual cell connection diagram(pin-assignment of 8-pin)..................................................................16
Fast charging of lithium battery...........................................................................................................16
Storage control of lithium battery.........................................................................................................16

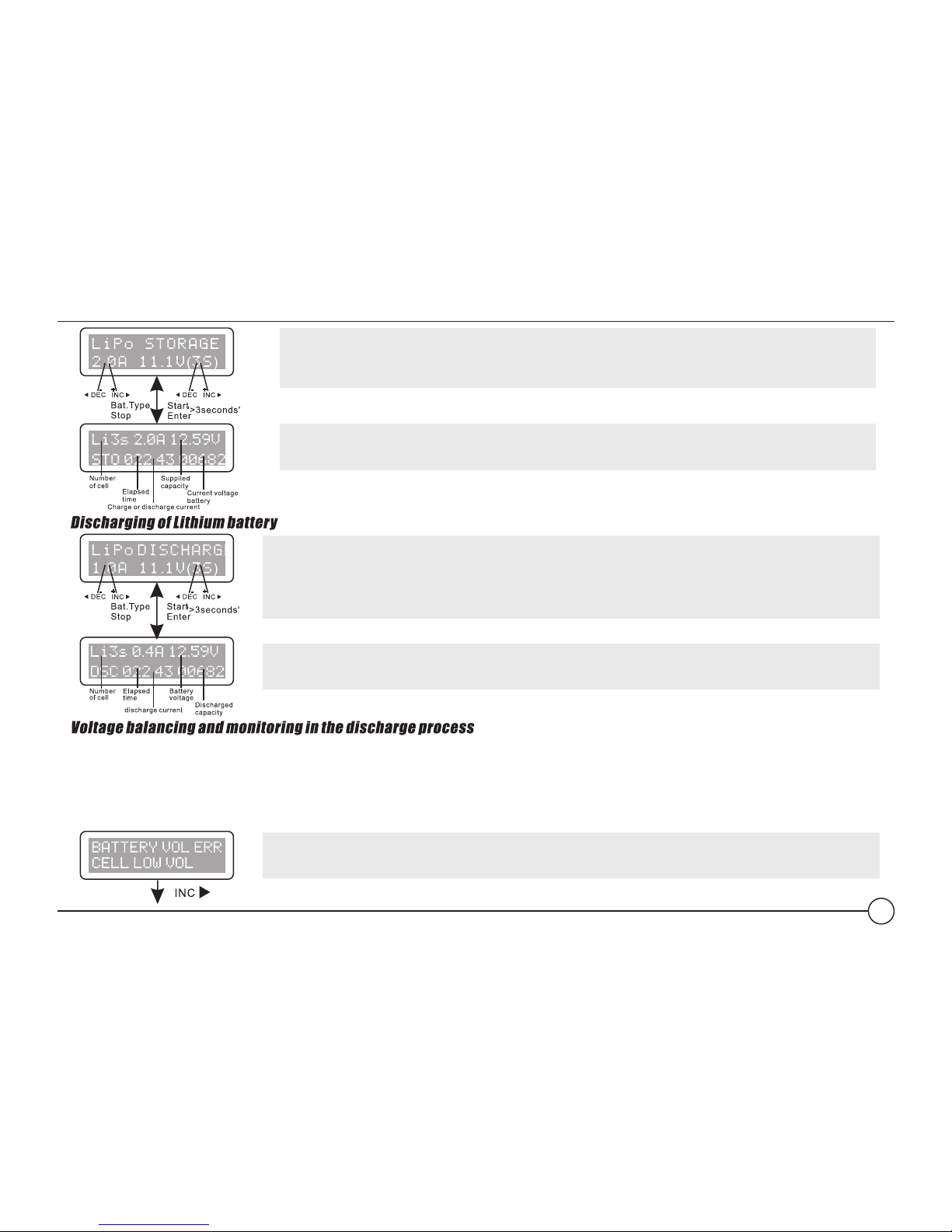

Discharging of lithium battery.............................................................................................................17
Voltage balancing and monitoring in the discharge process.......................................................................17
Charging/Discharging of NiCd/NiMH battery...........................................................................................18
Pb battery program.....................................................................................................................19~20
Data storage program........................................................................................................................21
Various information in the program.................................................................................................22~23
Extra function program................................................................................................................23~29
Warning and error information.......................................................................................................29~30
Warranty and service........................................................................................................................30
GHARGER PRO-8

Max charge current reach to 8A instead of 6A, that means it can speed up your charge by increasing the
charge current.
Max balance current increase to 460mA from 300mA, that means it can speed up your balance charge of
your lithium batteries.
15 extra functions provide more convenience for your hobby time.
1> There are two languages which you can select (English and Deutsch).LANGUAGES:
2> The charger can test the voltage of each cell of your batteries.CELL METER:
3> Check the capacity of the battery.CAPACITY:
4> The battery pack measure internal resistance.IR
5> The charger can balance the voltage of each cell to preserve the performance your BALANCER:
batteries.
6> Using the charger's output as a DC power supply. DIGITAL POWER:
7> You can easily break-in new bushed electric motor using a variable voltage and BRUSH MOTOR:
running time.
8> The charger acts as a convenient power supply for a hot wire foam cutter.FOAM HOT CUTTER:
9> The charger can output the PPM singal instead of your TX for your MOTOR/MOTOR/ESC/SERVO:
ESC/SERVO, you can see the it's working status.
10> The charger can drive an inductance brushless motor.BRUSHLESS MOTOR:
11> The charger can test the servo.SERV TEST:O
12> You can easily calculate the thrust of a propeller.THRUST CALCULATOR:
13> The charger can measure the external temperature by using a temperature sensor.TEMP.:
14> The charger can measure the DC voltage of an object.VOLTAGE METER:
15> The charger can test the PPM signal from TX, so that you can check out some problem PPM TEST:
bettween your TX and RX.
01
What’s New In Charger Pro-8
GHARGER PRO-8

Specifications
02
FOREWORD
Thank you purchasing the Charger Pro-8 Balance charger.This product is a rapid charger with a high perfor-
mance microprocessor and specialized operating software. Please read this entire operating manual
completely and attentively before using this product, as it covers a wide range of information on operating
and safety.Or please do use this product in company with a specialist!
Operating voltage range: DC11.0~18.0 Volt
AC to DC adaptor(DC11.0~18.0V)
Circuit power: Max.charge power 80W[DC Input]
80W[AC Input]
Max.discharge power 10W
Charge current range: 0.1~8.0A
Discharge current range: 0.1~2.0A
Current drain for balancing Li-po: 460mAh/cell
NiCd/NiMH battery cell count: 1~15 cell
Li-ion/Polymer cell count: 1~6 series
Pb battery voltage: 2V~20V
Weight: 590g(Net Weight)
Dimensions: 145X115X65mm
GHARGER PRO-8

SPECIAL FEATURES
03
Optimized operating software
Charger Pro-8 features the so-called AUTO function that set the feeding current during the process of charging
or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion
due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction.
All the programs of this product were controlled through two way linkage and communication, to achieve the
maximum safety and minimized the trouble. All the settings can be configured by users!
Internal independent lithium battery balancer
Charger Pro-8 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for
balance charging.
Balancing individual cells battery discharging
During the process of discharging,Charger Pro-8 can monitor and balance each cell of the battery individually.
Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is
abnormal.
Adaptable to various type of lithium battery
Charger Pro-8 is adaptable to various types of Lithium batteries,such as Li-ion,LiPo and the new LiFe series of
batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, " fast " charge reduce the duration of charging, whereas " store "
state can control the final voltage of your battery,so as to store for a long time and protect useful time of the
battery.
GHARGER PRO-8

04
Maximum safety
Delta-peak sensitivity:The automatic charge termination program based on the principle of the
Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process
will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery;
It is useful for the NiMH battery of low impedance and capacity in the "AUTO" charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the
charging capacity exceeds the limit, the process will be terminated automatically when you set
the maximum value.
Temperature threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise.If the
temperature limit is reached,the process will be terminated.
*This function is available by connecting optional temperature probe,which is not included in our
package.
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Input power monitoring
To portect the car battery used as DC input power from being damaged,its voltage keeps being
monitored.If it drops below the lower limit,the process will be ended automatically.
Data store/load
The maximum five batteryies'data can be stored for users'convenience.You can keep the data
pertaining to program setting of the battery of continuous charging or discharging. Users can
call out these data at any time without any special program setting.
GHARGER PRO-8

Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing
and Balancing to stimulate the battery's activity.
05
GHARGER PRO-8

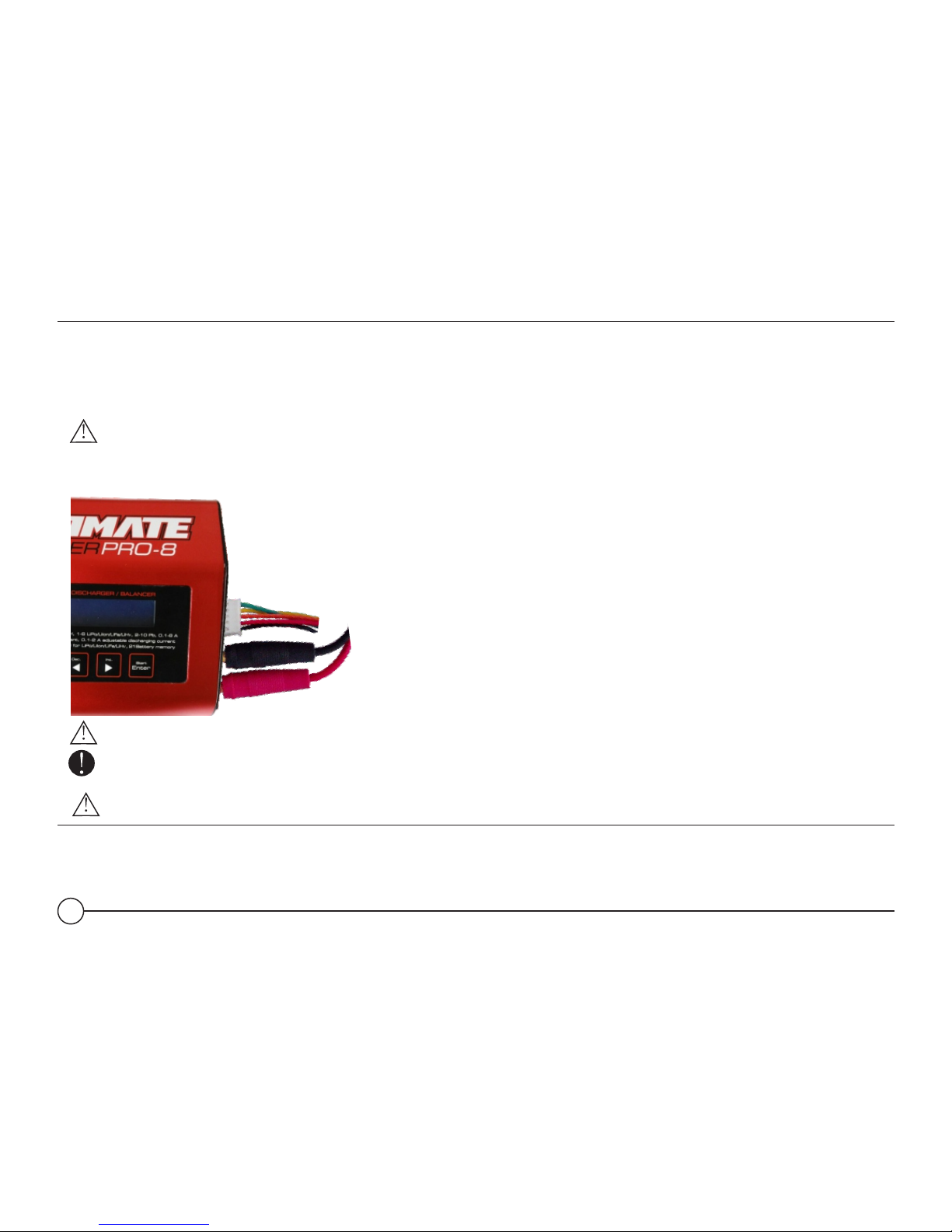

LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
06
This diagram shows the correct way to connect your battery to the Charger Pro-8 charger while charging in
the balance charge program mode only.
WARNING:
Failure to connect as shown in this diagram will damage this charger.
WARNING:
If using crocodile clips as shown in above diagram,make sure they are unable to touch together!
WARNING AND SAFETY NOTES
These warnings and safety notes are particularly important.Please follow the instructions for maximum
safety;otherwise the charger and the battery can be damagedor at worst it can cause a fire.
The main battery leads must be connected along
with the balance lead connector as shown before
charging your battery.
GHARGER PRO-8

07
Never leave the charger unattended when it is connected to its power supply.If any malfunction
is found,TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
Keep the charger well away from dust,damp,rain,heat,direct sunshine and vibration.Never drop
it.
The allowable input voltage is 11-18V DC
This charger and the battery should be put on a heat-resistant,noninflammable and nonconductive
surface.Never place them on a car seat,carpet or similar.Keep all the inflammable volatile materials
away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to ensure it meets
the requirements of this charger. If the program is set up incorrectly,the battery and charger may be
damaged. It can cause fire or explosion due to over charging. This warranty is not valid for any
damage or subsequent damage arising as a result of a misuse or failure to observe the procedures
outlined in this manual.
Voltage level:1.2V/cell
Allowable fast charge current:1C-2C(depends on the performance of cell)
Discharge voltage cut off level:0.85V/cell(NiCd),1.0V/cell(NiMH)
NiCd/NiMH
Li-ion Voltage level:3.6V/cell
Max.charge voltage:4.1V/cell
Allowable fast charge current:1C or less
Min.discharge voltage cut off level:2.5V/cell or higher
LiPo Voltage level:3.7V/cell
Max.charge voltage:4.2V/cell
Allowable fast charge current:1C or less
Discharge voltage cut off level:3.0V/cell or higher
GHARGER PRO-8

08
Max.charge voltage:3.6V/cell
Allowable fast charge current:4C or less
Discharge voltage cut off level:2.0V/cell or higher
Pb Voltage level:2.0V/cell
(Lead-acid)Max.charge voltage:2.46V/cell
Allowable fast charge current:0.4C or less
Discharge voltage cut off level:1.75V/cell or higher
LiFe Voltage level:3.3V/cell
A battery pack which consists of different types of cells(including
different manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries(Explosion hazard).
Batteries that require a different charge technique from NiCd,NiMh,
LiPo or Gel cell(Pb,Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other
components.
Batteries that are not expressly stated by the manufacturer to be
suitable for the currents the charger delivers during the charge
process.
Never attempt to charge or discharge the following types of batteries.
GHARGER PRO-8

09
To avoid short circuit between the charge lead always connect the charge cable to the charger first,
then connect the battery.Reverse the sequence when disconnecting.
Do not connect more than one battery pack to this charger at any one time.
Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery you
are charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage?Lithium battery packs can be wired in
parallel and in series,i.e.a 2 cell pack can be 3.7V(in parallel)or 7.4V(in
series).
Have you checked that all connections are firm and secure?Make sure there
are no intermittent contacts at any point in the circuit.
Charging
During charge process,a specific quantity of electrical energy is fed into the
battery.The charge quantity is calculated by multiplying charge current by
charge time.The maximum permissible charge current varies depending on
the battery type or its performance,and can be found in the information by
the battery manufacturer.Only batteries that are expressly stated to be
capable of quick-charge are allowed to be charged at rates higher than the
standard charge current.
Connect the battery to the terminal of the charger:red is positive and black
is negative.Due to the difference between resistance of cable and connector,
the charger can not detect resistance of the battery pack,the essential
requirement for the charger to work properly is that the charge lead should
be of adequate conductor cross-section,and high quality connectors which
are normally gold-plated should be fitted to both ends.
GHARGER PRO-8

10
Discharging
Always refer to the manual by the battery manufacturer pertaining to charging methods,
recommended charging current and charging time.Especially,the Lithium battery should
be charged according the charging instruction provided by the manufacturer strictly.
Attention should be paid to the connection of Lithium battery especially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that Lithium battery packs can be wired in parallel and in series.
In the parallel connection,the battery's capacity is calculated by multiplying single
battery's capacity by the number of cells with total voltage stay the same.The voltage's
imbalance may cause fire or explosion.Lithium battery is recommended to charge in series.
The main purpose of discharging is to clean residual capacity of the battery,or to reduce the
battery'voltage to a defined level.The same attention should be paid to the discharging process
as charging.The final discharge voltage should be set up correctly to avoid deep-dischargeing.
Lithium battery can not be discharged to lower than the minimum voltage,or it will cause a
rapid loss of capacity or a total failure.Generally,Lithium battery doesn't need to be discharged.
Please pay attention to the minimum voltage of Lithium battery to protect the battery.
Some rechargeable batteries have a memory effect.If they are partly used and recharged before
the whole charge is accomplished,they remember this and will only use that part of their
capacity next time.This is a "memory effect" it is said that NiCd and NiMH batteries are
suffering from memory effect.NiCd has more memory effect than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully discharged.
Frequent full discharging should be avoided if possible.Instead,charge the battery more often
or use a battery of larger capacity.Full capacity cannot be used until it has been subjected to
10 or more charge cycles.The cyclic process or charge and discharge will optimize the
capacity of battery pack.
GHARGER PRO-8

11
Program flow chart
As default this charger will be set to typical user
settings when it is connected to a 12V battery for
the first time.The screen displays the following
information in sequence and the user can change
the parameter on each screen.
If you need to alter the parameter value in the
program,press"Start/Enter"key to make it blink
then change the value with"INC"or "DEC"key.
The value will be stored by pressing"Start/Enter"
key once.
GHARGER PRO-8

12

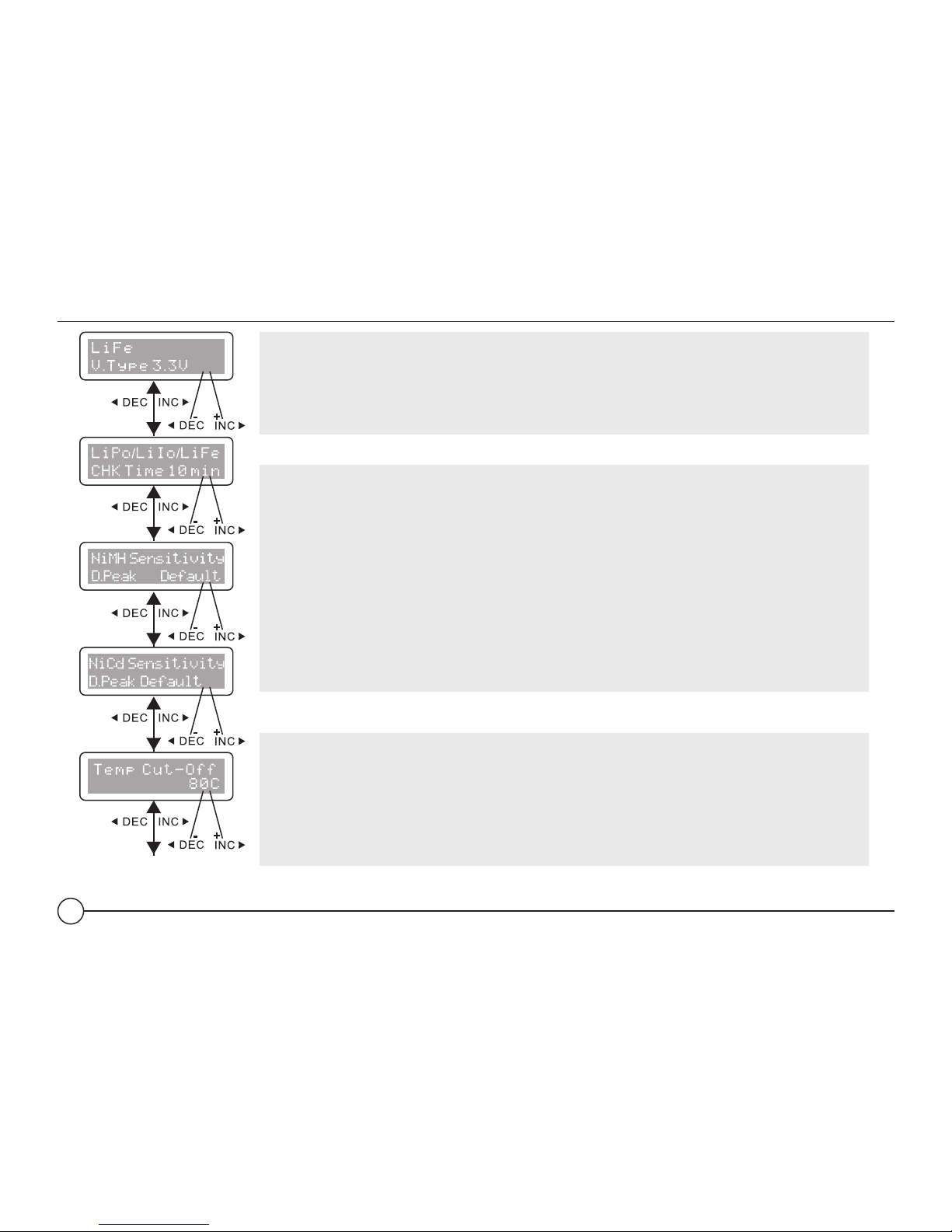

The screen shows the nominal voltage of Lithium battery.There are three
kinds of Lithium battery:LiFe(3.3V),LiIo(3.6V)or LiPo(3.7V).This information
is of critical importance that you have to check the battery carefully to make
sure it is set up correctly.If it is different from correct value,explosion can
occur during charge process.
The screen shows the сut-off temperature of Lithium battery.you can press
“DEC”or“INC”to select the сut-off temperature(Temp.Rang:20~80℃).The
maximum temperature of the battery can be set during the charge process.
The process will be terminated automatically to protect battery once the
temperature of battery reaches this value.This feature is accomplished
through temperature probe(optional).
GHARGER PRO-8
To avoid from erroneous setting by users,Charger Pro-8 detects the cell count of
Lithium battery automatically at the beginning of charge or discharge process.
But battery that is deep-discharged can't be detected correctly.To avoid this
error,the time term can be set to verify the cell count by the processor.
Normaly,15 seconds are enough to detect the cell count correctly.You need
to extend the time term limit for the battery of large capacity.But the charge or
discharge process may come to an end within the time term because of the
time limit decided by the wrong count if you set too long time limit for the
battery of small capacity.This may cause fatal error.You have to extend the
time term if the processor detect the cell count incorrectly at the beginning of
charge or discharge process.Otherwise,default value is recommended to use.

13
DEC INC
DEC INC
DEC INC
+
-
DEC INC
DEC INC
+
-
DEC INC
DEC INC
+
-
DEC INC
+
-
DEC INC
+
-
DEC INC
-
The battery becomes warm after cycles of charge/discharge process.The
program will insert a time delay after each charge/discharge process to
allow the battery enough time to cool down before beginning next cycle of
charge/discharge process.The valid value ranges from 1 to 60 minutes.
This function monitors the voltage of the input battery used to power this
charger.If the voltage is lower than user-set value,the program will end
forcibly to protect the input battery.
The beep to confirm users'operation sounds every time a button is pressed.
The beep or melody sounds at various times during operation to confirm
different mode change.These functions can be switched on or off.
The program provides maximum capacity protection function.If the Delta-
peak voltage can not be detected or the safety timer times out,the charge
process will stop automatically,when the battery reaches the user-set
maximum charge capacity.
When the charge process starts,the integrated safety timer starts to run
simultaneously.If error detected or the termination circuit can not detect
whether the battery is fully charged or not,this unit is programmed to
prevent overcharging.Please refer to the below statement to calculate the
timer you set.
DEC INC
-+
DEC INC
-+
GHARGER PRO-8

14
Safe timer Calculation
Lithium (LiIo/LiPo/LiFe) program
When charging NiCd or NiMH batteries , divide the capacity by current,then divide the result by 11.9, set this
number of minutes as the value for safety timer setting . If the charger stopped at this time threshold , about
140% of the capacity will have been fed into the battery.
For example:
Capacity Current Safety Time
2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300mAh 3.0A (3300/3.0=1000)/11.9=92 minutes
1000mAh 1.2A (1000/1.2=833)/11.9=70 minutes
The program is only suitable for charging/discharging Lithium-polymer batteries with a nominal voltage of 3.3/
3.6/3.7V / cell. Different batteries have different charge technique. There are two methods termed as constant
voltage and constant current. The charge current varies according to battery capacity and specification. The
final voltage is very important;it should precisely match the voltage of the battery:LiPo is 3.6V,LiIo is 4.1V,LiFe
is 3.6V.The current and voltage of the battery should be correctly set.
When you want to change the values of parameters,please press “Start/Enter” key to make it blink and then
use DEС or INC to change the value.Then press “Start/Enter” key again to store the value.
In this program,here provide you two languages(English and Deutsch).
Press”Start/Enter” button again,and a beep will be sound,you can see the
“English” is flashing,at this moment,please press” DEC"or "Inc "to select
language.
The screen shows the language (Deutsch).
DEC INC
GHARGER PRO-8

15
This function is for balancing the voltage of Lithium-polymer battery cells while charging.In the balance
mode, the battery needs to have a balance lead to connect to the individual port at the right side of the
charger.And you need to connect the battery's output plug to the output of charger.
Charging in this mode is different from the normal modes,because the built-in processor monitors voltage
of individual cell and control input current fed into each cell to normalize the voltage.
The value on the left side of the second lines sets the charge current. The value on
the right side of the second lines sets the battery pack's voltage.After setting current
and voltage,press”Start/Enter” for more than 3 seconds to start the process.
This displays the number of cells you set up and the processsor detects. "R"shows
the number of cells detected by the charger and"S"is the number of cells set by you
at the previous screen.If both numbers are identical you can start charging by press
“Start/Enter” button.If not,press”Batt./Stop” button to go back to previous screen to
carefully check the number of cells of the battery pack before going ahead.
This screen shows the real-time status during charge process.Press”Batt./Stop”key
once to stop the charge process.
The left side of the first line shows the type of battery you choose. The value on the left
of the second line of the charger is current user set.After setting the current and voltage,
press”Start/Enter”key for more than 3 seconds to start the process.(charge current:0.1-
8.0A,voltage:1-5V)
This displays the number of cells you set up and the processsor detects. "R" shows the
number of cells detected by the charger and "S "is the number of cells set by you at the
previous screen. If both numbers are identical you can start charging by press"Start/
Enter” button. If not,press ”Batt./stop” button to go back to previous screen to carefully
check the number of cells of the battery pack before going ahead.
This screen shows the real-time status during charge process. Press “Batt./Stop” key
once to stop the charge process.
GHARGER PRO-8

16
This function is for charging/discharging batteries which are not used at once.This program is designed
for charging or discharging of batteries of specific original state.They are classified by types:3.75V LiIo,
3.85V LiPo and 3.3V LiFe.The program will begin to discharge if the original state of the battery exceeds
the voltage level of storage.
Charging current will become lower when it progress to the end of charging.
A specific CV process will be reduced to end the charging process earlier.In
fact,the charging current will goes to 1/5 when the charging process comes
to 1/10. Charging capacity will be a little smaller than normal charging, but
charging time will be shortened accordingly.
You can set up the charging current and voltage of the battery pack. Press
“Start/Enter” key to display voltage confirmation. Then press ”Start/Enter”
key again to confirm and begin to charge.
This screen shows the real-time status of"fast charging".Press “Batt.Type/
Stop” key once to stop the charge process.
GHARGER PRO-8

17
The value of discharge current on the left can not exceed 1C, and the value on
the right can not be under the voltage recommended by the manufacturer to
avoid deep discharging. Press ” Start/Enter” for more than 3 seconds to start
charging.
This shows the real-time status of discharging,you can press”Batt.Type/Stop”
key to stop discharging.
The processor monitors voltage of each cell when the battery packs are during its " storage " and
"discharging"process. To achieve this feature, plug each battery to the charger individually. If voltage of
any cell is abnormal,Charger Pro-8 will show error message and terminate the program forcibly. So if
there is battery damage or disconnection,you can see the error message and press” INC?” to know which
cell is damaged.
The processor detects voltage of one cell is too low.
At this screen, you can set up the current and voltage of the battery pack.
Charging and discharging will make the batteries come to the voltage level
of"storage"state.
This screen shows the real-time status charging.Press”Batt. type/Stop”key
once to stop the charge process.
GHARGER PRO-8

18
This program is for charging and discharging of NiCd/NiMH batteries associated
with R/C models applications.You can press”Start/Enter”key to make it blink and
then INC or DEC to change the parameter value.Press”Start/Enter” key to store
the value.
This program charge the battery using the current you set up.In the "auto" state,
you should set up the upper limit of the charge current to avoid damage by
excessive feeding current. Some batteries of low resistance and capacity can
lead to higher current in the"auto"charging mode. But in the manual mode, it will
charge with the current you set. You can make it blink in the current field and
press”INC ”or” DEC” at the same time to switch mode.
The screen shows the real-time status.Press”Batt.type/Stop” key to end the program.The sound will emitted
to indicates the end of program.
Set charge current on the left and the final voltage on the right.Range of the
charge current is 0.1-2.0A;range of final voltage is 0.1-25.0V.Press”Start/
Enter”key for more than 3 seconds to start the program.
The screen indicates the discharging state.You can press ”Start/Enter” key to
alter discharge current. Press ” Start / Enter ” again to store the value. Press
”Batt.type/Stop”key to stop discharging.The emitted sound alerts the end of
discharging.
The 4th cell was damaged.The value of voltage may be zero if disconnection
occurs.
GHARGER PRO-8
