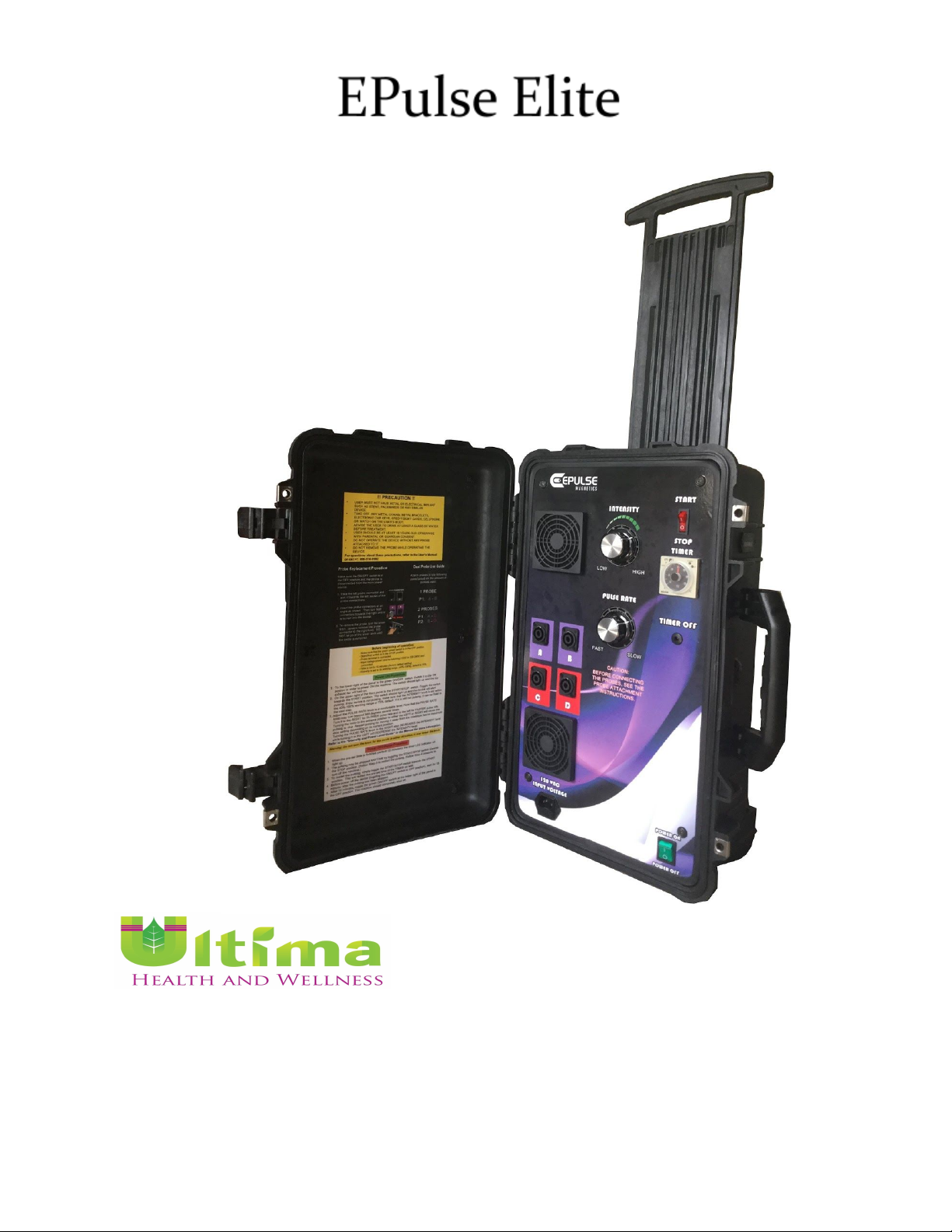

Ultima EPulse Elite User manual

















Distributed by:

Ultima Health & Wellness Solutions
www.ultimahealthsolutions.com
1-855-254-2220
All rights reserved. No part of this document may be
reproduced or transmitted in any form or by any means,
mechanical, photocopying, or recording
without prior written permission from E Pulse Magnetics International
1


2

Table of Contents
Safety Notice .............................................. iii
Introduction .............................................. iii
EPulse Elite Specification .................................. iii
EPulse Elite Accessories ................................... iii
Safety During Installation and/or Maintenance ....................... iv
Electrical Safety ............................................ iv-v
Safety Against Risk of Fire ...................................... v
Mechanical Safety ............................................ v
Safety Precautions In Using the Device ............................ vi
Quick Start Guide ...................................... vii-viii
Safety Operations ..................................... ix-xi
Probe Replacement Procedure (Appendix A) ..................... xii-xiv
EPulse Elite User Controls (Appendix B) ........................ xv

3

Safety Notice







EPulse Elite Specification

Size: 24.0” x 15” x 11“
Frequency: 1-50Hz
Weight: 42lbs / 19kg
Input Voltage: 120 VAC / 60Hz
Fuse Rating: 4-Amp (The fuse is located below the input power socket)


EPulse Elite Accessories

1 x Standard loop probe

1 x Three-wire AC Power Cord



4

Safety During Installation and/or Maintenance
Do not attempt to lift without assistance.
 
Clean the enclosure with “armor all” or like substance with soft cloth

Any service on this equipment that requires removal of any covers can expose parts which
involve the risk of electric shock or personal injury. Make sure that the POWER ON/OFF
switch is at OFF position and the device is disconnected from the main power source. Refer
such service to qualified personnel.

Do not replace any of the components with parts not specified for use on this manual.
How to Replace the Fuse
Make sure the POWER ON/OFF switch is in the OFF position and the device is
disconnected from the wall power outlet. The device requires a 4-amp fuse and the fuse
compartment is located at the bottom of the AC receptacle. To open the fuse compartment,
fill the gap (pointed by red arrow) with a small slotted screw driver, then pull it out. To
replace the compartment, simply press it back in. Refer to Figure 1 below.
Figure 1
If you have any problems with the device or accessories, contact an Authorized
distributor’s representative.

Electrical Safety
To reduce the risk of electrical shock, this device uses a three-wire AC power cord to
connect the device to earth-ground. To preserve this safety feature:
a. Make sure the INPUT VOLTAGE marked on the device (see Figure 1) matches the
power voltage in your area. DO NOT attempt to toggle the POWER ON/OFF switch to
ON position if the INPUT VOLTAGE of the device and the voltage in your area DO
5

NOT match. The voltage rating is marked on the label above the AC Receptacle (see
Figure 1).
b. Make sure the matching wall outlet receptacle is properly wired and earth-
grounded.

c. Never  use a 2-wire extension cords or a 2-wire NON-grounding types of multiple-
outlet receptacle strips.

d. Do not place containers holding any liquid on or near the front panel. The liquid can
potentially cause major damage on the electrical or mechanical components of the
device.

e. The POWER ON/OFF switch should ALWAYS be at OFF position when the device is
not in use.
Safety Against Risk of Fire

a. Fuses protect certain electrical circuits within this device against over-current
conditions. For continued protection against the risk of fire, replace the fuse only with
the same type and rating specified in this Instruction Manual (Refer EPulse Elite
Specification section).
b. Keep any materials capable of developing flammable or explosive vapors away from
the device while it is in operation (pulsing).

Mechanical Safety

a. Use only probes and accessories designed for use on this device.
b. Do not lift or move the device while using or pulsing.
c. NEVER use the device where wet weather may have contact with the device.
d. To clean the air intake and exhaust fans blow them with air or use a soft brush.
e. NEVER attempt to hold or remove the probe connectors while in use or pulsing.
f. NEVER attempt to open the control panel of the device.

6

Safety Precautions in using the device
Connect the probe to the device before toggling the START/STOP switch to START(I)
position. Rest the probe on a non-metallic material (i.e. wooden or plastic chair) when not
in use. Refer to Appendix A on how to connect the probes.
When the START/STOP switch is on the START (I) position, DO NOT touch the probe
connectors while holding the probe loop.
The device is equipped with an overheat sensor to protect the machine in case of an
overheating situation. When overheating occurs, the device will stop pulsing. Let the
device cool down and you may START the device again. If the device is unable to START,
contact your Authorized Distributor’s representative. 
After using the device or after toggling the START/STOP switch to STOP (O) position,
allow 5 minutes before toggling the POWER ON/OFF switch to OFF. 
When the device is not in use, ALWAYS close the lid to prevent condensation to form. 
7

Quick Start Guide:
Quick guide on how to operate the EPulse Elite
Before beginning of operation:
- Make sure that the green POWER ON/OFF switch is in the OFF position.
- Start/Stop switch is in the STOP(O) position.
- Probe terminals are connected.
- Input voltage power cord is matching (120V) and connected.
- Time is set to 15 minutes (factory default setting)

Power ON Procedure:
1. To the lower right of the panel is the green POWER ON/OFF switch. Flip the switch to the
ON position. The switch should light up.
2. Set the INTENSITY knob to desired setting. Default is at 80%

3. On the upper right of the front panel is the START/STOP switch. Toggle the switch
towards the START(I) position. The switch should light up and the device will start
pulsing.

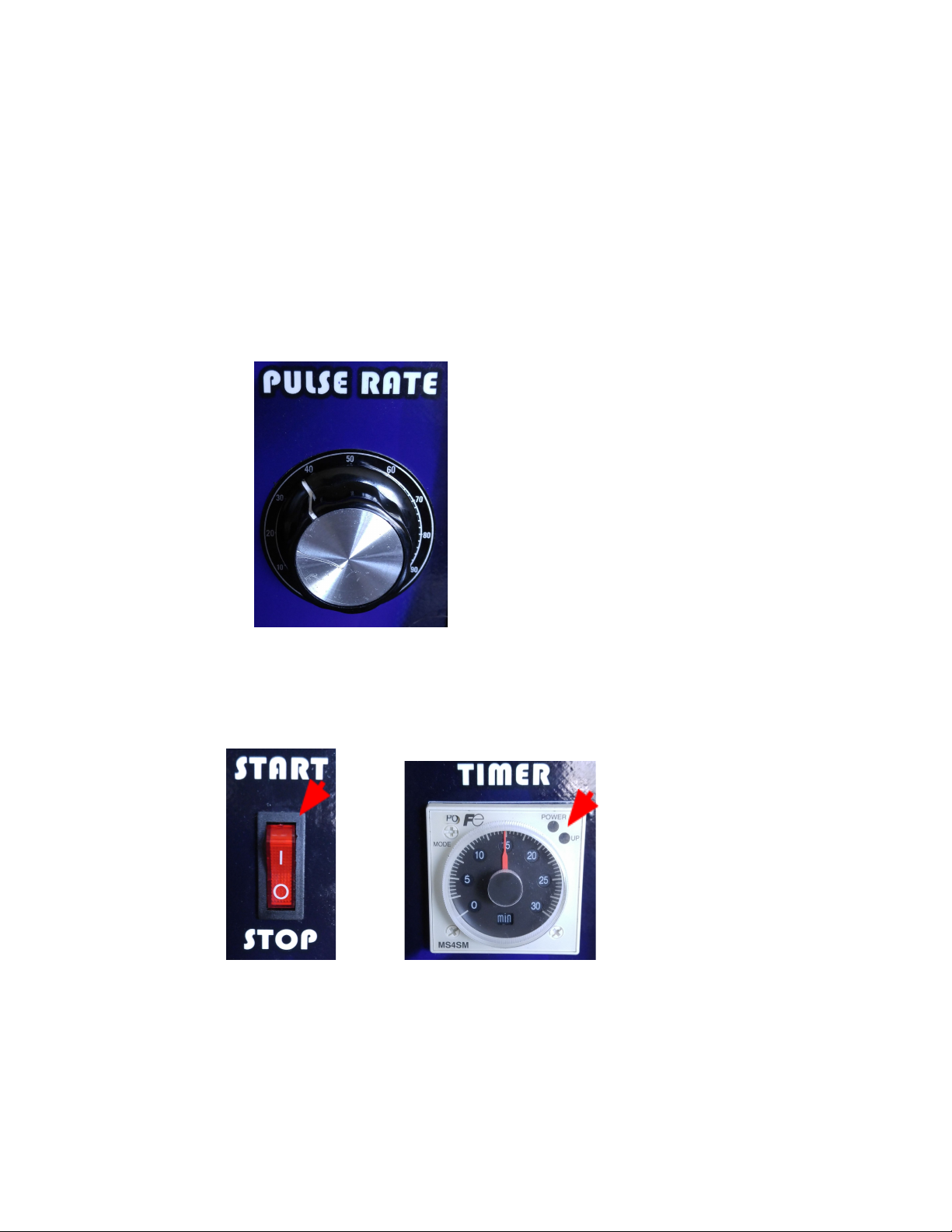

4. Set the PULSE RATE knob to desired setting. Note that the PULSE RATE knob may turn
beyond 360 
o 
several times.
Turn the PULSE RATE knob to the RIGHT for SLOWER pulse rate and to the LEFT for
FASTER pulse rate. Note also that turning the knob to the EXTREME position to EITHER
LEFT OR RIGHT will cause the pulsing to stop; putting the device in an “off” state.
Warning: Do not turn the knob far TO THE EXTREME in either direction. Doing so would
cause the knob to break. 

8

POWER OFF/Reset Procedure:
1. When the PRE-SET time on the timer has expired (default is 15 minutes), the TIMER OFF
LED indicator will light up.
2. Or, the pulsing may be stopped ANYTIME by toggling the START/STOP switch towards
the STOP [O] position. [Skip Step 3 to restart the pulsing OR skip to Step 4 onwards to
turn off the machine.]
3. To RESTART the pulsing, simply toggle the START/STOP switch towards the START (I)
position. This will restart the pulsing with the pre-set time of the TIMER as well.
4. Before the device is POWERed DOWN (toggling the POWER ON/OFF switch to OFF
position), wait for 15 minutes after the pulsing has stopped.
5. After 15 minutes, toggle the green POWER ON/OFF switch at the lower right of the panel
to the OFF position. The machine should be completely turned off.

9

Safety Operations
For the safe operation of the device, the following should be observed:
1. Make sure POWER ON/OFF switch is in the OFF [O] position at all times when NOT IN
USE.

2. BEFORE TURNING ON the device, make sure the Probes are connected to the Probe
Connections (Refer to picture below and Appendix A) then rest the probe on a
NON-metallic material. Also, make sure that there are NO metallic objects around the
probe.

 
3. Plug an AC Cord into the AC Input Power, while making sure that the required input
power of the device (as marked) matches AC line voltage from the wall outlet.
10



4. Set the TIMER to desired number of minutes of pulsing (default setting is 15 minutes). The
TIMER is set by turning the TIMER knob clockwise or counter-clockwise to set the time
from 5 to 30 minutes.


5. Turn on the device by switching POWER ON/OFF switch to ON position.

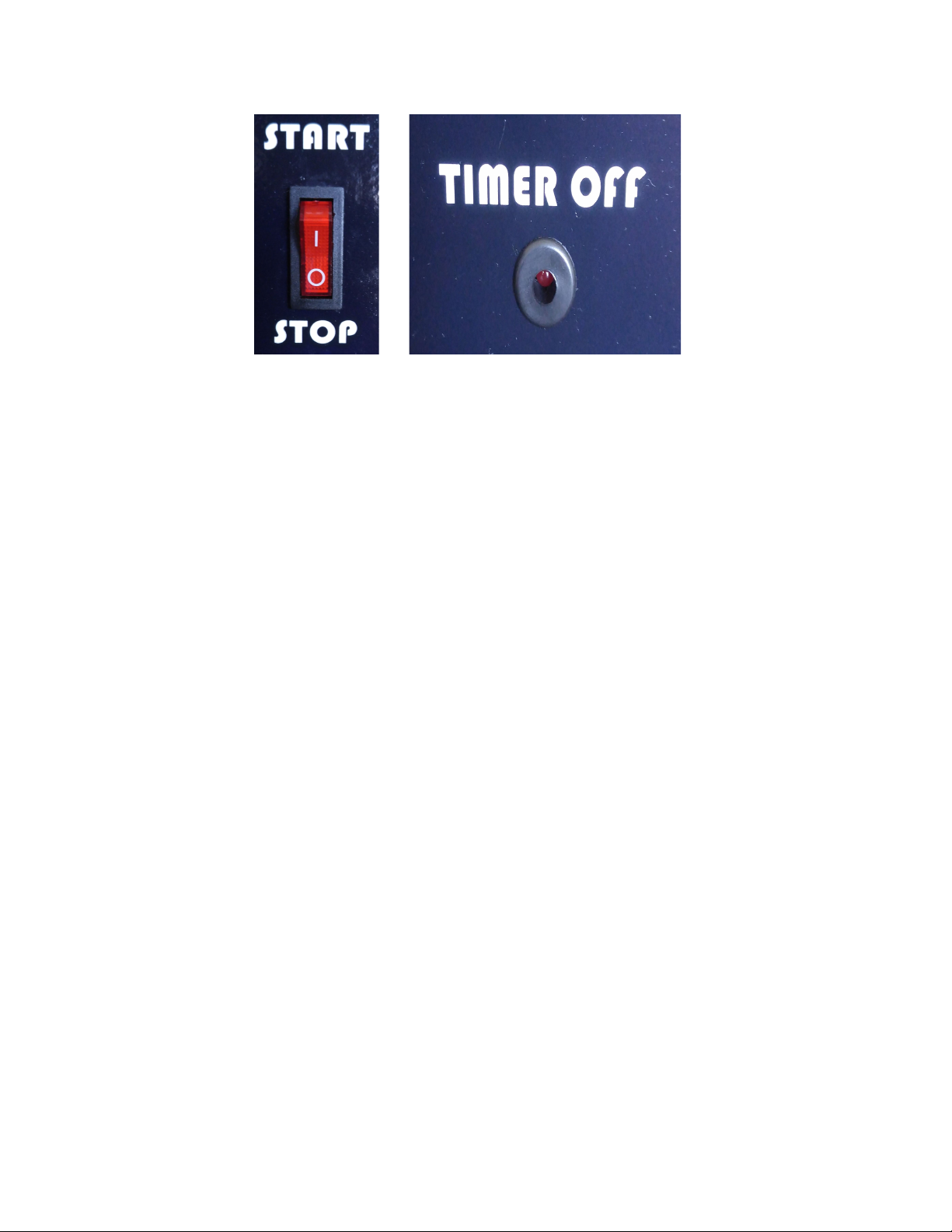

The START/STOP switch light will turn “on” and the TIMER OFF LED indicator will be
“on”(red LED flashing).
11



6. Toggle the START/STOP switch to START(I) position for the device to start pulsing. 
 
12

7. Set the PULSE RATE knob to desired setting. 
Turn the knob to the RIGHT for SLOWER pulse rate and to the LEFT for FASTER pulse
rate. Note also that turning the knob to the EXTREME position to EITHER LEFT OR RIGHT
will cause the pulsing to stop; putting the device in an “off” state.
Note: The PULSE RATE knob may turn all the way around more than once.
Warning: Although the PULSE RATE may turn all the way around more than once, USE
CAUTION NOT TO TURN the PULSE RATE knob far TO THE EXTREME in either
direction. Doing so would cause the knob to break.




8. When the timer has expired, the unit will stop pulsing. The START/STOP switch LED will
TURN ON and the TIMER LED Indicator will be flashing.


 
9. VERY IMPORTANT: Leave the device ON for 5 minutes before switching the POWER
ON/OFF switch to the OFF(O) position.

10. Close the enclosure lid to prevent condensation to form.

13

Probe Replacement Procedure (Appendix A)

Make sure the POWER ON/OFF switch is in the OFF position and the device is disconnected from the main
power source.

Note: The Probe Attachment Instruction can be found on the inside of the lid of EPulse Elite. Refer to the
picture below.



I. CONNECTING ONE (1) PROBE
To use one (1) probe only, ONLY connections A and B will be used

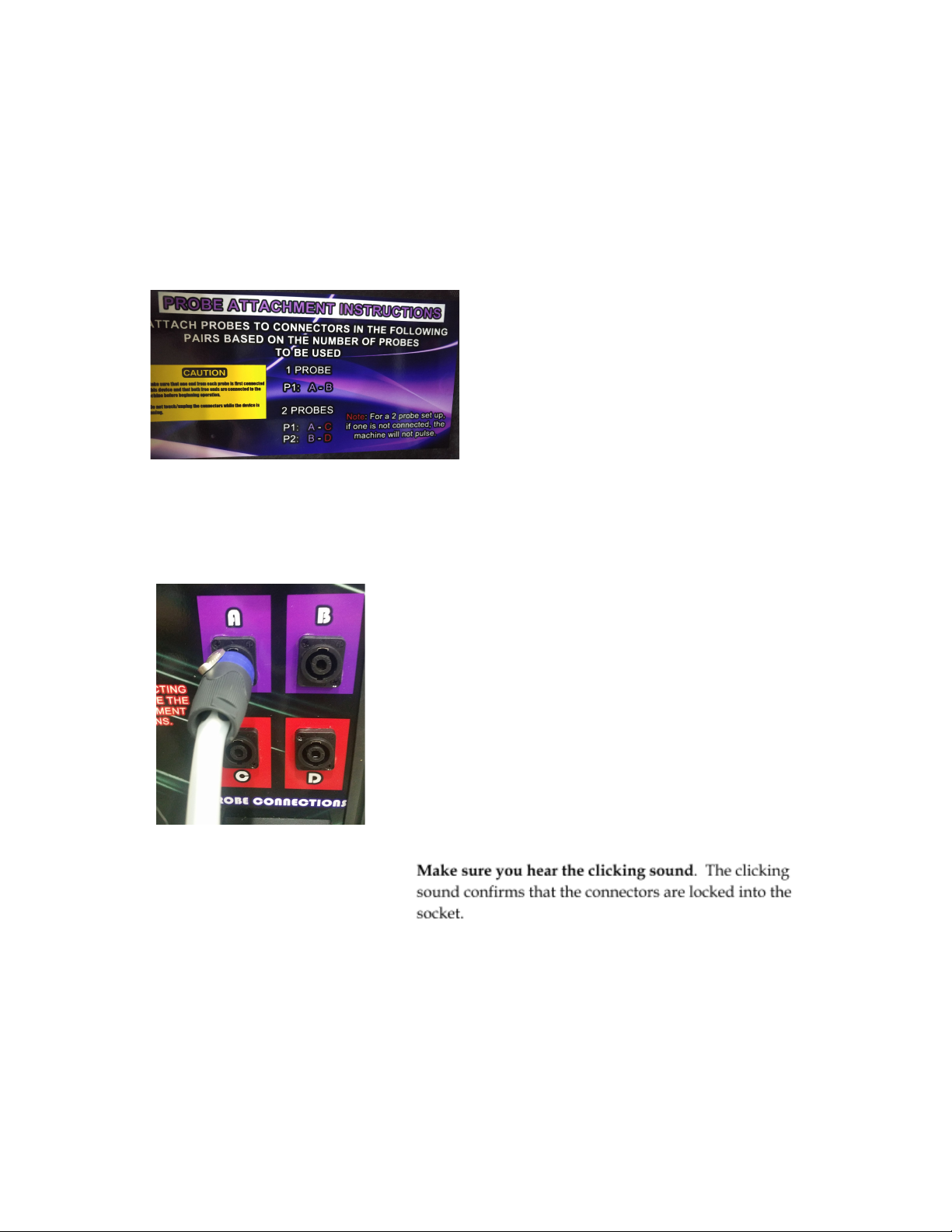

1. Take any of the probe connector and aim it towards socket A of the probe connections. Insert the probe
connectors at an angle as shown below
 
2. Insert the other connector to Socket B then turn both connectors towards the right until you hear a click.
14

 
3. To remove the probe, pull the silver latch. (always remove the probe connector to the right first). DO
NOT let go of the silver latch until the connector is removed.  
II. CONNECTING TWO (2) PROBES
To use two (2) probe only, connections A and C (yes, NOT B) will be used for the
first probe, then connections B and D will be used for the second probe.

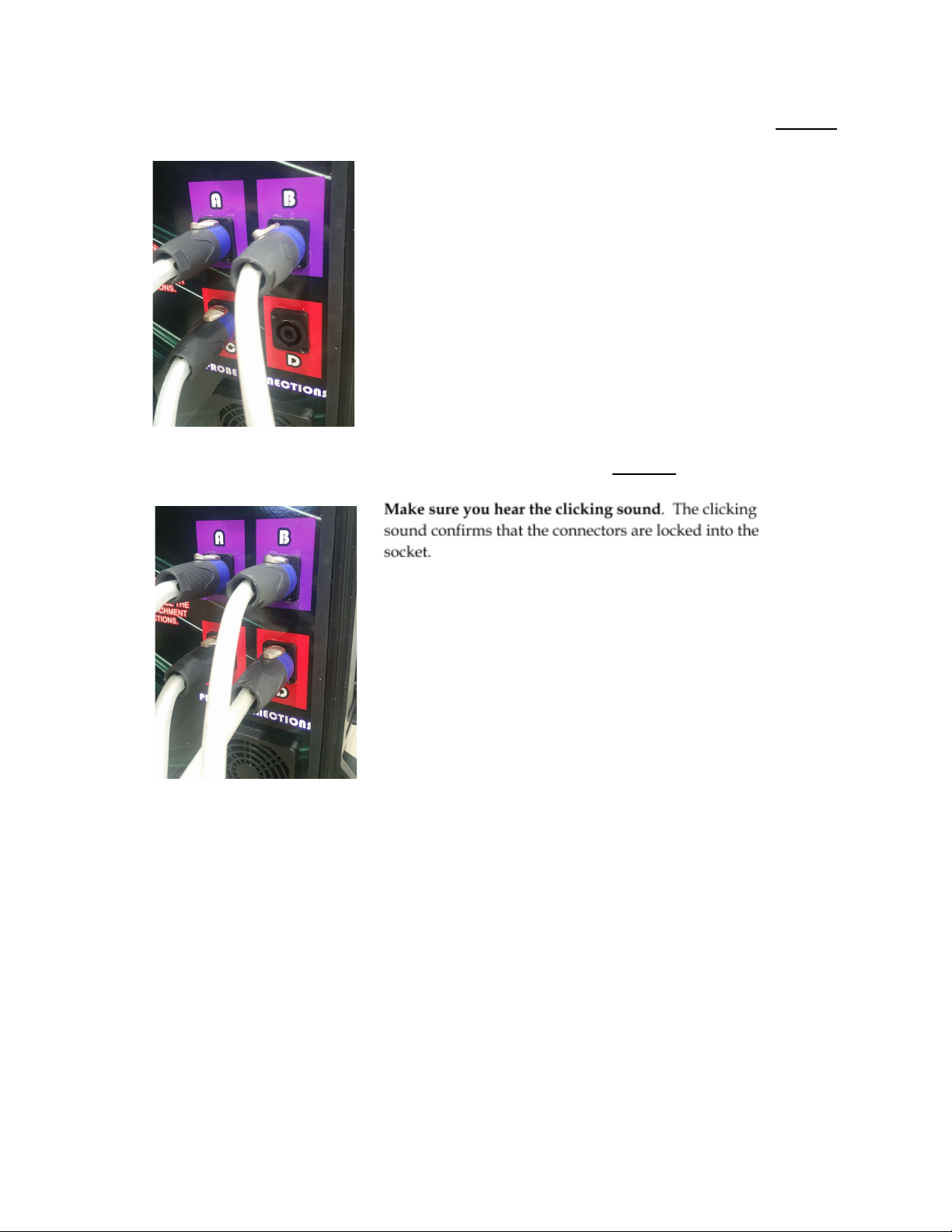

1. Take any of the probe connector for the first probe and aim it towards Socket A of the probe
connections. Insert the probe connectors at an angle as shown below
2. Insert the other connector of the first probe to Socket C then turn both connectors towards the right
until you hear a click.
15

16

3. Similar to Step #1, take any of the probe connector for the second probe and aim it towards Socket B of
the probe connections. Insert the probe connectors at an angle as shown below
4. Similar to Step #2, insert the other connector of the second probe to Socket D then turn both connectors
towards the right until you hear a click
5. To remove the probe, pull the silver latch. Always remove the probe connector to the RIGHT first.
DO NOT let go of the silver latch until the connector is removed. 
17

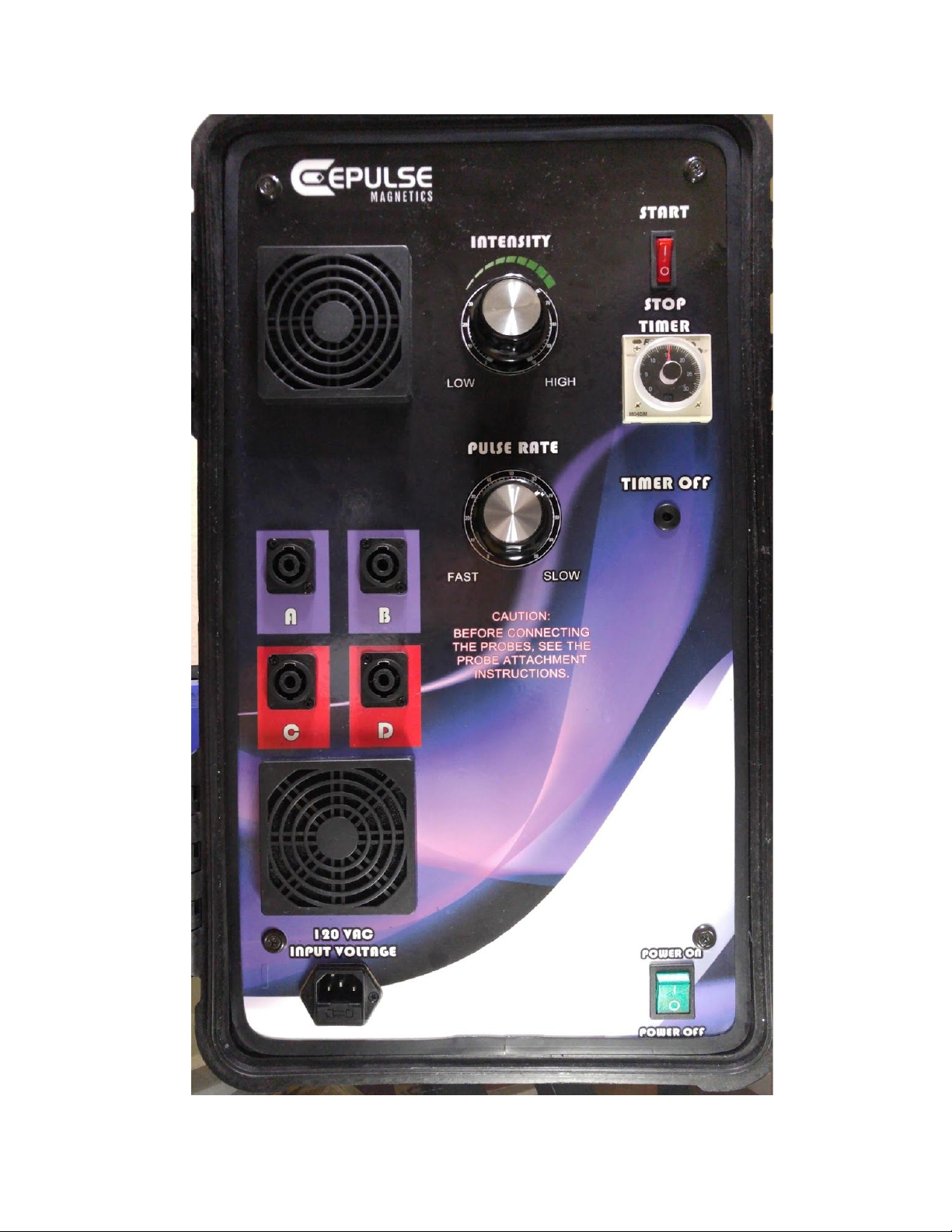

EPulse Elite User Controls (Appendix B)
