ULTIMATE SPEED UOP 12 A1 User manual

IAN 102790
OIL SUCTION PUMP UOP 12 A1
OIL SUCTION PUMP
Operating instructions
OLJNA ČRPALKA
Prevod originalnega navodila za uporabo
OLAJLESZÍVÓ SZIVATTYÚ
Az originál használati utasítás fordítása
POMPA DO ZASYSANIA OLEJU
Tłumaczenie oryginalnej instrukcji obsługi
ČERPADLO NA ODSÁVANIE OLEJA
Preklad originálneho návodu na obsluhu
ČERPADLO NA OLEJ
Překlad originálního provozního návodu
ÖLABSAUGPUMPE
Originalbetriebsanleitung
CV_102790_UOP12A1_LB4.indd 2CV_102790_UOP12A1_LB4.indd 2 25.08.14 11:3325.08.14 11:33

GB Translation of original operation manual Page 1
PL Tłumaczenie oryginalnej instrukcji obsługi Strona 13
HU Az originál használati utasítás fordítása Oldal 25
SI Prevod originalnega navodila za uporabo Stran 37
CZ Překlad originálního provozního návodu Strana 49
SK Preklad originálneho návodu na obsluhu Strana 61
DE/AT / CH Originalbetriebsanleitung Seite 73
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Przed przeczytaniem proszę rozłożyć stronę z ilustracjami, a następnie proszę zapoznać się z wszystkimi
funkcjami urządzenia.
Olvasás előtt kattintson az ábrát tartalmazó oldalra és végezetül ismerje meg a készülék mindegyik
funkcióját.
Pred branjem odprite stran s slikami in se nato seznanite z vsemi funkcijami naprave.
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami prístroja.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
CV_102790_UOP12A1_LB4.indd 3CV_102790_UOP12A1_LB4.indd 3 25.08.14 11:3325.08.14 11:33

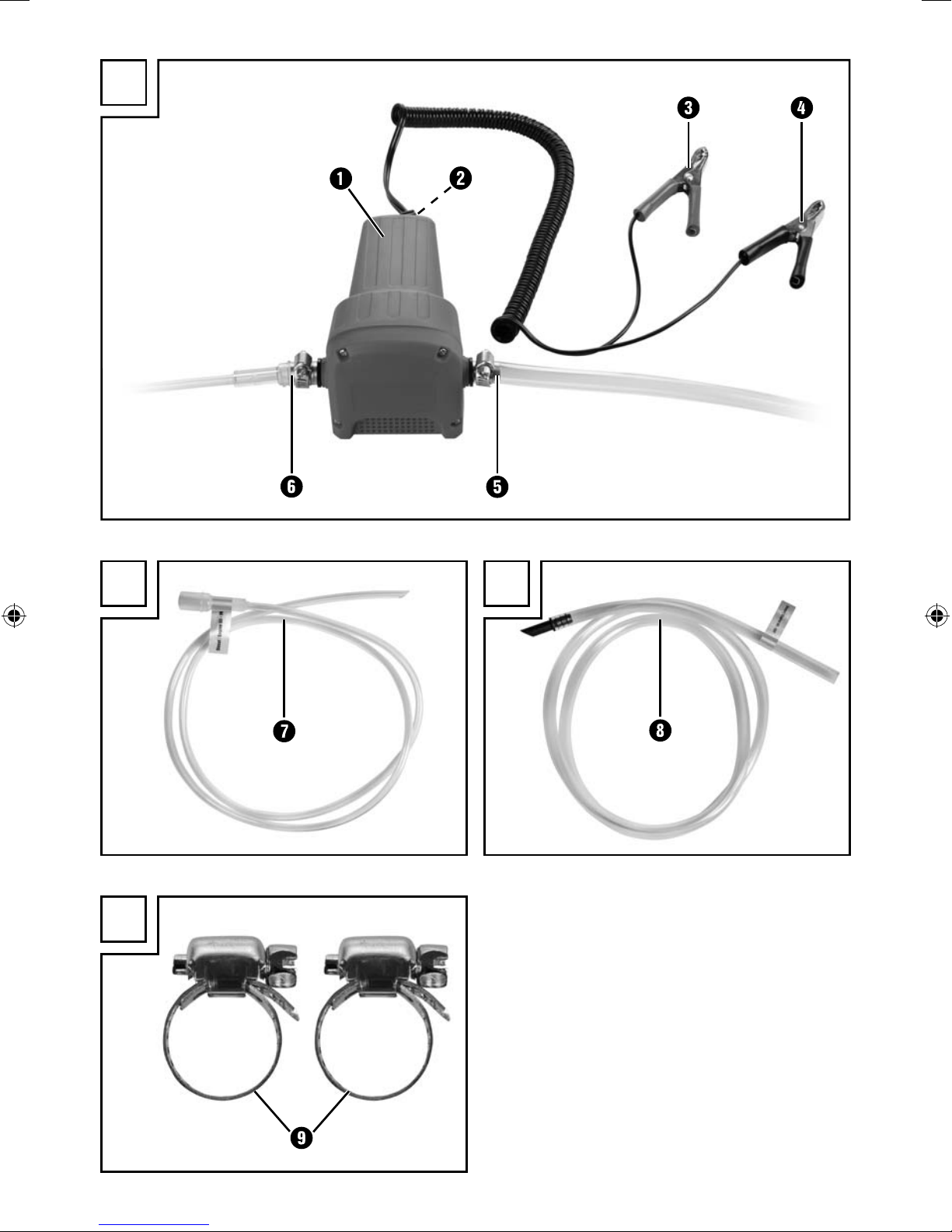

B C
D
A
CV_102790_UOP12A1_LB4.indd 4CV_102790_UOP12A1_LB4.indd 4 25.08.14 11:3325.08.14 11:33

1
UOP 12 A1
GB
Index
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Information for these operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Limited liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warning symbols used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Basic Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Initial use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Items supplied and transport inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Disposal of the packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Handling and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Preparing the oil suction pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Pumping oil out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Disposal of the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Disposing of used oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Translation of the original declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . .9
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
IB_102790_UOP12A1_LB4.indb 1IB_102790_UOP12A1_LB4.indb 1 25.08.14 11:2725.08.14 11:27

2UOP 12 A1
GB Introduction
Information for these operating instructions
Congratulations on the purchase of your new device.
You have clearly decided in favour of a quality product. These operating instructions
are a component of the Oil Suction Pump UOP 12 A1 (henceforth designated
as the device, pump or product). They contain important information in regard to
safety, use and disposal. Before using the product, familiarise yourself with all of
these operating and safety instructions. Use the product only as described and
only for the specified areas of application. In addition, pass these documents on,
together with the product, to any future owner.
Copyright
This documentation is copyright protected. Any copying or reproduction of it,
including as extracts, as well as the reproduction of images, also in an altered
state, is only permitted with the written authorisation of the manufacturer.
Limited liability
The manufacturer assumes no responsibility for damage caused by failure to observe
these operating instructions, improper use, incompetent repairs, making unauthor-
ised modifications or for using unapproved replacement parts.
Intended use
This device is intended exclusively for noncommercial use in the pumping of
engine oil, diesel or fuel oil.
This product is not suitable for pumping water (no lubrication of the pump), gear-
box oil (too thin-bodied) or highly flammable liquids (petrol and paraffin etc.).
This device is not intended for any other use or for uses beyond those mentioned.
Claims of any kind for damage resulting from unintended use will not be accepted.
The operator alone bears liability.
IB_102790_UOP12A1_LB4.indb 2IB_102790_UOP12A1_LB4.indb 2 25.08.14 11:2725.08.14 11:27

3
UOP 12 A1
GB
Warning symbols used
In these extant operation instructions the following warnings are used:
DANGER
A warning at this risk level indicates a threateningly dangerous
situation
If the risk situation is not avoided, it could lead to death or serious physical injury.
► Pay heed to the instructions in this warning to avoid the death of or serious
physical injury to people.
TAKE NOTE
A warning at this risk level indicates possible property damage.
If the situation is not avoided it could lead to property damage.
► Pay heed to the instructions in this warning to avoid property damage.
NOTICE
► A notice indicates additional information that may assist you in the han-
dling of the device.
Safety
In this chapter you will receive important safety information regarding the handling
of the device. This device complies with the statutory safety regulations. Incorrect
usage can lead to personal injury and property damage.
Basic Safety Instructions
For safe handling of the device observe the following safety
information:
■ Before use check the device for visible external damage. Do
not put into operation a device that is damaged or has been
dropped.
■ The connecting cable on this appliance cannot be replaced.
If the cable is damaged, the whole appliance must be
scrapped.
■ This appliance may be used by children aged 8 over and by
persons with reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge, provided that they
are under supervision or have been told how to use of the
appliance safely and are aware of the potential risks. Chil-
dren must not play with the appliance. Cleaning and user
maintenance tasks must not be carried out by children unless
they are supervised.
IB_102790_UOP12A1_LB4.indb 3IB_102790_UOP12A1_LB4.indb 3 25.08.14 11:2725.08.14 11:27

4UOP 12 A1
GB ■ A repair to the device during the warranty period may only
be carried out by a customer service department authorised
by the manufacturer otherwise no additional warranty claims
can be considered for subsequent damages.
■ Do not perform any modifications or changes to the appli-
ance yourself.
■ Protect the device against moisture and the penetration of
liquids.
■ Pay heed to the instructions of the vehicle manufacturer
regarding the pumping of oil. Some vehicle manufacturers
forbid pumping the oil out because the sludging, such as
from abrasion, would remain behind.
■ Be particularly careful when you are handling oil. Should oil
come into contact with the skin or eyes, rinse it off with water
and seek medical attention.
■ Be particularly careful if you are working on a car battery.
Battery acid could leak out and cause serious injury. Should
battery acid come into contact with the skin or eyes, rinse the
affected part off with water and seek medical attention.
■ Wear personal protective equipment. The
wearing of personal protection equipment (work clothing,
respirators, gloves and goggles) reduces the risk of personal
injury.
■ Ensure that your vehicle is not parked on a sloped surface,
as it may not be possible to effect a complete oil extraction.
Ensure that the hand brake is engaged.
■ Do not start the engine during the operation of the oil suction
pump.
■ Do not pump oil at a temperature above 60°C and do not
pump it when the engine is running. The vehicle engine must
be cool.
■ Always use the supplied hose clamps, otherwise the tube
may fall off and cause a spillage of the oil.
■ Do not use the device to pump petrol, paraffin or other
inflammable liquids.
■ Be especially careful when dealing with inflammable materi-
als or fuels. There is the risk of an explosion!
IB_102790_UOP12A1_LB4.indb 4IB_102790_UOP12A1_LB4.indb 4 25.08.14 11:2725.08.14 11:27

5
UOP 12 A1
GB
■ Ensure that the work area is well ventilated and that there are
no open flames or other ignition sources in the vicinity. Other-
wise, there is risk of explosion!
■ Do not pump water, the oil suction pump will not be suffi-
ciently lubricated and could overheat.
■ The device is not suitable for the storage and/or transport of
fuels or other liquids.
■ Do not pump different oils into the same tank.
■ Be extra careful when operating the oil suction pump and do
not leave it unattended when it is in operation.
■ Use the oil suction pump only when the engine oil is warm.
Hot oil can melt the hose.
■ The oil suction pump must NEVER be operated without the
suction hose, otherwise the pump motor could be overloaded.
■ To avoid overheating or malfunctions, the oil suction pump
should never be operated continuously for longer than
30 minutes. Allow the oil suction pump to cool down
for approx. 10 minutes.
■ Use only the supplied connection terminals to connect the
device to a car battery.
■ Keep the connection cable away from hot parts of the en-
gine and do not let it hang over sharp edges.
■ Route the connection cable so that it cannot be caught up in
moving parts of the engine.
■ Disconnect the connection cable from the car battery when
the device will not be in use for longer periods of time.
■ Keep sources of ignition (e.g. naked flames, lighted cigars,
cigarettes or electrical sparks) away from the car battery.
There is the risk of an explosion!
■ Avoid causing an electrical short-circuit when connecting
the device to the battery. Connect the positive pole terminal
clamp only to the positive pole of the battery. Connect the
negative pole terminal clamp only to the negative pole of
the battery.
■ Connect the terminal clamps ("–" and "+") only to the insu-
lated area!
IB_102790_UOP12A1_LB4.indb 5IB_102790_UOP12A1_LB4.indb 5 25.08.14 11:2725.08.14 11:27

6UOP 12 A1
GB Initial use
DANGER
► Packaging material should not be used as a play thing. There is a risk of
suffocation!
Items supplied and transport inspection
▯ Oil suction pump with connecting cable and quick contact connection
terminals
▯ Suction hose Ø 6 mm
▯ Discharge hose Ø 12 mm
▯ 2 x Hose clamps
▯ This operating manual
NOTICE
► Check the contents to ensure everything is available and for signs of visible
damage.
► If the delivery is not complete or is damaged, due to defective packaging or
through transportation, contact the Service Hotline (see chapter Service).
Disposal of the packaging
The packaging protects the device from transport damage. The packaging
materials are selected from the point of view of their environmental friendliness
and disposal technology and are therefore recyclable.
The recirculation of packaging into the material circuit saves on raw material
and reduces the amount of waste generated. Dispose of packaging material
that is no longer needed as per the regionally established regulations.
Operating components
Oil suction pump
2On/Off switch
3Positive connection terminal (red)
4Minus connection terminal (black)
5Connection for discharge hose
6Connection for suction hose
7Suction hose (Ø 6 mm)
8Discharge hose (Ø 12 mm)
9Hose clamps
IB_102790_UOP12A1_LB4.indb 6IB_102790_UOP12A1_LB4.indb 6 25.08.14 11:2725.08.14 11:27

7
UOP 12 A1
GB
Handling and operation
In this chapter you receive important information for the handling and operation
of the device.
Preparing the oil suction pump
♦ Remove the protective caps from the hose connections 5+ 6.
♦ Roll out the suction hose (Ø 6 mm) 7and the discharge hose (Ø 12 mm) 8
and bend them straight.
♦ Press the suction hose (Ø 6 mm) 7onto the connection for the suction
hose 6.
♦ Press the discharge hose (Ø 12 mm) 8onto the connection for the
discharge hose 5.
♦ Thereby, bear in mind the direction of flow ( Pump direction ) given
on the type plate of the oil suction pump .
♦ Secure both hoses with the supplied hose clamps 9.
TAKE NOTE
► Ensure that the hoses are not kinked or bent, otherwise the hoses and the
pump could be damaged.
Pumping oil out
♦ Before starting to pump oil out, let your vehicle engine warm-up for 5-10
minutes (oil temperature 40°C-60°C). This reduces the viscosity of the oil
and it can then be pumped out more efficiently.
♦ Switch the vehicle motor off.
♦ Roll out the suction hose (Ø 6 mm) 7and the discharge hose (Ø 12 mm) 8.
♦ Insert the suction hose (Ø 6 mm) 7into the dipstick opening of your vehicle.
Insert it carefully down to the lowest point of the oil sump.
♦ Use a suitable container to collect the old oil and insert the discharge hose
(Ø 12 mm) 8into the container.
♦ Ensure that the on/off switch 2is in the position 0 (off).
♦ First, connect the red positive-pole connection terminal (red) 3to the
positive-pole (+) of the car battery.
♦ Then connect the black negative-pole connection terminal (black) 4to the
negative-pole (-) of the car battery.
♦ Place the on/off switch 2at position I (On) to switch the oil suction pump on.
♦ Pump the oil out of the engine/the oil sump.
IB_102790_UOP12A1_LB4.indb 7IB_102790_UOP12A1_LB4.indb 7 25.08.14 11:2725.08.14 11:27
