UltimateAir 200DX Guide

UltimateAir,Inc.  Tel:740‐594‐2277
178MillStreetFax:740‐592‐1499
Athens,Ohio45701www.ultimateair.com


200DXBlowerDriveBoardReplacementInstructions


Thisguideappliestothereplacementofthetwo(2)110WBlowerDriveBoardson
anyRecoupAeratorModel200DXCHAMmodel,afterserialnumber13685.

Toolsrequiredforinstallation:
1. StandardScrewDriver
2. PhillipsScrewDriver
3. 5/16”NutDriver
4. 1/4”HexDriver
5. HoleAlignmentDrift(Optional)

Contents:
110WBlowerDriveBoard(s)partnumber4201






ReplacementInstructions
Beforebeginningtheinstallationofthe110WBlowerDriveBoards,turnOFFtheRecoupAeratorwith
themainpowerswitchattheexternalelectronicscover.AlsounplugtheRecoupAeratorfromitspower
outlet.ItmaybenecessarytodisconnecttheRecoupAeratorfromtheductworktoalloweasyaccessto
bothsides.

1.Beginbyremovingthefourthumbscrewsfromthetopfiltercoverthenliftoff.Thenremove
thesideattachedwithfour5/16”screws.Removethewhitepolystyreneinsulationpiecebehind
themetalside.

2.TheNewBlowerDriveBoardsdonotrequirethemetalcovershownbelow.
TheElectronicscoverillustratedheremaynothavebeenincludedwithyourmodelandalsomay
nothavethetwoscrewsinthecenterofthecover.



3.Usinga¼”nutdriveryoumayneedtoremovethetwoscrewsinthemiddleofthecoverand
three(3)screwsshowncircledbelow.Liftoutthecover,whilemakingsurenottocatchonanyof
theelectricalwiringharness.

Page 2






4.Unclipthefourmulti‐pinwiringquickconnectsfromthe110WBlowerDriveBoard.
5. Removethefour(4)screwssecuringtheBlowerDriveBoard.
6. RemovetheBlowerDriveBoard.

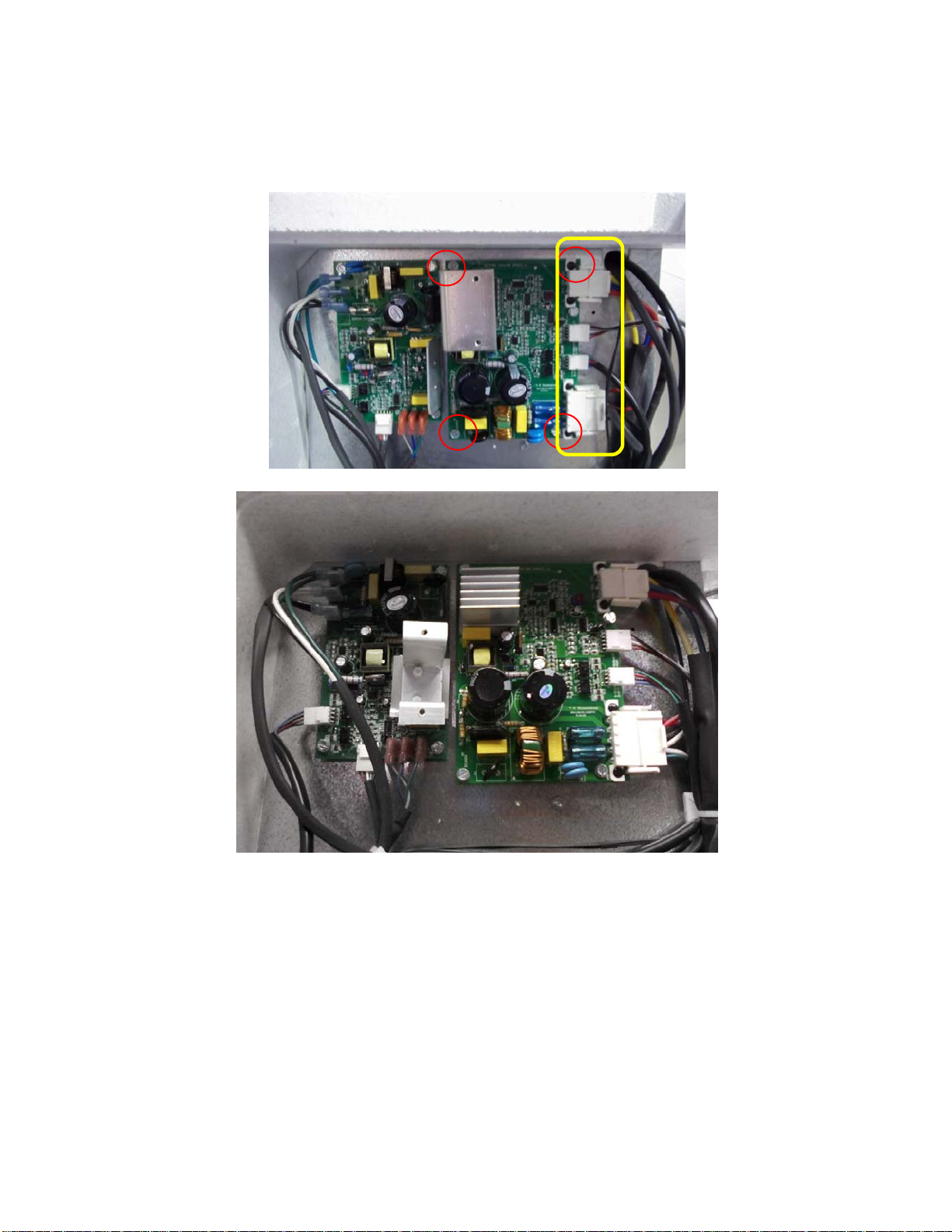

Themulti‐pinwiringquickconnectsarelocatedontherightoftheboard,outlinedinyellow.

Page 3




7. OntheNEWBoard,CheckthatJumper1isONandJumper2isREMOVED
8. PlacethereplacementBlowerDriveBoardinthesamepositionandorientationastheone
removed.Replacethefour(4)screws.Reconnectthewiringconnectorsintheiroriginal
positions.
9. Replacethewhitepolystyreneinsulationandtheexteriormetalsidewiththeoriginalfour
screws.RepeatthisprocedureifbothBlowerDriveBoardsrequirereplacement.Once
installationofnewcomponentsiscomplete,reinstallthefitertopandfourthumbscrews.
Theductingmaythenbere‐attached,andtheRecoupAeratorpluggedinandturnedon.

Effective07/2011–current
SerialNumber13685andon
Revised:WednesdaySeptember18th2013
