ULTRAFRYER REO-1620 User manual

MODEL REO-1620
ELECTRIC ULTRATHERM 3
CE RETHERMALIZER
30A243
OPERATIONS MANUAL
302 Spencer Lane • P.O. Box 5369
San Antonio, Texas 78201
[phone] • [phone]
Fax: [phone]
www.ultrafryer.com

PREFACE
This manual was written and published by the Engineering Department, Ultrafryer Systems, for
use by store employees who will operate and maintain the Electric Ultratherm 3 Rethermalizer.
Proper use of this manual will allow store employees to properly operate, clean and maintain
this equipment which will reduce service call expenses
ENGINEERING DEPARTMENT
ULTRAFRYER SYSTEMS
302 SPENCER LANE
SAN ANTONIO, TEXAS 78201
30A243
1

NOTICE
DANGER
DANGER
DANGER
DANGER
WARNING
WARNING
WARNING
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS
ULTRAFRYER EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED
PART PURCHASED DIRECTLY FROM ULTRAFRYER SYSTEMS OR ANY OF ITS
AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODI-
FIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID.
FURTHER, ULTRAFRYER SYSTEMS AND ITS AFFILIATES WILL NOT BE LIABLE
FOR ANY CLAIMS, DAMAGES, OR EXPENSES INCURRED BY THE CUSTOMER
WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE
INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN
UNAUTHORIZED SERVICE CENTER.
The electrical power supply for this appliance must be the same as indicated on the rating and serial
number plate located on the outside of the rethermalizer door.
All wiring connections for this appliance must be made in accordance with the wiring diagrams furnished
with the equipment.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Do not attach accessories to this rethermalizer unless rethermalizer is secured from tipping.
Personal injury may result.
Do not use water jets to clean this equipment.
This equipment is intended for indoor use only. Do not install or operate this equipment in outdoor
areas.
30A243
3

DANGER
DANGER
NOTICE
DANGER
CAUTION
NOTICE
NOTICE
WARNING
The front apron of this appliance is not a step! Do not stand on the appliance, Serious injury can result
from slips or contact with the hot oil.
Do not store or use gasoline or other flammable liquids or vapors of this or any other appliance.
Safe and satisfactory operation of Ultrafryer equipment depends upon its proper installation.
Installation MUST conform with local codes, or in the absence of local codes, to European Com-
munity (CE) Standards.
Adequate means must be provided to limit the movement of this appliance without depending on or
transmitting stress to the electrical conduit. A strain relief is provided with the Rethermalizer.
Prior to movement, testing, maintenance and any repair on your Rethermalizer disconnect all electrical
power.
30A243 April 2013
4
This appliance is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to ensure that they do not play with
the appliance.
Supply cord wire should not be less than No. 8 AWG copper wire. This must conform
with local and national codes, or in the absence of local codes to European Community
The earthing in a supply cord is not considered to be an equipotential bonding conductor.
The appliance must be connected to an unipotential system.

INSTALLATION
All installation and service on Ultrafryer equipment must be per-
formed by qualified, certified, licensed, and /or authorized installation
or service personnel. Qualified personnel must be experienced in such
work, be familiar with all electrical precautions involved, and have
complied with all requirements of applicable national and local codes.
30A243
5

GENERAL INFORMATION
Technical Assistance and Ordering Information. . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product Description……………………………………………………………….9
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
INSTALLATION
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CLEANING
Initial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Weekly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
RETHERMALIZER OPERATION
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PREVENATIVE MAINTENANCE & TROUBLESHOOTING CHART
Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
PARTS IDENTIFICATION
Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
30A243
TABLE OF CONTENTS
6

30A243
GENERAL INFORMATION
7

TECHNICAL ASSISTANCE - Contact an authorized service agent or the Customer Service Department, Ultrafryer
Systems at 1-800-525-8130 for technical assistance.
E-Mail technical assistance at: [e-mail]
A. ORDERING INFORMATION:
1. REPLACEMENT PARTS - Provide the following information when ordering replacement parts by phone, fax or mail:
Your company name and phone number
Your company purchase order number
Bill-to address
Ship-to address
Quantity desired
Part number and description of the desired-item Your name or signature of authorized-buyer
Phone in order to: 954-202-7336
FAX order to: 954-202-7337
Mail order to: Greenfield World Trade
U.S. Office
3355 Enterprise Ave. Suite 160
Ft Lauderdale, FL 33331
Website: www.Greenfieldworld.com
2. DAMAGES - Ultrafryer Systems is not responsible for damage occurring in transit. All deliveries must be inspected for
damage to shipping containers prior to departure of the delivering carrier. Any damage must be notated on the receiving
document to facilitate filing of freight claims. Carriers must be notified immediately and freight inspections must be re-
quested from the carrier. Ultrafryer Systems can and will gladly assist you in preparing and processing of the necessary
claims only if proper notification has been accomplished on the carrier delivery document. Damaged equipment and or
containers must be available for the claims inspector to inspect.
30A243
8

A. SAFETY
The Electric Rethermalizer operates on 230 volts single phase electrical power and NO
CLEANING OR REPAIR to any component should be attempted without FIRST disconnecting
electrical power. When in use the Rethermalizer will maintain water temperature above 150 F˚
(66 C) which can cause severe˚burns. ALLOW METAL SURFACES TO COOL BEFORE
CLEANING THE RETHERMALIZER which can cause severe burns.
B. DESCRIPTION
The Electric Ultratherm 3 Rethermalizer was designed by Ultra-
fryer Systems to operate as a commercial warmer to thaw, heat
and hold frozen products such as rice, macaroni and beans for up
to eight (8) hours. It is constructed from 16 and 18 gauge type
304 stainless steel with a #3 finish and is built as a table model.
The Model REO-1620 Electric Ultratherm 3 Rethermalizer is
equipped with a Thermostat, twin stainless steel chub baskets,
self-filling water float valve and a water overflow drain. The
Rethermalizer was designed to accommodate 12 Product Bags
simultaneously. Each chub basket may be divided into six (6)
compartments separated by the stainless dividers provided with the baskets. Embossed on the

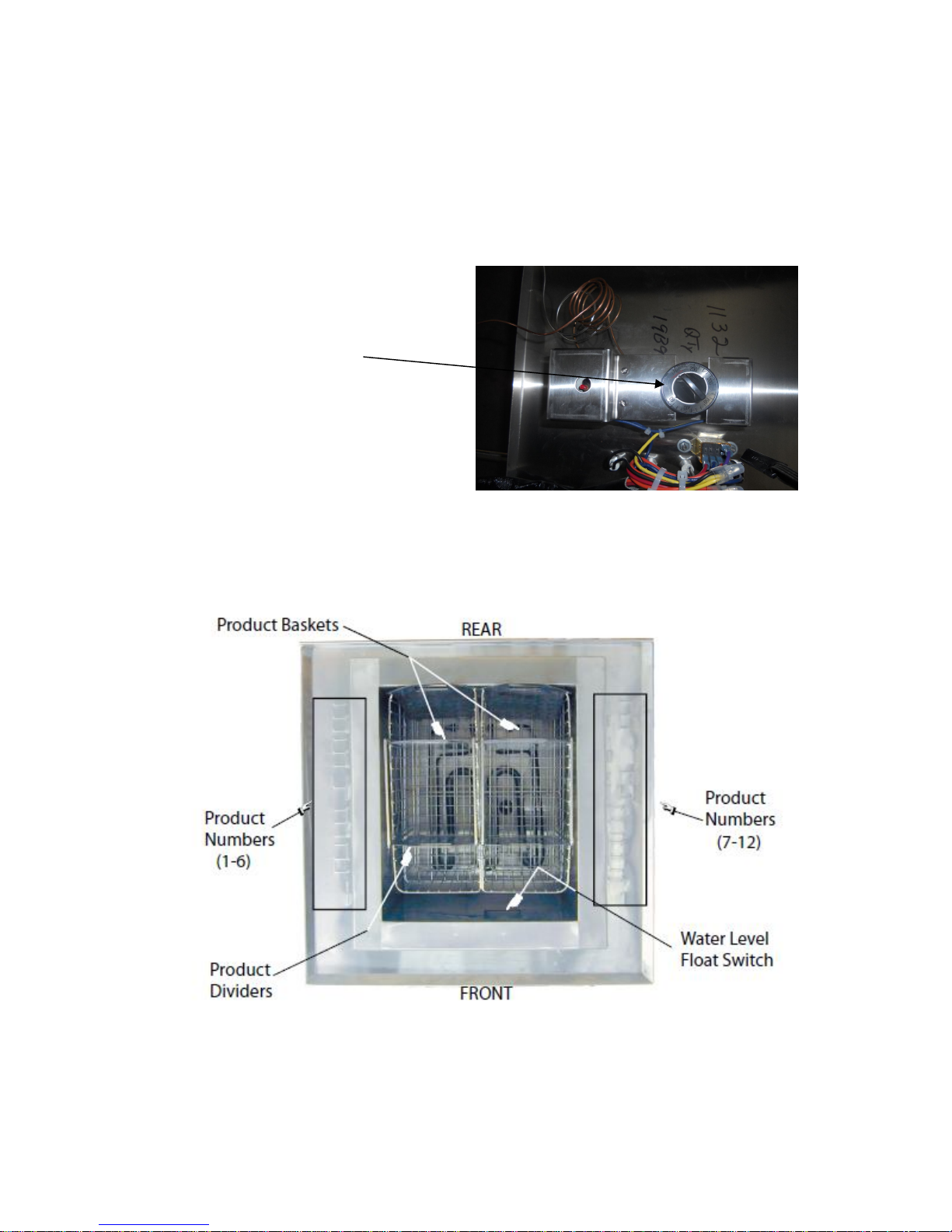

Top Rim of the Rethermalizer are the numerals with 1-6 on the left and 7-12 on the right.
C: SPECIFICATIONS:
Dimensions Width Depth Height
30” (762 mm) 29” (737 mm) 37 1/2” (953 mm)
Capacity 16 Gallons (60L)
Shipping Weight 181 LB (82 Kg)
ELECTRICAL
Double Element 240V 9.8 KW, 42.6 Amps 50 Hz Single Phase
30A243
9
Water Inlet Pressure range is as follows: Min: 34.5 kPa (5psi)
Max : 930.8 kPa (135 psi)
Caution: Do not exceed maximum pressure.

30A243
INSTALLATION
10

A. INSTALLATION
1. Place the Rethermalizer in the location where it is to be operated.
2. Have a licensed plumber level the Rethermalizer and connect a 12" (13 mm) copper water line equipped⁄
with a WATER SHUT-OFF VALVE to the WATER SOLENOID VALVE mounted to the rear of the
Rethermalizer.
3. NOTE: A provision for all pole disconnection from supply mains must be incorporated for fixed
wiring
NOTE: Water hardness may affect the performance and longevity of component parts coming
in direct contact with the water. Therefore, the local water supplier should be contacted
to determine if the water to be used with the appliance
should be treated with a filter, strainer, softener, and/or des-
caler.
3. Have a licensed electrician perform the following:
a. Connect an CE approved 3 wire electrical cord
to the terminals inside the units electrical box shown to the
right:
b. Install an approved electrical plug on the electrical cord.
c. Install a “mating” rated electrical receptacle on the
wall behind the Rethermalizer operating location.
d. Connect the building ground to the ground lug located on the
outside of the unit.
4. Test the Rethermalizer as follows:
a. Ensure the controls listed below are in the proper position:
1. APPLICABLE CIRCUIT BREAKER IS ON
2. ELECTRICAL PLUG IS CONNECTED TO THE
ELECTRICAL WALL RECEPTACLE
3.
WATER
SHUT-OFF
VALVE IS
OPEN
4.
DRAIN
VALVE LEVER IS
CLOSED
GROUND LUG
TERMINALS
ON/OFF
SWITCH
GREEN
WATER
LEVEL
THERMOSTAT TEMPERATURE DIAL
RED HEAT INDICATOR HI LIMIT SWITCH
30A243
AMBER POWER ON LED
FRONT PANEL (FRONT &BACK)
11

CLEANING
30A243
12

A. CLEANING
1. INITIAL CLEANING
A. Remove and THOROUGHLY wash the following items in a 3 compartment sink with
HOT water and soap, rinse these parts with HOT water and allow them to air dry:
STAINLESS STEEL CHUB BASKET
STAINLESS STEEL BASKET DIVIDERS
STAINLESS STEEL TUB GRILL
B. THOROUGHLY wash the Rethermalizer tub with HOT water and soap; then rinse the tub
with HOT water and allow it to air dry.
C. Wipe the top, side and front surfaces of the Rethermalizer with a HOT damp cloth.
D. When the chub baskets, dividers, grill and tub are dry, replace the grill , baskets and
dividers into the tub.
2. DAILY CLEANING
A.. Prepare a six (6) quart (5.7 liters) container of sanitized warm water, in the proper ratio, for
use in cleaning soiled surfaces.
B. Periodically throughout the day soak a cloth towel in the sanitized solution, wring out the
towel until it is damp and clean any soiled surface.
C. Perform the following routines at store closing:
1) Allow ALL metal surfaces and the water to COOL, remove the electrical plug
from the electrical receptacle, and CAREFULLY drain the water from the Rether
malizer tub.
2) Remove the two (2) Chub baskets, dividers, and grill from the Rethermalizer tub;
wash them with dish wash solution, THOROUGHLY rinse; and allow these items
to air dry.
3) Clean the Rethermalizer tub with dish wash solution, THOROUGHLY rinse and
allow it to air dry.
4) Clean all exterior surfaces with a reusable towel dampened with sanitizer and buff
dry.
5) Reassemble the Rethermalizer.
3. WEEKLY
A. Perform daily cleaning routines listed above.
B Place the Chub Baskets, Dividers, and Grill in a fryer with BOIL-OUT SOLUTION for
cleaning.
C. After the baskets, dividers, and grill have been cleaned ENSURE they are THOR-
OUGHLY sprayed with a solution of 1 PART vinegar to 25 PARTS water to NEUTRAL
IZE the boil-out solution; then allow these items to air dry.
D. Reassemble the Rethermalizer.
CAUTION: ALLOW ALL METAL SURFACES OF THE RETHERMALIZER TO COOL PRIOR TO
PROCEEDING.
30A243
13

RETHERMALIZER OPERATION
14

A. GENERAL
1. THERMOSTAT - The Model S-23-48 Robertshaw SPST Thermostat Temperature Dial can
be adjusted to heat water in the Rethermalizer tub from 60 F (16 C) to 212 F (100 C). The˚ ˚ ˚ ˚
recommended COOK temperature is 180 F (82 C) and the suggested˚ ˚ HOLD temperature is
180 F (82 C). The Thermostat is located on the backside of the front panel.˚ ˚
B. COOKING—THE FOLLOWING STEPS MUST BE PERFORMED TO START A COOK
CYCLE.
THERMOSTAT TEMPERATURE
DIAL
30A243
15

B. CONTINUED
ITEM ACTION RESPONSE
1 Ensure the Drain Valve
Lever is in the CLOSED
position; then OPEN the
water shut-off valve to the
Rethermalizer.
A. Water will not begin to fill the tank until the solenoid valve is activated
by the toggle switch.
2 Turn the Toggle ON/OFF
switch to the ON position. A. The AMBER power lamp will LIGHT. B. The GREEN water flow lamp will LIGHT.
C. Water will begin flowing into the Rethermalizer tub.
D. When water reaches the fill level, the water flow will STOP. The
FLOAT of the Liquid Level Switch will shut off the solenoid valve and
the GREEN lamp will turn OFF.
3 When the GREEN lamp
turns OFF, electrical power
will be applied to the ther-
mostat to start heating the
water to 180 F (82 C).˚ ˚
A. The RED Heat Element Indicator Lamp will LIGHT indicating electrical
power has been connected to the heat elements to heat the water.
THE RECOMMENDED HOLD TEMPERATURE IS 180 F (82 C).˚ ˚
4 When the RED heat ele-
ment indicator lamp turns
OFF indication the water is
at the desired HOLD tem-
perature: 1) place the prod-
uct to be cooked into the
appropriately NUMBERED
section of the Chub Baskets
Time the products corre-
sponding to the numbered
sections.
The HOLD time of that product will need to be activated on a timing
device.
B. When product is placed into the water, the water temperature will
DROP and the RED lamp will cycle ON and OFF, indicating the heat
elements are being turned ON and OFF to maintain water at the desired
HOLD TEMPERATURE.
Note: The rethermalizer is designed to thaw pre-cooked, pre-frozen product,
and HOLD the product until it is ready to be used once the product reaches
the holding temperature.
5 As the HOLD time for each
product expires: A. Remove the product when ready
6 Repeat steps 4 & 5 (above)
to cook additional products.
CAUTION: WATER LEVEL WILL DROP ABOUT 4" (102 mm) EVERY 4 HOURS DUE TO EVAPO-
RATION. VISUALLY CHECK THE RETHERMALIZER TUB PERIODICALLY TO AS-
SURE WATER IS ABOVE THE HEAT ELEMENT AND THE PRODUCT IS BEING
HEATED OR HELD SATISFACTORILY.
30A243
16

30A243
PREVENTIVE MAINTENANCE & TROUBLESHOOTING CHART
17

A. PREVENTIVE MAINTENANCE - Although the Rethermalizer only requires minimal preventive mainte-
nance, the need to keep it clean cannot be over-stressed. The food product comes in bags, but food may come
in contact with the inside of the unit and MUST be THOROUGHLY cleaned each evening. If the Rethermal-
izer is kept clean and the following inspections are performed, this unit will provide many years of trouble free
service.
B. INSPECTION REQUIREMENTS
ITEM DAILY WEEKLY MONTHLY CORRECTIVE ACTION
Electrical
Plug, Cord,
and Toggle
ON/OFF
Switch
X Inspect the Electrical Cord, Plug, and the Toggle ON/OFF
Switch for and physical damage. Replace damaged item.
Chub Basket,
Divider, and
Grill
X Inspect the Chub Basket, Divider and Grill for damage
(broken welds, burrs, sharp edges that would tear chub
bags). If applicable order and/or replace damaged items.
Drain Lever
and Float X Inspect the drain lever and float for free movements and check for accumulation of debris.
30A243
18

C. TROUBLESHOOTING CHART
D. RECOMMENDED SPARE PARTS: To minimize downtime on this Rethermalizer upon a failure, at least
one (1) of the following items should be kept in stock as a spare part in the local area:
PROBLEM PROBLEM CAUSE CORRECTIVE ACTION
Water will
not flow into
Rethermal-
izer Tub
A. Water shut-off valve in the closed position.
B. Electrical plug not connected to electrical
receptacle.
C. ON/OFF switch in the OFF position.
D. Circuit breaker in the main electrical panel
tripped.
E. Defective ON/OFF switch.
F. Defective water float liquid level switch.
G. Defective water solenoid valve.
A. Place shut-off valve in the open position.
B. Connect plug to receptacle.
C. Place switch in the ON position.
D. Reset circuit breaker and check for cause that
made breaker trip.
E. Replace Toggle ON/OFF switch.
F. Replace water float liquid level switch.
G. Replace water solenoid valve.
Water fills
to the float
level but is
not heated.
A. Defective control relay.
B. Defective Thermostat.
C. Defective heat element contactor.
D. Defective heat elements.
A. Replace control relay.
B. Replace Thermostat.
C. Replace heat element contactor.
D. Replace heat element.
GREEN fill
lamp lights
but there is
no water
flow.
A. Water shut-off valve closed.
B. Defective water float liquid level switch
C. Defective water solenoid valve.
A. Turn valve to open position.
B. Replace water float liquid level switch.
C. Replace water solenoid valve.
30A243
RECOMMENDED SPARE PARTS
ULTRATHERM 3 MODEL REO-1620 RETHERMALIZER
DESCRIPTION PART NUMBER
Liquid Level Float Switch 18A004
240 Control Relay 60A014
230 SPST Water Solenoid Valve 24348
230V Contactor , Mechanical 3 Pole 18A106
30 AMP, 120-277 VAC 2 Pole 60 F (16 C) to 250 F˚ ˚ ˚
(121 C) Thermostat˚22A148
19

PARTS INDENTIFICATION
30A243
20
