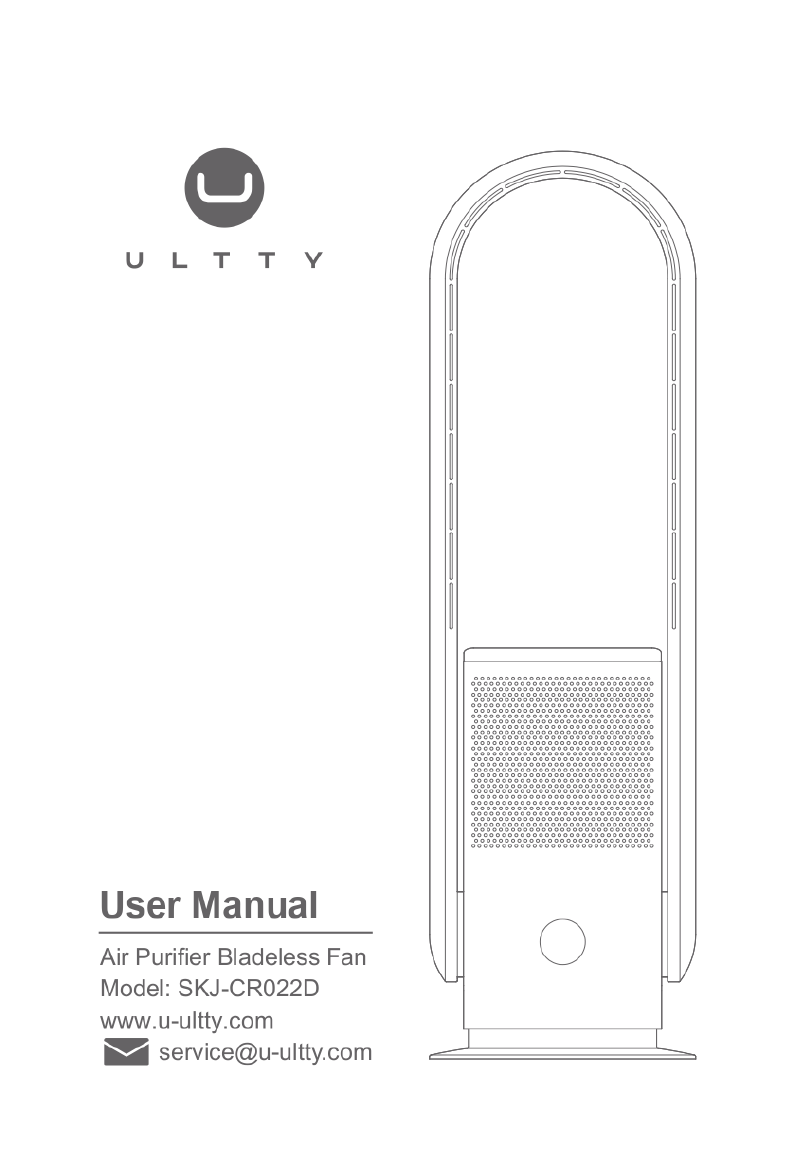

ULTTY SKJ-CR022D User manual

ULTTYVY
User Manual
Air Purifier Bladeless Fan Q
Model: SKJ-CR022D
www.u-ultty.com
B [email protected] P EE——

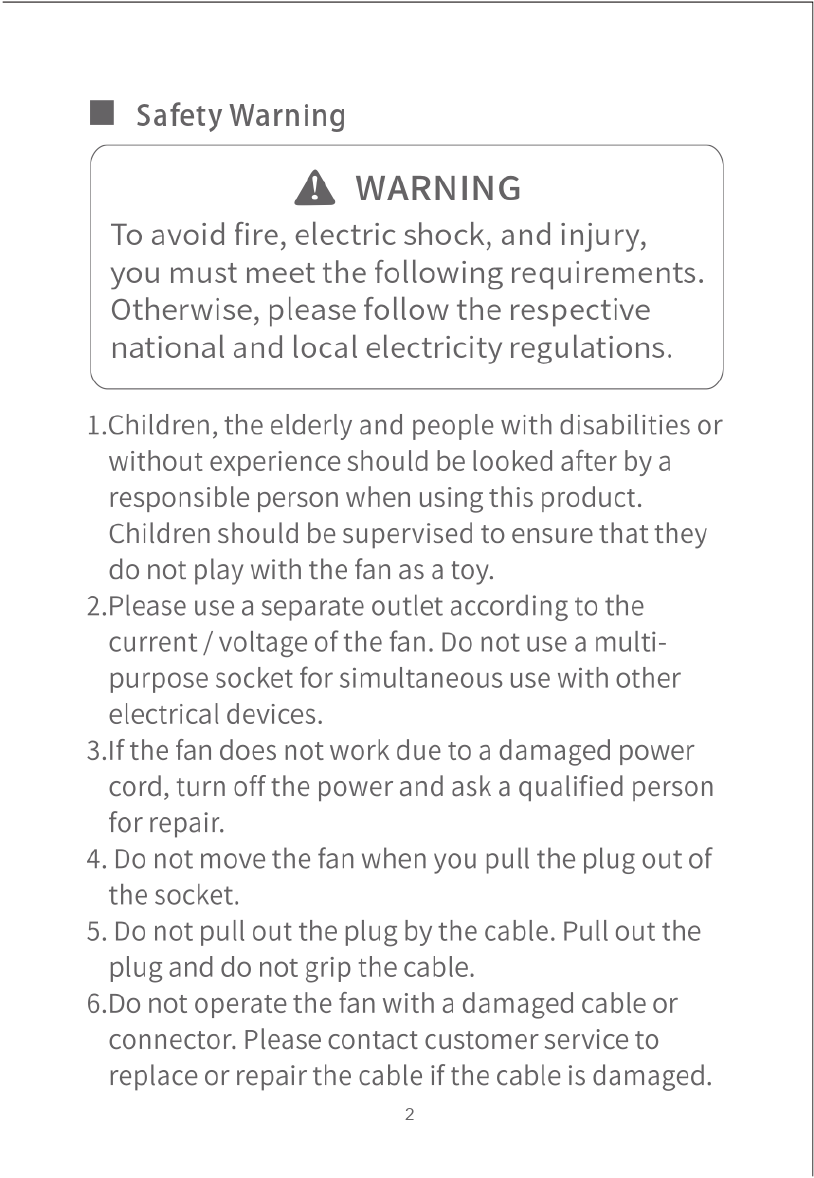

B Safety Warning
A WARNING
To avoid fire, electric shock, and injury,
you must meet the following requirements.
Otherwise, please follow the respective
national and local electricity regulations.
1.Children, the elderly and people with disabilities or
without experience should be looked after by a
responsible person when using this product.
Children should be supervised to ensure that they
do not play with the fan as a toy.
2.Please use a separate outlet according to the
current / voltage of the fan. Do not use a multi-
purpose socket for simultaneous use with other
electrical devices.
3.If the fan does not work due to a damaged power
cord, turn off the power and ask a qualified person
for repair.
4. Do not move the fan when you pull the plug out of
the socket.
5. Do not pull out the plug by the cable. Pull out the
plug and do not grip the cable.
6.Do not operate the fan with a damaged cable or
connector. Please contact customer service to
replace or repair the cable if the cable is damaged.
2

7. Do not stretch or energize the cable. Keep the
cable away from the heat source.
8.Do not run the cable under carpets, do not cover it
with carpets or similar covers. Route the cable
outside the traffic area to avoid tripping the cable.
9.Turn off all controls before pulling the plug and pull
the plug out of the socket if you are not going to
use the device for a long time.
10. Do not place any objects on the airinlet or outlet.
Make sure that the ventilation openings are free of
dust, lint, hair and other obstacles that could
impair the air flow.
11. The fan should be set up dry on a horizontal
platform and should not be near heat sources,
corrosive air and moisture. The fan should be kept
a distance of 150 mm around to ensure good air
circulation.
12. Do not use the fan outdoors or on a wet surface.
13. Do not immerse the fan, power cord, or plugin
water or other liquids to avoid danger. The use of
an extension cord is not recommended unless it
has been tested by a qualified person.
14. Please do not use an air cleaner or similar
product right next to the fan.
15. Do not use any cleaning agents or lubricants for
this fan and pull out the power plug before
cleaning, transporting and servicing the device.
3

B Product introduction
Air outlet
Airduct Air duct
Top cover of Top cover of
air purifier filter air purifier filter
Airinlet Airinlet
Touch buttons
Display O W Host
Power
L o
Base connection
Product S pecifications
ProductName: Air Purifier Bladeless Fan
Model: SKJ-CR022D
Operating voltage/Rated frequency: 100-240V~ 50/60Hz
Oscillation: 80+£5° Rated power: 35W
Size: 235*235*800mm Timer: 1-8H
Rated Voltage: 24V — Weight: 3.45kg
Scope of delivery: host, power supply, operating instructions

H Remote Control
|y Powerbutton:
U Turn the fan on and off
Max mode:
Maximum power
Strong airflow
&* Quiet Mode:
Soft and smooth airflow
Swing:
* Startand stop swing
+ Increase Airflow
— Decrease Airflow
9speed levels to choose from
Sleep Timer
1to8 hours of
timed shutdown
The device can be switched on and off by pressing the
"ON & OFF" button.
Press the "strong wind mode" button on the remote control.
The display will show H and the wind strength will increase.
Press again to exit strong wind mode.
(You can also exit the current mode by pressing the" + - "Exit button.)
Press the "Sleep mode" button on the remote control.
The display shows L and the wind force is reduced.
Press again to exit the night sleep mode.
(You can also exit the current mode by pressing the "+ - "Exit button.)
Press the "Oscillation" button on the remote control to switch on
wA theoscillating function. This fan can swing 80 ° left and right.
Press this button again to end the shaking process.
Press the "+" button on the remote control to increase the air volume.
+ — Pressthe "-" button to decrease the air volume
There are 9-speed settings.
Press the timer button on the remote control to set 1to 8 hours.
After the timer function is set, other functions can be used normally.
When the device is turned off, the timing setting is also canceled
5

M Remote Control
1.Battery replacement method: as shown in the picture.
Please note the battery direction.
| Cr
@[T
2.Battery: ucks
« Do not charge the battery @
7
«NOT a toy, outreach of kids \ J
«If youare swallowed, see a doctor Ei H @
The remote control should be pointed at
the remote control signal receiver on the
display to maximize the remote control
signal.
7
AN
Signal Receiver
Possible phenomenon
1. Thisfan may respond to the remote control of other devices.
2.1f you use the remote control of this fan, other devices may respond.
This is due to the overlapping frequencies of the remote control.
Thereis no quality problem in the product itself. To avoid misuse,
keep the remote controlaway from other electrical devices during
operation.

M Host operation
e
W Airoutlet setting
Setthe wind outlet after fan has stopped.
Hold fan body with one hand and set the wind outlet 15 ° before and after.
B Switchon and off
Connect the power supply, the LED display lights up and the machine
goes into standby mode.
Click the host's power button, the buzzer will beep once and the fan
will start.
Press and hold the power button for 2 seconds, the buzzer will beep
twice and the fan will stop running after you release your hand.
B Setthe airvolume
When the host is operating: Click the button to adjust the airvolume
from1to9.
B Oscillation
When the host is operating, press and hold the screentouch button
for 1second. The buzzer beep once and the fan starts to oscillating.
Press and hold the screentouch button again for 1 second. The buzzer
beep once and the fan stops oscillating.
7

M Installation
’
N ¥\
O away from
N
curtains ~
B Please use the fan on aflat platform. Do not place the fan in an
unstable place, such as aninclined or soft surface, to avoid damage
or malfunctions caused by the fan tipping over.
m Avoid blocking the air inlet when using. Stay away from the curtains
to avoid objects blocking the air inlet and the fan not working.
B Do not place any objects within 30 cm of the air outlet, otherwise
the blower effect will be impaired.

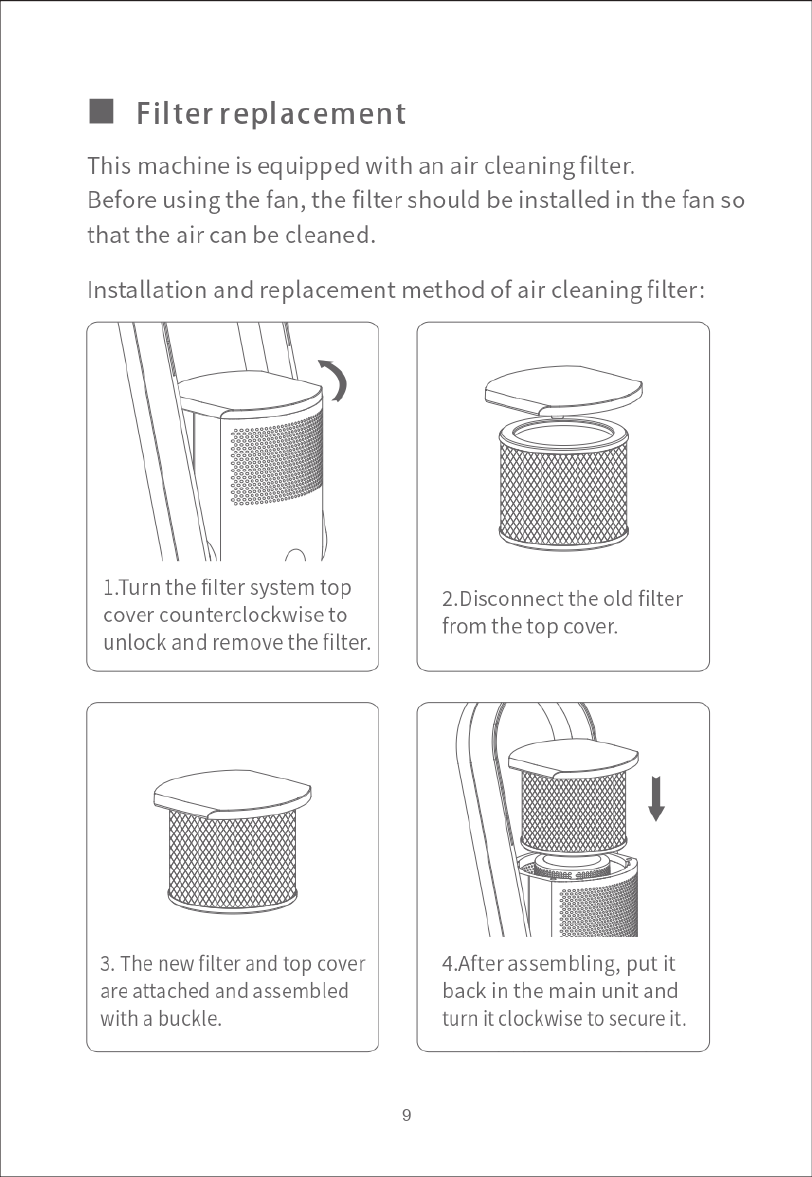

M Filterreplacement
This machine is equipped with an air cleaning filter.
Before using the fan, the filter should be installed in the fan so
that the air can be cleaned.
Installation and replacement method of air cleaning filter:
1.Turn the filter system top
cover counterclockwise to
unlock and remove the filter.
2.Disconnect the old filter
from the top cover.
3. The new filter and top cover
are attached and assembled
with a buckle.
4.After assembling, put it
back inthe main unitand
turn it clockwise to secure it.

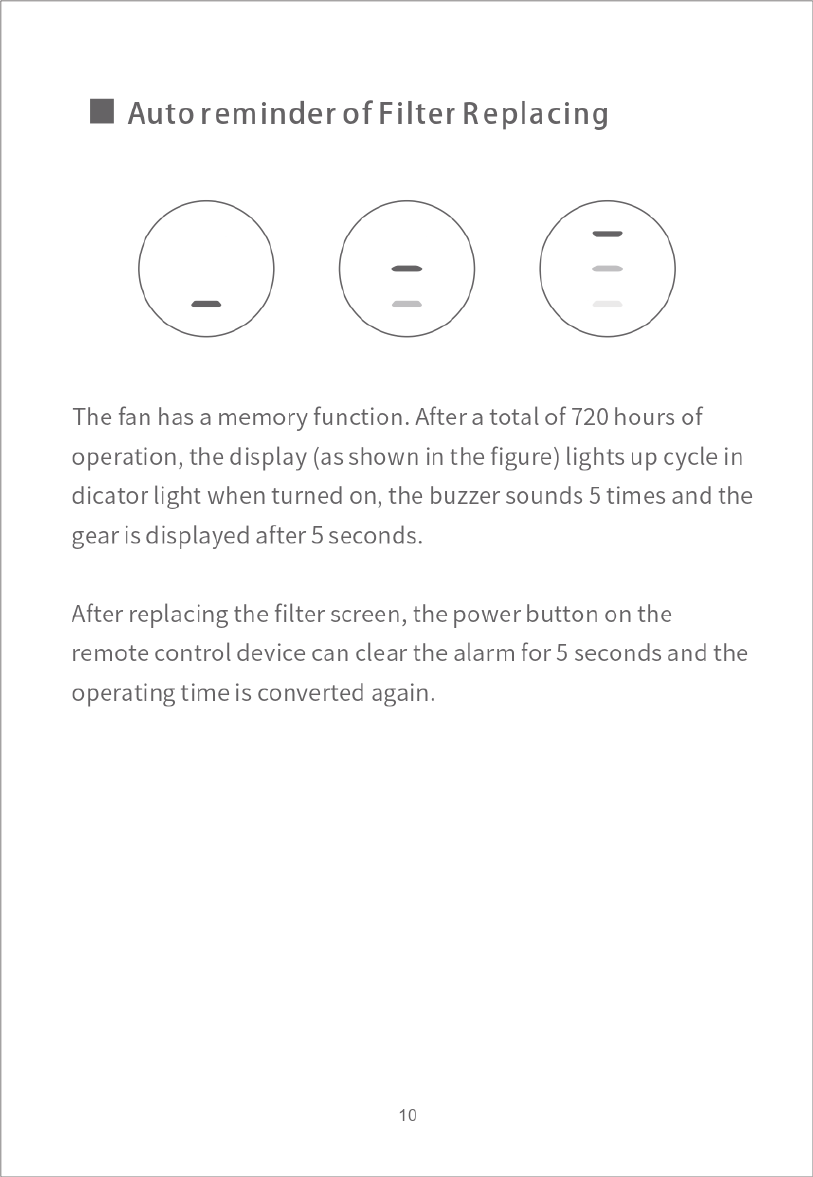

B AutoreminderofFilterReplacing
The fan has a memory function. After a total of 720 hours of
operation, the display (as shown in the figure) lights up cycle in
dicator light when turned on, the buzzer sounds 5 times and the
gearisdisplayed after 5 seconds.
After replacing the filter screen, the power button on the
remote control device can clear the alarm for 5 seconds and the
operating time is converted again.

B Maintenance
W Before maintenance work, pull the mains plug
out of the socket.
m Surface
Gently wipe the fan surface with a soft, dry cloth If the surface
of the fan is dirty, dilute it with a mild detergent and wipe the
surface of the fan with a soft cloth. Then wipe them off with
adry, soft cloth.
B Air inlet & air outlet
Use a soft brush or vacuum cleaner to clean the dust at the
airinlet and outlet. If there is too much dust, this can affect
the fan.
B Remote control
Gently wipe the surface of the remote control with a soft, dry
cloth. If it will not be used for a long time, please remove the
button battery in the remote control.
B Power plug
Please clean the power plug with a soft, dry cloth.
B Safekeeping
1.After the fan has been cleaned, it can
be stored in a plastic bag.
2.Keep away from vibrations and
electrical devices with cooling / heating
function.
3.Do not expose it to direct sunlight,
hot and humid places.
4.Keep out of the reach of kids.
1"

Warranty Card
Name
12 months
Address warranty
Customer
Tel Inspectors
Date
Please fill in the warranty card in detail and stamp the
dealer seal, otherwise it will be invalid.
1.This product is free of charge for service under
normal use within 12 months from the date of purchase.
2.When the warranty card deadline is exceeded and the
parts need to be replaced, the maintenance fee will be
charged as appropriate.
3.During the warranty period, repairs will not be free as Dealer
followings: signature
a. Failure to present warranty card or proof of purchase
(invoice or receipt)
b. Maintenance beyond the warranty period
c. Damage caused by disassembly
d. Damage caused by mistake/negative use (such as
long-term use in harsh environments)
e. Surface aging when in use.
H| Any quality issue please contact us:
-~ Email:[email protected]
www.u-ultty.com
Scan QR Code Get support from ULTTY
