UNAGI One Voyager User manual

Instruction Manual &
Quick Start Guide

Important : Please download the Unagi
Mobile Application to activate and congure
your scooter. Scan the QR code below with
your mobile phone to continue.

Table of Contents
1. Product & Parts..................................................................................................
2. Assembly Guide................................................................................................
3. Folding & Unfolding........................................................................................
4. Charging..............................................................................................................
5. Handlebar & Button Guide............................................................................
6. Dashboard...........................................................................................................
7. Riding Guide.......................................................................................................
8. Warnings............................................................................................................
9. Vehicle Maintenance......................................................................................
10. Specications.................................................................................................
Important: Read instructions carefully and keep for future reference. Only use vehicle in accordance with
local regulations. Only for use by persons over 14 years of age. Protective helmet recommended for use.
Maximum user weight: 100kg. Maximum continuous rated power: 500 watts. Consistent with rear panel.
03
04
05
06
07
08
09
09
13
14
01

1. Product & Parts
02
Light
Dashboard
Power
Silicone Pad
Fender & Mechanical Brake
Motor
Brake light
Throttle
Driving mode
Horn
Brake
Stem
Hinge
Fender
Fork
Motor / Wheel
Deck
Kickstand
Charging port
Charger
Screws
Screw Driver

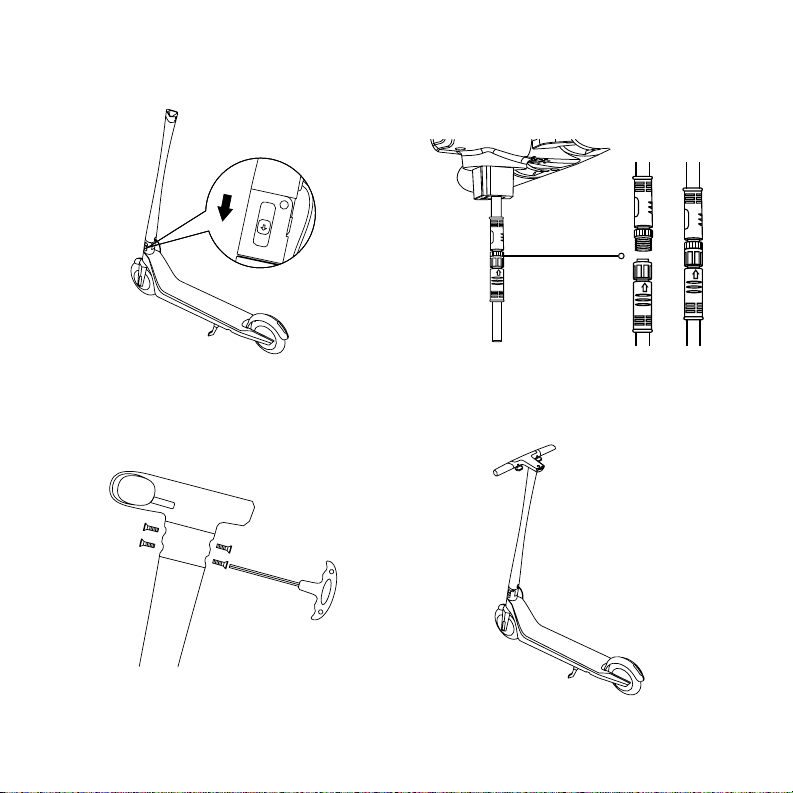

2. Assembly Guide
3. Use screwdriver to install handlebar screws. 4. Turn power on.
2. Connect handlebar and tube cable.1. Press the hinge button down and fold the stem up.
03

1. Press hinge button down. 2. Fold handlebar up.
1.
2.
1. 2.
3.
1. Important: Push tube forward slightly.
2. Press hinge button down. 3. Fold handlebar down.
Important!!!
3. Folding & Unfolding
04
Unagi Models: Riding Modes may vary based on regional regulations. P, 1, 2, 3. Pedestrian Mode (P) not
available in all regions and all models.

4. Charging
1. Plug in the charger. 2. Open deck cover plug in.
4. After charging, close deck cover.
Scooter will not power on if charger is connected.
3. Green light indicates full charge.
05
DC 42V

Horn
5. Handlebar & Button Guide

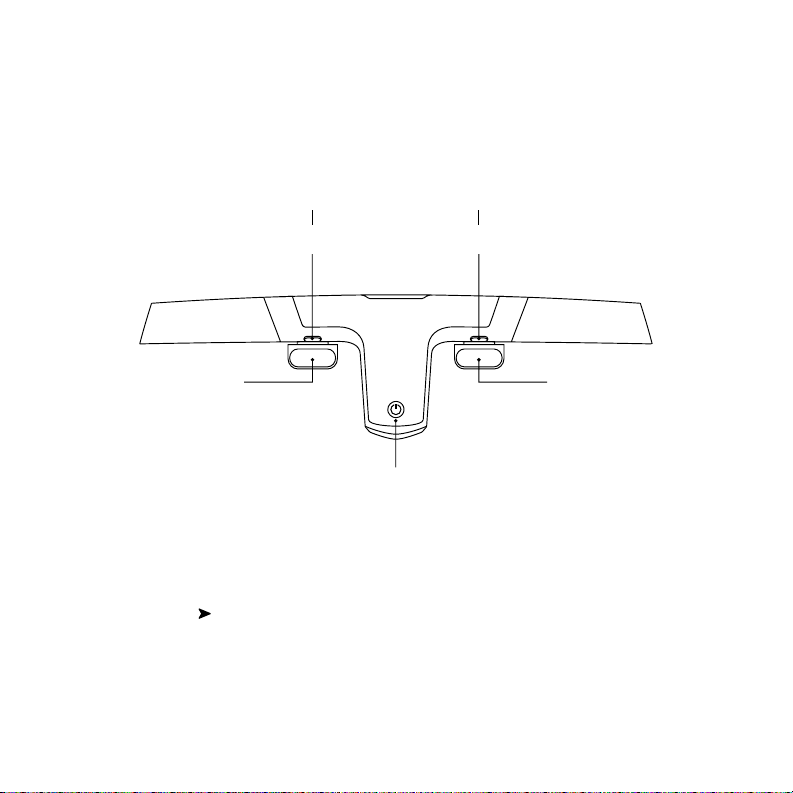

A Power (On/Off): Press and hold for 3 seconds. Motor
will automatically turn off after 3 minutes if not in use.
B Light (On/Off): Click to activate or deactivate the light.
C Press 2 times to alternate between single/dual motor mode.
The dual motor icon will be displayed on screen when activated.
Odometer Mode: Press the Horn button and the Riding mode
button for 2 seconds simultaneously to switch
between miles and kilometers.
Click to switch between trip mileage
and total milage
Double click to change mode
Press and hold to activate the horn
Release to turn off the horn
Brake
Power
A / B / C
Throttle
Riding Mode
06

6. Dashboard
07
Beginner (Eco-mode)
Riding Experience: soft and smooth
Maximum Speed: 9.3mph
Intermediate (Standard mode)
Riding Experience: balanced
Maximum Speed: 12.4mph
Pedestrian Mode
Riding Experience: Sidewalk
and pedestrian area operation.
Maximum Speed: 3.7mph - Optional
Advanced Mode (Sport Mode)
Riding Experience: a lot of power
Maximum Speed: 15.5mph
Light On/Off
Speed
Signle/Dual Motor Mode
Bluetooth Active
Scooter Locked
Connect to Unagi App
Maintenance Required
Distance Traveled
Battery Power
Pedestrian Mode

7. Riding Guide

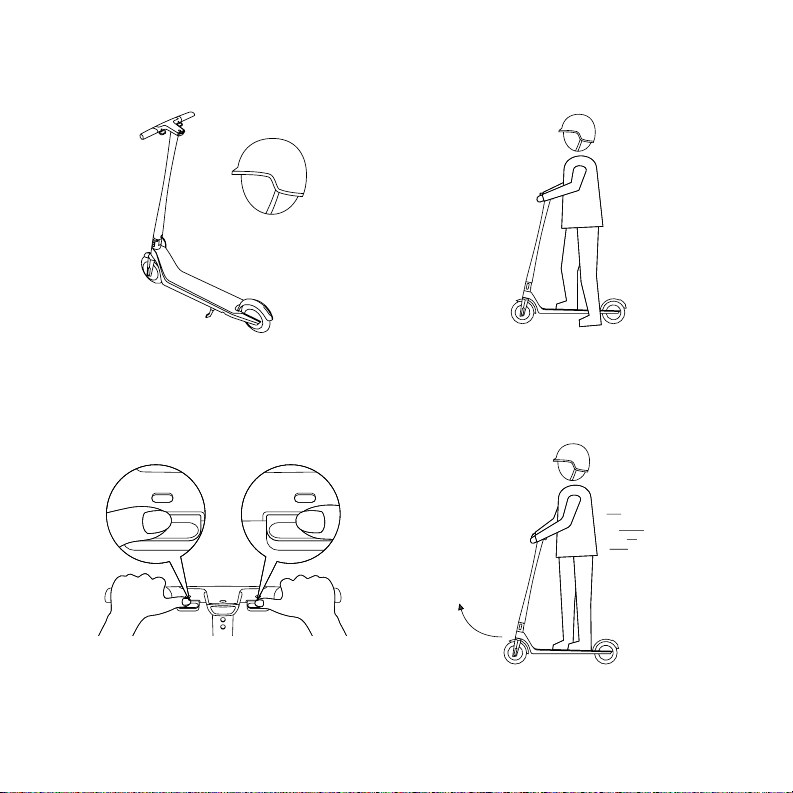

1. Please wear a helmet when riding. Check the dash-
board after turning it on. Make sure you are using the
beginner mode when you rst start to ride.
3. Put both feet on the deck after the scooter starts mov-
ing, and push gas gently. Brake when needed.
2. Start your ride on a at surface, put one leg
on the deck the other one on the ground.
Kick the ground to start.
4. Slow down when turning, turn you body and
handlebar slightly to the same direction you are turning
the scooter.
08

7. Riding Guide
8. Warnings
6. Slow down for turns, turning your body and
handlebar in the direction you want to turn.
5. Use the thumb lever as your primary brake. It activates
the rear brake light. The rear fender step brake can be used
as needed, but does not activate the brake light.
09
Protective helmet and shoes are recommended for use. Take time to learn the basics of riding to avoid
any serious accidents.

Use the horn when approaching a pedestrian
or cyclist when you are not seen or heard.
Respect all trafc laws and watch for pedestrians.
8. Warnings

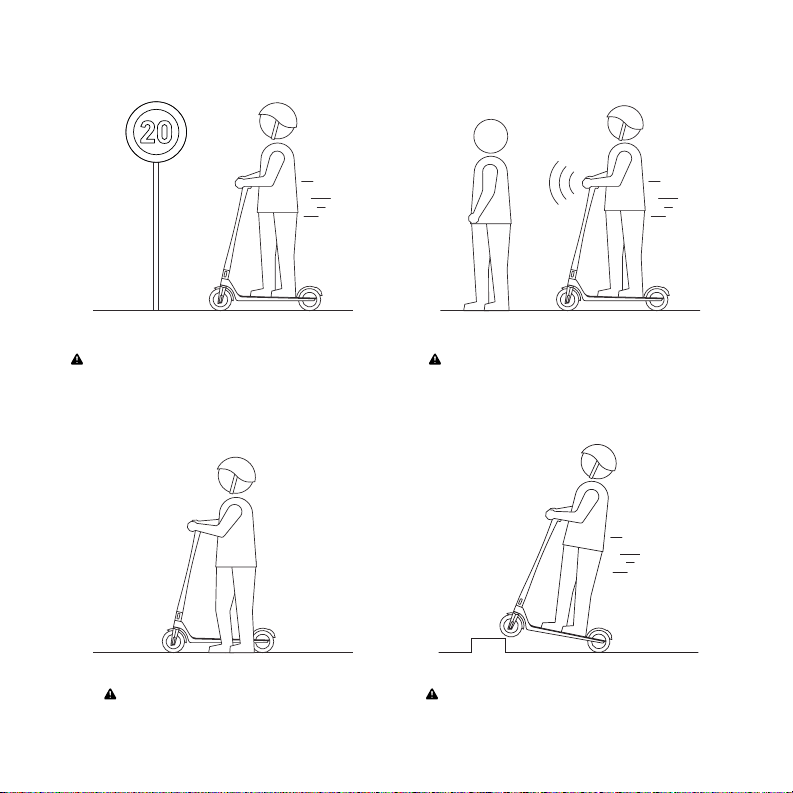

Walk your scooter across crosswalks. Do not jump obstacles such as curbs or steps.
Carry the scooter down stairs or roll it down curbs.
10

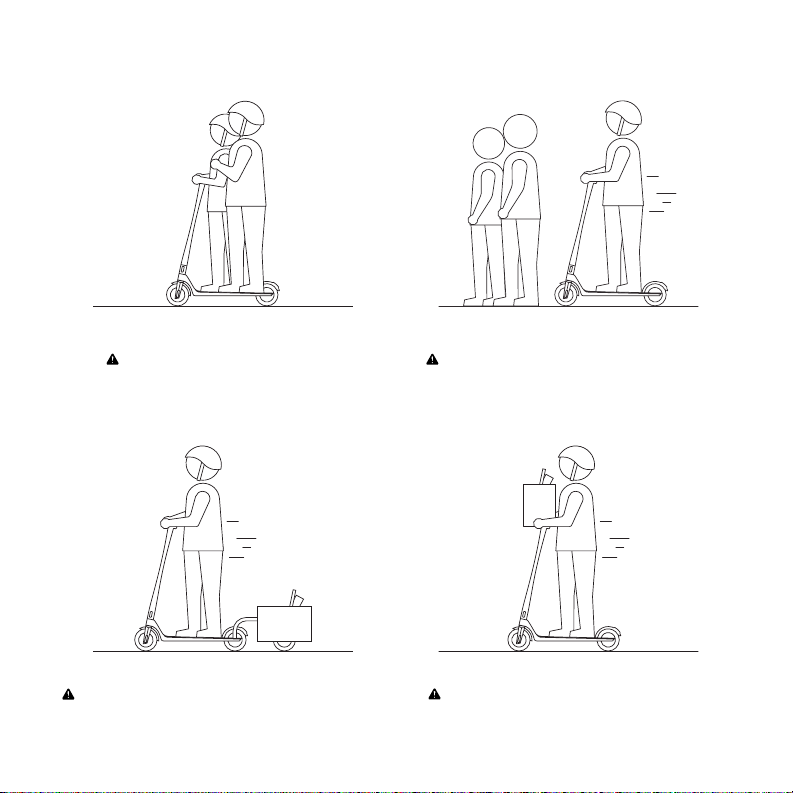

Vehicle is intended for only one rider
Use of unauthorized accessories not recommended. Any load attached to the handlebar will affect
the stability of the vehicle
8. Warnings
Avoid high trafc areas or overcrowded areas.
11

Use reective clothing and lights
when riding after dark.
Use only on smooth, paved surfaces.
Riding in wet conditions not recommended. You may use a long shackle u-lock to secure
the scooter as shown in this gure.
8. Warnings
12

Pre Ride Check
• Tires are intact with no damage
• Rear brake operates smoothly
• Handlebar can be turned smoothly from side to side
If the slider for the folding mechanism begins to bind, you may apply a light amount of graphite
lubricant to the slider and the surfaces that it touches.
Do not modify or transform the vehicle, including the steering tube and sleeve, stem, folding mecha-
nism and rear brake.
For all other services, please contact your dealer or check our website for instructions on locating a
service center. You may also email us at [e-mail]
Safety Warnings
Please follow the instructions provided with the vehicle. Ride safely and under control at all times. Do
not take your hands off the handlebar while in motion. Always wear a helmet and obey local trafc
laws.
To reduce the risk of injury, user must read instruction manual. Prolonged exposure to UV rays, rain
and the elements may damage the enclosure materials. Store indoors when not in use. Risk of re,
no user serviceable parts. Use only with specied charger in instructions.
As with any mechanical component, your Unagi scooter is subject to high stresses and wear. The
various materials and components may react differently to wear or fatigue. If the expected service
life for a component has been exceeded, it may break suddenly, therefore risking causing injuries to
the user. Cracks in the areas subject to high stresses indicate that the component has exceeded its
service life and should be replaced.
9. Vehicle Maintenance
13

14
10. Specications
Product Information
Product Name: Model One Voyager丨Single-Motor
Model Number: 1211
Vehicle Weight: 13.3kg
Vehicle Size: 111(H) *97(L)*41(W) cm
Rider Limit: 35-100kg/ Age 14+
Input Voltage: 42V/3.0A
Max Speed: 25km/h or 20km/h depending on the
country regulation
Battery Specifications: 36VDC/10.0 Ah/360 Wh
Capacity Charing Temperature:0-25 degree C
Operating Temperature Range:-10~40 degree C
Storage Temperature: -20~50 degree C
Charging Time: 4 hours
IP Rating: IPX4
Battery Information
Manufacturer: Dongguan Hangneng Technology Co., Ltd
Type: Lithium Ion/ 21700 Cells
Nominal Voltage: 36VDC
Charging Voltage: 42VDC
Rated Capacity: 10.0 Ah/360Wh
Short circuit prevention
Under voltage / Over current protection
Over charge / discharger protection
Automatic sleep
Note: Not user serviceable
Charger Information
Manufacturer: Shenzhen Fuyuandian Power Co., Ltd
Model: FY1384203000
Input: 100-240V/AC 50/60Hz
Output: DC 42V/3.0A
Polarity: +Center
Note: Only use the official charger supplied with the vehicle
Compliance Information
Important FCC IC Information
FCC Compliance Statement for USA
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
FCC Note
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Industry Canada (IC) Compliance Statement for Canada
This device complies with Industry Canada license-exempt RSS standard (s).
Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:(1)l'appareil ne doit pas produire de brouillage, et
(2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement
This product complies with the IC RF exposure limit set forth for an uncontrolled
environment and is safe for intended operation as described in this manual.
Bluetooth Information
Please scan the QR code on page 2, download the corresponding
APP as required, and then follow the prompts to connect
Ce produit est conforme aux environnements non contrôlés spécifiés dans les limites d’exposition aux rf
d’ic et est sécuritaire pour les opérations prévues décrites dans ce manuel.
1. After power-on, long press the Bluetooth button , the player will turn
on the Bluetooth mode, and the Bluetooth identification light on the
right side of the display screen will light up and flash to remind you.
2. Enable the Bluetooth function, search for Bluetooth 1221, and click
Connect.
3. When the Bluetooth indicator on the LCD stops blinking and turns
to steady on, the Bluetooth device is connected
