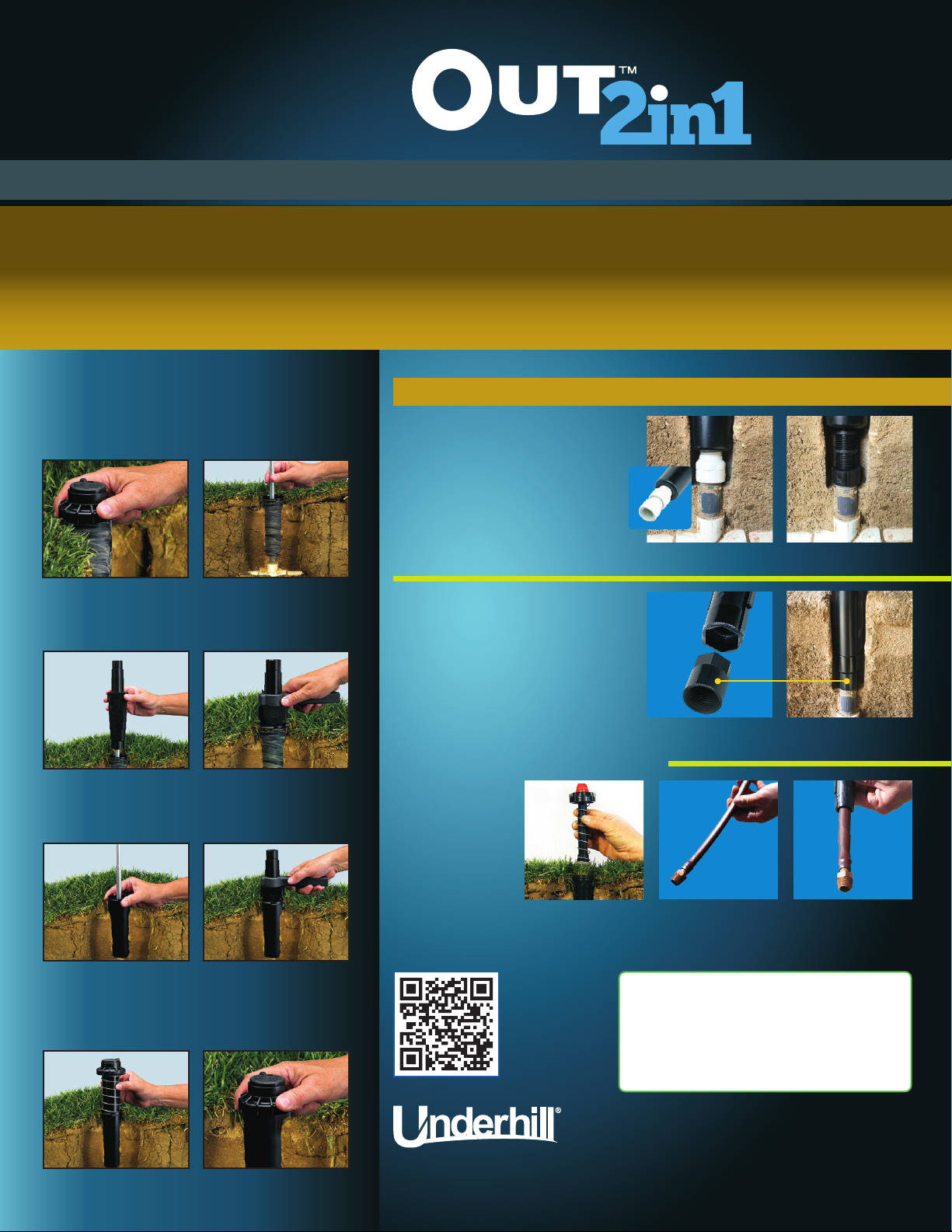

Underhill EasyOut 2in1 A-EO-05EC User manual

SPRINKLER REMOVAL TOOL
FOR ROTORS & SPRAY HEADS
Easy
The Ultimate Tool for Repairs & Modifications
It’s as Easy as 1-2-3-4!
Sprinkler Removal & Replace
No Digging
No Damage
to Turf
Saves Time
and Money
TELESCOPING ROD
minimizes dirt from
entering fitting
guides sprinkler body
SPECIAL ASSIST
TORQUE WRENCH
CLIP STRIP
TO COME

Place tool over rod and inside sprinkler body
Rotate tool counter clockwise to remove body
STEP 2
Remove cap and inside components
Insert telescopic rod to desired length into sprinkler body & fitting
STEP 1
STEP 3
Place new sprinkler body over rod and into ground
Push down and rotate tool clockwise to connect sprinkler
body to pipe and remove rod
STEP 4
Replace new sprinkler components and cap
THE ULTIMATE ALL-IN-ONE DEVICE FOR REPAIRS/MODIFICATIONS
RAISE SPRINKLER
•
OPTION
It’s a snap with EasyOut™…
Easily increase the spray head height
to grade by removing the sprinkler and
screw on a standard PVC or Cut-Off
fitting to the bottom of the sprinkler. 2
options to choose from. Add additional
PVC fittings to increase height.
Remove existing sprinkler Attach drip tubing to 7mm
barb drip fitting
Pass drip tubing through tool,
Attach drip fitting to Hex on
tool, Screw drip fitting/tubing
to pipe
Converting spray heads
to drip using EasyOut™
tool is simple and fast.
SPRAY HEAD DRIP CONVERSION • OPTION
Scan for more info:
UNDERHILL INTERNATIONAL CORP.
www.underhill.us • tel: [phone]
Easy
SPRINKLER REMOVAL TOOL FOR ROTORS & SPRAY HEADS
Fits Major Spray Head( ½˝ inlet ) BrandsRotors
(¾˝ inlet)
&
Hunter
Rain Bird
Toro
K-Rain
Irritrol
Weathermatic
Hydro-Rain
Orbit
Fits all bodies with max 2½˝ I.D.
Remove & Replace
Heads in minutes
or less
3
EasyCap™makes plugging off any
unwanted sprinklers super easy & fast…
A BIG labor savings.
Remove spray head and insert the
EasyCap™fitting (part # A-EO-05EC) to
the bottom of the EasyOut™ tool and
screw in the EasyCap™fitting…that’s it!
SPRAY HEAD CAP-OFF
•
OPTION ½˝
NPT
ordering
Part #:
A-EO-05EC EasyCap™½” female FPT fitting
A-EO-SRT-RS EasyOut™2in1 Sprinkler Removal
Tool for Rotors & Spray Heads
