unGer HydroPower RO35C User manual

T
RO35C
1
OPERATING INSTRUCTIONS
V1.0 04/20
ENGLISH
READ THE OPERATING
INSTRUCTIONS BEFORE SWITCHING
ON THE SYSTEM!
KEEP IT IN THE IMMEDIATE VICINITY
OF THE MACHINE AT ALL TIMES!
Original operating instructions

T
www.ungerglobal.com
2
HydroPower® RO35C
Content
1 Introduction................................................................................................................ 4
1.1 General information............................................................................................. 4
1.2 Intellectual and industrial property rights .......................................................... 4
1.3 Property and legal deficiencies ........................................................................... 4
1.4 Explanation of signs............................................................................................. 5
1.4.1 Instructions for use..................................................................................... 5
1.4.2 Enumerations ............................................................................................. 5
1.4.3 Hazard classes ............................................................................................ 6
1.4.4 Warning signs.............................................................................................. 7
1.4.5 Mandatory signs.......................................................................................... 7
1.5 Nameplate............................................................................................................ 8
1.6 Obligation of the operator.................................................................................... 8
1.7 Obligation of personnel........................................................................................ 8
1.7.1 Requirements for staff................................................................................ 8
1.7.2 Training of staff ........................................................................................... 9
1.8 Storing the operating instructions ...................................................................... 9
1.9 Contact addresses ............................................................................................... 9
2 About HydroPower RO ............................................................................................... 10
2.1 Using the HydroPower RO .................................................................................. 10
2.1.1 Intended use................................................................................................ 10
2.1.2 Foreseeable misuse .................................................................................... 10
2.2 Technical specifications....................................................................................... 10
2.2.1 Operating conditions ................................................................................... 10
2.2.2 Electrical specifications .............................................................................. 10
2.2.3 Protection types of electrical components ................................................. 10
2.2.4 Pressure ratings.......................................................................................... 11
2.2.5 Dimensions quick overview ........................................................................ 11
2.2.6 Media connections ...................................................................................... 11
2.2.7 Water quality ............................................................................................... 11
2.2.8 Water output quantity.................................................................................. 11
2.3 Scope of delivery .................................................................................................. 11
3 Safety ........................................................................................................................ 12
3.1 General safety regulations................................................................................... 12
3.1.1 Basic principles........................................................................................... 12
3.1.2 Unit protection and warning processes ...................................................... 12
3.2 Mechanical hazards ............................................................................................. 13
3.3 Electrical hazards ................................................................................................ 13
3.4 Thermal hazards.................................................................................................. 13
3.5 Hazards due to pressure...................................................................................... 13
3.6 Hazards from materials and substances ............................................................ 14

3
HydroPower® RO35C
Content
4 Preparing for use ....................................................................................................... 15
4.1 Construction of the HydroPower RO.................................................................... 15
4.2 Interfaces ............................................................................................................ 15
4.3 Transport and storage ......................................................................................... 16
4.3.1 Transportation ............................................................................................ 16
4.3.2 Storage ...................................................................................................... 17
4.3.3 Operation the HydroPower RO.................................................................... 17
4.4 Commissioning ................................................................................................... 18
5 Operation of the HydroPower RO............................................................................... 20
5.1 General information............................................................................................. 20
5.2 Cleaning surfaces with the HydroPower RO / Normal operation ....................... 21
5.3 Interruption of work............................................................................................. 21
5.4 Switching off the HydroPower RO........................................................................ 21
6 Malfunctions............................................................................................................... 22
6.1 Procedure for accidents....................................................................................... 22
6.2 Procedure for malfunctions................................................................................. 22
7 Maintenance and servicing......................................................................................... 24
7.1 General information............................................................................................. 24
7.2 Maintenance and maintenance plan ................................................................... 25
7.2.1 Daily inspection .......................................................................................... 25
7.2.2 Quarterly examination................................................................................. 25
7.2.3 Monthly examination................................................................................... 25
7.2.4 Membrane protection.................................................................................. 26
7.3 Repair and replacement of parts......................................................................... 27
7.3.1 Replacing filter cartridges .......................................................................... 27
8 Switching off the device.............................................................................................. 29
8.1 Disassembly and storage..................................................................................... 29
8.2 Recycling.............................................................................................................. 30
8.3 Disposal of waste................................................................................................. 30
Proofreading documents ............................................................................................ 32
EC Declaration of Conformity .............................................................................. 32
ENGLISH

T
www.ungerglobal.com
4
HydroPower® RO35C
Introduction
1 Introduction
1.1 General information
This manual allows you to use the HydroPower RO safely and efficiently.
The operating instructions are part of the HydroPower RO and must be kept accessible to the personnel in
the immediate vicinity of the HydroPower RO at all times.
Before starting work, the personnel must have read and understood this manual. All safety instructions
and instructions for use stated in this manual must be followed for safe operation.
The current version of the HydroPower RO is described in this manual. If changes or additions become
necessary over time, the operating instructions will be accompanied by a supplement which will be
incorporated into the next revision.
The respective revision status of the operating instructions is displayed on the cover sheet. The first user
manual has the revision status „1.0“. The status is increased by „1“ for each revision.
1.2 Intellectual and industrial property rights
All contents of this manual are the intellectual property of Unger Germany GmbH and are protected by
copyright law.
The product, as well as the word / image mark, are legally protected.
Any duplication, processing, distribution or transfer to third parties - including, but not limited to - any
kind of exploitation outside of the copyright limits require the written consent of Unger Germany GmbH.
In the case of infringements, Unger Germany GmbH reserves the right to take legal action at any time.
We reserve the right to make changes to this manual, as well as changes to technical details, with regard
to the specifications and illustrations in this manual.
1.3 Property and legal deficiencies
Claims for material and legal deficiencies presuppose that the operator shall submit the defect in writing
without delay, but at the latest within two working days.
Unger Germany GmbH is in no case responsible for damage to the system itself, or damage caused by the
unit due to improper handling of the product.
In particular, Unger Germany GmbH is not responsible for failures or errors caused by modifications to the
unit by the customer or other persons.
If Unger Germany GmbH is responsible for a defect, Unger Germany GmbH shall repair or replace the unit
at its discretion.
Claims for material and legal deficiencies will be nullified in the case of non-compliance with the
individual regulations of this manual, the relevant legal provisions, as well as further recommendations
given by Unger Germany GmbH.

5
HydroPower® RO35C
Explanation of signs
1.4 Explanation of signs
1.4.1 Instructions for use
Instructions for use are shown as follows:
To perform an action, proceed as follows:
1. Do this.
2. Do that.
`This is the intermediate result.
3. Do that.
3You have completed the action.
1.4.2 Enumerations
Enumerations are shown as follows:
• List of first order,
- Second order,
- Second order,
• List of first order.
ENGLISH

T
www.ungerglobal.com
6
HydroPower® RO35C
Explanation of signs
1.4.3 Hazard classes
Safety instructions are shown in this manual with standardized illustrations and symbols. Depending on
the probability of the occurrence and severity of the consquence, the following hazard classes are used:
DANGER
Indicates a hazardous situation that can lead to serious injury or death.
`Here you will find measures to avoid the danger.
CAUTION
Indicates a potentially hazardous situation, which can lead to minor
injuries.
`Here you will find measures to avoid the danger.
ATTENTION
Indicates a situation which can lead to material damage.
`Here you will find measures to prevent material damage.
NOTE
Here you can find application tips and other useful information.

7
HydroPower® RO35C
Explanation of signs
1.4.4 Warning signs
Warning of a hazard.
Warning of electrical voltage.
Warning of overpressure in containers.
Warning of hot surfaces.
Warning of suspended loads.
Warning of injury to the limbs.
1.4.5 Mandatory signs
Application tips and other useful information.
Use protective gloves.
Use safety shoes.
Use protective goggles.
ENGLISH

T
www.ungerglobal.com
8
HydroPower® RO35C
Obligations
1.5 Nameplate

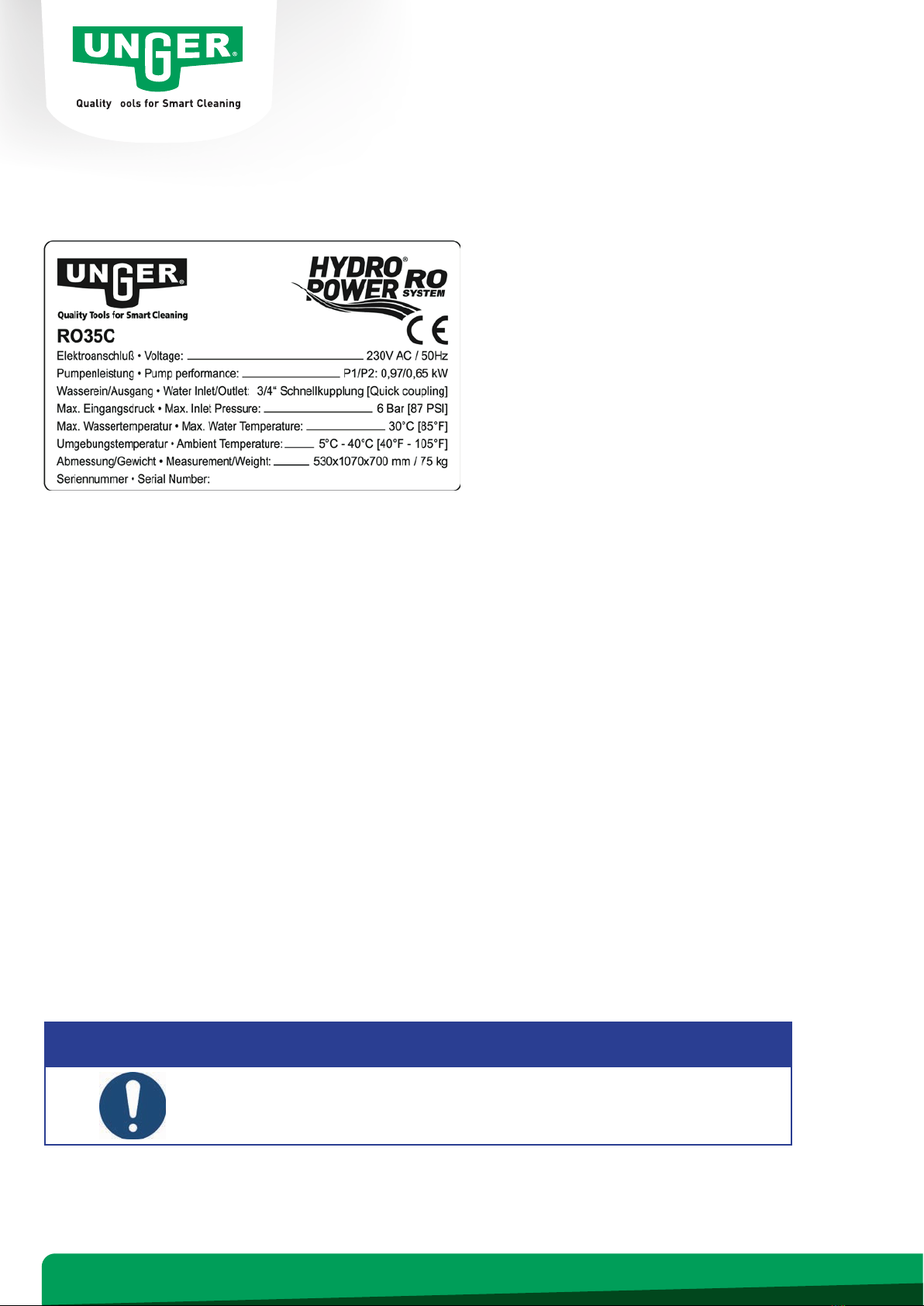

Each HydroPower RO from Unger Germany GmbH has a nameplate on the side.
Pic. 1 Nameplate
1.6 Obligation of the operator
The HydroPower RO is used in the commercial sector. The operator must adhere to the statutory
obligations to work safety.
The operator is obliged to have only persons working on the HydroPower RO that:
• are familiar with the basic regulations on work safety and accident prevention
• have been trained in the handling of the HydroPower RO
• have read and understood the safety instructions and safety regulations in this manual
The operator is obligated to ensure that all warnings on the HydroPower RO are always legible.
1.7 Obligation of personnel
Working with the HydroPower RO is only permitted if the operating instructions have been read and
understood.
1.7.1 Requirements for sta
Only persons who perform their work reliably, should be authorized as personnel for this unit. Persons
whose reactions and judgement are affected, e.g. by drugs, alcohol or medication, are NOT permitted to
operate this unit.
NOTE
The operator is recommended to have this confirmed in writing.

9
HydroPower® RO35C
Obligations
1.7.2 Training for sta
These operating instructions are aimed at staff with the following professional qualifications:
The staff will be able to carry out the tasks assigned to them and to recognize and avoid possible dangers
independently on the basis of their professional training, experience and knowledge, as well as the
knowledge of relevant provisions.
1.8 Storing the operating instructions
This instruction manual must be kept in the immediate vicinity of the HydroPower RO and must be
available to the entire staff at all times. The operator must inform the personnel about the location of
these operating instructions.
If the user manual has become illegible due to constant use, the operator must obtain replacement from
the manufacturer.
These operating instructions can also be downloaded as a PDF at www.ungerglobal.com/downloads.
NOTE
When transferring or reselling the HydroPower RO to third parties, the
following documents must be passed on to the new owner:
`this manual,
`the documentation of the repair work,
`proof of maintenance work.
1.9 Contact address
Unger Germany GmbH
Piepersberg 44
42653 Solingen
Germany
Telefon: (49) 0212 / 22 07–0
Fax: (49) 0212 / 22 07–2 22
[e-mail]
www.ungerglobal.com
ENGLISH

T
www.ungerglobal.com
10
HydroPower® RO35C
Technical specifications
2 About HydroPower RO
2.1 Verwendung des HydroPower RO
2.1.1 Intended use
The HydroPower RO is used for the filtration of drinking water by demineralisation for the purpose of
glass and surface cleaning.
The HydroPower RO is intended for commercial use only.
The HydroPower RO may only be connected to drinking water lines.
2.1.2 Foreseeable misuse
The use of the HydroPower RO in any way other than described in the chapter „2.1.1 Intended use“ is
considered to be non-compliant and thus unlawful.
This applies in particular to the use of the HydroPower RO for bacteria removal.
2.2 Technical specifications
2.2.1 Operating conditions
Ambient temperature [°C] 5 … 40
Water temperature [°C] 5 ... 30
ATTENTION
Material damage due to improper handling.
Ensure that the incoming water corresponds to the national drinking
water regulations.
The drinking water must be free of iron, manganese and heavy metals
(max. 0.2 ml / l iron, 0.05 mg / l manganese), the maximum silicate (SiO2)
content must not exceed 20 mg / l. It must also not contain barium and
strontium.
2.2.2 Electrical specifications
Primary electrical connection [V / Hz] 230 / 50
Power consumption 0,97 kW
2.2.3 Protection types of electrical components
Electric motor IP 54

11
HydroPower® RO35C
Technical specifications
2.2.4 Pressure ratings
Input pressure [bar] 1... 6
Max. operating pressure [bar] 10
2.2.5 Dimensions quick overview
Height [mm] 1070
Width [mm] 530
Depth [mm] 700
Empty weight [kg] 72 kg
2.2.6 Media connections
Standard feedwater connection thread ["] 3/4
Standard concentrate connection thread ["] 3/4
Standard permeate connection thread ["] 2x 3/4
2.2.7 Water quality
Max. salt content in incoming water [ppm] 1000
SiO2content in incoming water [mg/l] 20
2.2.8 Water output quantity
1.
2.
3.
4.
5.
6.
7.
8.
9.

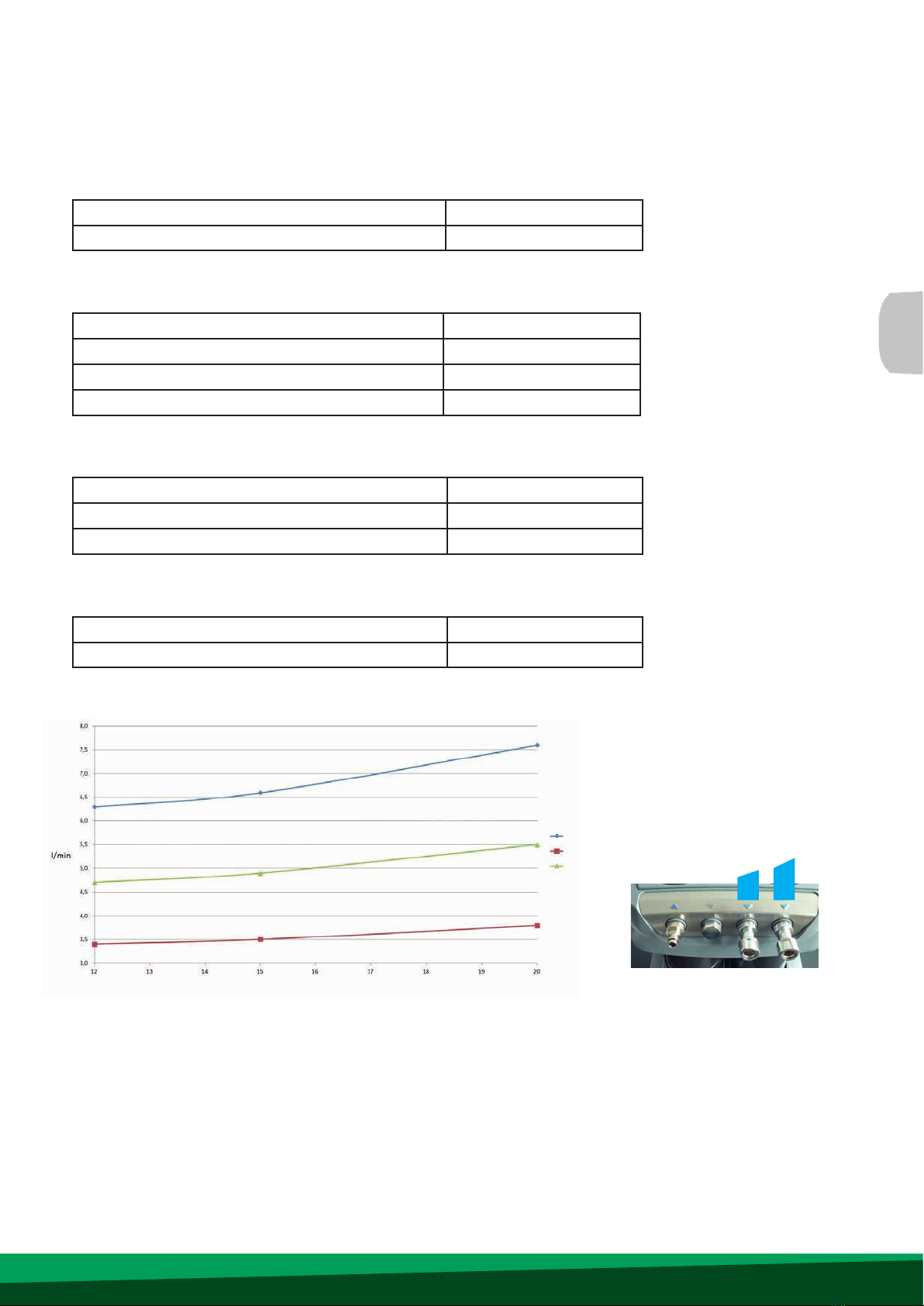

Pic. 2 Dependency of water temperature and hose diameter or number of hoses
Pic. 1a The right water connection receives more water from the membranes than the middle or the left.
Therefore, long hoses or higher poles should be connected to the right connector.
2.3 Scope of delivery
The following is included in each delivery:
• HydroPower RO
• Concentrate hose
• Instruction manual
• Test report
Water output
of the connectors
Pic. 2a
1/2“ Hose
1x nLite hose
2x nLite hoses
Pic. 2
ENGLISH

T
www.ungerglobal.com
12
HydroPower® RO35C
General safety regulations
3 Safety
3.1 General safety regulations
3.1.1 Basic principles
Special safety regulations may apply to certain activities. Safety instructions and warnings are given in the
respective sections of the operating instructions.
Operate the HydroPower RO only:
• in accordance with the operating instructions for safety and driving safety
• if the HydroPower RO is in a technically sound condition.
This includes:
• The safety stickers attached to the HydroPower RO must always be complete and in good readable
condition. Renew damaged or unreadable signs.
• Carry out cleaning and maintenance work on the HydroPower RO only if it is disconnected from
electricity.
Turn off the main power switch and unplug the power cord.
• Carry out maintenance on the filter vessels only if they are depressurized.
• Clean the HydroPower RO after use of dirt and impurities.
Use personal protective equipment to avoid personal injury:
`protective gloves,
`safety shoes,
`safety goggles.
3.1.2 Unit protection and warning processes
Overheat protection
If the pump overheats, the overheat protection is triggered automatically and the HydroPower RO switches
off.
Pressure relief valve
If the water pressure in the HydroPower RO is too high (above 10.5 bar), the pressure relief valve opens
at the back of the HydroPower RO and releases excess water through the concentrate hose to reduce the
pressure in the system.

13
HydroPower® RO35C
General safety regulations
3.2 Mechanical hazards
Crushing due to incorrect operation and / or carelessness.
`Do not reach between the ground surface and the HydroPower RO.
`Do not place objects in the openings of the HydroPower RO.
`Place the HydroPower RO on an even surface only.
`Ensure sufficient stability and secure the HydroPower RO against tipping over or rolling
away.
`In the case of faults and emergencies, immediately turn off the unit by pressing the STOP
button on the main switch of the HydroPower RO.
`Wear safety shoes.
3.3 Electrical hazards
Electric shock and burns due to live parts.
`Before each use, perform a visual inspection of the power cable for damage. If you notice
any damage, contact your distributor.
`Maintenance on the electrical components of the system may only be carried out by
employees of Unger Germany GmbH or their authorized specialist dealers / technicians.
3.4 Thermal hazards
Burns due to hot surfaces.
`The housing of the pump motor can become hot during operation. Allow the system to cool
down sufficiently before touching components marked with this symbol.
Wear protective gloves.
3.5 Hazards due to pressure
Injuries from pressurized containers.
`The 4 filter vessels are pressurized during operation.
`Never open a filter vessel during operation.
`Bleed the air out of the HydroPower RO before opening and during initialization by pushing
the two yellow buttons on the lids of the front two vessels.
ENGLISH

T
www.ungerglobal.com
14
3.6 Hazards from materials and substances
The safety data sheets of the materials and substances can be found online at
www.ungerglobal.com/downloads-safety-data-sheets.
Irritation to the eyes, skin and respiratory tract through carelessness.
`Avoid any contact with the resin when replacing the DI resin cartridge.
`In case of contact with eyes, remove contact lenses and rinse immediately with plenty of
water.
`Wash hands after finishing work.
`Use protective gloves and goggles.
Irreversible injury due to slipping.
`If resin is spilled, carefully clean it up immediately as there is a high risk of slipping.
`Wear safety shoes.
Irritation to eyes, skin and respiratory tract through membrane care.
`Avoid any contact and swallowing of the membrane care liquid (sold separately).
`In case of contact with eyes, remove contact lenses and rinse immediately with plenty of
water.
`Keep the membrane care liquid sealed and inaccessible to children.
`Use protective gloves and goggles.
HydroPower® RO35C
General safety regulations

1010
1313
1212
1111
99
88
55
66
77
44
112233
1414
1515
1616
15
HydroPower® RO35C
System overview
4 Preparing for use
4.1 Construction of the HydroPower RO
4.2 Interfaces
On the front are 3 connections for attaching hoses for water fed
poles and 1 connection for the water supply. These are standard hose
connections.
Make sure that water cannot flow back into the tap water line, e.g.
through a backflow prevention device.
The water outlet for the concentrate is located at the back. Pour the
concentrate down the drain using the enclosed concentrate hose.
1 Manometer
2 TDS-Meter On
3 TDS-Meter Display
4 RO-Membrane1
5 RO-Membrane2
6 Water flow controller
7 DI resin filter
8 Carbon/sediment combi pre-filter
9 Water inlet
10 2 xWater outlet
11 Main switch (On / Off)
12 Pump Reset
13 Pump ventilation slot
14 Power cord
15 Concentrate output
16 Pressure valve
(with lever for manual draining of water)
The manometer shows the water pressure on the membranes when the pump
is running. Ensure that the water pressure is at least 1 bar. The optimum is 4
bar, maximum should not exceed 6 bar. The pump increases the pressure by
approx. 4 bar. Accordingly, the pressure in operation should not exceed 10 bar.
At a pressure of 10.5 bar, the pressure relief valve opens automatically at the
rear.
ENGLISH
The TDS meter shows the water quality behind the RO membranes and
behind the DI resin filter. The membranes (RO) should operate at 95-98%
efficiency in relation to tap water.
The resin filter (DI) should ideally show a value of 0. At the latest when it
shows 10, it should be replaced.

T
www.ungerglobal.com
16
HydroPower® RO35C
Transport and storage
4.3 Transport and storage
4.3.1 Transport
The HydroPower RO is delivered on a pallet by a forwarding company.
The HydroPower RO is carefully tested and packaged before shipment. However, damage during transport
cannot be ruled out.
Therefore, immediately check the HydroPower RO for integrity in the presence of the dealer.
Check the completeness of the delivery, see chapter „2.3 Scope of delivery“.
Carry out a visual inspection of the HydroPower RO for transport damage.
If the HydroPower RO has been damaged during transport, show the damage to the company delivering
HydroPower RO on behalf of your dealer.
Complaints due to transport damage cannot be accepted without written confirmation by the dealer or
with unreserved acceptance!
In the case of transport of the HydroPower RO for use at height, e.g. on a house roof:
DANGER
Severe injuries and property damage due to the HydroPower RO falling
are possible.
`Do not walk or grab under the suspended load.
`Use only the fixing points provided for fixing the hoist.
`Only use a suitable hoist.
`Secure the HydroPower RO to the transport.
`Observe the weight and maximum dimensions of the HydroPower RO.
`Wear protective gloves and safety shoes.
When transporting, ensure that the HydroPower RO is
properly secured and cannot move in the transport. Protect
the HydroPower RO from external damage.
Use the fixing points of the frame during transport, or if
the HydroPower RO is lifted with a crane, in order to avoid
damage.

33
55
44
66
1122
17
HydroPower® RO35C
Operating the HydroPower RO
4.3.2 Storage
If the unit is not in use for more than 7 days, the membranes must be protected according to the storage
instructions, see chapter „7.2.4 Membrane protection“.
4.3.3 Operating the HydroPower RO
What is Pure Water?
Pure Water is water in its purest form, physically processed to remove the minerals that
would otherwise lead to limescale spots and streaks. Such impurities are referred to as TDS
(Total Dissolved Solids) and are measured in ppm (parts per million). The water is considered
100 % demineralised (pure) when its TDS is measured at 0 ppm, whilst the 180 ppm is
considered as average water hardness.

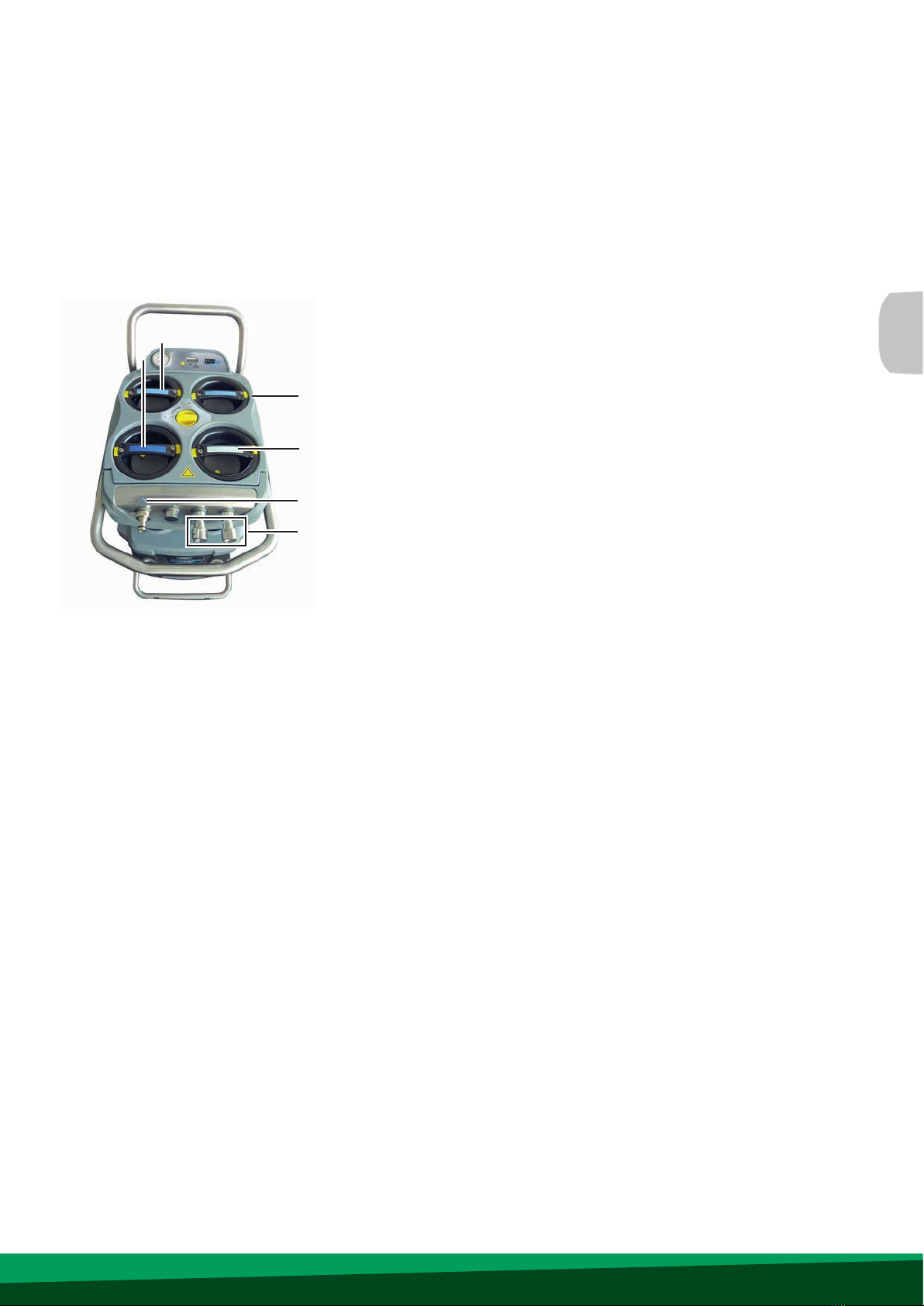

Flow of water purification
The water enters the HydroPower RO via the water inlet (item 5).
The carbon/sediment combi pre-filter (item 1), which filters out the largest impurities and chlorine from
the water and thus protects the membranes, sits before the membranes.
The 2 membrane filters (items 2, 3) remove up to 98% of the minerals from the water in the
HydroPower RO.
The resin filter (item 4) sits after the membranes, which removes the last 2% of the minerals from the
water in the HydroPower RO.
Pure water is discharged from the 2 water outlets (item 5) into a hose connected to a water fed pole for
cleaning glass surfaces without chemicals.
The 4 filter cartridges (items 1 - 4) can be easily removed and replaced.
1 Carbon/sediment combi pre-filter
2 RO membrane1
3 RO membrane2
4 DI resin filter
5 Water inlet
6 2xwater outlet
ENGLISH

T
www.ungerglobal.com
4
1
6
5
18
HydroPower® RO35C
Commissioning
4.4 Commissioning
CAUTION
Slight injuries due to pressurized containers possible.
`The 4 filter vessels are pressurized during operation.
`Never open a filter vessel during operation.
`Check if the hoses and tubes are water-tight and fit properly before
commissioning the system.
`Use protective gloves.
To start the HydroPower RO, proceed as follows:
ATTENTION: For new or conserved units, the resin filter is removed from the unit and must be
inserted in step 14 !
1. Connect the hoses. Do not forget the concentrate hose at the back
of the RO35C.
2. Turn on the water supply
3. Connect the power cord to the power supply.
4. Turn on the main switch.
5. Wait until the system is completely filled with water. You can check
this by pressing the two yellow buttons on the front filters. As soon
as water comes out here, the tanks are filled.
6. Turn the yellow rotary switch to the upper position. The filtered pure
water is delivered to the two water outlets.
3The HydroPower RO is now ready for use.

2
3
5
19
HydroPower® RO35C
Commissioning
4.4.1. Commissioning of new or preserved RO35C:
The resin filter is not used in new or preserved units, as it must not come into contact with the
diaphragm care agent.
Before using the resin filter, the membrane maintenance agent must be completely rinsed out.
1. Start the appliance as described on page 18 and let it rinse out the
membrane care agent for about 20 minutes.
2. Switch off the RO35C: turn the yellow switch to RO FLUSH.
3. Then turn off the main switch.
4. Disconnect the water supply.
5. Insert the resin cartridge. Make sure that the orientation is correct, the
arrow on the cartridge must point downwards, or the blue paper filter
must point upwards!
6. Press the resin cartridge a little firmly so that it sits well on the rubber
seal.
7. Screw the cover back on.
8. Start the RO35C with steps 1-6 on page 18.
3The HydroPower RO is now ready for use.
NOTE
You can adjust the amount of pure water produced by moving the yellow control
knob between the left and upper position.
Middle position = Recommended working position, for optimum membrane life.
Below the middle position = Less pure water is produced.
Above the middle position = More pure water is produced. The load on
membranes and resin increases more, which results in higher consumption
costs.
ENGLISH

T
www.ungerglobal.com
20
HydroPower® RO35C
Operation
5 Operation of the HydroPower RO
5.1 General information
Working with the HydroPower RO is only permitted if the operating instructions have been read and
understood.
DANGER
Severe injuries and property damage due to the HydroPower RO falling are
possible.
`Place the unit on a level surface only.
`Make sure the unit is stable and will not roll before operating the system.
`Wear safety shoes.
CAUTION
Slight injuries due to pressurized containers possible.
`The 4 filter vessels are pressurized during operation.
`Never open a filter vessel during operation.
`Check if the system is watertight before commissioning.
`Wear protective gloves.
