Uni-Fi UWB-XG User manual

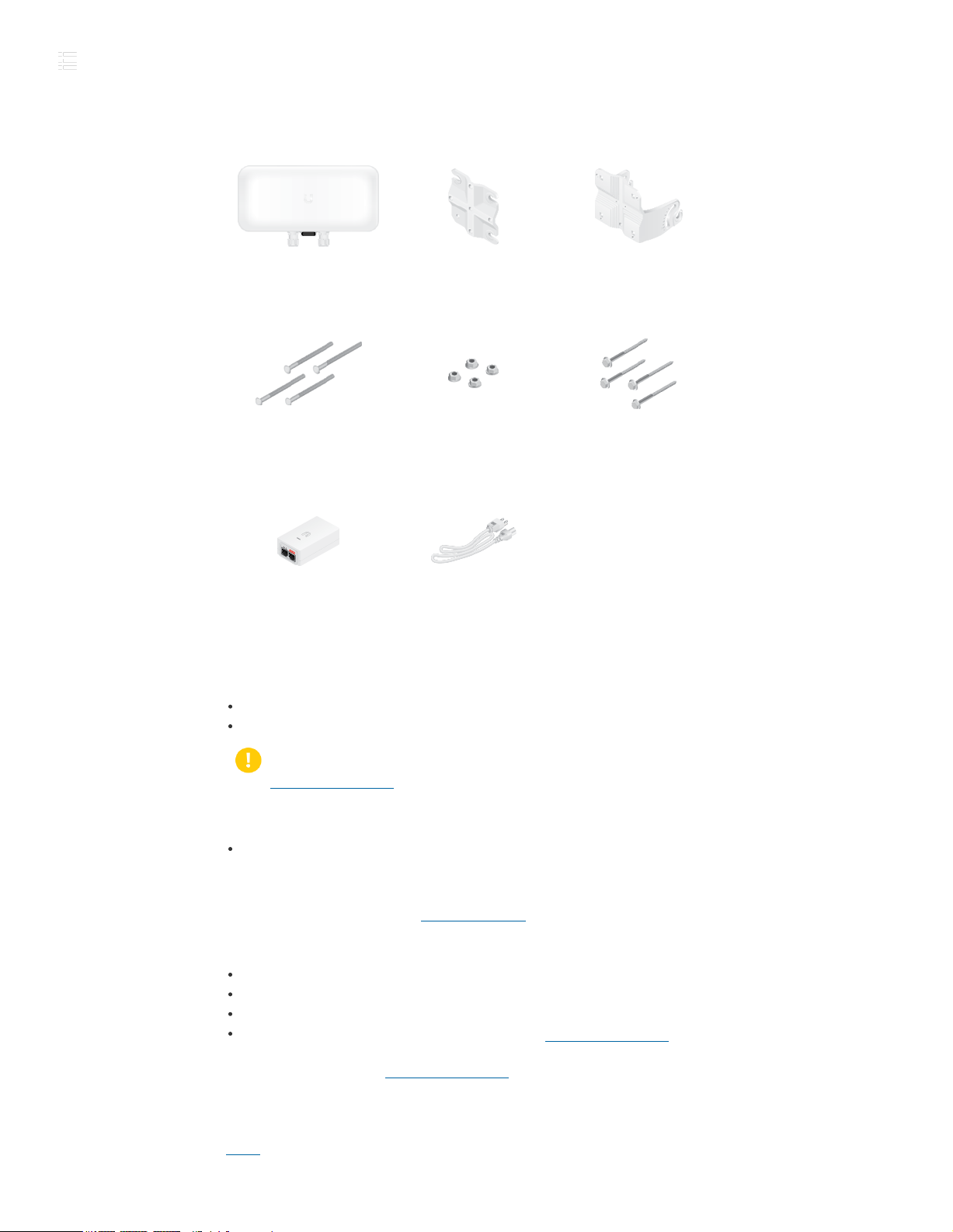

UniFi WiFi BaseStation XG Adjustment Bracket Pole Clamp
Carriage Bolts (Qty. 4) Flange Nuts (Qty. 4) Lag Screws (Qty. 4)
Gigabit PoE (50V, 1.2A) Power Cord
Package Contents
Installation Requirements
13 mm wrench
Category 5 (or above) UTP cable for indoor installations
IMPORTANT: The UWB-XG requires the UniFi Controller v5.7 or higher,
available at:
ui.com/download/unifi
Outdoor Installation Requirements
Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet
connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
Ubiquiti. For more details, visit: ui.com/toughcable
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.8 or above recommended
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v5.7 or newer (available at: ui.com/download/unifi)
All UniFi devices support off-site management controllers. For setup details, see the
User Guide on the website: ui.com/download/unifi
Hardware Overview
LED
UWB-XG Quick Start Guide
10 GbE
1 GbE
Reset
Ports
The 10 GbE port is a 1/10 Gbps Ethernet port used to connect to the LAN and
DHCP server. It can also be used to connect the power.
Note: The UWB-XG can be powered using an 802.3bt PoE switch or the
included Gigabit PoE adapter. For instructions, see Connecting Power.
The 1 GbE port is a 10/100/1000 Ethernet port used for bridging. It can also be used
to connect the power.
The Reset button serves two functions for the UWB-XG:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the Reset button for more than
five seconds.

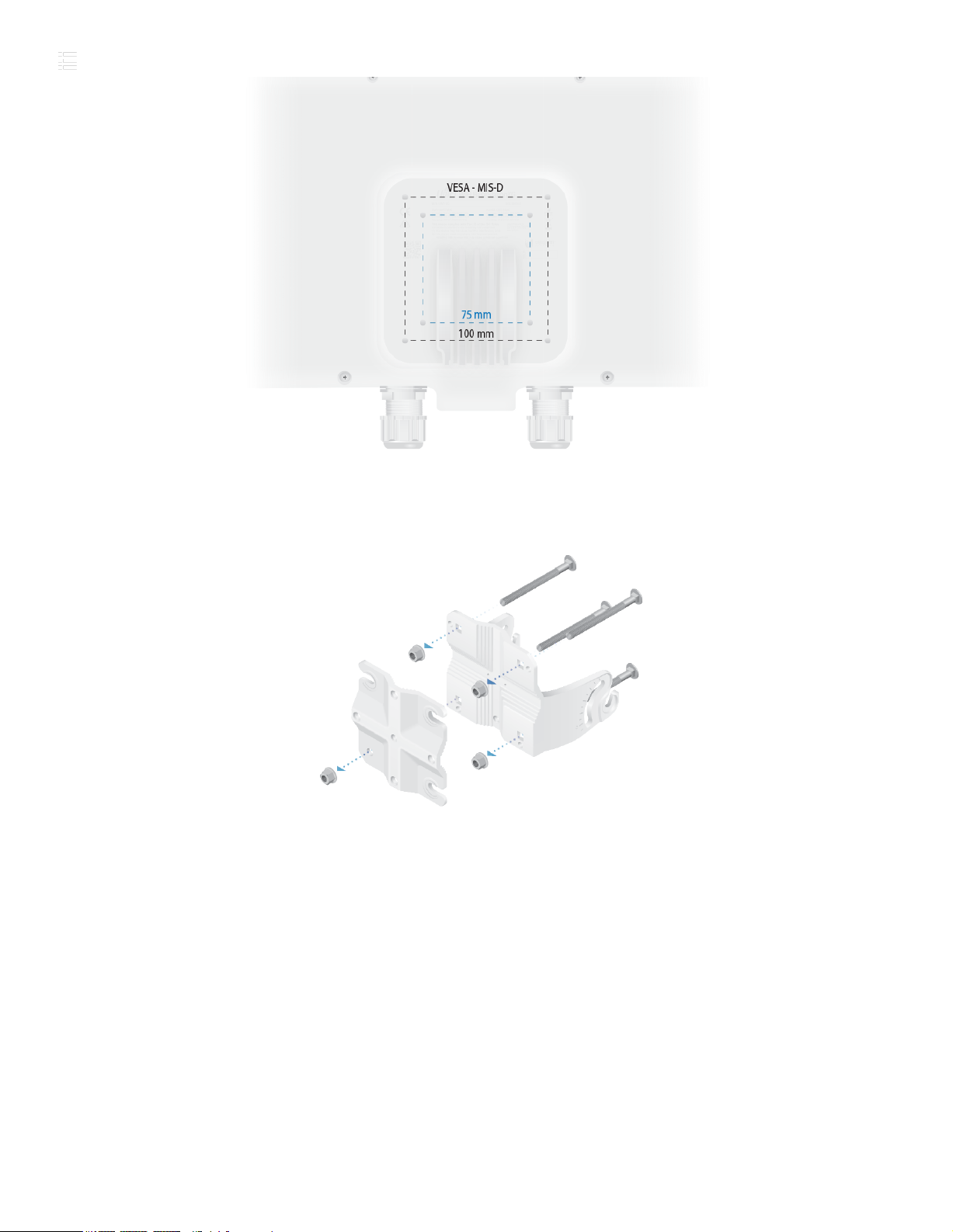

VESA Mounting
If you choose to use your own mount, remove the four M4 x 10 screws from the back of
the UWB-XG and detach the pre-installed mount.
UWB-XG Quick Start Guide
Hardware Installation

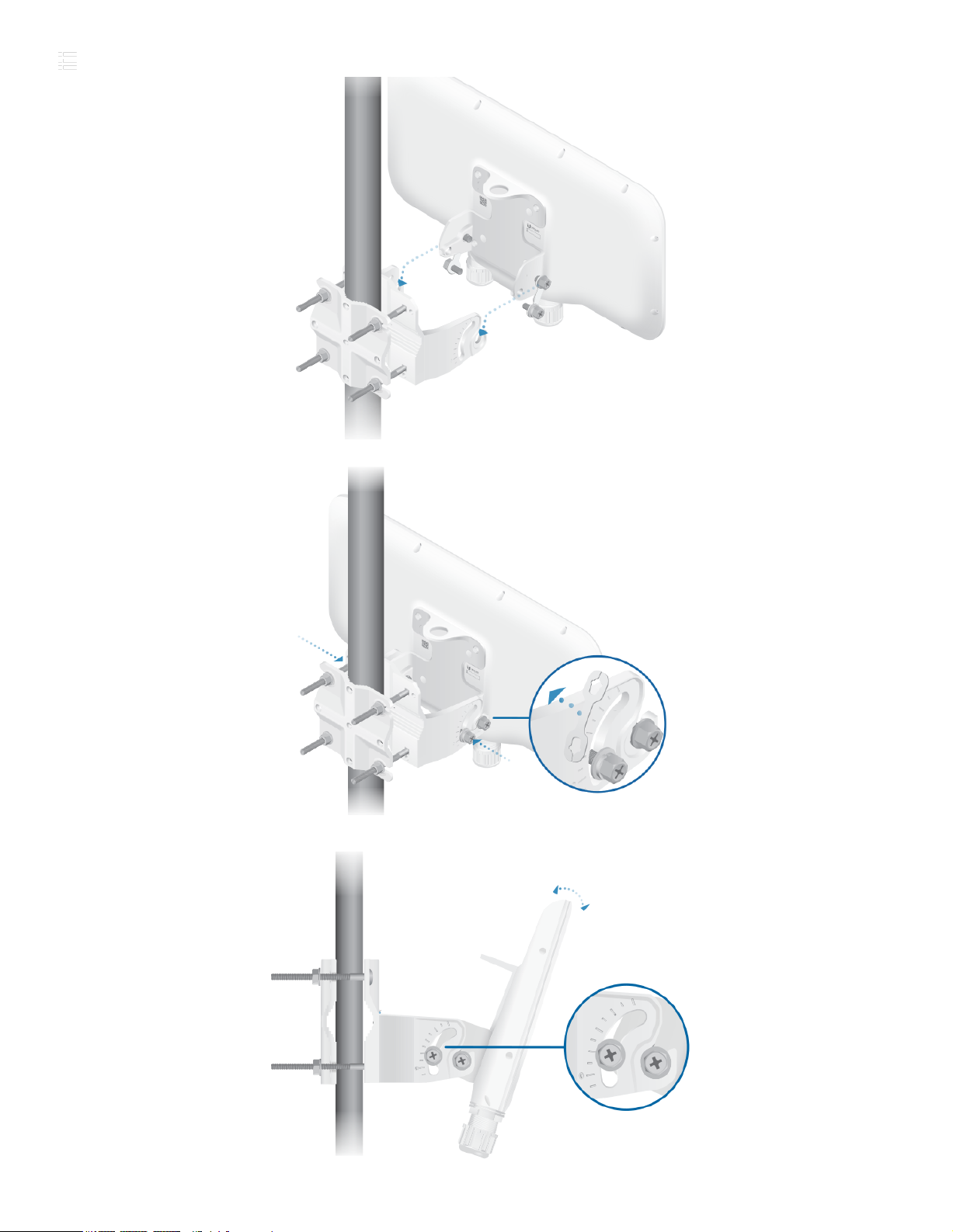

Pole Mount
1.
2.
UWB-XG Quick Start Guide
3.
4.
UWB-XG Quick Start Guide
5.
6.
UWB-XG Quick Start Guide
4.
5.
6.
UWB-XG Quick Start Guide
4.
5.
6.
7.
8.
9.
10.
11.
12.
UWB-XG Quick Start Guide
13.
14.
15. Repeat steps 1-14 to connect an Ethernet cable to the 1 GbE port if one of the
following conditions applies:
You will use the 1 GbE port for bridging.
You will use the 1 GbE port for 802.3bt PoE.
You will use the included Gigabit PoE adapter to power the UWB-XG.
Note: By default, the UWB-XG is set to 15 dBi for its small-cell gain. To switch to
its large-cell gain of 10 dBi, use the UniFi Controller software.
Connecting Power
IMPORTANT: Using the 10GbE port requires enabling flow control on the
upstream switch port’s configuration for maximum performance.
UWB-XG Quick Start Guide
OR
Software Installation
Download and install the latest version of the UniFi Controller software. Launch it and
follow the on-screen instructions. The software and step-by-step instructions in the User
Guide are available at: ui.com/download/unifi
After you have installed the software and run the UniFi Installation Wizard, a login
screen will appear for the UniFi Controller management interface. Enter the username
and password that you created and click Sign In.
You can manage your wireless network and view network statistics using the UniFi
Controller management interface. For information on configuring and using the UniFi
Controller software, refer to the User Guide.
Mobile App Installation
Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or
Google Play™ Store (Android). You can use it to provision a UniFi AP for basic
UWB-XG Quick Start Guide
functionality without configuring a UniFi Controller. It also allows seamless provisioning
of APs for remote controllers (controllers not on the same Layer 2 network) and easy
access to local controllers and those monitored on unifi.ui.com
Specifications
UWB-XG
Dimensions
(without Mount)
471.1 x 257.5 x 94.3 mm
(18.55 x 10.14 x 3.713")
Weight
(without Mount)
3.2 kg (7.055 lb)
Networking Interface (1) 10/100/1000 RJ45 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port
Button Reset
LED RGB, Software-Controllable
Power Method 802.3bt PoE
Power Supply 50VDC, 1.2A Gigabit PoE
Max. Power Consumption 31W
Supported Voltage Range 44-57VDC
Max. TX Power 25 dBm
MIMO (3) 4 x 4
Operating Frequency 5 GHz
Antenna Integrated Dual-Mode Antenna Array
Antenna Gain
Small Cell 15 dBi
Large Cell 10 dBi
Antenna Beamwidth
Small Cell 50°
Large Cell 90°
Wi-Fi Standards 802.11 a/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK,
WPA-Enterprise (WPA/WPA2, TKIP/AES)
Mounting VESA-Compatible Mount
Pole/Wall (Brackets Included)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Weatherproofing IP67
Certifications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated
on the manufacturer’s label. Connection to a different power source than those specified may
result in improper operation, damage to the equipment or pose a fire hazard if the limitations are
not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only
by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground
wire intended for connection to a grounded safety outlet.
UWB-XG Quick Start Guide
a. Do not substitute the power cord with one that is not the provided approved type. Never use
an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding
wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation
prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,
where applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This radio transmitter (FCC ID: SWX-UAPSTMXG, FCC ID: SWX-M445GL, FCC ID: SWX-
M445GH, and FCC ID: SWX-M11DB) has been approved by FCC.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
This radio transmitter (IC: 6545A-UAPSTMXG, IC: 6545A-M445GL, IC: 6545A-M445GH, and IC:
6545A-M11DB) has been approved by ISED Canada.
The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential
for harmful interference to co-channel mobile satellite systems.
CAN ICES-3(A)/NMB-3(A)
Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
Le présent émetteur radio (IC: 6545A-UAPSTMXG, IC: 6545A-M445GL, IC: 6545A-M445GH, and
IC: 6545A-M11DB) ont été approuvé par ISDE Canada.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux.
IMPORTANT NOTE
Radiation Exposure Statement
This equipment complies with radiation exposure limits set forth for an uncontrolled
environment.
UWB-XG Quick Start Guide
This equipment should be installed and operated with minimum distance 24 cm between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
AVIS IMPORTANT
Déclaration sur l’exposition aux rayonnements
Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un
environnement non contrôlé.
Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait
une distance minimale de 24 cm entre l’élément rayonnant et vous.
Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur,
et ne doit être utilisé conjointement à aucun autre de ces appareils.
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.
Brazil
Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não
pode causar interferência em sistemas devidamente autorizados.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
Country List
AT BE BG CY CZ DE DK EE EL ES FI FR HR HU
IE IT LV LT LU MT NL PL PT RO SE SI SK UK
BFWA (Broadband Fixed Wireless Access) members noted in blue
Note: This device meets Max. TX power limit per ETSI regulations.
The following apply to products that operate in the 5 GHz frequency range:
Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz
frequency range within all member states.
Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36
dBm.
Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states.
Other countries listed may use the 5.8 GHz frequency band.
WEEE Compliance Statement
Declaration of Conformity
Online Resources
