Foreword
Dear Customer,
Thank you for the purchase of the Uni-ram URS600CE (SS) solvent recycler.
This manual contains all the necessary information for the installation, use and maintenance of the
Uniram URS600CE and the URS600CESS (stainless steel). The difference between the two versions
of the machine is that the standard URS600CE is fitted with a brass condenser and the Uniram 600SS
(stainless steel) is fitted with a stainless steel condenser. This difference has no effect on the recycling
process and this manual is applicable to both versions and talks about the machine with the generic term
"URS600CE".
Be sure to read and understand this manual completely before you start using the URS600CE. If your
URS600CE does not work according to the instructions or you have doubts about the instructions
themselves or the safe operation of the machine, contact your supplier or the manufacturer before
operating the machine:
Manufacturer: Uni-ram Corporation
381 Bentley Street, Markham, Ontario, Canada
L3R 9T2
uniram.com
We will continue to be of service to you and advise you about the safe installation, use and maintenance
of the URS600CE.
The supplied technical documentation is also part of URS600CE. Keep this document in good condition at
all times and within easy reach when using the URS600CE.

USER MANUAL - URS600CE AND URS600CESS JULY 2019
3
Contents
1. General 5
1.1. Copyright 5
1.2. Safety 5
1.3. Personal protective equipment (PPE) 8
1.4. Scope 8
1.5. Intended and unintended use 8
1.6. Working principle 9
1.7. Limitation of Liability 9
1.8. Transportation 9
1.9. End of lifecycle 9
1.10. Product overview 10
1.11. Overview of Safety Labels 11
1.12. Supplied accessories 12
1.13. Overview of the control panel 12
1.14. Safety provisions in the URS600CE: 12
1.15. Name plate 13
1.16. Serial Number 14
2. Installation 15
2.1. Preparation 15
2.2. Set-up requirements 15
2.3. Set-up 16
2.4. Safe switch-off under normal circumstances 16
2.5. Safe switch-off in a dangerous situation 16
2.6. Safe handling in the event of fire 17
3. Use 17
3.1. Preparation 17
3.2. Requirements for recyclable solvents 18

USER MANUAL - URS600CE AND URS600CESS JULY 2019
4
3.3. Place the liner bag in the tank 18
3.4. Filling the URS600CE with contaminated solvent 19
3.5. Setting the boiling temperature 21
3.6. Solvent recycling 21
3.7. Handling the waste and recycled solvent. 22
3.8. Cleaning the tank and lid 22
3.9. Check the lid gasket and replace if necessary 22
4. Maintenance 23
4.1. Periodic maintenance 23
4.2. Cleaning the condenser 24
4.3. Replacing the lid gasket 24
4.4. Cleaning the vapour outlet fitting 25
4.5. Troubleshooting 26
4.6. Fault Codes 29
4.7. Spare parts 31
5. Technical properties 31
5.1. ATEX code 32
6. Declaration of Conformity 33

USER MANUAL - URS600CE AND URS600CESS JULY 2019
5
1. General
1.1. Copyright
This document is protected by copyright. The unlawful dissemination of this manual to third parties,
reproduction in any manner whatsoever, including extracts, as well as exploitation or communication of its
contents, is not allowed, unless expressly approved by the manufacturer. Violations will result in liability
for damage. Uni-ram Corporation reserves the right to further claims.
1.2. Safety
All Uni-ram products are designed and manufactured to the highest standards of quality and safety.
Nevertheless, operation, installation or maintenance errors can lead to dangerous situations. Read this
manual completely in advance and follow the instructions in the warnings on the labels of this machine and
in this manual at all times.
The URS600CE complies with the ATEX directives 2014/34/EU. To ensure safe operation you as a user
must also meet a number of safety conditions.
The URS600CE is intended for professional use, in an environment where it is possible that hazardous
substances (paints, lacquers, solvents) are present. Follow the instructions in this manual to operate
the URS600CE safely and establish safe working procedures considering the risks associated with the
environment.
The following safety symbols are used in this manual:
6DA NGER
Indicates that serious injury with possible death will result or serious
damage will occur to the machine if the instruction is not followed
properly.
6WARNING
Indicates that serious injury with possible death may result or serious
damage may occur to the machine if the instruction is not followed
properly.
6BE CAREFUL Indicates that a slight injury may be sustained or damage to the machine
may occur if the instruction is not followed properly.
Please note! Indicates that additional emphasis is on the instruction, but that there is
no immediate danger of damage or injury.
To ensure safe use of the URS600CE, the following safety instructions must be followed at all times:
Never open the safety cover and the tank lid when the HEAT and/or
FAN light are on. The FAN light must be off indicating that the machine
has cooled down sufficiently such that the safety cover and the tank lid
can be opened safely.
6DANGER Do not use water as an extinguishing agent if a fire breaks out in the
URS600CE.
6WARNING If the set-up requirements are not fully followed, this can result in a life-
threatening situation!
BE CAREFUL
DANGER
WARNING
DANGER
WARNING
DANGER
Please Note:

USER MANUAL - URS600CE AND URS600CESS JULY 2019
6
6WARNING
The URS600CE must be connected either to an explosion-proof ATEX
receptacle using an ATEX explosion-proof plug or by direct connection
to an explosion-proof switch that is suitable for ATEX zone 1 & 2 gas
group IIA (in accordance with the ATEX installation standard EN 60079-
14). Never connect the URS600CE yourself. Always use a competent,
certified ATEX installer.
6WARNING If your workplace does not comply with ATEX requirements then you
may not use the URS600CE. We advise you to seek advice from an
ATEX expert.
6WARNING The URS600CE may only be operated by users who have read and
understood the URS600CE manual and who are familiar with the risks and
work instructions within the company in the context of the safety plan.
6WARNING Never move the URS600CE during the recycling process. This can lead
to a dangerous situation.
6WARNING If there are doubts about the safe use of your URS600CE, always contact
your supplier or Uni-ram Corporation before operating the URS600CE.
6WARNING Only recycle solvent mixtures with a self-ignition temperature above
280°C. For example, any mixture containing nitro-cellulose should not be
recycled because it may self-ignite at 135°C.
6WARNING
At the moment the HEAT light goes out, the solvent and the URS600CE
are still near the boiling temperature. When the temperature drops below
50°C, the cooling fan stops and the FAN LED light goes out. Only then
has the machine cooled down sufficiently such that the safety cover and
the tank lid can be opened safely.
6WARNING
Unplug the power cord or switch off the breaker and “lock” before all
maintenance and service work. Confirm that power to the machine is
off. If the URS600CE is in operation, first follow the steps in chapter 2.3
'Safe shutdown', and then unplug the power cord.
6BE CAREFUL Do not recycle acidic or chlorinated solvents as they can damage the
machine and jeopardize safe operation.
Please note! Water absorbs more heat than solvents and needs more time to recycle. The URS600CE
works well with water, it works faster with solvents.
Please note! Solvents suitable for recycling may be flammable. Set up and follow safe work practices for
storing and transporting flammable solvents.
Please note! One extra Liner Bag is supplied as a spare part, but order new ones before they run out.
Order only recycler bags made by Uni-ram. A package of 10 bags is part number LB900C-10. Other
package sizes are also available.
Please note! It is possible that the residue of some paints remains moist after recycling due to the
composition of the paint. It is not guaranteed that the residue will be dry.
Please note! Do not use abrasive or hard metal tools that could damage the tank when cleaning. This
damage is not covered by the warranty.
WARNING
WARNING
WARNING
WARNING
BE CAREFUL
WARNING
WARNING
WARNING
WARNING

USER MANUAL - URS600CE AND URS600CESS JULY 2019
7
Please note! A small amount of solvent remains in the tank after the recycling process due to
condensation. To minimize corrosion, remove the liquid. In addition, to maintain good heat transfer, clean
out any dirt and residue in the tank.
Please note! Acidic or chlorinated solvents often cause corrosion to the stainless steel distillation tank.
This manifests itself as black pits in the tank. Excessive corrosion leads to an unsafe situation with
leakage as a result. Check the tank after each cycle. In case of excessive corrosion, contact the service/
repair department of Uni-ram Corporation
Please note! Make sure you always have a spare lid gasket in stock. One additional lid gasket is included
with the purchase of the URS600CE.
Please note! Never repair the URS600CE yourself, use a recognized expert.
Please note! Only use original spare parts for maintenance and repairs.
Please note! Always use original brand lid gaskets in this machine.
Please note! If the solutions proposed in the troubleshooting guide do not solve the problem, please
contact the service/repair department of Uni-ram Corporation

USER MANUAL - URS600CE AND URS600CESS JULY 2019
8
1.3. Personal protective equipment (PPE)
When using the URS600CE, you must wear protective clothing at all times in accordance with the Health
and Safety legislation and as indicated on the Material Safety Data Sheet (MDSD) of the solvent you wish
to use. In any case, you should always wear the following protective clothing while using the URS600CE:
EN 1149-1,2,3 and EN 13034
certified antistatic clothing EN 166 certified safety glasses
EN 374-3 certified gloves EN 405 certified filter mask
At least S1 anti-static safety shoes
1.4. Scope
The URS600CE is designed for professional users to distill contaminated solvents for reuse. The cost
to transport waste sovlents off-site is reduced for a lower environmental impact and virgin solvent
purchases are reduced. This may include the distillation of solvents contaminated with paint, varnish or
ink residues, which are produced during cleaning processes used by lacquer/ink processing companies.
Place the machine in a well-ventilated and safe ATEX room without potential sources of ignition based on
the international standard EN 60079-10-1: 2009) "classification of hazardous areas with regard to risk
of explosions". Please note that recycled solvent in the container under the machine may itself release
vapour. This will affect the zoning in your safety plan. A URS600CE may only be placed in zone 1 and
zone 2.
1.5. Intended and unintended use
The URS600CE is solely and exclusively intended to make contaminated solvents reusable by distilling it
and thus separating all contaminants from the solvent. It is suitable for solvents with a boiling point below
200°C.
The URS600CE is only to be used in rooms that comply with ATEX requirements.
This machine recycles flammable and explosive mixtures, including varnish and paint solvent, acetone
and other paint thinners.
The URS600CE is not intended to recycle solvents with auto-ignition temperatures below 280°C.
* auto-ignition temperature: The temperature at which the liquid ignites itself, without the need for a flame.

USER MANUAL - URS600CE AND URS600CESS JULY 2019
9
1.6. Working principle
Contaminated solvent consists of the original solvent together with, when used, liquid and solid materials.
The recycling process separates the original solvent from the waste materials. During the process, the
tank which is filled with the contaminated solvent is heated by the heating element. When the URS600CE
is at temperature, the solvent boils. The vapour is fed through the vapour outlet fitting to the condenser,
where the clean solvent condenses back to a usable liquid. Waste materials in the contaminated solvent
boils at a temperature that is much higher than the boiling set temperature, the waste materials, therefore
do not vapourize and remain in the distillation tank. At the end of the process, these waste materials
which are collected in the liner bag, can be disposed of in accordance with local regulations.
Safety cover Tank lid
Condenser discharge pipe
Tank
Condenser Heating element
Receiving container
Figure 1. Main components of the URS600CE
1.7. Limitation of Liability
Uni-ram Corporation accepts no liability for damage by:
• Failure to follow this manual.
• Unintended use.
• Maintenance by unqualified personnel.
• Unauthorized modifications.
• Unaurthorized technical changes.
• Use of spare parts not recommended by the manufacturer.
Uni-ram Corporation is not responsible for damage to equipment after it has left the warehouse.
1.8. Transportation
The URS600CE weighs approximately 60 kg. Always lift the URS600CE with at least two people to avoid
injury.
1.9. End of lifecycle
When the URS600CE is no longer used or can be used, it must be disposed of in accordance with the
regional regulations regarding the disposal of electrical equipment.

USER MANUAL - URS600CE AND URS600CESS JULY 2019
10
1.10. Product overview
Figure 2. Overview of components of the URS600CE
Description
1Lid
2Lid clamp
3Bag holder
4Tank
5Housing
6Door
7Safety cover
8Lid gasket
9Liner bag
10 Control panel
11 Adjustable foot (4x)
1
7
8
9
10
2
3
4
5
6
11

USER MANUAL - URS600CE AND URS600CESS JULY 2019
11
Description
1Danger: hot surface, open the safety cover only when the FAN and HEAT LED lights are off.
2Wear an EN 405 certified filter mask.
3Wear EN 166 certified safety glasses.
4Wear EN 374-3 certified gloves.
5Read the manual before using this appliance.
6Smoking is prohibited in the vicinity of this appliance.
7Do not use water to extinguish a fire in the appliance. See the MSDS for the correct extinguishing
agent for the solvent used.
8Keep this appliance away from any naked flame sources.
9
Warning: The URS600CE must be connected either to an explosion-proof ATEX receptacle using an
ATEX explosion-proof plug or by direct connection to an explosion-proof switch that is suitable for
ATEX zone 1 & 2 gas group IIA (in accordance with the ATEX installation standard EN 60079-14).
Never connect the URS600CE yourself. Always use a competent, certified ATEX installer.
10
- Warning: hot surface.
- Caution: tank lid may be hot during use.
- Please Note: do not overfill, the maximum capacity of the distillation tank is 20 litres.
11 Warning: flammable solvents.
12 Warning: flammable solvents.
13 Nameplate of the URS600CE.
14 Warning: risk of overheating, always keep 15 cm distance from obstacles.
1
2 3 4
5
6 7 8
9

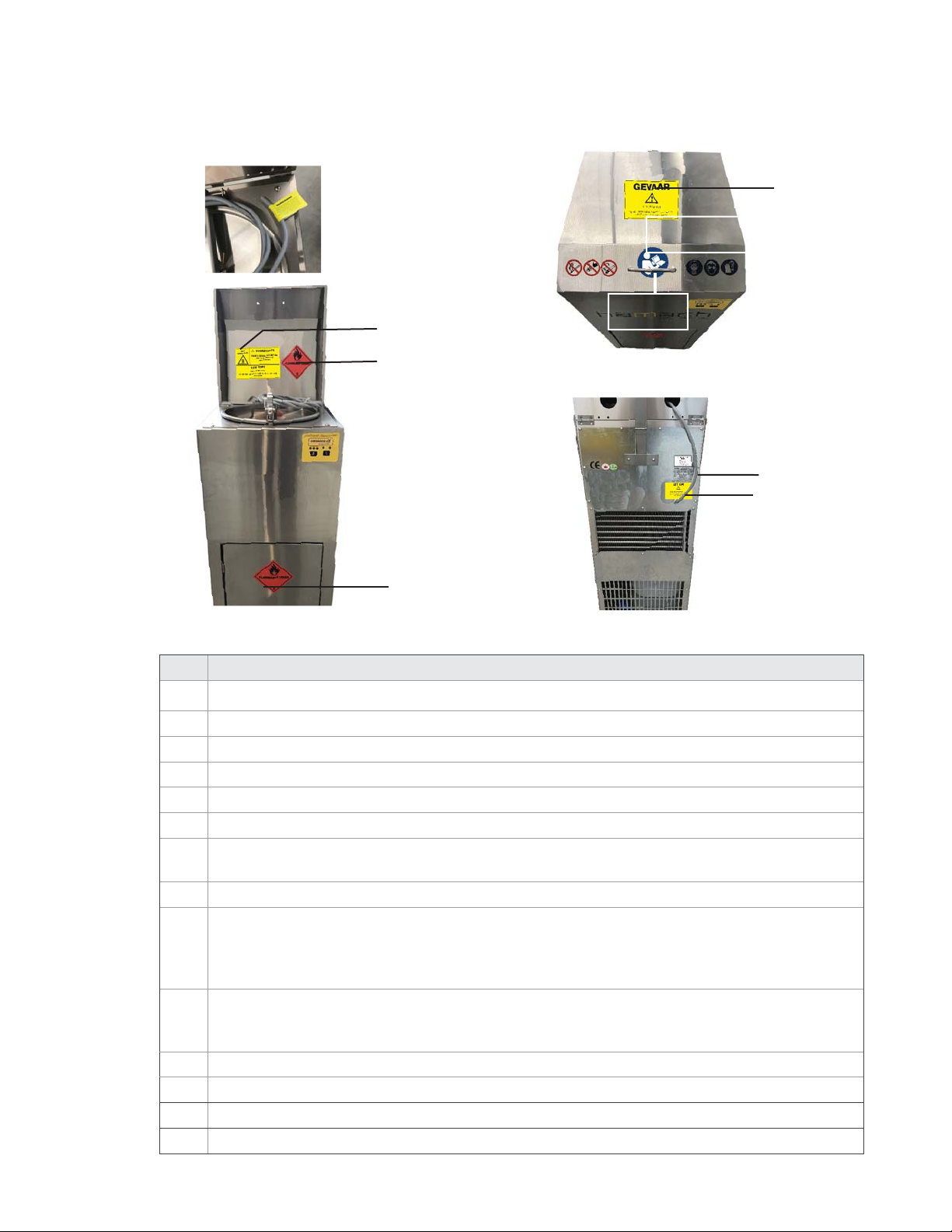

1.11. Overview of Safety Labels
10
11
12
13
14
Figure 3. Overview of warning labels

USER MANUAL - URS600CE AND URS600CESS JULY 2019
12
1.12. Supplied accessories
Accessory Number
20 litre HDPE receiving container with 3 cm opening 1
Liner bag 1
Bag retaining ring 1
Lid gasket (spare) 1
1.13. Overview of the control panel
The control panel is located in the top right-hand corner of the cabinet.
L M H
O
OFF
I
ON
HEAT FAN
3
2
1
4
5
6
7
Part
1 LED light L
2 LED light M
3 LED light H
4 HEAT LED light
5 FAN LED light
6 I / ON control button
7 O / OFF control button
Figure 4. Components of the control panel
The HEAT LED light is on when the heater is operating. If it flashes, the heating is operating at reduced power.
The FAN LED light is on when the cooling fan is running.
6DANGER
Never open the safety cover and the tank lid when the HEAT and/or
FAN light are on. The tank has sufficiently cooled when the fan light has
gone off. The FAN light must be off before the safety cover and the tank
lid can be opened safely.
In the event of failure during use, the self-diagnosis system will identify the problem and display an
error message via the flashing LED lights (L and M). See chapter 4.6 "Error codes" of this manual for
instructions when the LED lights are flashing.
1.14. Safety provisions in the URS600CE:
The URS600CE is constructed, tested and certified according to the European Directive:
ATEX Directive 2014/34/EU
and complies with European Directives:
Machinery Directive 2006/42 / EU
Low Voltage Directive 2014/35/EU
Electromagnetic compatibility: 2014/30/EU
DANGER

USER MANUAL - URS600CE AND URS600CESS JULY 2019
13
• The URS600CE complies with standard EN 60079-0: 2012: equipment for use in potentially explosive
atmospheres - part 0 General requirements.
• The URS600CE has the ATEX coding: EX db ib IIA T2 Gb. For an explanation of this code, see section
1.14: Nameplate.
• The URS600CE provides the user protection in the form of flameproof housing according to EN
60079-1:2014.
• The URS600CE provides the user protection in the form of intrinsic safety according to EN 60079-
11:2012.
• The computer-controlled self-diagnosis system constantly monitors all functions, displays every fault
and disconnects the power to the heater when the set temperatures are exceeded.
• The safety timer automatically switches off the power to the heater after 6 hours.
• The safety timer switches off the power to the heater if the solvent does not boil within 45 minutes.
• The container is housed inside the stainless steel cabinet.
• The URS600CE has an efficient direct heating system without the annoying need to replace the
diathermic oil.
• The URS600CE has an extra safety cover which protects the user against the hot surface of the tank
lid and in the case of blockage or leakage/sweating ensures that the user does not directly come into
contact with hot solvent vapours.
• The safety thermostat on the tank switches off the power to the heater if the temperature in the tank
rises above 280°C.
• The temperature sensor on the condenser shuts off power to the heater when the temperature of the
recycled solvent vapour rises above 75°C.
• Under normal operating conditions the temperature of the clean solvent in the receiving container will
be about 7°C above the ambient temperature.
• The tank lid is equipped with an automatic pressure relief mechanism as a safety measure. In the
event of a pressure increase in the distillation tank, the safety pressure system will release pressure at
0.035 to 0.070 Bar.
Other features:
• Ease of maintenance.
• Short start-up time. Due to the direct electrical heating of the solvent, it is not necessary to replace
diathermic oil.
• Short cooling time due to the high-efficiency condenser, which is air-cooled by a motor-driven fan.
1.15. Name plate
Ex EU symbol for explosive environment
db Protection through flameproof housing -
high safety level
ib Zone / measurement control
IIA Gas group
T2 Temperature Class 2
Gb Equipment protection level, G = gas, b =
Zone 1
Figure 5. Nameplate of the URS600CE Figure 6. Explanation of the ATEX code

USER MANUAL - URS600CE AND URS600CESS JULY 2019
14
1.16. Serial Number
The serial number of the URS600CE can be found on the silver label on the back of the cabinet. Make a
note of the serial number and refer to it in communications on service matters. At the back of this manual
you will find a note page where you can write down this number.

USER MANUAL - URS600CE AND URS600CESS JULY 2019
15
2. Installation
2.1. Preparation
• Carefully inspect the packaging material for traces of transport damage. Damage to the packaging
could indicate possible transport damage to the URS600CE.
• Carefully remove the URS600CE from its packaging.
• Immediately check your URS600CE for any damage.
• Report transport damage to the carrier to start the claim procedures.
• Check the accessory set you received from the list in section 1.8. If any parts are missing, please
contact the supplier where you purchased the URS600CE.
2.2. Set-up requirements
6WARNING If the set-up requirements are not fully followed, this can result in a life-
threatening situation!
6WARNING
The URS600CE must be connected either to an explosion-proof ATEX
receptacle using an ATEX explosion-proof plug or by direct connection
to an explosion-proof switch that is suitable for ATEX zone 1 & 2 gas
group IIA (in accordance with the ATEX installation standard EN 60079-
14). Never connect the URS600CE yourself. Always use a competent,
certified ATEX installer.
6WARNING
If your workplace does not comply with the ATEX requirements then
you may not use the URS600CE. We advise you to seek advice from an
ATEX expert.
The URS600CE should be placed in a well-ventilated and safe ATEX room without potential sources of
ignition according to the international standard EN 60079-10-1: 2009 "classification of hazardous areas
with regard to risk of explosions".
Please note that recycled solvent in the receiving container in the cabinet of the URS600CE may itself
release vapour. This will affect the zoning in your safety plan.
As far as the maximum zoning in the room where a URS600CE is placed, our advice is as follows:
The zoning that is created in the room by the URS600CE at maximum:
Zone 1: The space inside the cabinet door where the receiving container is placed and in a radius of at
most one meter from the corners of the URS600CE.
Zone 2: The space in a radius up to three meters from the outside corners of the URS600CE.
The URS600CE can be safely placed in zones 1 and 2 with other sources of vapours in the space.
We would like to point out that for companies working with potentially explosive atmospheres (ATEX), it is
a legal requirement to have a risk analysis and safety plan including zone classification. The final zoning
depends on the risk analysis you have carried out, the specific situation and the factors in your company.
Part of the safety plan is to acquaint the employees with the safety risks and to provide specific work
instructions. If you have any doubts about your risk analysis and/or safety plan, always consult an expert
for further advice.
If the above-mentioned set-up requirements have not been met, you may not use the URS600CE. In that
case, please contact an ATEX expert installer who can follow the installation instructions.
WARNING
WARNING
WARNING

USER MANUAL - URS600CE AND URS600CESS JULY 2019
16
2.3. Set-up
1. Place the URS600CE in a well-ventilated and safe ATEX room without potential sources of ignition
according to the international standard EN 60079-10-1: 2009 "classification of hazardous areas with
regard to risk of explosions".
2. Make sure there is at least 15 cm of free space behind and next to the URS600CE to ensure proper
cooling.
3. The URS600CE may only be installed in rooms with an ambient temperature between 5°C and 40 °C.
4. Ensure that there is at least 50 cm of free space at the front of the URS600CE, so that the door can be
fully opened and the receiving container for the recycled solvent can be easily slid in and out.
5. Make sure there is at least 50 cm of free space above the URS600CE to ensure the safety cover can
be completely opened.
6. Adjust the adjustable legs so that the URS600CE stands level.
7. Install the handle of the door with the two supplied screws.
8. Use a competent, certified ATEX installer to connect the machine either to an explosion-proof ATEX
receptacle using an ATEX explosion-proof plug or to a direct connection to an explosion-proof switch
that is suitable for ATEX zone 1 & 2 gas group IIA (in accordance with the ATEX installation standard
EN 60079-14).
9. Use the ATEX expert to connect the ring terminal of the
ground wire located on the back of the solvent recycler
to the grounding system of the building under IEC 60079-14.
2.4. Safe switch-off under normal circumstances
6DANGER
Never open the safety cover and the tank lid when the HEAT and / or FAN light is on. It
is only when the FAN light goes out, indicating that the URS600CE has cooled down
sufficiently, that the safety cover and the tank lid can be opened.
If the URS600CE is in operation and you notice that the above-mentioned connection instructions have
not been complied with and/or you notice that the machine is not working properly:
1. As a precaution, stop the URS600CE by pressing OFF. The cooling fan will continue to run.
2. Never open the URS600CE before it has completely cooled down. The FAN LED light must be off and
the cooling fan has stopped running.
3. When the FAN LED light is off, you can safely open the safety cover, the tank lid and the door of the
URS600CE to remove the contaminated and clean solvent.
4. Do not operate the URS600CE until it has been checked and approved by an expert.
DANGER

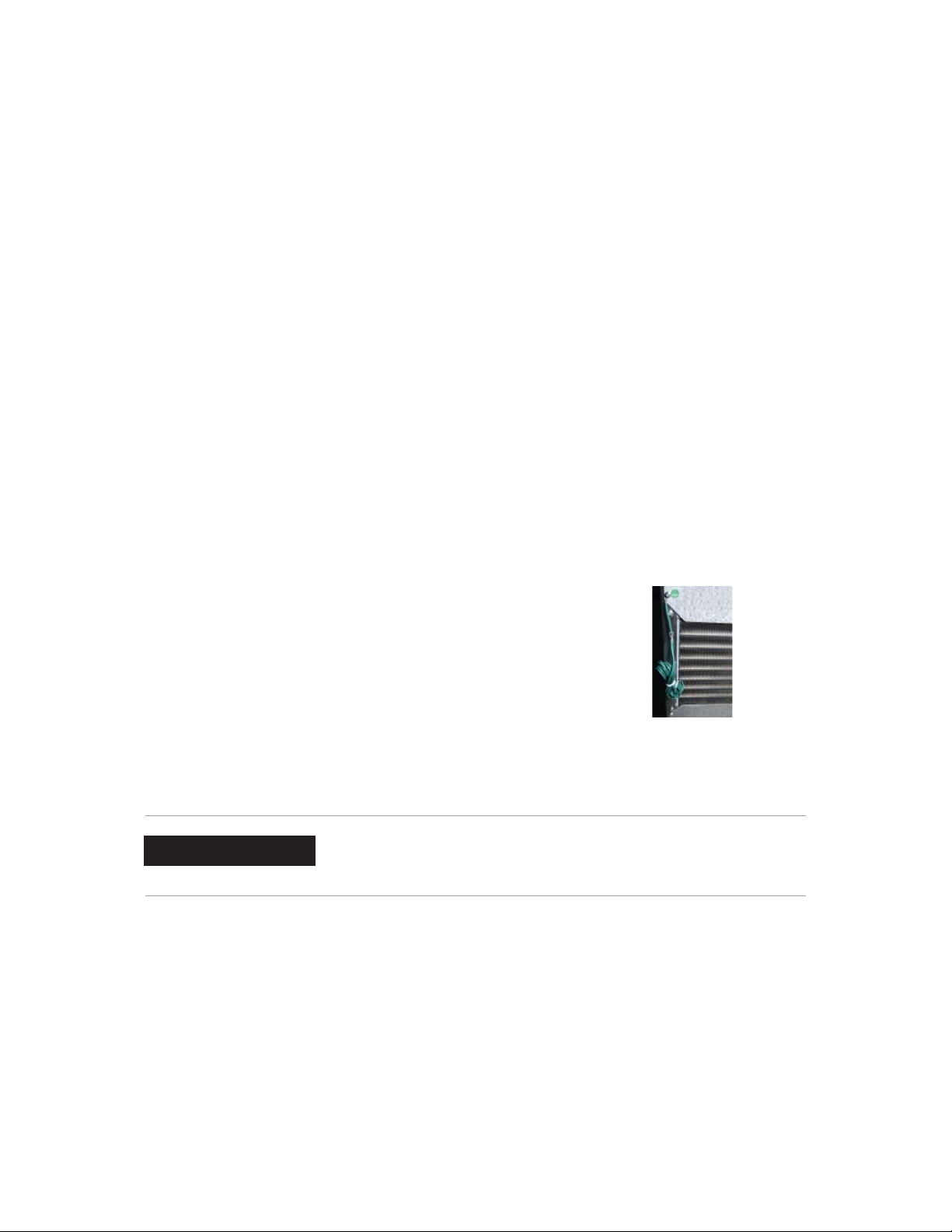

Ground wire located on
back of recycler.

USER MANUAL - URS600CE AND URS600CESS JULY 2019
17
2.5. Safe switch-off in a dangerous situation
There is a leak of solvent from the URS600CE during the recycling process If you notice vapour escaping
from the under safety cover or if you notice more vapour in the room than usual.
1. As a precaution, stop the URS600CE by pressing OFF. The cooling fan will continue to run.
2. Never open the URS600CE before it has completely cooled down. Wait for the FAN LED light to go out,
and the cooling fan has stopped running.
3. Immediately ventilate the area where the URS600CE is located to allow the solvent vapour to dissipate
as quickly as possible.
4. When the FAN LED light is off, you can safely open the safety cover, the tank lid and the door of the
URS600CE to remove the debris and clean solvent.
5. Do not operate the URS600CE until it has been checked and approved by an expert and the lid gasket
has been replaced and a potential blockage in the vapour outlet fitting has been resolved. See section
4.3 'Replacing the lid gasket' and 4.4 'Cleaning the vspour outlet tube for instructions.
6. In order to check the proper functioning of the URS600CE, it is advisable to recycle about 10 litres of
clean water as a test
2.6. Safe handling in the event of fire
6DANGER Do not use water as an extinguishing agent if a fire breaks out in the
URS600CE.
6WARNING Always check for the specified extinguishing agent on the SDS of the
solvent that you are going to recycle.
6WARNING In the event of a fire, always keep a safe distance from the URS600CE.
1. Use the specified extinguishing agent for the solvent used to safely put out the fire.
2. Let the URS600CE cool down completely once the fire has been extinguished.
3. Do not operate the URS600CE until it has been checked and approved by an expert.
3. Use
3.1. Preparation
6WARNING
The URS600CE may only be operated by users who have read and
understood the URS600CE manual and who are familiar with the risks and
work instructions in the context of the safety plan of the company.
6WARNING Never move the URS600CE during the recycling process. This can lead to a
dangerous situation.
DANGER
WARNING
WARNING
WARNING
WARNING
WARNING

USER MANUAL - URS600CE AND URS600CESS JULY 2019
18
6WARNING If there are doubts about the safe use of your machine, always contact your
supplier or Uni-ram Corporation before operating it.
Please note! The solvents which have been/will be recycled may be flammable. Set up and follow safe
work practices for storing and transporting these solvents.
Give everyone who works with the machine clear instructions about working safely in accordance with
Health and Safety legislation and also with this manual’s instructions regarding installation, use and
maintenance.
For the safe use of the URS600CE, you must comply with your obligations in accordance with the ATEX
Directive 153 (Directive 1999/92 / EC) about explosion protection. If you do not comply with these
obligations or you are not familiar with this Directive, you may not use the URS600CE. We advise you to
seek advice from an expert ATEX advisor.
Check the lid gasket for damage before each use. A damaged lid gasket leads to poor sealing and vapour
leakage, which is dangerous and wasteful.
3.2. Requirements for recyclable solvents
The contaminated solvent that is to be recycled must meet the following requirements:
• The boiling point of the contaminated solvent is below 200°C. The boiling point increases as the
contamination increases.
• The auto-ignition temperature* of the solvent is higher than 280°C.
• The solvent has recently been contaminated, stagnant solvent can be acidic. The solvent is suitable for
distillation.
Check the material Safety Data Sheet (SDS) from your solvent supplier beforehand for the flammability,
autoignition point, toxicity and boiling point of the solvent. If you do not have these at your disposal,
always ask for this from your supplier in advance.
6WARNING
Only recycle solvent mixtures with a self-ignition temperature above 280°C. For example,
any mixture containing nitro-cellulose should not be recycled because it may self-ignite
at 135°C.
6BE CAREFUL Do not recycle acidic or chlorinated solvents as they can damage the machine and
jeopardize safe operation.
* Auto-ignition temperature: The temperature at which the liquid ignites itself, without the need for a flame.
3.3. Place the liner bag in the Tank
Only use original the bag retainer ring and original liner bags for the URS600CE.
Please note! One extra liner bag is supplied as a spare part, but order new ones before they run out. To do this, use part number:
Liner bag - LB900C-10.
On delivery, the tank of the URS600CE comes equipped with an installed liner bag and a bag retainer ring. With the first use you
can proceed to section 3.4. The liner bag can only be used once. If the liner bag needs to be replaced, please follow the next
steps.
Open the safety cover of the URS600CE completely.
1. Unlock the tank lid clamp by lifting the clamping lever and open the lid.
WARNING
BE CAREFUL
WARNING

USER MANUAL - URS600CE AND URS600CESS JULY 2019
19
Clamp handle
Tank lid

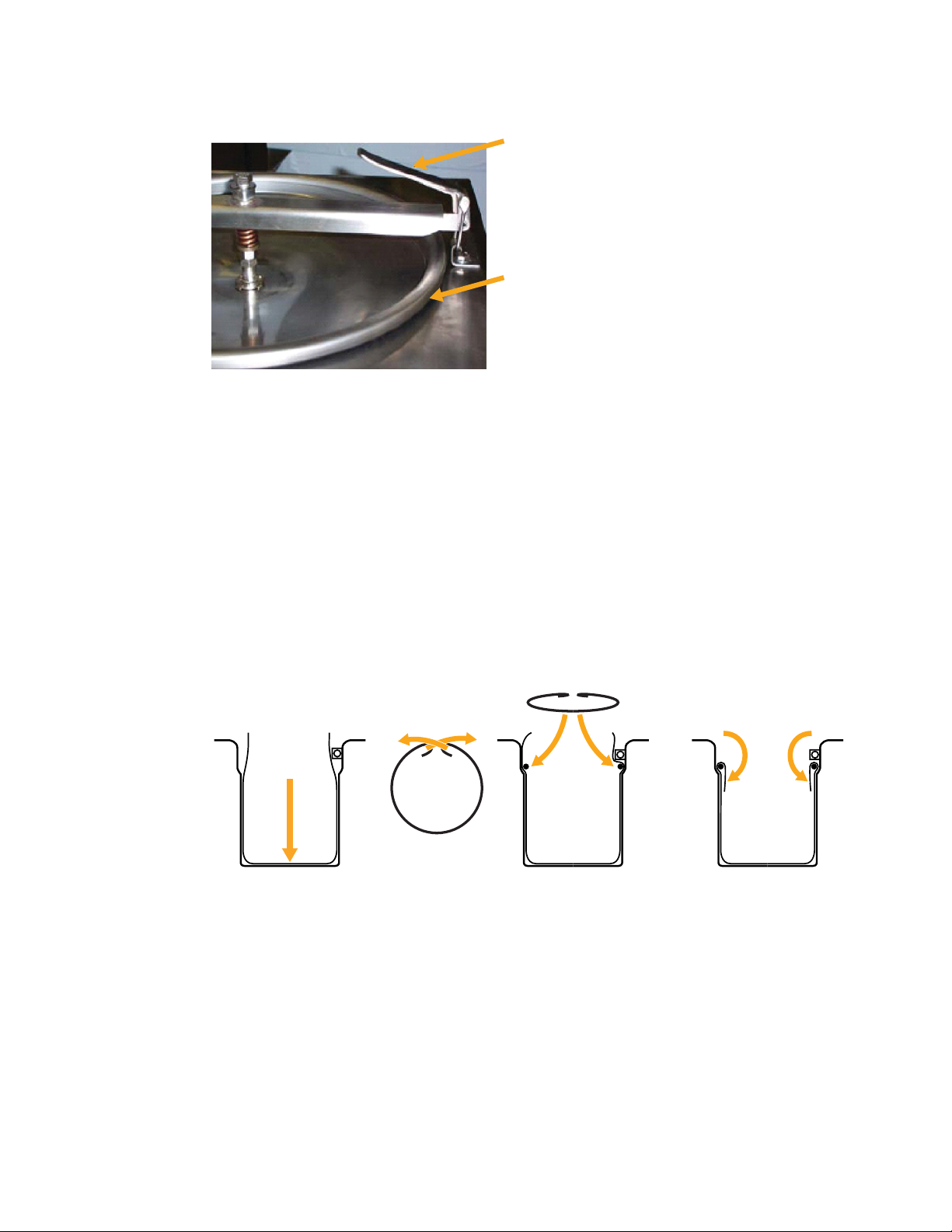

Figure 7. Opening the tank lid
2. Check that the tank is empty.
3. Check that the liner bag is suitable for use with no risk of leakages.
4. Install the liner bag so that the bottom is flat on the bottom of the tank.
5. Insert your fingers into the loop of the frame ring and press to reduce the diameter.
6. Insert the frame ring into the liner bag in the tank and release so that the ring is just above the edge in the distillation tank.
7. Fold the lip of the bag all the way around over the ring.
Please note! Ensure that the liner bag does not block the vapour outlet fitting of the tank.
You have now placed the liner bag.
step 5 step 6 step 7 step 8
Figure 8. Steps for placing the liner bag with the bag holder
3.4. Filling the URS600CE with contaminated solvent
1. Check whether the contaminated solvent meets the requirements as stated in section 3.2.
2. Carefully pour the contaminated solvent into the liner bag in the distillation tank.
Please note! The URS600CE has a maximum capacity of 20 litres, do not overfill. Fill the tank with at
least 6 litres of the solution.
3. Fill the tank to a maximum of 4-5 cm below the retainer ring, otherwise the contaminated solvent may

USER MANUAL - URS600CE AND URS600CESS JULY 2019
20
flow into the condenser and cause a blockage or stain and / or contaminate the distilled solvent.
Please note! When pouring in the contaminated solvent, ensure that everything goes into the liner bag
so that no contaminated solvent flows between the liner bag and the distillation tank.
6BE CAREFUL Avoid inhalation of vapour during the filling or cleaning of the distillation ttank.
4. Close the tank lid.
5. Lock the tank lid with the lid clamp.
Please note! Make sure that the tank lid closes properly to prevent leakages.
6. Close the safety cover.
7. Open the door on the front of the URS600CE.
8. Place the supplied HDPE receiving pail with a 3.0 cm diameter opening inside the cabinet of the URS600CE.
Please note! Always use the supplied HDPE pail with the 3.0 cm opening. The small opening limits
the possible formation of vapour to a minimum.
Please note! Do not recycle paint remover and cleaning solvents in the same receiving container.
Please note! The HDPE pail comes with a cap. Keep the cap in a safe location and return the cap to
the opening of the pail when transporting the solvent in the pail away from the URS600CE.
Figure 9. Place the HDPE receiving pail in the cabinet. Remove the
cap. Position the discharge tube in the 3.0 cm opening.
9. Place the empty HDPE receiving pail with the 3.0 cm opening so that the 13 mm (diameter) condenser outlet hose sticks into
the opening of the pail lid.
Please note! Make sure the condenser outlet hose is not kinked or blocked and that it extends at least 2.5 cm into the
opening.
10. Close the door on the front of the URS600CE.
You are now ready to set up the URS600CE.
BE CAREFUL
