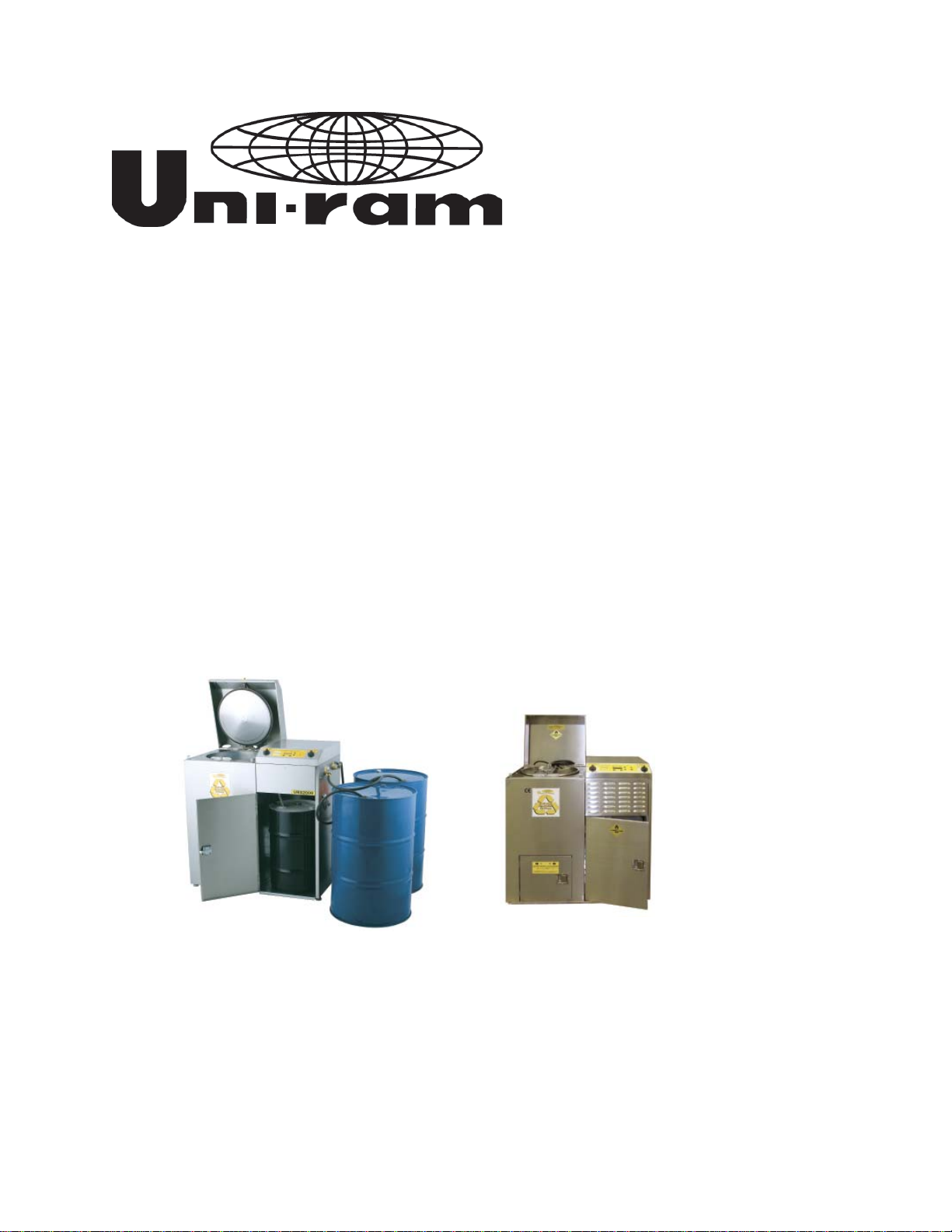

Uni-ram URS1600CE Series User manual

USER MANUAL
URS1600CE SERIES AND
URS2000CE SERIES
UNI-RAM CORPORATION • ONTARIO • CANADA
Revised 2017-10
URS2000 URS1600

2
MANUAL - SOLVENT RECYCLERS - URS1600CE AND URS2000CE Revised 2017-10
FEATURES AND SPECIFICATIONS
All Uni-ram Solvent Recyclers feature rapid-start direct electric heating of solvent and a short cool-
down time due to high-eff ciency condensers and air cooling with a motor driven fan.
MODEL URS2000CE URS1600CE
VOLTAGE (V) SINGLE PHASE 220/240* 220/240*
BRANCH CIRCUIT AMPS 20 20
MAX TEMPERATURE SET POINT 200°C 200°C
TIME TO RECYCLE 8-10 HOURS 8-10 HOURS
TANK CAPACITY 20 US GAL (80L) 16 US GAL (60L)
LID GASKET NEOPRENE NEOPRENE
LINER BAGS YES YES
SHIPPING DIMENSIONS (WDH”) 47 X 27 X 50 43 X 27 X 50
Safety Features:

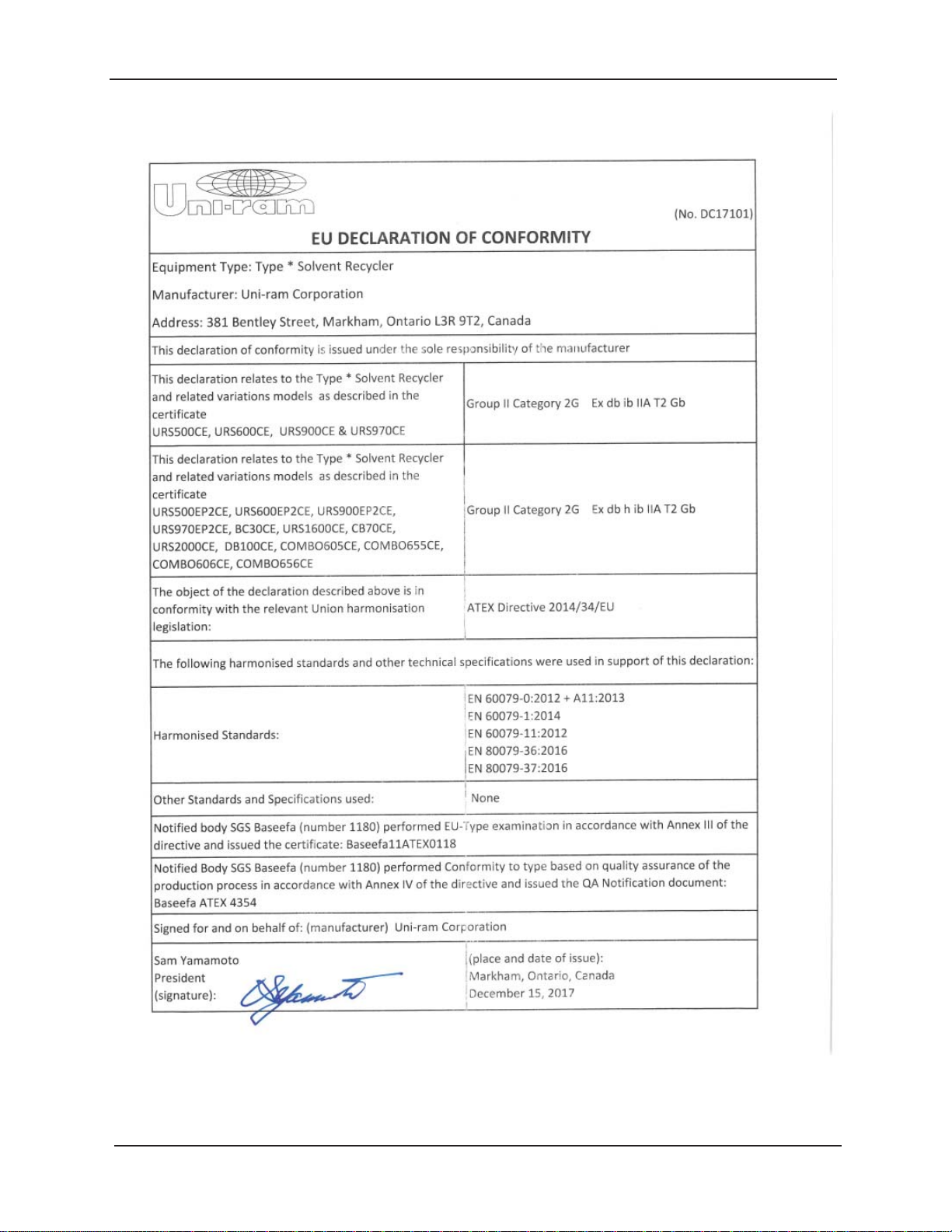

• Certified to IECx and BAS11.0057 Ex db ib IIA T2 Gb , Baseefa11ATEX0118, Ex db h ib IIA T2 Gb.
See the next section, Certif cation,.
• Explosion proof construction and intrinsically safe electric circuitry.
• Computer controlled with many built-in safety programs including temperature control of all criti-
cal points including tank, condenser and fan motor. Power is cut when the temperature at any of
these points rises above a pre-set level. Operation also terminates when other abnormal conditions
exist (eg: boiling does not start on time or the distillation process takes too long).
• Automatic pressure relief lid system prevents pressure in the Distillation Tank from exceeding 0.5
to 1.0 psi. (0.035 to 0.070 kglcm2).
• Self Diagnostic error messages are displayed on the Display Panel.
• Dual lid cover system.
• Compact, enclosed cabinet for safe storage of the Solvent Receiving Container inside the cabinet.
*Note on VOLTAGE:
Operating the unit at VOLTAGE lower than 220V
(eg: 208V) may result in reduced performance.
**Note on MAX TEMPERATURE SET POINT:
If a Liner Bag is used, do not use a SET POINT
greater than 205 °C.
Certif cation Ex EU Explosion atmosphere
symbol
b Protection by control of ignition
source
c Protection by constructional
safety
d Protection by Flame Proof
enclosure
ib Zone / Measurement Control
IIA Gas Group
T2 Temperature Class 2
Gb Equipment Protection Level,
G=Gas, b=Zone 1

3
MANUAL - SOLVENT RECYCLERS - URS1600CE AND URS2000CE Revised 2017-10
PREPARATION AND SETUP:
• Carefully inspect the shipping carton for any sign of transport damage.
• Carefully remove the unit from the shipping carton.
• Check the unit for damage. Report any transport damage immediately to the carrier and your
vendor. Initiate a freight claim with the carrier. The manufacturer is not responsible for freight dam-
age.
• A Liner Bag and Retainer Ring are already installed inside the distillation tank.
• Check the Accessory Kit for the parts listed below. If any parts are missing, contact your supplier. Ad-
ditional consumables and accessories are also listed.
Note: Liner bags are not included with the model, RI80.
LOCATION AND CONNECTION:
This unit is classif ed as Zone 1. Such equipment will not generate a spark. This equipment may be safely
placed in a Class 1, Division 1, Group D, Zone 1 locations where solvents may be present. See Hazard-
ous Location in the National Electrical Code for more information.
If this unit is placed in a Class 1, Division 2, Zone 2 or unclassif ed location consider the area within 10
feet from the unit as Class 1, Division 2, a location where solvent is sometimes present. All equipment in
this area, such as electrical and ventilation equipment must be certif ed for use in a Class 1, Division 2,
Zone 2 location. Such equipment cannot produce a spark. Equipment that can generate sparks, like gen-
eral plugs, welding equipment and power tools cannot be located in this area. Smoking is not permitted.
We recommend, as a best practice, that you keep this area open and free from all debris and equipment.
If you have a question contact your local f re prevention authorities for advice. The unit must be at least 1
foot from the back wall and 10 feet from 3 other walls.
The solvent recycler comes with an explosion proof plug. A qualified electrician, in accodance
with the National Electrical Code, must install an explosion proof recepticle on the wall for con-
Manual
Lid Gasket
Liner Bag, 2 Spares
Filler Hose and Suction Pipe Assembly
ACCESSORY KIT CONTENTS

4
MANUAL - SOLVENT RECYCLERS - URS1600CE AND URS2000CE Revised 2017-10
nection to the explosion proof plug on the cord of the recycler. The specification for the plug is ...
and the specification for the receptacle is ...
Ventilation Required:
Solvents are heavier than air and accumulate near the f oor.
The area or room where the solvent recycler is located must have suff cient natural or artif cial ventilation
to prevent the accumulation of solvent vapor air mixtures. If a ventilator is used it must be of class 1, divi
sion 1 and used in a way to safely exhaust fumes. Check the arrangement with local authorities.
Fire Extinguisher:
A f re extinguisher (dry chemical type) of class BC or ABC must be kept nearby.
SOLVENT REQUIREMENTS
2) Comply with the instructions in the section: CAUTIONS AND WARNINGS.
3)Ensure that the safety lid and door freely opens fully and a container for receiving the distilled solvent
can freely move in and out of the cabinet. The unit must be in a location where people or equipment can-
not disturb the cable or connection. The cord must be connected directly to the main power supply; an
extension cord cannot be used.
4) Connect the unit to a dedicated, single phase 220/240V, 20 Amp branch circuit.
Definitions
Flash Point:
The lowest temperature at which the vapor of a solvent can be made to ignite momentarily in air.
Auto-ignition Temperature (often referred to as “ignition Temperature” or “Ignition Point”):
The temperature at which solvent ignites by itself.

5
MANUAL - SOLVENT RECYCLERS - URS1600CE AND URS2000CE Revised 2017-10
OPERATING PROCEDURES
Wear protective clothing in accordance with local safety and environmental regulations. Use face goggles
and gloves as a minimum. Use an apron and respirator if required.
Summary of Operating Steps:
1) Open the Safety Cover and Tank Lid
2) Install the Receiving Container, the Transfer Hoses and the air Supply
3) Transfer Solvent to the Recycler Tank. Fill to 3” below retainer ring.
4) Check distillation conditions and change, if necessary, using SETUP MODE
5) Recycling
6) Finish Recycling
7) Transfer clean solvent
8) Remove waste debris
9) Clean Distillation Tank and Lid Surface

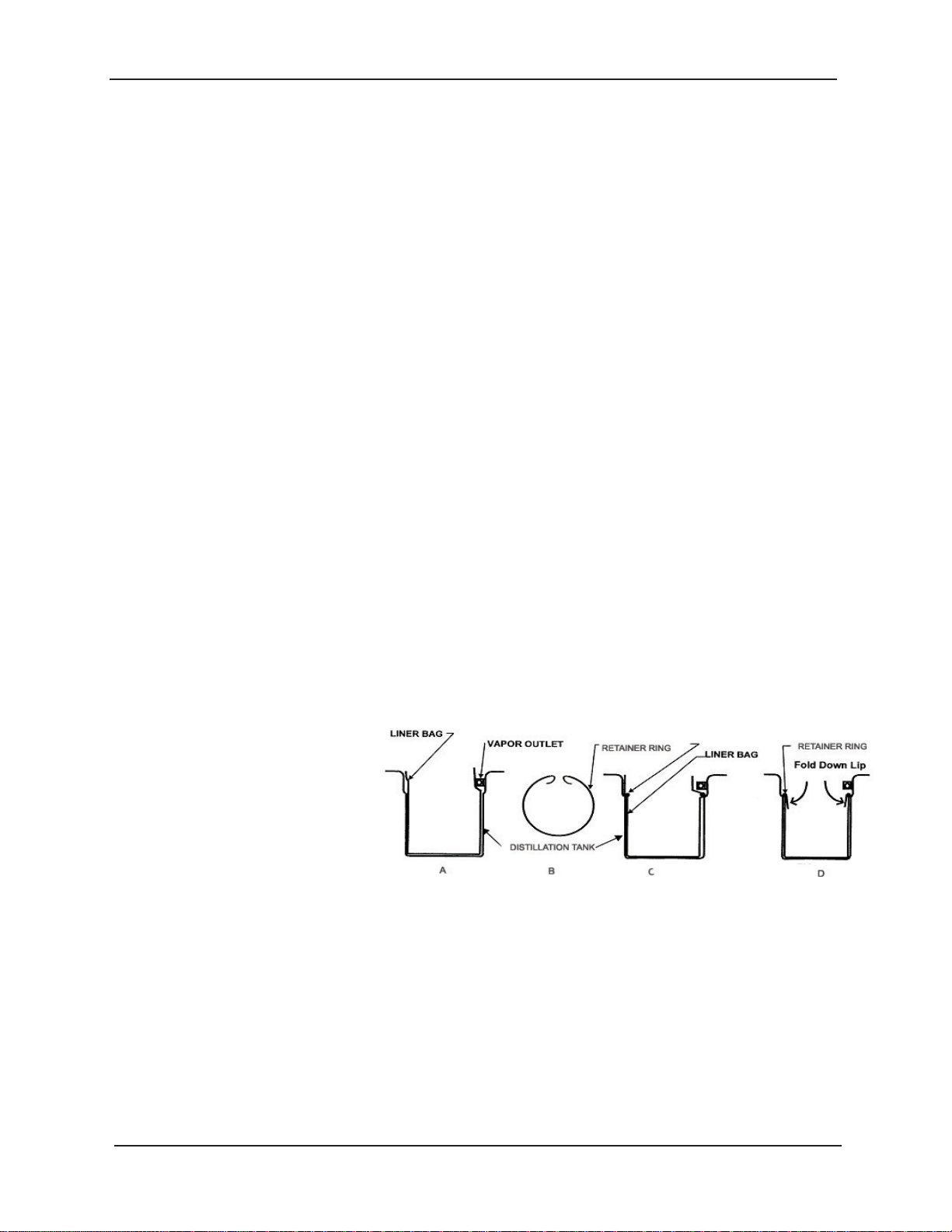

10) Install new liner bag
11) Inspect Lid Gasket, Remove and Replace if necessary
Each Step is described in detail below.
1) Open the Safety Cover and Tank Lid
• Open the safety cover.
• Open the inner lid by releasing the Lid Clamp.
• Make sure that Tank is empty and that a Liner Bag is properly installed in the Tank.
TO OPEN, LIFT UP LID CLAMP AND RE-
LEASE LOOP. TO CLOSE, ATTACH LOOP
AND PUSH DOWN TO LOCK.
LID CLAMP
LOOP
