Dear Customer,
At the outset, allow us to thank you for your trust in
water purifiers. We take pride in our reputation for product quality
and industry proven performance. We are certain that your
decision to own a water purifier will go a long way
towards keeping you and your family in good health. We are
confident that you will be satisfied with its performance and that it
will serve your need for safer and cleaner drinking water without
any compromise.
This guide will help you in getting the best out of your water purifier.
Please go through this booklet to familiarize yourself with its
operation and maintenance.
You can look forward to years of trouble free service. To ensure that
the warranty of your water purifier is effective, it is important that
you fill up the enclosed warranty card and mail us the installation
report within 15 days of purchase. In case you need any further
information, contact Unibiz Multitrade Customer Support .
Best Wishes
UNIBIZ MULTITRADE PVT LTD.
UNIBIZRO
UNIBIZRO
Welcome
to UNIBIZRO UNIBIZRO TECHNOLOGY - A Breakthrough
in Water Purification
Salient Features
Items in the Box
Important Instructions
Reverse Osmosis Process
UV Process

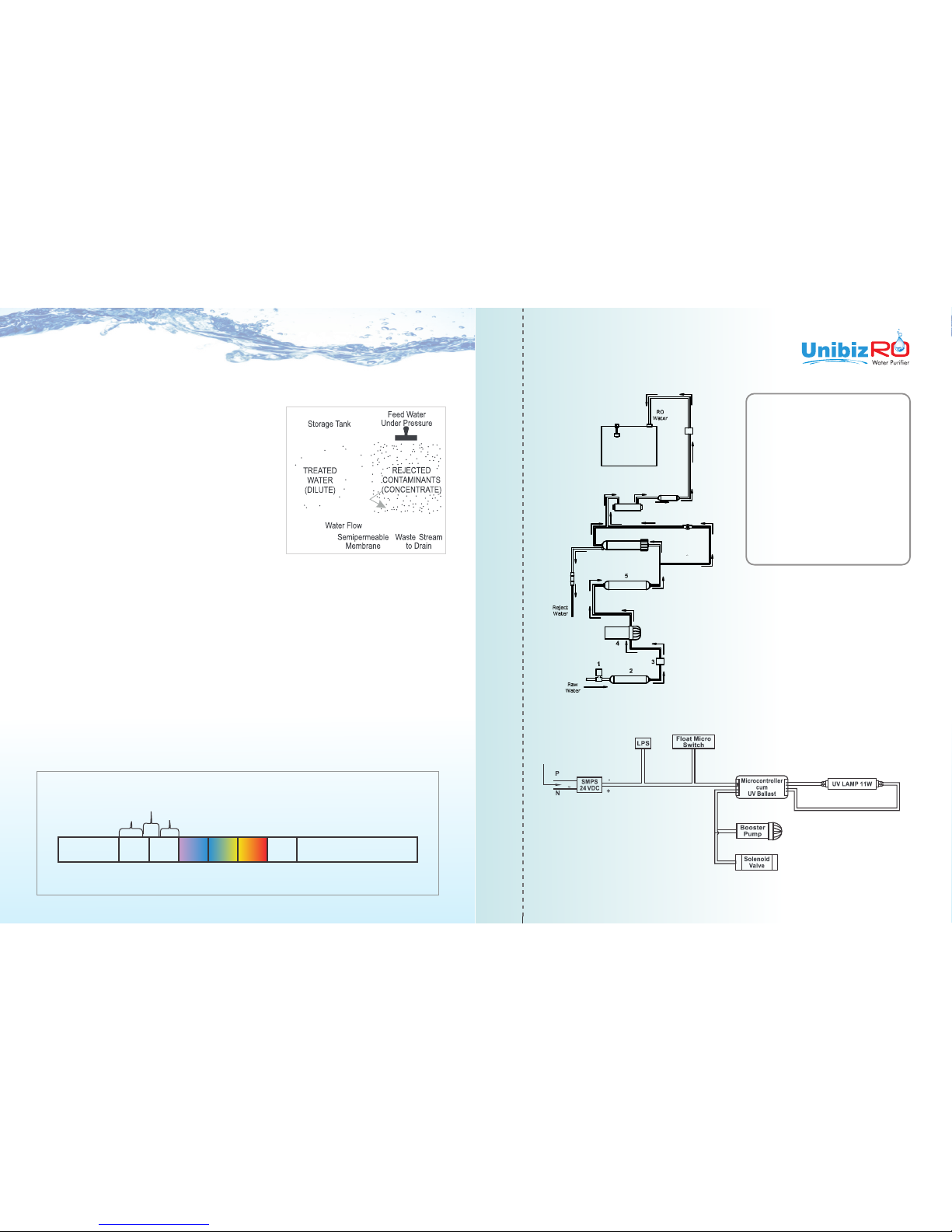

Water Flow Diagram
Electrical Circuit Diagram
Automatic Operation
Installation Instructions
TDS Adjustment
Starting Up the Purifier
Recommended Uses of Rejected Water
Maintenance
Technical Specifications
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
1.
1.
1.
2.
3.
3.
6.
6.
7.
7.
8.
9.
9.
9.
10.
Table of Contents

UNIBIZRO TECHNOLOGY - A Breakthrough in
Water Purification*
Presenting the UNIBIZRO Water Purifier, it uses futuristic
and state-of-the-art technology to provide pure & healthy
drinking water.
The heart of UNIBIZRO Water Purifier is a Reverse
Osmosis membrane having capillaries as small as .0001
microns that reduces even dissolved impurities (salts and
heavy metals) and even converts hard water to sweet and
pure drinking water. UNIBIZRO Water Purifier also allows
the user to control the Total Dissolved Solids (TDS) level of
purified water.
Salient Features of UNIBIZRO Water Purifier
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Double treatment by RO + UV Processes.
Inbuilt TDS Controller that allows adjustment
of TDS level of purified water.
Ideal for Municipal, Corporation Water.
Wall mounted design; Best suited for Indian
Homes and Offices.
9 liters. Storage tank with water level
indicator.
Fully automatic operation, with auto-on and
auto-off.
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
RO Membrane fused inside membrane
housing to prevent tampering.
Vertically mounted SMPS for protection from
water.
Use of push-fit fittings for leakage and
maintenance free performance.
New Eye appealing design.
ABS construction for corrosion free use.
1.
2.
3.
4.
5.
6.
7.
UNIBIZRO Water Purifier :
3-Way Connector : 01 No.
S.S. Ball Valve : 01 No.
Food Grade Pipe (White & Blue) : 03 Meters each
Instruction Manual : 01 No.
Screws & Plastic Inserts : 02 Nos. each
Pre Filter Set : 01 No.
01 No.
Items in the Box

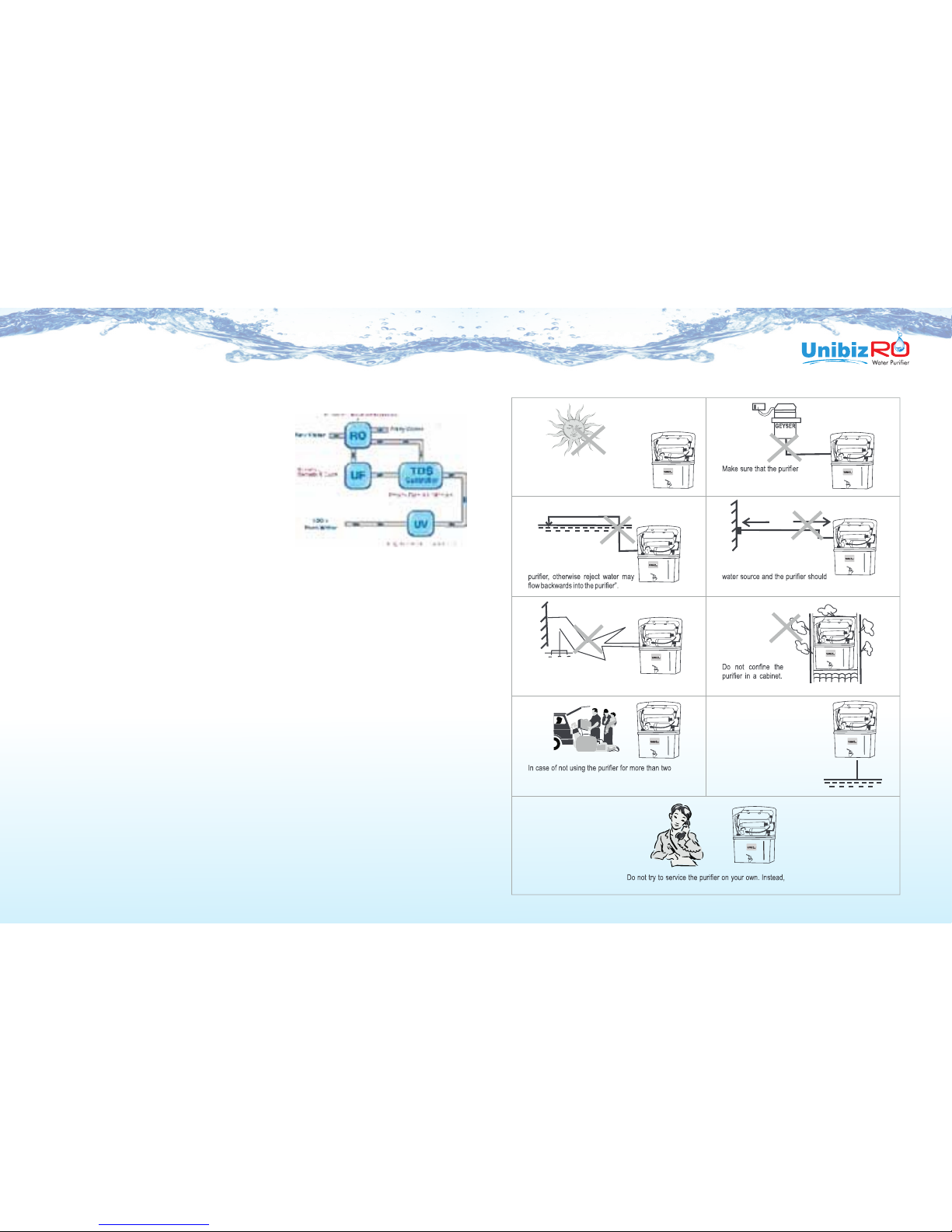

Important Instructions
Water in
The maximum distance between the
not be more than 3 meters.
is connected to cold water
supply only.
To keep the storage tank
clean, it should be drained
once in 15 days.
NEW
NEW
NEW
NEW
10 M
Water Source
“Make sure that the reject water pipe
is not placed at a level higher from the
Reject Water
Drain
Avoid exposure to direct sunlight
and installation in damp areas.
Avoid sharp bends in the pipe.
Do not bend or block the reject
water pipe.
days, kindly switch off the power supply and drain
the storage tank.
NEW
NEW
NEW
NEW
Purity Ke Sath Surity Bhi
call service technician for help
NEW
T
E
L
O
TDSC
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
Purity Ke Sath Surity Bhi
1 2

The UV light has shorter wavelength (higher energy) than the visible light. It is called ultra-violet
because it is just beyond violet light in the light spectrum. Technically, the ultra-violet light is
defined to be any wavelength of light, which is shorter than 400 nanometer.
UV rays, which penetrate into the micro-organisms, are absorbed by the DNA of the pathogen in
the water. The DNA is altered in such a way that the pathogen cannot reproduce itself. Thus, it is
essentially killed and cannot cause infection. This process of DNA modification is called
inactivation.
UV Process
Reverse Osmosis Process
700400
Wavelength(nm)
UVB
280-315 UVA
315-400
UVC
200-280
X-Rays Ultraviolet Visible Infrared Microwaves Radio
The Reverse Osmosis process, also known as
hyperfiltration, is the finest process known till date. The
process ensures removal of particles as small as ions from
a solution. Reverse Osmosis uses semi-permeable
membrane to remove salts from potable / brackish
water. In Reverse Osmosis, water pressure applied to the
concentrated side forces the process of osmosis into
reverse. Under enough pressure, treated water is
"squeezed" through the membrane from the
concentrated side to the diluted side. Salts dissolved in
water as charged ions are repelled by the RO membrane.
The rejected impurities on the concentrated side of the
membrane are washed away in a stream of waste water and thus do not get accumulated as in a
traditional filter.
3
Water Flow Diagram
Electrical Circuit Diagram
100-300 V ~, 50 Hz, 800 mA
LOW PRESSURE SWITCH
SEDIMENT FILTER
SOLENOID VALVE
BOOSTER PUMP
ACTIVATED CARBON FILTER
TDS CONTROL VALVE
RO MEMBRANE
FLOW RESTRICTOR TUBE
UV CHAMBER
POST CARBON FILTER
FLOAT VALVE
WATER STORAGE TANK
NON RETURN VALVE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
6
7
8
9
10
11
12
13

Automatic Operation
The UNIBIZRO Water Purifier is a product of advanced technology, which ensure ssa fe and clean
drinking water. The purifier is easy and convenient to install.
Installation Instructions
Installation Procedure :
The purifier automatically shuts off when the
storage tank becomes full.
The purifier does not start when inlet water
2
supply pressure is below 0.3 kg / cm
The purifier automatically restarts when water
level drops below the maximum.
The purifier does not allow any water rejection
in absence of electricity / when tank is full.
Recommended Site Preparations :
220 V single phase AC connection not more than 3m away from the point of installation of purifier.
Raw water supply with ½" nipple not more than 3m away.
Drain for rejected water not more than 3m away.
Space as per dimensions of the purifier.
Wall/plane surface for mounting two screws and holding the machine.
The system and installation must comply with state and local laws and regulations.
UNIBIZRO Water Purifier is a wall mountable purifier. Make sure it is mounted on a wall.
Avoid installation on wooden and metallic stands.
For optimum performance and minimum inlet pressure required, ensure that the raw water
supply tank is at least 10 ft above the level at which the purifier is installed.
It is preferable to install the purifier near a sink so that inlet and reject water lines easily available.
Specific Instructions :

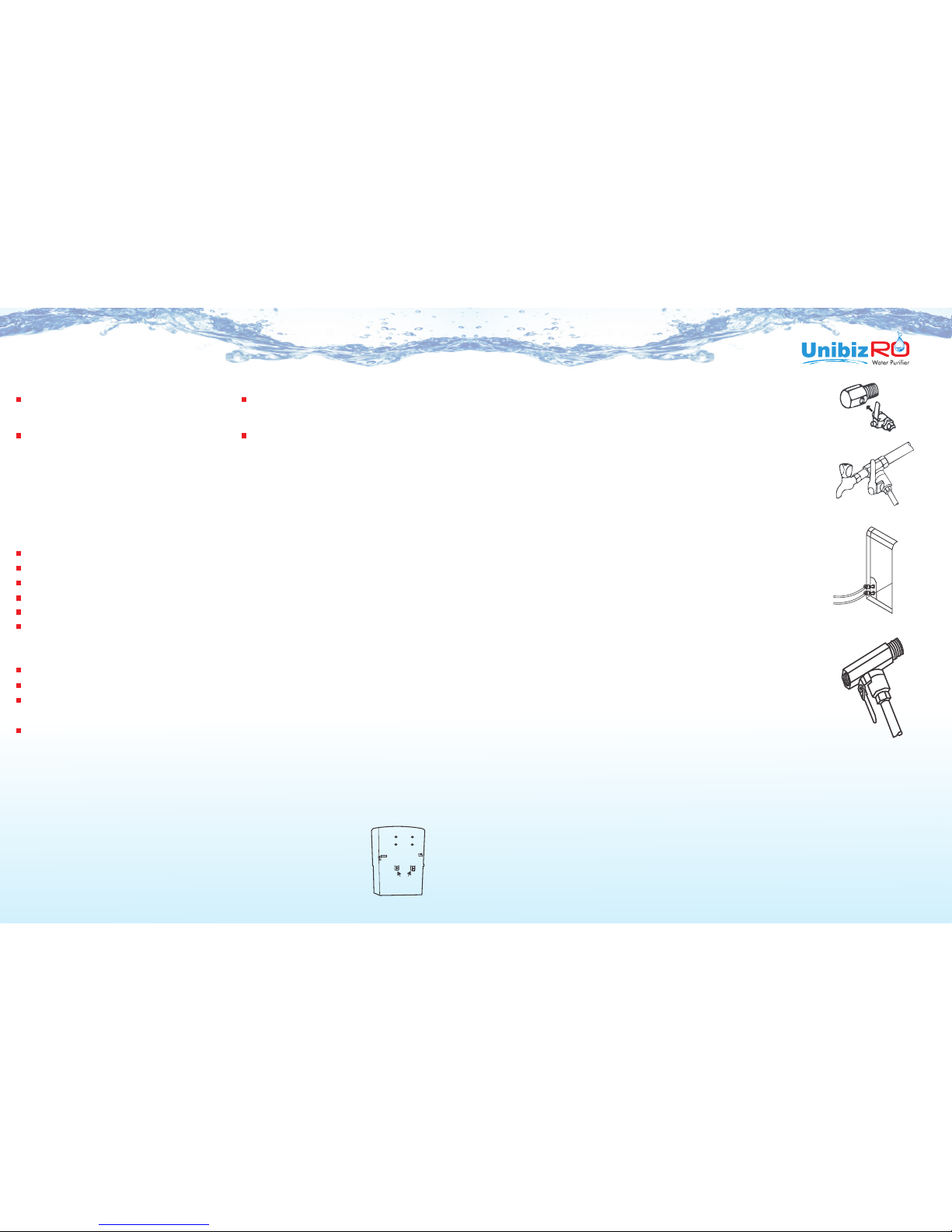

Fix the SS ball valve to the
shown in the figure.
¼ inch port of the 3-way connector as
Slot holes
Carefully hang the purifier on the wall with the help of wall mounting slot
holes present on the back side of the purifier as shown in the figure below
2.
3.
Connect the 3-way connector to the raw water supply as shown in
the figure. The threaded end of the 3-way connector is fitted in line
with the raw water supply. The other end can be connected to a tap
or can be plugged off if not required.
4.
Now connect one end of the white pipe to the SS ball value and other
end to lower pushfit elbow fitting on the left hand side of the purifier
labeled as WATER IN. (Note: White pipe is for raw water supply)
5.
Screw in the two 16x25 self taping screws (supplied with the package) on a same horizontal
level at a distance of 5.4 inches (138mm) from each other in the wall.
1.
Similarly, connect one end of the blue pipe to the upper elbow fitting
connector labeled as REJECT WATER and leave the other end in the
drain.(Note: Blue pipe is for reject water)
6.
Before connecting the power supply, it is important that you perform
the following functions:
(a) Open the SS ball value (Handle parallel to the ball valve) to start the
flow of water into the purifier.
(b) Wait for 2-3 minutes to ensure that the filters are soaked in water.z
7.
A unique feature in UNIBIZRO Water purifier is the TDS control valve, which is not available
in any other domestic water Purifier till date. This feature allows the user to Control the cntent
of natural minerals (TDS) in Purified water.
To increase the level the TDS user can turn the screw of the value anticlockwise; it will result in
more mineral content in treated water. To reduce the TDS level, user can turn the screw value
clockwise, it will result in less mineral content in treated water. We recommend the TDS of the
purifier to be kept at lowest but not below 50 mg/l.
TDS Adjustment*
7 8

Switch on the power supply.
Wait till the storage tank fully fills up.**
Switch off the power supply.
Drain the storage tank by opening the drain
plug present at the bottom of the storage tank
Starting Up the Purifier
Although the rejected water has high concentration of salts. this rejected water usually goes down
the drain but if required, can be used for gardening purposes. It has high concentration of salts and
minerals which accelerate plant growth. Rejected water can also be used for cleaning purposes ,i.e.
Utensils Cleaning, Mopping, etc.
Recommended Uses of Reject Water
Maintenance
To ensure that the purifier operates at its
optimum level, a routine maintenance
must be performed. The frequency of the
maintenance will greatly depend upon the
raw water quality and consumption of
treated water.
Storage tank must be drained once in 2
weeks. To do so, switch off the power
supply, open the drain plug at the bottom
of the tank & allow the water to drain.
Then screw back the plug and switch on
the power supply.
Replace sediment, activated carbon & post
carbon.
After every 12 months. It is recommended to
change the FRT when the filters are
replaced.
Replace the RO membrane once in 2 years.
Replace the UV Lamp once in 2 Years.
If you are not going to use the purifier for a
long time ( in case you are on a holiday, tour
or out of home), make sure that you
disconnect the power supply, turn off the
raw water supply and drain the storage tank.
The reverse osmosis system contains a replaceable treatment component critical for the
effective reduction of total dissolved solids and that product water shall be tested periodically
to verify that the system is performing properly.
Note: Filters and membrane are consumables. Their replacement time is dependent on the quality
of raw water and water consumption. They are not covered under the warranty. However, if a
filter chokes within six months and a membrane within a year, it will be cleaned/repaired/replaced
free of cost. Changing the filters and system inspection is available on call. The treatment capacity
of RO membrane will reduce with time due to clogging of pores of membranes.
“This reverse osmosis system contains a replaceable component critical to the efficiency of
Replacement of the reverse osmosis component should be with one of identical specifications as
defined by the manufacturer, to ensure the same efficiency and contaminant reduction
Performance."
Technical Specifications
so as to remove any dust particles present in
the pipes and storage tank.
Close drain plug & switch on the power
supply.
The purifier is ready to use.
Replacement of spare parts is
as follows
SP Inline Sediment Filter 10"
SP Inline Carbon Block Filter 10"
SP RO Membrane 10" Housing
SP Post Carbon Filter (White )
PRODUCT UNIBIZRO Water Purifier
Product Code
Applications
Purification Capacity
Body Material
Mounting
Dimensions(mm)
Inlet Water Pressure/Temp (Min)
Inlet Water Pressure/temp (Max)
Filter Cartridge
UV Lamp Wattage
Weight
Storage Capacity
Purification Production Rate
Maximum Duty Cycle
Membrane Type
Booster Pump Voltage
Input Power Supply
-
Suitable for Purification of Brackish / Tap Water
Upto 15 LPH*
ABS
On the Wall
L 410 W 260 H 5200
3Kg / cm2 or 4.267psi / 10°C
3 Kg / cm or 42.67psi / 35°C
Sediment, Carbon Block Filter and Post Carbon
11 W
9.400 kg.
9 L
15 L/hr.
75 L/day
Thin Film Composite RO
24 V DC
100-300 V ~, 50 Hz, 800 mA
9 10
