unicraft SRWH 3001 SIL User manual

SRWH-SERIES
SRWH 3002 EF
Special Floor Jack
SRWH 3001 SIL
Operating Instructions
SRWH 3001 SIL
SRWH 3002 EF

2SRWH-Series | Version 1.01
Imprint
Product identification
Special Floor Jack Item number
SRWH 3001 SIL 6201121
SRWH 3002 EF 6201122
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Fax: [phone]
E-Mail: [email protected]
URL: www.unicraft.de
Indication regarding the operating instructions
Original instructions
Edition: 02.12.2019
Version: 1.01
Language: English
Author: MS/FLi
Indication regarding the copyright
Copyright © 2019 Stürmer Maschinen GmbH, Hallstadt,
Germany.
The contents of these operating instructions are the sole
property of the company Stürmer Maschinen GmbH.
Passing on as well as copying of this document, the use
and distribution of its content are prohibited if not expli-
citly permitted. Contraventions are liable to compensa-
tion.
Subject to technical modifications and error.
Content
1 Introduction .............................................................3
1.1 Copyright............................................................ 3
1.2 Customer service................................................ 3
1.3 Limitation of liability ............................................ 3
2 Safety........................................................................3
2.1 Symbol explanation ............................................ 3
2.2 Obligations of the operating company............... 4
2.3 Requirements to staff.......................................... 4
2.4 General safety regulations.................................. 5
2.5 Safety information for operating personnel ........ 5
2.6 Safety labels on the floor jack............................. 5
2.7 Personal protective equipment........................... 6
3 Intended Use............................................................6
3.1 Foreseeable misuse ........................................... 6
3.2 Residual risks ..................................................... 6
4 Technical Data.........................................................6
4.1 Environmental conditions ................................... 7
4.2 Type plate........................................................... 7
5 Transport, packaging, storage...............................7
5.1 Transport ............................................................ 7
5.2 Packaging........................................................... 7
5.3 Storage ............................................................... 7
6 Description of the device........................................8
7 Mounting ..................................................................8
8 Before the start-up ..................................................9
9 Operation .................................................................9
9.1 Operating conditions........................................ 10
9.2 Test run............................................................. 10
9.3 Lift the load....................................................... 10
9.4 Lower the load.................................................. 10
10 Care, maintenance and repair ............................11
10.1 Care by cleaning ............................................ 11
10.2 Maintenance and repair ................................ 11
11 Troubleshooting..................................................12
12 Disposal, recycling of used devices..................13
12.1 Decommissioning........................................... 13
12.2 Disposal of lubricants..................................... 13
13 Spare parts...........................................................13
13.1 Ordering spare parts ...................................... 13

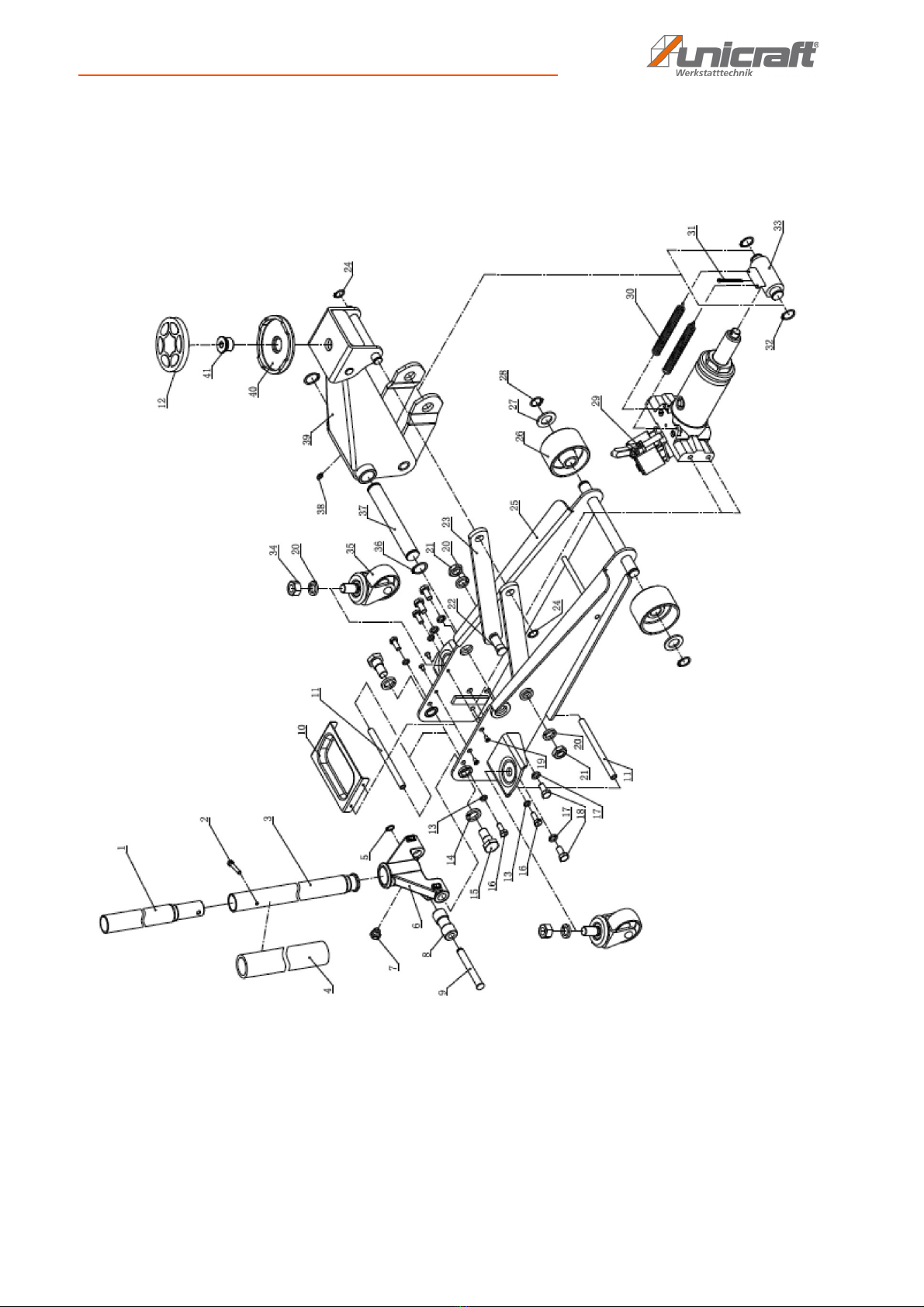

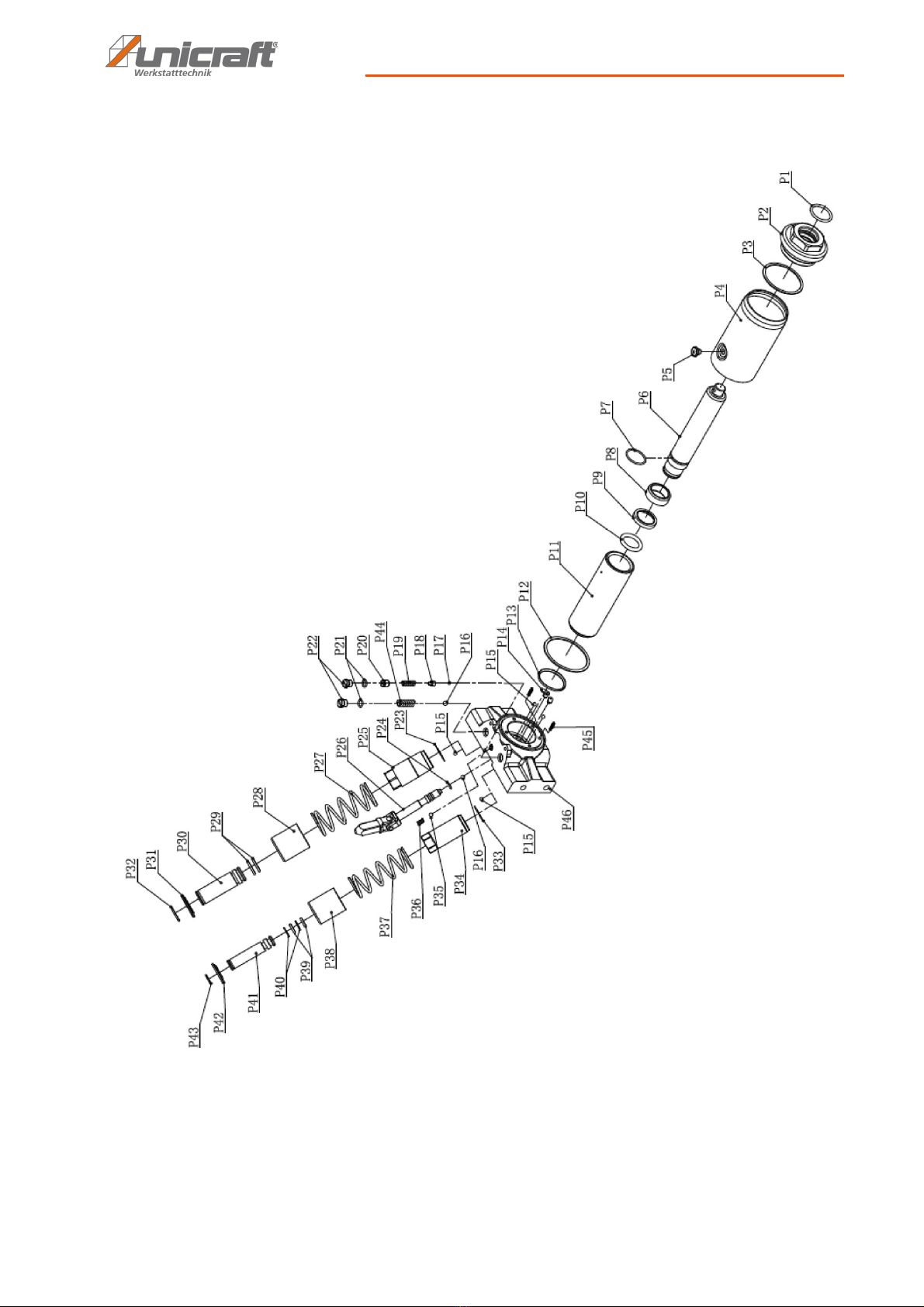

13.2 Spare parts drawings ..................................... 14

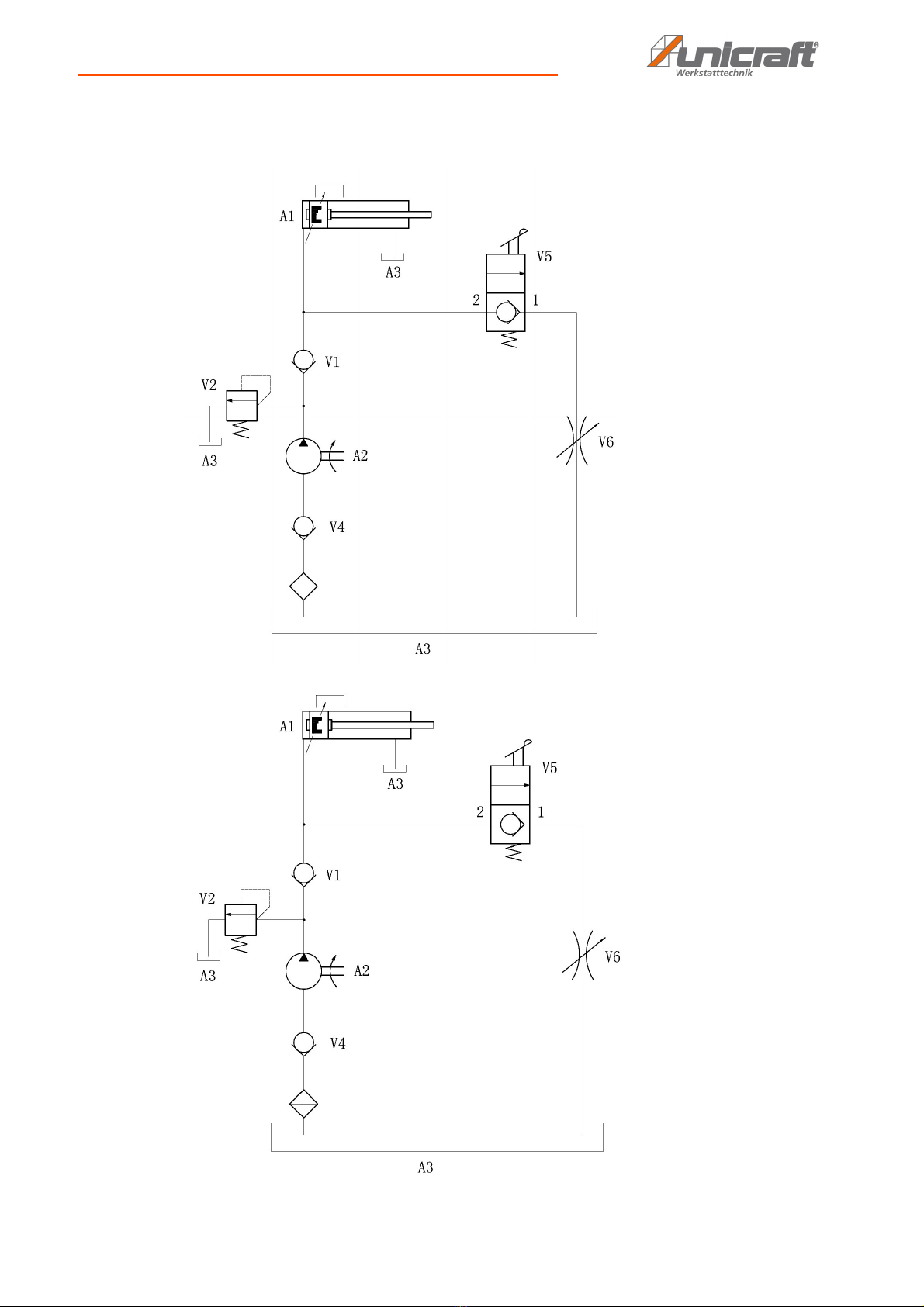

14 Hydraulic plan.....................................................18
15 EC Declaration of Conformity ............................19

Introduction
SRWH-Series | Version 1.01 3
1Introduction
You have made a good choice by purchasing the UNI-
CRAFT floor jack.
Read the operating manual thoroughly before commis-
sioning the machine.
It gives you information about the proper commissio-
ning, intended use and safe and efficient operation and
main-tenance of your floor jack.
The operating manual is part of the floor jack package.
Always keep this operating manual in the location where
your floor jack is being operated. All local accident pre-
vention regulations and general safety instructions for
the operating range of your floor jack must also be com-
plied with.
1.1 Copyright
The contents of these instructions are copyright. They
may be used in conjunction with the operation of the
floor jack. Any application beyond those described is
not permitted without the written approval of Stürmer
GmbH.
For the protection of our products, we shall register tra-
demark, patent and design rights, as this is possible in
individual cases. We strongly oppose any infringement
of our intellectual property.
1.2 Customer service
Please contact your dealer if you have questions con-
cerning your floor jack or if you need technical advice.
They will help you with specialist information and expert
advice.
Germany:
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Repair service:
Fax: [phone]-111
E-Mail: [e-mail]
Spare part orders:
Fax: [phone]-119
E-Mail: [e-mail]
We are always interested in valuable experience and
knowledge gained from using the application-which
then could be shared and be valuable to develop our
products even further.
1.3 Limitation of liability
All information and notes in these operating instructions
were summarised while taking applicable standards
and rules, the state-of-the-art technology and our long-
term knowledge and experiences into consideration.
In the following cases the manufacturer is not liable for
damages:
- Non-observance of the operating instructions,
- Inappropriate use
- Use of untrained staff,
- Unauthorised modifications
- Technical changes,
- Use of not allowed spare parts.
The actual scope of delivery may deviate from the ex-
pla-nations and presentations described here in case of
spe-cial models, when using additional ordering options
or due to latest technical modifications.
The obligations agreed in the delivery contract, the gen-
eral terms and conditions as well as the delivery condi-
tions of the manufacturer and the legal regulations at the
time of the conclusion of the contract are applicable.
2 Safety
This section provides an overview of all important safety
packages for the protection of operating personnel as
well as for safe and fault-free operation. Other task-ba-
sed safety notes are included in the paragraphs of the
individual phases of life.
2.1 Symbol explanation
Safety instructions
The safety notes in these operating instructions are
high-lighted by symbols. The safety notes are intro-
duced by signal words which express the concern of
the risk.
s
DANGER!
This combination of symbol and signal words indi-
cates an imminently dangerous situation which may
lead to death or severe injuries if they are not avoided.
WARNING!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may
lead to death or severe injuries if they are not avoi-
ded.

4SRWH-Series | Version 1.01
Safety
Tips and recommendations
It is necessary to observe the safety notes written in
these operating instructions in order to reduce the risk of
personal injuries and damages to property.
2.2 Obligations of the operating company
of the operator
The operating company is the person who operates the
floor jack for business or commercial reasons by her-
self, or leaves it to a third party for use or application,
and who bears the legal product responsibility for the
protection of the user, the staff or for third parties.
Obligations of the operating company
If the floor jack is used for commercial purposes, the
operating company of the floor jack must comply with
the legal working safety regulations. Therefore, the saf-
ety notes in this operating manual, as well as the safety,
accident prevention and environment protection regula-
tions applying for the area of application of the floor jack
must be met. The following applies in particular:
- The operating company must be informed about
the applying industrial safety regulations and fur-
ther analyse hazards resulting from the special
working conditions at the place of use of the floor
jack. She must implement these in form of ope-ra-
ting manuals for the operation of the floor jack.
- During the entire lifetime of of the floor jack, the
operating company must verify whether the oper-
ating manuals prepared by her correspond to the
current status of the regulations, and must adapt
these if necessary.
- The operating company must unambiguously reg-
ulate and determine the responsibilities for instal-
lation, operation, troubleshooting, maintenance
and cleaning.
- The operating company must ensure that all per-
sons who work with the floor jack, have read and
understood this manual. Furthermore she must in-
struct the staff in regular intervals and inform them
about the hazards.
- The operator must provide the necessary protec-
tive equipment to the staff and order the use of the
necessary protective equipment in a binding way.
Furthermore the operating company is responsible to
keep the floor jack always in a technically flawless state.
Thus, the following applies:
- The operator must ensure that the maintenance in-
tervals described in this manual are kept.
- The operator must have all safety devices che-
cked regularly for their good working order and
their integrity.
2.3 Requirements to staff
Qualifications
The different tasks described in this manual represent
different requirements to the qualifications ot the per-
sons entrusted with these tasks.
Only persons reliable working procedures can be ex-
pected from, are allowed to perform all works. Persons
the responsiveness of which is affected by e. g. drugs,
alcohol or medication, are not allowed to work with the
machine.
CAUTION!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may
lead to minor or light injuries if they are not avoided.
ATTENTION!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may
lead to property and environmental damages if they
are not avoided.
NOTE!
This combination of symbol and signal words indica-
tes a possibly dangerous situation which may lead to
property and environmental damages if they are not
avoided.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for an efficient and trou-
ble-free operation.
WARNING!
Danger in case of insufficient qualification
ot the staff!
Insufficiently qualified persons cannot estimate the
risks while using the floor jack and expose them-sel-
ves and others to the danger of severe or lethal inju-
ries.
- Have all works only performed by qualified per-
sons.
- Keep insufficiently qualified persons out of the wor-
king area.

Safety
SRWH-Series | Version 1.01 5
Operator
The operator is instructed by the operating company
about the assigned tasks and possible risks in case of
improper behaviour. Any tasks which need to be perfor-
med beyond the operation in the standard mode must
only be performed by the operator if it is indicated in
these instructions and if the operating company ex-
pressively commissioned the operator.
Qualified electrician
Due to their technical training, knowledge and experi-
ence as well as knowledge of the relevant standards
and regulations, skilled electricians are able to carry out
work on electrical systems and to recognize and avoid
potential hazards independently.
Qualified electricians are specially trained for the wor-
king environment in which they work and are familiar
with the relevant standards and regulations.
Qualified personnel
Due to their professional training, knowledge and expe-
rience as well as their knowledge of relevant regulations
the specialist staff is able to perform the assigned tasks
and to recognise and avoid any possible dangers them-
selves.
Manufacturer
Certain works may only be performed by specialist per-
sonnel of the manufacturer. Other personnel is not au-
thorized to perform these works. Please contact our cus-
tomer service for the execution of all arising work.
2.4 General safety regulations
Maintenance and inspection activities may only be car-
ried out when not in use and only by trained personnel.
It is pointed out that any unauthorized modifications and
changes to the devices are not permitted for safety rea-
sons.
2.5 Safety information for operating personnel
- The operating staff must always make sure that the
specified max. Load capacity of the floor jack is not
exceeded.
- It must be ensured that the ground is sufficiently
stable to hold the load.
- Lift loads only on level, even and firm ground with
the floor jack.
- For vehicles to be lifted, set the wheels straight and
lock with sufficiently sized wedges.
- Never move the lifted load.
- It must never be worked under the lifted load without
it being additionally secured with racks.
- The operator must also ensure that no unauthorized
persons work on and with the floor jack (for example,
by operating devices against unauthorized use).
- The operator is obligated to inspect the floor jack at
least once every day (on a daily basis) for externally
visible damage and defects, and to immediately re-
port any changes (including performance) that af-
fect the safety.
- The operator must ensure that the floor jack is al-
ways operated in perfect condition. If necessary,
the operator must oblige the operating staff to wear
protective clothing, etc.
- In principle, no safety equipment may be dismant-
led or put out of service, there is a risk of massive
crushing hazards.
2.6 Safety labels on the floor jack
The following safety labels are attached to the floor jack
(Fig. 1), which must be observed and fallowed.
Fig. 1: Safety labels SRWH 3002 EF
The safety labels attached to the floor jack must not be
removed. Damaged or missing safety labels can lead to
malfunction, personal injury and material damage.
If the safety labels are not immediately recognizable
and comprehensible, the floor jack must be taken out of
service until new safety markings have been fitted.
NOTE!
In each case, the regulations or guidelines and stan-
dards valid in the country of use must be observed
(in the respectively valid version).
In Germany at the moment
DIN EN 1494: 2000 + A1: 2008: Mobile or mobile lif-
ting equipment and related equipment.
EC Machinery Directive 2006/42 / EC

6SRWH-Series | Version 1.01
Intended Use
2.7 Personal protective equipment
The personal protective equipment serves to protect
per-sons against impairments of safety and health while
wor-king. The staff member has to wear personal pro-
tec-tive equipment while performing different tasks on
and with the machine which are indicated in the indivi-
dual para-graphs of these instructions.
The personal protective equipment is explained in the
following paragraph:
3 Intended Use
The floor jack is used exclusively for lifting and lowering
of loads, eg. vehicles, up to the maximum specified
load.
The floor jack may only be operated by instructed per-
sons.
Proper use also includes compliance with all information
in this manual. Any use beyond the intended use or
otherwise is considered misuse.
For structural and technical changes to the floor jack the
Company Stürmer Maschinen GmbH assumes no liabi-
lity.
Claims of any kind due to damage due to improper use
are excluded.
3.1 Foreseeable misuse
With the floor jack no reasonably foreseeable misappli-
cations are possible which could lead to dangerous si-
tuations with personal injury if the intended use is obser-
ved.
3.2 Residual risks
Even if all safety regulations are observed, the following
residual risks remain when operating the floor jack.
All persons working with the floor jack must be aware of
these residual risks and follow the instructions to pre-
vent these residual risks from leading to accidents or
damage:
- There is a risk of crushing the lower limbs during
operation.
- During set-up and set-up work, it may be neces-
sary to dismantle protective equipment provided
by the customer. This results in various residual
risks and hazard potentials, which every operator
must be aware of.
4 Technical Data
Head protection
The industrial helmet protects the head against fall-
ing objects and hitting on fixed objects.
Protective gloves
The protective gloves serve to protect the hands
against sharp components as well as against fric-
tion, abrasions or deep injuries.
Safety boots
The safety boots protect the feet from being crushed,
falling parts and slipping over on slippery ground.
Protective clothes
The protective clothes are made of a tightly fitted fa-
bric without the protruding parts of low tear strength.
SRWH 3001 SIL 3002 LF
Load -carrying ca-
pacity
3,0 t 3,25 t
Max. lifting height 340 mm 425 mm
Final height max. 460 mm 520 mm
Min. clearance 120 mm 95 mm
Underside cle-
arance max.
158 mm 150 mm
Length 628 mm 690 mm
Length max. 1756 mm 1840 mm
Width 343 mm 370 mm
Height 158 mm 150 mm
Weight 31,5 kg 40 kg
Item number 6201121 6201122

Transport, packaging, storage
SRWH-Series | Version 1.01 7
4.1 Environmental conditions
4.2 Type plate
Fig. 2: Type plate of the floor jack SRWH 3002 EF
5 Transport, packaging, storage
5.1 Transport
Check the floor jack on delivery for any visible trans-por-
tation damage. If you notice any damage to the device
please report this immediately to the carrier or dealer.
5.2 Packaging
All used packaging materials and packaging aids are
recyclable and should be taken to a materials recycling
depot to be disposed of.
The delivery packaging is made of cardboard, so
please dispose carefully by having it chopped up and
given to the recycling collection.
The film is made of polyethylene (PE) and the cushioned
parts of polystyrene (PS). Deliver these substances to a
collection point for recyclable materials or to the waste
disposal company which looks after your region.
5.3 Storage
The floor jack should be lubricated and then stored in a
dry, frost-free environment.
Only store the floor jack with the lift arm lowered and the
drain valve closed. Do not put anything on the floor jack.
Size [mm] 3001 SIL 3002 EF
A120 95
B 340 425
C 158 150
D 460 520
E 628 690
F 1756 1840
G 343 370
H285
Conditions
Working temperature -5°C to +40°C
Storage temperature -25°C to +55°C
Transport temperature -25 °C to +70 °C (< 24 h)
Operating height max. 1000 m
Air humidity (at 40 °C) max. 85% relative
humidity
Working environment not flammable, dry and
durst-free
Lighting > 300 LUX
NOTE!
The floor jack should be protected from humidity.

8SRWH-Series | Version 1.01
Description of the device
6 Description of the device
Fig. 3: Description of the floor jack SRWH 3002 EF
1 Pump lever
2 Tool tray
3 Type plate
4 Lifting arm
5 Swivel castor
6 Jack saddle
Illustrations in this manual may differ from the original.
7 Mounting
Fig. 4: Delivery of SRWH 3002 EF
1 Pump lever handle
2 Pump lever extension
3 Jack body
4 Operating Instructionsg
Fig. 5: Assembly of the pump lever
Step 1: Unscrew the screw on the underside of the
pump lever handle (SRWH 3001 SIL model
only), place the pump lever handle on the pump
lever extension and screw the two pump lever
parts together with the screw (SRWH 3001 SIL
model only).
Fig. 6: Mounting the pump lever on the jack body
Step 2: The pump lever socket is fixed in the lower posi-
tion with a plastic block for transport. Remove
the plastic block before assembly. To do this, in-
sert the pump lever into the socket and push the
socket downwards.
Unscrew screw B until it no longer projects into
the socket.
Then insert the pump lever completely into the
socket and tighten it with screw B in the socket.
Step 3: Check that the pump lever can be moved freely
and easily.
Use protective gloves!
Wear safety boots!
Wear protective clothes!
CAUTION!
Risk of crushing!
Injuries ti hand and fingers may result from impro-
per use of the floor jack.
1
2
3
64
5

Before the start-up
SRWH-Series | Version 1.01 9
8 Before the start-up
Step 1: Bleed the hydraulic system:
Pull up the pump lever and turn it clockwise to
open the drain valve.
When the lifting arm is fully lowered, pump seve-
ral times with the pump lever to remove the ac-
cumulated air from the hydraulic system. Then
close the drain valve by turning the pump lever
to the left.
Step 2: Carry out a function test without load with the
floor jack. To do this, pump the floor jack up to
the maximum height and then lower it slowly. To
do this, open the drain valve.
- If the lifting arm cannot be pumped to the maxi-
mum height with a maximum of 7 pumping mo-
Place the floor jack on a level and firm surface
and place the front part of the floor jack at least
500 mm higher than the end part of the floor jack
(Fig. 7).
Fig. 7: Venting the hydraulic system
- Open the bleed valve and use the pump lever to
remove the collected air from the hydraulic sy-
stem by 4 full strokes.
- Lower the floor jack and place it in the horizontal
position. Close the bleed valve.
Step 4: Check all parts for integrity and proper function.
9 Operation
DANGER!
Danger to life due to falling of the load!
Falling loads can cause serious injury or death.
- Never exceed the specified maximum load stride.
- Never move the lifted load.
- Never work under the lifted load without this being
additionally secured by racks.
- At the point of attachment of the floor jack to the
load observe the instructions of the manufacturer
of the load.
- Distribute the weight centrally on the saddle of the
floor jack.
- Only lift loads with the floor jack on horizontal, level
and firm ground.
- For vehicles to be lifted, place the wheels straight
and block with sufficiently dimensioned wedges.
- Do not lift any persons individually or together with
the load.
- When leaving the workstation, lower the load if it is
not additionally secured with racks.
CAUTION!
Risk of crushing!
If improper work is carried out on the floor jack, there
is a risk of injury to fingers, hands and feet.
Use protective gloves!
Wear sagety boots!
Wear protective clothes!
NOTE!
- Operating personnel must be familiar with the ope-
ration und function of the floor jack and the safety
regulations pertaining to it.
- The operator is responsible for ensuring that all
operating personnel have had necessary training.

10 SRWH-Series | Version 1.01
Operation
9.1 Operating conditions
The working area must be dry, fire and explosion pro-
tected and free of corrosive and toxic substances.
Dangerous materials such as fire-liquid, toxic or radi-
oactive materials must not be lifted with the floor jack.
9.2 Test run
Before operation under load, carry out a test with testing
of all functions without load.
9.3 Lift the load
Step 1: Check that the load to be lifted is on a level and
firm surface, lock the wheels on vehicles and
apply the handbrake.
Step 2: Slide the floor jack under a lifting point of the
load intended for the floor jack (follow the manu-
facturer's instructions!).
Step 3: Turn the pump lever about its own axis to the
right (clockwise) to close the drain valve.
Step 4: To lift the load, perform an even pumping move-
ment with the pump lever by alternately moving
the pump lever up and down. The lifting arm
swings upwards.
Step 5: Before the lifting arm touches the load, check
again the alignment of the jack-saddle to the
load pick-up point. Make sure that the weight is
distributed centrally on the jack saddle.
Step 6: Lift the load slowly and evenly to the desired
height.
Step 7: Place the support frames under the load and
slowly lower the load onto the support frames by
slowly turning the pump lever counterclockwise
to open the drain valve.
9.4 Lower the load
Step 1: Turn the pump lever about its own axis to the
right (clockwise) to close the drain valve. Pump
the lifting arm upwards against the load and lift
the load off the pedestals. Pull out the stands
under the load.
Step 2: Slowly turn the pump lever to the left (counter-
clockwise) about its own axis to open the drain
valve.
The more you open the drain valve, the faster
the drain speed will be.
Step 3: When the load touches the floor, close the drain
valve and check that the load is stable. Then re-
lease the floor jack completely by opening the
release valve again and pull the floor jack out
under the load.
Step 4: Turn the pump lever all the way to the left (coun-
terclockwise) to open the drain valve. Apply
force to the lift arm to move it down to the stop-
per.
SRWH-Series
Temperature range -5°C to +40°C
Storage temperature
range
-25°C to +55°C
Humidity (at 40°C) up to 85% max.
Operating height up to1000 m max.
Working environment not flammable, dry and
durst-free
Lighting > 300 LUX
NOTE!
The operator must have a sufficient freedom of the
movement.
ATTENTION!
Check that there are no persons, tools or devices
under the trolley.
CAUTION!
Risk of crushing!
When the load is released, it can cause bruising of
the upper and lower limbs.
- Do not hold the upper and lower limbs between the
load and the ground when setting down the load.

Care, maintenance and repair
SRWH-Series | Version 1.01 11
10 Care, maintenance and repair
10.1 Care by cleaning
The floor jack must always be kept in a clean condition.
All plastic and lacquered surfaces should be cleaned
using a soft, damp cloth and a neutral cleaning agent.
Remove any excess lubricant or leaked oil using a dry,
lint-free cloth.
Remove surplus grease or leaked oil with a dry, lint-free
cloth.
10.2 Maintenance and repair
If the floor jack does not work properly, contact a dealer
or our customer service. The contact details can be found
in chapter 1.2 Customer Service.
All safety and protection equipment must be reinstalled
immediately after the repair ad maintenance work has
been completed.
Step 1: Lubricate all moving parts, jack bearings and
pump mechanism (Fig. 8) with high quality lubri-
cating oil.
Fig. 8: Lubrication points on the floor jack
Step 2: Check the floor jack for external damage before
each use.
Step 3: Check the hydraulic oil level at regular intervals.
Step 4: Make sure that all safety instructions on the floor
jack are clearly legible.
Venting
After some time, or after filling with oil, air bubbles may
form in the hydraulic system of the floor jack and affect
its function.
Step 1: Turn the pump lever around its own axis to the
left to open the drain valve.
Step 2: Pump several times with the pump lever over the
entire stroke range.
Step 3: Close the drain valve by turning the pump lever
to the right.
Step 4: Pump the lifting arm to its maximum height and
then pump several more times.
Step 5: Slowly and carefully open the oil filler plug (Fig.
10) to allow the trapped air to escape.
Step 6: Open the drain valve to drain the lifting arm.
Step 7: Check the function of floor jack and repeat the
steps if necessary.
Check the oil level
Step 1: Turn the pump lever around its axis to the left to
open the drain valve. Apply force to the lifting
arm to move it down to the stop.
Step 2: Remove the tool tray. Open the oil filler plug and
check the oil level. With the lifting arm comple-
tely drained, the oil should reach to the lower
edge of the oil filler neck.
Step 3: Top up hydraulic oil if necessary. Use only new,
clean hydraulic oil, viscosity class "ISO VG15".
Use protective gloves!
NOTE!
Never use strong cleaning agents for any cleaning ta-
sks. This may damage or destroy the device.
ATTENTION!
Maintenance and repair work may only be perfor-
med by instructed persons.
ATTENTION!
Only use hydraulic oil of the same type.
Never mix different types of oil.

12 SRWH-Series | Version 1.01
Troubleshooting

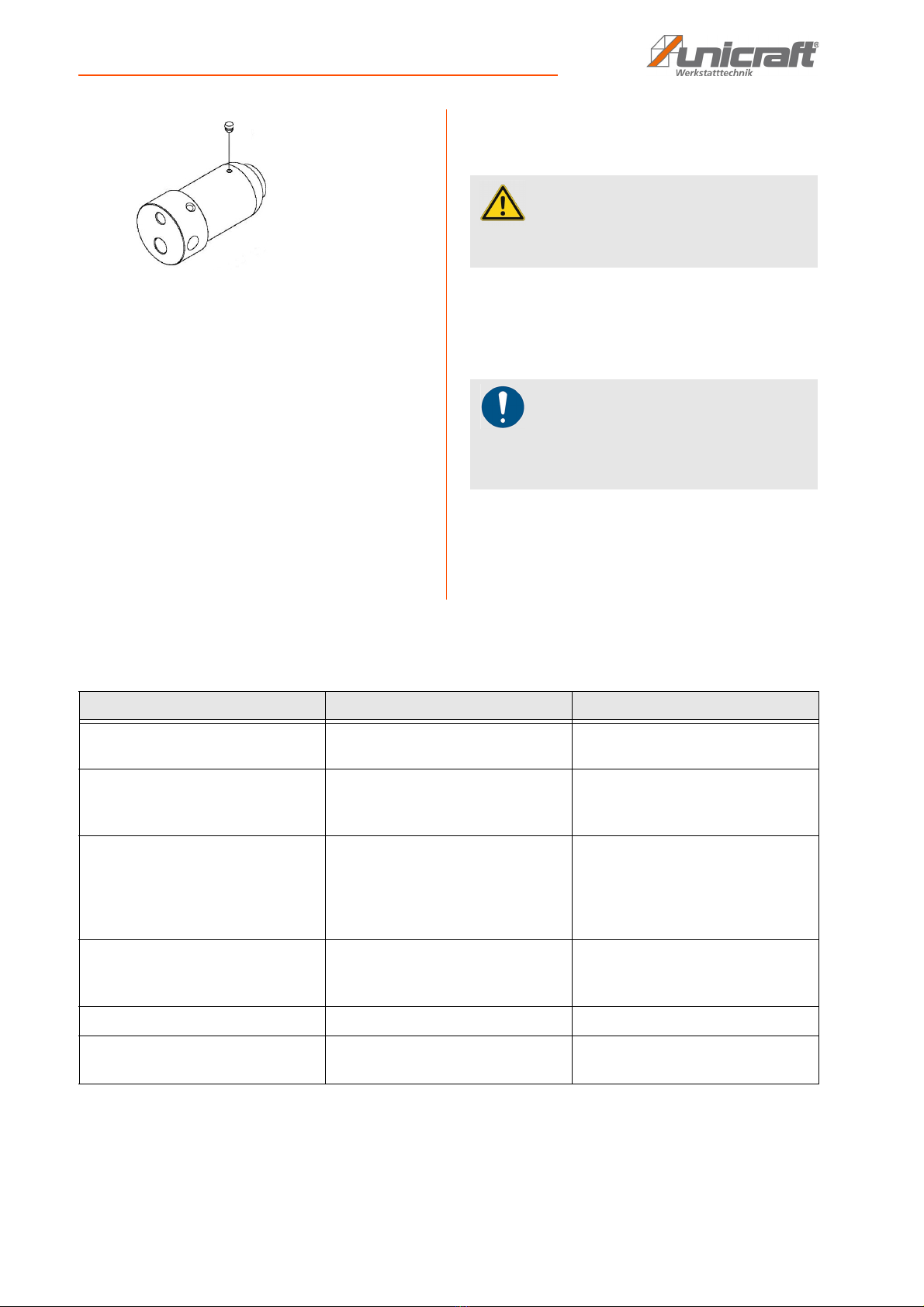

Fig. 9: Oil filler plug
Step 4: Screw the oil filler plug back in. Check the func-
tion of the floor jack.
Step 5: Vent the hydraulic system (see "Venting").
Oil changing
To ensure that the floor jack functions correctly, carry
out an annual oil change.
Step 1: Move the floor jack lifting arm to the lowest posi-
tion.
Providing an oil collecting container.
Step 2: Remove the tool tray. Open the oil filler plug and
allow the oil to drain into the container. Ensure
that no contamination can get into the hydraulic
circuit!
Step 3: When the used oil is completely drained, fill with
new hydraulic oil. Use only new, clean hydraulic
oil, viscosity class "ISO VG 15", volume 260 ml.
Step 3: Loosely screw in the oil filler plug and vent the
hydraulic system.
Step 4: Screw in the oil filler plug tightly and check the
function of the floor jack.
11 Troubleshooting
ATTENTION!
Only use hydraulic oil of the same type.
Never mix different types of oil.
NOTE!
The removed oil must be disposed of separately.
Information about this can be obtained from the lubri-
cant manufacturer.
Problem Possible cause Solution
The floor jack does not reach full
height.
1. Too little oil.
2. Drain valve not properly closed.
1. Top up with hydraulic oil.
2. Close drain valve.
Lifting arm lowers under load.. 1. Drain valve not properly closed
2. Hydraulic oil contaminated.
3. Pump is leaking.
1. Close drain valve.
2. Contact customer service.
3. Contact customer service.
Lifting arm does not lower. 1. Pump cylinder clamped.
2. Defective parts.
3. Retention spring broken or unhoo-
ked.
4. Air in the hydraulic system.
Contact customer service.
The floor jack does not lift the defi-
ned load.
1. Drain valve not properly closed.
2. Too little oil.
3. Air in the cylinder.
1. Close the drain valve.
2. Top up hydraulic oil.
3. Venting the hydraulic system.
The floor jack loses oil. Worn or damaged seals. Contact customer service.
Spongy pumping. 1. Too little oil.
2. Air in the cylinder.
1. Top up hydraulic oil.
2. Venting the hydraulic system

Disposal, recycling of used devices
SRWH-Series | Version 1.01 13
12 Disposal, recycling of used devices
Please take care in your own interest and in the interest of
the environment that all component parts of the machine
are only disposed of in the intended and permitted way.
12.1 Decommissioning
Immediately decommission used machines in order to
avoid later misuse and endangering of the envi-ronment
or of persons.
Step 1: Eliminate all environmentally hazardous operat-
ing materials from the used device.
Step 2: If required, disassemble the machine into easy-
to-handle and usable components and parts.
Step 3: Dispose of machine components and operating
materials by the disposal channels provided.
12.2 Disposal of lubricants
Remove any leaking, used or excessive grease at the lu-
bricatingpoints.
The disposal instructions for the lubricants used are pro-
vided by the lubricant manufacturer. If necessary, ask
for the productspecific data sheets.
13 Spare parts
13.1 Ordering spare parts
The spare parts may be purchased with the authorised
dealer or directly with the manufacturer. Please find the
corresponding contact data in Chapter 1.2 Customer
service.
Indicate the following basic information for requests or
orders of spare parts:
- Type of device
- Item No.
- Position No.
- Year of construction:
- Quantity
- Required mode of dispatch (mail, freight, sea, air,
express)
- Address of dispatch
Spare part orders which do not include the above indi-
cations may not be taken into consideration. If the indi-
cations regarding the mode of dispatch are missing, the
product is dispatched at the discretion of the supplier.
You will find information regarding the device type, item
No. and year of construction on the type plate which is
fixed on the device.
Example
The pump for the SRWH 3002 EF floor jack must be or-
dered. The pump has number 28 in the spare parts dra-
wing 1.
When ordering spare parts, please send a copy of the
spare parts drawing (1) with the marked component
(pump) and marked position number (28) to the authori-
sed dealer or to the spare parts department and provide
the following information:
- Type of device: Special Floor Jack SRWH 3002 EF
- Item number: 6201122
- Drawing number: 1
- Position number: 28
The item number of your device:
Special Floor Jack SRWH 3001 SIL: 6201121
Special Floor Jackr SRWH 3002 EF: 6201122
The following drawings are intended to identify the re-
quired spare parts in the event of service.
DANGER!
Risk of injury due to the use
of wrong spare parts!
Dangers may result for the user and damages as
well as malfunctions may be caused by using wrong
or damaged spare parts.
- Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
- Always contact the manufacturer in case of uncer-
tainties.
Tips and recommendations
The manufacturer's warranty will become null and
void if non-permissible spare parts are being used

14 SRWH-Series | Version 1.01
Spare parts
13.2 Spare parts drawings
Spare parts drawing 1: SRWH 3001 SIL
Fig. 10: Spare parts drawing 1 - SRWH 3001 SIL

Spare parts
SRWH-Series | Version 1.01 15
Spare parts drawing 2: SRWH 3001 SIL pump
Fig. 11: Spare parts drawing 2: SRWH 3001 SIL pump

16 SRWH-Series | Version 1.01
Spare parts
Spare parts drawing 1: SRWH 3002 EF
Fig. 12: Spare parts drawing 1 - SRWH 3002 EF

Spare parts
SRWH-Series | Version 1.01 17
Spare parts drawing 2: SRWH 3002 EF pump
Fig. 13: Spare parts drawing 2: SRWH 3002 EF pump

18 SRWH-Series | Version 1.01
Hydraulic plan
14 Hydraulic plan
Fig. 14: Hydraulic plan SRWH 3001 SIL (top), SRWH 3002 EF (bottom)
SRWH
3002 EF
SRWH
3001 SIL

EG-Konformitätserklärung
SRWH-Series | Version 1.01 19
15 EC Declaration of Conformity
According to machine directive 2006/42/EC Annex II 1.A
Manufacturer/distributing company: Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
herewith declares that the following product
Product group: Unicraft® Werkstatttechnik
Machine type: Special Floor Jack
Designation of machine*: Item number:
SRWH 3001 SIL 6201121
SRWH 3002 EF 6201122
Serial number*: ______________________
Year of manufacture*: 20_____
*Fill in these fields according to the information on the type plate
complies with all the relevant provisions of the abovementioned Directive, including its amendments in force at the time
of the declaration.
The following harmonized standards were applied:
DIN EN 1494: 2009-05 Mobile or movable jacks and associated lifting equipment
Responsible for documentation: Kilian Stürmer, Stürmer Maschinen GmbH,
Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt
Hallstadt, 29.06.2017
______________________
Kilian Stürmer
Managing Director

www.unicraft.de
