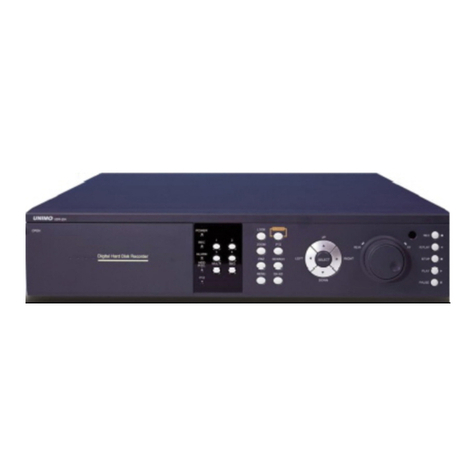

UNIMO Technology UDR-4004 Installation guide

QUICK MANUAL
Real time Digital Recorder
(FULL D1 4 Channel, MPEG-4)

DVR QUICK MANUAL Ver 1.0
2
Safety
Please follow this Please follow instruction to prevent any kind of damage or loss
. If you do not follow this instruction, it might bring severe damage or loss.
The symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
Warning -- This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at its own expense.
Caution -- Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority to operate the
equipment.
Caution -- Danger of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Warranty will be made void if the product is disassembled or manipulated by the user.
WARNING

DVR QUICK MANUAL Ver 1.0
3
Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

DVR QUICK MANUAL Ver 1.0
4
Design and specifications are subjected to change without notice.
Model 4ch DVR
Image System NTSC, PAL selectable
Multi-tasking Quadplex
Video Channel 4CH Composite BNC
Video Output 1CH Composite BNC, 1CH VGA
Video Compression MPEG-4
Recording Resolution 720x480, 720x240, 360x240 (NTSC) / 720x576, 720x288, 360x288 (PAL)
Recording Quality 4 Levels (Normal, Enhanced, Fine, Super Fine)
Max Display Speed 120 fps (NTSC)
100 fps (PAL)
Max Recording Speed
120 fps at Full D1 (NTSC)
100 fps at Full D1 (PAL)
Max Playback Speed 120 fps (NTSC)
100 fps (PAL)
Time Laps Recording
Interval (fps)
1,2,3,4,5,6,8,10,15,30 (NTSC, 10 Steps)
1,2,3,4,5,7,9,13,20,25 (PAL, 10 Steps)
Recording Mode Schedule, Event (Sensor, Motion Detection), Manual, Continuous, Continuous+Event
Playback Search Calendar, Event (Sensor, Motion Detection)
Playback Speed x1, x2, x4, x8, x16, x32, x64, x128, Field by Field (Forward, Backward)
Slow Motion x1/4, x1/2 (Forward Only)
Sensor Input 4 (NO/NC Selectable)
Alarm Output (Relay) 1 (NO/NC) , 4 TTL
Audio In/Out 4 CH Input / 1CH Output
Network 10/100Base-T (Static, DHCP, PPPoE, E-mail), DDNS server available
Motion Detection 22x15 (NTSC) / 22x18 (PAL), 8 Level Sensitivity
Hard Disk Max. 1 EA
Backup USB(Ver2.0), Network
Watermarking Still Image Backup
PTZ Control RS-485
Serial Port RS-232(TTL Level, Console
System Log Video Loss, Power On/Off, HDD Full, HDD Fail, Menu Called, Reset HDD Format, Reset
SW Upgrade, Email Fail
Language Korean, English, Japanese, French, Spanish, German, Polish, Italian, Russian, Slovakia
S/W Upgrade Network, USB Memory Stick
Password Function Power OFF, MENU, Record OFF, Key Lock
Power Source Free Voltage DC Adaptor (100 – 240VAC, 50Hz/60Hz, 42W)
Dimension 280(W) x 290(D) x 55(H)
Operating
Temperature 5℃~ 40℃
Weight 3Kg (net)

DVR QUICK MANUAL Ver 1.0
5
1 Components
DVR
Power cable
DSUB-25 connector for EXTENSION Port
Quick Manual
Software CD (RAMS, UniPlayer, Quick Installer and Operation Manual)
2 Name, function & connections
2.1 NUMERIC BUTTON
2.1.1 1,2,3,4 : It can be used for channel & password change.
2.1.2 MULTI : Selection Button for Screen Division for Live Viewing mode.
2.1.2.1 Live Mode : Selection of Screen Division for Live Viewing mode
2.1.2.2 In order to go back to previous mode, user is required to push “MULTI” button,
after selecting a specific channel.

DVR QUICK MANUAL Ver 1.0
6
2.1.2.3 Playback Mode : Selection button for Screen Division for playback of recording
file. If you select specific one channel and in order to get back to each divided
channel, you can just click ”MULTI” button.
2.1.3 SEQ : Sequential view under live mode. Viewing of all active video input channels
sequentially.
2.1.3.1 If you click “SEQ” button one time, each single channel can be viewed
sequentially.
2.1.3.2 This button also can be used for all motions are release purpose on motion
detection set up menu.
2.2 FUNCTION BUTTON
2.2.1 POWER : Press this button to power on/off.
2.2.1.1 Soft Power method is adapted. Therefore, If Power button is pressed, user is
asked to input Password, before Power off.
2.2.2 FRZ(FREEZE)
2.2.2.1 Press button once to freeze the frame at live mode. Press again to return.
2.2.2.2 Exchange of video input type : Press power button with “FRZ” button from
NTSC to PAL or PAL to NTSC.
2.2.3 PTZ(Pan/Tilt/Zoom) : Press once to access the Pan/Tilt/Zoom/Focus control mode.
Press again to exit.
2.2.4 SEARCH : Press once to open the menu to search for recorded files.
2.2.5 LOCK : Press this button to lock/unlock the buttons of DVR, in order to prevent the
use by Unapproved user.
2.2.5.1 If the “LOCK” button is pressed, DVR is locked, and it’s unlocked by inputting
correct password

DVR QUICK MANUAL Ver 1.0
7
2.2.6 ZOOM : Zoom In/Out on the images during Live Viewing.
2.2.7 MISC : Miscellaneous functions
2.2.7.1 To substitute for the buttons that are placed on the remote control but that are
not placed on the keypad (NET, OSD, Audio Mute, HDD, LOG).
2.2.7.2 If the button is pressed, windows appear, and user can select lower menu one
by one.
2.2.8 MENU : Press button to access Main Menu. Press again to return.
2.3 PLAYBACK
2.3.1 REC(Record) : Press once to begin recording all active channels. Press again to end
recording.
2.3.2 R.PLAY(Reverse Play) : Press to begin reverse playback. Under PTZ control menu,
used to decrease the speed of Pan, Tilt, Zoom, Focus.
2.3.3 STOP : Stop playback.
2.3.4 PLAY : Access to playback
2.3.4.1 Playback button will activate assigned starting position and Channel at playback
setup of menu.
2.3.4.2 At pause mode, it will release pause mode.
2.3.4.3 Under PTZ control menu, used to increase the speed of Pan, Tilt, Zoom, Focus.
2.4 DIRECTIONS/SELECT BUTTON
2.4.1 UP : Used to move the cursor up; change possible values in the setup menu; under
PTZ control sub menu, used to move camera; or used to adjust focus.
2.4.2 DOWN : Used to move the cursor up; change possible values in the setup menu;
under PTZ control sub menu, used to move camera; or used to adjust focus.

DVR QUICK MANUAL Ver 1.0
8
2.4.3 LEFT : Used to change possible values in the setup menu. Under PTZ control menu,
used to move the camera left or used to do Zoom Out; At playback mode, used to
decrease playback speed.
2.4.4 RIGHT : Used to change possible values in the setup menu. Under PTZ control menu,
used to move the camera left or used to do Zoom In; At playback mode, used to
increase playback speed.
2.4.5 OK : Used as a selection key. Under PTZ control menu, used to be interchanged P/T
mode with Z/F mode
2.5 IR RECEIVER : Remote control signal receiver
2.6 LED DISPLAY
2.6.1 POWER : During Standby mode, red light on, during running unit, green light on
2.6.2 REC : During recording green light flashes
2.7 USB CONNECTOR in the FRONT PANEL
2.7.1 This connector is for USB Memory stick to back up the image
2.7.2 USB mouse available.

DVR QUICK MANUAL Ver 1.0
9
3 Rear panel view
3.1 MOUSE : This is USB memory stick terminal to back up HDD video screen. USB Mouse is
available.
3.2 ETHERNET : This is to connect 10/100 Base-T network connection port (RJ-45 port).
3.3 EXTIONSION PORT : We provide you with SENSOR IN, AUX OUT, RELAY OUT, SERIAL
OUT, RS-485 OUT, DC12V OUT and external AV IN/OUT.
3.4 VGA : Standard VGA Video-Out signal is exported. (DSUB-15 male Connector)
3.5 AUDIO IN/OUT
3.5.1 INPUT : Audio Line Input terminal.
3.5.2 OUTPUT : Audio Line Output terminal.
3.6 VIDOE IN/OUT
3.6.1 CAMERA : CAMERA INPUT TERMINAL. This is for CVBS signal input.
3.6.2 VIDEO OUT : VIDEO OUT TERMINAL. CVBS signal is exported.
3.7 DC 12 V : Power Source for DVR system.

DVR QUICK MANUAL Ver 1.0
10
4 Basic operation procedures
4.1 POWER ON/OFF
4.1.1 Power ON : Using either the keypad or the remote control, press the “Power” button.
(Note: In case of power outage or rare instance of system failure, the DVR will reboot
automatically). The Power LED light will turn from red to green when it has turned on
properly. In a standby mode, the LED is red.
4.1.2 Power OFF : In order to shutdown the system, you must type in the password. The
default password for shutdown is “111111”.
4.2 DATE & TIME SETTING
4.2.1 Set the date and time for the DVR. (System Setup in Main Menu 

Time/Date)
4.3 PASSWORD SETTING PROCEDURE
4.3.1 Change your password for the DVR. The password must be a 6-digit combined
number consisting of numbers 1 ~ 4. (System Setup in Main Menu 

System
Password)
4.4 NETWORK SETTING
4.4.1 There are three types of network setting for the DVR: Static, DHCP, or PPPoE.
Please set the network type. (Network Setup in Main Menu)
4.5 RECORDING : Select recording related parameters in the Record Setup in the main
menu.
4.5.1 Recording types : Enter in Recording setup of menu. For resolution, select either
720*480, 720*240, 360*240 (NTSC) or 720*576, 720*288, 360*288 (PAL). Audio
channel is synchronized with the selected video signal. Select Video input quality
(Enhance/ Normal/ Fine/ Super fine), Frame rate (120 fps(NTSC) / 100 fps (PAL)), and
