Unitary products group HA090 User manual

CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . .4
AGENCY APPROVALS . . . . . . . . . . . . . . . . . . . . . . . . .4
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
See the following page for a complete Table of Contents.
NOTES, CAUTIONS AND WARNINGS
The installer should pay particular attention to the words:
NOTE, CAUTION, and WARNING. Notes are intended to
clarify or make the installation easier. Cautions are given
to prevent equipment damage. Warnings are given to
alert installer that personal injury and/or equipment dam-
age may result if installation procedure is not handled
properly.
INSTALLATION
MANUAL
CAUTION: READ ALL SAFETY GUIDES BEFORE YOU
BEGIN TO INSTALL YOUR UNIT.
SAVE THIS MANUAL
208/230/460
VOLT ONLY
208/230/460
VOLT ONLY
SPLIT-SYSTEM
CONDENSING UNITS
(AIR COOLED)
MODEL: HA090
035-18204-001-B-0703

035-18204-001-B-0703
Unitary Products Group 2
TABLE OF CONTENTS
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . .4
REFERENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
AGENCY APPROVALS . . . . . . . . . . . . . . . . . . . . . . .4
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ROOF-TOP LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . 5
GROUND LEVEL LOCATIONS . . . . . . . . . . . . . . . . . . . 5
RIGGING AND HANDLING . . . . . . . . . . . . . . . . . . . . .6
CLEARANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
COMPRESSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
COMPRESSOR CRANKCASE HEATER . . . . . . . . . . . 8
POWER AND CONTROL WIRING . . . . . . . . . . . . . . .8
POWER WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CONTROL WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
REFRIGERANT PIPING . . . . . . . . . . . . . . . . . . . . . . .10
GENERAL GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . 10
LINE SIZING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SERVICE VALVES . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXTENDING THE SERVICE PORTS . . . . . . . . . . . .12
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
EVACUATION AND CHARGING . . . . . . . . . . . . . . . .14
ALTERNATE CHARGING METHODS . . . . . . . . . . . . 14
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
CRANKCASE HEATER . . . . . . . . . . . . . . . . . . . . . . . 15
PRE-START CHECK . . . . . . . . . . . . . . . . . . . . . . . . . 15
INITIAL START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PHASING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
UNIT OPERATION - 7-1/2 . . . . . . . . . . . . . . . . . . . . . 16
SAFETY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . 17
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CLEANING CONDENSER SURFACE . . . . . . . . . . . 17
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
COMPRESSOR REPLACEMENT . . . . . . . . . . . . . . . 17
LIST OF FIGURES
Fig. # Pg. #
1 CENTER OF GRAVITY . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 TYPICAL RIGGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 FOUR POINT LOAD . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 UNIT DIMENSIONS AND CLEARANCES . . . . . . . . . . 7

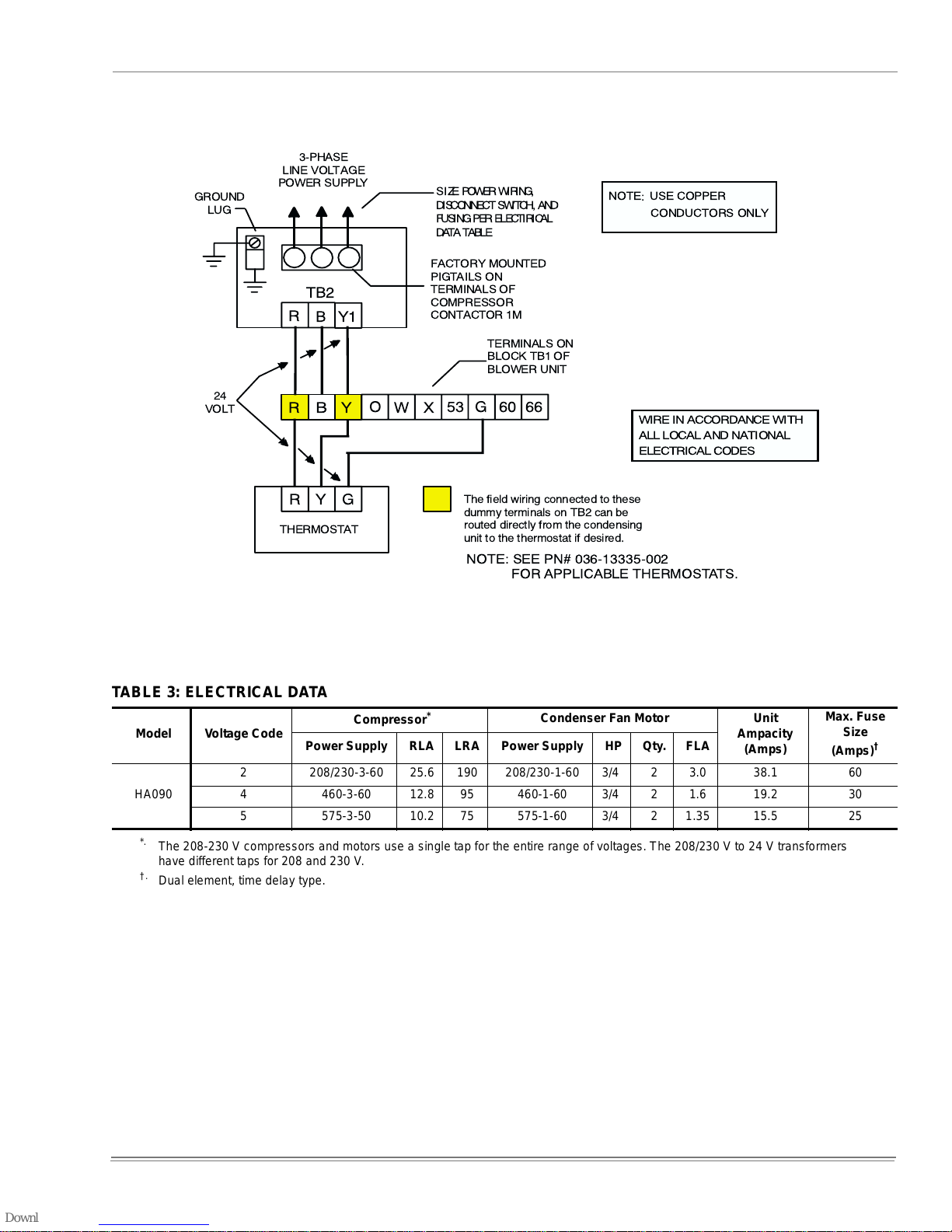

5 TYPICAL FIELD WIRING WITH LA AIR HANDLER . . . 9
6 EXTENDING SERVICE PORTS . . . . . . . . . . . . . . . . . 13

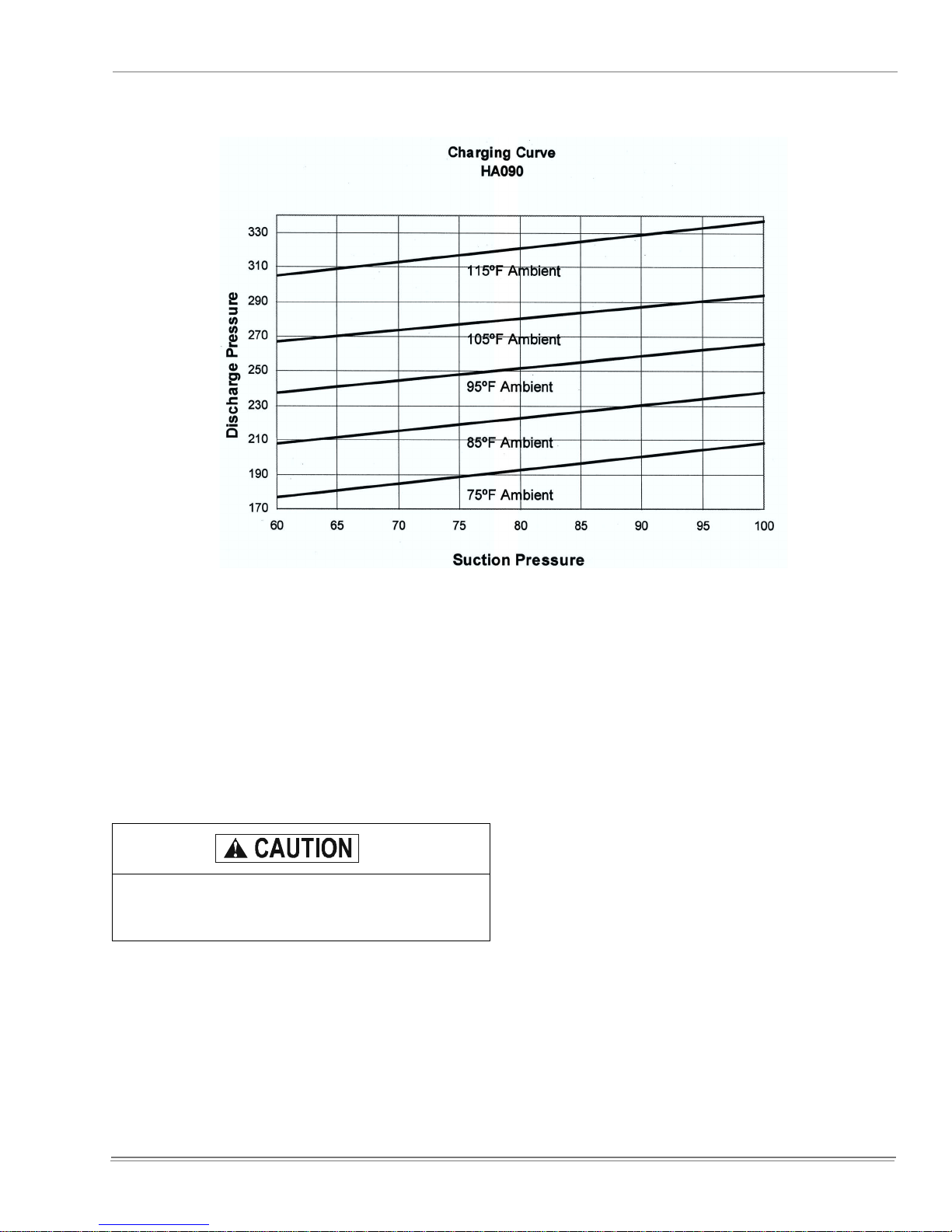

7 CHARGING CURVE HA090 . . . . . . . . . . . . . . . . . . . . 15
LIST OF TABLES
Tbl. # Pg. #
1 PHYSICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 UNIT APPLICATION DATA . . . . . . . . . . . . . . . . . . . . . . 5
3 ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 SUCTION LINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 LIQUID LINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 REFRIGERANT-22 LINE CHARGE . . . . . . . . . . . . . . 11

035-18204-001-B-0703
Unitary Products Group 3
NOMENCLATURE
PRODUCT NOMENCLATURE
YORK OUTDOOR SPLIT CONDENSING UNITS AND HEAT PUMPS
HA120 C00 A 2 A AA 1 A
Model
#
Model Number
Des ription
Options
H Produ t Category H = Air Conditioner Split System E = Heat Pump Split System
A Produ t Identifier A = R-22 Standard Efficiency 2-Pipe
120 Nominal Cooling
Capa ity
MBH
090 = 7-1/2 on
120=10 on
150 = 12-1/2 on
180 = 15 on
240 = 20 on
C Heat Type C = Cooling Only
00 Nominal Heating
Capa ity
00 = No Heat Installed
A Airflow Options A = Standard Motor
2 Voltage 2= 208/230-3-60
4= 460-3-60
A Installation Options A=None
B = Disconnect
AA Additional Options
AA = None
AC = echnicoated Coil
1 Produ t Generation 1=1
st
Generation 2 = 2
nd
Generation
A Produ t Style A = Style A B = Style B

035-18204-001-B-0703
4Unitary Products Group
GENERAL
These condensing units are designed for outdoor
installation on a roof or at ground level. Every unit is
completely piped and wired at the factory and is
shipped ready for immediate installation. Only the liq-
uid and suction lines to the evaporator coil, the control
wiring and the main power wiring are required to com-
plete the installation. Each unit is dehydrated, evacu-
ated, leak tested and pressure tested at 450 psig
before being pressurized with a holding charge of
refrigerant-22 for shipment and/or storage.
All controls are located in the front of the unit and are
readily accessible for maintenance, adjustment and
service. All wiring (power and control) can be made
through the front of the unit.
SAFETY CONSIDERATIONS
The installer should pay particular attention to the
words: NOTE, CAUTION, and WARNING. Notes are
intended to clarify or make the installation easier. Cau-
tions are given to prevent equipment damage. Warn-
ings are given to alert installer that personal injury and/
or equipment damage may result if installation proce-
dure is not handled properly.
REFERENCE
Additional information on the design, installation, oper-
ation and service of this equipment is available in the
following reference form.
• 550.23-N1.1V- Low Ambient Accessory
Refer to Parts Manual for complete listing of replace-
ment parts on this equipment.
All forms may be ordered from:
Standard Register
Toll Free Tel: [phone]
Toll Free Fax: [phone]
This instruction covers the installation and operation of
the basic condensing unit. For information on the
installation and operation of the evaporator blower
units, refer to instruction Form 035-18219-001.
AGENCY APPROVALS
Design certified by UL as follows:
1. For use as a cooling unit.
2. For outdoor installation only.
INSPECTION
As soon as a unit is received, it should be inspected for
possible damage during transit. If damage is evident,
the extent of the damage should be noted on the car-
rier's freight bill. A separate request for inspection by
the carrier's agent should be made in writing. See Form
50.15-NM for more information.
Improper installation may create a condition
where the operation of the product could cause
personal injury or property damage.
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual for
assistance or additional information, consult a
qualified installer or service agency.
This product must be installed in strict compli-
ance with the enclosed installation instructions
and any applicable local, state, and national
codes including but not limited to, building,
electrical and mechanical codes.

035-18204-001-B-0703
Unitary Products Group 5
INSTALLATION
LIMITATIONS
These units must be installed in accordance with all
national and local safety codes. If no local codes apply,
installation must conform with the appropriate national
codes. See Table 2 for Unit Application Data. Units are
designed to meet National Safety Code Standards.
If components are to be added to a unit to meet local
codes, they are to be installed at the dealer's and/or
the customer's expense.
LOCATION
Use the following guidelines to select a suitable loca-
tion for these units.
1. The condensing unit is designed for outdoor instal-
lation only. The condenser fans are the propeller
type and are not suitable for use with duct work.
2. The condensing unit and the evaporator blower
should be installed as close together as possible
and with a minimum number of bends in the refrig-
erant piping. Refer to “REFRIGERANT PIPING” for
additional information.
3. The condensing unit should not be installed where
normal operating sounds may be objectionable. On
either rooftop or ground level installations, rubber
padding can be applied between the base rails and
their supports to lessen any transmission of vibra-
tion.
4. All units require certain clearances for proper oper-
ation and service. Refer to General Installation
Form 55.70-N1 for additional guidelines.
ROOF-TOP LOCATIONS
Be careful not to damage the roof. Consult the building
contractor or architect if the roof is bonded. Choose a
location with adequate structural strength to support
the unit.
The condensing unit must be mounted on solid level
supports. The supports can be channel iron beams or
wooden beams treated to reduce deterioration.
A minimum of two (2) beams are required to support
each unit. The beams should: (1) Be positioned per-
pendicular to the roof joists. (2) Extend beyond the
dimensions of the unit to distribute the load on the roof.
(3) Be capable of adequately supporting the entire unit
weight. Refer to Center of Gravity and Point Load Fig-
ures and Physical Data Table for load distribution and
weights.
These beams can usually be set directly on the roof.
Flashing is not required.
NOTE: On bonded roofs, check for special installation
requirements.
GROUND LEVEL LOCATIONS
The units must be installed on a one-piece level con-
crete slab with a minimum thickness of 4 inches. The
length and width should be at least 6 inches greater
than the units overall base dimensions. Refer to
Figure 4.
TABLE 1: PHYSICAL DATA
Model
HA
Compressor Condenser
Unit
Weight
Charge
Lbs.-Oz.
Refrigerant 22
Rating
(Tons) Cap. (Stages)
Fan
(Propeller) Fan
Motor*Coil†
Qty. Dia. (in.) Nom.
CFM
Blades Qty. HP RPM Rotation‡Face
Area (Ft.) Finned Length (in.) Rows High
Qty. Pitch
(Deg.) Ship. Oper. Holding Oper.**
090 7-1/2 1 2 24 7800 3 26 2 3/4 1110 CW 23.8 96 36 388 383 2-4 14.95
*. These PSC motors are directly connected t the condenser fans and have inherent protection, ball bearings and a 48 frame.
†. These condenser coils have 2 rows of 3/8” OD copper tubes ad 16 aluminum fins per inch.
‡. When viewing the shaft end of the motor.
**. Includes matched indoor blower unit but no piping. Refer to Table 6 for refrigerant line charge.
TABLE 2: UNIT APPLICATION DATA
MODEL HA090
Voltage Variation*-
Min. / Max
*. Rated in accordance with ARI Standard 110, utilization
range “A”.
208/230-3-60 187 / 252
460-3-60 432 / 504
575-3-60 540 / 630
Ambient Air on
Condenser Coil
Min. / Max
Standard 45ºF / 125ºF
With Head Pressure
Control 0ºF / 125ºF

035-18204-001-B-0703
6Unitary Products Group
Footers under the slab that extend below the frost line
is recommended. Any strain on the refrigerant lines
may cause a refrigerant leak. The slab should not be
tied to the building foundation because noise and vibra-
tion will telegraph into your structure.
A unit can also be supported by concrete piers. These
piers should (1) extend below the frost line, (2) be
located under the unit's four corners, and (3) be sized
to carry the entire unit weight. Refer to Figure 1 and
Table 1 for the center of gravity and unit weight.
RIGGING AND HANDLING
Exercise care when moving the unit. Do not remove
any packaging until the unit is near the place of installa-
tion.
Rig the unit by attaching nylon straps with hooks to the
lifting holes provided in the base rails. Spreaders,
whose length exceeds the largest dimension across
the unit, MUST be used across the top of the unit if the
rigging height above the top of the unit is less than 5
feet. See Figure 2.
BEFORE LIFTING A UNIT, MAKE SURE THAT ITS
WEIGHT IS DISTRIBUTED EQUALLY ON THE
STRAPS SO THAT IT WILL LIFT EVENLY.
LENGTH OF FORKS MUST BE A MINIMUM OF 42"
for 7-1/2 ton units or a MINIMUM OF 54" for 10 ton
units when lifting across the long dimension.
Remove the nesting brackets from the four corners on
top of the unit. All screws that are removed to take
these brackets off must be replaced on the unit.
Care should be taken to protect the unit from
tampering and unauthorized persons from
injury. Screws on access panels will prevent
casual tampering. Additional safety precau-
tions such as fences around the unit or locking
devices on the panels may be advisable.
Check local authorities for safety regulations.

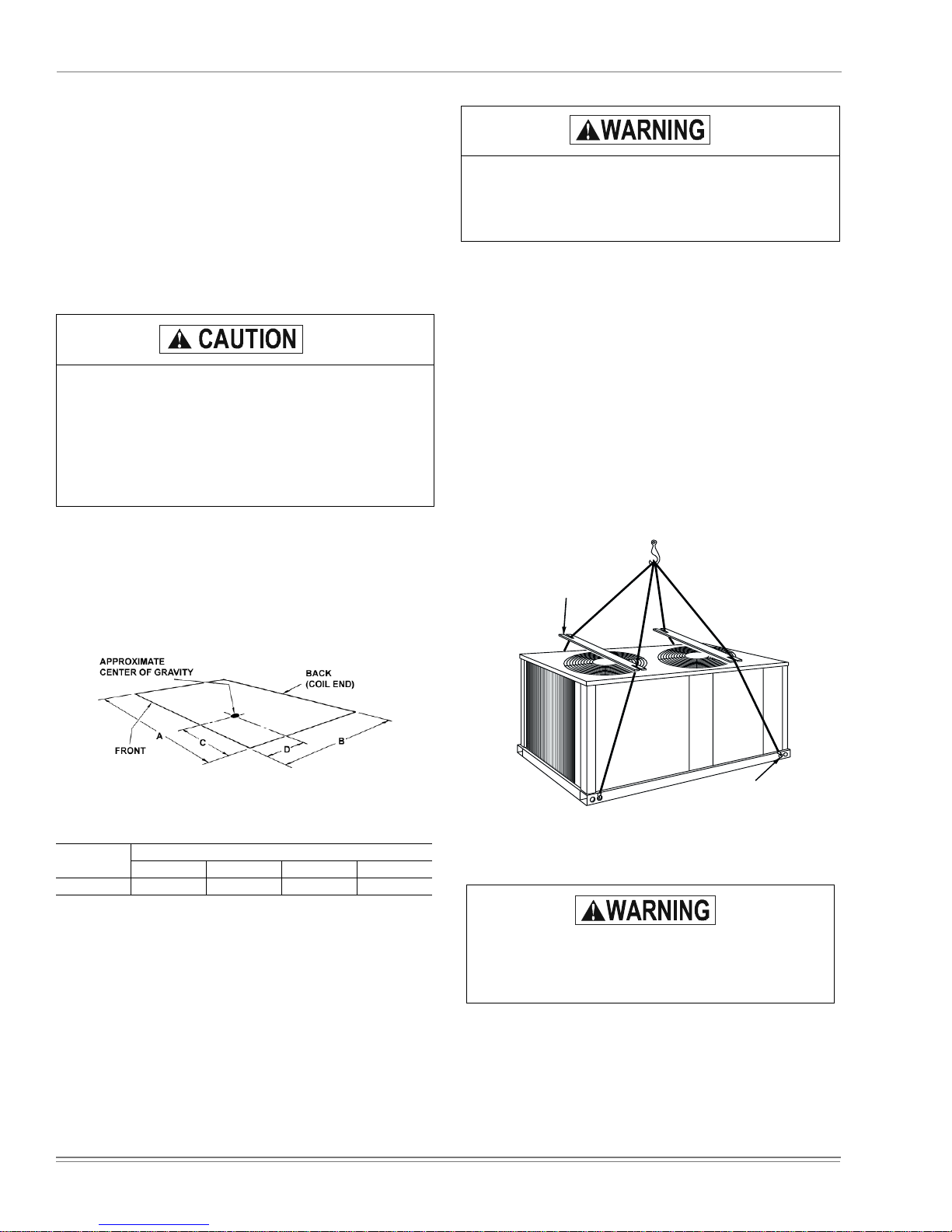

FIGURE 1 - CENTER OF GRAVITY
Unit Dim (in.)
ABCD
7-1/2 Ton 70-1/8 32 29-5/8 16-1/2
Do not use straps under the unit or through the
fork lift slots for lifting purposes. Sharp metal
edges can damage the straps and could result
in personal injury or equipment damage.
FIGURE 2 - TYPICAL RIGGING
Before lifting the unit, make sure that its
weight is distributed equally on the cables so
that it will lift evenly.
SPREADER
BAR
LIFTING
HOLES

035-18204-001-B-0703
Unitary Products Group 7
CLEARANCES
All units require certain minimum clearances for proper
operation and service. Refer to Figure 4 for these
clearances.
Additional height may be required for snow clearance if
winter operation is expected.
FIGURE 3 - FOUR POINT LOAD
A
D
C
B
HA090
UNIT 4-POINT LOAD (LBS.)
TOTAL A B C D
090 383 83 115 107 78
MINIMUM CLEARANCES
CLEARANCE DESCRIPTION DISTANCE IN
INCHES
Overhead (Top) 120
Front (Access Cover) 36
Rear 24
Left Side 30
Right Side 30
Do not permit overhanging structures or shrubs
to obstruct condenser air discharge.
FIGURE 4 - UNIT DIMENSIONS AND CLEARANCES
AIR
OUT
AIR
IN
AIR
OUT
2-3/4
32
2-1/4
32-1/2 70-1/2
8-3/4
5-3/8
CONTROL BOX
ACCESS
SERVICE
PORT
LOCATION 39 1-1/8
SUCTION LINE
5/8 OD
LIQUID LINE
15-3/4
7/8 DIA
CONTROL WIRING
ENTRY
CO PRESSOR AND
CONDENSER FAN OTOR
ACCESS
1-3/8 DIA.
POWER WIRING
ENTRY
6-3/4
CONDENSER FAN OTOR
ACCES S
7/8" KNOCKOUT
ACCESSORY WIRING
ENTRY
7-3/4
5-7/8
HA090
AIR
OUT
AIR
IN
AIR
OUT
2-3/4
32
2-1/4
32-1/2 70-1/2
8-3/4
5-3/8
CONTROL BOX
ACCESS
SERVICE
PORT
LOCATION 39 1-1/8
SUCTION LINE
5/8 OD
LIQUID LINE
15-3/4
7/8 DIA
CONTROL WIRING
ENTRY
CO PRESSOR AND
CONDENSER FAN OTOR
ACCESS
1-3/8 DIA.
POWER WIRING
ENTRY
6-3/4
CONDENSER FAN OTOR
ACCES S
7/8" KNOCKOUT
ACCESSORY WIRING
ENTRY
7-3/4
5-7/8
HA090
All dimensions are in inches. They are
subject to change without notice. Certified
dimensions will be provided upon request.

035-18204-001-B-0703
8Unitary Products Group
COMPRESSOR
Units are shipped with compressor mountings factory-
adjusted and ready for operation.
COMPRESSOR CRANKCASE HEATER
The compressor is equipped with a crankcase heater
to prevent refrigerant from mixing with crankcase oil
during the “OFF” cycle. The heaters will be energized
when the compressor is not running providing the unit
disconnect switch is closed.
If a unit has just been installed or the unit disconnect
switch has been open for a long period of time, move
the system switch on the room thermostat to the “OFF”
position before closing the unit disconnect switch. Eight
hours of crankcase heat are required to drive the liquid
refrigerant out of the compressor before the compres-
sor can be started.
POWER AND CONTROL WIRING
Install electrical wiring in accordance with the latest
National Electrical Code (NFPA Standard No. 70) and/
or local regulations. The unit should be grounded in
accordance with these codes.
POWER WIRING
Check the voltage of the power supply against the data
on the unit nameplate. Check the size of the power
wire, the disconnect switch and the fuses against the
data on Table 3.
NOTE: Copper conductors must be installed between
the disconnect switch and the unit.
Refer to Figure 4 for the location of the power wire
access opening through the front of the unit. This open-
ing will require a field-supplied conduit fitting.
The field-supplied disconnect switch must be suitable
for an outdoor location. Although it should be installed
near the unit, do NOT secure it to the unit cabinet.
Refer to Figure 5 for typical field wiring.
Scroll compressors operate in one direction only, if a
three phase scroll compressor is experiencing:
• Low amperage draw
• Similar discharge and suction pressures
• Increased noise level
then the compressor is operating in reverse. To correct
this condition, switch any two (2) line voltage leads at
the contactor. Please note, single phase scroll com-
pressors will start and run in one direction only. The
reverse operation is not a concern.
CONTROL WIRING
Refer to Figure 4 for the location of the control wire
access opening through the front of the unit.
Route the necessary low voltage control wires (18
AWG min.) from the TB2 terminal block inside of the
unit control box through this access opening to the
room thermostat and to the evaporator blower motor
controller.
The room thermostat should be located on an inside
wall approximately 56" above the floor where it will not
be subject to drafts, sun exposure or heat from electri-
cal fixtures or appliances. Follow manufacturer's
instructions enclosed with thermostat for general instal-
lation procedure.
Refer to Figure 5 for typical field wiring.
Do Not loosen compressor mounting bolts.
Do not attempt to start the compressor without
at least eight hours of crankcase heat or com-
pressor damage will occur.
Units equipped with scroll compressors oper-
ate in one direction only.
Incorrect scroll compressor rotation can dam-
age or fail the compressor(s).

035-18204-001-B-0703
Unitary Products Group 9
FIGURE 5 - TYPICAL FIELD WIRING WITH LA AIR HANDLER
RBY1
R
B YOWX53 G 60 66
RYG
TB2
THERMOSTAT
GROUND
LUG
3-PHASE
LINE VOLTAGE
POWER SUPPLY
24
VOLT
The field wiring connected to these
dummy terminals on TB2 can be
routed directly from the condensing
unit to the thermostat if desired.
TERMINALS ON
BLOCK TB1 OF
BLOWER UNIT
FACTORY MOUNTED
PIGTAILS ON
TERMINALS OF
COMPRESSOR
CONTACTOR 1M
NOTE:USE COPPER
CONDUCTORS ONLY
WIRE IN ACCORDANCE WITH
ALL LOCAL AND NATIONAL
ELECTRICAL CODES
S IZEPOWERWIRING,
DI SCONNECT SWI TCH, AND
FUSING PER ELECTI RICAL
DATA TABLE
NOTE: SEE PN# 036-13335-002
FOR APPLICABLE THERMOSTATS.
TABLE 3: ELECTRICAL DATA
Model Voltage Code Compressor*Condenser Fan Motor Unit
Ampacity
(Amps)
Max. Fuse
Size
(Amps)†
Power Supply RLA LRA Power Supply HP Qty. FLA
HA090
2 208/230-3-60 25.6 190 208/230-1-60 3/4 2 3.0 38.1 60
4 460-3-60 12.8 95 460-1-60 3/4 2 1.6 19.2 30
5 575-3-50 10.2 75 575-1-60 3/4 2 1.35 15.5 25
*. The 208-230 V compressors and motors use a single tap for the entire range of voltages. The 208/230 V to 24 V transformers
have different taps for 208 and 230 V.
†. Dual element, time delay type.

035-18204-001-B-0703
10 Unitary Products Group
REFRIGERANT PIPING
GENERAL GUIDELINES
Many service problems can be avoided by taking ade-
quate precautions to provide an internally clean and
dry system and by using procedures and materials that
conform with established standards.
Use hard drawn copper tubing where no appreciable
amount of bending around pipes or other obstructions
is necessary. Use long radius ells wherever possible
with one exception—short radius ells for the traps in all
suction risers. If soft copper is used, care should be
taken to avoid sharp bends which may cause a restric-
tion.
Pack fiber glass insulation and a sealing material such
as permagum around refrigerant lines where they pen-
etrate a wall to reduce vibrations and to retain some
flexibility.
Support all refrigerant lines at minimum intervals with
suitable hangers, brackets or clamps.
Braze all copper to copper joints with Silfos-5 or equiv-
alent brazing material. Do not use soft solder.
Insulate all suction lines with a minimum of 1/2" ARMA-
FLEX or equal. Liquid lines exposed to direct sunlight
and/or high temperatures must also be insulated.
Never solder suction and liquid lines together. They
can be taped together for convenience and support
purposes, but they must be completely insulated from
each other.
A filter-drier MUST be installed in the liquid line of
every system to prevent dirt and moisture from damag-
ing the system. A properly-sized filter-drier is shipped
with each condensing unit for field installation near the
evaporator coil. The filter-drier and is taped to the top
of the compressor.
NOTE: Installing a filter-drier does not eliminate the
need for the proper evacuation of a system
before it is charged.
A moisture indicating sight-glass may be field installed
in the liquid line(s) between the filter-drier and the
evaporator coil. The moisture indicating sight-glass can
be used to check for excess moisture in the system or
used as a visual means to verify refrigerant charge.
LINE SIZING
When sizing refrigerant lines for a split-system air con-
ditioner, check the following:
1. Suction line pressure drop due to friction
2. Liquid line pressure drop due to friction
3. Suction line velocity for oil return, and
4. Liquid line pressure drop due to static head.
NOTE: Never base refrigerant line sizes on the O.D.
of the suction and liquid connections on the
unit.
Tables 4 and 5 list friction losses for both the suction
and liquid lines on the system. Table 6 shows the
amount of refrigerant charge required per foot of refrig-
erant line.
When the evaporator coil is below the condensing unit,
the suction line must be sized for both pressure drop
and for oil return. For certain piping arrangements, dif-
ferent suction line sizes may have to be used. The
velocity of the suction gas must always be great
enough to carry oil back to the compressor.
When the condensing unit is below the evaporator coil,
the liquid line must be designed for the pressure drop
due to both friction loss and vertical rise. If the total
pressure drop exceeds 40 psi, some refrigerant may
flash before it reaches the thermal expansion valve.
This flashing will not only cause erratic valve operation
and poor system performance, but could also damage
the expansion valve.
SERVICE VALVES
These condensing units have service valves on both
the compressor suction connection and the liquid line
leaving the condenser coil.
The liquid and suction line service valves are shipped
from the factory front-seated and closed with the valve
stem in the maximum clockwise position.
Both of the service valves have a 1/4" male flare
access port for evacuating, charging and pressure
checking the system.
NOTE: Never remove a cap from an access port
unless the valve is fully back-seated with its
valve stem in the maximum counter-clockwise
position because the refrigerant charge will be
lost. ALWAYS USE A REFRIGERATION
VALVE WRENCH TO OPEN AND CLOSE
THESE SERVICE VALVES.

035-18204-001-B-0703
Unitary Products Group 11
TABLE 4: SUCTION LINES *†
Model Designation Nominal Capac-
ity (Tons) Refrigerant Flow
Rate‡(Lbs./Min.)
Type L Copper
Tubing (Inches
O.D.)
Refrigerant Gas Velocity
(FT./Min.) Friction Loss** ††
(PSI/100 Ft.)
HA090 7-1/2 22 1-1/8 1-3/8
1-5/8
2050
1680
1140
4.3
1.6
0.7
*. All horizontal suction lines should be pitched at least 1 inch every 20 feet in the direction of the refrigerant flow to aid the return of oil to the compre-
sor.
†. Every vertical suction riser greater than 3 feet should have a “P” trap at the bottom to facilitate the return of oil to the compressor. Use short radius
fittings of these traps.
‡. Based on Refrigerant-22 at the nominal capacity of the condensing unit, a suction temperature of 40°F and a liquid temperature of 105°F.
**. Although suction lines should be sized for a friction loss equivalent to a 2°F change in saturation temperature (or approximately 3 psi), sizing the
lines for the proper return of oil is more important.
††. These friction losses do not include any allowances for valves or fittings.
TABLE 5: LIQUID LINES
Model Designation Nominal Capacity
(Tons)
Refrigerant Flow
Rate*(Lbs./Min.)
Type L Cop-
per Tubing
(Inches O.D.)
Pressure Drop†
Friction‡(PSI/100 Ft.) Vertical Rise (PSI/Ft.)
HA090 7-1/2 22 1/2
5/8 11.0 3.5 0.5
*. Based on Refrigerant-22 at the nominal capacity of the condensing unit, a suction temperature of 40°F and a liquid temperature of 105°F.
†. The total pressure drop of the liquid line for both friction and vertical rise must not exceed 40 PSI. If the pressure drop exceeds 40 PSI, the liquid
refrigerant could flash before it reaches the expansion valve. This flashing will not only cause erratic valve operation and poor system performance,
but it could also damage the expansion valve.
‡. These friction losses do not include any allowances for a strainer, filter-drier, solenoid valve, isolation valve or fittings.
TABLE 6: REFRIGERANT-22 LINE CHARGE*
Liquid†Line
Inches, O.D.
1/2
5/8
3/4
0.070 lb./ft.
0.113 lb./ft.
0.167 lb./ft.
Suction Line
Inches, O.D.
1-1/8
1-3/8
1-5/8
0.009 lb./ft.
0.013 lb./ft.
0.019 lb./ft.
*. Charges are based on 40°F suction temperature and 105°F liquid temperature.
†. Type “L” copper tubing.
NOTE: Add the operating charge of the condensing unit, the evaporator coil and the refrigerant lines to determine the total refrigerant charge for the
system.

035-18204-001-B-0703
12 Unitary Products Group
EXTENDING THE SERVICE PORTS
(Refer to Figure 6.)
1. Loosen the screws securing the service ports in
shipping position.
2. Push the service ports through the corner post.
3. Tighten the screws to secure the service ports for
installation.
INSTALLATION
Since the condensing units are shipped with a holding
charge of refrigerant-22, they can be checked for a
refrigerant leak by depressing the stem on either of the
service ports that extend through the cabinet. As soon
as some internal pressure is relieved release the stem.
DO NOT release the entire holding charge.
If the unit has already lost its holding charge, it should
be leak tested and the necessary repairs should be
made. If the unit has maintained its holding charge, you
can assume that it has no leaks and proceed with the
installation.
Before installing the liquid line between the condensing
unit and the evaporator coil, prepare as follows:
1. Burnish the external surfaces of the liquid connec-
tion on the condensing unit and the end of the field-
supplied piping for the liquid line.
NOTE: Clean surfaces are essential for a well-brazed
connection.
2. Carefully clean the internal surfaces of the above.
Any particles left on these surfaces may lead to a
future system malfunction.
NOTE: Use only copper tubing that has been espe-
cially cleaned and dehydrated for refrigerant
use. If the tubing has been open for an
extended period of time, it should be cleaned
before being used.
The liquid line connections can now be brazed while
maintaining a minimum flow of dry nitrogen through the
piping as follows:
1. Remove the cap from the 1/4" access port on the
liquid line service valve.
2. Connect a supply of dry nitrogen to this access
port.
NOTE: The filter-drier should be installed in the liquid
line as close to the evaporator coil as possible.
Do not allow the filter-drier to be exposed to
the atmosphere for an extended period of time.
Once it absorbs moisture from the atmo-
sphere, it loses its effectiveness.
3. The matched air handlers are shipped with a small
R-22 charge and they should be checked for leaks
before installation. Drill a small hole through the
sealing cap or disc in both the liquid and suction
connection. If there is a pressure release, the
evaporator has no leaks and you can proceed with
installation. If the charge has been lost, the coils
should be leak tested and the necessary repairs
made.
4. Move the dry nitrogen supply from the access port
on the liquid line service valve of the condensing
unit to the hole through the suction disc on the
evaporator coil.
5. Unbraze the coil's liquid line disc while maintaining
a flow of dry nitrogen across the connection and
through the hole in the liquid line disc.
NOTE: If the liquid line has a solenoid valve, the valve
should be opened manually to permit the nitro-
gen to flow freely.
6. After the disc has been removed, burnish the exter-
nal surfaces and clean the internal surfaces as out-
lined above.
7. Move the dry nitrogen supply back to the access
port on the liquid line service valve.
Dry nitrogen should always be supplied
through a connection while it is being brazed or
unbrazed because the temperature required to
make or break a brazed joint is sufficiently high
to cause oxidation of the copper unless an inert
atmosphere is provided. The flow of nitrogen
should be continued until the joint has cooled.
When making a braze connection, wrap a wet
rag around all tubing inside the unit to help pre-
vent damage to other components.
The dry nitrogen should always be supplied
through a pressure regulating valve.

035-18204-001-B-0703
Unitary Products Group 13
8. Braze the liquid line to the liquid connection on the
evaporator coil while maintaining a minimum flow
of dry nitrogen through the liquid line, the evapora-
tor coil and the hole in the suction disc.
9. Unbraze the disc on the suction connection of the
evaporator coil while maintaining the flow of dry
nitrogen.
10. After the disc has been removed, burnish the exter-
nal surfaces and clean the internal surfaces as out-
lined above.
The suction piping can now be brazed to the suction
connection on the evaporator coil while maintaining a
minimum flow of dry nitrogen.
Before brazing the suction line to the condensing unit;
1. Move the dry nitrogen supply to the access port on
the suction service valve of the condensing unit.
2. Burnish the external surfaces and clean the inter-
nal surfaces of both the suction connection and the
suction piping.
The suction line can now be brazed to the suction con-
nection on the condensing unit while maintaining the
flow of dry nitrogen.
After the liquid and suction lines have been installed,
the system should be evacuated and charged.
FIGURE 6 - EXTENDING SERVICE PORTS
COPPER
2SCREWS
CORNER
POST
SERVICE PORTS IN SHIPPING POSITION
UNIT WALL
SIDE VIEW
COPPER
TUBE
UNIT
WALL
COPPER
2SCREWS
CORNER
POST
TOP VIEW
UNIT
WALL
LOOSEN
SCREWS
SIDE VIEW
(AS SHIPPED)
PUSH SERVICE
PORTS THROUGH
CORNER POST
TIGHTEN SCREWS
SIDE VIEW
SERVICE PORTS
EXTENDED
()
SERVICE PORTS
EXTENDED
()
SERVICE PORTS IN INSTALLED POSITION

035-18204-001-B-0703
14 Unitary Products Group
EVACUATION AND CHARGING
With the liquid and suction line service valves closed,
connect a vacuum pump through a charging manifold
to the access ports on both the liquid and suction line
service valves.
NOTE: The vacuum pump connection should be short
and no smaller than 3/8" O.D.
The refrigerant lines and the evaporator coil must now
be evacuated to 500 Microns without disturbing the
charge in the condenser coil or the compressor.
After proper evacuation and dehydration, charge refrig-
erant through the access port on the liquid line service
valve allowing the vacuum to draw in as much refriger-
ant as possible.
To continue charging refrigerant, open the liquid and
the suction line service valves fully. Turn the stem of
the liquid service valve clockwise 1/4 turn to open its
access port for reading pressure.
Start the compressor (after 8 hours of crankcase heat),
turn the stem of the suction line service valve clockwise
1/4 turn to open its service port and continue to charge
refrigerant gas through this suction access port until
you meet the conditions shown on the charging curve,
Figure 7.
Open the liquid and vapor line service valves fully to
close their access ports after the system has been
charged.
ALTERNATE CHARGING METHODS
If you are starting a unit when the ambient temperature
is higher or lower than those shown in Figure 7, either
of the following methods may be used.
Method 1: Determine the total weight of the refrigerant
for the total system by adding the required
charge for the outdoor unit, the indoor unit
and the refrigerant lines using information in
Tables 1 (Physical Data) and 6 (Refrigerant
Line Charge).
Using the charging procedures outlined
above, weigh the required amount of refrig-
erant charge into the unit.
Method 2: Install a field supplied moisture indicating
sight glass in the liquid line between the fil-
ter-drier and the evaporator coil.
Using the charging procedure outlined
above, charge refrigerant until the moisture
indicating sight glass is clear. Add approxi-
mately 1 extra pound of refrigerant for the
090 to assure a liquid refrigerant seal at the
expansion valve under all operating condi-
tions. Block the flow of the condenser air, if
necessary, to assure a head pressure of
280 psig during the charging procedure.
NOTE: The installer should return to the job to verify
the operating charge when the ambient tem-
perature is within the conditions shown in Fig.
7.
Do not charge liquid refrigerant through the
compressor suction connection.
Do not attempt to start the compressor without
at least 8 hours of crankcase heat or compres-
sor damage will occur.

035-18204-001-B-0703
Unitary Products Group 15
START-UP
CRANKCASE HEATER
The crankcase heaters must be energized at least 8
hours before starting the compressor. To energize the
crankcase heaters, the main disconnect switch must
be closed. During this 8 hour period, the system switch
on the room thermostat must be “OFF” to prevent the
compressor from starting.
Make sure that the bottom of the compressor is warm
to the touch to prove crankcase heater operation.
PRE-START CHECK
Before starting the unit, complete the following check
list:
1. Have sufficient clearances been provided?
2. Has all foreign matter been removed from the inte-
rior of the unit (tools, construction or shipping
materials, etc.)?
3. Have the condenser fans been rotated manually to
check for free rotation?
4. Are all wiring connections tight?
5. Does the available power supply agree with the
nameplate data on the unit?
6. Is the control circuit transformer set for the proper
voltage?
7. Have the fuses, disconnect switch and power wire
been sized properly?
8. Are all compressor hold-down nuts properly
secured?
9. Are any refrigerant lines touching each other or any
sheet metal surface? Rubbing due to vibration
could cause a refrigerant leak.
10. Are there any visible signs of a refrigerant leak,
such as oil residue?
11. Is any electrical wire laying against a hot refrigerant
line?
FIGURE 7 - CHARGING CURVE HA090
Do not attempt to start the compressor without
at least 8 hours of crankcase heat or compres-
sor damage will occur.

035-18204-001-B-0703
16 Unitary Products Group
INITIAL START-UP
1. Supply power to the unit through the disconnect
switch at least 8 hours prior to starting the com-
pressor.
2. Move the system switch on the thermostat to the
AUTO or COOL position.
3. Reduce the setting of the room thermostat to ener-
gize the compressor.
4. Check the operation of the evaporator unit per the
manufacturer's recommendations.
5. With an ammeter, check the compressor amps
against the unit data plate.
6. Check for refrigerant leaks.
7. Check for any abnormal noises and/or vibrations,
and make the necessary adjustments to correct
(e.g. fan blade(s) touching shroud, refrigerant lines
hitting on sheet metal, etc.)
8. After the unit has been operating for several min-
utes, shut off the main power supply at the discon-
nect switch and inspect all factory wiring
connections and bolted surfaces for tightness.
PHASING
Scroll compressors operate in one direction only, if a
three phase scroll compressor is experiencing:
• Low amperage draw
• Similar discharge and suction pressures
• Increased noise level
then the compressor is operating in reverse. To correct
this condition, switch any two (2) line voltage leads at
the contactor. Please note, single phase scroll com-
pressors will start and run in one direction only. The
reverse operation is not a concern.
OPERATION
UNIT OPERATION - 7-1/2
When the external control calls for cooling at terminal:
1. The system controller (SC) is energized. The sys-
tem controller starts the compressor and enables
the condenser fans by energizing contactor 1M
(and 2M on the 208/230 volt models).
Condenser fan motor #1 is energized with the
compressor. Fan motor #2 operation is controlled
through the Pressure Switch (PS) which will de-
energize the motor when the discharge pressure
falls below 180 PSI. The motor will be energized
when the discharge pressure reaches 270 PSI.
2. Safety Lockout: The system controller (SC) has a
lockout circuit to prevent compressor short-cycling
on a safety control with automatic reset. If the high
or low refrigerant pressure switches (HP or LP)
open, the SC will enter lockout mode.
SC provides a 90 second bypass of the low pres-
sure switch LP to prevent nuisance lockouts during
unit start-up.
A malfunction light (24V, 2 A max. resistive load)
can be energized through SC, by connecting the
light between terminals X and B on TB1. Terminal
X will energize when SC locks out.
3. Unit is equipped with an anti-short cycle timer to
prevent two successive compressor starts within 5
minutes. If the compressor fails to start with a call
for cooling and SC is not locked out, wail at least 6
minutes for the anti-cycle timer to reset.
NOTE: To reset the unit after a lockout:
A. Turn the system switch on the thermostat to the
“OFF” position and back to the “COOL” position.
OR
B. Increase the set point of the room thermostat above
the temperature in the conditioned space and return
it to its original setting.
If the unit continues to be shut down by one of its safety
controls, service should be called to determine the
Do not attempt to start the compressor without
at least 8 hours of crankcase heat or compres-
sor damage will occur.
Units equipped with scroll compressors oper-
ate in one direction only.
Incorrect scroll compressor rotation can dam-
age or fail the compressor(s).

035-18204-001-B-0703
Unitary Products Group 17
cause of the problem. Repeatedly resetting the lockout
circuit may damage the unit.
The following accessories are available to provide low
ambient operation to 0°F.
SAFETY FEATURES
1. All condenser fan motors have inherent protection
with automatic reset.
2. Every compressor is internally protected against
over current, excessive temperature and primary
single phasing.
This protection is provided by a line break motor
protector that is mounted inside the compressor
housing and is connected between each winding
and the common terminal.
3. Every compressor is protected by crankcase heat-
ers to prevent refrigerant from accumulating in the
crankcases of the compressor during an “OFF”
cycle.
4. All condenser fan motors and the secondary of
every transformer is grounded.
5. Every unit is protected by both a high and a low
pressure control, and these controls are self-con-
tained. Since they are mounted directly on the
access connections and wired back to the control
panel, there are no capillary lines to be damaged.
MAINTENANCE
CLEANING CONDENSER SURFACE
Dirt should not be allowed to accumulate on the con-
denser coils or other parts in the condenser air circuit.
Clean as often as necessary with a brush, vacuum
cleaner attachment or other suitable means.
LUBRICATION
The fan motors for these condensing units are
equipped with factory lubricated and sealed ball bear-
ings. They do not require any maintenance.
COMPRESSOR REPLACEMENT
Contact the local UPG Distribution Center for compres-
sor or parts.
2LA04702025 208/203 VOLTS
2LA047022146 460 VOLTS
2LA04701958 575 VOLTS

035-18204-001-B-0703
18 Unitary Products Group

035-18204-001-B-0703
Unitary Products Group 19

Subject to change without notice. Printed in U.S.A. 035-18204-001-B-0703
Copyright © by Unitary Products Group 2003. All rights reserved. Supersedes: 035-18204-001-A-0602
Unitary 5005 Norman
Products York OK
Group Drive 73069
