United Colors of Benetton Bambini Stella User manual

stella
BAMBINI COLLECTION

Thank you for purchasing a product from the United Colors of Benetton Bambini
collection. The UCB Bambini collection is innovative, the design a mix of colour and detail.
This collection is for the fashion conscious parent. Parents who enjoy the spirit of colour
and the United Colors of Benetton style. The Bambini Collection will show the world how
colourful life is with kids!
Produced and distributed under license for Bencom s.r.l. by Born with Style www.bornwithstyle.com.au
BAMBINI COLLECTION

IMPORTANT SAFETY INFORMATION
2
• Never leave your child unattended while in stroller.
• To prevent choking hazard, remove and discard all
packing material before using this product.
• Always use restraint system to keep child from
standing up or falling out of the stroller. Use the
harness at all times.
• Always balance the weight of the stroller evenly.
• Always lock the stroller open before allowing your
child in or near the stroller.
• The stroller is designed for children from birth to
18kg (3 years of age approximately).
• Put on all brakes whenever you park the stroller.
• Never use this stroller on stairways or escalators.
• Do not allow children to stand on seat or sit on
footrest.
• This is not an exercise stroller. Do not
use product while running, jogging or
participating in other athletic activities.
• Do not put child in basket.
• Do not carry extra children or use
accessories other than those approved
by the manufacturer.
• The stroller should not be used near an
open fire or exposed flame.
• Make sure children are clear of any moving
parts if you adjust the stroller, otherwise
they may be injured.
• Do not put more than 3 kg in the basket.
Please take a moment to read through these instructions
before you use your United Colors of Benetton Stroller.

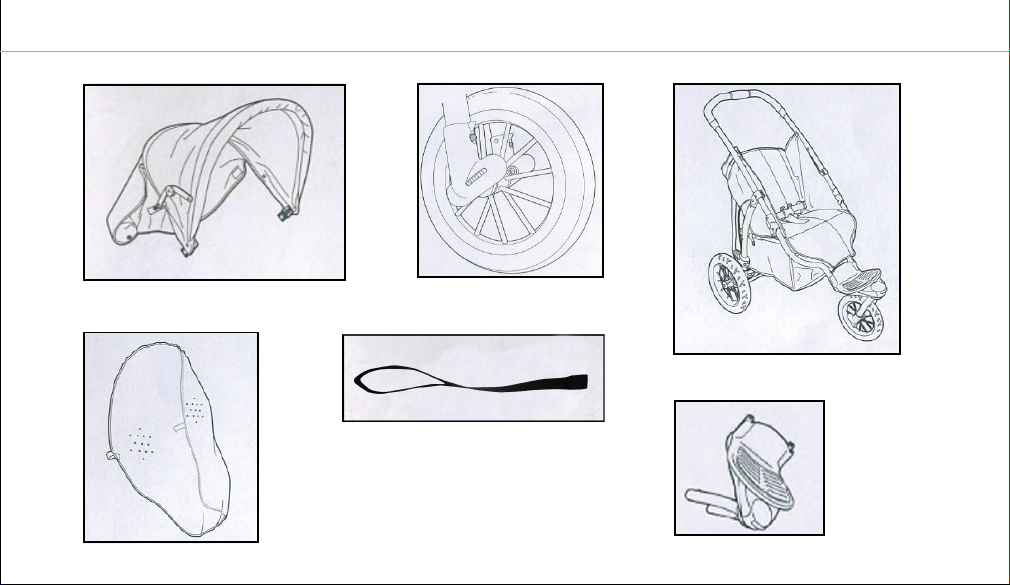

STROLLER PARTS
3
Canopy Front wheel
Stroller
Raincover
Wrist Strap
Footplate

OPENING THE STROLLER
1
2
WARNING: Ensure that all the locking devices are engaged before use.
Unfasten the catch on the
side of the frame.
4
3Lift up the handles
until the frame
locks open.

ATTACHING THE REAR WHEELS
1 2
Slot the spindles in the rear wheels into
the holes in the back axle. Push them in
until they click into position. Ensure they
are correctly fitted by attempting to pull
them from the frame.
REMOVING THE WHEELS:
1. Locate the release button and press.
2. Pull the rear wheel out.
5

Slot the foot plate and forks assembly
onto the front legs. Push the assembly
into position.
ATTACHING THE FOOT PLATE & FORKS
1 2 Locate the plastic catch on the underside of
the footplate. Rotate it over and attach it to
the section of the frame that connects the
front legs. Ensure that the assembly is locked
in position before attaching the front wheel.
6

ATTACHING THE FRONT WHEEL
1 2
Align the plastic sockets on the front
wheel with the forks. Push them onto
the forks.
Keep pushing until the two metal studs
on the forks protrude through the holes
in the plastic sockets to lock the front
wheel in place.
7

RAISING THE BACKREST: Push
the backrest up until it is in the
desired position.
ADJUSTING THE BACKREST
1 2 Pull the end of the backrest
adjustment strap until all of
the slack is removed and
the backrest is held firmly
in place.
8
Fasten the end of
the strap onto the
velcro strip after
adjustments.
LOWERING THE BACKREST:
Loosen the backrest adjustment
strap through the buckle and
lower the backrest to the
required position.

9
1RAISING THE LEGREST: Lift the legrest
up into the horizontal position.
2LOWERING THE LEG REST:
1. Lift the two catches under the legrest.
2. Lower the legrest.
ADJUSTING THE LEG REST

FITTING THE HOOD
Attach the two
press studs on the
straps on the sides
of the hood to the
studs on the frame.
1
2
3
Slot the two clips
on the sides of hood
into the slots on the
frame.
Attach the two velcro
pads and the two studs
on the hood to the
backrest.
10
4Push down the two
tensioning bars on the
sides of the hood to
lock it open.

REMOVING THE HOOD
1 2
Unfasten the two velcro pads
and four press studs attaching
the hood to the seat. Press
the buttons on the two hood
clips.
With the buttons held down
pull the hood from the frame.
11
Push down the two
tensioning bars on the
sides of the hood to
lock it open.

1
OPERATING THE SWIVEL WHEELS
12
UNLOCKING THE WHEELS:
Move the swivel lever to
to allow the front wheel to swivel.
LOCKING THE WHEELS:
Move the swivel lever to
to lock the front wheel.
2

12
USING THE BRAKES
13
TO UNLOCK BRAKE:
Lift up the brake pedal.
TO LOCK BRAKE:
Push down the brake pedal.
PLEASE NOTE: For added security, we recommend that parents use
wrist restraint strap provided to prevent the stroller from rolling away.

USING THE SAFETY HARNESS
14
1 2
LOCKING THE HARNESS: Push the
two tongues on the ends of the waist
straps into the buckle on the end of
the crotch strap.
UNLOCKING THE HARNESS:
1. Squeeze the tongues together
and then slide them from the buckle.
2.Your child can now be removed
from the stroller.
IMPORTANT:
Always ensure that
the harness is
correctly fitted and
adjusted. Use the
buckles to adjust the
harness for a snug fit.

12
FITTING THE RAINCOVER
15
Fit the hood, see page 10. Position
the raincover on the stroller with the
velcro straps nearest the handlebars.
Fit the elasticated rim around the edge
of the hood and around the footplate.
Attach the two velcro straps
around the middle of the frame.
IMPORTANT:
Always ensure that
the harness is
correctly fitted and
adjusted. Use the
buckles to adjust the
harness for a snug fit.

16
FOLDING THE STROLLER
Push the handlebar
down to fold the frame.
12
Pull up the latch on both
sides of the stroller
simultaneously.
Fasten the catch on
the side of the frame.
3
Before folding the stroller, remember to lock the brakes
(P. 13), raise the seat back (P. 8) and close the canopy.

17
12
Unfasten the three press-studs on
the back edge of the basket.
Unfasten the four press-studs on
the sides of the basket.
The basket can now be removed
from the frame.
REMOVING THE BASKET

There are many ways to look after and
protect your United Colors of Benetton
stroller. The most important is to clean up
any spills or food, before it dries on the
fabric.
As the covers are not designed to be easily
taken off for washing, (for safety reasons)
the easiest method to clean is, sponge the
surfaces with a mild solution of warm water
liquid laundry detergent. Rinse well with
clean sponge and leave to dry out of direct
sun.
Sand and salt water should be rinsed with
a hose and wiped dry to prolong the life of
the wheels, axles and other moving parts.
Never use petroleum based lubricants on
your stroller, the most suitable lubricants
are silicone based products.
CARE AND MAINTENANCE
18
