Universal Motors Silent Partner 4D18 Manual

Universal's 4 KW DIESEL
SUent Partner
Model4D18
Diesel Marine Generator
4,000 WATTS C"\-~

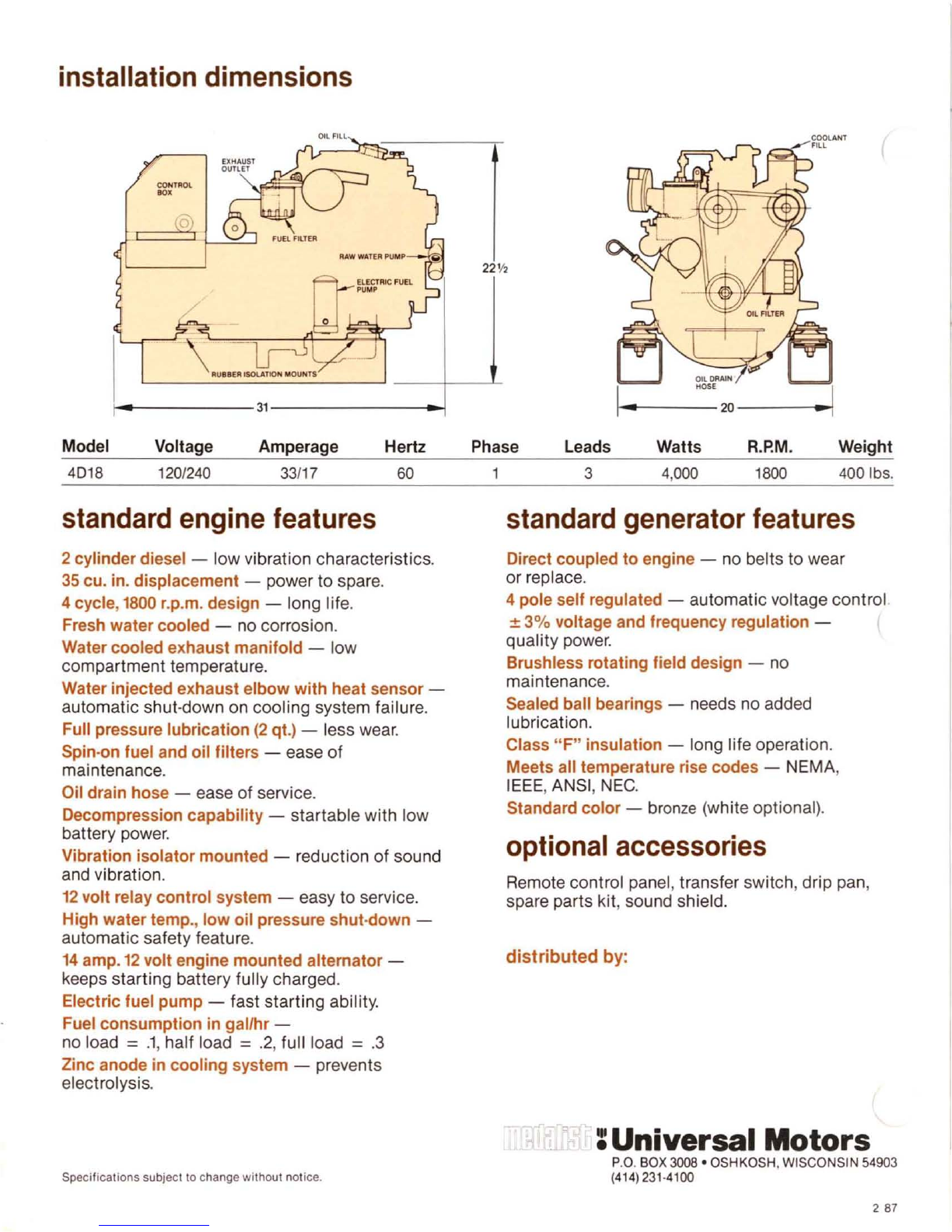

installation dimensions
Oil fill
1- 1 •• --- ---3 1- ------ ---1
Model Voltage Amperage Hertz
4D18 120/240
33 1 17 60
standard engine features
2 cylinder diesel - l ow vibration characteristics.
35 cu. in. displacement -power to spare.
4 cycle,
1800 r.p.m. design -long life.
Fresh water cooled -no corrosion.
Water cooled exhaust manifold -low
compartment temperature.
Water injected exhaust elbow with heat sensor -
automatic shu
t- down on cooling system failure.
Full pressure lubrication
(2 qt.) -less wear.
Spin-on fuel and oil filters -ease of
maintenance.
Oil drain hose -ease of service.
Decompression capability -startable with low
battery power.
Vibration isolator mounted - r
ed u ctio n of sound
and vibration.
12 volt relay control system -easy to service.
High water temp
., low oil pressure shut-down -
automatic safety feature.
14 amp. 12 volt engine mounted alternator -
keeps starting battery fully charged.
Electric fuel pump -fast starting abil ity.
Fuel consumption in gal/hr -
no load =
.1, half load =.2, full load =.3
Zinc anode in cooling system -prevents
electrolysis.
SpeCifications subject to change without notice.
1-- 1.- - 20---".1
Phase Leads Watts R.P.M. We i ght
3 4,000 1800 4001bs.
standard generator features
Direct coupled to engine -no be lts to wear
or replace.
4 pole self regulated - automatic voltage control.
± 3% voltage and frequency regulation -
quality power.
Brushless rotating field design -no
maintenance.
Sealed ball bearings - needs no added
lubricatio
n.
Class "F" insulation -long life operation.
Meets all temperature rise codes - NEMA,
I EE E, AN SI , NEG.
Standard color - bronze (white optional).
optional accessories
Remote control panel, transfer switch, drip pa n,
spare parts kit, sound shield.
distributed by:
:Universal Motors
P.O, B OX 3008 • OSHKOSH,WISCONSIN 54903
( 414 )231·4100
287

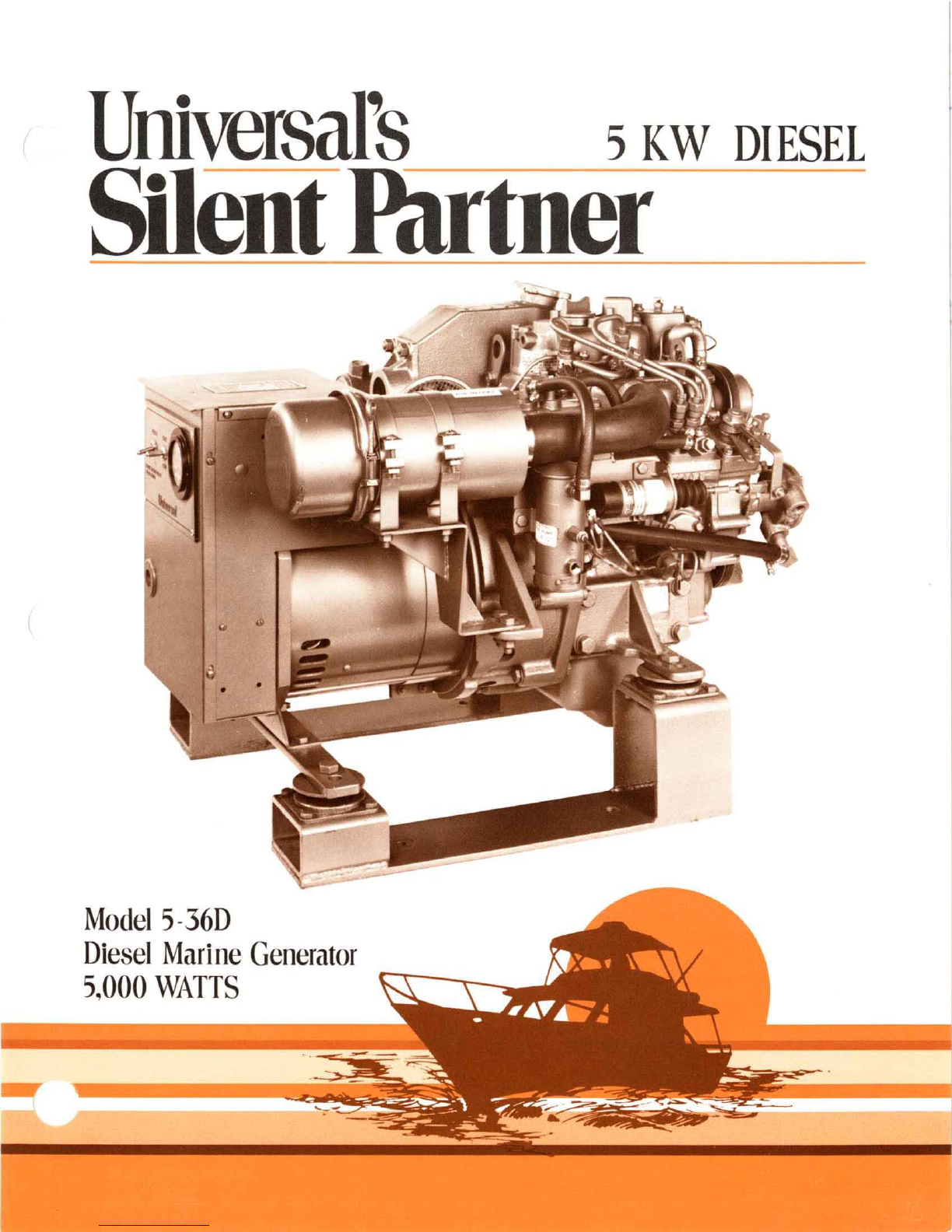

Universal's 5 KW DIESEL
Silent Partner
Model 5- 36D
Diesel Marine Generator
5,000 WATTS C\-~

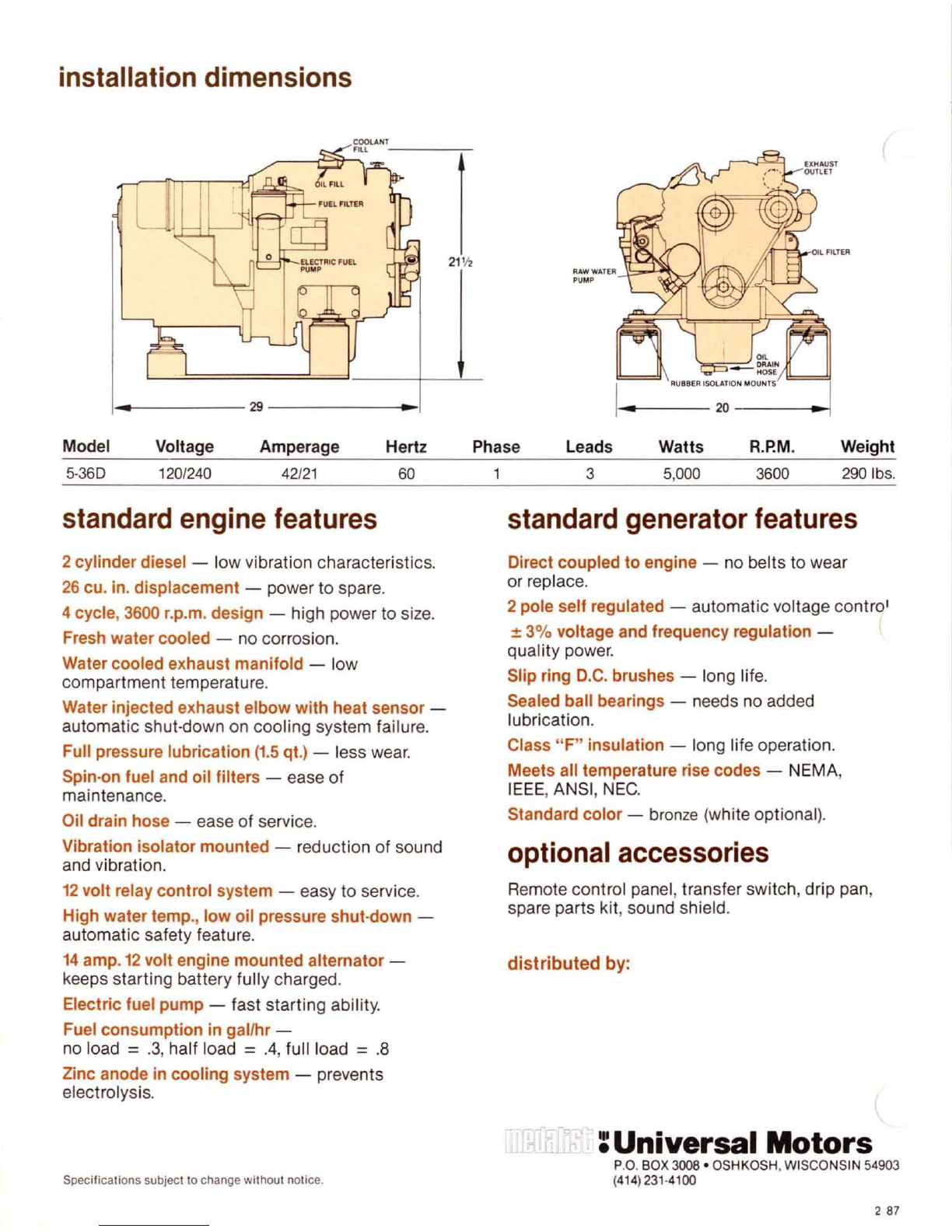

installation dimensions
I ~. _----- 29 ------ .... ~ I
Model Voltage Amperage Hertz
5·360 120 / 240 42 1 21
60
standard engine features
2cylinder diesel -low vibration characteristics.
26 cu. in. displacement -power to spare.
4 cycle,
3600 r.p.m. design - high power to si ze .
Fresh water cooled -no corrosion.
Water cooled exhaust manifold -low
compartment temperature.
Water injected exhaust elbow with heat sensor -
automatic shut·down on cooling system failure.
Full pressure lubrication
(1.5 qt.) -less wear.
Spin·on fuel and oil filters -ease of
maintenance.
Oil drain hose -ease of service.
Vibration isolator mounted -reduction of sound
and vibration.
12 volt relay control system -easy to service.
High water temp., low oil pressure shut·down -
automatic safety feature.
14 amp. 12 volt engine mounted alternator -
keeps starting battery fully charged.
Electric fuel pump -fast starting ability.
Fuel consumption in gal/hr -
no load = .3 , half load = .4, full load = .8
Zinc anode in cooling system -prevents
electrolysis.
Specifications subject to change without notice.
21 'h
"" M'
--- - 20 - - - - -1
Phase Leads Watts R.P.M . Weight
1 3 5,000 3600 2901bs.
standard generator features
Direct coupled to engine - no belts to wear
or replace.
2 pole self regulated -automatic voltage contro'
± 3% voltage and frequency regulation -
quality power.
Slip ring D.C. brushes -long life.
Sealed ball bearings -needs no added
lubrication.
Class "F" insulation -long life operation.
Meets all temperature rise codes - NEMA,
IE EE , ANSI, NE G.
Standard color - bron ze (white optional).
optional accessories
Remote control panel, transfer switch, drip pa n,
spare parts kit, sound shield.
distributed by:
:Universal Motors
P.o . BOX 3008' OSHKOSH, WISC ONS IN 54 903
(
414 ) 231 ·4100
287

Universal's 6.5 KW DIESEL
SUent Fartner
Mode16.5DP
Diesel Marine Generator
6,500 WATTS C'\-~

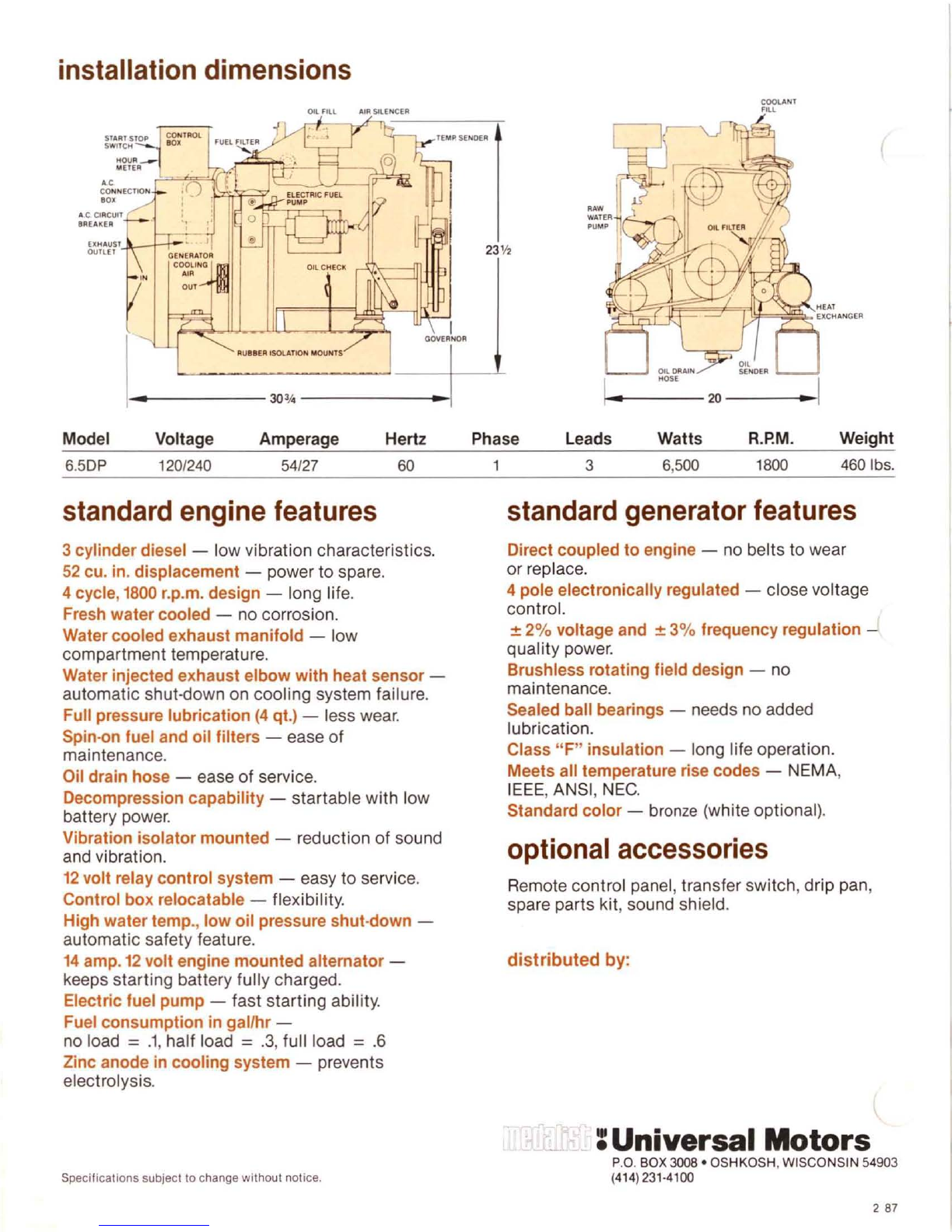

installation dimensions
STAAT STOP CON1AOL
SWITCH SOl
t4OUIt __
M £TEA
I.e CI Acun
III£AI\ER
OIL Flll 10'" SILE N CE!!
I
GOVER NOR
RUIIIEII ISOLATION MOUNTS
•
30
JA
Model Voltage Amperage Hertz
6. 5DP 120 /240 54 1 27
60
standard engine features
3 cylinder diesel -low vibration characteristics.
52 cu. in. displacement -power to spare.
4 cycle,
1800 r.p .m. design -long life.
Fresh water cooled -no corrosion.
Water cooled exhaust manifold -low
compartment temperature.
Water injected exhaust elbow with heat sensor -
automatic shut·down on cooling system failure.
Full pressure lubrication (4 qt.) -less wear.
Spin·on fuel and oil filters -ease of
maintenance.
Oil drain hose -ease of service.
Decompression capability -startable with low
battery power.
Vibration isolator mounted -reduction
of sound
and vibration.
12 volt re lay control system -easy to service.
Control box relocatable -flexibility.
High water temp., low oil pressure shut·down -
automatic safety feature.
14 amp. 12 volt engine mounted alternator -
keeps starting battery fully charged.
Electric fuel pump -fast starting ability.
Fuel consumption in gal/hr -
no load = .1, half load = .3, full load = .6
Zinc anode in cooling system -prevents
electrolysis.
Specifications subject to change without notice.
I. 2{)
C OOlANT
FilL
.1
Phase Leads Watts
R.P.M . Weight
3 6, 500
1800 4601bs .
standard generator features
Direct coupled to engine -no belts to wear
or replace.
4 pole electronically regulated -close voltage
control.
± 2% voltage and ± 3% frequency regulation -
quality power.
Brushless rotating field design -no
maintenance.
Sealed ball bearings -needs no added
lubrication.
Class " F" insulation -long life operation.
Meets all temperature rise codes -NEMA,
I EEE , ANSI, NEG.
Standard color -
bronze (white optional).
optional accessories
Remote control panel, transfer switch, drip pan,
spare
pa rts kit, sound shield.
distributed by:
: Universal Motors
P.o.BOX 3008 ' OSHKOSH, WISCONSIN 54903
(4141231-4100
2 87

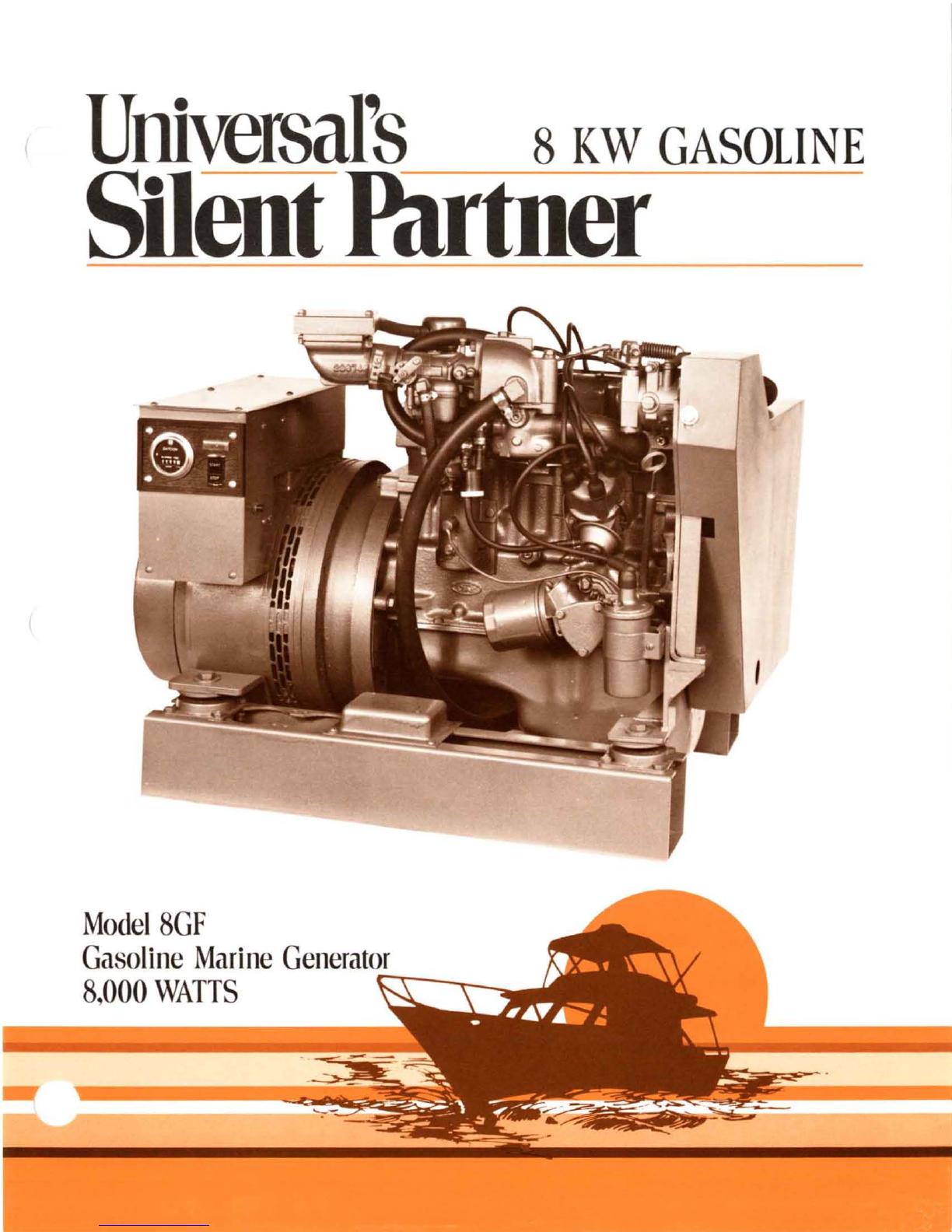

Universal's 8 KW GASOLINE
SUent Partner
Mode18GF
Gasoline Marine Generator
8,000 WATTS C\-~

installation dimensions
FLA ME ARRESTOR
---''' '''' ISOL A T!O N " ,,, .,. .--
1- ----- 32'h - ---- ---1
Model Voltage Amperage Hertz
8G F 120/240 67/33
standard engine features
4 cylinder gasoline -low vibration
characteristics.
67 cu. in. displacement -power to spare.
4 cycle,
1800 r.p . m. design -long life.
Fresh water cooled -no corrosi
on.
Water cooled exhaust manifold -low
compartment temperature.
60
Water injected exhaust elbow with heat sensor -
automatic shut-down on cooling system failure.
Full pressure lubrication (3 .5qt.) -less wear.
Filters and pumps on one side -easy to
se rvice.
Spin·on oil filter -ease of maintenance.
Oil drain hose -ease of service.
Vibration isolator mounted - reduction of sou
nd
and vibration.
12 volt relay control system -easy to service.
High water temp., low oil pressure shut·down -
au tomatic safety feature.
Overspeed shut·down -product protection.
50 amp. 12 volt engine mounted alternator -
keeps starting battery fully charged.
Electric fuel pump -fast start
in g ability.
Fuel consumption in gal/hr -
no load =.
1, half load = .6 , full load = 1. 1
Zinc anode in cooling system -prevents
electrolysis.
Breakerless ignition -no pOints to replac
e.
Meets Coast Guard regulations - safety
assured.
Specifications subject to change without notice.
I -"-- - ";;:" ~
Phase Leads Watts R.
P.M. Weight
3 8,000 1800 4801bs.
standard generator features
Direct coupled to engine - no be lts to wear
or replace.
4 pole electronically regulated - close voltage
control.
± 2% voltage and ± 3% frequency regulation -
quality power.
Brushless rotating field design -no
maintenan
ce.
Sealed ball bearings -needs no added
lubrication.
Class "F" insulation -long life operation.
Meets all temperature rise codes - NEMA,
I EEE , AN SI , NE G.
Standard color - bronze (white optional).
optional accessories
Remote control panel, transfer switch, drip pa n,
spare parts kit, sound sh
ie ld.
distributed by:
- ·nil -( :Universal Motors
(
P.o . BO X 3008 • OSHKOSH, WISCONSIN 54903
(414)
231 -4100
787

Universal's 8 KW DIESEL
SUeDt Partner
Model8DP
Diesel Marine Generator
8,000 WATTS t.:T--r-

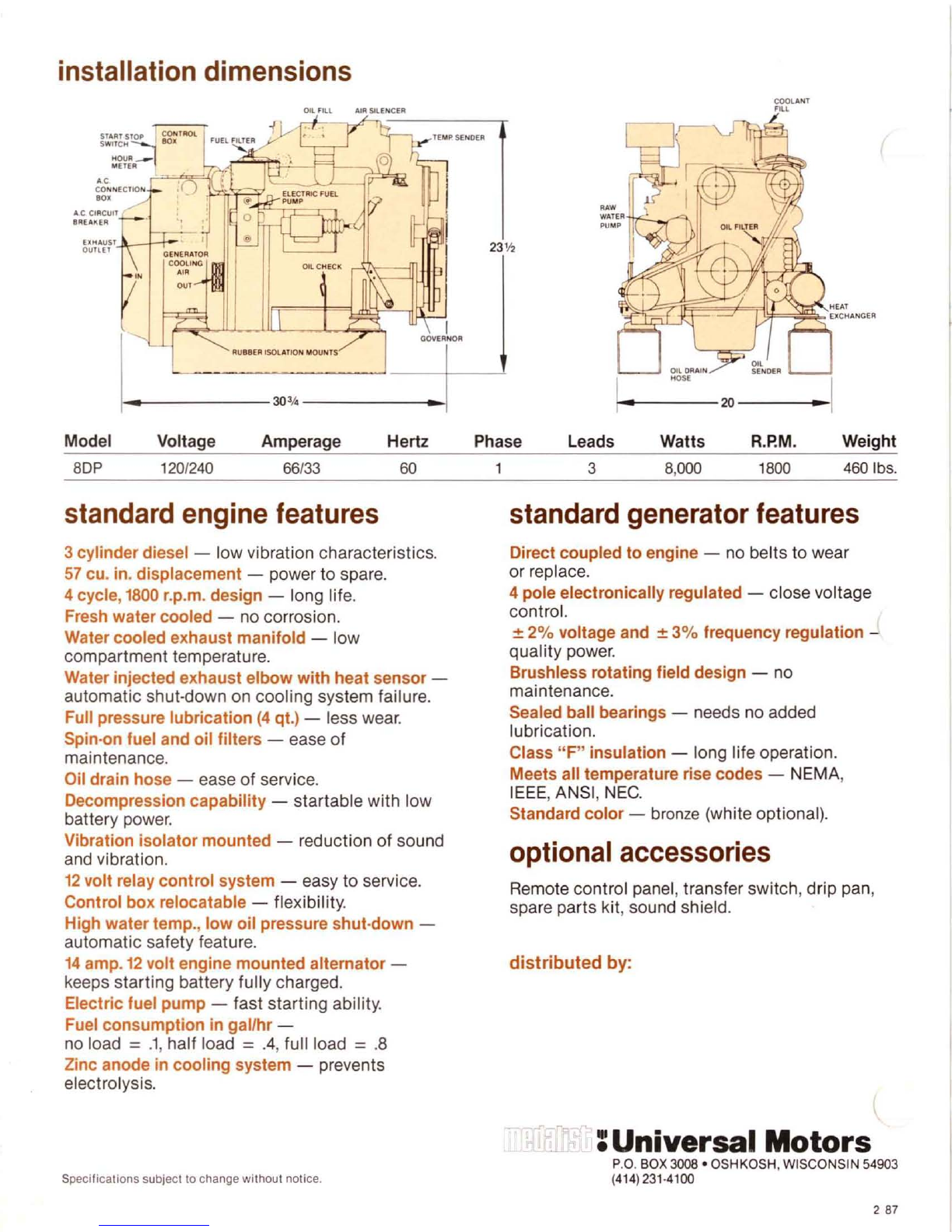

installation dimensions
.C CI R CUIT
8R(AII.(R
OIL Fill ,.11'1 SlLENC(R
I
GOVERNO R
AuaBER ISOlATION M OO N TS
1-------
303/,
--------1
Model Voltage Amperage Hertz
8DP 120/240
66 1 33 60
standard engine features
3cylinder diesel -low vibration characteristics.
57 cu. in. displacement -power to spare.
4cycle,
1800 r.p . m. design -long life.
Fresh water cooled -no corrosion.
Water cooled exhaust manifold -low
compartment temperature.
Water injected exhaust elbow with heat sensor -
automatic shut·down on cooling system failure.
Full pressure lubrication
(4 qt.) -less wear.
Spin·on fuel and oil filters -ease of
maintenance.
Oil drain hose -ease of service.
Decompression capability -startable with low
battery power.
Vibration isolator mounted -reduction of sou
nd
and vibration.
12 vo lt relay control system -easy to service.
Control box relocatable -flexibility.
High water temp., low oil pressure shut·down -
automatic safety feature.
14 amp. 12 volt engine mounted alternator -
keeps starting battery fully charged.
Electric fuel pump -fast starting ability.
Fuel consumption
in gal/hr -
no load =.1, half load =.4, full load =.8
Zinc anode in cooling system -prevents
electrolysis.
Specifications subject to change without nolice.
COOLANT
FilL
23 'h
I r-- •--20----1_1
Phase Leads Watts R.P.M . Weight
1 3 8,
000
1800 4601bs.
standard generator features
Direct coupled to engine -no belts to we ar
or repla ce.
4 pole electronically regulated - close voltage
con
tr ol.
:!: 2% voltage and :!: 3% frequency regulation -
quality power.
Brushless rotating field design -no
maintenance.
Sealed ball bearings -needs no added
lubrication.
Class "F" insulation -long life operation.
Meets all temperature rise codes -NEMA,
I EEE ,ANSI, NEG.
Standard color - bronze (white optional ).
optional accessories
Remote control panel, transfer switch,drip pan,
spare parts kit, sound sh
ie ld.
distributed by:
:Universal Motors
P.o . BOX 3008 · OSHKOSH , WISCONSIN 54903
(414)231·4100
2 87

Universal's 12 KW DIESEL
snent ffirtner
Model 12D40
Diesel Marine Generator
12,000 WATTS C\-~

installation dimensions
.. tAT V C t1A N GUI
CONTROL BOt
, _ ~~~~!TOP
o
•
.. , ,
EtECHl1C FUEL
PUMP
28 '12
I
f- ..l::::J------~ '""" ,soc .. "'. MOU . "
f-o .. --------- 45 V '--- -------o_ 1
f... 1 •• ----22 'h --- __ -1
Model Voltage Amperage Hertz
12D40 120/240 100/50
60
standard engine features
4cylinder diesel -low vibration characteristics.
91 cu. in.displacement -power to spare.
4 cycle,
1800 r.p.m. design -long life.
Fresh water cooled -no corrosion.
Water cooled exhaust manifold -low
compartment temperature.
Water injected exhaust elbow with heat sensor -
automatic shut·down
on cooling system failure.
Full pressure lubrication
(8.5 qt.) -less wear.
Filters and pumps on one side -easy to service.
Spin·on fuel and oil filters -ease of
maintenance.
Oil drain hose -ease of service.
Decompression capability -startable with low
battery power.
Vibration isolator mounted -reduction
of sound
and vibration.
12 volt relay control system -easy to service.
Control box relocatable -flexibility.
High water temp ., low oil pressure shut·down -
automatic safety feature.
50 amp. 12 volt engine mounted alternator -
keeps starting battery fully charged.
Electric fuel pump -fast starting ability.
Fuel consumption in gal/hr -
no load =
.1 , half load = .5 , full load = 1.0
Zinc anode in cooling system -prevents
electrolysis.
Specifications subject to change without notice.
Phase Leads Watts R.
P.M. Weight
1 3 12 , 000 1800
8251bs.
standard generator features
Direct coupled to engine -no belts to wear
or replace.
4 pole self regulated -automatic voltage control.
± 3% voltage and frequency regulation -
quality power.
Brushless rotating field design -no
maintenance.
Sealed ball bearings -needs no added
lubrication.
Class "F" insulation -long life operation.
Meets all temperature rise codes -NEMA,
IE EE , ANSI, NEG .
Standard color -bronze
(w hite optional).
optional accessories
Remote control panel, transfer switch, drip pan,
spare parts kit, sound shield.
distributed by:
:Universal Motors
P.o . BOX 3008 · OSHKOSH,WISCONSIN 54903
(414) 231 ·4100
287

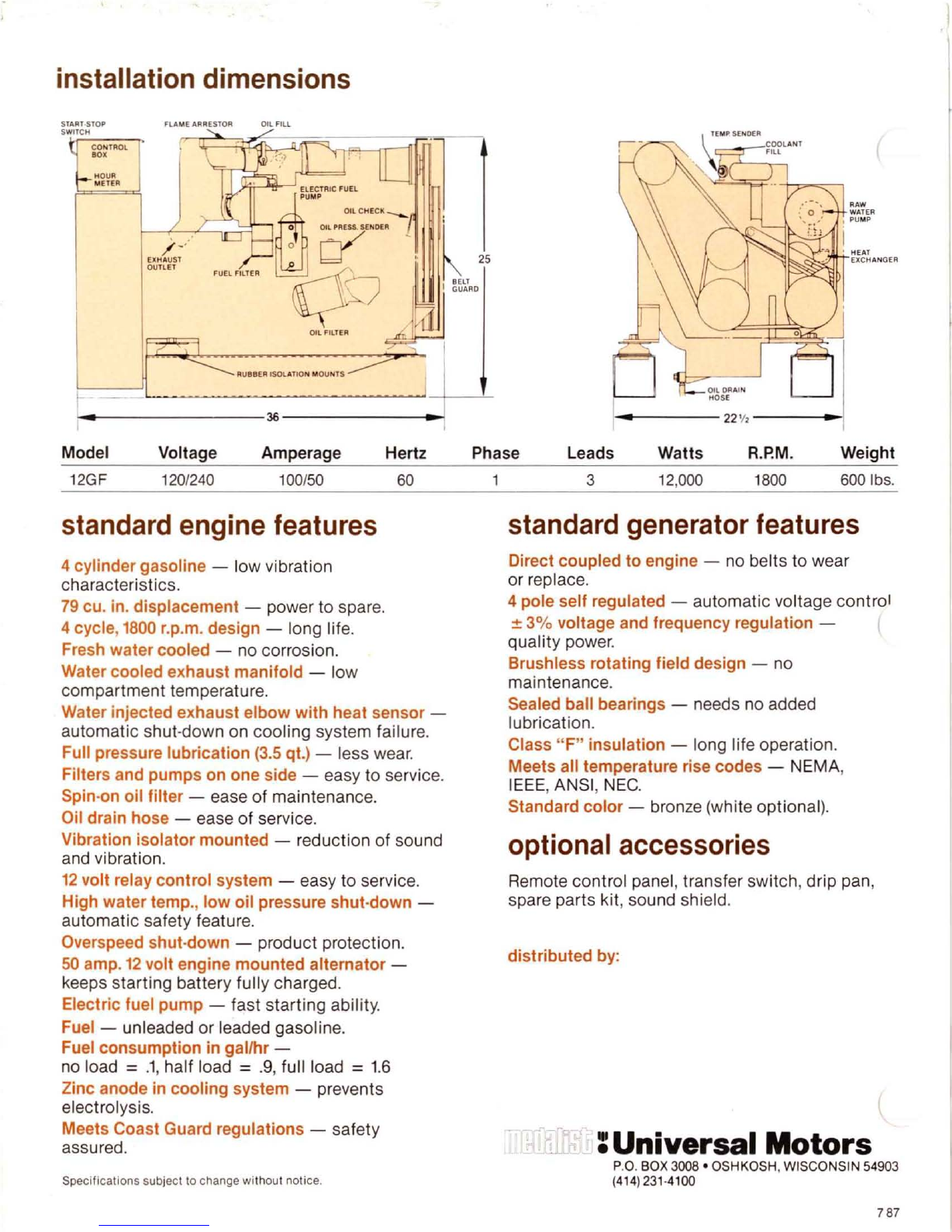

Universal's 12 KW GASOLINE
SHent Partner
Model12GF
Gasoline Marine Generator
12,000 WATTS C\-~

installation dimensions
STAAT STOP
SWITCH
CONTROL
'0'
HOUA
ME TER
1---
FLAME ARRESTOR O1L fiLL
;--
UHAUST
OUTLET
)'TI---'!!'--' ELECTRIC fUEL
cY . 25
--, ~ Jr
FUEl FILTER
RUBBER ISOLATION M
OU Nt S
-.-- ----------------~ ------------ -- ~
TE M P-SE NDER
= .,- _~~L"'H'
"'W
W ATER
I PUMP
i
• -~ 'HEAT
, ,~~Q[ r EXCMA N GER
0! __ _0 J
P . ~~,~
Model Voltage Amperage Hertz Phase Leads Watts
R.P.M . Weight
12G F 120/240 100/50
standard engine features
4 cylinder gasoline -- low vibration
characteristics.
79 cu. in. displacement -- power to spare.
4 cycle,
1800 r.p .m. design -- long life.
Fresh water cooled -- no corrosion.
Water cooled exhaust manifold
-- low
compartment temperature.
60
Water injected exhaust elbow with heat sensor --
automatic shut·down on cooling system failure.
Full pressure lubrication
(3.5 qt.) -- less wear.
Filters and pumps on one side -- easy to service.
Spin·on oil filter -- ease of maintenance.
Oil drain hose -- ease of service.
Vibration isolator mounted
-- reduction of sound
and vibration.
12 volt relay control system -- easy to service.
High water temp., low oil pressure shut·down
--
automatic safety feature.
Overspeed shut·down
-- product protection.
50 amp. 12 volt engine mounted alternator --
keeps starting battery fully charged.
Electric fuel pump -- fast starting ability.
Fuel
-- unleaded or leaded gasoline.
Fuel consumption in gal/hr
--
no load = .1 , half load = .9, full load = 1.6
Zinc anode in cooling system -- prevents
electrolysis.
Meets Coast Guard regulations -- safety
assured.
Specifications subject to change with ou t nolice.
3
12 , 000 1800 6001bs.
standard generator features
Direct coupled to engine -- no belts to wear
or
rep lace.
4 pole self regulated -- automatic voltage control
:!: 3% voltage and frequency regulation --
quality po we r.
Brushless rotating field deSign -- no
maintenance.
Sealed ball bearings -- needs no added
lubricat io n.
Class "F" insulation
-- long life operation.
Meets all temperature rise codes
-- NEMA,
IEEE ,ANSI, NEG.
Standard color -- bronze (white optional).
optional accessories
Remote control panel, transfer switch, drip pan,
spare parts kit, sound shield.
distributed by:
:Universal Motors
P.o . BOX 3008 • OSHKOSH.WISCONSIN 54903
(414)
231 ·4100
787

(
UNIVERSAL
PRICE LIST
EFFECTIVE MAY 1, 1988
MARINE GENERATORS
UNIVERSAL- THE LEADER IN MARINE ENGINES SINCE 1898
MODEL
4D18
5DT
6.5DP
8DP
12D40
15D50
8GF
12GF
RATING(KW)
4.0
5.0
6.5
8.0
12.0
15 .0
8.0
12 .0
FUEL
DIESEL
DIESEL
DIESEL
DIESEL
DIESEL
DIESEL
GASOLINE
GASOLINE
OPTIONS
ITEM
PART#
REMOTE CONTROL PANEL (DIESEL)
REMOTE CONTROL PANEL (GASOLINE)
DELUXE REMOTE CONTROL PANEL (DIESEL)
DELUXE REMOTE CONTROL PANEL (GASOLINE)
CONTROL BOX WIRE HARNESS EXTENSION (5 FT.)
DRIP PAN (24" x 11-3 /4x3/4")
300999
302000
301535
302254
301955
301090
FRESH WATER COOLING STANDARD ( ALL MODELS )
Prices and Specifications subject to change without notice.
All Prices F. O.B. Oshkosh, Wisconsin, U.S.A.
LIST PRICE
$5 , 405
4,765
6,765
6,995
8,640
9, 555
5, 775
6,997
LIST PRICE
$30.00
70.00
190.00
185.00
18.00
25 . 00
: Universal Motors
1552 HARRISON ST. - P.O. BOX 3008 -OSHKOSH, WI 54903 - [phone] - FAX (4 14 ) 231·8166

(
(
