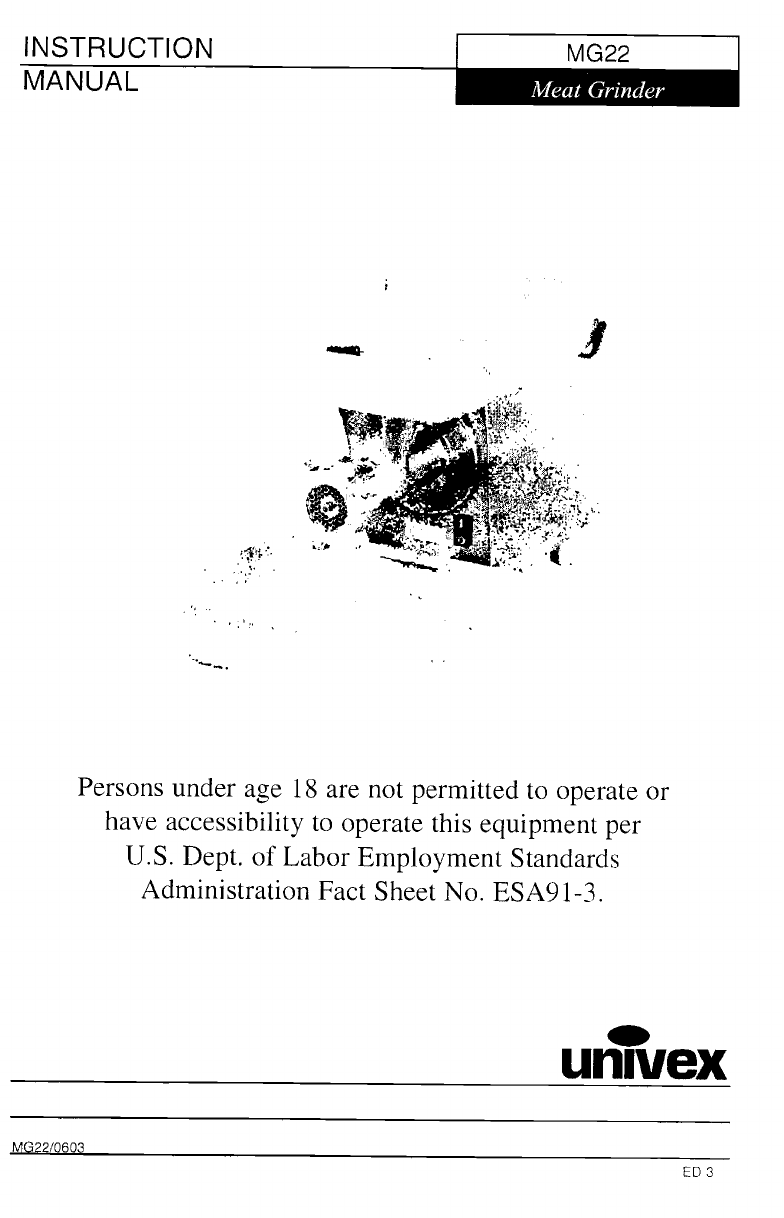

Univex MG22 User manual

INSTRUCTION
MANUAL
MG22/0603
Meat Grinder
Persons under age 18 are not permitted to operate or
have accessibility to operate this equipment per
U.S. Dept. of Labor Employment Standards
Administration Fact Sheet No. ESA91-3.
univex
ED 3
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

TO INSURE BOTH SAFE AND
TROUBLEFREE PERFORMANCE WE STRESS
THAT ALL PERSONNEL THAT WILL BE
INVOLVED WiTH YOUR NEW UNIVEX MEAT
GRINDER MUST READ AND UNDERSTAND
THESE INSTRUCTIONS BEFORE ATTEMPTING
TO OPERATE THIS UNIT.
WE APPRECIATE YOUR COOPERATION AND
YOUR BUSINESS. SHOULD THERE BE A
QUESTION OR IF WE CAN BE OF FURTHER
ASSISTANCE, PLEASE CALL US,
I 6O3-893-61 91.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

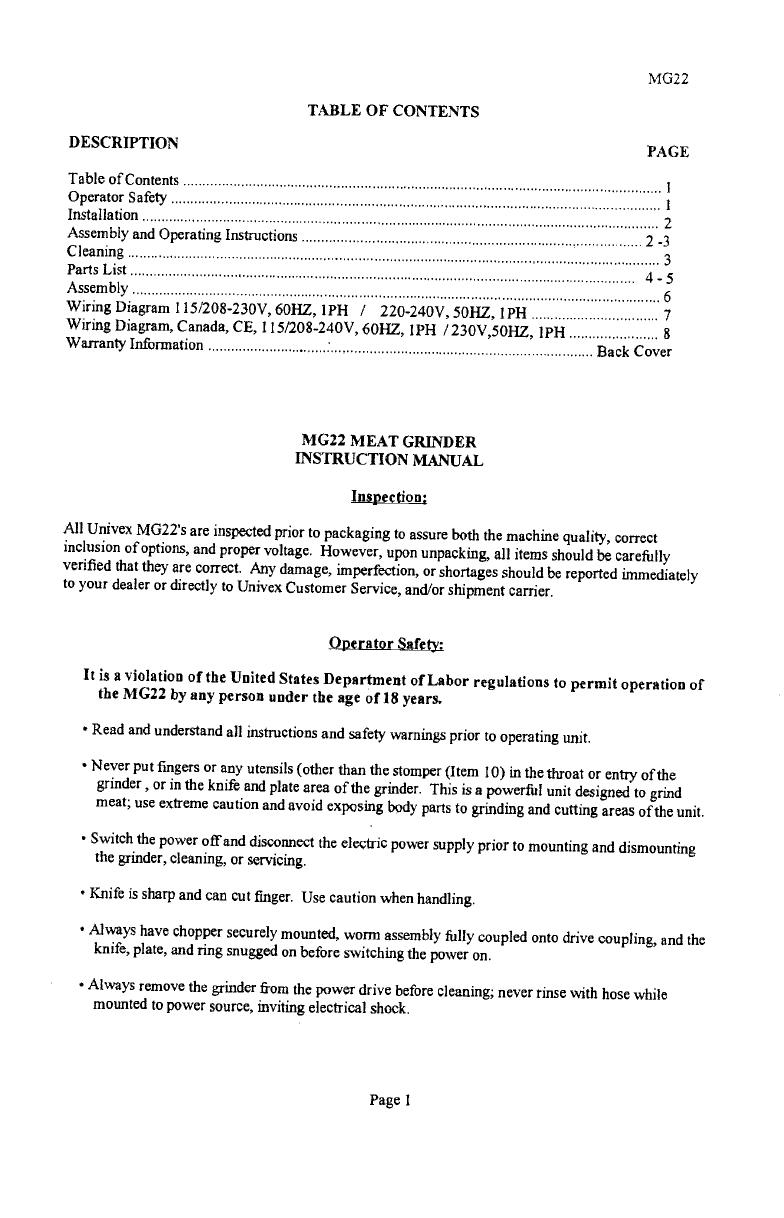

TABLE OF CONTENTS
DESCRIPTION PAGE
Table of Contents
Operator Safety
Installation 2
Assembly and Operating Instructions 2 -3
Cleaning 3
Parts List 4 - 5
Assembly 6
Wiring Diagram 115/208-230V, 60HZ, IPH / 220-240V, 50HZ, IPH 7
Wiring Diagram, Canada, CE, 115/208-240V, 60HZ, IPH / 230V,50HZ, IPH 8
Warranty Information Back Cover
MG22 MEAT GRINDER
INSTRUCTION MANUAL
Inspection:
All Univex MG22's are inspected prior to packaging to assure both the machine quality, correct
inclusion of options, and proper voltage. However, upon unpacking, all items should be carefully
verified that they are correct, Any damage, imperfection, or shortages should be reported immediately
to your dealer or directly to Univex Customer Service, and/or shipment carrier.
Operator Safety:
It is a violation of the United States Department of Labor regulations to permit operation of
the MG22 by any person under the age of 18 years.
Read and understand all instructions and safety warnings prior to operating unit.
Never put fingers or any utensils (other than the stomper (Item 10) in the throat or entry of the
grinder, or in the kniíb and plate area of the grinder. This is a powerThl unit designed to grind
meat; use extreme caution and avoid exposing body parts to grinding and cutting areas of the unit.
Switch the power off and disconnect the electricpower supply prior to mounting and dismounting
the grinder, cleaning, or servicing.
Knife is sharp and can cut finger. Use caution when handling.
Always have chopper securely mounted, worm assembly fully coupled onto drive coupling, and the
knife, plate, and ring snugged on before switching the power on.
Always remove the grinder from the power drive beforecleaning; never rinse with hose while
mounted to power source, inviting electrical shock.
MG22
Page 1
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Installation;
This is a table-top unit. Unit may be secured to table top via the shipping bolt threaded holes on the
power drive housing bottom.
Insure the unit is located such that it is placed on a level and stable surfàce, and sufficient clearance
is provided all around the unit for safrty and ease of operation. Proper location includes space for
the feed pan and clip-on storage container,
Feed pan support bracket (Item 45) must be assembled onto the housing cover (Item 43) using the
screws (Item 46) provided.
ASSEMBLY AND OPERATING INSTRUCTIONS;
Introduction:
The Univex MG22 Meat Grinder consists of a I H.P. electric motor power base which drives a
bell-shaped meat grinder designed to utilize industry standard #22 knives and full range of #22 grinding
plates. Included as standard equipment is a carbon steel knife (Item 3), 3/16 grinding plate (Item 2),
aluminum meat stomper (Item 10), 16 x 24 aluminum feed pan (Item 9) for holding meat to be
processed, and t8.5 x 13.5 storage container with lid för collecting meat as it is processed.
The Univex MG22 has safety and ease of operation built into it. The permanent safety guard positioned
over the bell-shaped feed hopper prevents accidental entry of operator's fingers and hands into the
grinding zone, The readily removable feed pan and storage container provide for ease of processing and
cleaning.
Noise emissions below 70 db(A).
Assembly:
WARNING: Disconnect power supply prior to assembly.
Mount the housing-guard assembly (Item 8) to the housing weldment (Item 26) by firmly
tightening knobs (Item 12) onto mounting studs (Item 14).
Slide the worm assembly (Items 6,5,4) into the housing-guard assembly (Item 8) and mating into
the drive coupling (Item 15).
Slide the knife (Item 3), sharp edges toward the plate, onto the square of the worm assembly (Item
4). Slide the plate (Item 2) onto the worm assembly (Item 4). Screw the ring (Item 1) onto the
housing-guard assembly (Item 8) until it is just snug. Too much pressure can damage the unit.
WARNING: The knife is sharp and can cut fingers.
Guide the feed pan (Item 9) over the guard portion of the housing-guard assembly (Item 8) onto
the pan stud (Item 7) and the pan support (Item 44).
S. Locate the storage container under the clip (Item 24) and resting on the front legs (Item 23).
6. Connect power supply and actuate power switch (Item 25).
WARNING: Never put fingers or utensils in the throat of the grinder or the knife and
plate interface.
MG22
Page 2
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Process
Cut meat to be processed to fit under or through the safety guard. Recommended size is 1 '/2' thick
x 3" wide x 12" long. Set meat in pan (Item 9).
With grinder running, slide product under the guard of the housing-guard assembly (Item 8) or
through the openings in the guard top. Use the meat stomper (Item 10) if desired,to guide
product into grinding zone. The stomper is recommended for regrind.
Collect ground product in storage container,
Cleaning:
Turn unit off and disconnect from power supply.
Disassemble unit in reverse of assembly instructions- Remove storage container, feed pan, and
then ring, plate, knife, worm assembly, and housing-guard assembly.
WARNING: The knife is sharp and can cut fingers.
Clean components including the drive coupling (Item 15) by following the procedure: wash, rinse,
sanitize, and air dry. Use the bristle brush provided to clean areas diflicult to access, Apply a
small amount of food grade lubricant to bronze bushing, located inside the housing-guard
assembly (item 8), before use.
MG22
Page 3
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Page 4
ILLUS. PART NO. ASSEMBLY
DESCRIPTION
MG22
QTY.
11000719 RING,#22
21000727 PLATE, 3/16"
1000726 PLATE 1/8' (OPTIONAL)
1000728 PLATE 1/4' (OPTIONAL)
1000729 PLATE 3/8' (OPTIONAL)
1000730 PLATE 1/2' (OPTIONAL)
31000725 KNIFE, #22
41000715 ShAFT, FRONT
51000711 WORM, #22
61000717 COUPLING, WORM
71000731 * STUD, PAN
81000709 * ROUSING-GUARD ASSY
98700214 PAN
10 1000735 STOMPER
11 1000724 LOCK PIN, PLATE
12 8700222 KNOB 2
13 4400275 STUD - SWITCH ACTUATOR
14 1000718 STUD, MOUNTING 2
15 1000713 COUPLING, DRIVE
16 1200412 SETSCREW 1/4-20X1/4CUppT 2
17 1200359 SCREW HEX. RD. SS CAP 3/8-16 X 1 1/2" LOE 6
18 1000722 WASHER, MOTOR I
19 4400500 KEY 1/4SQ.X1 1/2
20 4400015 KEPNUT 3/8-16 8
21 8700219 GEAR MOTOR
22 8700220 SLEEVE, FRONT LEG 2
23 8700211 LEG, FRONT 2
24 8700216 CLIP, BUSS BOX I
25 8700218 SWITCH, START/ STOP
26 8700210 HOUSING, WELDMENT
27 1200432 SCREW HEX. RD. CAP 4-40 X 3/4 LOE 2
28 7100103 SWITCH, SAFETY 1
29 7100023 INSULATOR, SAFETY SWITCH
30 1024414 BRACKET, SAFETY SWITCH I
31 1200433 ELASTIC STOP NUT 4-40 2
32 1200076 WASHER 10 6
33 4400065 LOCK WASHER 10 6
34 1200060 HEXNUT1O-32 7
35 7510252 ELASTIC STOP NUT - MIO X 1.5 2
36 7100011 CONTACTOR 115V, 60HZ. 1
7100015 CONTACTOR 100V, 50-60HZ
7100012 CONTACTOR230V, 60HZ
7 100040 STARTER, 115V, 60HZ (CANADA ONLY)
7100116 STARTER, 230V, 60HZ, (CANADA ONLY)
7100108 STARTER, 230V, 50HZ, IPH (EUROPE ONLY)
37 7100016
7100010 CONTACTOR, 220-240V, 50HZ,
RAIL, DiN I
38 4400155 SCREW HEX. RD. CAP 1/4-20 X 1/2 LOE 2
39 4400005 LOCK WASHER 1/4 2
40 1814118** LEG,REAR 2
41 8512855 FEET, REAR 2
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

* ILLUS. NO. 71S INCLUDED WITH ILLUS. NO 8
** ILLUS. 40 INCLUDES STUD M10-1.5 X 22MM
Page 5
MG22
ILLUS. PART NO. DESCRIPTION QTY.
42 7100107 STRAIN RELIEF
43 8700212 COVER, HOUSING
44 8700215 SUPPORT, PAN 1
45 8700217 SLEEVE, PAN SUPPORT 2
46 4400246 SCREW, FLAT RD SLT SS 10-32 X 3/4 2
47 1200012 SCREWPPHD.10-32X1/2LG. 6
48 8700014 RUBBER STRIP
49 8700105 STORAGE CONTAINER (NOT SHOWN) 1
50 8800200 POWER CORD (NOT SHOWN)
51 8800208 CORD, MOTOR (NOT SHOWN)
52 4400326 LABEL, UNIVEX (NOT SHOWN) 1
53 4400351 LABEL, (NOT SHOWN)
54 RESERVED
55 1000732 BRUSH, CLEANING (NOT SHOWN)
56 4400401 CONNECTOR. 3/8 (NOT SHOWN)
57 8800229 WIRING PKG. (NOT SHOWN)
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

r
SAFETY
SWITCH LJ. MAGNETIC
CONTACTOR
W2
L,._ J
WIRING DIAGRAM
115/208-230V, 60HZ, IPH
220-240V, 50HZ, IPH
WI
W4
STOP START
PWTCH SWITCH
IILI
I,, ,I W3 I.. o-f----
Page 7
POWER N
/BLACK WI-tIE GND
4,
L3cr
W7
W8 MOTOR
W5
I3h]
14 I-J
MG22
NOTES: I. DOUBLE CRIMP FERRULES, KLAUKE 72/IOVZ OR AMP 925553-2,
MOLEX-ETC BB-5623.
MATERIAL: I6GA 1015 TEW CSA AND UL APPROVED.
IMPORTANT; Before making electrical connections, check thespecifications on the data plate
(located on the rear panel) to assure they agree with those ofyour electrical service.
WA.RNJNG: Whenever maintenance is being performed, or whenever the top cover has been removed,
DISCONNECT electrical cord and place a tag on it indicating the slicer is being worked on.
WIRE ABLE
PART
NUMBER WIRE
NO. GA SEE
NOTE LENGTH
l4 INCHES END A
SEE NOTE END B
SEE NOTE COLOR
8800229
WI 5333 -I2WHITE
W2 16 313 I2WHITE
W3 IS 32(/2 1IRED
W4 6324 1IBLACK
W5 IS 325 IIRED
we IS 3 2 (/2 IIRED
W7 16 32 (/2 IIRED
8800208 W8 MOTOR CORD
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

ri
SAFETY
SWITCH L_ _..J
WI
STARTER
W2 W4
WIRING DIAGRAM
CANADA & CE
115/208-240V, 60HZ, IPH
230V, 50HZ, 1PH
POWER IN
/I
LI L2 L3 ONO9
W6 -OVERLOAD RELAY
SJD .-O _95
AI LI L2 L3 13
-
A2 TI T2°T3\,014
W5
NOTES: I, DOUBLE CRIMP FERRULES. KLAUKE 72/IOVZ OR AMP 925553-2
MOLEX-ETC BB-5623.
MATERIAL: I6GA 1015 TEW OSA AND UL APPROVED.
IMPORTANT: Before making electrical connections, check the specifications on the data plate
(located on the rear panel) to assure they agree with those of your electrical service.
WARNING; Whenever maintenance is being performed, or whenever the top cover has been removed,
DISCONNECT electrical cord and place a tag on it indicating the slicer is being worked on.
Page 8
W7
TI
W8
WIRE TABLE
PART
NUMBER WIRE
NO.
GA SEE
NOTE LENGTH
IN INCHES END A
SEE NOTE END B
SEE NOTE'COLOR
8800229
WI 16 333 I2WHITE
W2 6313 I2WHITE
W3 16 321/2 IIRED
W4 6324 I I BLACK
WS 6326 IIRED
PART
OF
STARTER
W6 16 321/2 IIRED
W7 16 351/2 IIRED
WI 16 381/2 IIRED
8800208 WO MOTOR CORD
W9 MOTOR
STOP START
SWITCH \SWITCH
I I
H.. .1 W3 o
