Omcan Mg-it-0012-c User manual

Meat Grinders

Revised - 5/21/2015

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Models MG-IT-0012-C, 0022-C

Items 11051, 11053

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 5

-------------------------------------------------------------------- 5 - 7

------------------------------------------------------------------------------------ 7 - 8

------------------------------------------------------------------------------------- 9

-------------------------------------------------------------------------- 10 - 13

---------------------------------------------------------------------- 14 - 15

------------------------------------------------------------------------------------------- 16 - 18

---------------------------------------------------------------------------- 19

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation and Operation

Maintenance

Troubleshooting

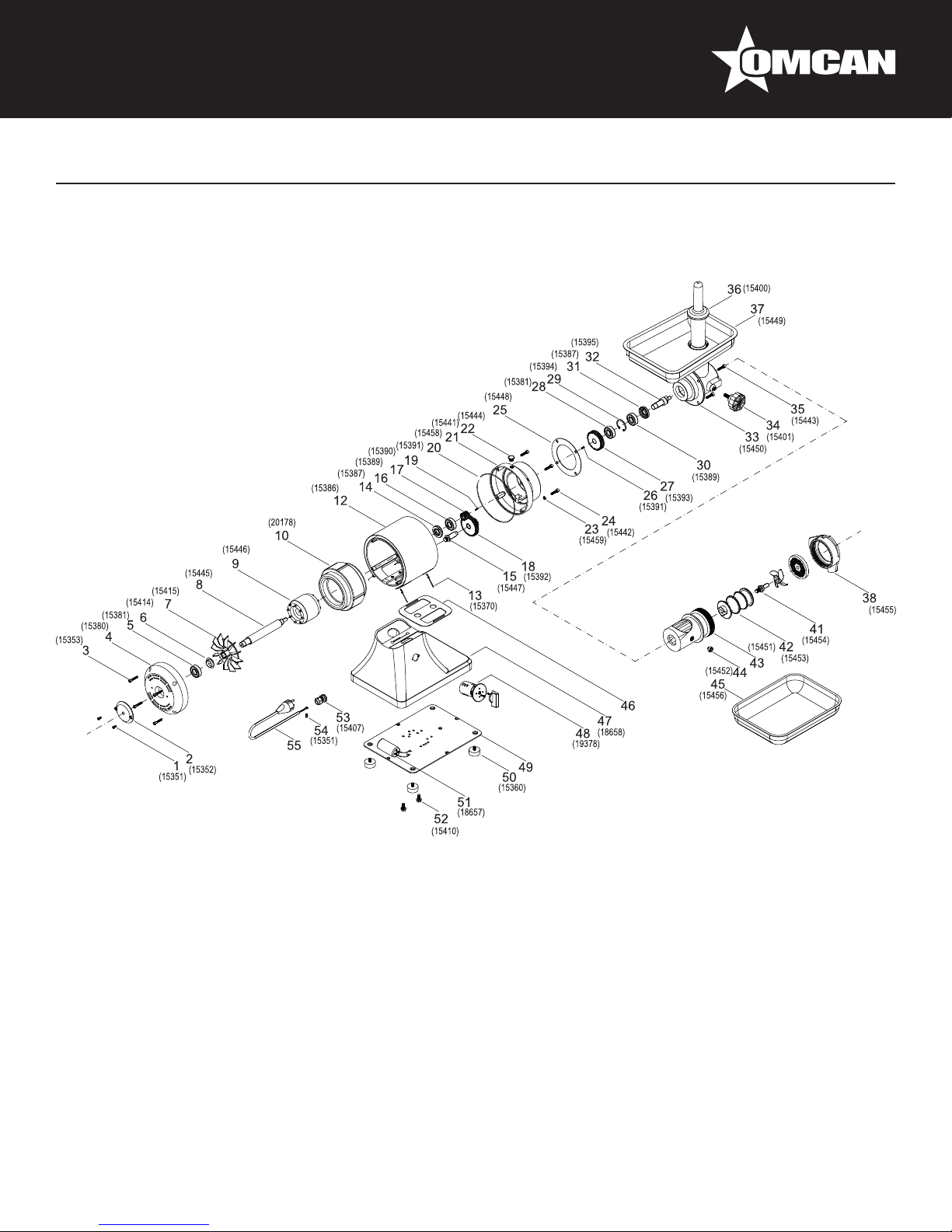

Parts Breakdowns

Electrical Schematics

Notes

Warranty Registration

Model MG-IT-0012-C / Model MG-IT-0022-C

3

General Information

Omcan Manufacturing and Distributing Company Inc. and Food Machinery of America, Inc. dba Omcan

are not responsible for any harm or injury caused due to any person’s improper or negligent use of

this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and

not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this

machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any

warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while

in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan ne

sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé

cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de plus de 18

ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser

cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication de la

machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou

des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o

el uso descuidado de este equipo. El producto solo podra ser operado por una persona mayor de 18

años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado

en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier

modicación a la máquina anúla la garantía y puede causar daños a las personas usando la máquina

mientras esta en el funcionamiento.

4

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

WARNINGS ON THE RESIDUAL RISKS

RESIDUAL RISK DUE TO THE FIXED PROTECTIONS REMOVAL OR INTERRUPTION ON BROKEN/

WORN PARTS.

The operator must not try to open or remove a xed protection or tamper with a safety device.

During operation, maintenance and cleaning, keep hands or other body parts away from the machines

dangerous areas, a residual risk remains due to:

1. Knocks with the machines manufacturing parts.

2. Grazing and/or abrasion with the machines rough parts.

3. Cuts with the sharp parts.

PROTECTION DEVICES ON THE MACHINE

The machine protections and safety devices must not be removed.

The machines transmission parts are completely isolated by means of xed protections which does not allow

access. The moving elements are not isolated from xed protections, moving protections or other safety

devices. The grinding group parts are placed away from access points so they are not reachable.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not

improper use.

General Information

Safety and Warranty

5

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Model MG-IT-0012-C MG-IT-0022-C

Horsepower 745.7 W / 1 HP 1118.5 W / 1.5 HP

RPM 140 90

Throat Opening 2” / 50.8mm 2.25” / 57.2mm

Electrical 110V/60/1

Weight 42 lbs. / 19.1 kgs. 50 lbs. / 22.7 kgs.

Dimension 16.25” x 8” x 17.5”

412.8 x 203.2 x 444.5mm

17” x 9” x 20”

431.8 x 228.6 x 508mm

Item # 11051 11053

TRANSPORTATION, HANDLING AND STORAGE

All transportation and handling operations must be performed from trained personnel and must have read and

understood the safety precautions mentioned in this manual.

1. Perform the machine handling and transportation only when unplugged.

2. Verify that the lifting means are able to support the loading weight and overall dimensions in safe

conditions.

3. Avoid dropping or shaking the unit during transportation.

Safety and Warranty

Technical Specications

Installation and Operation

6

Installation and Operation

PREPARATION PRELIMINARY OPERATIONS

STABILITY

The machines stability is designed so that it can be used without the risk of falling or unwanted movement.

ELECTRICAL SUPPLY

The electrical supply connection must be in conformance with the country legislation in which it is being used.

1. The electrical supply must match the required specications indicated on the rating plate. If excessive

voltages are applied, some components will be damaged beyond repair.

2. The device must be grounded in conformance to the local standards.

3. The electrical supply cable outside the machine cover must be adequately protected.

GRINDING GROUP ASSEMBLY / DISASSEMBLY

The assembly / disassembly operations of any machine part are performed with the machine in the OFF

position, and the plug disconnected from the socket.

To assemble the grinder, do the following steps in this order:

1. Insert into the shaft (1) in order: the worm (2), the cutting knife oriented

as shown in the gure (3), and the plate (4).

2. Screw down and tighten the screw (5).

To disassemble, do the above in reverse order.

FUNCTIONING DESCRIPTION

STARTING THE MACHINE

To start the machine, the switch has to be placed on the “I” position.

STOPPING THE MACHINE

To stop the machine, the switch has to be placed on the “O” position.

FUNCTIONING SAFETY

If the machine is under stress, operated for a long period of time or overloaded, stop immediately for the

thermal protection functioning. In this case wait for the unit to cool completely before using again.

OPERATION

The machine operator can begin operation of the machine when:

1. The machine is installed properly.

2. The machine is connected to the electrical supply.

3. The hopper is inserted in the correct position.

4. The grinding group assembly is installed correctly.

5. The worm rotates in the correct direction.

6. Tests the switch.

7

Installation and Operation

Maintenance

7. Checks that all safety conditions are being met.

8. Checks that the plug is in the correct socket.

9. Place a collecting tray below the shaft to collect the nal product.

10. Start the machine by placing the switch to the “I” position.

11. Manually introduce the chopped meat into the machine neck and use the supplied stomper to push the

meat into the shaft.

12. Once the operation is completed, or when the product no longer comes out of the plate, place the switch to

the “O” position to stop the machine.

It is recommended to only operate the machine when there is product in the unit.

AFTER EACH USE

Once the machine has been operated and is no longer needed for use, please do the following:

1. Before turning off the unit, wait until the food product has nished going through the plate.

2. Turn off the machine by placing the switch to the “O” position.

3. Unplug the unit from the electrical socket.

4. Perform the cleaning and maintenance steps detailed in the “Maintenance” section.

UNBLOCK IN CASE OF OBSTRUCTION

During operation, or during the worm rotation, due to the food products being introduced with incompatible

parts (ie: bones), the machine could become blocked and cause a malfunction.

To be able to resume normal operation, the grinding group must be disassembled, and the blockage must be

removed.

PROTECTIVE SAFETY DEVICES

For any procedures described in this section, it is necessary to remove some of the xed protections from

their positions. The removal can only be performed by an authorized Omcan technician. At the end of the

maintenance procedures, these protections must be replaced and fastened in their original positions.

The machine must be switched off and unplugged prior to any maintenance and cleaning.

EXTRAORDINARY MAINTENANCE

In the event of any extraordinary maintenance, it can only be completed by an authorized Omcan service

technician.

8

Maintenance

CLEANING

All cleaning procedures must be started only when the machine is no longer in operation and is unplugged

from the electrical socket.

The machine, the electrical equipment and electrical components must never be submerged, sprayed, or

washed with water. Use a dry cloth to wipe these components.

Follow the steps as listed:

FREQUENCY PERSONNEL SOLUTION

At the end of

every use and

before daily use.

Operator DISINFECTION

• Use PH neutral detergents.

• Use demineralized water if temperatures exceed 60°C/140°F.

• If any other products are used, they must be adequate to the

materials being disinfected.

PERIODS OF LONG INACTIVITY

• If the machine has been inactive for a long period of time, vigorously

wipe the machine with a cloth soaked in Vaseline to create a

protective barrier.

PRODUCTS NOT TO USE:

• Compressed or pressurized air jets.

• Vapor equipment.

• Detergent that contains any of the following compounds:

- Bleach.

- Hydrochloric acid.

- Products that are used to clear drains.

- Caustic soda products for cleaning marble.

- Etc.

• Steel wool, brushes or abrasive discs produced with other metals or

alloys, or tools that have previously cleaned other metals or alloys.

• Detergents in abrasive dust.

• Fuel, solvents or inammable and/or corrosive uids.

• Substances used to clean silver.

9

Troubleshooting

The following indicated problems that may occur:

TYPE POTENTIAL CAUSE/S SOLUTIONS

The electrical supply is not

adequate.

General blackout. Contact an electrician.

Blown fuse. Replace the fuse, if the problem

continues, contact an electrician.

The machine stops. The protection device stops the

machine.

Contact an electrician to eliminate

the causes, once the cause has

been determined, restore the

machine to the recommended

function.

The cause could not be identied. Contact Omcan directly.

The machine doesn’t function: the

worm will not rotate.

The electrical supply is not

adequate.

Check and restore the electrical

supply.

The switch is on the “O” position. Place the switch to the “I” position.

Blown fuse. Replace the fuse.

The unit is overheated. Wait for the unit to cool completely

before starting.

10

Parts Breakdown

Model MG-IT-0012-C 11051

11

Parts Breakdown

Model MG-IT-0012-C 11051

Item

No. OMC ID Description Position Item

No. OMC ID Description Position

15351 FTS1201 Screw 4x8 (2 pcs.) 1 15393 FTS1219 Gear Big Easy 19 15402 FTS1239 Screw 39

15352 FTS1202 Disc Locking ABS DA 80mm. 2 15381 FTS1220 Bearing 6203 ZZ 20 15362 FTS1240 Container MIS.250x180 40

15353 FTS1203 Screw 5x30 (4 pcs.) 3 15394 FTS1221 Seeger of 40 21 15460 FTS1241 Base Gasket 41

15380 FTS1204 Cap Fan 4 15389 FTS1222 Bearing 6203 2RS 22 19378 FTS1242 Bipolar Switch 42

15381 FTS1205 Bearing 6203 ZZ 5 15387 FTS1223 Oil from 40x25x7 23 15410 FTS1243 Screw 8x22 (2 pcs.) 43

15382 FTS1206 Crankshaft 6 15395 FTS1224 Pin Driver 24 15411 FTS1244 ABS Seat 44

15383 FTS1207 Rotor 7 15346 FTS1225 Union Meat 25 15413 FTS1245 Condenser 16 uF 45

15469 FTS1208 Stator V.230/50Hz 4 Poles 8 15458 FTS1226 Ring 164.5x2 26 15412 FTS1246 Screw 4.8x12 (4 pcs.) 46

15384 FTS1209 Motor Housing Short 9 15459 FTS1227 Washer Sealing Thread

(2 pcs.) 27 Cordset Mod. Schuko V.230 47

15385 FTS1210 Steel Band Short 10 15398 FTS1228 Oil Cap Rubber 28 15351 FTS1248 Screw 4x8 48

15370 FTS1211 Rivets (4 pcs.) 11 15397 FTS1229 Screw 6x25 (4 pcs.) 29 15407 FTS1249 Gland PG11 49

15387 FTS1212 Oil from 40x25x7 12 15401 FTS1230 Knob Fermabocca 30 Rubber Feet (4 pcs.) 50

15388 FTS1213 Pin Portaingranaggio 13 15400 FTS1231 Pestle 31 15408 FTS1251 Base TS.12 51

15389 FTS1214 Bearing 6203 2RS 14 Hopper 32 Ring Mounting Fan 52

15392 FTS1215 Double Gear 15 15406 FTS1233 Aluminum Wheel 33 Fan 53

15390 FTS1216 Propeller Gear 16 17235 FTS1236 Pin Knifeholder 36 Crankshaft Fan 54

15391 FTS1217 Key 3x3x15 for Magnication.

Small 17 15404 FTS1237 Aluminum Screw 37 Long Fan Housing 55

15391 FTS1218 Key 4x4x12 for Magnication.

Big 18 17233 FTS1238 Mouth Meat Grinder Cast

Iron 38

12

Parts Breakdown

Model MG-IT-0022-C 11053

13

Parts Breakdown

Model MG-IT-0022-C 11053

Item

No. OMC ID Description Position Item

No. OMC ID Description Position

15351 FTS2201 Screw 4x8 (2 pcs.) 1 15458 FTS2220 Ring 164.5x2 20 15455 FTS2238 Aluminum Wheel 38

15352 FTS2202 Disc Locking Abs DA 80mm. 2 15441 FTS2221 Hub Cap with Housing 21 15454 FTS2241 Pin Knife Holder 41

15353 FTS2203 Screw 5x30 (4 pcs.) 3 15444 FTS2222 Brass Oil Cap 22 15453 FTS2242 Aluminum Screw 42

15380 FTS2204 Cap Fan 4 15459 FTS2223 Washer Sealing Thread

(2 pcs.) 23 15451 FTS2243 Mouth Meat Grinder Cast

Iron 43

15381 FTS2205 Bearing 6203 ZZ 5 15442 FTS2224 Screw 6x20 (4 pcs.) 24 15452 FTS2244 Screw 44

15414 FTS2206 Ring Mounting Fan 6 15448 FTS2225 Seal Rubber Nozzle 25 15456 FTS2245 Container MIS.300x220 45

15415 FTS2207 Fan 7 15391 FTS2226 Key 4x4x12 for

Magnication. Big 26 Base Gasket 46

15445 FTS2208 Crankshaft V.230/50Hz 8 15393 FTS2227 Gear Big Easy 27 18658 FTS2247 Base 47

15446 FTS2209 Rotor 9 15381 FTS2228 Bearing 6203 ZZ 28 19378 FTS2248 Bipolar Switch 48

20178 FTS2210 6 Pole Stator V.230/50Hz 10 15394 FTS2229 Seeger of 40 29 Bottom Base Closure 49

15386 FTS2212 Steel Band Fan 12 15389 FTS2230 Bearing 6203 2RS 30 15360 FTS2250 Foot Thread (4 pcs.) 50

15370 FTS2213 Rivets (4 pcs.) 13 15387 FTS2231 Oil from 40x25x7 31 18657 FTS2251 Condenser 25 uF 51

15387 FTS2214 Oil from 40x25x7 14 15395 FTS2232 Pin Driver 32 15410 FTS2252 Screw 8x22 (2 pcs.) 52

15447 FTS2215 Pin Portaingranaggio 15 15450 FTS2233 Union 33 15407 FTS2253 Gland PG11 53

15389 FTS2216 Bearing 6203 2RS 16 15401 FTS2234 Knob Fermabocca 34 15351 FTS2254 Screw 4x8 54

15390 FTS2217 Propeller Gear 17 15443 FTS2235 Screw 6x18 (4 pcs.) 35 Cordset Mod.Schuko V.230 55

15392 FTS2218 Double Gear 18 15400 FTS2236 Pestle 36

15391 FTS2219 Key 3x3x15 for Magnication

Small 19 15449 FTS2237 Hopper 37

14

Electrical Schematics

Model MG-IT-0012-C 11051

15

Electrical Schematics

Model MG-IT-0022-C 11053

16

Notes

________________________________________________________________________________________

17

Notes

________________________________________________________________________________________

18

Notes

________________________________________________________________________________________

19

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN INC.

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

www.omcan.com/warrantyregistration.html

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan MG-IT-0012-C User manual

Popular Meat Grinder manuals by other brands
