UPLIFT 3-Leg Desk User manual
pictured: 3-leg frame; and Eco Corner desktop, left extension
UPLIFT 3-Leg Desk Instructions for
Eco Corner Desktops
90.014.01.0474
TABLE OF CONTENTS PAGE
1 Safety and Warnings 2
2 Usage 2
3 Parts List 3
4 Assembly Instructions 4
5 Desk Placement 7
6 Programming 7
7 Troubleshooting 9
8 TechnicalSpecications 9
FRM300-EC/R02
SAVE THESE INSTRUCTIONS:
Any user or installer of desk base must study this manual carefully. If this desk is sold,
please provide the manual to the buyer, installers, or support personnel operating the product.
Note: Your UPLIFT Eco Corner is thinner than most
desktops. Before attaching accessories, check
the screw length against the thickness of the
desktop to ensure that the screw is not too long
and don’t break through to the top of your desktop.
2
2. USAGE
This height adjustable desk has an electric motor and is designed for use in dry work areas only. The desk
height is adjustable so that it can be positioned at the most ergonomically suitable height. These desks are
designed only for the purposes included in this manual. They should not be used in environments with high
humidity or dampness. Any other use is at user’s risk.
Do not move around, crawl, or lie under the desk frame. Do not sit or stand on the desk frame.
Children should never use the desk unless they are supervised by adults.
Liability: Under no circumstances does the manufacturer accept warranty claims or liability claims for dam-
ages caused from improper use or handling of the desk frame other than that which is described in this
operation manual.
1. SAFETY AND WARNINGS
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using the desk.
FAILURE TO COMPLY WITH OR OBSERVE ALL INSTRUCTIONS AND WARNINGS REGARDING THE USE
OF THIS PRODUCT MAY RESULT IN SERIOUS PROPERTY DAMAGE OR BODILY INJURY.
DANGER - To reduce the risk of electric shock, always unplug this furnishing from the electrical outlet be-
fore cleaning, or before putting on or taking off parts.
WARNING - Toreducetheriskofburns,re,electricshock,orinjurytopersons:
• Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled
persons. Keep children away from electric height-adjustable desks, control units, and keypads.
There is a risk of injury and electric shock.
• Use this table only for its intended use as described in these instructions. Do not use attachments
not recommended by the manufacturer.
• Keep the table close to the power socket/outlet to be easily accessible.
• Never operate this table if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water.
• Keep the cord away from heated surfaces.
• Do not open any of the components: legs, control box, or keypad. There is a danger of electric
shock. Do not insert anything into any seam or opening.
• Keep all electrical components away from liquids.
•
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use outdoors.
• Inappropriate use of this product may cause property or bodily injury.
• Check surroundings on all sides before using the desk. Body parts and property can be crushed if
trapped between an immobile obstacle and the desk’s range of motion.
• Ensure the length of power cords are accounted for when operating the desk. Monitors, comput-
ers, speakers, anything with a cord that is not long enough for the desk’s range of motion could be
pulled down or have its wires broken. Items pulled off the desk may cause other items to fall.
• Please provide this manual to any users, installers, or support personnel operating the product.
MAKE SURE NO OBSTACLES ARE IN THE DESK’S PATH AND ALL CORDS ARE
OF APPROPRIATE LENGTH FOR DESK TRAVEL. FAILURE TO COMPLY WITH
OR OBSERVE ALL ASSEMBLY, SAFETY, AND OPERATION INSTRUCTIONS AND
WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS
PROPERTY DAMAGE OR BODILY INJURY.
!
Now you’re ready to build your new desk.
Get ready, get set - Let’s get this desk off the ground!
18
Eco Corner desktop
(qty 1)
Foot
(qty 2)
Leg
(qty 2)
Leg
(qty 1)
Crossbar rail
(inside crossbar ends
qty 2)
1
1
245
Crossbar end
(qty 2)
Side bracket
(qty 2)
Adhesive pad
(qty 10)
Adhesive pad
(qty 5)
6Keypad
one of two types
(qty 1)
8
8
10
or
From the 2-leg frame box:
These parts are used for every combination of UPLIFT Desk:
From the 3rd-leg kit box:
For assembling your 3-leg Frame, pull these parts from the 3rd-leg kit:
Unbox your desktops You’ll need these tools
qty one power cable
qty two 43’’ leg cables
qty one 103’’ leg cables
Cables
12
All of the parts that you need for your
3-leg frame come shipped in these
two boxes, shown here.
As you unpack your boxes, this is what
you will need from each of them:
Any extra parts not shown here are not required for this assembly,
and may be left in the boxes, or discarded.
Small
foot
(qty 1)
3 7 9Control box
(qty 1)
11 Leveling stud
pre-installed
(qty 1)
Leveling stud
pre-installed
(qty 4)
11 M6x14 screw
(qty 24)
M6x14 screw
(qty 8)
M6x10 screw
(qty 8)
#10x1/2’’ screw
(qty 8)
#10x1/2’’ screw
(qty 6)
#10x5/8’’
Wood screw
(qty 4)
14 15
15
13
13
16 Cable clip
(qty 10)
Cable clip
(qty 5)
17
17
Zero crossbar
bracket
(optional. qty 1)
3. BOX CONTENTS, PARTS LIST
Pleaserecycle
Stand up for your health • upliftdesk.com • 800-349-3839
09.001.06.0260
FRM300~BLK
3rd Leg Kit - Black
Stand up for your health
upliftdesk.com • 800-349-3839
Designedin USA.Made in China.
Pleaserecycle
09.001.06.0004
FRM200~BLK
2-Leg Frame - Black
2-leg
frame 3rd leg kit
Philips Head
Screwdriver
and/or Power Drill
Tape Measure
Allen wrench
(included)
4
4. ASSEMBLY INSTRUCTIONS
A. FullyseparatetheCrossbarends(parts4),youwillndtheCrossbarrails(parts5)inside.
g.2 g.3
4
1
47
44 5
13
13
C. Line up the 4 holes on the Side brackets (part 6)
with the two of the Crossbar end and leg assemblies
from the previous step.
Insert qty four (4) M6x14 Machine screws (part 13) through
the 4 holes of the each Side bracket (part 6) going into
the Crossbar end/Leg assembly. Using the Allen wrench,
rotate each screw ONLY 3 times.
4
6
13
D. Once all of the parts are connected, you can now tighten the twelve (12) Screws from Step B
and the eight (8) Machine screws from Step C (20 screws in total).
7
E.
Remove backing from the Adhesive pads
(part 8) and position along the brackets and
frames as shown.
B. Position the Crossbar ends (part 4) on their sides. You will be inserting
the Legs (part 1) into the Crossbar ends (parts 4) from below. When positioned
correctly,themounttabswillbefacingup(g.1).
Now, place the Legs (part 1) into the Crossbar ends (part 4) and Zero crossbar
bracket(part7)fromthebottom(g.2).
g.1
Line up the holes on each leg with the holes on each Crossbar end and the Zero crossbar bracket.
Using the supplied Allen wrench, insert twelve (12) M6x14 Machine screws (part 13) to connect them all,
and rotate each screw only a few turns. Do not tighten fully until step D.
7
F. Slide Crossbar rails (part 5) back into Crossbar
ends (part 4). Ensure the slots of the Crossbar rails
are facing inward. The slot on the Crossbar rail is
offset;itwillneedtobealignedinaspecicwayto
allow for the already installed Machine screws. Make
sure that the Crossbar rail can slide all the way to
theendoftheCrossbarend.Ifitdoesn’tt,takethe
Crossbarrailoutandipitover,withtheslotsfacing
inward and near the top of the edge, further from
theoor.
H. Attach each Foot (part 2) to the 2-leg
assembly and the Small foot (part 3) to the
one-leg assembly with the Zero Crossbar
Bracket with qty 4 Machine Screws (part 13)
each, and tighten bolts in a cross pattern.
I. Your UPLIFT Eco Corner desktop is pre-
drilled with threaded inserts. Place the desk-
toponacleansurfaceontheoor,withthe
pre-drilled holes facing up, and carefully line
up the holes in the frame with the holes on
the desktop.Adjust the width of the two-leg
assembly if needed.
44
5
2
3
13
J. Insert and tighten eight (8) M6x10
Machine screws (part 14) into the Crossbar
ends (part 4), to secure the rails in place.
K. Ensure that the base is lined up with the
threaded inserts in underside of the desktop.
Proceed with securing the desk base to the
desktop using fourteen (14) of the 10-1/2’’
Machine Screws (part 15).
Install as follows:
3 per Side bracket 6 total
1 per Crossbar end 2 total
6 for the Zero Crossbar Bracket
14
15
6
9
L. Use two (2) of the #10x5/8’’ Wood
screws (part 16) to attach the Control box
(part 9). Ensure enough clearance at the
wire ports for cable connections. For ease of
installation use the pre-drilled hole locations.
Place the Keypad (part 10) at the pre-drilled
hole locations, and attach using two (2) of
the #10x5/8’’ Wood Screws (part 16).
Note: Do not over-tighten the
screws, it may break the plastic
10
M. With two people, grab the desk by the base and the desktop, to sup-
port them both equally, and turn the desk right-side up. If necessary, adjust
the Levelling studs (part 11) underneath each foot to level out your desk.
N. Plug the Power Cord into a 110v outlet.
IMPORTANT!
You must RESET the desk prior to use!
Press and hold the DOWN button on the Keypad until the desk reaches
its lowest height. Release the DOWN button. Press and hold the DOWN
button again until the LED display reads “RST” or about 10 seconds on
non-LED handset models. Release the DOWN button. Press and hold
the DOWN button again until the desk lowers a little bit more, slightly
rises and stops. Release the DOWN button. Your desk is now ready to use.
To program up to four presets:
Usetheup/downbuttonstondadesiredheight,thenpress“M”followedbyanumber1–4.
10
T. Connect the Legs and Keypad to the Control box
withtheCables(part12).Youwillndthattheyallhang
loose. Once everything is connected, use the Cable clips
(part 17) to keep them snug up against the desktop, to pre-
vent them from getting caught on things under your desk.
17
12
5. DESK PLACEMENT
Following desk assembly, adjust the pre-installed Leveling studs (part 13) or casters (sold separately) on
the feet so that the desk is level and does not shift its position.
When moving the desk, if casters are not installed, use two people to lift the desk so that it can be moved
without dragging. Dragging the desk may cause the frame and screws to pull loose from the desktop.
When moving the desk, DO NOT lift the desk by the desktop alone, or the frame alone. Support both the
frame and the desktop equally. Favoring one over the other can stress the fasteners connecting the desk
frame to the desktop. Lower the desk completely and lift the desk by grasping the frame.
Choose a placement for the desk that’s a safe distance from window frames, radiators, furniture, etc., so
that people do not get stuck or trapped by the desk.
Check cord clearance, so that they don’t get jammed. Then connect the desk to the 120v outlet and the
desk is ready for use.
Do not place any objects underneath the desk that are taller than 20’’.
6. PROGRAMMING:
If you’ve purchased an UPLIFT Desk and the Advanced 1-touch digital keypad, press the DOWN button
ontheKeypaduntiltheframereachesitslowestposition.Measuretheheightoftheframefromtheoor
to the underside of the desktop and if the number on the LED display does NOT match your measure-
ment, follow these steps:
Press and hold the DOWN button again until the LED display reads “RST”
Pressandholdthe“M”button(about5seconds)untiltheLEDdisplaystheashingstartingheight.
(If the display returns to “RST” before the next step is taken, repeat this step.)
To change the value of the starting height:
By 0.1s:
Increase: press the UP button
Decrease: press the DOWN button
Once the new value is displayed, wait about 5 seconds and the display will return to “RST”. Finish
the reset process by pressing and holding the DOWN button again until the desk lowers a little bit
more, slightly rises and stops. Release the DOWN button. The new starting height value is saved
and your desk is now ready to use.
Note: the LED display has a 0.1 tolerance.
+
-
By 1.0s:
Increase: press the “l” button
Decrease: press the “2” button
By 10.0s:
Increase: press the “3” button
Decrease: press the “4” button
SETTING THE LED RETRACTED HEIGHT
8
6. PROGRAMMING (continued):
This frame is designed to go to its minimum and maximum heights, allowing for the widest pos-
sible range. If you prefer to change the settings to a more narrow range, follow these steps:
Make sure the power is ON and a number reads in the LED display (if no number appears, please
follow the Reset procedure described in the TROUBLESHOOTING section below).

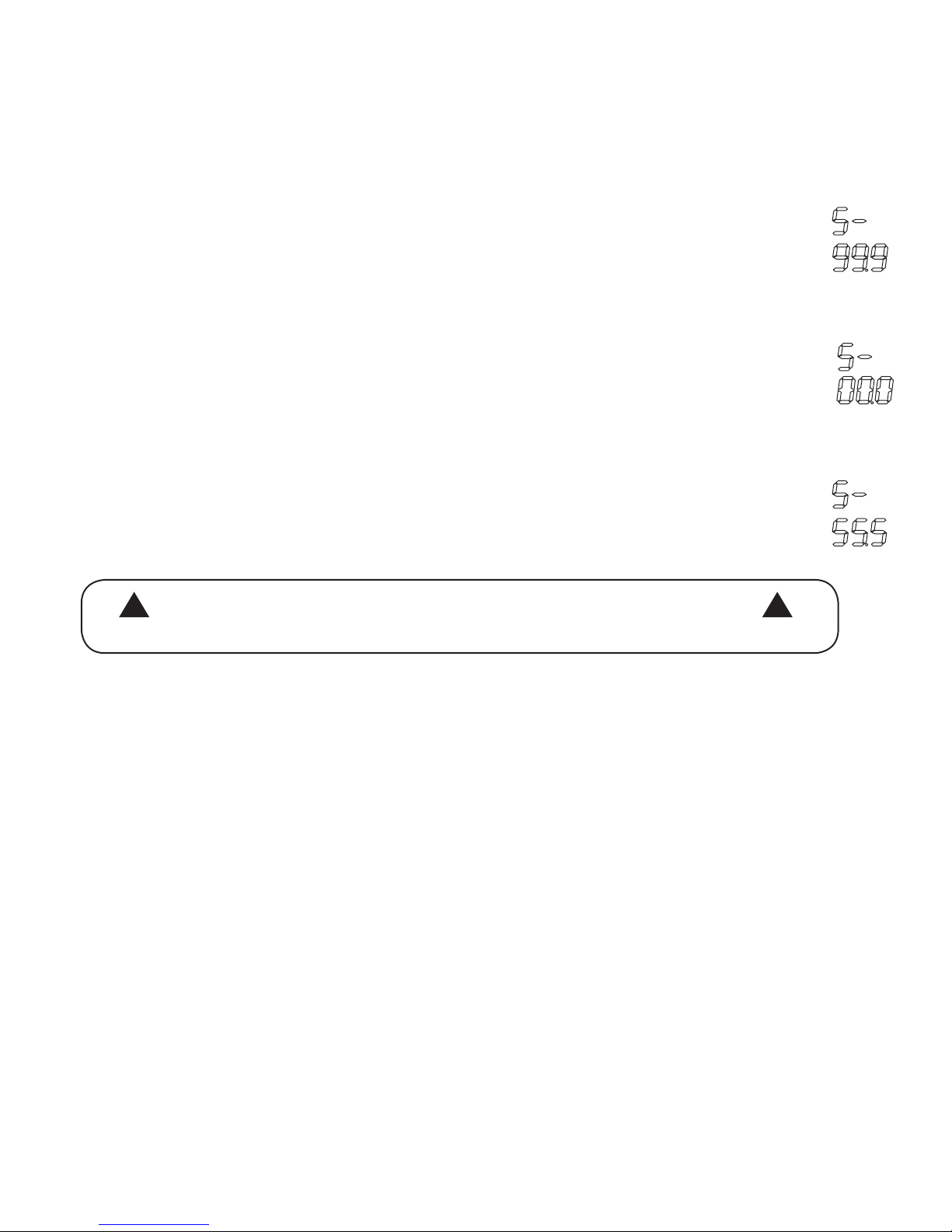

To Set the Upper-Limit Position:
Use the UP/DOWN buttons to move the frame to the desired maximum height position.
Make sure the UP button was the last button you pushed. Press and hold the “M” button
untiltheLEDdisplayashes“S-”onceandletgoofthebutton.Thenpressandrelease
the button 2 more times in quick succession. The LED display will change to “999” on the
third push, and then automatically return to the selected height. The new upper limit is
now set.
To Set the Lower-Limit Position:
Use the UP/DOWN buttons to move the frame to the desired minimum height position.
Make sure the DOWN button was the last button you pushed. Press and hold the “M” but-
tonuntiltheLEDdisplayashes“S-”onceandletgoofthebutton.Thenpressandre-
lease the button 2 more times in quick succession. The LED display will change to “000”
on the third push, and then automatically return to the selected height. The new lower
limit is now set.
To Remove the Upper/Lower Limit Positions:
Use the UP or DOWN button to move the desk to any new position. Press and hold the
“M”buttonuntiltheLEDdisplayashes“S-”onceandletofthebutton.Thenpressand
release the button in succession until the display changes to “555” (ignore any interim
readings). After a few seconds, the display will automatically change back to the num-
bered height position.The upper and lower limits are now removed.
A RESET procedure requires the desk frame to fully retract (beyond
any lower limit set). Please ensure that you have the proper clear-
ance below the desk frame.
After the upper and lower limits are set, the previous memory positions (1, 2, 3, 4) may be outside
the new range of movement. If so, simply reset the memory positions.
If you attempt to revise a previously set upper or lower limit and it is outside of the existing range,
youwillneedtoremovethepreviouslysetupper/lowerlimitsrst.
! !
SETTING THE UPPER & LOWER LIMITS (Advanced 1-touch digital keypad only)
7. TROUBLESHOOTING
--Reset Instructions--
If experiencing error messages showing on the Keypad or no response when trying to raise or lower:
• Unplug the power cord and hold the DOWN button for 30 seconds.
• Plug the power cord back in.
• Press and hold the DOWN button on the Keypad until the desk reaches its lowest height. Release the
DOWN button. Press and hold the DOWN button again until the LED display reads “RST” or about 10
seconds on non-LED keypad models. Release the DOWN button. Press and hold the DOWN button
again until the desk lowers a little bit more, slightly rises and stops. Release the DOWN button. Your
desk is now ready to use.
• The Keypad will then display the current height, and you should be able to operate it now.
• You may need to do this if the desktop is ever unplugged or loses power.
IftheKeypaddisplayserrormessages“Er1”through“Er13”,conrmthatallwiredconnectionsaresecure
(legs to cables, cables to control box). Then perform the reset procedure above. If the error message per-
sists after the reset procedure or if the height between the legs exceeds 1.5’’ stop the reset procedure and
If the Keypad displays “Hot”, let the base cool down for 20 minutes.
If the desk seems to be uneven, try the reset instructions above. If that does not work you may need to
adjust the levelers at the bottom of the foot.
8. TECHNICAL SPECIFICATIONS
Height Range 24.5” - 50.25” (without desktop)
Travel Speed 1.5” per second (varies, slowest w/ maximum load)
Weight Capacity 530 lbs
Duty Cycle 10%, Max. 2 min on, 18 min off
Soft Start/Stop
Adjustable leveling studs
4 Memory presets (some models)
Copyright Notice:
This guide is a component of the UPLIFT Desk
™
. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on
the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent
of UPLIFT Desk.
These instructions are subject to United States copyright law.
©
Keep children away from electric height-adjustable desks, control
units and handsets. There is a risk of injury and electric shock.
If casters are not installed, use a two-person lift and lift the desk so that it can be moved without
dragging. Dragging the desk may cause the frame and screws to pull loose from the desktop.
This product is designed with a duty cycle of 10%.
(2 min on, 18 min off)
In the event of a power outage or if the power cord is unplugged,
a manual reset may be necessary. (see Reset Instructions above)
Do not open any of the components: lifting columns, control box, or
handset. There is a danger of electric shock.
Keep all electrical components away from liquids.
i
i
!
!
!
!
Table of contents
Other UPLIFT Indoor Furnishing manuals
Popular Indoor Furnishing manuals by other brands
Cooper Lighting
Cooper Lighting Shaper 693-S Series Specification sheet
AKANTE
AKANTE GRAVITY CT346 Assembly instructions
Hay
Hay CPH 20 instruction manual
overstock
overstock 194S8308-LCPW Assembly instruction
Better Homes and Gardens
Better Homes and Gardens Greer Loft BHW-10018 manual
JR Home
JR Home IF-DK225 Assembly instructions
Hillsdale Furniture
Hillsdale Furniture 5293-881 Assembly instruction
Riverside Furniture
Riverside Furniture Precision Bed Room 21879 Assembly instructions
Oeseder Möbelindustrie
Oeseder Möbelindustrie 992 204 Assembly instructions
Argos
Argos Anderson 609/6489 Assembly instructions
comfortel
comfortel BASIN STAND 1000A owner's manual
Costway
Costway JV10998 manual
