UPLIFT UPL921-T Quick setup guide

1
UPLIFT Desk 1-800-349-3839
DIRECTIONS FOR ASSEMBLY AND USE
MAKE SURE NO OBSTACLES ARE IN THE DESK’S PATH AND
ALL CORDS ARE OF APPROPRIATE LENGTH FOR DESK
TRAVEL. FAILURE TO COMPLY WITH OR OBSERVE ALL
ASSEMBLY, SAFETY, AND OPERATION INSTRUCTIONS AND
WARNINGS REGARDING THE USE OF THIS PRODUCT MAY
RESULT IN SERIOUS PROPERTY DAMAGE OR BODILY INJURY.
IMPORTANT:
Any user or installer of desk base must study this manual carefully.
If this desk is sold, please provide the manual to the buyer.
- - ALSO - -
Watch our assembly video
http://bit.ly/19y2WWH
90.014.01.0077vD
UPLIFT Height Adjustable Standing Desk (T-Frame)
®
CAUTION
!

2
UPLIFT Desk 1-800-349-3839
TABLE OF CONTENTS PAGE
1. SAFETY AND WARNINGS 2
2. USAGE 2
3. SETUP AND INSTALLATION 2
4. PARTS LIST 3
5. ASSEMBLY INSTRUCTIONS 4
6. TECHNICAL SPECIFICATIONS 8
7. TROUBLESHOOTING GUIDE 8
1. SAFETY AND WARNINGS
• Inappropriate use of this product may cause property or bodily injury.
• Check surroundings on all sides before using the desk. Body parts and property
can be crushed if trapped between an immobile obstacle and the desk’s range of motion.
• Ensure the length of power cords are accounted for when operating the desk. Monitors,
computers, speakers, anything with a cord that is not long enough for the desk’s range
of motion could be pulled down or have its wires broken. Items pulled off the desk
may cause other items to fall.
• Please provide this operation to any users, installers, or support personnel operating
the product.
2. USAGE
This height adjustable desk has an electric motor and is designed for use in dry work areas only.
The desk height is adjustable so that it can be positioned at the most ergonomically suitable height. These
desks are designed only for the purposes included in this manual. They should not be used
in environments with high humidity or dampness. Any other use is at user’s risk.
Do not move around, crawl or lie under the desk frame. Do not sit or stand on the desk frame.
Children should never use the desk unless they are supervised by adults.
Liability: Under no circumstances does the manufacturer accept warranty claims or liability claims
for damages caused from improper use or handling of the desk frame other than that which
is described in this operation manual.
3. SETUP AND INSTALLATION
Once the desk has been assembled, adjust the feet so that the desk is level and does not shift its position.
After this, connect the desk to the 110v outlet and the desk is ready for use.
Check that no cables can get jammed.
Choose a placement for the desk that’s a safe distance from window frames, radiators, furniture etc. so
that people do not get stuck or trapped by the desk.
Do not place any objects that are taller than 20” underneath the desk.
After it has been assembled, when moving the desk, DO NOT lift the desk by the desktop. Lifting
this way can stress the fasteners connecting the desk base to the desktop. Lower the desk completely and
lift the desk by grabbing the top of the desk base or by removing the desktop rst.

3
UPLIFT Desk 1-800-349-3839
Part # Description Qty
Leg 2
Foot 2
Crossbar End 2
Crossbar Center Rail 2
Side Bracket 2
Adhesive Pads 10
Control Box 1
Keypad 1
Leveling Studs (Pre-Installed) 4
Wires (Power & Connector wires) 3
M6x1.0x14 Machine Screw 24
M6x1.0x10 Machine Screw 8
M-5x16 Pan Head Screw 12
Cable Clips 10

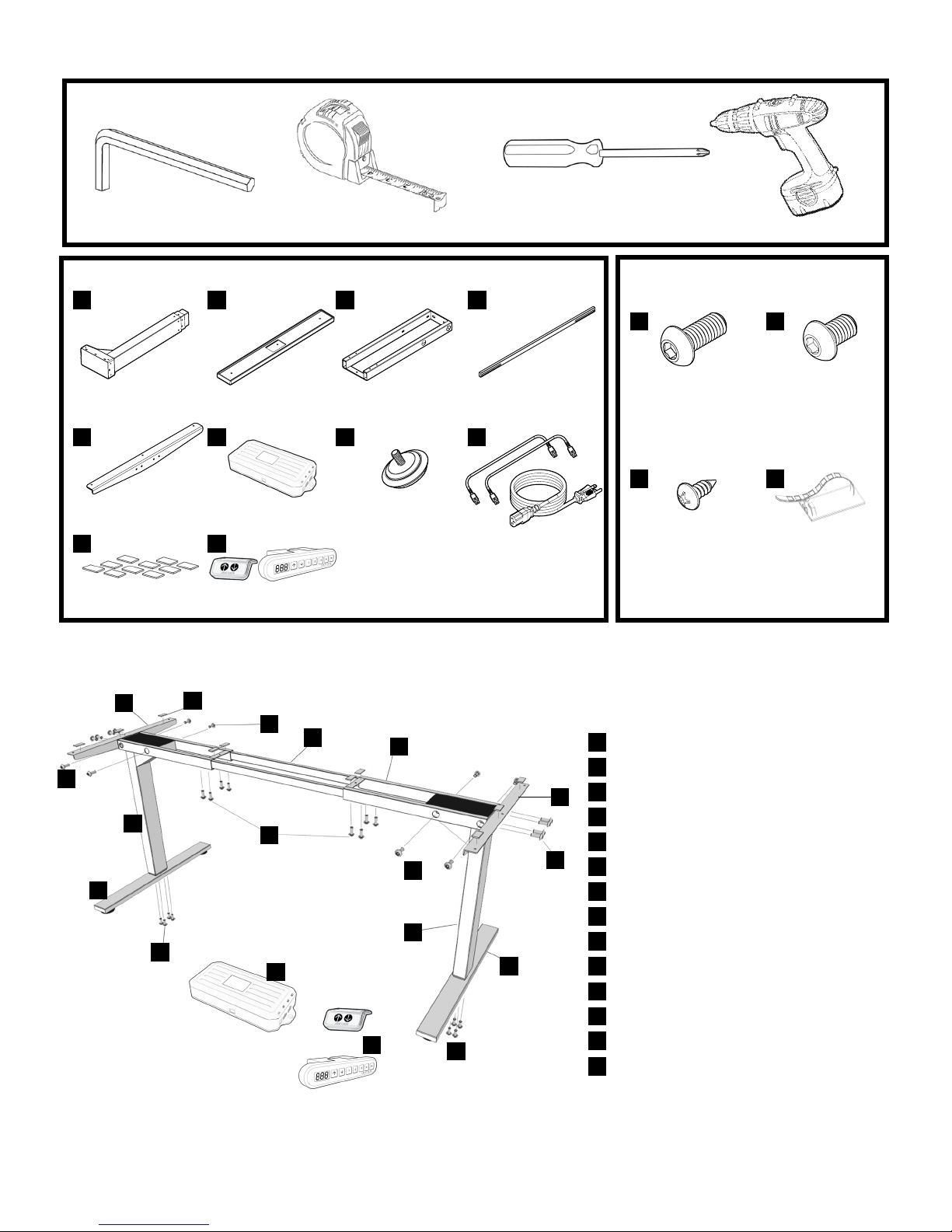

4. PARTS LIST
Qty 2
Feet*
Qty 2
Legs
Qty 2
Crossbar End
Qty 2
Crossbar Center Rails
Qty 1
Keypad (choice of 2)
Qty 10
Adhesive Pads
Qty 4
Leveling
Studs
(pre-installed)
Qty 3
Wires
Qty 1 power cord
Qty 2 connecting
cables
Components
Tools Required
Qty 24
M6x1.0x14
Machine
Screws
Qty 8
M6x1.0x10
Machine
Screws
Qty 12
M-5x16
Pan Head
Screws
Qty 10
Cable
Clips
Hardware
Allen Wrench (included) Tape Measure Philips Head Screwdriver, and/or Power Drill
Please count all pieces before disposing of any carton or packing material. Use a padded or carpeted
area for assembly to avoid damage. For ease and safety, we recommend two people for assembly.
Qty 2
Side Brackets*
Qty 1
Control Box
or
1
1
1
2
2
2
4
4
14
13
12
12
11
11
11
11
11
11
11
10
9
8
8
7
7
6
6
5
5
53
3
1 2 4
14
13
1211
10
9
8
7
6
5
3

4
UPLIFT Desk 1-800-349-3839

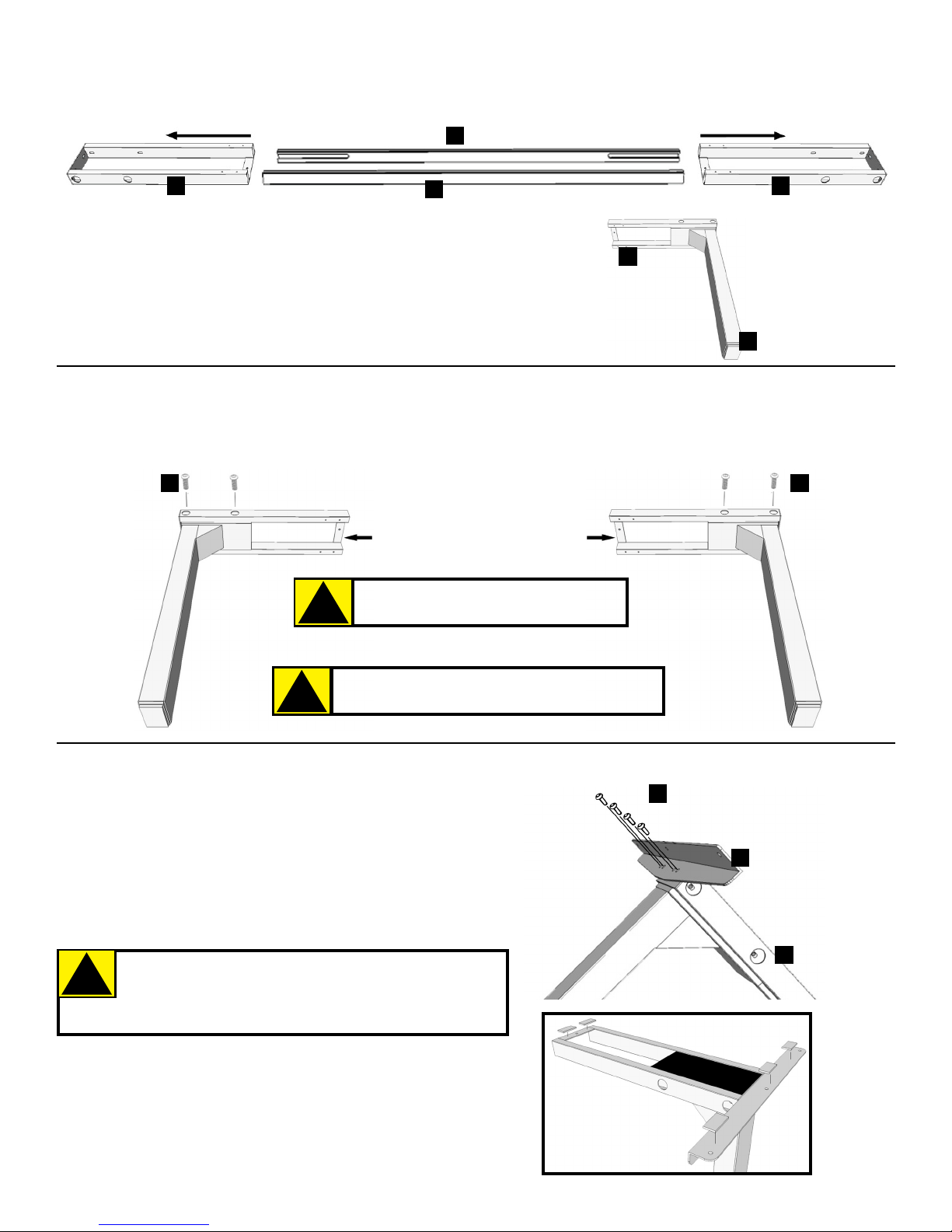

5. ASSEMBLY INSTRUCTIONS
A. First, Lay out all components and hardware to ensure that you have all the parts listed on the compo-
nents list. Then Slide Crossbar Center Rails (Part #4) out of Crossbar Ends (Part #3).
Turn Legs (Part #1) and Crossbar Ends (Part #3) on their
sides. Make sure Crossbar Ends (Part #3) have the
labeled “Top Arrow” pointing towards where the desktop
will be. Since you have the parts on their side at this
point, the arrow should be pointing away.
Line up the holes on each Leg (Part #1)
with the holes on each Crossbar End (Part #3).
B. IMPORTANT! DO NOT TIGHTEN SCREWS IN THIS STEP, ONLY INSERT THEM
AND ROTATE 3 TIMES. YOU WILL TIGHTEN IN STEP D.
Insert qty 4 Machine Screws (Part #11) through the 4 holes of each Crossbar End (Part #3)
going into the Leg (Part #1). Using the Allen Wrench, rotate each screw ONLY 3 times.
C. IMPORTANT! DO NOT TIGHTEN SCREWS IN THIS STEP, ONLY INSERT THEM
AND ROTATE 3 TIMES. YOU WILL TIGHTEN IN STEP D.
Line up the 4 holes on the Side Brackets (Part #5) with
the Crossbar End and Leg assembly from the previous step.
Insert qty 4 Machine Screws (Part #11) through
the 4 holes of the Side Bracket (Part #5) going into
the Crossbar End/Leg Assembly. Using the
Allen Wrench, rotate each screw ONLY 3 times.
Remove backing from adhesive pads
and position along the bracket as shown.
This will end up being
the top side of the desk.
1
4
4
1111
3
3
3
11
5
3
If you are having trouble getting all the screws
started, it is because other screws are too tight.
You’ll need to back out some screws in order
to loosen the tolerance of the screw holes.
!
Do not tighten machine screws
yet, only rotate each 3 times.
!
If you drop a screw inside the Crossbar
End, simply tilt to retrieve the screw.
!

5
UPLIFT Desk 1-800-349-3839
D. Once all of these screws have been started, you can now tighten the qty 8 Machine Screws
(Part #11) from Step C and the qty 8 Machine Screws (Part #11) described in Step B (16 screws in total).
E. The Crossbar Center Rails (Part #4) are optional. They provide more stability, but if not needed they
can be skipped during installation or removed later. If your desktop is less than 43” wide the center rails
should not be installed, as they will cause the frame to be too wide for the desktop. If you are installing a
keyboard tray the center rails should not be installed, as they will interfere with placement of the track.
Slide Crossbar Center Rails (Part #4) back into Crossbar Ends (Part #3). Ensure the slots of the Crossbar
Center Rails are facing inward.
The slot on the Crossbar Center Rail is offset;
it will need to be oriented in a specic way
to allow for the machine screws already
installed. Make sure that the Crossbar
Center Rail (Part #4) can slide all the
way to the end of the Crossbar End
(Part #3). If it does not, take the Crossbar
Center Rail (Part #4) out and ip it over,
with the slots facing inward.
F. Attach each Foot (Part #2)
with qty 4 Machine Screws (Part #11)
and tighten bolts in a cross pattern.
G. Your desktop may or may not be pre-drilled. Please check both sides of the desktop before placing
the desk base on it for pre-drilling! Carefully place the upside down desk base on the underside
of the desktop.
Note: minimum top size: 43” wide x 24” deep
Adjust the width of the base to t the desktop by sliding
the two halves outward (42.125” to 74.75” max).
Place the base where you want it. Some will want the frame to be all
the way to the edge of the desk. We recommend leaving at least 1/2”
of desktop width (on each side) protruding beyond the frame width.
The desk feet are deeper than the side brackets.
If your top is 25.5”-27.5” deep and you want the
rear edge of the top in line with the rear edges
of the feet, offset your desktop toward the back.
433
1
2
11
Center the frame by using the desktop edge
as a reference. Measure to the metal brace.
Do not use the screw holes as a point of reference.
!

6
UPLIFT Desk 1-800-349-3839
H. Secure the Center Rails at both ends
using qty 8 Machine Screws (Part #12),
qty 4 per side. Maximum width is 70”.
I. Double-check that the base is centered on the underside of the desktop and is located where you
want it. Also, double-check that the included wood screws are not too long for your desktop and won’t
puncture the surface when screwed all the way in.
Now, proceed with securing the desk base to the desktop
using qty 8 of the Pan Head Screws (Part #13).
Install as follows:
3 per Side Bracket (left)
3 per Side Bracket (right)
1 per Crossbar End (left)
1 per Crossbar End (right)
J. Using the wires, connect the Legs (part 1)
to the Control box (part #7) and the Keypad (part #8)
Wires as per the diagram below. Do this so you can
place the Keypad and Control Box in such a way
so that the cables can reach them.
12
13
11
10
8
7
We recommend you pre-drill any holes
needed for fasteners connecting
the base to the top.
NOTE: PLEASE ENSURE THAT YOUR
DESKTOP DOES NOT ALREADY HAVE
HOLES BY CHECKING BOTH SIDES.
This will make it easier to attach the screws
and will greatly lessen the stress caused by
driving a screw into the desktop material.
!Never use countersunk screws
to fasten into the desktop.
This will cause much greater stress
on the desktop. Ensure any screw used
will not puncture through the desktop surface
or otherwise damage the material.
!
!Ensure that the machine screw hits the metal
center rail by sliding the center rail as needed.

7
UPLIFT Desk 1-800-349-3839
M. Turn the assembled desk right-side-up. With two people, grab the desk by the base (not the
desktop) and turn the desk right-side up. Adjust the Leveling Studs on the Feet (Part #2) as needed.
L. IN THIS FOLLOWING STEP, DO NOT OVERTIGHTEN SCREWS. OVER TIGHTENING MAY
CAUSE THE PLASTIC ON THE COMPONENTS TO BREAK.
Place the Keypad (Part #8) so the front of the keypad runs
ush with the desktop edge (or recessed up to 1/8”).
The Keypad can be placed anywhere along the front edge
of the desk, but we recommend placing it near the side so
it doesn’t interfere with your chair or legs when seated.
Use qty 2 of the Pan Head Screws (Part #13) to attach
the Keypad (Part #8) to the desktop. Use the adhesive-backed
Cable Clips (Part #14) to secure all wires so they don’t sag.
K. IN THIS FOLLOWING STEP, DO NOT OVERTIGHTEN SCREWS. OVER TIGHTENING MAY
CAUSE THE PLASTIC ON THE COMPONENTS TO BREAK.
Use qty 2 of the Pan Head Screws (Part #13)
to attach the Control Box (Part #7). Ensure enough
clearance at the wire ports for cable connections.
N. Plug the Power Cord into a 110v outlet.
IMPORTANT!
You must RESET the desk prior to use!
Press and hold the DOWN button on the Keypad until the desk reaches
its lowest height. Release the DOWN button. Press and hold the DOWN
button again until the LED display reads “RST” or about 10 seconds on
non-LED handset models. Release the DOWN button. Press and hold
the DOWN button again until the desk lowers a little bit more, slightly
rises and stops. Release the DOWN button. Your desk is now ready to use.
To program up to four presets:
Use the up/down buttons to nd a desired height, then press “M” followed by a number 1 – 4.
7
8
8
MAKE SURE NO OBSTACLES ARE IN THE DESK’S PATH.
MAKE SURE ALL CORDS ARE OF A LENGTH THAT WILL
ACCOMMODATE THE CHANGE IN HEIGHT.
!
We recommend you pre-drill any holes needed for
fasteners connecting the Control Box to the top. This will
make it easier to attach the screws and will greatly lessen
the stress caused by driving a screw into the desktop material.
Never use countersunk screws to fasten into the desk-
top. This will cause much greater stress on the desktop.
Ensure any screw used will not puncture through the
desktop surface or otherwise damage the material.
!
!

8
UPLIFT Desk 1-800-349-3839
7. TROUBLESHOOTING
--Reset Instructions--
If experiencing error messages showing on the keypad or no response when trying to raise or lower:
• Unplug the power cord and hold the down key for 20 seconds.
• Plug the power cord back in.
• Press and hold the DOWN button on the Keypad until the desk reaches its lowest height.
Release the DOWN button. Press and hold the DOWN button again until the LED
display reads “RST” or about 10 seconds on non-LED handset models. Release the DOWN
button. Press and hold the DOWN button again until the desk lowers a little bit more, slightly
rises and stops. Release the DOWN button. Your desk is now ready to use.
• The keypad will then display the current height, and you should be able to operate it now.
• You may need to do this if the desktop is ever unplugged or loses power.
If the handset displays error messages “Er1” thru “Er13”, conrm that all wired connections are secure (legs
to cables, cables to control box). Then perform the reset procedure above. If the error message persists
after the reset procedure of if the height between the legs exceeds 1.5 inches stop the reset procedure and
contact The Human Solution (800.531.3746 | [email protected]).
If the handset displays “Hot”, let the base cool down for 20 minutes.
If the desk seems to be uneven, try the reset instructions above. If that does not work you may need
to adjust the levelers at the bottom of the foot.
6. TECHNICAL SPECIFICATIONS
Height Range 23.5” - 49.5” (without desktop)
Base Width 42.125” min - 74.75” max
Travel Speed 1.5” per second (varies, slowest w/ maximum load)
Weight Capacity 353 lbs.
Duty Cycle 10%, Max. 2 mins on, 18 mins off
4 Memory presets
Soft Start/Stop
Adjustable leveling studs
Keep Children away from electric height-adjustable desks, control
units and handsets. There is a risk of injury and electric shock
This product is designed with a duty cycle of 10%
(2 min. on, 18 min. off)
In the event of a power outage or if the power cord is unplugged,
a manual reset may be necessary (see Reset Instructions above)
Do not open any of the components: lifting columns, control box, or
handset. There is a danger of electric shock
Keep all electrical components away from liquids
i
i
!
!
!
