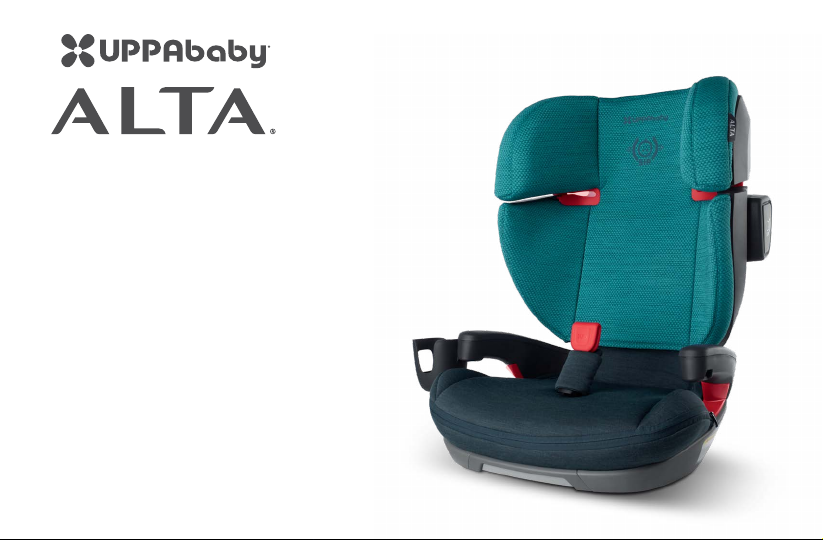

UPPAbaby ALTA User manual

Product Information 2
Registration 2
Certification 2
Lifetime Warranty 3
Warnings + General Safety Information 4
Child Usage Requirements 9
Vehicle Compatibility 10
Overview of Vehicle Seat Belt Systems 10
Lower Anchors and Tether for Children (LATCH) 12
Vehicle Head Restraint 13
Product Overview 14
Using the ALTA 16
Booster Assembly 16
Active Response Headrest Adjustment 18
SecureFit Lap Belt Positioner 19
Install Using Lower Anchors 21
Release from Lower Anchors 23
Storing Lower Anchors 24
Use Without Lower Anchors 25
Securing the Child 26
Additional Information 28
Attaching/Removing Lap 28
Belt Positioner Cover
Remove and Install Seat Cover 29
Remove and Install Headrest Cover 31
Cup Holder Use 35
Cleaning and Maintenance 36
Warranty 37
Read all instructions before use
of this Child Restraint.
Keep these instructions for future reference.

2
PRODUCT INFORMATION
REGISTRATION
Model Number:
Manufactured Date:
Expiration Date:
TAKE A MOMENT TO FILL OUT THE ABOVE INFORMATION.
Information can be found on the manufacture labels or engraved
on the underside of the carrier.
Child restraints can be recalled for a variety of safety reasons.
You MUST register this restraint to be reached in a recall.
end your name, address, email address if available and
the restraint’s model number and manufacturing date to
276 Weymouth Street, Rockland, MA 02370 or call [phone]
or register online at: https://uppababy.com/register/carseat. For recall
information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236
(TTY: 1-800-424-9153), or go online to https://nhtsa.gov.
CERTIFICATION
This Child Restraint
system conforms to
allapplicable Federal Motor
Vehicle Safety Standards (FMVSS).

3
We are with you for the long haul. Register
your car seat within three months to claim your
Limited Lifetime Warranty.*
Thank you for being part of the UPPAbaby family.
*Lifetime warranty applies to UPPAbaby car seats and the original owner, within the lifetime of the product. To
receive your Limited Lifetime Warranty, you MUST register within three months of purchase and provide a valid
purchase receipt form an authorized UPPAbaby retailer. The “lifetime” of the product is defined as the period of
use by the registrant for use with his/her children up to 10 years from date of manufacture. For complete UPPAbaby
Warranty refer to page 37.
For replacement parts, service or additional questions, please contact our Customer Experience Team:
uppababy.com/support | email: [e-mail] | 844-823-3132

4
WARNINGS + GENERAL SAFETY INFORMATION
WARNING
DEATH OR SERIOUS INJURY CAN OCCUR
According to accident statistics, children are statistically safer when properly
restrained in the rear seating positions than in the front seating positions,
whether there are airbags, advanced airbags or no airbags at all. To ensure
your child’s safety refer to approved seating positions on page 11 in this
manual or your Vehicle’s Owner Manual.
• NEVER leave Child Restraint unsecured in your vehicle even when it is
unoccupied. In a crash, it could become a projectile and injure other
vehicle occupants.
• DO NOT use this Child Restraint without the seat cover. Failure to do
this can result in serious injury.
• Use this Child Restraint only on vehicle seats that face forward.
• DO NOT use on seats that face the sides or rear of the vehicle.

5
NEVER place this Child Restraint on a front seat with an
airbag. DEATH OR SERIOUS INJURY can occur. An airbag can
strike a rear-facing infant restraint with enough force to crack
the shell and seriously injure or kill an infant. The back seat
is the safest place for children 12 and under. Refer to the vehicle owner’s
instruction manual before installing this Child Restraint in a seating position
with side airbags.
Failure to follow these instructions could result in serious injury to your child
or other vehicle occupants.
• NEVER leave child unattended.
• DO NOT use this Child Restraint system if it has been in a vehicle accident.
• Ensure that the child’s head is positioned correctly within the headrest and
that the shoulder belt is placed correctly over the child’s shoulders.
WARNINGS + GENERAL SAFETY INFORMATION

6
• DO NOT use this Child Restraint system in a vehicle seating position where
it cannot be tightly secured.
• DO NOT modify this restraint except as instructed in this instruction book.
Minor modifications can change the way a Child Restraint performs in a crash.
• DO NOT leave loose objects, e.g. cups, toys, bags, umbrellas, etc., in the
vehicle because they can become deadly projectiles in a crash.
• DO NOT take child out of this Child Restraint while the vehicle is moving.
• DO NOT allow children to play with this Child Restraint. It is not a toy.
• NEVER use any non-regulated products with this Child Restraint including
any accessories, pads, or products supplied by other manufacturers, unless
approved and tested by UPPAbaby. Items not tested with this restraint could
injure your child.
• DO NOT remove or cover up any of the warning labels or other labels on this
Child Restraint.
WARNINGS + GENERAL SAFETY INFORMATION

7
• ALWAYS check all surfaces of restraint before securing your child. In warm
weather, Child Restraints can become very hot and may result in burns to
your child. Park in the shade or where sun does not directly hit the Child
Restraint. Cover the Child Restraint with a sheet or blanket when not in use.
• ALWAYS properly store Lower Anchor Connectors when not in use.
• Check the vehicle’s owner manual for more information about airbag/Child
Restraint use.
• For vehicles without a back seat, refer to your vehicle’s owner manual.
• Check the vehicle belt before each use. Use only if the belt is tightened
properly and securely.
• DO NOT use a Child Restraint with damaged or missing parts.
• Read all instructions for additional warnings.
• DO NOT use only the lap belt when using this seat.
• The shoulder belt must always be adjusted snugly across the child’s chest.
WARNINGS + GENERAL SAFETY INFORMATION

8
WARNINGS + GENERAL SAFETY INFORMATION
• NEVER place the shoulder belt under the child’s arms.
• Failure to follow these warnings could cause serious injury or death to your
child.
• NEVER use this Child Restraint on an aircraft. This restraint is NOT certified
for use in aircraft, because aircraft do not have shoulder belts.

9
CHILD USAGE REQUIREMENTS
This Child Restraint is for use by children who meet BOTH requirements below:
WEIGHT: 40 – 100 lbs (18.1 kg – 45.4 kg)
HEIGHT: 38 – 57 in (96.5 – 144.8 cm)
• DO NOT use this booster beyond the expiration date or if the child outgrows
either the weight or height requirements.
• This booster is NOT for use with children who weigh less than 40 lbs (18.1 kg).
• Use only the vehicle’s lap and shoulder belt system when restraining the child
in this booster.
• IMPORTANT: This product is NOT to be used without a backrest, and the
backrest should never be separated from the base.

10
VEHICLE COMPATIBILITY – Overview of Vehicle Seat Belt Systems
WARNING
DEATH OR SERIOUS INJURY CAN OCCUR
CHECK YOUR VEHICLE INSTRUCTION BOOK for information regarding your vehicle seat belt system(s).
Not all vehicle seat belts work with this Child Restraint.
• Use only the vehicle’s lap and shoulder belt system when restraining the
child in this Child Restraint.
• DO NOT use this Child Restraint with the following seat belt systems:
Lap Belt ONLY Motorized (Automatic) Door Mounted
NOTE: Refer to your vehicle’s owner manual for information regarding booster
use with vehicle seats that have switchable retractors or inflatable seat belts.

11
VEHICLE COMPATIBILITY – Overview of Vehicle Seat Belt Systems
PLEASE READ THE FOLLOWING INFORMATION BEFORE INSTALLING THIS CHILD RESTRAINT!
Check Your Vehicle’s Owner Manual
Vehicle seat belts differ from vehicle to vehicle. This booster is compatible with most vehicle seat belt systems and
can ONLY be used with three-point (lap-shoulder) vehicle seat belts.
VEHICLE SEAT
(LAP/SHOULDER BELT) SLIDING LATCH PLATE LOCKING LATCH PLATE
This Child Restraint can only be installed on
vehicle seats that face forward.
DO NOT install in seats that face to the sides
or rear of the vehicle.
WEBBING
LATCH PLATE
BUCKLE

12
VEHICLE COMPATIBILITY – Lower Anchors and Tether for Children (LATCH)
The lower anchor system helps to anchor the booster seat in the car for stability and to prevent it from becoming
a projectile when not occupied in the event of a crash.
This booster can be installed with lap
shoulder belts in a vehicle that contains
lower anchors. You must use the
lap-shoulder belt to properly secure
your child. The lower anchors must be
standard spacing (11"). Check your
vehicle’s owner manual to determine
lower anchor compatible seating
positions.
When not in use, the lower anchor
connectors must be properly
secured in the base of the booster.
Lower Anchors

13
VEHICLE COMPATIBILITY – Vehicle Head Restraint
The back of the booster seat MUST fit tightly against
the back of the vehicle seat. If the vehicle head restraint
cannot be adjusted or removed, a different seating
position or different booster seat should be used.
IMPORTANT: If you remove your vehicle head restraint, be sure to stow
in a secure place; check your vehicle’s owner manual. Replace the head
restraint when the booster is removed from the vehicle seat.

14
PRODUCT OVERVIEW
A SecureFit Shoulder Belt Guide
B Upper Seat Cover
C Side Impact Pods
D Armrests
E Cup Holder Attachment
F Lower Seat Cover
G SecureFit Lap Belt Guide
H Lower Anchor Connector Release/
Red to Green Indicator
I Rigid Lower Anchor Connect
J Energy Response Headrest
K SecureFit Lap Belt Positioner
L Lap Belt Positioner Cover
M Lower Anchor Release Handle

15
A SecureFit Shoulder Belt Guide
B Upper Seat Cover
C Side Impact Pods
D Armrests
E Cup Holder Attachment
F Lower Seat Cover
G SecureFit Lap Belt Guide
H Lower Anchor Connector Release/
Red to Green Indicator
I Rigid Lower Anchor Connect
J Energy Response Headrest
K SecureFit Lap Belt Positioner
L Lap Belt Positioner Cover
M Lower Anchor Release Handle
PRODUCT OVERVIEW

16
USING THE ALTA – Booster Assembly
IMPORTANT: This product is NOT to be used without a backrest,
and the backrest should never be separated from the base.
1 Lay the Booster Seat Bottom on
floor facing up.
2 Attach the Backrest to the
Booster Seat Bottom, by hooking
over the seat bar hinge on the
seat bottom as shown.
3 Rotate the Backrest up until
it clicks into the full upright
position and locks into place.
4 Tuck the Fabric Panel between the
Backrest Fabric Cover and the Seat
Back Frame. Be sure Fabric Panel is
flat against the Seat Back Frame.
2
1

17
1 Lay the Booster Seat Bottom on
floor facing up.
2 Attach the Backrest to the
Booster Seat Bottom, by hooking
over the seat bar hinge on the
seat bottom as shown.
3 Rotate the Backrest up until
it clicks into the full upright
position and locks into place.
4 Tuck the Fabric Panel between the
Backrest Fabric Cover and the Seat
Back Frame. Be sure Fabric Panel is
flat against the Seat Back Frame.
USING THE ALTA – Booster Assembly
3 4

18
USING THE ALTA – Active Response Headrest Adjustment
ADJUSTING THE HEADREST
The Headrest can be adjusted for best fit to your child and
optimized protection.
NOTE: The headrest can be adjusted with the child in the seat.
1 Squeeze grey button at top of seat.
2 Slide headrest to desired height.
PROPER HEADREST HEIGHT
Proper height of the headrest and belt guides are critical for
optimal performance. The Headrest should rest just above the
top of the child’s shoulders ensuring the shoulder belt guide is
properly positioned.
IMPORTANT: The child’s ears MUST
be below the top of the booster headrest.
1
2
