Upright SB-80 Guide

European
Publication Number: 102321-020





Serial Numbers 1000 - Current
When contacting UpRight for service or parts information, be sure to include the MODEL and
SERIAL NUMBERS from the equipment nameplate. Should the nameplate be missing, the
SERIAL NUMBER is also stamped next to the serial number plate.
Call Toll Free in U.S.A.
1-800-926-LIFT
Upright, Inc.
801 South Pine Street
Madera, California 93637
TEL: [phone]
FAX: [phone]
PARTS: 1-888-UR-PARTS
PARTSFAX: [phone]
Upright, Inc.
Unit S1, Park West Industrial Park
Friel Avenue
Nangor Road
Dublin 12, Ireland
TEL: [phone]
FAX: [phone]

SB80 Work Platform - European I
T
ABLE OF
C
ONTENTS
Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
How to Use This Manual . . . . . . . . . . . . . . . . . . . i
Special information . . . . . . . . . . . . . . . . . . . . . . . i
Workshop Procedures . . . . . . . . . . . . . . . . . . . . . i
S ECTION 1
Introduction & Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 General Description . . . . . . . . . . . . . . . . . . 1-1
Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Platform Controller . . . . . . . . . . . . . . . . . . . . 1-1
Elevating Assembly . . . . . . . . . . . . . . . . . . . 1-1
Power Module . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Control Module . . . . . . . . . . . . . . . . . . . . . . . 1-1
Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Purpose of Equipment . . . . . . . . . . . . . . . . . 1-1
Special Limitations . . . . . . . . . . . . . . . . . . . . 1-1
1.3 Specifications . . . . . . . . . . . . . . . . . . . . . . . 1-2
S ECTION 2
Machine Preparation & Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2 Pre-Operation and Safety Inspection . . . . 2-2
2.3 System Function Inspection. . . . . . . . . . . . 2-3
2.4 Controls and Indicators . . . . . . . . . . . . . . . 2-4
2.5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
From the Lower Controls . . . . . . . . . . . . . 2-6
From the platform controls. . . . . . . . . . . . 2-6
With Boom Lowered . . . . . . . . . . . . . . . . 2-6
From the Platform Controls . . . . . . . . . . . 2-7
With Boom Elevated . . . . . . . . . . . . . . . . 2-7
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

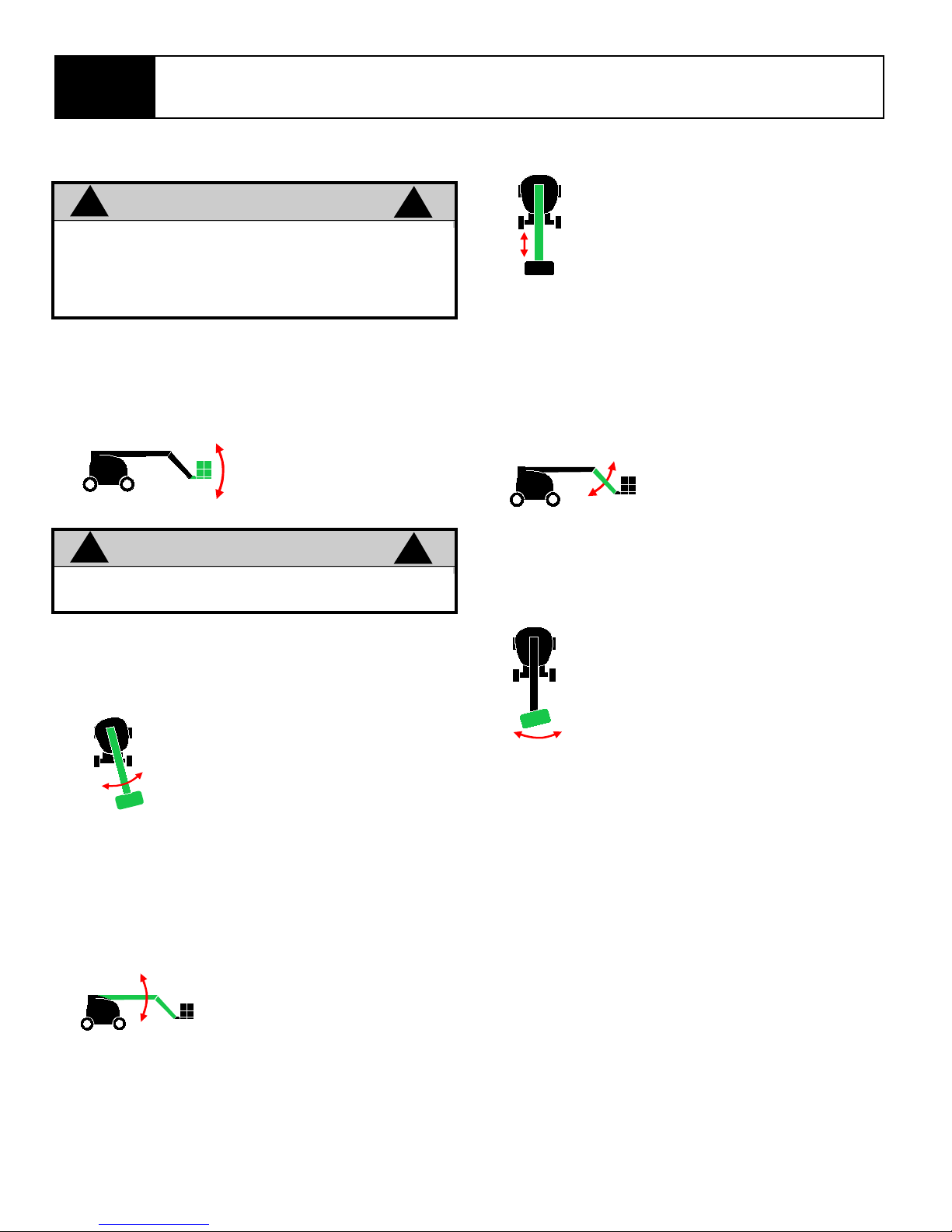

Positioning the Platform . . . . . . . . . . . . . . . . 2-7
Multifunction Controls . . . . . . . . . . . . . . . 2-7
Lower Control Operation . . . . . . . . . . . . . 2-8
Emergency Operation . . . . . . . . . . . . . . . . . 2-9
Lowering Elevating Assembly . . . . . . . . . 2-9
Emergency Towing . . . . . . . . . . . . . . . . . . . 2-9
Switching Fuels (Gas/Propane Only). . . . 2-9
After Use Each Day . . . . . . . . . . . . . . . . . . . 2-9
Machines Equipped With Plus3 Option . . . 2-10
2.6 Transportation . . . . . . . . . . . . . . . . . . . . . 2-10
By Crane . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
By Truck or Trailer . . . . . . . . . . . . . . . . . . . 2-10
2.7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . 2-11
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Hydraulic Oil . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Battery Maintenance . . . . . . . . . . . . . . . . . . 2-12
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

II SB80 Work Platform - European
T
ABLE OF
C
ONTENTS
S ECTION 3
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2 Preventative Maintenance . . . . . . . . . . . . . . 3-2
Preventative Maintenance Table Key . . . . . . 3-3
Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Preventative Maintenance Report . . . . . . . . 3-3
3.3 Supporting Elevating Assembly. . . . . . . . . 3-4
Installing Support . . . . . . . . . . . . . . . . . . . . . 3-4
Removing Support . . . . . . . . . . . . . . . . . . . . 3-4
3.4 Battery Maintenance . . . . . . . . . . . . . . . . . . 3-5
Battery Inspection and Cleaning . . . . . . . . . . 3-5
Battery Charging . . . . . . . . . . . . . . . . . . . . . . 3-5
3.5 Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Grease fittings . . . . . . . . . . . . . . . . . . . . . . . 3-6
Lubricating Turret Gears . . . . . . . . . . . . . . . . 3-6
Hydraulic Oil and Filter . . . . . . . . . . . . . . . . . 3-6
Fluid Level . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Oil and Filter Replacement . . . . . . . . . . . . . . 3-6
3.6 Proportional Controllers . . . . . . . . . . . . . . . 3-7
Joystick Handle . . . . . . . . . . . . . . . . . . . . . . 3-7
3.7 SuperFlex Controller . . . . . . . . . . . . . . . . . . 3-8
SuperFlex Optimizer . . . . . . . . . . . . . . . . . . . 3-8
3.8 Platform Down Limit Switch . . . . . . . . . . . . 3-9
3.9 Setting Hydraulic Pressures . . . . . . . . . . . . 3-9
Main Relief Valve . . . . . . . . . . . . . . . . . . . . . 3-9
Other Relief Valves . . . . . . . . . . . . . . . . . . . . 3-9
Counterbalance Relief Valves . . . . . . . . . . . 3-9
3.10 Tilt Sensor . . . . . . . . . . . . . . . . . . . . . . . . 3-11
3.11 Drive Motors . . . . . . . . . . . . . . . . . . . . . . . 3-12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Drive Motor Run-In . . . . . . . . . . . . . . . . . . . 3-12
3.12 Hydraulic Brakes. . . . . . . . . . . . . . . . . . . 3-12
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12
3.13 Brake Seal Replacement . . . . . . . . . . . . 3-13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .3-13
3.14 Torque Hubs . . . . . . . . . . . . . . . . . . . . . . 3-14
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .3-14
Installation . . . . . . . . . . . . . . . . . . . . . . . . .3-14
Disassembly of Torque Hub . . . . . . . . . . . .3-14
Assembly of Torque Hub . . . . . . . . . . . . . . .3-15
Carrier assemblies . . . . . . . . . . . . . . . . . . .3-16
Sealing compound . . . . . . . . . . . . . . . . . . . . 3-16
3.15 Rotary Manifold. . . . . . . . . . . . . . . . . . . . 3-18
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .3-18
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .3-18
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .3-18
3.16 Removing Extend Cylinder . . . . . . . . . . 3-19
3.17 Installing Extend Cylinder . . . . . . . . . . . 3-20
3.18 Cylinder Repair . . . . . . . . . . . . . . . . . . . . 3-21
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .3-21
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .3-21
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .3-21
3.19 Rotary Actuator. . . . . . . . . . . . . . . . . . . . 3-26
Theory of Operation . . . . . . . . . . . . . . . . . .3-26
Disassembly and Inspection . . . . . . . . . . . .3-26
Assembly and Testing . . . . . . . . . . . . . . . . .3-26
Testing and Storage . . . . . . . . . . . . . . . . . .3-27
Hydraulic Line Attachment . . . . . . . . . . . . . 3-27
3.20 Torque Specifications . . . . . . . . . . . . . . 3-28
Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . .3-28
Hydraulic Components . . . . . . . . . . . . . . . .3-28

SB80 Work Platform - European III
T
ABLE OF
C
ONTENTS
S ECTION 4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Troubleshooting Procedure . . . . . . . . . . . . . 4-1
Adjustment Procedures . . . . . . . . . . . . . . . . 4-1
Checking Pump Pressures . . . . . . . . . . . . . 4-1
4.2 Troubleshooting Superflex Controller. . . . 4-4
4.3 Machine Operation . . . . . . . . . . . . . . . . . . . 4-4
Lower Control Box . . . . . . . . . . . . . . . . . . . . 4-4
Electrical Power Up . . . . . . . . . . . . . . . . . 4-4
Engine Start . . . . . . . . . . . . . . . . . . . . . . . 4-4
Glow Plug . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Boom Up . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Boom/Axle Logic Interlock . . . . . . . . . . . . 4-4
Boom Down . . . . . . . . . . . . . . . . . . . . . . . 4-5
Boom Extend . . . . . . . . . . . . . . . . . . . . . . 4-5
Boom Extend/Axle Interlock. . . . . . . . . . . 4-5
Turret Rotate . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Swing Right . . . . . . . . . . . . . . . . . . . . . . . 4-5
Swing Left . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Jib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Jib Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Jib Down . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Cage Rotate . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Cage Right. . . . . . . . . . . . . . . . . . . . . . . . 4-5
Cage Left . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Cage Trim Up . . . . . . . . . . . . . . . . . . . . . 4-5
Cage Trim Down . . . . . . . . . . . . . . . . . . . 4-5
Auxilliary Power
(Emergency Functions). . . . . . . . . . . . . . 4-5
Upper Control Box . . . . . . . . . . . . . . . . . . . . 4-6
Power-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Engine Start . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Glow Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Boom Lift Function . . . . . . . . . . . . . . . . . . . . 4-6
Boom Up. . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Boom Down . . . . . . . . . . . . . . . . . . . . . . 4-6
Boom Extend . . . . . . . . . . . . . . . . . . . . . 4-6
Boom Retract. . . . . . . . . . . . . . . . . . . . . 4-6
Turret Rotate Functions . . . . . . . . . . . . . . . . 4-6
Swing Right. . . . . . . . . . . . . . . . . . . . . . . 4-6
Swing Left . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Jib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Jib Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Jib Down . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Cage Rotate . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Cage Right . . . . . . . . . . . . . . . . . . . . . . . 4-7
Cage Left . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Cage Trim Up . . . . . . . . . . . . . . . . . . . . . 4-7
Cage Trim Down. . . . . . . . . . . . . . . . . . . 4-7
Auxilliary Power (Emergency Functions) 4-7
Drive Functions . . . . . . . . . . . . . . . . . . . . . . . 4-7
Drive Forward . . . . . . . . . . . . . . . . . . . . . 4-7
Drive Reverse. . . . . . . . . . . . . . . . . . . . . 4-7
Steer Right . . . . . . . . . . . . . . . . . . . . . . . 4-7
Steer Left . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Torque High Speed . . . . . . . . . . . . . . . . . . . . 4-8
Torque Position. . . . . . . . . . . . . . . . . . . . 4-8
Speed Position . . . . . . . . . . . . . . . . . . . . 4-8
Axle Functions . . . . . . . . . . . . . . . . . . . . . . . 4-8
Axle Extend . . . . . . . . . . . . . . . . . . . . . . 4-8
Axle Retract . . . . . . . . . . . . . . . . . . . . . . 4-8
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Tilt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Interlocks . . . . . . . . . . . . . . . . . . . . . . . . 4-8
4.4 Hydraulic Troubleshooting . . . . . . . . . . . . 4-8
S ECTION 5
Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.1 Electrical Schematic, SB80 - Diesel. . . . . . 5-2
5.2 Electrical Schematic, SB80 - Gas . . . . . . . 5-4
5.3 Hydraulic Schematic, SB80 . . . . . . . . . . . . 5-6
S ECTION 6
Illustrated Parts Breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

IV SB80 Work Platform - European
L
IST OF
F
IGURES
SECTION 2
Machine Preparation & Operation
Figure 2-1: Locking Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Figure 2-2: Controls and Indicators . . . . . . . . . . . . . . . . . . 2-5
Figure 2-3: Typical Fall Restraint Anchorage Point . . . . . . 2-6
Figure 2-4: Drive Hub (Operating position shown) . . . . . . 2-9
Figure 2-5: Front Chassis Tie Down Lifting Lugs . . . . . . 2-10
Figure 2-6: Securing the machine for transportation . . . . 2-11
Figure 2-7: Rear chassis tie down lifting lugs . . . . . . . . . 2-11
Figure 2-8: Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Figure 2-9: Hydraulic Oil Tank . . . . . . . . . . . . . . . . . . . . 2-11
SECTION 3
Maintenance
Figure 3-1: Deutsch Connector Kit, Large . . . . . . . . . . . . . 3-1
Figure 3-2: Deutsch Connector Kit, Small . . . . . . . . . . . . . 3-1
Figure 3-3: Support Elevating Assembly . . . . . . . . . . . . . . 3-4
Figure 3-4: Turret Gears . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Figure 3-5: Turret Bearing Grease Zerk (shown from below) 3-6
Figure 3-6: Proportional Controller . . . . . . . . . . . . . . . . . . 3-7
Figure 3-7: Lift Controller . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Figure 3-8: Boom Extend Controller . . . . . . . . . . . . . . . . . 3-7
Figure 3-9: Optimizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Figure 3-10: Platform Down Limit Switch . . . . . . . . . . . . . 3-9
Figure 3-11: Hydraulic Manifold, Exploded View . . . . . . 3-10
Figure 3-12: Tilt Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Figure 3-13: Rear Axle Assembly . . . . . . . . . . . . . . . . . . 3-12
Figure 3-14: Brake Assembly . . . . . . . . . . . . . . . . . . . . . 3-13
Figure 3-15: Torque Hub Assembly . . . . . . . . . . . . . . . . 3-15
Figure 3-16: Torque Hub . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Figure 3-17: Rotary Manifold . . . . . . . . . . . . . . . . . . . . . . 3-18
Figure 3-18: Removing Trunion Pins . . . . . . . . . . . . . . . 3-19
Figure 3-19: Extend Tip Boom . . . . . . . . . . . . . . . . . . . . 3-19
Figure 3-20: Remove Rod Slide Weldment . . . . . . . . . . 3-19
Figure 3-21: Remove trunion pins . . . . . . . . . . . . . . . . . . 3-19
Figure 3-22: Remove Rear Pin Cap Screw . . . . . . . . . . . 3-20
Figure 3-23: Positioning Tip Boom Rod Slide Weldment 3-20
Figure 3-24: Master Cylinder . . . . . . . . . . . . . . . . . . . . . 3-22
Figure 3-25: Slave Cylinder . . . . . . . . . . . . . . . . . . . . . . 3-22
Figure 3-26: Jib Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Figure 3-27: Lift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Figure 3-28: Upper Boom Extend Cylinder . . . . . . . . . . . 3-24
Figure 3-29: Lower Boom Extend Cylinder . . . . . . . . . . . 3-24
Figure 3-30: Steering Cylinder . . . . . . . . . . . . . . . . . . . . 3-25
Figure 3-31: Axle Extend Cylinder . . . . . . . . . . . . . . . . . 3-25
Figure 3-32: Rotary Actuator . . . . . . . . . . . . . . . . . . . . . . 3-26
Figure 3-33: Rotary Actuator . . . . . . . . . . . . . . . . . . . . . . 3-27
Figure 3-34: Cage Rotator . . . . . . . . . . . . . . . . . . . . . . . 3-27
SECTION 4
Troubleshooting
Figure 4-1: Superflex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Figure 4-2: DMR-30 Receiver . . . . . . . . . . . . . . . . . . . . . . 4-3
Figure 4-3: DMT-30 Transmitter . . . . . . . . . . . . . . . . . . . . 4-3
SECTION 5
Schematics
Figure 5-1: Electrical Schematic - Diesel (102026-000) . . 5-3
Figure 5-2: Electrical Schematic - Gas (102026-001 . . . . 5-5
Figure 5-3: Hydraulic Schematic (102027-000) . . . . . . . . 5-7
Figure 5-4: Valve Manifold Assembly . . . . . . . . . . . . . . . . 5-8
Figure 5-5: Series/Parallel Valve Block . . . . . . . . . . . . . . . 5-9
Figure 5-6: Front Valve Block . . . . . . . . . . . . . . . . . . . . . . 5-9
Figure 5-7: Rear Valve Block . . . . . . . . . . . . . . . . . . . . . 5-10
Figure 5-8: Axle Extend Valve Block . . . . . . . . . . . . . . . . 5-10
Figure 5-9: Upper Controller, Top Half . . . . . . . . . . . . . . 5-11
Figure 5-10: Upper Controller, Bottom Half . . . . . . . . . . 5-11
Figure 5-11: Upper Controller wiring Diagram . . . . . . . . 5-12
Figure 5-12: Lower Controller . . . . . . . . . . . . . . . . . . . . . 5-13
Figure 5-13: Lower Controller Wiring Diagram
(102018-000) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

SB80 Work Platform - European V
L
IST OF
T
ABLES
SECTION 1
Introduction & Specifications
Table 1-1: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
SECTION 2
Machine Preparation & Operation
Table 2-1: Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
SECTION 3
Maintenance
Table 3-1: Preventative Maintenance Check list . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Table 3-2: Torque Specifications for Fasteners . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Table 3-3: Torque Specifications for Hydraulic Components . . . . . . . . . . . . . 3-28
SECTION 4
Troubleshooting
Table 4-1: Electric Truth Table - Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Table 4-2: Electric Truth Table - Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Table 4-3: Hydraulic Truth Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
SECTION 5
Schematics
Table 5-1: Electrical Schematic Legend: (102026-000) . . . . . . . . . . . . . . . . . . . 5-2
Table 5-2: Electrical Schematic Legend: (102026-001) . . . . . . . . . . . . . . . . . . . 5-4
Table 5-3: Hydraulic Schematic Legend (064148-023) . . . . . . . . . . . . . . . . . . . 5-6

VI SB80 Work Platform - European
L
IST OF
T
ABLES

SB80 Work Platform - European i
F
ORWARD
HOW TO USE THIS MANUAL
This manual is divided into 6 sections. The section
number printed at the top corner of each page can be
used as a quick reference guide.
SPECIAL INFORMATION
NOTES: Give helpful information.
WORKSHOP PROCEDURES
CAUTION: Detailed descriptions of standard
workshop procedures, safety principles and
service operations are not included. Please
note that this manual does contain warnings
and cautions against some specific service
methods which could cause personal injury, or
could damage a machine or make it unsafe.
Please understand that these warnings cannot
cover all conceivable ways in which service,
whether or not recommended by UpRight, Inc.,
might be done, or of the possible hazardous
consequences of each conceivable way, nor
could UpRight Inc. investigate all such ways.
Anyone using service procedures or tools,
whether or not recommended by UpRight Inc.,
must satisfy themselves thoroughly that nei-
ther personal safety nor machine safety will be
jeopardized.
All information contained in this manual is based on
the latest product information available at the time of
printing. We reserve the right to make changes at
any time without notice. No part of this publication
may be reproduced, stored in retrieval system, or
transmitted, in any form by any means, electronic,
mechanical, photocopying, recording, or otherwise,
without the prior written permission of the publisher.
This includes text, figures and table.
DANGER
!
!
Indicates the hazard or unsafe practice will
result in severe injury or death.
WARNING
!
!
Indicates the hazard or unsafe practice could
result in severe injury or death.
CAUTION
!!
Indicates the hazard or unsafe practice could
result in minor injury or property damage
Introduction &
Specifications 
General description and machine specifications.
Machine Preparation &
Operation 
Information on how to operate the work platform
and how to prepare it for operation.
Maintenance 
Preventative maintenance and service
information.
Troubleshooting 
Causes and solutions to typical problems.
Schematics 
Schematics and valve block diagram with
description and location of components.
Illustrated Parts
reakdown 
Complete parts lists with illustrations.

ii SB80 Work Platform - European
F
ORWARD
NOTES:

SB80 Work Platform - European 1-1
Section 1
I
NTRODUCTION
& S
PECIFICATIONS
1.1 INTRODUCTION
Purpose
The purpose of this service and parts manual is to
provide instructions and illustrations for the operation
and maintenance of the SB80 Work Platform manu-
factured by UpRight, Inc. of Selma, California.
Scope
The manual includes procedures for proper opera-
tion, maintenance, adjustment, and repair of this
product as well as recommended maintenance
schedules and troubleshooting.
1.2 GENERAL DESCRIPTION
The Work Platform consists of the platform, control-
ler, elevating assembly, power module, control mod-
ule, and chassis.
Platform
The platform has a non-slip aluminum floor, 1.11 m
(44 inch) high guardrails with midrail, 152 mm (6
inch) toeboards and an entrance gate at the rear of
the platform.
Platform Controller
The platform controller contains the controls to oper-
ate the machine. It is located at the front of the plat-
form. The interlock footswitch most be depressed to
operate any function from the platform. A complete
explanation of control functions can be found in Sec-
tion 2.
Elevating Assembly
The platform is raised and lowered by the boom
assembly. The hydraulic pump, driven by the engine,
powers the cylinders. Solenoid operated valves con-
trol raising and lowering.
Power Module
The power module contains the engine, hydraulic
pumps and battery.
Control Module
The Control Module contains the Hydraulic reservoir,
fuel tank, hydraulic valve manifold. volt/hour meter,
electrical terminal strips, battery, and chassis control
panel. A complete explanation of the chassis control
functions is found in Section 2.
Chassis
The chassis is a structural frame that supports all the
components of the Work Platform.
Purpose of Equipment
The objective of the Work Platform is to provide a
quickly deployable, self propelled, variable height
work platform to elevate personnel and materials to
overhead work areas.
Special Limitations
Travel with the platform raised is limited to creep
speed.
WARNING
!
!
DO NOT use the platform without guardrails
and gate properly assembled and in place.
DANGER
!
!
The elevating function shall ONLY be used
when the work platform is level and on a firm
surface. The work platform is NOT intended to
be driven over uneven, rough or soft terrain
when elevated.

1-2 SB80 Work Platform - European
I
NTRODUCTION
& S
PECIFICATIONS
Section
1.3
1.3 SPECIFICATIONS
Table 1-1: Specifications
Specifications are subject to change without notice
Meets or exceeds all applicable requirements of OSHA and ANSI A92.5-1992
ITEM SPECIFICATION
Height
Working Height, Maximum 26,2 m (86 ft.)
Platform Height, Maximum 24,4 m (80 ft.)
Platform step in height 30,5 cm (12 in.)
Up and Over Height 2,3 m (7 ft. 6 in.)
Driveable Height 24,4 m (80 ft.)
Horizontal Outreach 21,9 m (72 ft.)
Turret Rotation 360 Degrees continuous
Platform Rotation 180 Degrees
Tail Swing 99 cm (3 ft. 3 in.)
Jib Length 4,2 m (8 ft.)
Jib Arc 140 Degrees
Inside Turning Radius 3 m (10 ft.)
Outside Turning Radius 7 m (23 ft.)
Drive Speed (Lowered) 5,2 kph (3.25 mph)
Drive Speed (Elevated) 1,2 kph (0.75 mph)
Gradeability Diesel 40% Gas 35%
Controls electric Proportional
Tires 15-22.5 x 16 ply
Tires (Plus3 Option) 18-22.5 18 ply foam filled
Dimensions
Platform Size 1,8mstd(6 ft.)2,4m opt (8 ft.)
Guardrail Height 114 cm (45 in.)
Toeboards 15,2 cm (6 in.)
Maximum Platform Capacity 272 kg (600 lbs.)
Maximum Number of Occupants 2
Weight (Gasoline) 14515 kg (32,000 lbs.)
Weight (Diesel) 14741 kg (32,500 lbs.)
Overall height (stowed) 2,7 m (9 ft.)
Overall Length (stowed) 11,5 m (37 ft. 8 in.)
Overall Width (retracted) 2,4 m (8 ft.)
Overall Width (extended) 3,2 m (10 ft. 6 in.)
Overall Width (Plus3) +10 cm (+4 in.)
Wheelbase 2,9 m (9 ft. 6 in.)
Ground Clearance 28 cm (11 in.)
Power Source (Gas) GM 3.0 liter 70 H.P.
Power Source (Diesel) Perkins 1004-42 86 H.P.
System Voltage 12 VDC
Maximum Hydraulic Pressure 345 bar (5000 PSI)

SB80 Work Platform - European 2-1
Section 2
M
ACHINE
P
REPARATION
& O
PERATION
ALL occupants must wear an approved fall restraint properly attached to designated platform anchorage point. Attach only one fall
restraint to each anchorage point.
NEVER exceed maximum platform load of 272 kg (600 lbs.) including two (2) occupants.
NEVER exceed 200 N (45 lbs.) of side force per occupant.
DISTRIBUTE all platform loads evenly on the platform.
NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps, curbs, or
debris; and avoiding them.
OPERATE machine only on surfaces capable of supporting wheel loads.
NEVER elevate the machine when wind speeds exceed 12.5 m/sec. (28 mph).
IN CASE OF EMERGENCY push emergency stop button to deactivate all powered functions.
ALWAYS close and secure sliding rail after entering platform.
NEVER exit or enter platform while elevated.
NEVER use ladders, scaffolding, or other items to gain height; work only from the platform floor.
NEVER climb down elevating assembly while platform is elevated.
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections, and dam-
aged cables or hoses before using.
VERIFY that all labels are in place and legible before using.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
IF ALARM SOUNDS while boom is elevated, STOP, carefully retract boom and lower platform without rotating. Move machine to a
firm, level surface.
NEVER attach overhanging loads or use boom as a crane.
NEVER alter operating or safety systems without manufacturers written consent.
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas.
NEVER replace any component or part with anything other than original UpRight replacement parts without the manufacturer's writ-
ten consent.
NEVER tow the machine. Transport by truck or trailer only.
AFTER USE, secure the work platform from unauthorized use by turning both keyswitches off and removing key.
California Proposition 65 Warning
Gasoline and diesel engine exhaust and some of their constituents are known to the State of California to cause
cancer, birth defects, and other reproductive harm.
Warning
All personnel shall carefully read, understand and follow all safety rules, operating instructions, and the Scaffold Industry Associa-
tion’s Manual of Responsibilities (ANSI A92.5) before operating or performing maintenance on any Upright aerial work platform.
NEVER operate the
machine within ten feet of
power lines. THIS MACHINE IS
NOT INSULATED.
NEVER operate boom with
platform elevated unless on
firm level surface (Plus3
machines 3 Degrees).
NEVER position the plat-
form without first checking
for overhead obstructions or
other hazards.
NEVER Climb, stand or sit
on platform guardrails or
midrail.
Safety Rules

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.1
2-2 SB80 Work Platform - European
2.1 INTRODUCTION
This manual covers the operation of internal combus-
tion powered models of the SB-80 Boom. This man-
ual must be stored on the machine at all times.
2.2 PRE-OPERATION AND SAFETY
INSPECTION
Carefully read, understand and follow all safety rules,
labels, and operating instructions, then perform the
following steps each day before use.
Perform a complete visual inspection of the entire
unit prior to operating. Check the following areas for
discrepancies:
1. Open panels and check hydraulic components /
hoses for damage or leaks. Check electrical com-
ponents / wiring for damage or loose connec-
tions.
2. Inspect chassis, axles, hubs, and steering linkage
for damage, deformation, buckled paint, loose or
missing hardware, and cracked welds.
3. Check tires for damage, punctures, and inflation;
Air filled tire pressure must be 7 bar (100 psi).
4. Check all hoses / cables for wear.
5. Inspect elevating assembly for damage, deforma-
tion, buckled paint, loose or missing hardware,
and cracked welds.
6. Inspect platform and guardrails for damage,
deformation, buckled paint, loose or missing
hardware, and cracked welds. Ensure that gate
operates freely and closes securely.
7. Check Hydraulic fluid level with platform fully low-
ered.
8. Check fluid level in batteries (see Battery Mainte-
nance, Section 3-4).
9. Check fuel level, add fuel if necessary (page 2-
11).
10. Check engine oil level.
11. Check air filter. Replace if necessary.
12. Set gasoline/propane selector to desired position.
Set to center position to purge the system when
switching fuels. If the machine is to be operated
on propane, open the supply valve on the tank.
NOTE: When using LP gas, use clean, water free
liquid petroleum gas, preferably from a bulk
storage tank.
13. Ensure that radiator is cold, check coolant level.
Add coolant if necessary.
WARNING
!
!
Never remove the cap from a hot radiator. Hot
coolant can cause severe burns.
WARNING
!
!
If you smell propane, close the supply valve on
the tank immediately until you have located and
corrected the leak.

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.3
SB80 Work Platform - European 2-3
2.3 SYSTEM FUNCTION INSPECTION
NOTE: Refer to Figure 2-2 for chassis and plat-
form control locations.
IMPORTANT: Before performing the System
Function Inspection be sure the axles are fully
extended. For axle extending instructions, refer
to “Extending and retracting Axles”.
1. Before performing the following tests, check area
around machine and overhead for obstructions,
holes, drop-offs, and debris.
2. Turn chassis key switch to chassis, and pull out
emergency stop switches at the chassis control
panel and at the platform control panel.
3. Retract locking pin (Figure 2-1).
4. Press the engine start toggle to crank the engine;
release when engine starts. If engine is cold (less
than 15 degrees F): press the glow plug button
and hold for six seconds prior to starting diesel
models.
5. Push in the chassis emergency stop button,
engine should stop. Repeat for platform emer-
gency stop button. Return both emergency stop
buttons to the on position, and start engine.
6. Operate function switches to raise / lower, rotate
left / right, each section of the elevating assembly
and observe the operation of the machine. All
functions should operate smoothly.
7. Turn chassis key switch to platform.
8. Mount the platform, and attach approved fall
restraint to designated platform anchorage point.
Attach only one fall restraint to each point.
Figure 2-1: Locking Pin
9. While depressing the foot switch, move the drive
control handle forward and reverse. Observe that
proportional functions operate smoothly, and that
brakes apply quickly after control is released.
10. While engaging the hand interlock, operate steer
switch to left and right. Observe that steering
wheels turn properly.
11. While depressing foot switch, operate boom con-
trols. Observe that boom operates smoothly, and
that boom raise and lower, turret rotation, and
boom extension and retraction operate propor-
tionally in conjunction with stroke of handle.
Observe that platform maintains level when boom
is elevated.
NOTE: Boom will not extend unless axles are
extended. Also boom will not raise beyond 45
12. With the boom elevated five degrees above hori-
zon or greater, operate drive control handle.
Observe that drive speed is limited to creep
(.30m [1 ft.] per second). Lower upper boom to
stowed position.
13. Press the service horn button. Observe that horn
is audible.
NOTE: Hand interlock controls drive/steer func-
tions only.
NOTE: Foot switch controls boom functions only.
WARNING
!
!
DO NOT use a machine that is damaged or
malfunctioning. Tag the machine and remove it
from service until it is repaired.

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.4
2-4 SB80 Work Platform - European
2.4 CONTROLS AND INDICATORS
The controls and indicators for operation of the SB80
Work Platform are shown in Figure 2-2. The name
and function of each control and indicator are listed
in Table 2-1. The index numbers in Figure 2-2 corre-
spond to the index numbers in Table 2-1. The opera-
tor shall know the location of each control and
indicator and have a thorough knowledge of the func-
tion and operation of each before attempting to oper-
ate the unit.
Table 2-1: Controls and Indicators
Chassis Platform
INDEX # NAME FUNCTION INDEX # NAME FUNCTION
1Oil Pressure
Gauge Displays current oil pressure. 17 Axle Extend/ Retract Controls axle extend/retract functions.
2
Water
Temperature
Gauge
Displays current water temperature. 18 Lights (Optional) Turns lights on or off.
3 Hourmeter Displays number of hours machine has been in
operation. 19 Generator (Optional) Charges battery for auxiliary power.
4Emergency Stop
Switch Cuts all power to platform and chassis controls. 20 Horn Sounds horn.
5 Key Switch Switches between chassis and platform control. 21 Emergency Stop Cuts all power to platform and chassis controls.
6 Engine Start Starts engine. 22 Axles Extended
Indicator Indicates if axles are extended.
7Glow Plug
(Diesel Only)
Press and hold for 20 seconds when engine is cold.
(Diesel only, below 15°f). 23 Tilt Warning Indicator Indicates if machine is on a slope that is unsafe.
8 Auxiliary Power Use only in the event of power failure. Provides only
enough power to lower boom. 24 Low Oil Pressure Indicator Indicates if oil pressure is reaching dangerous levels.
9 Enable Switch Must be pressed in order to control functions from the
chassis controls. 25 Torque Speed Selector Selects high or low speed drive.
10 Boom Control Controls boom functions. 26 Fuel Selector/
Glow Plug
Dual Fuel: Toggles between gas/propane.
Diesel: Hold in 20 seconds when engine is cold (below
15°f).
11 Boom Extension
Control Controls boom extension functions. 27 Auxiliary Power Enables auxiliary power. Provides enough power to lower the boom in the event of a power failure.
12 Turret Control Controls turret functions. 28 Boom Raise/
Swing
Controls boom raise/lower functions vertically. Controls
turret swing horizontally.
13 Jib Control Controls jib functions. 29 Boom Extend/
Retract Controls boom extend/retract functions.
14 Cage Rotation Controls cage rotation functions. 30 Cage Rotate Controls cage rotate functions.
15 Cage Level
Control Levels cage if rotated. 31 Jib Raise/Lower Controls jib raise/lower functions.
16 Circuit Breaker Overcurrent protection 32 Cage Level Levels cage if out of trim.
33 Drive Control
Handle Controls Forward or Reverse travel and steering on top.
34 Engine Start Starts engine.
35 Foot Interlock
Switch Enables platform controls when depressed.

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.4
SB80 Work Platform - European 2-5
Figure 2-2: Controls and Indicators
8
34
28 29 30 31 32 33
35
1
23
16
6
7
11
10
14
15
13
12
9
4
8
17
18
19 20 21 22
23 24 25 26 27

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.5
2-6 SB80 Work Platform - European
2.5 OPERATION
Before operating work platform ensure that:
• Pre-operation and safety inspection has been com-
pleted, and any discrepancies have been cor-
rected.
• System function inspection has been performed.
• Operator has been thoroughly trained on the oper-
ation of the machine.
• Work area is clear of all obstructions, holes, drop-
offs, or persons in the route of travel.
• Surface is capable of supporting wheel loads.
Refer to Figure 2-2 for control locations.
At any time during operation, press the emergency
stop button to stop all functions in the event of an
emergency.
At any time during operation, press the service horn
button to sound an audible warning in necessary.
Figure 2-3: Typical Fall Restraint Anchorage Point
From the Lower Controls
1. Turn the chassis key switch to chassis position.
2. Press the start button to crank the engine.
Release when the engine starts.
3. Diesel Engines: When the engine is cold (less
than 15°f); press and hold the glow plug button
for 20 seconds prior to starting.
From the platform controls
1. Turn the chassis key switch to platform controls.
2. Turn the platform rotary switch fully clockwise to
crank the engine. Release when engine starts.
3. Diesel Engines: When the engine is cold (less
than 15°f); press and hold the glow plug button
for 20 seconds prior to starting.
With Boom Lowered
1. Turn chassis key switch to platform, and pull out
the chassis emergency stop switch.
2. Mount the platform and close sliding rail.
3. Attach approved fall restraint to designated plat-
form anchorage point. Attach only one fall
restraint to each point.
4. Start engine.
WARNING
!
!
ALWAYS wear an approved fall restraint prop-
erly attached to designated platform anchorage
point when driving or operating the machine
(Figure 2-3).
Attach only one restraint to each anchorage
point.
Emergency Stop
Service Horn
Starting the Engine
Driving

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.5
SB80 Work Platform - European 2-7
5. Check that the area around and above the work
platform is clear of obstructions, holes, drop-offs,
persons in the route of travel, and the surface is
capable of supporting wheel loads.
6. Engage the interlock switch and move the drive
control handle forward to travel forward and rear-
ward to travel in the reverse direction.
NOTE: When the boom is rotated to the front of
the chassis (steering wheels aft) directions of
travel and steering will be reversed. Observe
the color coded arrows on the control panel
near the drive control handle, and on the chas-
sis. They will indicate the direction of travel
when the drive control handle is moved.
From the Platform Controls
Important: Axles must be fully extended to allow
boom extension or boom to be raised above
45°. Machine must be driven forward or reverse
while extending axles. Ensure all four wheels
can be clearly seen and persons and obstacles
are clear of the machine.
1. Drive the machine forward or reverse.
2. Move and hold the axle extend/retract switch to
extend.
3. The axles will extend.
4. When axles are fully extended, the axles
extended light (green light on platform controller)
will illuminate.
NOTE: Verify Yellow bars are visible on all four
axles at full extension.
5. Re-synchronize the steering geometry by steer-
ing full left or full right and holding for a few sec-
onds.
6. All boom functions are now available.
With Boom Elevated
Travel with boom elevated is restricted to firm
level surfaces only. (Plus3 machines 3°)
When driving elevated, the machine will travel at
creep speed (1 foot [.30 m] per second).
Steering
1. While engaging the interlock, push the steering
switch (located on top of the control handle) to
the left to turn left, and right to turn right.
NOTE: Steering is not self centering. Wheels
must be returned to the straight ahead position
by operating the steering switch.
Positioning the Platform
Positioning the platform as close as possible to the
work area requires some planning. First, you must
survey the work site to find a suitable place to park
the machine. This must be a firm level area as close
as possible to the work area. Take into consideration
all obstructions on the ground and overhead and
avoid them.
Always, before operating any function, check the
area around and overhead for any obstructions or
electrical conductors.
Multifunction Controls
The UpRight SB-80 employs the use of multifunction
controls. This means that functions can operate at
full speed simultaneously.
The turret may be rotated while driving if necessary
to make turns in tight areas*. All other boom func-
tions will not operate while driving.
*NOTE: European model only. On Domestic mod-
els, all functions are available while driving.
Extending and
Retracting Axles
WARNING
!
!
NEVER exit the platform while the boom is ele-
vated. Keep both feet firmly on platform floor at
all times. Do not use planks, ladders, or any
other device on the platform for achieving addi-
tional height or reach.

M
ACHINE
P
REPARATION
& O
PERATION
Section
2.5
2-8 SB80 Work Platform - European
Lower Control Operation
All boom functions will operate at fixed speed.
1. Turn chassis keyswitch to chassis controls.
2. With engine running, operate boom control
switches to position the platform.
Move the platform level control switch forward to
swing the platform upward, rearward to swing the
platform downward. Release the switch to stop level-
ing.
Move the boom rotation joystick to the right to rotate
right, left to rotate left. Release the switch to stop
rotation. The turret rotation will function at a speed
proportional to the stroke of the joystick. Make sure
the area around the boom is clear of all obstructions
before rotating the turret.
Move the joystick forward to elevate the boom, rear-
ward to lower the boom. Release the control lever to
stop elevating / lowering. The boom elevate will func-
tion at a speed proportional to the stroke of the joy-
stick.
While depressing the enable switch, move the boom
extension control joystick rearward to extend the
boom, forward to retract the boom. Release the con-
trol lever to stop extending / retracting. The boom
extension will function at a speed, proportional to the
stroke of the joystick.
While depressing the enable switch, push the jib con-
trol switch forward to elevate the jib, rearward to
lower the jib. Release the control lever to stop elevat-
ing / lowering.
While depressing the enable switch, toggle the con-
trol switch left to rotate left, right to rotate right.
Release the switch to stop rotation.
WARNING
!
!
NEVER exit the platform while the boom is ele-
vated. Keep both feet firmly on platform floor at
all times. Do not use planks, ladders, or any
other device on the platform for achieving addi-
tional height or reach.
WARNING
!
!
DO NOT operate the machine if the platform
does not maintain level when elevated.
Leveling the Platform
Rotating the Turret
Elevating the Boom
Extending the Boom
Elevating the Jib
Rotating the Platform
