Uraku NV-812 User manual

Version 2.3
2013
DVR NV-812
User’s Guide
http://www.uraku.asia

URAKU DVR
1
1. Product Introduction.............................................................................................................................. 2
2. Safety Information.................................................................................................................................. 3
3. Packing List............................................................................................................................................... 3
4. Panel Function Introduction.............................................................................................................. 4
4.1 Front Touch Sense Panel Layout (For reference only)......................................... 4
4.2 Front Touch Sense Panel Function Indication:.......................................................... 4
4.3 Rear Panel Layout................................................................................................................... 5
4.4 Installation Guide...................................................................................................................... 5
5. HDD & USB Installation.................................................................................................................... 14
6. Remote Control..................................................................................................................................... 16
6.1 Remote Control Panel Introduction............................................................................... 16
6.2 Remote Control Explanation............................................................................................. 17
7. System Menu......................................................................................................................................... 20
7.1 Getting Started......................................................................................................................... 20
7.2 Record......................................................................................................................................... 20
7.3 Browser....................................................................................................................................... 23
7.4 Utility............................................................................................................................................. 25
7.5 Setup............................................................................................................................................ 26
8. Main Functions Description............................................................................................................. 36
8.1 Time Shift................................................................................................................................... 36
8.2 Folder Visiting........................................................................................................................... 39
8.3 Video File Edit Operation................................................................................................... 41
8.4 One Key Backup..................................................................................................................... 46
8.5 Copy File and Folder……………………………………..………………………………………….46
8.6 File Playing Mode…………………………………………………………………………………..….48
8.7 Removable HDD……………………………………………………………………………………….50
9. Common Trouble Shooting……………………………………….........................................................51
10. Frequently Customer Asked Questions............................................................. 52
11. Product Specifications …………………..………………………………………………………….……….53

URAKU DVR
2
1. Product Introduction
This DVR is a standalone. It designed for video playing, digital recording and mass
memorizing. It is a video player that can play back high quality AV video and audio program
on your TV environment. It is also a device can you record your favorite program from
television and playback any time. It is developed by the latest digital technology. You will be
able to achieve visually high qualified pictures and good sound effects that is comparable
good as the DVD resources.
Recording - Instant Recording & Timer Recording and support one button recording.
Recording fromAV1 (Composite), YUV (Component) and TV (Analog TV Tuner)
Recording file save as MPEG-2(.vob) or MPEG-4(.avi) format.
Multi Recording Quality –*.VOB HQ/ SP/ LP/ EP/ SLP/ SEP (720X576 / 720X480)
*.AVI HQ/ SP/ LP/ EP/ SLP/ SEP (720X576 / 720X480)
Time Shift - Pause you live TV program and also allow playback your recording program from
start while in the mpeg2 recording mode.
Video file supported - * .AVI (Dvix,Xvid), *.VOB(DVD), *.DAT(VCD), *.MPG(MPEG1/ 2)
Up to 720x576
Music file supported - *.MP3, and *.WMA
Photo file supported - *.JPEG, *.BMP, and *.Gif
Data Storage –Work as a portable HDD using USB slave 2.0
USB Host –Support USB2.0 host port for recording & playback
Input Source –CVBS (composite) and YCbCr (Component and Audio (L&R Stereo)
(YCbCr Max resolution: 720x576i / Interlace YUV)
Output Source –CVBS (Composite), YPrPb (Component) _720x576i and VGA_720x576i
Audio (L&R Stereo)
Analog TV Tuner –Support analog PAL B/G, NTSC, D/K, I, SECAM L and L’ reception
Backup storage –One key USB backup function

URAKU DVR
3
2. Safety Information
Before installing, please read carefully all the instructions & procedure in this manual.
Turn off the power when not in use and unplug the power when not in use for a long time.
Do not open the cover to services by yourself. Contact a qualified service technician or your
retailer to help you to service.
Avoid dust, humidity, and temperature extremes.
Do not place the product in the wet or high temperature area.
Do not drop the DVR from heights. Doing so may cause damage to the hard drive.
To avoid malfunction, place the product on a stable and plat surface.
To avoid the damage of surface, do not use any cleanser or the ethyl alcohol.
This user guide is only used for installation. Please use the physical set as reference.
3. Packing List
DVR Player - 1
Remote Control - 1
User Guide –1
AV Cable –1
Remote Control Battery -2
AC/DC Adaptor –1
AC/DC Adaptor Power Cord –1

URAKU DVR
4
4. Panel Function Introduction
4.1 Front Touch Sense Panel Layout (For reference only)
4.2 Front Touch Sense Panel Function Indication:
NO.
Name
Functions
1
Up
Move Up, Next Chapter, Channel Add
2
Left
Move Left, Fast Backward, Volume Down
3
Down
Move Down，Next chapter, Channel Down
4
OK
OK, Stop, Source Switch
5
Right
Move Right, Fast Forward, Volume Up
6
Backup
Backup USB Data to Hard Disk
7
Menu
Menu Open and Returned
8
HDD_LED
HDD Indicator LED Light
9
USB_LED
USB Indicator LED Light
10
IR
IR window
11
USB Slave
Hard Disk Data Copy Connector
12
USB Host
Ext. Hard Disc or Thumb Drive Connector
(Recording & Playback)
13
Power
Power On/Off
1
DIGITAL VIDEO RECORDER
FD7300S
2
3
4
5
6
7
8
9
10
11
12
13

URAKU DVR
5

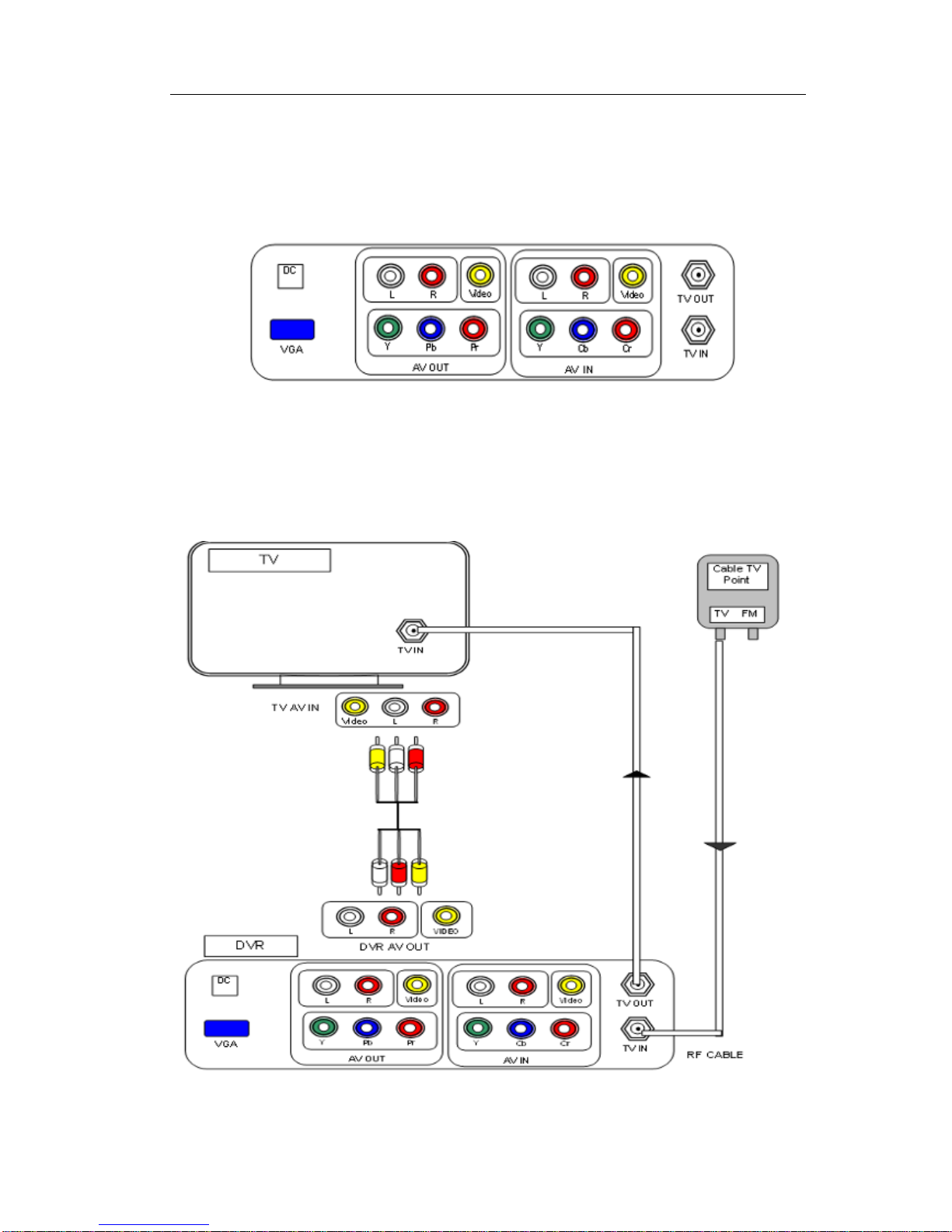

4.3 Rear Panel Layout
DC-In, AV Input,AV Output, VGA Output, TV Input & TV Output connector are show in
below panel.
4.4 Installation Guide
Option 1: RF Cable out from antenna to DVR TV In then from DVR AV (CVBS) out to TV
AV (CVBS) in jack

URAKU DVR
6
Option 2: RF Cable out from antenna to DVR TV In then from DVR
(Y Pb Pr ) Component out to TV Component in jack.

URAKU DVR
7
Option 3: RF Cable Out from Antenna to DVR TV In then from DVR VGA out to PC
Monitor and DVR Audio out (L & R) to SpeakerAudio (L & R) input Jack.

URAKU DVR
8

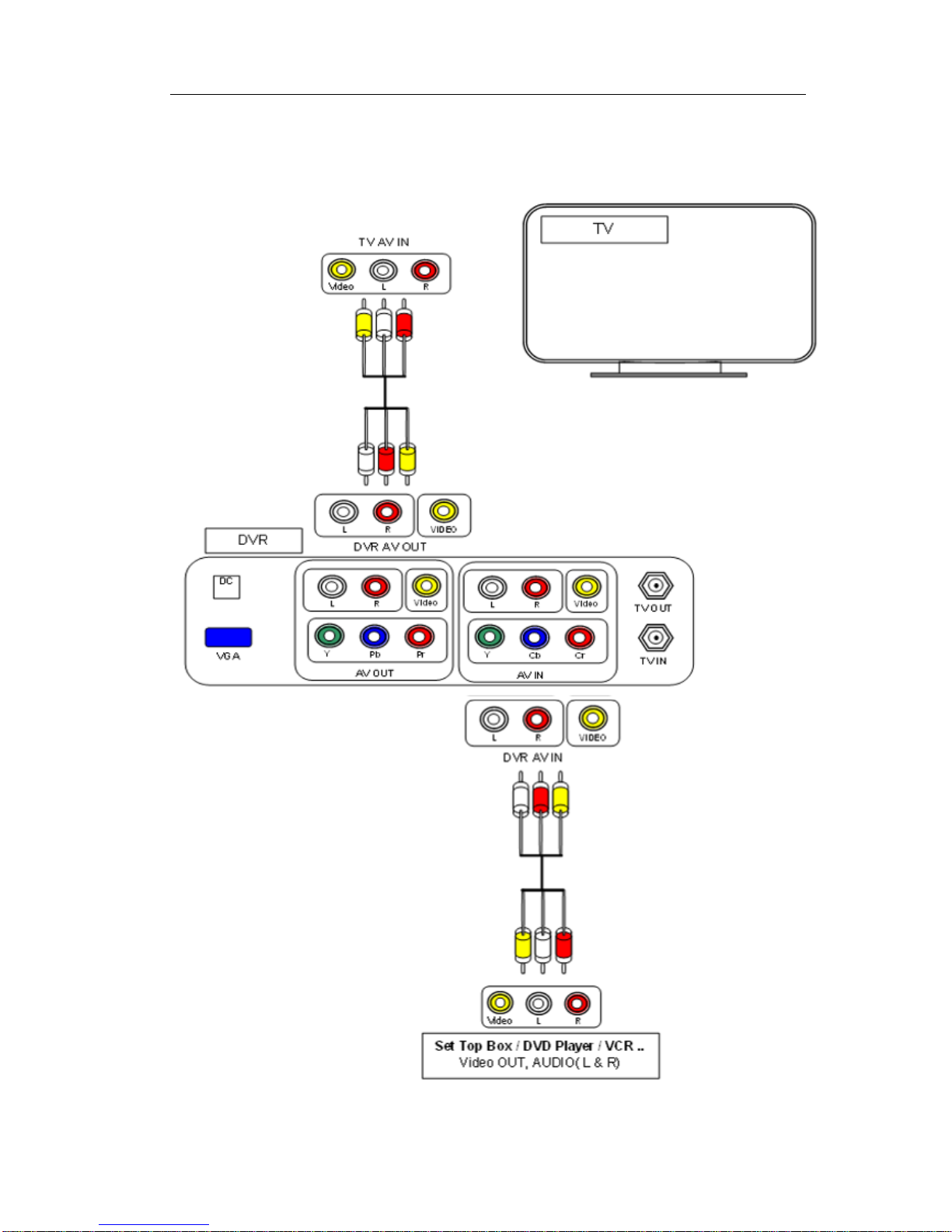

Option 4: Set Top Box / DVD / VCR AV (CVBS) Out to DVR AV (CVBS) in then from
DVR AV (CVBS) Out to TV AV in jack.

URAKU DVR
9

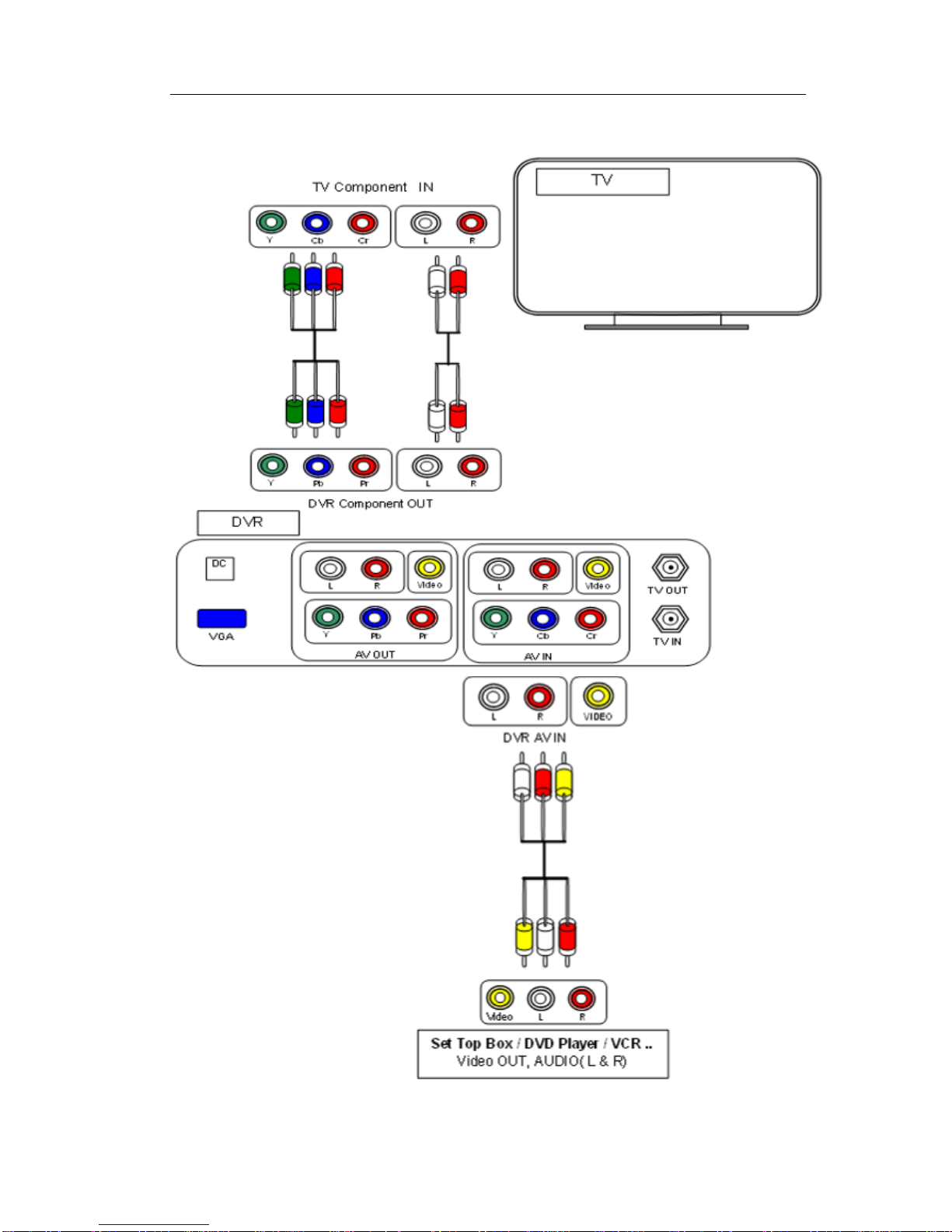

Option 5: Set Top Box / DVD / VCR AV (CVBS) out to DVR AV (CVBS) in then from
DVR Component (Y Pb Pr) Out to TV component in jack.

URAKU DVR
10
Option 6: Set Top Box /DVD /VCR AV (CVBS) out to DVRAV (CVBS) in then from DVR
VGA out to PC Monitor VGA in (D-Sub) and DVR Audio out (L & R) to Speaker
Audio (L & R) input Jack

URAKU DVR
11

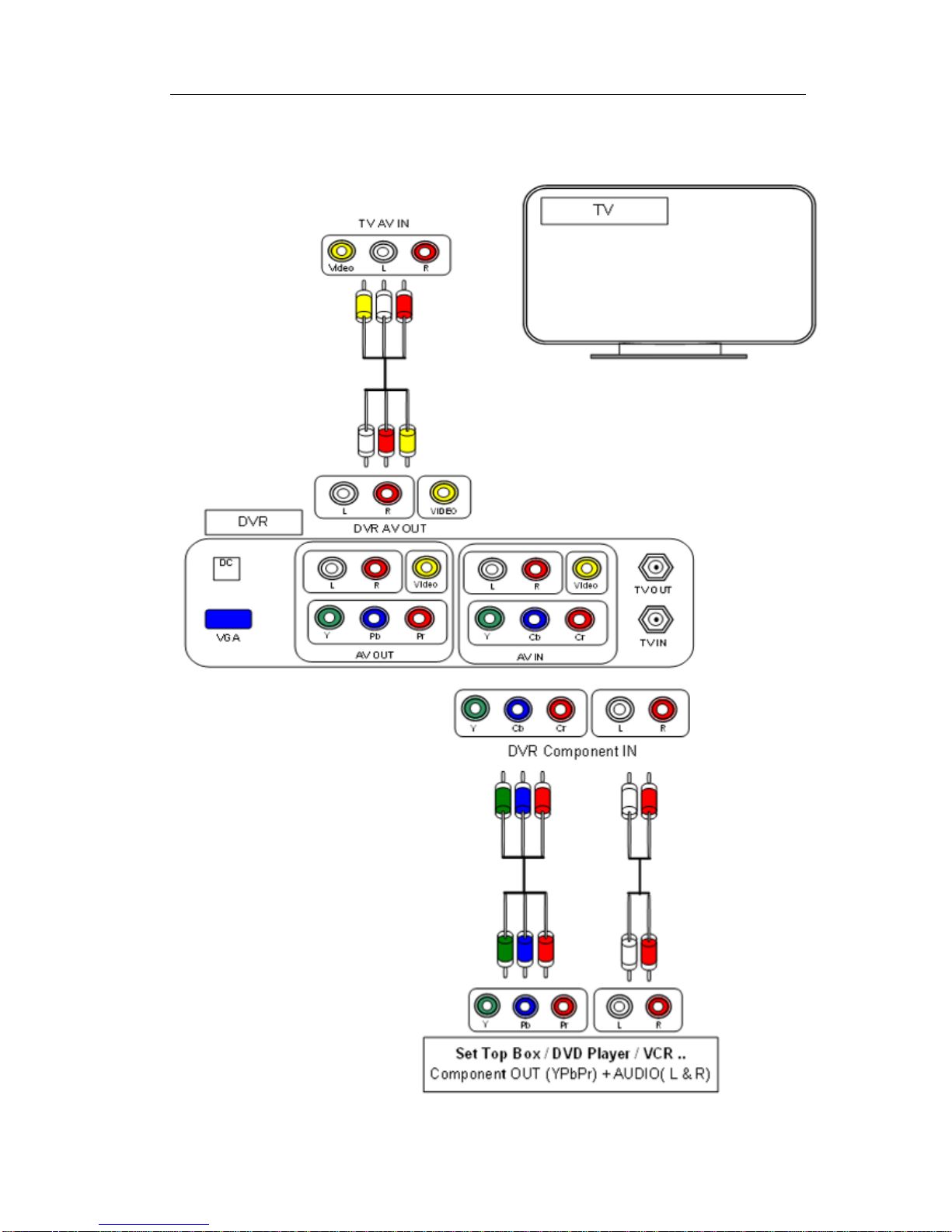

Option 7: Set Top Box/DVD/VCR Component (Y Pb Pr) out to DVR Component In (Y Cb Cr)
then from DVRAV (CVBS) Out to TV AV in jack

URAKU DVR
12

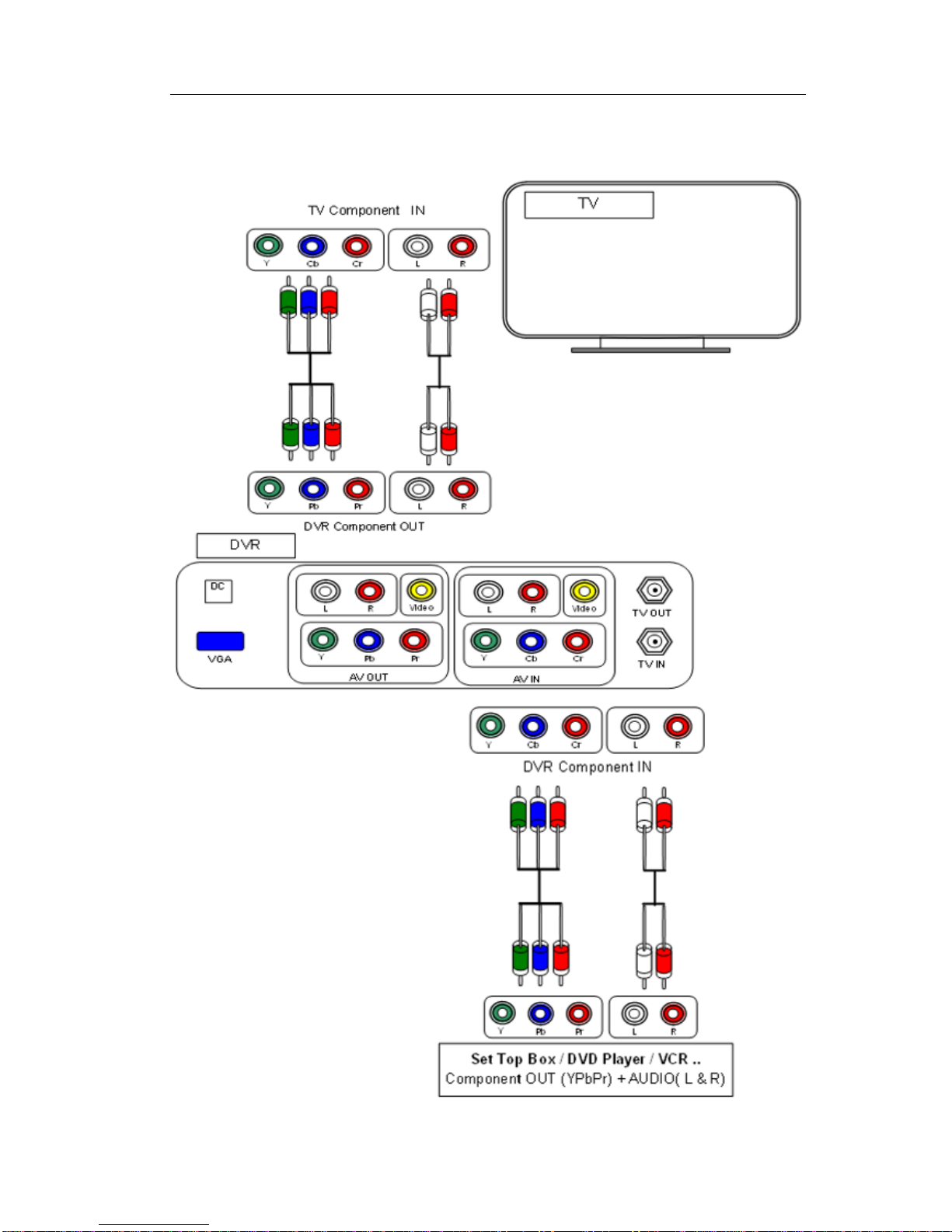

Option 8: Set Top Box /DVD /VCR Component (Y Pb Pr) out to DVR Component(Y Cb Cr)
in then from DVR component ( Y Pb Pr) Out to TV component in jack

URAKU DVR
13
Option 9: Set Top Box /DVD /VCR Component (Y Pb Pr) out to DVR Component(Y Cb Cr)
in then from DVR VGA out to PC Monitor VGA in (D-Sub).

URAKU DVR
14
5. HDD & USB Installation
Hard Disk Storage Device:
-Supporting 3.5” SATA interface hard disk available in the market. We recommend
Seagate, Hitachi, Toshiba and Samsung brand with 7200RPM speed HDD drives.
(3.5”IDE Hard Disk Drive is optional)
-Internal HDD supported is up to 1TB (1000GB)
-For New HDD installed, you should follow below steps:
Step1: Install HDD into DVR.
Step2: Connect the HDD Power and Data cable accordingly.
Step3: Switch on the DVR power.
Step4:After DVR boot up enter to TV/AV/YUV mode, switch off the DVR power.
Step5:After that switch on the DVR power again.
In this time, DVR itself will automatically detected the HDD and format it as FAT32
Format (HDD LED in the front panel will lighting).
-For used HDD installed, you should follow below steps:
Step 1: Make sure HDD is still working.
Step 2: Install HDD into DVR.
Step 3: Connect the HDD Power and Data cable accordingly
Step 4: Switch on the DVR power.
Step7:After DVR boot up enter to TV/AV/YUV mode, switch off the DVR power.
Step8:After that switch on the DVR power again.
In this time, DVR itself will automatically detected the HDD and format it as FAT32
Format (HDD LED in the front panel will lighting).
USB Storage Devices:
-Supporting most of the market available USB portable hard disk and thumb drive.
-USB HDD supported maximum is up to 1TB (1000GB)
-Ensure USB HDD was formatted to FAT32 file system.
-If not formatted to FAT32 format, DVR unable to detect your USB hard drive.
-For Window2000/XP/Vista/7 operating system, maximum size format FAT32 only up

URAKU DVR
15
32GB in one partition.
-For Mac book is can be formatted your portable hard disk (> 32GB) to FAT32 format.
-You also can visit this website http://tokiwa.qee.jp/EN/Fat32Formatter to download
the FAT32 formatter software to format your USB hard disk drive to FAT32 format in
one partition.
Important Notes:
1- Time Shift function is not supported if Internal HDD is not installed.
2- MPEG-2 video recording file is not allowed if Internal HDD is not installed
3- One key Backup is not function if Internal HDD is not installed.

URAKU DVR
16
6. Remote Control
6.1 Remote Control Panel Introduction
1
2
3
4
6
7
8
9
11
12
13
14
15
16
31
30
28
26
24
23
22
21
20
19
18
17
5
10
25
27
29

URAKU DVR
17
6.2 Remote Control Explanation
No.
Name
Function
Function Introduction
1
POWER
POWER
ON/OFF
Button
Press to power on/off.
•Disable when the device is in recording state or connecting to PC.
2
SOURCE
SOURCE
SWITCH
Button
Press to switch TV / AV / YUV mode.
3
DISPLAY
DISPLAY
Button
Press to display current status.
•Press during playback and on screen display appear, showing
track number & time remaining.
•Press during recording and on screen display appear, showing
recording file mode and time recording remaining.
•Press during live TV mode and on screen appear, showing the
current channel number and time.
4
NUMERIC
NUMERIC
Button
(0-9)
Press to enter channel numbers or numeric input when
changing setting.
5
UP
UP Button
Press to move the highlight up while navigating menus.
Press to flip vertical of photo while viewing picture.
6
MENU
MENU Button
Press to open/close menu.
Press to return to the Menu while playback movie, song and view
photo.
7
LEFT
LEFT Button
Press to move the highlight left while navigating menus.
Press to rotate left 90°of photo while viewing picture.
8
OK
Enter/OK
Button
Press to select options in menus.
9
EDIT/CLEAR
EDIT/CLEAR
Button
Press to select rename, protect, delete, delete all chapter mark,
play full title, delete all while in the VIDEO folder.
Press to select copy, rename, delete, delete all & create new folder
while in the MPEG4 folder.
Press to select play mode, rename, delete, copy, delete all & create
new folder while in the AUDIO & PICTURE folder.
Press to delete the record task while in the timer recording.
Press to select insert chapter, delete chapter, delete all chapters,
cm cut, set index picture, title split & hide/unhide chapter while in
VIDEO file playing mode.
10
DOWN
DOWN Button
Press to move the highlight down while navigating menus.
Press to flip horizontal of photo while viewing picture.

URAKU DVR
18
11
REC
RECORD
Button
Press to begin recording or resume when recording has been paused.
Press repeatedly to set the one touch recording ( OTR )
length(30Min./60Min./90Min./120Min./150Min./180Min./….360Min./Off.)
12
SIMPLE REC
SIMPLE REC
Button
Press to enter fast record setup.
13
STOP
STOP Button
Press to stop playback or recording.
14
FR
FAST
REWIND
Button
Press to fast rewind the current playback. Press repeatedly to select
speeds (x2/x4/x8/x20).
15
BACKUP
BACKUP
Button
Press to backup USB data to HDD.
16
PREV
PREV Button
Press to view the previous chapter / file / TV Channel.
17
NEXT
NEXT Button
Press to view the next chapter / file / TV Channel.
18
HDD/USB
HDD/USB
Button
Press to switch between USB or HDD mode.
Press to enter Browser HDD mode/ USB mode.
19
FF
FAST
FORWARD
Button
Press to fast forward the current playback. Press repeatedly to select
speeds (x2/x4/x8/x20).
20
PLAY/PAUSE
PLAY/PAUSE
Button
Press to begin playback.
Press to pause the current playback or recording. Press again to
resume the playback or recording.
21
TIMER
RECORD
TIMER
RECORD
Button
Press to set timer recording tasks.
22
TIME SHIFT
TIME SHIFT
Button
While in the live TV / AV1 /YUV mode. Press to activate the time shift
function, which allows you to pause live TV and resume the program
from the point you left it.
While paused, the program is recorded to the internal HDD as long as
the space is available.
While in recording, Press to activate the time shift function, which
allows you to watch the record program from start.
Press to activate the time shift function and wait for the appearing on
the screen.
Press the Pause button and the program will be paused.
Press the Play button to resume viewing the program.
Press the Fast Forward/Fast Rewind button to fast forward/fast rewind
viewing the program.
Time shift mode remains active until you press the Stop button or Time
Shift button again.
23
VOL -
VOL - Button
Press to decrease the volume.
24
VOL +
VOL + Button
Press to increase the volume.
25
RIGHT
RIGHT
Button
Press to move the highlight right while navigating menus.
Press to rotate right 90°of photo while viewing picture.

URAKU DVR
19
26
CH-
CH- Button
Press to TV channel down
27
EXIT
EXIT Button
Press to return the last stage menu.
28
CH+
CH+ Button
Press to TV channel up
29
-/- -
CHANNEL DIGIT
Button
Press to set input channel or Playback file digit
30
RECALL
RECALL Button
Press to recall.
31
MUTE
MUTE Button
Press to mute the audio output, and press again to resume.
