urban ambiance UHP9070 User manual

Ceiling Fan Installation Manual
UHP9070
UHP9071
UHP9072

Table of Contents
Safety Rules.....................................................................................................................................................................................
Unpacking Your Fan .......................................................................................................................................................................
Installing Your Fan ..........................................................................................................................................................................
Installing the Light Kit ...................................................................................................................................................................
Operating Your Transmitter ...........................................................................................................................................................
Care of Your Fan ...........................................................................................................................................................................
Troubleshooting ............................................................................................................................................................................
Specifications ................................................................................................................................................................................
1.
2.
3.
7.
8.
10.
11.
12.

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.)
Or Less" and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of light fixtures are not acceptable for
fan support and may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is strongly
recommended.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.
Use only cUL-listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from
the trailing edge of the blades to the floor.
7. To operate the reverse function on this fan, press the reversing button
while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not packed
with the fan must be cUL Listed and marked suitable for use with the
model fan you are installing. Switches must be cUL General Use
Switches. Refer to the Instructions packaged with the light kits
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.

Unpack your fan and check the contents. You should have the following items:
Unpacking Your Fan 2.
12. Loose parts bag containing:
a. Blade attachment hardware
(10 screws, 10 fiber washers)
b. Blade holder attachment hardware
6 screws with lock washers (1 extra)
c. Mounting hardware
Wire nuts (3)
3
1
2
9
4
5
6
8
7
10
12
ab
11
c
Set of blades (3)
Mounting bracket
Fan motor assembly
Motor housing
Blade holder
Mounting plate
1.
2.
3.
4.
5.
6.
18W LED Light kit
Glass shade
Transmitter incl. 2 mounting screws
12V MN21/A23 battery
Balancing kit
7.
8.
9.
10.
11.

Tools Required
Phillips screw driver, straight slot screw driver,
adjustable wrench, step ladder, and wire cutters.

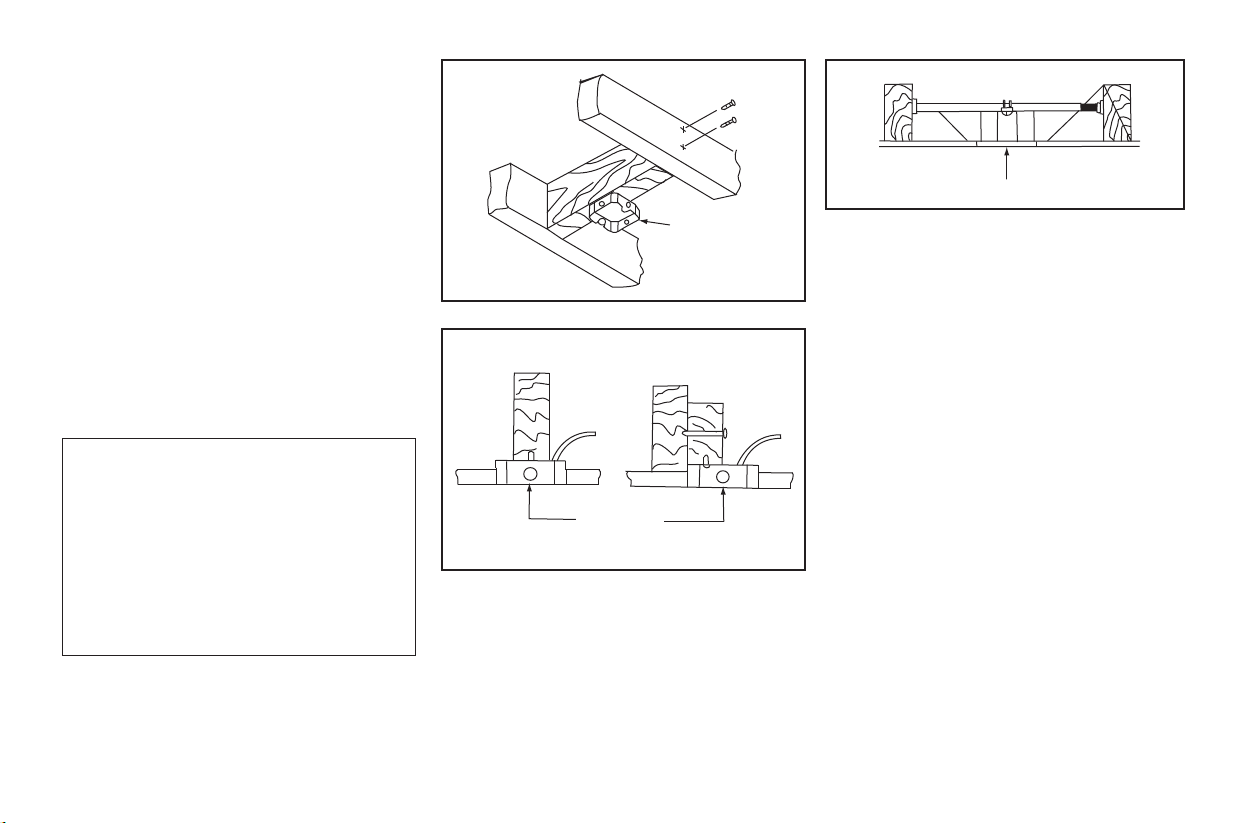

Mounting Options
If there isn't an existing cUL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the
fan (at least 35 lbs). Do not use plastic outlet
boxes.
3. Installing Your Fan
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR OTHER PERSONAL INJURY,
MOUNT FAN ONLY TO AN OUTLET BOX
MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE THE MOUNTING SCREWS
PROVIDED WITH THE OUTLET BOX. OUTLET
BOXES COMMONLY USED FOR THE
SUPPORT OF LIGHTING FIXTURES MAY NOT
BE ACCEPTABLE FOR FAN SUPPORT AND
MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figure 1
Figure 3
Figure 2
Outlet box
Outlet box
Outlet box
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure
3.

4.
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.

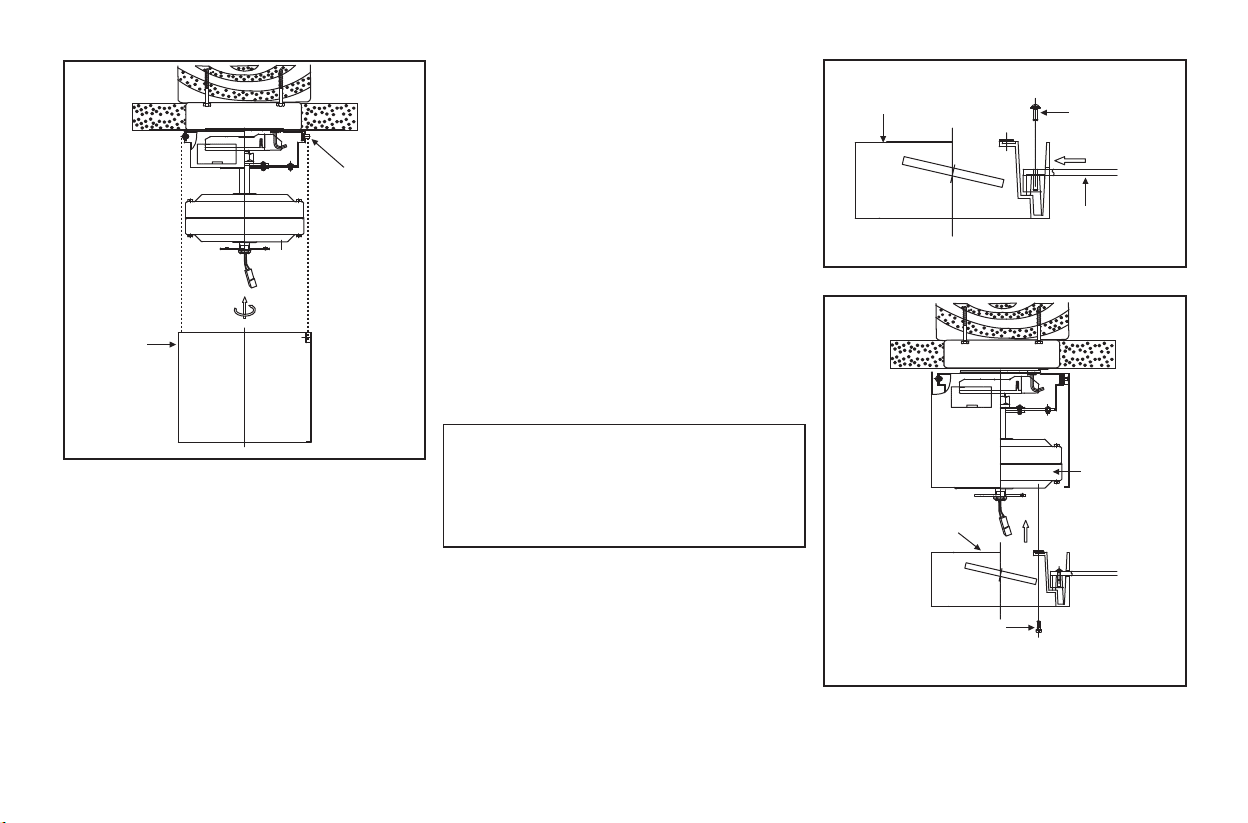

Hanging the Fan
Attach the mounting bracket to the outlet box
with two screws and washers provided with the
outlet box. Make sure the bracket is tight and
secured (Fig. 4).
Lift fan into position by hanging the motor
assembly onto the hook from the ceiling
mounting bracket allowing it to hang freely
(Fig. 5).
Secure the safety cable to the building
structure with a wood screw. (wood screw not
supplied) (Fig. 5)
1.
2.
3.
Outlet Box
Mounting Bracket
Figure 4
Figure 5
Making the Electrical
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.
NOTE: This remote control unit is equipped with
16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory. Please
recheck to make sure the switches on the
transmitter and the receiver are set to the same
position, any combination of settings will operate
the fan as long as the transmitter and receiver are
set to the same position. (Fig. 6)
Step 1. (Fig. 7) Receiver to House Supply Wires
Electrical Connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from the receiver. Connect the white
(neutral) wire from the ceiling to the white wire
marked "AC in N" from the Receiver. Secure the
wire connections with the plastic wire nuts
provided.
Motor
Safety
cable

Step 1. Move fan into position over the four
mounting bracket and secure with the 4 screws
provided. (Fig. 8)
Step 2. Raise the motor housing up against the
mounting bracket, the four supports inside the
housing should be placed against the four studs on
mounting bracket, twist the housing clockwise
until snug (Fig. 9).
Finishing the Fan
Installation
Figure 6
Figure 7
Figure 8
Code switch
(Located on
top of the motor)
TM
Step 2. (Fig. 7) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires spread them
apart so that the green and white wires are on one
side of the outlet box and black wires are on he
other side. Carefully tuck the wire connections up
into the outlet box.
NOTE: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit for
proper signal transmission between the
transmitting unit and the fan's receiving unit.
GROUND TO
MOUNTING
BRACKET
WIRING BOX
GREEN GROUND
GREEN GROUND
SUPPLY CIRCUIT
BLACKBLACK
WHITEWHITE
GREEN
Screws
Mounting
bracket
Motor
assembly
5.

6.
Attaching the Fan Blades
Step 1. Insert the blade through the slot in the
blade holder. Align the holes in the blade and the
fan blade holder and secure with a the screw and
fiber washer. (Fig. 10)
Step 2. Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Step 3. Fasten the blade holder assemblies to the
motor by tighten the five screws with lock washers
provided. (Fig. 11)
Figure 9
Figure 10
Figure 11
Motor
Housing
Studs
Screws with
fiber washers
Blade
Blade holder
Blade holder
assembly
Motor
Screws with
lock washers
WARNING: TO REDUCE THE RISK OF
PERSONAL INJURY, DO NOT BEND THE BLADE
ARMS WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NO INSERT
FOREIGN OBJECTS BETWEEN ROTATING FAN
BLADES.

7. Installing the Light Kit
Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 12)
Figure 13
Figure 12
Mounting
plate
Mounting ring
Screws
CAUTION: Before starting installation,
disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box. Turning
power off using the fan switch is not sufficient to
prevent electric shock.
1. Remove 1 of 3 screws from the mounting plate
and loosen the other 2 screws. (Do not remove)
2. While holding the LED light kit under the fan
motor assembly, make the 2-pin wire
connections:
- White to white
- Black to blue
3. Place the key holes in the LED light kit over
the two mounting screws previously loosened
from the mounting plate. Turn the LED light kit
until the LED light kit locks in place at the
narrow section of the key holes. Secure by
tightening the two screws previously loosened
and the one previously removed. (Fig. 13)
4. Raise the glass shade up against the LED light
kit and secure it to the fan by turning the glass
shade clockwise until snug. DO NOT
OVERTIGHTEN. (Fig. 13)
Screws
Glass
shade
Mounting
plate
Wire connector
LED
Light kit

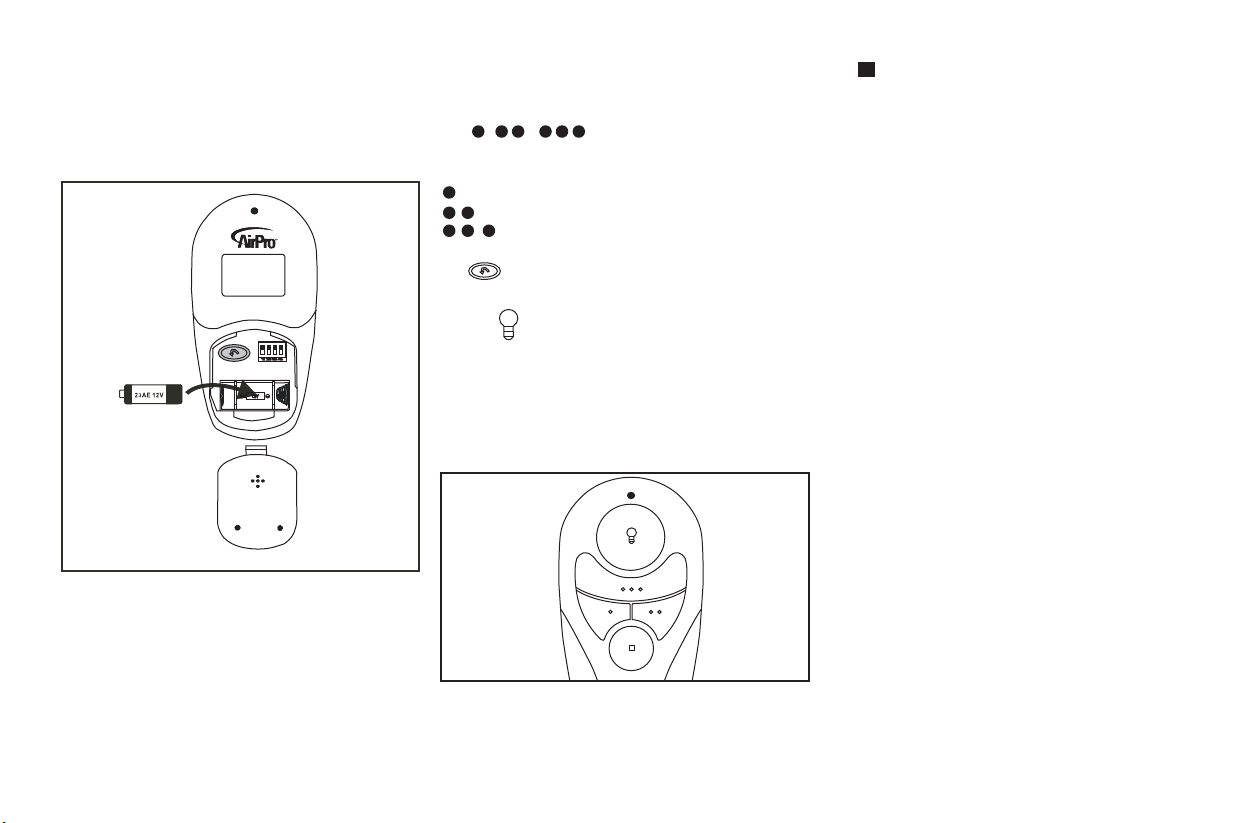

Operating Your Transmitter 8.
4. " " button:
This button turns the fan off.
NOTE: To operate the reverse function on this
fan, press the reverse button while the fan is
running.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
Warm weather - (Forward) A downward air flow
creates a cooling effect as shown in Figure 16.
This allows you to set your air conditioner on a
higher setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown in
Figure 17. This allows you to set your heating unit
on a lower setting without affecting your comfort.
Restore power to ceiling fan and test for proper
operation.
1. " , , " buttons:
These three buttons are used to set the fan
speed as follows:
= Low speed
= Medium speed
= High speed
2. " " button: (Fig. 14)
This button controls fan direction.
3. The " " button turns the light ON or OFF and
also controls the brightness setting. Press and release
the button to turn the light ON or OFF. Press and
hold the button to set the desired brightness. The
light key has an auto-resume, it will stay at the same
brightness as the last time it was turned off.
Figure 15
Installing the battery
Install 12V MN21/A23 battery (included), to prevent
damage to transmitter, remove the battery if not used
for long periods.
Figure 14

9.
Figure 16
Figure 17
Blade balancing
All blades are grouped by weight. Because natural
woods very in density, the fan may wobble even
though the blades are weighed equally.
The following procedure should correct most fan
wobbling problems. Check after each step.
1. Check that all blade and blade arm screws are
secure.
2. Most fan wobbling problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure this distance as shown
in Fig. 18. Rotate the fan until the next blade is
positioned for measurement. Repeat for each
blade. The distance deviation should be equal
within 1/8".
3. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side) blades
can redistribute the weight and possibly result in
smoother operation.
WARNING
Touching
ceiling
Figure 18
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE HOLDERS
WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.

Care of Your Fan 10.
Here are some suggestions to help you maintain your
fan
1. Because of the fan's natural movement, some
connections may become loose.
Check the support
connections, brackets, and blade attachments
twice a year.
Make sure they are secure. (It is not
necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new
appearance over the years. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The
plating is sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor, or the wood,
or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the
wood blades for additional protection and enhanced
beauty. Cover small scratches with a light application
of shoe polish.
4.
There is no need to oil your fan. The motor has
permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"

11. Troubleshooting
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the lampshade are tight. Check that light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type of control,
choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s).
2. Make sure the dip switches are set correctly.
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction

Specifications 12.
19.18
lbs
21.61
lbs
1.77'
Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F.
56"
Low
High
120
120
These are approximate measures. They do not include Amps and Wattage used by the light kit.
0.25
0.47
14.29
55.01
81
181
1820.61
4263.21
