E5 Single-Ended Assembly
Instructions
v3.
Page 1
Please Note:
These instructions apply to the E5 single-ended version only.

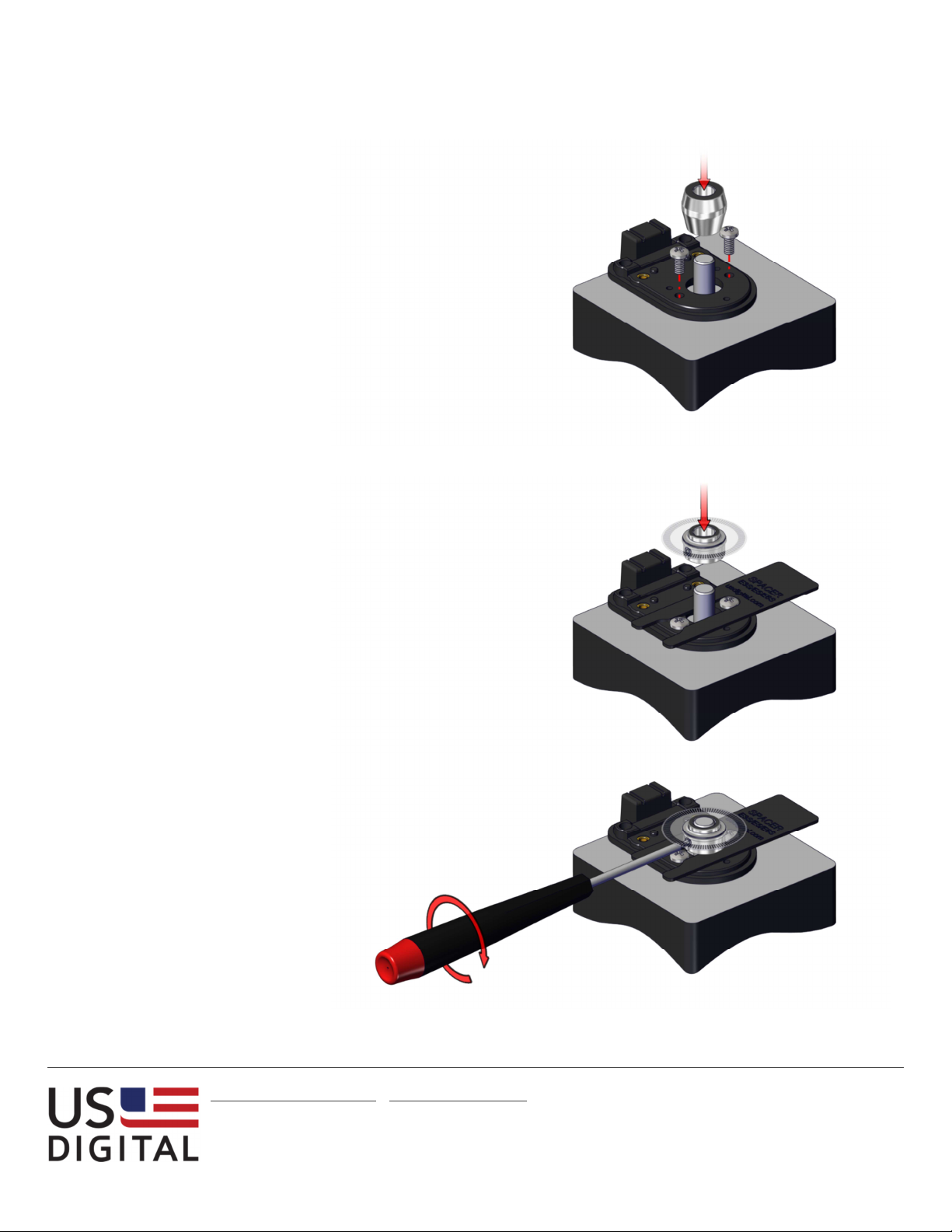

Step 1:
Secure base to mounting surface
using two or three screws. If a
centering tool is used, slip it over
shaft and into center hole of base.
Tighten mounting screws. Remove
centering tool.
Transfer Adhesive: Peel off paper
backing, place centering tool into
center hole of base, slip centering
tool onto shaft and slide base and
centering tool down onto mounting
surface as one piece. Press to form a
good bond, then slip centering tool
off shaft and continue with standard
mounting instructions.
Step 2:
Place spacer tool around shaft as
shown. Slip hub disk assembly over
shaft with codewheel disk towards
top until it bottoms out against
spacer tool.
Step 3:
Tighten set screw with hex wrench
provided while pressing down on
hub.

E5 Single-Ended Assembly Instructions
[email protected] ▪ www.usdigital.com
Local: 36 .26 .2468 ▪ Sales: 8 .736. 194
Support: 36 .397.9999 ▪ Fax: [phone]
14 NE 136
th
Ave. ▪ Vancouver, Washington ▪ 98684 ▪ USA
E5 Single-Ended Assembly
Instructions
v3.
Page 2
Step 4:
Slip optical module into position
until the two alignment pins slip into
holes of module (thick side of
module towards bottom). Secure
with 4-4 x 1/2" screws (supplied).
Step 5:
Place housing (cover) over assembly
and secure with two 4-4 x 5/8"
cover screws (supplied).
Step 6:
Attach cable.
